2ARHA-C05001CONTROL BOX

Product Specification MP-5000 COPELAND Transportation Solutions Boeletvej 1 8680 Ry, Denmark www.copeland.com COPELAND All Rights Reserved CONFIDENTIAL Table of Contents Transportation Solutions Updated: 17 October 2024 Author: [email protected] Project: MP-5000 Panel Specification rev. 1.1FCC.docx Page 2 of 60 MP-5000 Panel Table of Contents 1 SYSTEM OVERVIEW 4 2 ENVIRONMENTAL 6 3 CONFORMANCE 7 4 QUALITY AND RELIABILITY 9 4.1 Baseline 9 4.2 Reliability Framework 9 4.3 Crow-AMSAA with Working Together Team 10 5 DEDICATED IO LIST BASED ON UNIT TYPE 11 6 CM-5000 CONTROLLER MODULE 12 6.1 I/O List 13 6.2 Input / Output description 14 6.3 Serial Communication Interfaces 20 6.4 Wireless Communication 22 6.5 Power Input / Output 23 6.6 Battery Pack Interface and Capacity 24 6.7 Features in Battery Mode and Wakeup 25 6.8 Display interface 27 6.9 Watchdog 27 6.10 Battery Coin Cell 27 6.11 LED indications 27 6.12 Connectors, 28 6.13 Connection list 29 6.14 Enclosure of CM5000 32 7 OM-5000 OPTION MODULE 34 7.1 OM-5000 System Overview TK FRESH+ 34 7.2 OM-5000 System Overview TK FRESH+ and ActiveCA 34 7.3 OM-5000 System Enclosure Outline and Mounting 35 7.4 I/O List 35 7.5 Input / Output description 36 7.6 IO for General Functionality 36 7.7 IO for TK FRESH+ 37 7.8 IO for ActiveCA 37 COPELAND Transportation Solutions Boeletvej 1 8680 Ry, Denmark www.copeland.com COPELAND All Rights Reserved CONFIDENTIAL Table of Contents Transportation Solutions Updated: 17 October 2024 Author: [email protected] Project: MP-5000 Panel Specification rev. 1.1FCC.docx Page 3 of 60 7.9 Connectors 38 7.10 External PSU for ActiveCA 38 7.11 OM-5000 Connection list 38 8 OTHER PANEL COMPONENTS 40 8.1 Main Power Input 40 8.2 Mains Circuit Breaker 40 8.3 Current Loop Coil 41 8.4 Transformer 41 8.5 ON/OFF Switch 42 8.6 Contactors 42 8.7 Heater Element Wire Centre Point 43 10 HARNESS 44 11 HMI 45 11.1 Display DM-5000 45 11.2 Connectors 45 11.3 Connection list 45 11.4 Keypads 48 11.5 LED indication 48 12 PANEL BOX MECHANICAL 49 12.1 “Metal Bottom” rear Box 49 12.2 Front “Metal Door” 52 13 LABELING 55 13.1 External Label 55 13.2 Internal Label 56 14 OPTIONAL COMPONENTS 57 14.1 Copeland MODEM 57 14.2 RMM Slave 57 14.3 External light 57 14.4 External USB C connection 57 15 SUPPORTING EQUIPMENT 59 15.1 Field Test Kit 59 16 MP-5000 PANEL WIRE SCHEMATIC 59 DOCUMENT REVISION RECORD 60 Table of Contents Transportation Solutions Updated: 17 October 2024 Author: [email protected] Project: MP-5000 Panel Specification rev. 1.1FCC.docx Page 4 of 60 1 SYSTEM OVERVIEW The cabinet with o Panel Side mounted ▪ ON / OFF switch ▪ Retriever port (USB, Deutch, or Bridgelight (4 pole Canon), option o Panel Front / Door mounted ▪ Display ▪ Keyboard ▪ Signal LED’s o Panel Inside mounted ▪ Transformer ▪ Main Controller ▪ Battery Package ▪ Main Circuit breaker ▪ 3 Current-Loop coils. ▪ Contactors for driving the 460VAC components, w/Interlock ▪ RS232 extension cable Cargo space ▪ Optional • Option module for extension possibilities. • Copeland Modem and or RMM (ISO 10368 powerline) • 3-party modem • 3-part exterior power handling. (3-DIN Space) Table of Contents Transportation Solutions Updated: 17 October 2024 Author: [email protected] Project: MP-5000 Panel Specification rev. 1.1FCC.docx Page 5 of 60 Concept of the MP5000 Table of Contents Transportation Solutions Updated: 17 October 2024 Author: [email protected] Project: MP-5000 Panel Specification rev. 1.1FCC.docx Page 6 of 60 2 ENVIRONMENTAL Operating Min. Max. Method of compliance Ambient temperature, Refrigeration Unit full operation -30 60 C Ambient temperature, Refrigeration Unit in standby mode. No power consumption. -30 70 °C Relative humidity 95 % Condensing Salt mist, internal components 700 hours According to SWAAT (ASTM G85 A3) Salt mist, Panel 1500 hours According to SWAAT (ASTM G85 A3) Vibration IEC 61373:1999- Category 1, Class B per Simulated Long-Life Test Frequency range 2-150Hz Total RMS level 1.2 Duration 100 min per axis Shock 5g @ 10ms According to TKS60002, IEC 61373:1999- Category 1, Class B UV Resistance 1 According to TKS 28-020, ASTM G155-05a Cycle 7 ASTM G151-10 IP Rating 2 IP56 IEC529 Component inside Panel IP20 IEC529 Storage Min. Max. Units Method of compliance Ambient temperature 34 -40 70 C Relative humidity 95 % Condensing Shock 5g @ 10ms According to 60068-2-27 Ca 1 Only valid for Front Door, Front foil, and display. 2 Testing with drain holes closed 3 The display is only guarantied down to -30°C, but experience from the field shows that LCD displays can survive in the environment. 4 Battery concern Table of Contents Transportation Solutions Updated: 17 October 2024 Author: [email protected] Project: MP-5000 Panel Specification rev. 1.1FCC.docx Page 7 of 60 3 CONFORMANCE 3.1.0 ISO 1496-2:2018 A Thermal Freight Container is specified according to ISO 1496-2:2018 series1 freight containers – Specification and testing – Part2: Thermal containers. Relevant for the MP-5000 Panel this standard ISO 1496-2 is referring to the electrical aspects (section 9) and IEC 60947-1:2020 Low-voltage switchgear and control gear - Part 1: General rules. Also linking to Circuit breakers: IEC 60947-2 Switches/Disconnects: IEC 60947-3 Contactors and Motor Starters: IEC 60947-4 This standard classifies the various Thermal Containers where the outside ambient temperature is 50°C. This ambient temperature will be used for the ambient temperature specification of the MP-5000 Panel. This standard also specifies the voltage range, tolerance, frequency, and load capacity as well. This standard does not exclude other relevant standards. 3.1.1 ISO Standards The MP-5000 Panel shall adhere to the Voltage Outlet of generators complying with ISO 8528-5: 2018 class G1. The EN60204 make references to the following ISO Standards. EN ISO 12100:2010 EN ISO 13854:2019 EN ISO 13857:2019 3.1.2 CE Marking The MP-5000 …

Text truncated - open the document above for the full version.

UNITED STATES DESIGNATED AGENT LETTER Date: June 11, 2024 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Applicant U.S. designated agent Company Name: Copeland Transportation Solutions ApS Company Name: Copeland Digital Cold Chain Inc. FRN: 0027894625 FRN: N/A Grantee Code: 2ARHA Contact Name: Leif Rasmussen Contact Name Rodney Parson Address: Boeletvej 1 Address: 7121 Fairway Dr. #400 City/Province/Zip: DK-8680 Ry, Denmark City/Province /Zip: Palm Beach Gardens, FL 33418 Telephone: +45 4149 5174Telephone: 561-935-9652 Fax: Fax: Email: [email protected] Email: [email protected] Applicable Equipment: FCC ID: 2ARHA-C05001 ATTN: Director of Certification: We, Copeland Transportation Solutions ApS and Copeland Cold Chain Inc. understand and acknowledge the applicants consent and the designated agent’s obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and e-mail of the designated agent listed above. We, Copeland Transportation Solutions ApS and Copeland Cold Chain Inc. acknowledge the applicant’s acceptance of its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. Applicant U.S. designated agent Name (Printed): Leif Rasmussen Name (Printed): Rodney Parson Title: Compliance Manager Title: Dir HW/FW Signature: Signature: N/A N/A

Applicant Declaration QSF27-14-04 Rev 1.2 Oct 21, 2024 Page 1 of 1 Original Issue: Jan. 4, 2021 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Copeland Transportation Solutions ApS Address Boeletvej 1, DK-8680 Ry, Denmark FRN 0027894625 Grantee Code 2ARHA FCC ID: 2ARHA-C05001 Authorized Contact Name Leif Rasmussen Contact Phone [email protected] Contact Email +45 4149 5174 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO 17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Link to the Covered List: Covered List Copeland Transportation Solutions ApS (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Copeland Transportation Solutions ApS (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered list, established pursuant to §1.50002, as an entity producing “covered” equipment. Copeland Transportation Solutions ApS (“the applicant”) certifies that the equipment for which authorization is sought does not contain cybersecurity and anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software. Applicant Signature: Date: June 3, 2024 Print Name: Leif Rasmussen Title: Compliance manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Date: June 11, 2024 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: 2ARHA-C05001 To whom it may concern: We, the undersigned, hereby authorize Parlam Zhan to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Copeland Transportation Solutions ApS. This authorization is valid until further written notice from the applicant. Name (Printed): Leif Rasmussen Title: Compliance Manager Signature: On behalf of Company: Copeland Transportation Solutions ApS Telephone: +45 4149 5174

To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Copeland Transportation Solutions ApS Boeletvej 1 DK-8680 Ry Denmark Regarding: Confidentiality Request regarding application for FCC ID 2ARHA-C05001 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Signature: Leif Rasmussen Compliance Manager Copeland Transportation Solutions ApS

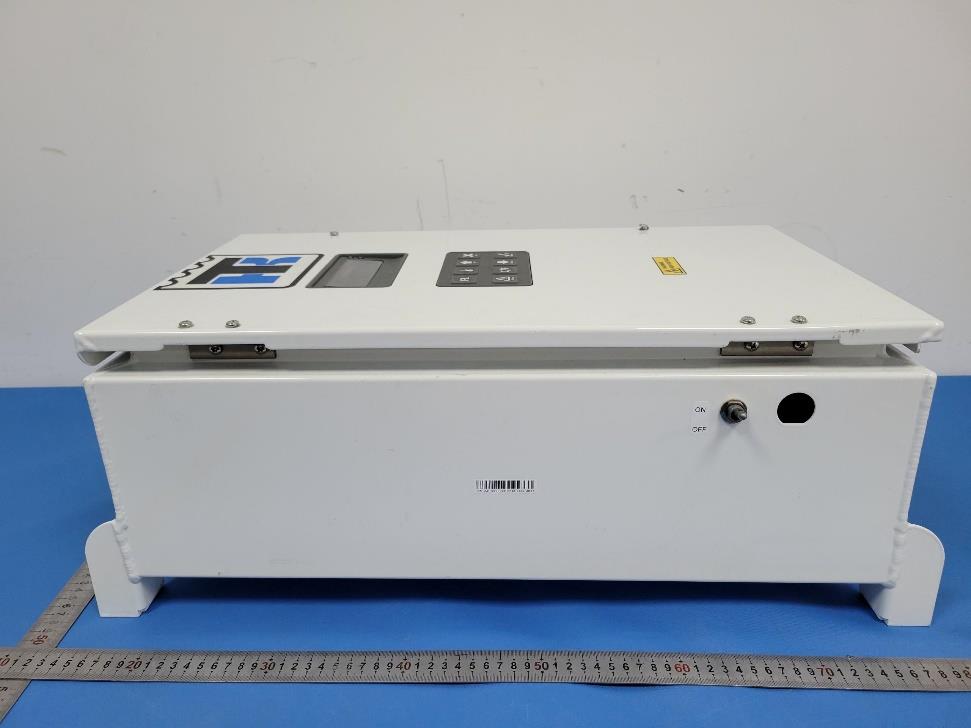

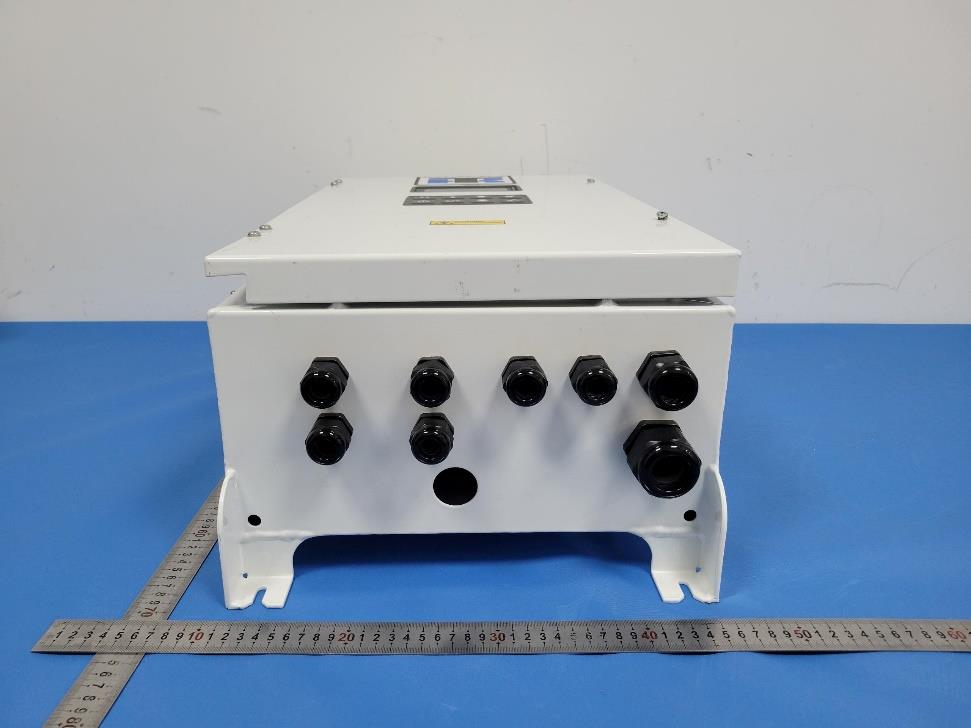

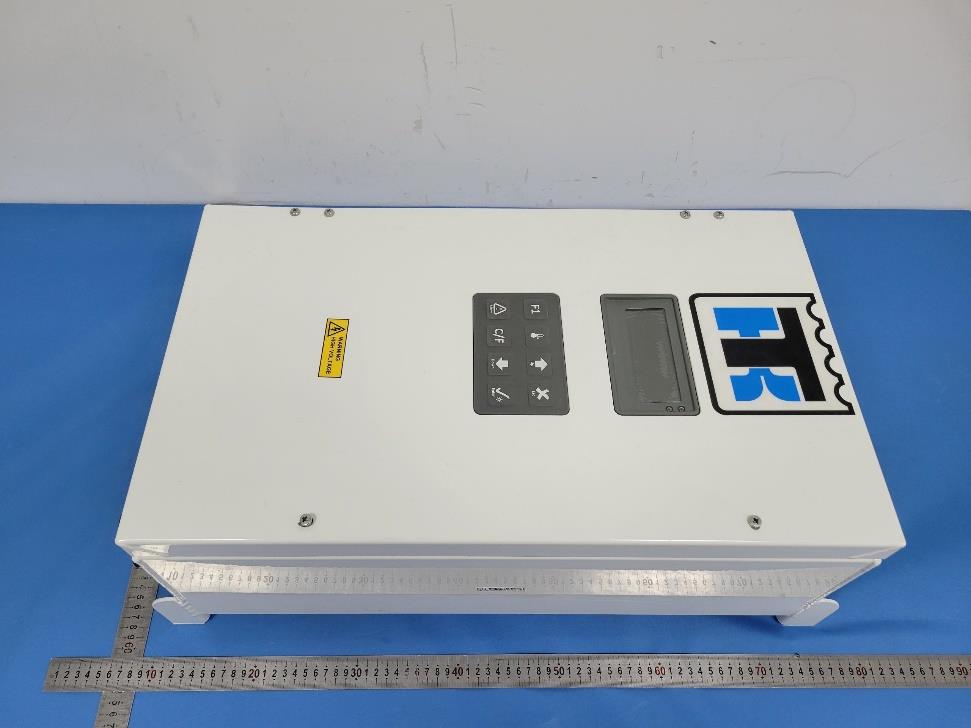

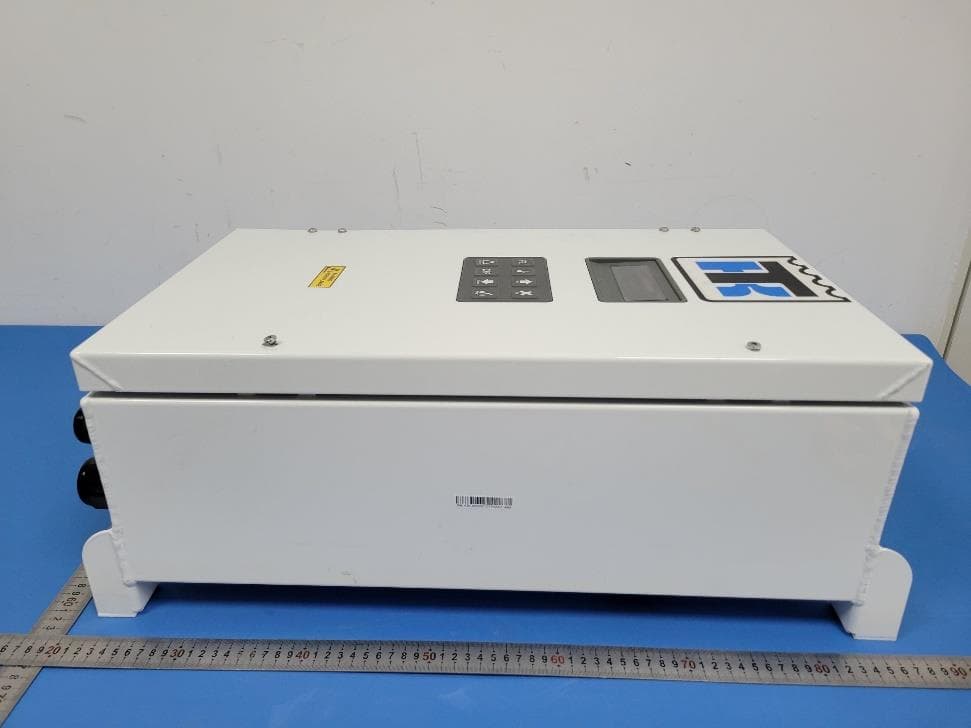

Compliance Certification Services (Kunshan) Inc. Page: 1 of 4 External Photos for KSCR2404000573AT Test Model No.: MP-5000 Compliance Certification Services (Kunshan) Inc. Page: 2 of 4 EUT Constructional Details (EUT Photos) Compliance Certification Services (Kunshan) Inc. Page: 3 of 4 Compliance Certification Services (Kunshan) Inc. Page: 4 of 4

Compliance Certification Services (Kunshan) Inc. Page: 1 of 9 Internal Photos for KSCR2404000573AT Test Model No.: MP-5000 Compliance Certification Services (Kunshan) Inc. Page: 2 of 9 EUT Constructional Details (EUT Photos) Compliance Certification Services (Kunshan) Inc. Page: 3 of 9 Compliance Certification Services (Kunshan) Inc. Page: 4 of 9 Compliance Certification Services (Kunshan) Inc. Page: 5 of 9 Compliance Certification Services (Kunshan) Inc. Page: 6 of 9

Compliance Certification Services (Kunshan) Inc. Page: 7 of 9 Compliance Certification Services (Kunshan) Inc. Page: 8 of 9 Compliance Certification Services (Kunshan) Inc. Page: 9 of 9

Compliance Certification Services (Kunshan) Inc. CCSEM-TRF-001 Rev. 02 Sep 01, 2023 Report No.: KSCR240400057302 Page: 1 of 11 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. Member of the SGS Group (SGS SA) 1 Cover Page RF Exposure Evaluation Report Application No.: KSCR2404000573AT FCC ID: 2ARHA-C05001 IC: 32301-C05001 Applicant: Copeland Transportation Solutions ApS Address of Applicant: Boeletvej 1, DK-8680 Ry, Denmark Manufacturer: Copeland Climate Technologies (Suzhou) Co. Ltd Address of Manufacturer: No.69 Suhong West Road, Suzhou Industrial Park, Suzhou, Jiangsu Province, 215021 Factory: Copeland Climate Technologies (Suzhou) Co. Ltd Address of Factory: No.69 Suhong West Road, Suzhou Industrial Park, Suzhou, Jiangsu Province, 215021 Equipment Under Test (EUT): EUT Name: CONTROL BOX Model No.: MP-5000 Standard(s) : FCC Rules 47 CFR §2.1091 KDB 447498 D04 interim General RF Exposure Guidance v01 RSS-102 Issue 6 (December 15, 2023) Date of Receipt: 2024-04-07 Date of Test: 2024-04-10 to 2024-05-27 Date of Issue: 2024-05-27 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SHEM-TRF-001 Rev. 02 Sep01, 2023 Report No.: KSCR240400057302 Page: 2 of 11 Revision Record Version Description Date Remark 00 Original 2024-05-27 / Authorized for issue by: Tested By Eric_Liu/Project Engineer Approved By Terry Hou /Reviewer SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SHEM-TRF-001 Rev. 02 Sep01, 2023 Report No.: KSCR240400057302 Page: 3 of 11 2 Contents Page 1 Cover Page .................................................................................................................................. 1 2 Contents ...................................................................................................................................... 3 3 General Information..................................................................................................................... 4 3.1 General Description of E.U.T. ................................................................................................ 4 3.2 Technical Specifications ........................................................................................................ 4 3.3 Separation Distance .............................................................................................................. 4 3.4 Test Location ........................................................................................................................ 5 3.5 Test Facility ........................................................................................................................... 5 4 RF Exposure Test Exemptions ................................................................................................... 6 4.1 RF Exposure Test Exemptions for single RF sources ............................................................ 6 4.2 RF Exposure Test Exemptions for Simultaneous Transmission.............................................. 8 4.3 IC Field reference level exposure exemption limits: ............................................................... 9 5 Measurement and Calculation .................................................................................................. 10 5.1 Maximum transmit power .................................................................................................... 10 5.2 RF Exposure Calculation ..................................................................................................... 11 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SHEM-TRF-001 Rev. 02 Sep01, 2023 Report No.: KSCR240400057302 Page: 4 of 11 3 General Information 3.1 General Description of E.U.T. Power supply: AC 440V 3.2 Technical Specifications Operation Frequency: 2402MHz to 2480MHz Bluetooth Version: V5.0 LE Modulation Type: GFSK Number of Channels: 40 Channel Spacing: 2MHz Antenna Type: PIFA Antenna Antenna Gain: 4.9dBi(Provided by the manufacturer) 3.3 Separation Distance Separation distance between the antenna to person (R): ＞20cm Remark: This minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander. R has been stated in user manual. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SHEM-TRF-001 Rev. 02 Sep01, 2023 Report No.: KSCR240400057302 Page: 5 of 11 3.4 Test Location All tests were performed at: Compliance Certification Services (Kunshan) Inc. No.10 Weiye Rd, Innovation park, Eco&Tec, Development Zone, Kuns…

Text truncated - open the document above for the full version.
