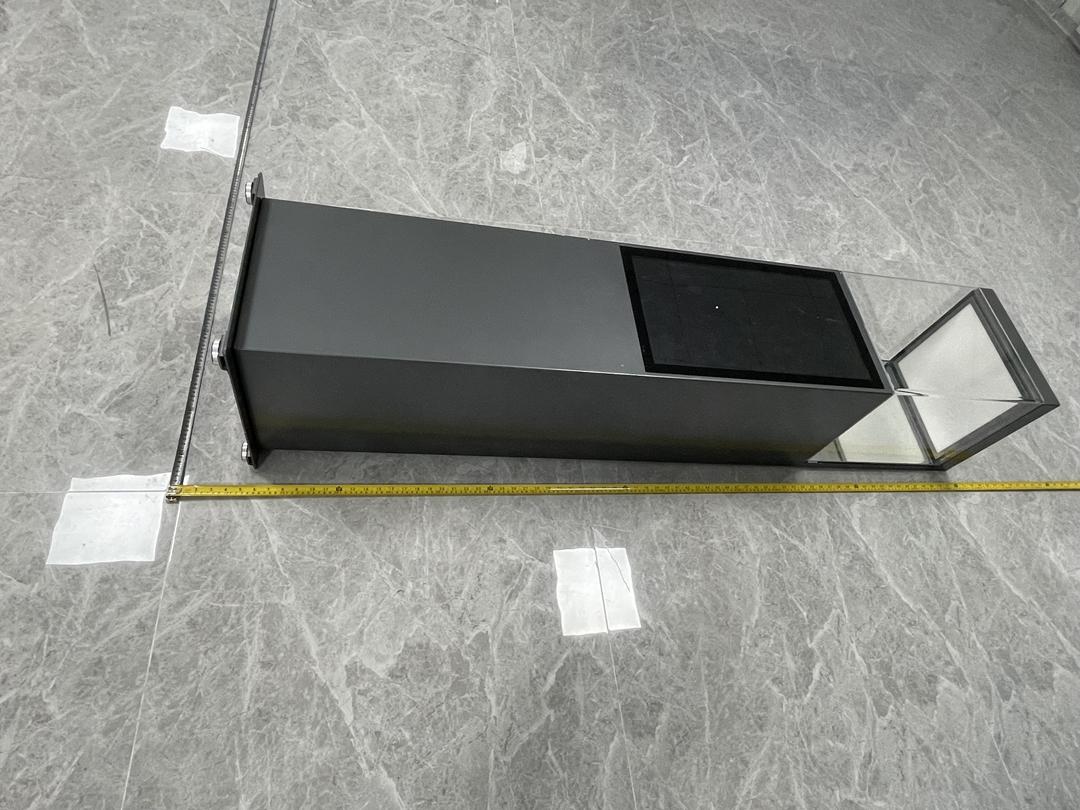

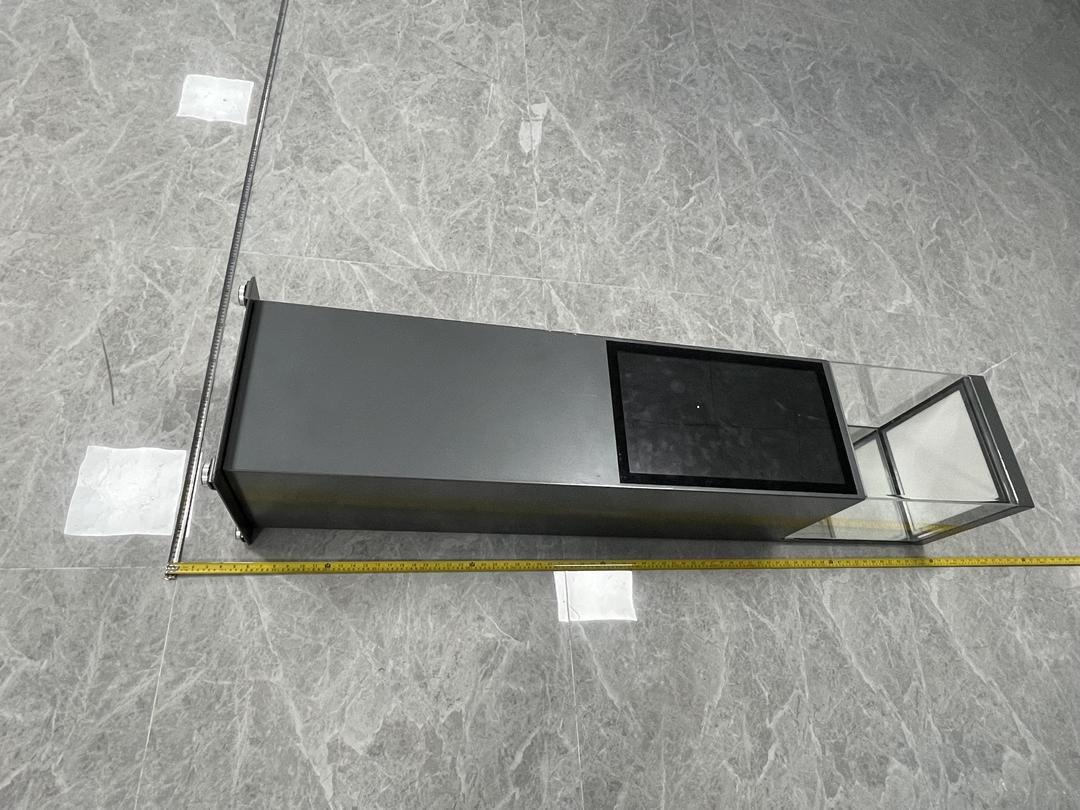

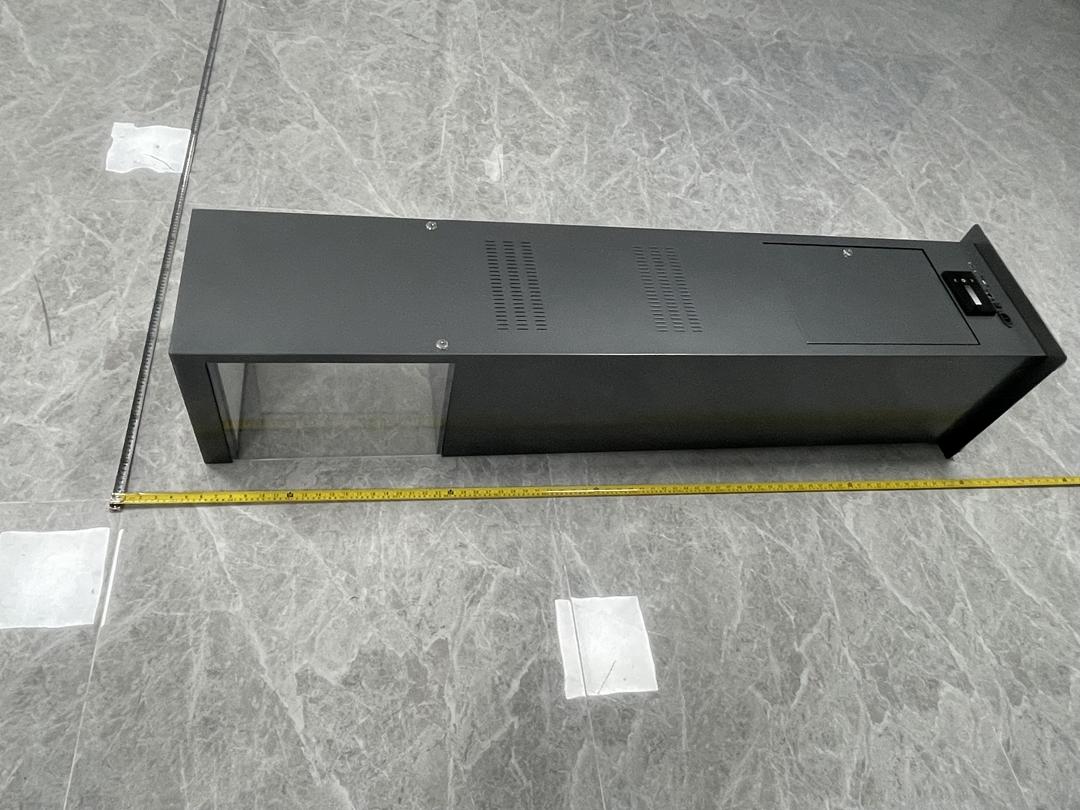

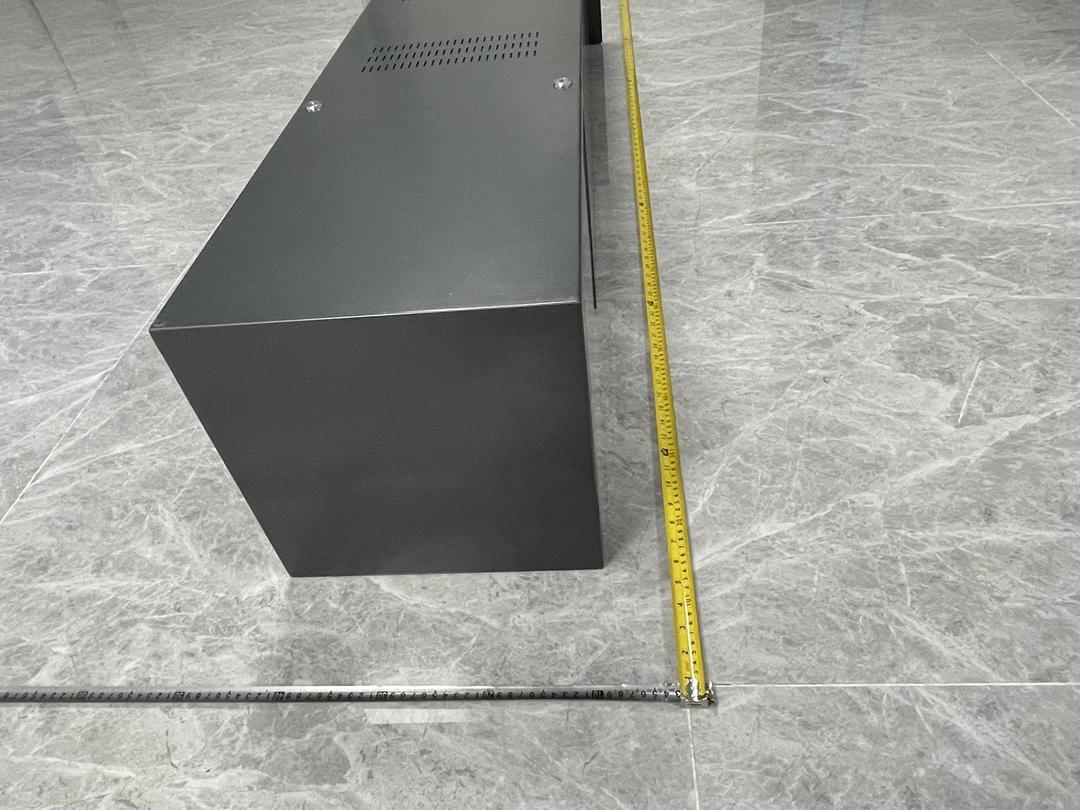

Page 1 of 4 Appendix C: Photographs of EUT Product: Pedestal Digital Display Case Model: PDC01 External Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

Page 1 of 9 Appendix C: Photographs of EUT Product: Pedestal Digital Display Case Model: PDC01 Internal Photos Page 2 of 9 Page 3 of 9 Page 4 of 9 Antenna Page 5 of 9 Page 6 of 9 Page 7 of 9 Page 8 of 9 Page 9 of 9

Maximum Permissible Exposure Applicable Standard According to §1.1307(b), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. Remark: 1) For BT: The maximum output power for antenna is 4.49dBm (2.81mW) at 2402MHz, 5dBi antenna gain(with 3.16 numeric antenna gain.) For WIFI: The maximum output power for antenna is 14.12dBm (25.82mW) at 2462MHz, 5dBi antenna gain(with 3.16 numeric antenna gain.) 2) For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20cm, even if the calculation indicate that the MPE distance would be lesser. Substituting the MPE safe distance using d=20cm into above equation. Yields: S=0.000199*P*G Mode Power(mW) numeric antenna gain Power density (mW/cm 2 ) Limit (mW/cm 2 ) Result BT 2.81 3.16 0.001767 1.0 PASS WIFI 25.82 3.16 0.016237

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID. ............................ : 2ARMK-PDC01 Test Report No. ............... : TCT210702E023 Date of issue ................... : Jul. 28, 2021 Testing laboratory .......... : SHENZHEN TONGCE TESTING LAB Testing location/ address: TCT Testing Industrial Park Fuqiao 5th Industrial Zone, Fuhai Street, Bao'an District Shenzhen, Guangdong, 518103, People's Republic of China Applicant's name............ : GUANGZHOU YOUGUANG OPTOELECTRONICS CO., LTD. Address ........................... : No. 75, Pacific Ind. Zone, Xingtang Town, Zengcheng, Guangzhou, 511340 China Manufacturer's name ... : GUANGZHOU YOUGUANG OPTOELECTRONICS CO., LTD. Address ........................... : No. 75, Pacific Ind. Zone, Xingtang Town, Zengcheng, Guangzhou, 511340 China Standard(s) ..................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10:2013 Test item description ..... : Pedestal Digital Display Case Trade Mark ...................... : N/A Model/Type reference..... : PDC01 Rating(s) ......................... : AC 120V/60Hz Date of receipt of test item ......................................... : Jul. 02, 2021 Date (s) of performance of test ................................... : See dates for each test case Tested by (+signature) ... : Brews Xu Check by (+signature).... : Beryl Zhao Approved by (+signature): Tomsin General disclaimer: This report shall not be reproduced except in full, without the written approval of SHENZHEN TONGCE TESTING LAB. This document may be altered or revised by SHENZHEN TONGCE TESTING LAB personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT210702E023 Page 2 of 61 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Table of Contents 1. General Product Information ..................................................................... 3 1.1. EUT description ..................................................................................................... 3 1.2. Model(s) list............................................................................................................ 3 1.3. Operation Frequency ............................................................................................ 4 2. Test Result Summary ................................................................................. 5 3. General Information .................................................................................... 6 3.1. Test environment and mode ................................................................................. 6 3.2. Description of Support Units ................................................................................ 7 4. Facilities and Accreditations ..................................................................... 8 4.1. Facilities ................................................................................................................. 8 4.2. Location.................................................................................................................. 8 4.3. Measurement Uncertainty ..................................................................................... 8 5. Test Results and Measurement Data ........................................................ 9 5.1. Antenna requirement ............................................................................................ 9 5.2. Conducted Emission ........................................................................................... 10 5.3. Maximum Conducted (Average) Output Power ................................................ 14 5.4. Emission Bandwidth ........................................................................................... 15 5.5. Power Spectral Density ....................................................................................... 16 5.6. Conducted Band Edge and Spurious Emission Measurement ....................... 17 5.7. Radiated Spurious Emission Measurement ...................................................... 19 Appendix A: Test Result of Conducted Test Appendix B: Photographs of Test Setup Appendix C: Photographs of EUT Report No.: TCT210702E023 Page 3 of 61 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. General Product Information 1.1. EUT description Test item description ........... : Pedestal Digital Display Case Model/Type reference........... : PDC01 Sample Number....................: TCT210702E004-0101 Operation Frequency ........... : 2412MHz~2462MHz (802.11b/802.11g/802.11n(HT20)) Channel Separation.............. : 5MHz Number of Channel .............. : 11 for 802.11b/802.11g/802.11n(HT20) Modulation Technology ....... : 802.11b: Direct Sequence Spread Spectrum (DSSS) 802.11g/802.11n: Orthogonal Frequency Division Multiplexing(OFDM) Data speed ............................ : 802.11b: 1Mbps, 2Mbps, 5.5Mbps, 11Mbps 802.11g: 6Mbps, 9Mbps, 12Mbps, 18Mbps, 24Mbps, 36Mbps, 48Mbps, 54Mbps 802.11n: Up to 150Mbps Antenna Type ........................ : Internal Antenna Antenna Gain ........................ : 5dBi Rating(s) ............................... : AC 120V/60Hz Note: The antenna gain listed in this report is provided by applicant, and the test laboratory is not responsible for this parameter. 1.2. Model(s) list None. Report No.: TCT210702E023 Page 4 of 61 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1.3. Operation Frequency For 802.11b/g/n(HT20) Channel Frequency Channel Frequency Channel Frequency Channel Frequency 1 2412MHz 4 2427MHz 7 2442MHz 10 2457MHz 2 2417MHz 5 2432MHz 8 2447MHz 11 2462MHz 3 2422MHz 6 2437MHz 9 2452MHz -- -- Note: In section 15.31(m), regards to the operating frequency range over 10 MHz, the Lowest frequency, the middle …

Text truncated - open the document above for the full version.

Report No.: TCT210702E023 Page 41 of 61 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_2462 11G_2412 11G_2437 11G_2462 Report No.: TCT210702E023 Page 42 of 61 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_2412 11N20SISO_2437 11N20SISO_2462 Report No.: TCT210702E023 Page 43 of 61 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT210702E023 Page 44 of 61 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Band edge measurements Test Result Test Mode Ch Name Channel Ref Level [dBm] Result [dBm] Limit [dBm] Verdict 11B Low 2412 3.55 -38.42 <=-26.45 PASS High 2462 3.53 -53.21 <=-26.47 PASS 11G Low 2412 0.20 -38.89 <=-29.80 PASS High 2462 0.78 -42.43 <=-29.22 PASS 11N20SISO Low 2412 0.09 -39.38 <=-29.92 PASS High 2462 1.12 -41.69 <=-28.88 PASS Test Graphs 11B_Low_2412 11B_High_2462 11G_Low_2412 Report No.: TCT210702E023 Page 45 of 61 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_High_2462 11N20SISO_Low_2412 11N20SISO_High_2462 Report No.: TCT210702E023 Page 46 of 61 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT210702E023 Page 47 of 61 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Conducted Spurious Emission Test Result Test Mode Channel Freq Range [Mhz] Ref Level [dBm] Result [dBm] Limit [dBm] Verdict 11B 2412 Reference 3.51 3.51 --- PASS 30~1000 30~1000 -69.701 <=-26.486 PASS 1000~26500 1000~26500 -42.864 <=-26.486 PASS 2437 Reference 3.49 3.49 --- PASS 30~1000 30~1000 -69.471 <=-26.515 PASS 1000~26500 1000~26500 -43.87 <=-26.515 PASS 2462 Reference 3.54 3.54 --- PASS 30~1000 30~1000 -69.345 <=-26.458 PASS 1000~26500 1000~26500 -43.63 <=-26.458 PASS 11G 2412 Reference 0.18 0.18 --- PASS 30~1000 30~1000 -68.032 <=-29.818 PASS 1000~26500 1000~26500 -43.412 <=-29.818 PASS 2437 Reference 0.61 0.61 --- PASS 30~1000 30~1000 -68.678 <=-29.386 PASS 1000~26500 1000~26500 -43.445 <=-29.386 PASS 2462 Reference 0.77 0.77 --- PASS 30~1000 30~1000 -69.328 <=-29.231 PASS 1000~26500 1000~26500 -42.159 <=-29.231 PASS 11N20SISO 2412 Reference -0.10 -0.10 --- PASS 30~1000 30~1000 -69.094 <=-30.102 PASS 1000~26500 1000~26500 -42.745 <=-30.102 PASS 2437 Reference 0.28 0.28 --- PASS 30~1000 30~1000 -68.739 <=-29.718 PASS 1000~26500 1000~26500 -43.141 <=-29.718 PASS 2462 Reference 1.12 1.12 --- PASS 30~1000 30~1000 -68.179 <=-28.876 PASS 1000~26500 1000~26500 -43.351 <=-28.876 PASS Test Graphs 11B_2412_0~Reference 11B_2412_30~1000 Report No.: TCT210702E023 Page 48 of 61 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_2412_1000~26500 11B_2437_0~Reference 11B_2437_30~1000 Report No.: TCT210702E023 Page 49 of 61 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_2437_1000~26500 11B_2462_0~Reference 11B_2462_30~1000 Report No.: TCT210702E023 Page 50 of 61 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_2462_1000~26500 11G_2412_0~Reference 11G_2412_30~1000 Report No.: TCT210702E023 Page 51 of 61 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_2412_1000~26500 11G_2437_0~Reference 11G_2437_30~1000 Report No.: TCT210702E023 Page 52 of 61 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_2437_1000~26500 11G_2462_0~Reference 11G_2462_30~1000 Report No.: TCT210702E023 Page 53 of 61 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_2462_1000~26500 11N20SISO_2412_0~Reference 11N20SISO_2412_30~1000 Report No.: TCT210702E023 Page 54 of 61 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_2412_1000~26500 11N20SISO_2437_0~Reference 11N20SISO_2437_30~1000 Report No.: TCT210702E023 Page 55 of 61 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_2437_1000~26500 11N20SISO_2462_0~Reference 11N20SISO_2462_30~1000 Report No.: TCT210702E023 Page 56 of 61 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_2462_1000~26500 Report No.: TCT210702E023 Page 57 of 61 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle Test Result Test Mode Channel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Limit Verdict 11B 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2462 50.00 50.00 100.00 --- PASS 11G 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2462 50.00 50.00 100.00 --- PASS 11N20SISO 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2462 50.00 50.00 100.00 --- PASS Test Graphs 11B_2412 11B_2437 11B_2462 Report No.: TCT210702E023 Page 58 of 61 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_2412 11G_2437 11G_2462 Report No.: TCT210702E023 Page 59 of 61 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_2412 11N20SISO_2437 11N20SISO_2462 Report No.: TCT210702E023 Page 60 of 61 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT210702E023 Page 61 of 61 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Appendix B: Photographs of Test Setup Refer to the test report No. TCT210702E004 Appendix C: Photographs of EUT Refer to the test report No. TCT210702E004 *****END OF REPORT*****
