2ARNH-19182810Blast Controller

Classification: Restricted System/Product: DigiShot 600 Document Ref: TDS-00036 Revision: 1 Document Type: TDS-Technical Data Sheet Current Author: Deon Hauptfleisch Title: DigiShot Ranger System Original Author: Deon Hauptfleisch Page: Page 1 of 9 APPROVER APPROVER SIGNATURE SIGNATURE DATE ISSUE DATE Herman van der Walt X Signed by: HvdWalt 2021/12/07 2021/12/07 Approved documents are only valid if they contain an “APPROVED” stamp on the first page and both the revision number and the issue date of the document correspond with the electronic document control system. 1 DIGISHOT ® RANGER SYSTEM (CE4 COMMANDER DS600) TECHNICAL DATA SHEET 1.1 Product Description The DigiShot ® Ranger (CE4 Commander DS600) form part of the 4th generation Control Equipment (CE4) designed and developed by DetNet South Africa and consists of two principal devices, namely the DigiShot ® Ranger (CE4 Commander DS600) and CE4 Tagger, as well as various other system components interacting to facilitate safe testing and blasting of electronic detonators. 2 TECHNICAL DATA 2.1 CE4 Tagger The CE4 Tagger is an inherently safe multi-functional device that can be used for on-bench operations such as assigning detonator times, testing communication, testing leakage of detonator installation, and verification of desired blast layout. The CE4 Tagger is inherently safe as its battery and output voltage are below minimum firing voltage of the detonator and the Tagger cannot issue the encrypted blasting commands (i.e. ARM and FIRE commands). The CE4 Tagger interfaces via an encrypted Wi-Fi communication link with a Base DigiShot ® Ranger (CE4 Commander DS600) during the blast process. The Base DigiShot ® Ranger (CE4 Commander DS600) will then instruct the connected and enabled Bench DigiShot ® Ranger (CE4 Commander DS600) with the blast instruction via the BlastCard (NFC Card). Applicable standards ARP1717: Guide to the regulatory requirements for the approval of detonators, initiators and initiation systems used in mining and civil blasting applications. SANS53763-27: Explosives for civil uses – Detonators and relays. CEN/TS13763-27: European CEN-Testing specification for Explosives for civil uses – Detonators and relays. Code of Federal Regulations, Title 47. Canadian Radio Standard Specifications. Australian Communications and Media Authority EMC standards. Electronic Communications Act, Act No 35 of 2005. Mine Health and Safety Act, Act 29 of 1992. EN 61010-1: Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements. IEC 62368-1: Audio/video, information and communication technology equipment – Part 1: Safety requirements. Temperature limits (Operational) -30°C to +60°C -22°F to +140°F Battery – Internal, not field replaceable 3.7V Lithium Polymer (MSD-91) APPROVED Classification: Restricted System/Product: DigiShot 600 Document Ref: TDS-00036 Revision: 1 Document Type: TDS-Technical Data Sheet Current Author: Deon Hauptfleisch This page is valid only if it forms part of the complete document which is approved and dated on the first page and carries the same document reference and revision number on all pages. Title: DigiShot Ranger System Original Author: Deon Hauptfleisch Page: Page 2 of 9 Battery – External battery pack, not included 6 x 1.5V AA Alkaline or 6 x 1.2V AA Ni-MH / Ni-Cd Weight / Dimension of tagger and head 580g / 1.25lbs 213mm (L) 88mm (W) 38mm (H) Weight / Dimension of external batter y 350g / 0.77lbs 180mm (L) 85mm (W) 27mm (H) Display (Active LCD area with backli ght) 128 pixels x 128 pixels / 44.78mm x 44.78mm / 1.76in x 1.76in Keypad Backlit tactile silicone keypad with alphanumeric keys. External Connectors A series of detonator connections exist for different application purposes. Replaceable Tagger to detonator connector head. USB Connector for data extraction and charging. Operating time from a fully charged battery Approximately 10 hours at 25 °C (77°F). Operating time is influenced by detonator load, backlight settings and operational temperature. At temperatures below -15 °C (5°F) battery life may be reduced significantly. Wi-Fi The Tagger is equipped with short range Wi-Fi communication capability between system devices. Such as the CE4 Tagger and DigiShot ® Ranger (CE4 Commander DS600). Operating frequency 2.412GHz – 2.457GHz @ 63mW. Near Field Communication (Version 4 and later models) The CE4 Tagger (version 4 and later) is equipped with a Near Field Communication (NFC) reader located on the rear of the Tagger. NFC functionality will be activated in a future software release. Wireless Charging Tagger Hardware Version: V4 or higher  Charger Compatibility: Qi  Power transfer: 5W maximum  Charging current: 1A maximum  Charging time: 6-8 hours typically, depending on charger alignment and power transfer achieved  Operatin g frequency 130kHz (Receive only) Software upgrade Software upgrade is via the USB connector on the CE4 Tagger, and a flash drive. Water and dust resistance IP 57. Classification: Restricted System/Product: DigiShot 600 Document Ref: TDS-00036 Revision: 1 Document Type: TDS-Technical Data Sheet Current Author: Deon Hauptfleisch This page is valid only if it forms part of the complete document which is approved and dated on the first page and carries the same document reference and revision number on all pages. Title: DigiShot Ranger System Original Author: Deon Hauptfleisch Page: Page 3 of 9 2.2 DIGISHOT ® RANGER (CE4 Commander DS600) The DigiShot ® Ranger (CE4 Commander DS600) is a 2-channel multi-functional device intended for use across all surface blasting platforms in the DetNet portfolio and can be configured to function as a Base or Bench Blaster. The DigiShot ® Ranger (CE4 Commander DS600) is used to initiate the blast. Applicable standards ARP1717: Guide to the regulatory requirements for the approval of detonators, initiators and initiation systems used in mining and civil blasting applications. SANS5…

Text truncated - open the document above for the full version.

DigiShot ® Ranger System UTM-00355 | Rev 2 DigiShot ® Ranger SVN 49945 CE4 Tagger SVN 49945 DigiShot ® Detonator UTM-00355 | Rev 2 Page 2 of 261 DetNet South Africa Copyright © 2022 TABLE OF CONTENTS TABLE OF CONTENTS ...................................................................................................................... 2 List of Figures .................................................................................................................................. 10 List of Tables .................................................................................................................................... 10 1 USERS OF THIS MANUAL ............................................................................................. 11 Purpose of this manual ............................................................................................................ 11 End User .................................................................................................................................... 11 Requirements .................................................................................................................................. 11 Training ..................................................................................................................................... 11 2 DigiShot ® Ranger SYSTEM PRODUCT SAFETY .......................................................... 12 DetNet Safety Philosophy ........................................................................................................ 12 User Safety ................................................................................................................................ 12 Product Safety .......................................................................................................................... 12 Equipment usage and handling .............................................................................................. 12 Information in case of emergency .......................................................................................... 13 Warning, Caution, and Note Statements ................................................................................ 14 Disclaimer ................................................................................................................................. 14 RF compliance - FCC (USA) and ICES (Canada) ................................................................... 15 Unauthorised Changes .................................................................................................................... 15 Radio Interference ........................................................................................................................... 15 RF Exposure .................................................................................................................................... 15 FCC Class B digital device notice ................................................................................................... 15 Labelling Requirements for the Host device.................................................................................... 16 CAN ICES-3 (B) / NMB-3 (B) .......................................................................................................... 16 Use of Tablet or Handheld devices on the bench with the DigiShot Ranger control equipment .... 16 3 DIGISHOT ® RANGER SYSTEM INTRODUCTION ......................................................... 17 DigiShot ® Ranger Basic System Description......................................................................... 17 Direct Blasting Configuration ........................................................................................................... 18 Remote Blasting Configuration ........................................................................................................ 19 DigiShot ® Ranger General Description .................................................................................. 20 CE4 Tagger General Description ............................................................................................ 20 DigiShot ® Detonator General Description .............................................................................. 20 Near Field Cards (NFC) General Description ......................................................................... 21 The White Information Card ............................................................................................................ 21 The Yellow ActivateCard ................................................................................................................. 21 The Red BlastCard .......................................................................................................................... 21 Harness Wire ............................................................................................................................. 22 UTM-00355 | Rev 2 Page 3 of 261 DetNet South Africa Copyright © 2022 DigiShot ® Ranger System User Application .......................................................................... 23 Basic (B) Tagging Option - Users that deploy simple blast patterns. .............................................. 23 Advanced (A) Tagging Option - Users that follow a paper plan. ..................................................... 23 Planned (P) Tagging Option - Users that follow a ViewShot plan. .................................................. 23 DigiShot (D) Tagging Option - Users that deploy the DigiShot method of tagging. ........................ 23 DigiShot ® Ranger System Limits and Specifications............................................................ 24 CE4 Tagger System Limits .............................................................................................................. 24 DigiShot ® Ranger System Limits .............................................................................…

Text truncated - open the document above for the full version.

DetNet South Africa (Pty) Ltd DetNet Americas, Inc. Block 1B, Founders Hill Office Park, is a fully owned subsidiary of DetNet South Africa (Pty) Ltd. Centenary Road, Modderfontein, 1645 660 Hopmeadow Street, Simsbury, Connecticut, 06070 Tel +27 11 657 7600 | Fax +27 11 657 7601 | www.detnet.com Tel +1 860 408 1842 Directors: E Ludick, R Rounsley (Chairman), M Stiglingh | Reg. No. 2004/004862/07 Director: I Mey Reg. No. 0006587604 REC-02647 TÜV SUD BABT UNLIMITED (TCB) Octagon House, Concorde Way Segensworth Road, Fareham, Hampshire, PO15 5RL 20 December 2021 Confidentiality Request FCC ID: 2ARNH-19182810 Pursuant to Sections 0.457(d)(1)(ii) and FCC CFR 0.459 of the Commission’s Rules, DetNet South Africa (Pty) Ltd hereby requests permanent confidential treatment of information accompanying this application as outlined below: • Schematics • Bill of Materials/Parts List • Block Diagrams • Technical Operation • Design drawings DetNet South Africa (Pty) also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of 180 days: • Internal Photos • External Photos • User Manual • Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to FCC 47 CFR 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours Sincerely, Suzette Menezes Approvals Manager +27 11 657 7651 [email protected]

DetNet South Africa (Pty) Ltd DetNet Americas, Inc. Block 1B, Founders Hill Office Park, is a fully owned subsidiary of DetNet South Africa (Pty) Ltd Centenary Road, Modderfontein, 1645 660 Hopmeadow Street, Simsbury, Connecticut, 06070 Tel +27 11 657 7600 | Fax +27 11 657 7601 | www.detnet.com Tel +1 860 408 1842 Directors: E Ludick, R Rounsley (Chairman), M Stiglingh | Reg. No. 2004/004862/07 Director: I Mey Reg. No. 0006587604 REC-02794 TÜV SUD BABT UNLIMITED (TCB) Octagon House, Concorde Way Segensworth Road, Fareham, Hampshire, PO15 5RL 19 March 2022 RE: Declaration of Family Product Relationship We DetNet South Africa (Pty) Ltd, hereby declare that the products listed below are based on the same design of the CE4 Commander system and conforms to the same specifications as the tested variants. We recognize that the contained hardware and mechanicals are identical, with reduced functionality, employing only two (2) IO Modules. The differences between the models as summarised as follows: Model CE4 Commander DGPS CE4 Commander CE4 Commander DS600 FCC ID 2ARNH-15351660 2ARNH-18462290 2ARNH-19182810 IC 24476-15351660 24476-18462290 24476-19182810 Hardware 4 x IO modules Differential GPS functionality is added by the addition of a DGPS Receiver added to the base of the Commander 4 x IO modules 2 x IO modules Software Standard software Standard software DGPDS enabled Features RF Module Yes Yes Yes WiFi Module Yes Yes Yes NFC Yes Yes Yes WPT N/A N/A N/A Differential GPS N/A Yes N/A Sincerely, Suzette Menezes Approvals Manager +27 11 657 7651 [email protected]

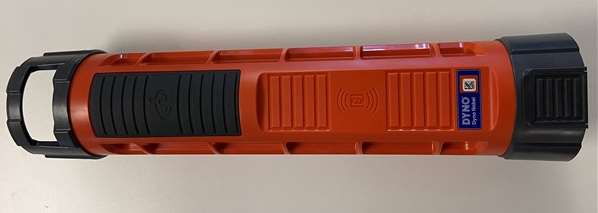

DetNet South Africa (Pty) Ltd DetNet Americas, Inc. Block 1B, Founders Hill Office Park, is a fully owned subsidiary of DetNet South Africa (Pty) Ltd. Centenary Road, Modderfontein, 1645 660 Hopmeadow Street, Simsbury, Connecticut, 06070 Tel +27 11 657 7600 | Fax +27 11 657 7601 | www.detnet.com Tel +1 860 408 1842 Directors: E Ludick, R Rounsley (Chairman), M Stiglingh | Reg. No. 2004/004862/07 Director: I Mey Reg. No. 0006587604 REC-02642 External Photos_CE4 Commander DS600 Photo 1: Top view Photo 2: Bottom view

DetNet South Africa (Pty) Ltd DetNet Americas, Inc. Block 1B, Founders Hill Office Park, is a fully owned subsidiary of DetNet South Africa (Pty) Ltd. Centenary Road, Modderfontein, 1645 660 Hopmeadow Street, Simsbury, Connecticut, 06070 Tel +27 11 657 7600 | Fax +27 11 657 7601 | www.detnet.com Tel +1 860 408 1842 Directors: E Ludick, R Rounsley (Chairman), M Stiglingh | Reg. No. 2004/004862/07 Director: I Mey Reg. No. 0006587604 REC-02645 TÜV SUD BABT UNLIMITED (TCB) Octagon House, Concorde Way Segensworth Road, Fareham, Hampshire, PO15 5RL 20 December 2021 RE: Labelling Information FCC ID: 2ARNH-19182810 The required info is displayed on the info menu of the equipment. The equipment has multiple info screens and paging through the screens give the details of the product name and model number. Photo 1: Screen capture of the e-Label as displayed on the info screen of the equipment Sincerely, Suzette Menezes Approvals Manager +27 11 657 7651 [email protected]

DetNet South Africa (Pty) Ltd DetNet Americas, Inc. Block 1B, Founders Hill Office Park, is a fully owned subsidiary of DetNet South Africa (Pty) Ltd. Centenary Road, Modderfontein, 1645 660 Hopmeadow Street, Simsbury, Connecticut, 06070 Tel +27 11 657 7600 | Fax +27 11 657 7601 | www.detnet.com Tel +1 860 408 1842 Directors: E Ludick, R Rounsley (Chairman), M Stiglingh | Reg. No. 2004/004862/07 Director: I Mey Reg. No. 0006587604 REC-02643 Internal Photos_CE4 Commander DS600 (Ranger) Photo 1: Internal view Photo 2: Base of unit Photo 3: Removal and insertion of internal components DetNet South Africa (Pty) Ltd DetNet Americas, Inc. Block 1B, Founders Hill Office Park, is a fully owned subsidiary of DetNet South Africa (Pty) Ltd. Centenary Road, Modderfontein, 1645 660 Hopmeadow Street, Simsbury, Connecticut, 06070 Tel +27 11 657 7600 | Fax +27 11 657 7601 | www.detnet.com Tel +1 860 408 1842 Directors: E Ludick, R Rounsley (Chairman), M Stiglingh | Reg. No. 2004/004862/07 Director: I Mey Reg. No. 0006587604 Photo 4: Top view Photo 5: Bottom view DetNet South Africa (Pty) Ltd DetNet Americas, Inc. Block 1B, Founders Hill Office Park, is a fully owned subsidiary of DetNet South Africa (Pty) Ltd. Centenary Road, Modderfontein, 1645 660 Hopmeadow Street, Simsbury, Connecticut, 06070 Tel +27 11 657 7600 | Fax +27 11 657 7601 | www.detnet.com Tel +1 860 408 1842 Directors: E Ludick, R Rounsley (Chairman), M Stiglingh | Reg. No. 2004/004862/07 Director: I Mey Reg. No. 0006587604 Photo 6: Top view Photo 7: Bottom view Photo 8: Close up of RF Module and WiFi Module WiFi Module RF Module

TÜV SÜD is a trading name of TUV SUD Ltd Registered in Scotland at East Kilbride, Glasgow G75 0QF, United Kingdom Registered number: SC215164 TUV SUD Ltd is a TÜV SÜD Group Company Phone: +44 (0) 1489 558100 Fax: +44 (0) 1489 558101 www.tuvsud.com/en TÜV SÜD Octagon House Concorde Way Fareham Hampshire PO15 5RL United Kingdom TÜV SÜD SIGNATURE NAME JOB TITLE RESPONSIBLE FOR ISSUE DATE John Laydon General Manager Authorised Signatory 02 February 2022 Signatures in this approval box have checked this document in line with the requirements of TÜV SÜD document control rules. ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate limited compliance with FCC 47 CFR Part 15B, ICES-003 and ISED RSS- GEN. The sample tested was found to comply with the requirements defined in the applied rules. RESPONSIBLE FOR NAME DATE SIGNATURE Testing William Mayo 02 February 2022 Supervisor John Laydon 02 February 2022 FCC Accreditation 330364 Bearley Test Laboratory Industry Canada Accreditation 2932E Bearley Test Laboratory EXECUTIVE SUMMARY A sample of this product was tested and found to be compliant with FCC 47 CFR Part 15B: 2020, ICES-003 Issue 7: 2020 and ISEDC RSS-GEN: Issue 5 and A1 (2019-03) for the tests detailed in section 1.3. FCC, IC and ISED Test Report Detnet South Africa (Pty) Ltd Model: CE4 Commander DS600 In accordance with FCC 47 CFR Part 15B, ICES- 003 and ISED RSS-GEN Prepared for: Detnet South Africa (Pty) Ltd Block 1B, Founders Hill Office Park Centenary Road Modderfontein P O Box 10 1645 South Africa FCC ID: 2ARNH-19182810 IC: 24476-19182810 COMMERCIAL-IN-CONFIDENCE Document 75954038-01 Issue 01 DISCLAIMER AND COPYRIGHT This non-binding report has been prepared by TÜV SÜD with all reasonable skill and care. The document is confidential to the potential Client and TÜV SÜD. No part of this document may be reproduced without the prior written approval of TÜV SÜD. © 2022 TÜV SÜD. This report relates only to the actual item/items tested. ACCREDITATION Our UKAS Accreditation does not cover opinions and interpretations and any expressed are outside the scope of our UKAS Accreditation. Results of tests not covered by our UKAS Accreditation Schedule are marked NUA (Not UKAS Accredited). Document 75954038-01 Issue 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 1 of 27 Contents 1 Report Summary .........................................................................................................................2 1.1 Report Modification Record ...........................................................................................................2 1.2 Introduction ....................................................................................................................................2 1.3 Brief Summary of Results .............................................................................................................3 1.4 Declaration of Build Status ............................................................................................................4 1.5 Product Description and Assumptions ..........................................................................................6 1.6 Product Information .......................................................................................................................7 1.7 Deviations from the Standard ........................................................................................................9 1.8 EUT Modification Record ..............................................................................................................9 1.9 Test Location .............................................................................................................................. 10 2 Test Details ............................................................................................................................... 11 2.1 Magnetic Emissions (H Field) .................................................................................................... 11 2.2 Radiated Disturbance ................................................................................................................. 15 3 Test Equipment Information ................................................................................................... 25 3.1 General Test Equipment Used ................................................................................................... 25 4 Incident Reports ....................................................................................................................... 26 5 Measurement Uncertainty ....................................................................................................... 27 Document 75954038-01 Issue 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 2 of 27 1 Report Summary 1.1 Report Modification Record Alterations and additions to this report will be issued to the holders of each copy in the form of a complete document. Issue Description of Change Date of Issue 1 First Issue 02 February 2022 Table 1 1.2 Introduction Applicant Detnet South Africa (Pty) Ltd Manufacturer Detnet South Africa (Pty) Ltd Model Number(s) CE4 Commander DS600 Serial Number(s) Not Serialised (Storix ID 617158-02) Hardware Version(s) V6 Software Version(s) 48713 Number of Samples Tested 1 Test Specification/Issue/Date FCC 47 CFR Part 15B:2020 ICES-003 Issue 7: 2020 ISED RSS-GEN: Issue 5 and A1 (2019-03) Order Number Date 4500519785 07-December-2021 Date of Receipt of EUT 19-November-2021 Start of Test 20-January-2022 Finish of Test 21-January-2022 Name of Engineer(s) William Mayo (Supervised by John Laydon) Related Document(s) ANSI C63.4: 2014 Document 75954038-01 Issue 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 3 of 27 1.3 Brief Summary of Results A brief summary of the tests carried out in accordance …

Text truncated - open the document above for the full version.

Document 75947459-02 Issue 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 40 of 43 3 Photographs 3.1 Test Setup Photographs Figure 32 - 30 MHz to 1 GHz
