2ARP6KDC-6336Wireless Data Terminal

文档版本V1.0（2018.3.28）诺优专有和保密信息 版权所有©诺优信息技术(上海)有限公司 0 QuickStartGuideforNB-IoTWirelessDataTerminal KDCSeries Version：V1.0 ReleaseDate：2018.5.9 Operation Frequency: TX LTE Band 2: 1850MHz-1910MHz TX LTE Band 4: 1710MHz-1755MHz TX LTE Band 5: 824MHz-849MHz TX LTE Band 12: 699MHz-716MHz TX LTE Band 13: 777MHz-787MHz TX LTE Band 17: 704MHz -716MHz TX LTE Band 25: 1850MHz-1915MHz TX LTE Band 26 : 814MHz-849MHz TX LTE Band 41: 2496MHz ~2690MHz TX LTE Band 66: 1710MHz-1780MHz RX LTE Band 2: 1930MHz-1990MHz RX LTE Band 4: 2110MHz-2155MHz RX LTE Band 5: 869MHz-894MHz RX LTE Band 12: 729MHz-746MHz RX LTE Band 13: 746MHz-756MHz RX LTE Band 17: 734MHz -746MHz RX LTE Band 25: 1930MHz-1995MHz RX LTE Band 26 : 8594MHz-894MHz RX LTE Band 41: 2496MHz ~2690MHz RX LTE Band 66: 2110MHz-2200MHz Band 2: 1.27dBi Band 4: 1.38dBi Band 5: -4.02dBi Band 12: -4.29dBi Band 13: -4.27dBi Band 17: -4.36dBi Band 25: 1.31dBi Band 26: -4.07dBi Band 41: 1.57dBi Band 66: 1.62dBi Antenna gain: Modulation type: QPSK, 16QAM Antenna type: PIFA antenna Hardware Version: V1.0 Software Version:V1.1 (1)§ 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. § 15.21 Changes or modification warning Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. § 15.105 Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. QuickStartGuideforNB-IoTWirelessDataTerminal--KDCSeries V1.0 （ 2018.5.9 ） KnowyouTechnologiesCo.,Ltd. 1 step 1: use the needle to insert the hole of sim card slot, then pup out sim card tray and pull out sim card tray. step 2: put the data card on the sim card tray correctly and insert them into sim card slot horizontally. step 3: upturn the chip of data card and insert it into NB terminal. step 4: connect the antenna to NB terminal and tighten clockwise to fix it on the NB terminal. step 5: connect NB-IoT wireless data terminal to laptop, Make sure the minimum distance to the human body is 20cm. step 6: open software. QuickStartGuideforNB-IoTWirelessDataTerminal--KDCSeries V1.0 （ 2018.5.9 ） KnowyouTechnologiesCo.,Ltd. 6 Step8:click“”,check“”onthepop-upwindow. Step9:click“”button. Step7:click“”button.Step7:click“”button.Step7:click“”button. QuickStartGuideforNB-IoTWirelessDataTerminal--KDCSeries V1.0 （ 2018.5.9 ） KnowyouTechnologiesCo.,Ltd. 7 Step10:findPort（COMandLPT)ontheDeviceManageroflaptopandselect “ ”. Step11:findModemontheDeviceManageroflaptopandselectthelastmodemonthe drop-downlistofModem,suchas“”showninthefollowing picture. QuickStartGuideforNB-IoTWirelessDataTerminal--KDCSeries V1.0 （ 2018.5.9 ） KnowyouTechnologiesCo.,Ltd. 8 Step12:clickthedrop-downlistontherightsideofModem/NetportundertheMobile(ETC)on thePortSettingwindowandselect“”. Step13:clickthedrop-downlistontherightsideofATportundertheMobile(ETC)onthePort Settingwindowandselect“”. QuickStartGuideforNB-IoTWirelessDataTerminal--KDCSeries V1.0 （ 2018.5.9 ） KnowyouTechnologiesCo.,Ltd. 9 Step14:clickthedrop-downlistontherightsideofADBportundertheMobile(ETC)onthePort Settingwindowandselect“”. Step15:itindicatesNBnetworkwasconnectedsuccessfullywhenthe“”iconinthebottom-left cornerofOPTerminatorwindowappeared. QuickStartGuideforNB-IoTWirelessDataTerminal--KDCSeries V1.0 （ 2018.5.9 ） KnowyouTechnologiesCo.,Ltd. 10

Knowyou Technologies Co.,Ltd. Agent Authorization Letter Knowyou Technologies Co.,Ltd. (2020/11/14) MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (jim he / Global United Technology Services Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Shanghai 2020/11/14 Rogers Zhai manager A22 Floor, Int'l Innovation & Incubation Center, 418 Guiping Rd., Shanghai, China mail: [email protected] Tel: 13775183018

Knowyou Technologies Co.,Ltd. Long Term Confidentiality Request Letter (2020/12/14) MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR : Product: NB-IoT Wireless Data Terminal M/N: KDC-6336,KDC-6336 N,KDC-2020 N,KDC-2020,KDC-3533,KDC-3799,KDC- 4128,KDC-4793,KDC-5018,KDC-5318,KDC-3533 N,KDC-3799 N,KDC-4128 N,KDC-4793 N,KDC-5018 N,KDC-5318 N To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (Operational Description, Block Diagrams, Schematics Diagrams, BOM, Turn-up produrce) required to be submitted with this application be permanently withheld from public review. the above documents are company proprietary information that could never get into the possession of your competition. Please contact me if there is any information you may need. Sincerely, City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Shanghai 2020/12/14 Rogers Zhai manager A22 Floor, Int'l Innovation & Incubation Center, 418 Guiping Rd., Shanghai, China mail: [email protected] Tel: 13775183018

Knowyou Technologies Co.,Ltd. Model differences We: Knowyou Technologies Co.,Ltd. Statement that All the model“KDC-6336,KDC-6336 N,KDC-2020 N,KDC-2020,KDC-3533,KDC-3799,KDC-4128,KDC-4793,KDC-5018,KDC-5318,KDC-3533 N,KDC-3799 N,KDC-4128 N,KDC-4793 N,KDC-5018 N,KDC-5318 N ” are identical except model name and colors. City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Shanghai 2020/12/14 Rogers Zhai manager A22 Floor, Int'l Innovation & Incubation Center, 418 Guiping Rd., Shanghai, China mail: [email protected] Tel: 13775183018

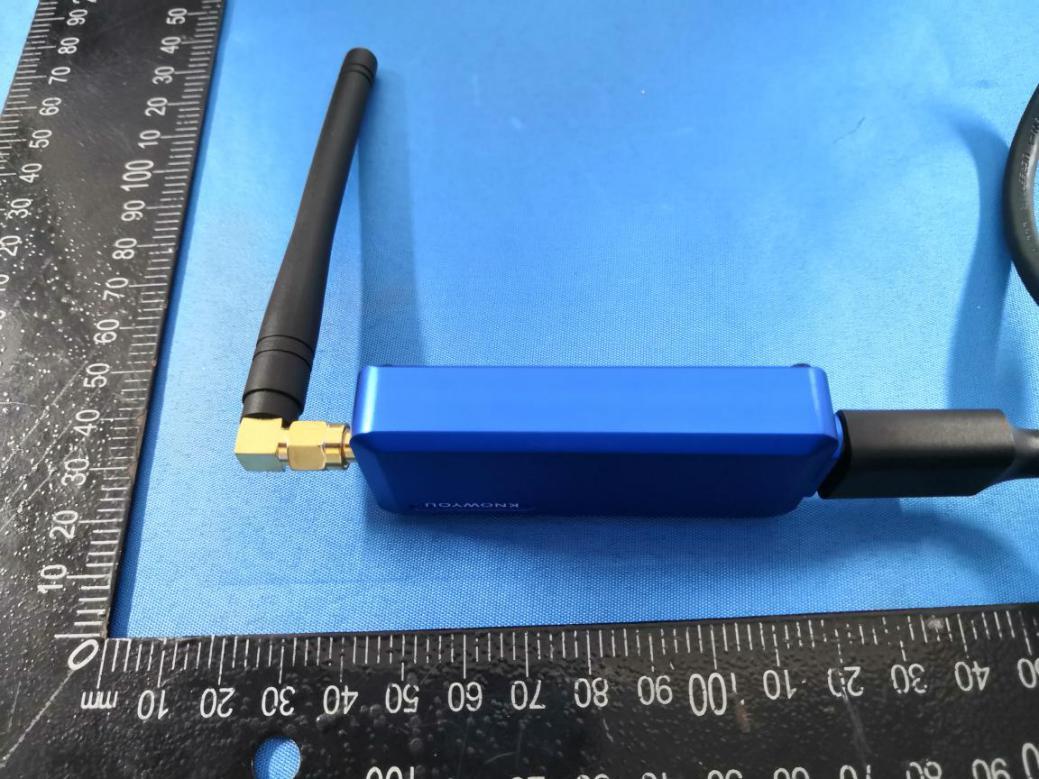

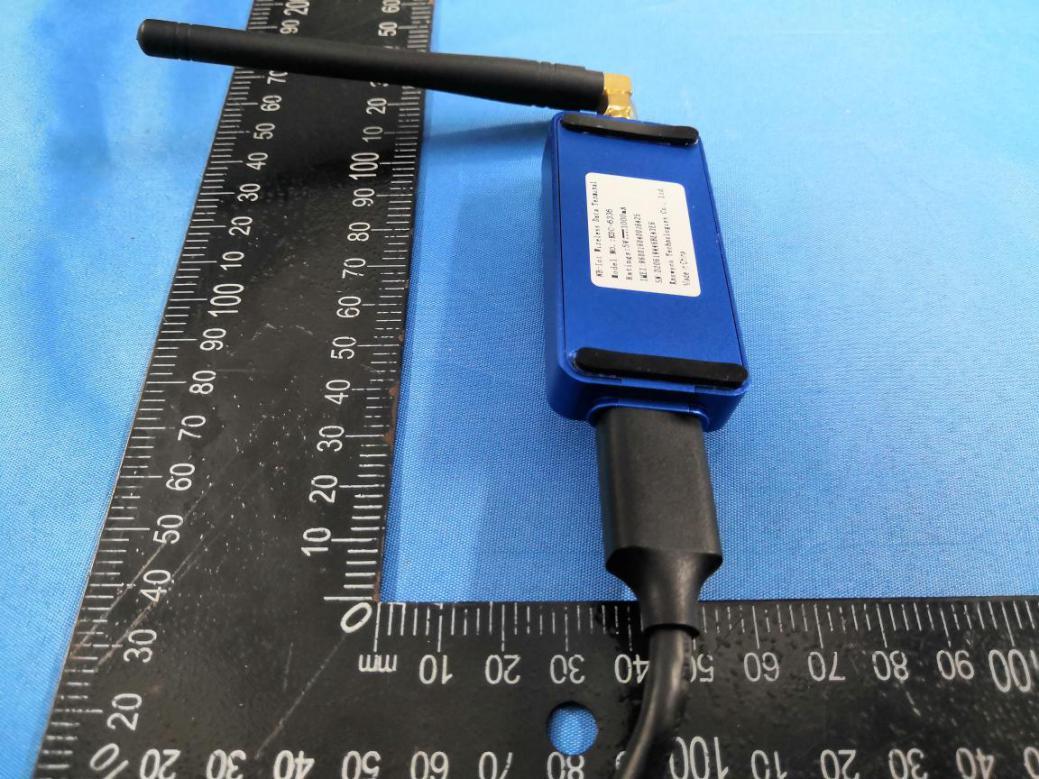

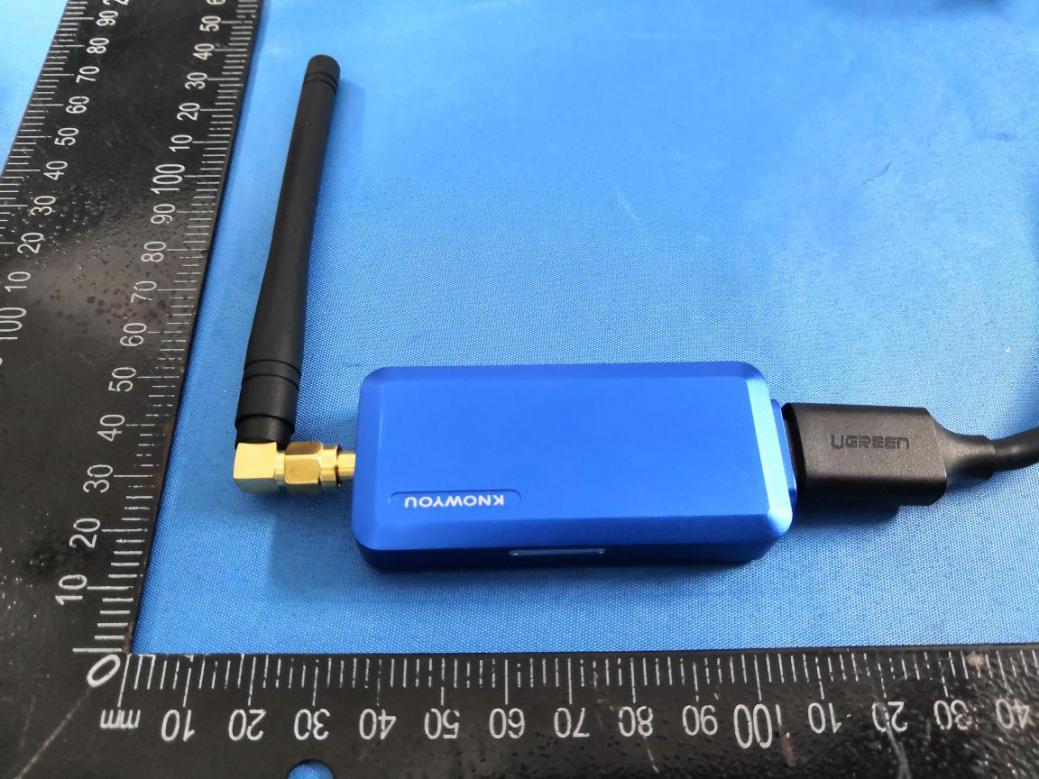

Appendix_EUT PHOTO 2ARP6KDC-6336 - Page 1 of 7 - Appendix_EUT PHOTO 2ARP6KDC-6336 - Page 2 of 7 - Appendix_EUT PHOTO 2ARP6KDC-6336 - Page 3 of 7 -

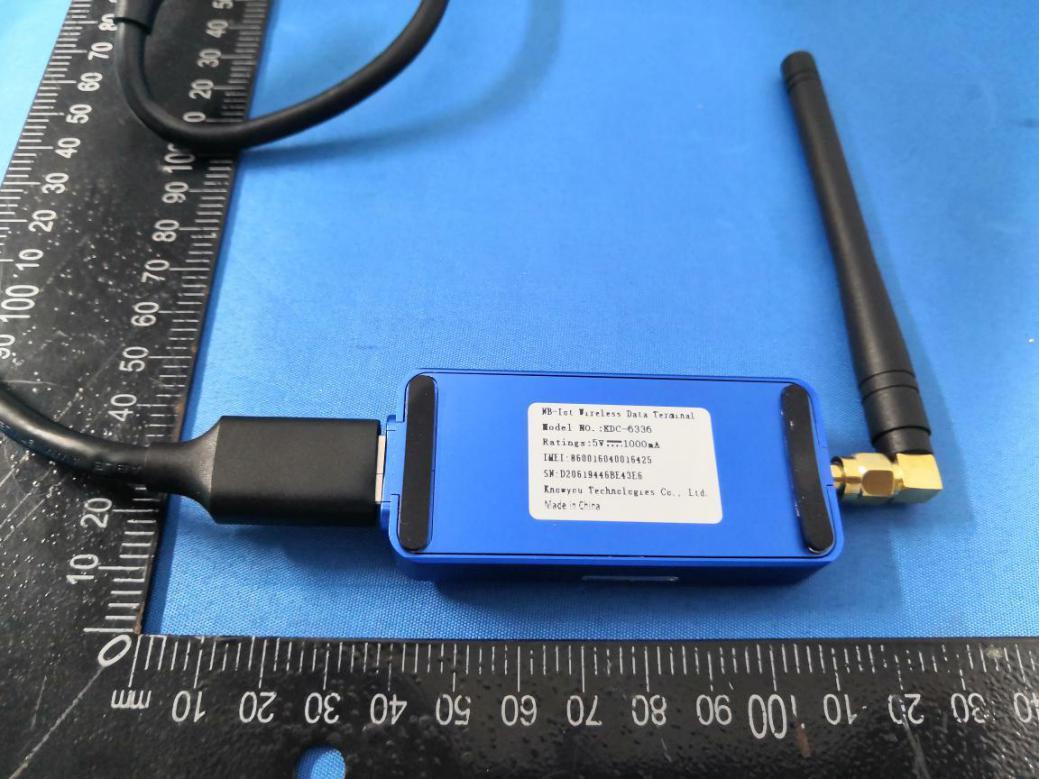

FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Wireless Data Terminal M/N: KDC- 6336 FCC ID: 2ARP6KDC-6336 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Appendix_EUT PHOTO 2ARP6KDC-6336 - Page 4 of 7 - Appendix_EUT PHOTO 2ARP6KDC-6336 - Page 5 of 7 - Appendix_EUT PHOTO 2ARP6KDC-6336 - Page 6 of 7 - Appendix_EUT PHOTO 2ARP6KDC-6336 - Page 7 of 7 - *****END *****

FCC ID : 2ARP6KDC-6336 RF EXPOSURE EVALUATION METHOD According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) EUT Specification EUT Wireless Data Terminal Frequency band (Operating) LTE Band 2: 1850.70MHz-1909.30MHz LTE Band 4: 1710.70MHz-1754.30MHz LTE Band 5: 824.7MHz-848.3MHz LTE Band 12: 699.70MHz-715.30MHz LTE Band 13: 779.50MHz-784.50MHz LTE Band 17: 806.5MHz -712.5MHz LTE Band 25: 1850.7MHz-1914.3MHz LTE Band 26 : 824.7MHz-848.3MHz LTE Band 41: 2557.5MHz ~2625MHz LTE Band 66: 1710.7MHz-1779.3MHz RX LTE Band 2: 1930MHz ~ 1990 MHz RX LTE Band 4: 2110 MHz ~ 2155 MHz RX LTE Band 5: 869 MHz ~ 894 MHz RX LTE Band 12: 729 MHz ~ 746 MHz RX LTE Band 13: 746 MHz ~ 756 MHz RX LTE Band 17: 734 MHz ~ 746 MHz RX LTE Band 25: 1930 MHz ~ 1995 MHz RX LTE Band 26: 859 MHz ~ 894 MHz RX LTE Band 41: 2496 MHz ~ 2690 MHz RX LTE Band 66: 5150 MHz ~ 5925 MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power LTE Band 2: 23.04dBm LTE Band 4: 23.15dBm LTE Band 5: 23.57dBm LTE Band 12: 23.49dBm LTE Band 13: 23.53dBm LTE Band 17: 23.56dBm LTE Band 25: 23.28dBm LTE Band 26 : 23.52dBm LTE Band 41: 23.88dBm FCC ID : 2ARP6KDC-6336 LTE Band 66: 23.00dBm Antenna gain (Max) Band 2: 1.27dBi Band 4: 1.38dBi Band 5: -4.02dBi Band 12: -4.29dBi Band 13: -4.27dBi Band 17: -4.36dBi Band 25: 1.31dBi Band 26: -4.07dBi Band 41: 1.57dBi Band 66: 1.62dBi Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm2) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 transmission formula: Pd=(Pout*G)\(4*pi*R 2 ) Where Pd= Power density in mW/cm2 Pout=output power to antenna in mW G= gain of antenna in linear scale Pi=3.1415 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. FCC ID : 2ARP6KDC-6336 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID : 2ARP6KDC-6336 Measurement Result Operating Mode Tune up tolerance Max. Tune up Power Antenna Gain Power density at 20cm Power density Limits (dBm) (dBm) (dBi) (mW/ cm2 ) (mW/ cm2 ) LTE Band 2 22±2 24.00 1.27 0.067 1 22±2 24.00 1.27 0.067 1 22±2 24.00 1.27 0.067 1 LTE Band 4 22±2 24.00 1.38 0.069 1 22±2 24.00 1.38 0.069 1 22±2 24.00 1.38 0.069 1 LTE Band 5 22±2 24.00 -4.02 0.020 1 22±2 24.00 -4.02 0.020 1 22±2 24.00 -4.02 0.020 1 LTE Band 12 22±2 24.00 -4.29 0.019 1 22±2 24.00 -4.29 0.019 1 22±2 24.00 -4.29 0.019 1 LTE Band 13 22±2 24.00 -4.27 0.019 1 22±2 24.00 -4.27 0.019 1 22±2 24.00 -4.27 0.019 1 LTE Band 17 22±2 24.00 -4.36 0.018 1 22±2 24.00 -4.36 0.018 1 22±2 24.00 -4.36 0.018 1 LTE Band 25 22±2 24.00 1.37 0.069 1 22±2 24.00 1.37 0.069 1 22±2 24.00 1.37 0.069 1 LTE Band 26 22±2 24.00 -4.07 0.020 1 22±2 24.00 -4.07 0.020 1 22±2 24.00 -4.07 0.020 1 LTE Band 41 22±2 24.00 1.57 0.072 1 22±2 24.00 1.57 0.072 1 22±2 24.00 1.57 0.072 1 LTE Band 66 22±2 24.00 1.62 0.073 1 22±2 24.00 1.62 0.073 1 22±2 24.00 1.62 0.073 1 Note: The estimation distance is 20cm(This 20cm should come from the extension line) Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device

Global United Technology Services Co., Ltd. Report No.: GTSL202011000192F01 Authorized Signature: Robinson Lo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 50 1 Cover Page TEST REPORT Applicant: Knowyou Technologies Co.,Ltd. Address of Applicant: A22 Floor, Int'l Innovation & Incubation Center, 418 Guiping Rd., Shanghai, China Manufacturer/Factory: Knowyou Technologies Co.,Ltd. Address of Manufacturer/Factory: A22 Floor, Int'l Innovation & Incubation Center, 418 Guiping Rd., Shanghai, China Equipment Under Test (EUT) Product Name: W ireless Data Terminal Model No.: KDC-6336,KDC-6336 N,KDC-2020 N,KDC-2020,KDC- 3533,KDC-3799,KDC-4128,KDC-4793,KDC-5018, KDC-5318,KDC-3533 N,KDC-3799 N,KDC-4128 N,KDC-4793 N,KDC-5018 N,KDC-5318 N Trade mark: KNOW YOU FCC ID: 2ARP6KDC-6336 Applicable standards: FCC CFR Title 47 Part 2 FCC CFR Title 47 Part 22 FCC CFR Title 47 Part 24 FCC CFR Title 47 Part 27 Date of sample receipt: November 03, 2020 Date of Test: November 04-December 15, 2020 Date of report issued: December 15, 2020 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Global United Technology Services Co., Ltd. Report No.: GTSL202011000192F01 Authorized Signature: Robinson Lo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 2 of 50 2 Version Version No. Date Description 00 December 15, 2020 Original Prepared By: Date: December 15, 2020 Project Engineer Check By: Date: December 15, 2020 Reviewer Report No.: GTSL202011000192F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 50 3 Contents Page 1 COVER PAGE..................................................................................................................................... 1 2 VERSION ............................................................................................................................................ 2 3 CONTENTS ......................................................................................................................................... 3 4 TEST SUMMARY ................................................................................................................................ 4 5 GENERAL INFORMATION .................................................................................................................. 5 5.1 GENERAL DESCRIPTION OF EUT ...................................................................................................... 5 5.2 RELATED SUBMITTAL(S) / GRANT (S)............................................................................................... 10 5.3 TEST METHODOLOGY .................................................................................................................... 10 5.4 TEST FACILITY ............................................................................................................................. 10 5.5 TEST LOCATION ........................................................................................................................... 10 6 TEST INSTRUMENTS LIST............................................................................................................... 11 7 SYSTEM TEST CONFIGURATION .................................................................................................... 13 7.1 TEST MODE ................................................................................................................................. 13 7.2 CONFIGURATION OF TESTED SYSTEM .............................................................................................. 13 7.3 CONDUCTED OUTPUT POWER ........................................................................................................ 14 7.4 PEAK-TO-AVERAGE RATIO ............................................................................................................. 15 7.5 OCCUPY BANDWIDTH ................................................................................................................... 16 7.6 MODULATION CHARACTERISTIC ............................................................................................ 17 7.7 OUT OF BAND EMISSION AT ANTENNA TERMINALS ............................................................................... 17 7.8 ERP, EIRP MEASUREMENT .......................................................................................................... 18 7.9 FIELD STRENGTH OF SPURIOUS RADIATION MEASUREMENT .................................................................. 20 7.10 FREQUENCY STABILITY V.S. TEMPERATURE MEASUREMENT ................................................................ 22 7.11 FREQUENCY STABILITY V.S. VOLTAGE MEASUREMENT ....................................................................... 23 8 TEST SETUP PHOTO ....................................................................................................................... 42 9 EUT CONSTRUCTIONAL DETAILS .................................................................................................. 44 Report No.: GTSL202011000192F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 27…

Text truncated - open the document above for the full version.

Global United Technology Services Co., Ltd. Report No.: GTSL202011000192F01 Test data Appendix FCC ID:2ARP6KDC-6336 1 Conducted output power Band Bandwidth (MHz) UL Channel RB Size RB Position Modulation Power (dBm) Verdict LTE Band12 1.4 23017 1 #0 QPSK 23.00 PASS LTE Band12 1.4 23017 1 #Mid QPSK 23.08 PASS LTE Band12 1.4 23017 1 #Max QPSK 23.05 PASS LTE Band12 1.4 23017 3 #0 QPSK 22.93 PASS LTE Band12 1.4 23017 3 #Mid QPSK 23.07 PASS LTE Band12 1.4 23017 3 #Max QPSK 22.89 PASS LTE Band12 1.4 23017 6 #0 QPSK 22.10 PASS LTE Band12 1.4 23017 1 #0 QAM16 21.75 PASS LTE Band12 1.4 23017 1 #Mid QAM16 22.08 PASS LTE Band12 1.4 23017 1 #Max QAM16 21.84 PASS LTE Band12 1.4 23017 3 #0 QAM16 21.94 PASS LTE Band12 1.4 23017 3 #Mid QAM16 22.11 PASS LTE Band12 1.4 23017 3 #Max QAM16 22.16 PASS LTE Band12 1.4 23017 6 #0 QAM16 21.10 PASS LTE Band12 1.4 23095 1 #0 QPSK 22.94 PASS LTE Band12 1.4 23095 1 #Mid QPSK 22.85 PASS LTE Band12 1.4 23095 1 #Max QPSK 22.91 PASS LTE Band12 1.4 23095 3 #0 QPSK 22.73 PASS LTE Band12 1.4 23095 3 #Mid QPSK 23.20 PASS LTE Band12 1.4 23095 3 #Max QPSK 23.01 PASS LTE Band12 1.4 23095 6 #0 QPSK 21.90 PASS LTE Band12 1.4 23095 1 #0 QAM16 22.12 PASS LTE Band12 1.4 23095 1 #Mid QAM16 21.91 PASS LTE Band12 1.4 23095 1 #Max QAM16 22.35 PASS LTE Band12 1.4 23095 3 #0 QAM16 21.74 PASS LTE Band12 1.4 23095 3 #Mid QAM16 21.95 PASS LTE Band12 1.4 23095 3 #Max QAM16 22.17 PASS LTE Band12 1.4 23095 6 #0 QAM16 20.93 PASS LTE Band12 1.4 23173 1 #0 QPSK 22.69 PASS LTE Band12 1.4 23173 1 #Mid QPSK 23.07 PASS LTE Band12 1.4 23173 1 #Max QPSK 22.68 PASS LTE Band12 1.4 23173 3 #0 QPSK 22.93 PASS LTE Band12 1.4 23173 3 #Mid QPSK 22.92 PASS LTE Band12 1.4 23173 3 #Max QPSK 22.98 PASS LTE Band12 1.4 23173 6 #0 QPSK 22.10 PASS LTE Band12 1.4 23173 1 #0 QAM16 22.36 PASS LTE Band12 1.4 23173 1 #Mid QAM16 22.43 PASS LTE Band12 1.4 23173 1 #Max QAM16 21.87 PASS LTE Band12 1.4 23173 3 #0 QAM16 21.83 PASS LTE Band12 1.4 23173 3 #Mid QAM16 21.86 PASS LTE Band12 1.4 23173 3 #Max QAM16 21.81 PASS Global United Technology Services Co., Ltd. Report No.: GTSL202011000192F01 Test data Appendix FCC ID:2ARP6KDC-6336 LTE Band12 1.4 23173 6 #0 QAM16 21.25 PASS LTE Band12 3 23025 1 #0 QPSK 22.81 PASS LTE Band12 3 23025 1 #Mid QPSK 23.21 PASS LTE Band12 3 23025 1 #Max QPSK 22.75 PASS LTE Band12 3 23025 8 #0 QPSK 22.00 PASS LTE Band12 3 23025 8 #Mid QPSK 21.99 PASS LTE Band12 3 23025 8 #Max QPSK 21.81 PASS LTE Band12 3 23025 15 #0 QPSK 22.11 PASS LTE Band12 3 23025 1 #0 QAM16 22.37 PASS LTE Band12 3 23025 1 #Mid QAM16 22.70 PASS LTE Band12 3 23025 1 #Max QAM16 22.31 PASS LTE Band12 3 23025 8 #0 QAM16 21.06 PASS LTE Band12 3 23025 8 #Mid QAM16 21.13 PASS LTE Band12 3 23025 8 #Max QAM16 21.06 PASS LTE Band12 3 23025 15 #0 QAM16 21.09 PASS LTE Band12 3 23095 1 #0 QPSK 22.73 PASS LTE Band12 3 23095 1 #Mid QPSK 22.82 PASS LTE Band12 3 23095 1 #Max QPSK 23.08 PASS LTE Band12 3 23095 8 #0 QPSK 21.99 PASS LTE Band12 3 23095 8 #Mid QPSK 22.01 PASS LTE Band12 3 23095 8 #Max QPSK 22.01 PASS LTE Band12 3 23095 15 #0 QPSK 22.05 PASS LTE Band12 3 23095 1 #0 QAM16 21.69 PASS LTE Band12 3 23095 1 #Mid QAM16 21.93 PASS LTE Band12 3 23095 1 #Max QAM16 21.70 PASS LTE Band12 3 23095 8 #0 QAM16 20.72 PASS LTE Band12 3 23095 8 #Mid QAM16 20.70 PASS LTE Band12 3 23095 8 #Max QAM16 21.02 PASS LTE Band12 3 23095 15 #0 QAM16 20.70 PASS LTE Band12 3 23165 1 #0 QPSK 22.88 PASS LTE Band12 3 23165 1 #Mid QPSK 23.27 PASS LTE Band12 3 23165 1 #Max QPSK 23.24 PASS LTE Band12 3 23165 8 #0 QPSK 22.13 PASS LTE Band12 3 23165 8 #Mid QPSK 21.85 PASS LTE Band12 3 23165 8 #Max QPSK 22.16 PASS LTE Band12 3 23165 15 #0 QPSK 21.91 PASS LTE Band12 3 23165 1 #0 QAM16 21.95 PASS LTE Band12 3 23165 1 #Mid QAM16 21.97 PASS LTE Band12 3 23165 1 #Max QAM16 21.66 PASS LTE Band12 3 23165 8 #0 QAM16 21.19 PASS LTE Band12 3 23165 8 #Mid QAM16 20.90 PASS LTE Band12 3 23165 8 #Max QAM16 20.70 PASS LTE Band12 3 23165 15 #0 QAM16 21.20 PASS Global United Technology Services Co., Ltd. Report No.: GTSL202011000192F01 Test data Appendix FCC ID:2ARP6KDC-6336 LTE Band12 5 23035 1 #0 QPSK 22.71 PASS LTE Band12 5 23035 1 #Mid QPSK 22.91 PASS LTE Band12 5 23035 1 #Max QPSK 22.94 PASS LTE Band12 5 23035 12 #0 QPSK 22.18 PASS LTE Band12 5 23035 12 #Mid QPSK 22.05 PASS LTE Band12 5 23035 12 #Max QPSK 22.02 PASS LTE Band12 5 23035 25 #0 QPSK 22.12 PASS LTE Band12 5 23035 1 #0 QAM16 22.00 PASS LTE Band12 5 23035 1 #Mid QAM16 22.04 PASS LTE Band12 5 23035 1 #Max QAM16 22.04 PASS LTE Band12 5 23035 12 #0 QAM16 21.00 PASS LTE Band12 5 23035 12 #Mid QAM16 20.77 PASS LTE Band12 5 23035 12 #Max QAM16 20.68 PASS LTE Band12 5 23035 25 #0 QAM16 21.13 PASS LTE Band12 5 23095 1 #0 QPSK 22.73 PASS LTE Band12 5 23095 1 #Mid QPSK 23.09 PASS LTE Band12 5 23095 1 #Max QPSK 22.97 PASS LTE Band12 5 23095 12 #0 QPSK 21.75 PASS LTE Band12 5 23095 12 #Mid QPSK 22.08 PASS LTE Band12 5 23095 12 #Max QPSK 22.06 PASS LTE Band12 5 23095 25 #0 QPSK 22.07 PASS LTE Band12 5 23095 1 #0 QAM16 21.47 PASS LTE Band12 5 23095 1 #Mid QAM16 21.68 PASS LTE Band12 5 23095 1 #Max QAM16 21.92 PASS LTE Band12 5 23095 12 #0 QAM16 20.56 PASS LTE Band12 5 23095 12 #Mid QAM16 20.66 PASS LTE Band12 5 23095 12 #Max QAM16 20.88 PASS LTE Band12 5 23095 25 #0 QAM16 20.72 PASS LTE Band12 5 23155 1 #0 QPSK 22.75 PASS LTE Band12 5 23155 1 #Mid QPSK 22.85 PASS LTE Band12 5 23155 1 #Max QPSK 22.94 PASS LTE Band12 5 23155 12 #0 QPSK 22.09 PASS LTE Band12 5 23155 12 #Mid QPSK 21.79 PASS LTE Band12 5 23155 12 #Max QPSK 21.82 PASS LTE Band12 5 23155 25 #0 QPSK 21.96 PASS LTE Band12 5 23155 1 #0 QAM16 21.96 PASS LTE Band12 5 23155 1 #Mid QAM16 21.57 PASS LTE Band12 5 23155 1 #Max QAM16 21.82 PASS LTE Band12 5 23155 12 #0 QAM16 20.91 PASS LTE Band12 5 23155 12 #Mid QAM16 20.64 PASS LTE Band12 5 23155 12 #Max QAM16 20.94 PASS LTE Band12 5 23155 25 #0 QAM16 20.98 PASS LTE Band12 10 23060 1 #0 QPSK 22.90 PASS Global United Technology Services Co., Ltd. Report No.: GTSL202011000192F01 Test data Appendix FCC ID:2ARP6KDC-6336 LTE Band12 10 23060 1 #Mid…

Text truncated - open the document above for the full version.

Global United Technology Services Co., Ltd. Report No.: GTSL202011000192F01 Test data Appendix FCC ID:2ARP6KDC-6336 LTE Band25 QAM16 BW=5MHz Channel=26365 RB Size=25 Position=#0 LTE Band25 QPSK BW=10MHz Channel=26365 RB Size=50 Position=#0 Global United Technology Services Co., Ltd. Report No.: GTSL202011000192F01 Test data Appendix FCC ID:2ARP6KDC-6336 LTE Band25 QAM16 BW=10MHz Channel=26365 RB Size=50 Position=#0 LTE Band25 QPSK BW=15MHz Channel=26365 RB Size=75 Position=#0 Global United Technology Services Co., Ltd. Report No.: GTSL202011000192F01 Test data Appendix FCC ID:2ARP6KDC-6336 LTE Band25 QAM16 BW=15MHz Channel=26365 RB Size=75 Position=#0 LTE Band25 QAM16 BW=20MHz Channel=26365 RB Size=100 Position=#0 Global United Technology Services Co., Ltd. Report No.: GTSL202011000192F01 Test data Appendix FCC ID:2ARP6KDC-6336 LTE Band25 QPSK BW=20MHz Channel=26365 RB Size=100 Position=#0 LTE Band26 QPSK BW=1.4MHz Channel=26915 RB Size=6 Position=#0 Global United Technology Services Co., Ltd. Report No.: GTSL202011000192F01 Test data Appendix FCC ID:2ARP6KDC-6336 LTE Band26 QAM16 BW=1.4MHz Channel=26915 RB Size=6 Position=#0 LTE Band26 QPSK BW=3MHz Channel=26915 RB Size=15 Position=#0 Global United Technology Services Co., Ltd. Report No.: GTSL202011000192F01 Test data Appendix FCC ID:2ARP6KDC-6336 LTE Band26 QAM16 BW=3MHz Channel=26915 RB Size=15 Position=#0 LTE Band26 QPSK BW=5MHz Channel=26915 RB Size=25 Position=#0 Global United Technology Services Co., Ltd. Report No.: GTSL202011000192F01 Test data Appendix FCC ID:2ARP6KDC-6336 LTE Band26 QAM16 BW=5MHz Channel=26915 RB Size=25 Position=#0 LTE Band26 QPSK BW=10MHz Channel=26915 RB Size=50 Position=#0 Global United Technology Services Co., Ltd. Report No.: GTSL202011000192F01 Test data Appendix FCC ID:2ARP6KDC-6336 LTE Band26 QAM16 BW=10MHz Channel=26915 RB Size=50 Position=#0 LTE Band26 QPSK BW=15MHz Channel=26915 RB Size=75 Position=#0 Global United Technology Services Co., Ltd. Report No.: GTSL202011000192F01 Test data Appendix FCC ID:2ARP6KDC-6336 LTE Band26 QAM16 BW=15MHz Channel=26915 RB Size=75 Position=#0 LTE Band26 QAM16 BW=5MHz Channel=26740 RB Size=25 Position=#0 Global United Technology Services Co., Ltd. Report No.: GTSL202011000192F01 Test data Appendix FCC ID:2ARP6KDC-6336 LTE Band26 QPSK BW=1.4MHz Channel=26740 RB Size=6 Position=#0 LTE Band26 QPSK BW=10MHz Channel=26740 RB Size=50 Position=#0 Global United Technology Services Co., Ltd. Report No.: GTSL202011000192F01 Test data Appendix FCC ID:2ARP6KDC-6336 LTE Band26 QAM16 BW=1.4MHz Channel=26740 RB Size=6 Position=#0 LTE Band26 QAM16 BW=10MHz Channel=26740 RB Size=50 Position=#0 Global United Technology Services Co., Ltd. Report No.: GTSL202011000192F01 Test data Appendix FCC ID:2ARP6KDC-6336 LTE Band26 QAM16 BW=3MHz Channel=26740 RB Size=15 Position=#0 LTE Band26 QPSK BW=5MHz Channel=26740 RB Size=25 Position=#0 Global United Technology Services Co., Ltd. Report No.: GTSL202011000192F01 Test data Appendix FCC ID:2ARP6KDC-6336 LTE Band26 QPSK BW=3MHz Channel=26740 RB Size=15 Position=#0 LTE Band4 QPSK BW=1.4MHz Channel=20175 RB Size=6 Position=#0 Global United Technology Services Co., Ltd. Report No.: GTSL202011000192F01 Test data Appendix FCC ID:2ARP6KDC-6336 LTE Band4 QAM16 BW=1.4MHz Channel=20175 RB Size=6 Position=#0 LTE Band4 QPSK BW=3MHz Channel=20175 RB Size=15 Position=#0 Global United Technology Services Co., Ltd. Report No.: GTSL202011000192F01 Test data Appendix FCC ID:2ARP6KDC-6336 LTE Band4 QAM16 BW=3MHz Channel=20175 RB Size=15 Position=#0 LTE Band4 QPSK BW=5MHz Channel=20175 RB Size=25 Position=#0 Global United Technology Services Co., Ltd. Report No.: GTSL202011000192F01 Test data Appendix FCC ID:2ARP6KDC-6336 LTE Band4 QPSK BW=10MHz Channel=20175 RB Size=50 Position=#0 LTE Band4 QAM16 BW=5MHz Channel=20175 RB Size=25 Position=#0 Global United Technology Services Co., Ltd. Report No.: GTSL202011000192F01 Test data Appendix FCC ID:2ARP6KDC-6336 LTE Band4 QAM16 BW=10MHz Channel=20175 RB Size=50 Position=#0 LTE Band4 QPSK BW=15MHz Channel=20175 RB Size=75 Position=#0 Global United Technology Services Co., Ltd. Report No.: GTSL202011000192F01 Test data Appendix FCC ID:2ARP6KDC-6336 LTE Band4 QAM16 BW=15MHz Channel=20175 RB Size=75 Position=#0 LTE Band4 QPSK BW=20MHz Channel=20175 RB Size=100 Position=#0 Global United Technology Services Co., Ltd. Report No.: GTSL202011000192F01 Test data Appendix FCC ID:2ARP6KDC-6336 LTE Band4 QAM16 BW=20MHz Channel=20175 RB Size=100 Position=#0 LTE Band5 QPSK BW=1.4MHz Channel=20525 RB Size=6 Position=#0 Global United Technology Services Co., Ltd. Report No.: GTSL202011000192F01 Test data Appendix FCC ID:2ARP6KDC-6336 LTE Band5 QAM16 BW=1.4MHz Channe…
