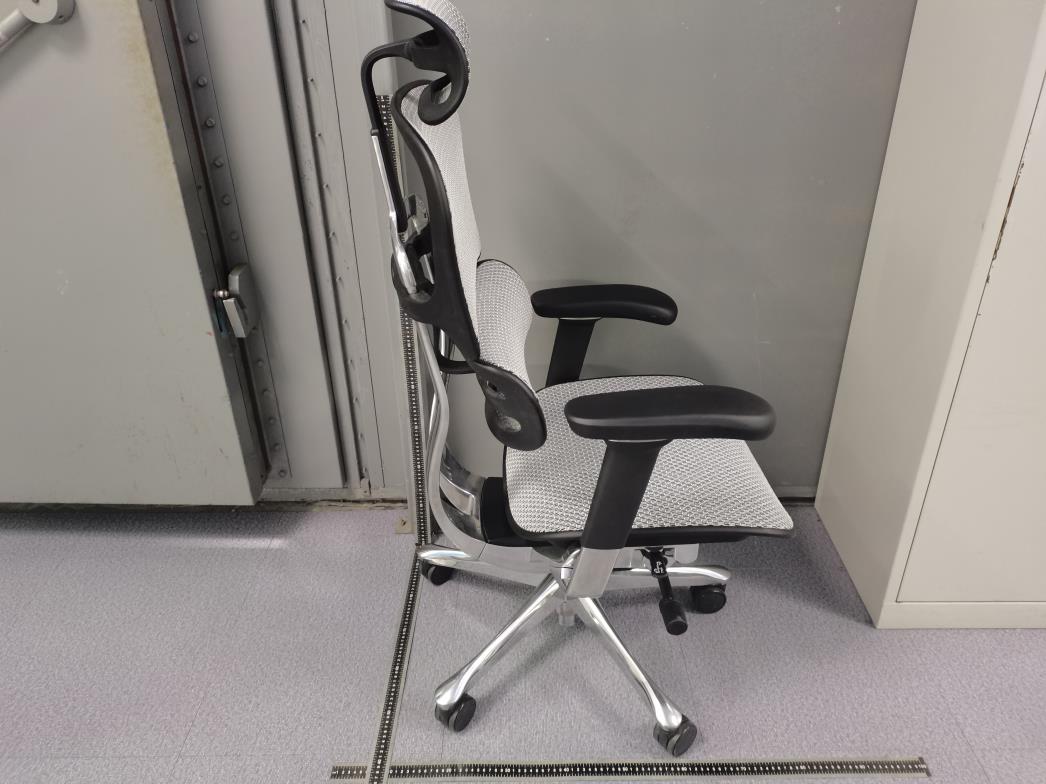

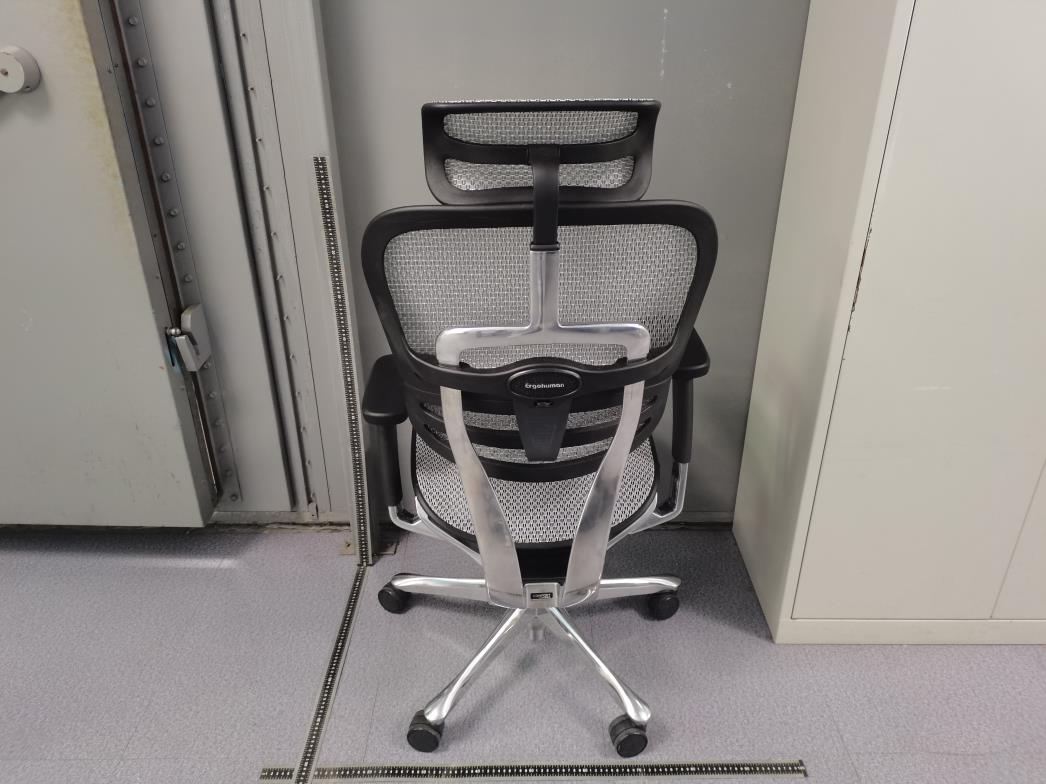

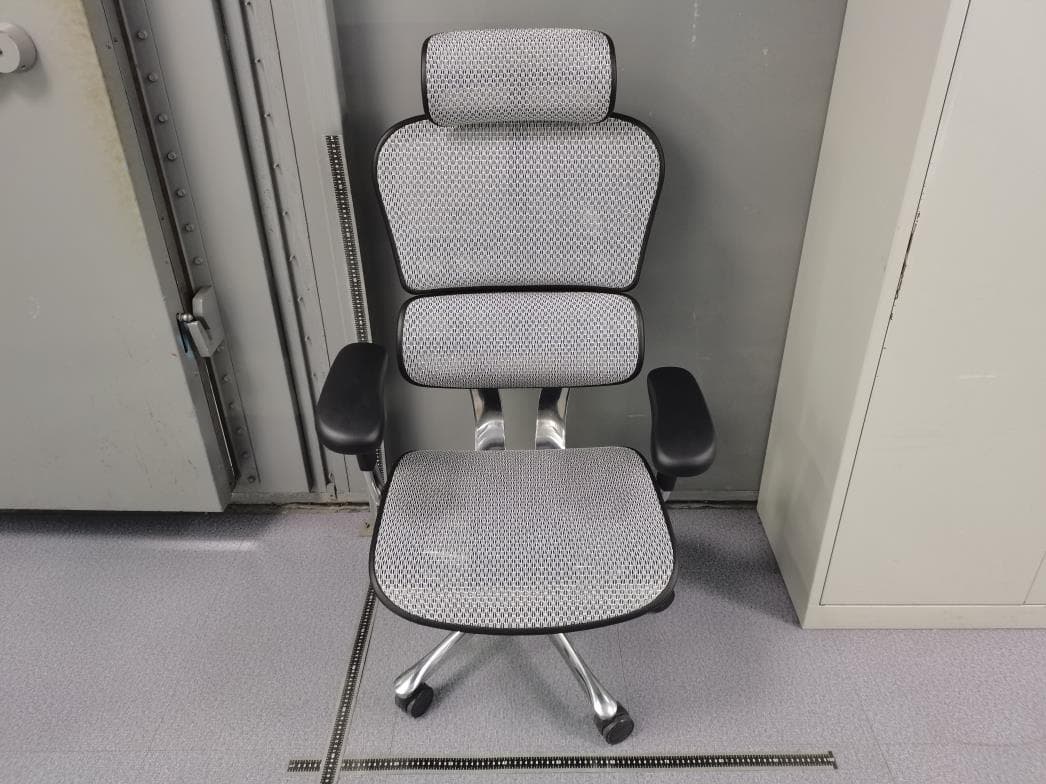

2ARRF-EHSEABHAM5DECOffice chair

www.ergonorseating.com L R aaE?…
ahYa 3. 7. %hn]a E/GhGG 21. %nGh/MG
;nahEGha 5. ,?h,…
ah/G'
ahʍnY
~/ 19. ,/]
Y]ha
hMM?a 2. ]]Gh… 22. 02 CHAIR PA RT S


9
 Backrest


9
 Headrest


9

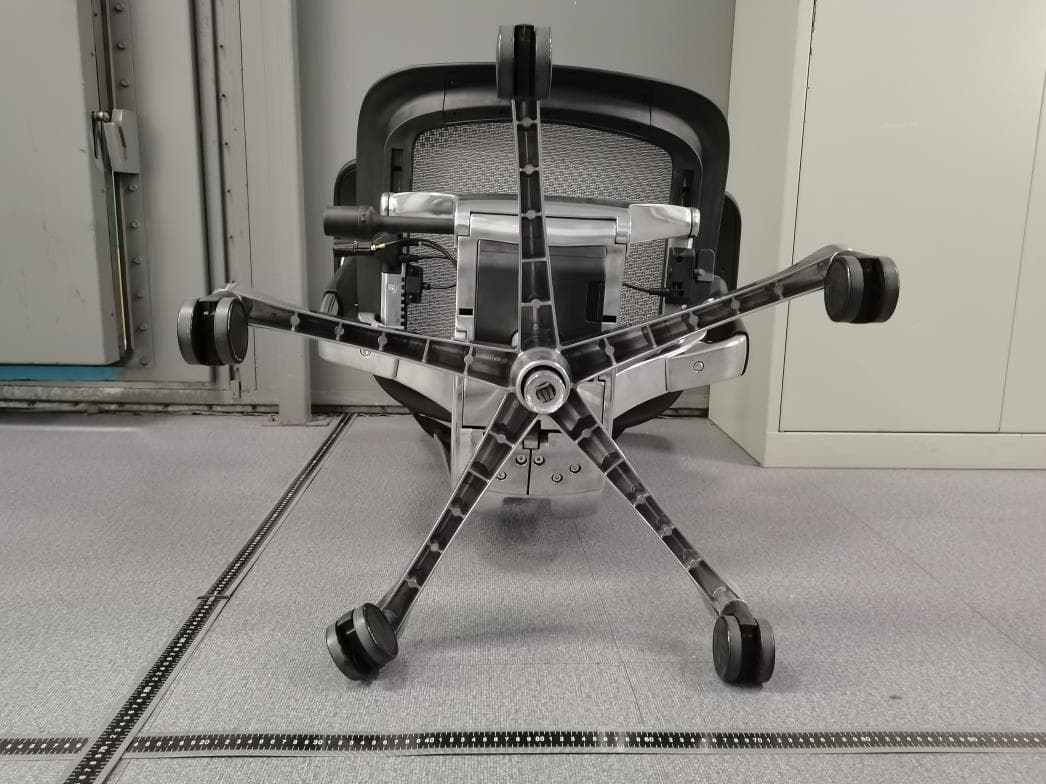

Base


9
 Armrest


9
 Caster


9
 ōƝƂŲȗ For Backrest %ŞȗƜŋƜŞƝƤ M9ŋŋ For Armrest M9ŋŋ ƂƂŞƈ .ƜŞƈȹů L ĸŲŪůƤƜŋƜŞƝƤ R


9
 Seat 'ƚƤŲƎƈōƂ TOOLS A B CONTENTS M9ŋŋ L R OPTIONAL No installation required M9ŋŋ B A 90° 0403 Ж**&%0 STEPS Align at screw holes then lock backrest connector with screw. Attention insert completely 10 07 LUMBAR SUPPORT TENSION ADJUSTMENT 03 FORWARD TILT ADJUSTMENT RECLINE GEAR LOCK BATTERY MAINTENANCE 06 11 12 05 BACK TILT TENSION ADJUSTMENT 09 5D ARMREST 04 BACK HEIGHT ADJUSTMENT 08 2D HEADREST '(+"'L·% 02 ELECTRIC CONTROL Seat Height Adjustment Back Tilt & Lock Adjustments 0605 Seat Height Adjustment Back Tilt & Lock Adjustments Seat Depth & Lock Adjustments 01 SINGLE LEVER CONTROL COAT HANGER '(+"'L·% LEGPRO LEG REST '(+"'L·% Press and hold the recline button to lean backward to a comfortable angle. Release the button to lock the memory gear. The adjustable range is 31 degrees. BACK TILT Press and hold the seat height button. Adjust the seat to a comfortable height and release the button to lock. The adjust- able range is 115 mm. SEAT HEIGHT 0807 SINGLE LEVER CONTROL 01 UPWARD & LOCK BACK TILTSEAT SLIDE SEAT HEIGHT Push the single lever backward , recline the backrest to a comfortable angle, and then pull the level back to the middle position to lock the memory gear. Pull up and hold the single lever to raise or lower the seat height. Release the lever to lock seat height. Push the lever forward to adjust seat depth. Return the lever to the center lock position to lock seat depth. ELECTRIC CONTROL 02 6 LEVELS 4 LEVELSEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEVEVEVVVEVEVVEVVEEVEVEVEEEEVEEVEEEVEVEVEVEEVVEEVEEVEVEEEVEVVVVEVEEVEVEEEVEVEEVVEVVEEVEVEVVEVEEVVVVVVVVVVVVVVVVELSLSLSLSLSLSLSLSLSLSLSLSLSLSLLLSLSLLLLLLLLLLLLLSLLLLLLLSLSLSLSLLLLLLSLLLLLLLSLLSSSLLLSLSLSSSLLLSSLSLLLSSSSLLLLLSSSSLLLSSSLSSLSSLLSSSS4444444 44 44444 444444 44444444444444444444444444444LEEELEELELELELELELEELELELELELELEEELEELELELEELEEELELEEELELELELELEEEEEELEEEEELEEEELEEEELLLLLEELELELEEELLLLLLEEEELEELLLELEEELELLLLEELLLEELLLLLLEEE 6° 2° FORWARD TILT ADJUSTMENT 03 LJ Lj dž Lj LJdž Push the forward tilt handle downward, and then push the single lever backward. When the backrest reclines and then bounces back to the extreme front position after your back leaves the backrest, pull the single lever back to the middle position to lock it in the forward tilt angle. The adjustable range is about 8 degrees. ENGAGE FORWARD TILT Pull the forward tilt handle upward, and then push the single lever backward. Recline the backrest to disengage. DISENGAGE FORWARD TILT 1009 BACK HEIGHT ADJUSTMENT 04 Sit on the chair, and hold the backrest to push it upward or downward. When the seat back is pushed to the highest point, it will auto- matically return to the lowest position. Five levels are available with an adjust- able range of 65 mm. ENHANCE WEAKEN 05 BACK TILT TENSION Turn the knob count- er-clockwise to loosen the recline tension. Turn the knob clock- wise to tighten the recline tension. dž LJ Lj lj ٕшෆѳ᭞ऄ 06 1211 Pull the single lever backward and recline the seat to a comfortable angle. Push down the recline handle to lock in your desired gear. Four gears are available. increase the tension decrease the tension 07 LUMBAR SUPPORT TENSION ADJUSTMENT 2D 1D 1413 Rotate in the direc- tion where the contact point turns bigger to increase the tension. Rotate in the direc- tion where the contact point turns smaller to decrease the tension. For better lumbar support, it is recommended to sit fully in the chair with the lumbar supported. 08 2D HEADREST 'ƚƤŲƎƈōƂŊƨƈȹƤŲƎƈƎƈƂƯ 1DHEADREST HEIGHT Hold the support rod of the headrest with both hands, and pull the headrest up or down as a whole to move it to a lower or higher position. Eight gears are available with an adjustment range of 80 mm. 2DTILT ADJUSTMENT Tilt the headrest to adjust its angle. Four gears are available with an adjustable range of 60 ° 10 COAT HANGER 'ƚƤŲƎƈōƂŊƨƈȹƤŲƎƈƎƈƂƯ 1615 09 5D ARMREST UPLIFT ADJUSTMENT Hold the armrest and pull it up until it clicks. Release to lock in the desired height. The adjust- able range is 87 mm. ARM HEIGHT Hold the front end of the armrest and tilt it up. The upward tilt will remain when you release the front end. 7 gears are available with an adjustable range of 40°. The armrest will return to the lowest position when the highest point is hit. ARM DEPTH Move the armpad forward or backward to adjust the arm depth, in total 45 mm range. ARM WIDTH Move the armpad inward or outward to adjust the arm width, in total 15 mm range. ARM ANGLE Swing the front end of armpad in or out to adjust the arm angle, total 5 positions locking with 45 ° range. Hold both ends of the hanger and pull to the side to extend. Press and hold the button in the middle of the hanger to retract. 11 LEGPRO LEG REST 'ƚƤŲƎƈōƂŊƨƈȹƤŲƎƈƎƈƂƯ 3 As per picture, rotate the folded part of legrest forward to unfold completely and lock the gear. 2 Pull up the legrest to rotate outward to 145° . It can be locked at any available angle within an adjustable range of 145°. 1 Turn the switch under the cushion to its utmost clockwise position. ? 1817 12 BATTERY MAINTENANCE ACTIVATE Remove the insulating piece to begin using it. DISASSEMBLE Open the battery cover to replace the button battery. CEE SEMSEBLE tery cover to on bon batteattry. ASSEMBLE Push the battery into the designated port in the chassis. Press the button to disas- semble the lithium battery. * With electric control, two long beeps indicates the lithium battery’ s power is low, and two short beeps indicates the button battery’s power is low. CHARGE A 5V 2A charger is used. The LED turns solid green when fully charged. ǎDž 2019 Sitting on seat cushion fully (your hips should to…
