2ARUDTS81323.1.2 Channel Dolby Atmos Sound Bar with Wireless Subwoofer

User Manual Alto 8e 3.1.2 Channel Dolby Atmos Sound Bar with Wireless Subwoofer 1 Contents2 Welcome 1 Before you begin ................................................ ............................................................. 43 What’s in the box .......................................................... 4Overview of the Sound Bar .......................................... 6Overview of the wireless subwoofer ............................. 8Set up your Sound Bar system .................................... 9 10 9 Mount your Sound Bar on the wall ...............................Overview of the Remote Control ...................................Position Your Sound Bar and Subwoofer ..................... 14 Install/replace the remote control batteries.................... 15 3 Connect your Sound Bar system ..................... 17 Connect with the HDMI cable ...................................... 17 Connect with the optical cable ................................... 20 Optional: Connect your Blu-ray player ........................ 19 Connect your Sound Bar to power supply ................... 22 Connect the Sound Bar with your Bluetooth device .... 23 Connect your wireless subwoofer to the Sound Bar .... 24 Direction for setting up your Sound Bar using an optical cable .................................................................. 21 2 4 Use your Sound Bar system .............................. 25 Use your Sound Bar with the top panel or remote control ........................................................................... 25 30 65 Notice ................................................................. 31 Notice for Canada ......................................................... 32Disposal of your old product and battery ..................... 33 Trademarks ................................................................... 34 7 FAQ ..................................................................... 35 Specifications .................................................... Listen to music from your Bluetooth device ................ 28 Use the USB cable or device for music playback ........ 29 Notice for USA .............................................................. 31 3 •••••••• 1 Before you begin for your listening comfort. 4 2 WelcomeCongratulations on the purchase of your new TCL Sound Bar! After it is set up and connected, you can experience a superb sound quality and state-of-the-art design to best fit your home entertainment system. You are recommended to read through this user manual which helps you set up, connect and operate the product easily and properly.Let’s get started.What’s in the box AC power cord x 2 AAA battery x 2 Remote control Sound Bar Wireless Subwoofer 5 Optical cable Wall anchor x 2 Wall mount template Wall mount bracket x 2 HDMI cable QSG Sleeve x 2 Safety instructions Safety leaflet Quick Start Guide Warranty card Warranty card Wall mounting screw x 2 6 Overview of the Sound Bar 5 1 2 3 4 <:) 7 8 9 10 e(*05 1 Short press to enter Sleep or Standby mode.Long press to enter Standby mode. 2 Press to switch the audio source among HDMI ARC/HDMI IN/OPT/BT/USB modes. 3 Press to select the Bluetooth function. Press and hold to enter the pairing mode. HELLO 11 6 7 4 Press to increase or decrease the volume level. 5 6 3,+PUKPJH[VY It indicates the Sound Bar status (e.g. volume level, sound bar status). 7 (*PUW\[WV^LYJVUULJ[VY/+4005JVUULJ[VY/+406<;(9*JVUULJ[VY 89 6W[PJHSPUW\[JVUULJ[VY 10 <:);`WL(JVUULJ[VYVUS`MVYT\ZPJWSH`IHJR 11 White LED:It indicates standby/sleep mode. 8 Overview of the wireless subwoofer 1 3 (*e05 2 1 AC input power connector 2 Amber LED indicator• • • remains on solidly when pairing is successful. Note • The subwoofer is already paired at the factory. Manuallypairing is needed only in case of troubleshooting. flashes quickly when pairing is in progress.flashes slowly when the subwoofer is in standbymode. 3 7(09 Press and hold button on the Sound Bar main unit for 5 seconds. Press and hold 7(09 button on the subwoofer till the pairing finished. And thenthe amber LED keep lighting up on the subwoofer. 9 Set up your Sound Bar system 5V[LZ Make sure you read all the safety information before you mount the Sound Bar main unit on the wall.TCL Overseas Marketing Limited bears no responsibility for accidents or damage caused by improper wall mounting and screws installation or Additional tools (not supplied) are required for installation. The ideal place to position the Sound Bar main unit is centered underneath your TV.You are recommended to place the Sound Bar main unit on the top of the cabinet and right below the center of your TV. The distance between the subwoofer and the Sound Bar main unit should be less than 9.8'. Make sure you use screws provided or specified by theauthorized manufacturer.insufficient wall strength, etc. You can choose to place your Sound Bar below the center of your TV or mount it on the wall. Position Your Sound Bar and Subwoofer 10 TV 1 Place the supplied wall mount template on the wall. Make sure the wall mount template is at least 2 inches (5cm) below the center of the TV. 2 Use a level to make sure the wall mount template is positioned accurately. 3 Use the tape to stick the wall mount template firmly onthe wall. Mount your Sound Bar on the wall TV < 9.8' 4 Mark on the wall using each marking on the template through the mounting holes. 5 Take away the wall mount template. 6 Drill a screw hole at each marking on the wall. 7 Screw off the rubber cushions from the soundbar.(Reserve the rubber cushions for future use) 8 Screw on the wall mount brackets to the soundbar. 9 Insert the supplied screws with the sleeves into the hole of the wall anchors. * The rubber cushions can be used as soundbar mats when you put the soundbar on the table 11 > 2" TV TV 30.7" 1 3 4 5 2 6 12 7 7 8 8 10 Fix and tighten the wall bracket screws on the wall. 11 Hang the Sound Bar on the screws. 13 5V[LZ Check the installation l…

Text truncated - open the document above for the full version.

TCL Entertainment Solutions Limited I, the signer, Ada shi The difference between the following products just lies in the model , the other is the same. Item Name ：3.1.2 Channel Dolby Atmos Sound Bar with Wireless Subwoofer FCC ID: 2ARUDTS8132 Model Number: TS8132 Additional Model:, TDS8132, FS8132, OS8132, Alto8e, TS8132K,TDS8132K, ***8132 (“*” can be any alphanumeric character including blank for marketing differences) Name:Ada shi Title: engineer Company: TCL Entertainment Solutions Limited

C5266091_X8_Ed.1 1/1 Letter of Authorization Company: TCL Entertainment Solutions Limited Address: 7/F, building 22E, 22 science park east avenue,Hong Kong science park, SHATIN, N.T. ,Hong Kong Product Name: 3.1.2 Channel Dolby Atmos Sound Bar with Wireless Subwoofer Model Number: TS8132,TDS8132, FS8132, OS8132, Alto8e, TS8132K,TDS8132K, ***8132 FCC Identifier: 2ARUDTS8132 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name： Date:01/25/2021 Title: Engineer Signature of applicant:

C5266091_X10_Ed.1 1/1 TCL Entertainment Solutions Limited Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 01/25/2021 Subject: Request for Confidentiality FCC ID: 2ARUDTS8132 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above me ntioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Title: Engine er

C5266091_X13_Ed.1 1/1 TCL Entertainment Solutions Limited FCC Software Configuration Control Declaration Date:01/25/2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Product/ Model Number: TS8132 Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Signature of applicant： Name： Title: Engineer

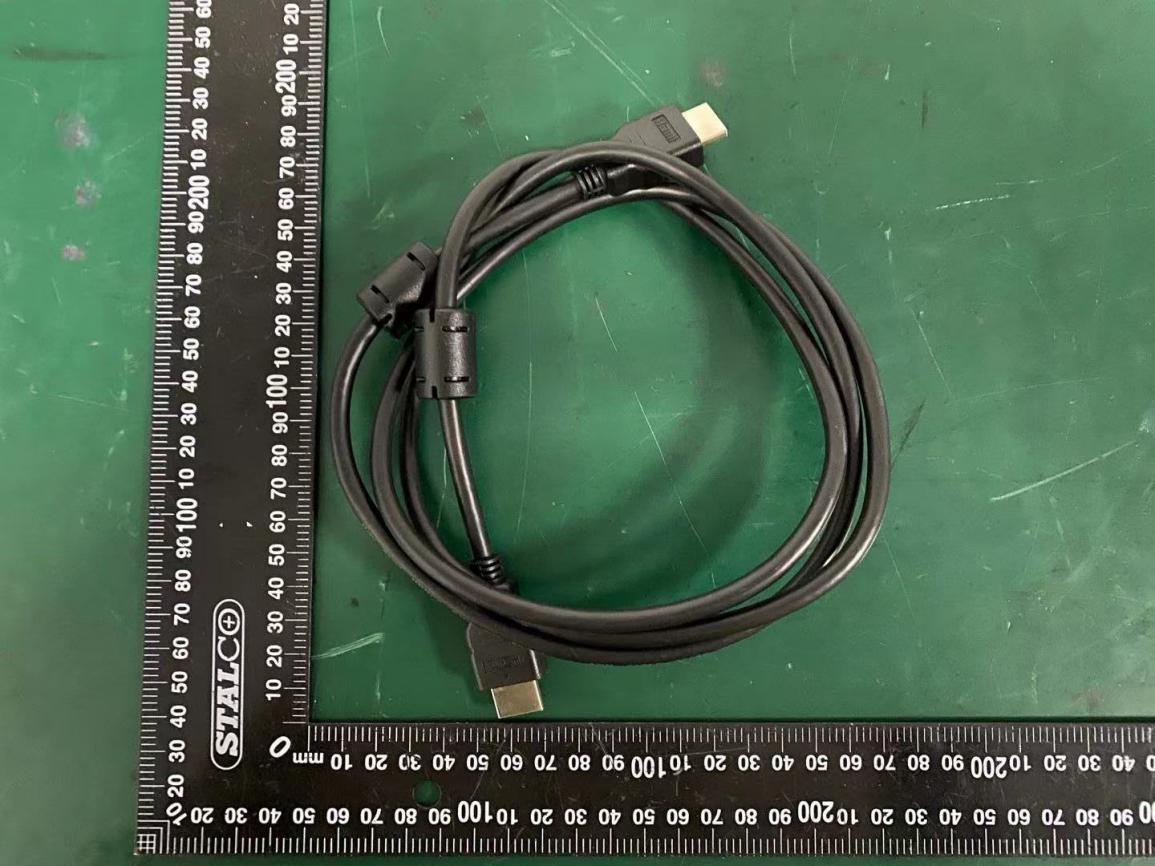

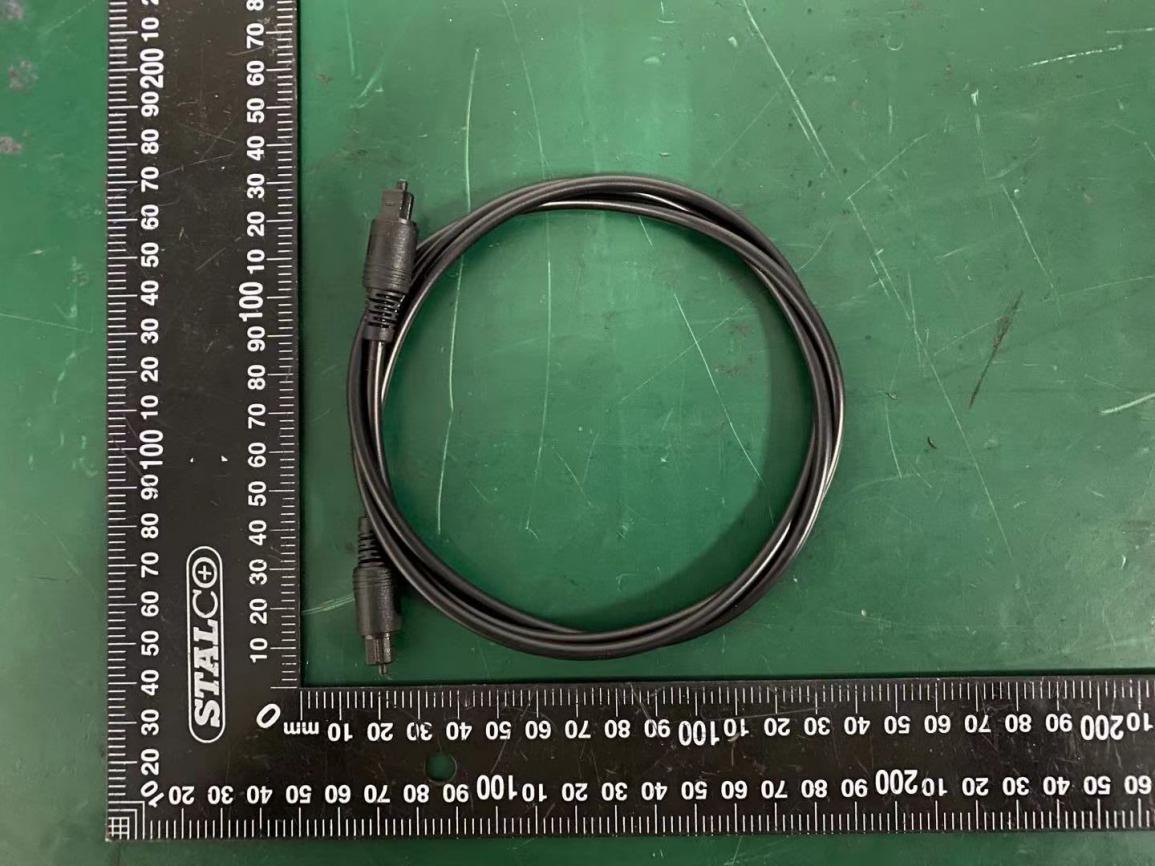

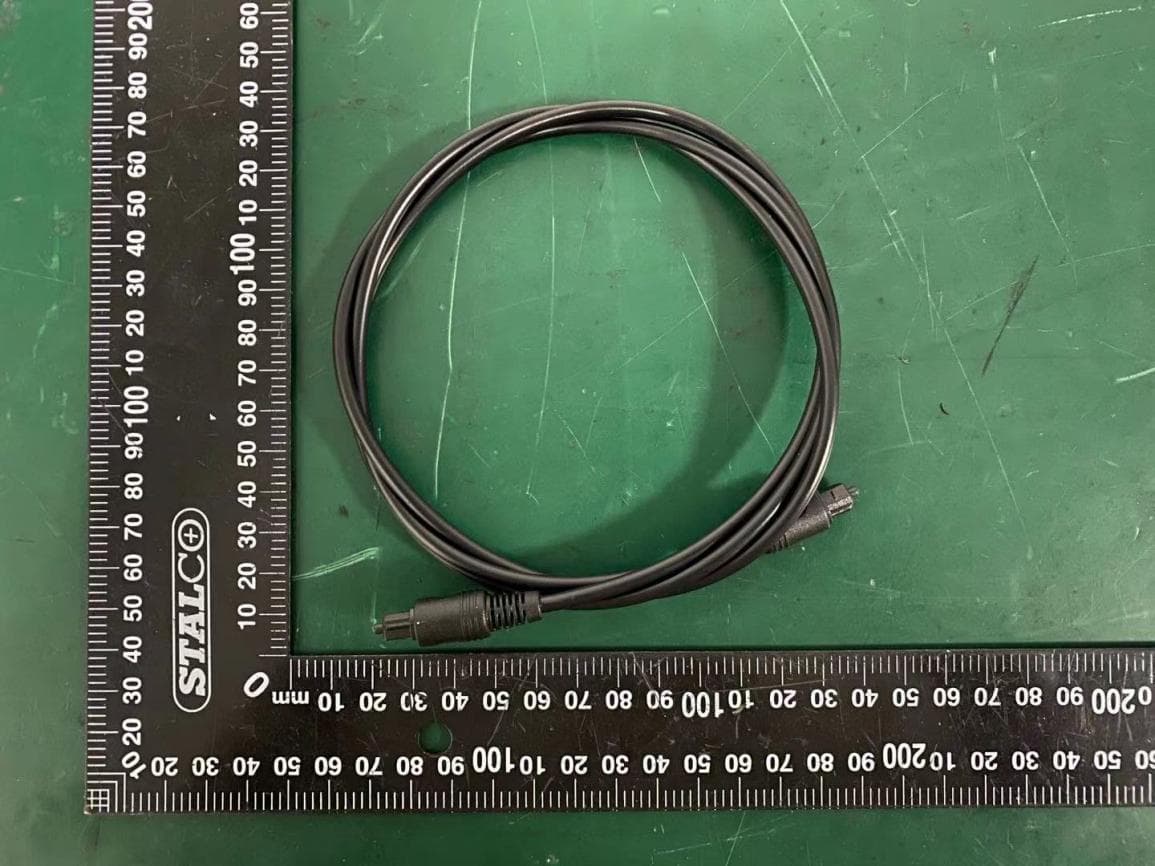

External Photos M/N: TS8132 External Photos M/N: TS8132 External Photos M/N: TS8132 External Photos M/N: TS8132 External Photos M/N: TS8132 External Photos M/N: TS8132 External Photos M/N: TS8132

Internal Photos M/N: TS8132 Internal Photos M/N: TS8132 Internal Photos M/N: TS8132 Internal Photos M/N: TS8132 Internal Photos M/N: TS8132 Internal Photos M/N: TS8132 Internal Photos M/N: TS8132 Internal Photos M/N: TS8132

FCC ID: 2ARUDTS8132 EST Technology Co. ,Ltd Report No. ESTE-R2101021 Page 1 of 8 FCC 47 CFR MPE REPORT TCL Entertainment Solutions Limited 3.1.2 Channel Dolby Atmos Sound Bar with Wireless Subwoofer Model Number: TS8132 Additional Model: TDS8132, FS8132, OS8132, Alto8e, TS8132K, TDS8132K, ***8132 FCC ID: 2ARUDTS8132 Prepared for: TCL Entertainment Solutions Limited 7/F, building 22E, 22 science park east avenue, Hong Kong science park, SHATIN, N.T., Hong Kong 999077 China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2101021 Date of Test: Dec. 17, 2020~Jan. 08, 2021 Date of Report: Jan. 12, 2021 FCC ID: 2ARUDTS8132 EST Technology Co. ,Ltd Report No. ESTE-R2101021 Page 2 of 8 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density FCC ID: 2ARUDTS8132 EST Technology Co. ,Ltd Report No. ESTE-R2101021 Page 3 of 8 1.2. MPE Calculation Method E (V/m) = d G×P×30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d×377 G×P×30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID: 2ARUDTS8132 EST Technology Co. ,Ltd Report No. ESTE-R2101021 Page 4 of 8 2. Conducted Power Result BT Antenna Mode Peak output power (dBm) Peak output power (mW) Target power (dBm) Antenna gain (dBi) (Linear) GFSK 6.83 4.819 6±1 3.29 2.133 8-DPSK 6.66 4.634 6±1 3.29 2.133 BLE 2.02 1.592 2 ±1 3.29 2.133 WiFi Antenna 1 Mode AVG output power (dBm) AVG output power (mW) Target power (dBm) Antenna gain (dBi) (Linear) IEEE 802.11b 15.10 32.359 15 ±1 2.89 1.945 IEEE 802.11g 15.51 35.563 15 ±1 2.89 1.945 IEEE 802.11n HT20 (2.4G) 13.46 22.182 13 ±1 2.89 1.945 IEEE 802.11n HT40 (2.4G) 12.31 17.022 12 ±1 2.89 1.945 IEEE 802.11a（5G） 11.86 15.346 11 ±1 3.95 2.483 IEEE 802.11n HT20 (5G) 9.89 9.750 9 ±1 3.95 2.483 IEEE 802.11ac VHT20 (5G) 10.89 12.274 10 ±1 3.95 2.483 IEEE 802.11n HT40 (5G) 9.83 9.616 9 ±1 3.95 2.483 IEEE 802.11a VHT40 9.83 9.616 9 ±1 3.95 2.483 IEEE 802.11ac VHT80 9.49 8.892 9 ±1 3.95 2.483 FCC ID: 2ARUDTS8132 EST Technology Co. ,Ltd Report No. ESTE-R2101021 Page 5 of 8 WiFi Antenna 2 Mode AVG output power (dBm) AVG output power (mW) Target power (dBm) Antenna gain (dBi)(Linear) IEEE802.11b 15.32 58.749 17 ± 1 3.34 2.158 IEEE 802.11g 15.50 199.986 23 ± 1 3.34 2.158 IEEE 802.11nHT20 (2.4G) 13.44 134.896 21 ± 1 3.34 2.158 IEEE 802.11n HT40 (2.4G) 12.37 84.918 19 ± 1 3.34 2.158 IEEE 802.11a 11.82 15.205 11 ± 1 3.76 2.377 IEEE 802.11n HT20 (5G) 9.63 9.183 9 ± 1 3.76 2.377 IEEE 802.11ac VHT20 9.69 9.311 9 ± 1 3.76 2.377 IEEE 802.11n HT40 (5G) 9.84 9.638 9 ±1 3.76 2.377 IEEE 802.11ac VHT40 9.84 9.638 9 ±1 3.76 2.377 IEEE 802.11ac VHT80 9.58 9.078 9 ±1 3.76 2.377 5.8G SRD Antenna Mode AVG output power (dBm) AVG output power (mW) Target power (dBm) Antenna gain (dBi) (Linear) TX 5.8G SRD 6.50 2.014 6 ±1 0.48 1.12 FCC ID: 2ARUDTS8132 EST Technology Co. ,Ltd Report No. ESTE-R2101021 Page 6 of 8 3. Calculated Result and Limit BT Antenna Mode Target power (dBm) Antenna gain Power Density (S) (mW/cm 2 ) Limited of Power Density (S) (mW/cm 2 ) Test Result (dBi) (Linear) GFSK 7 3.29 2.1330.0021 1 Compiles 8-DPSK 7 3.29 2.1330.0021 1 Compiles BLE GFSK 3 3.29 2.1330.0008 1 Compiles WiFi Antenna1 Mode Target power (dBm) Antenna gain Power Density (S) (mW/cm 2 ) Limited of Power Density (S) (mW/cm 2 ) Test Result (dBi) (Linear) IEEE 802.11b 16 2.89 1.9450.0154 1 Compiles IEEE 802.11g 16 2.89 1.9450.0154 1 Compiles IEEE 802.11n HT20 14 2.89 1.9450.0097 1 Compiles IEEE 802.11n HT40 13 2.89 1.9450.0077 1 Compiles 5G Band IEEE 802.11a 12 3.95 2.4830.0078 1 Compiles IEEE 802.11n HT20 10 3.95 2.4830.0049 1 Compiles IEEE 802.11ac VHT20 11 3.95 2.4830.0062 1 Compiles IEEE 802.11n HT40 10 3.95 2.483 0.0049 1 Compiles IEEE 802.11ac VHT40 10 3.95 2.4830.0049 1 Compiles IEEE 802.11ac VHT80 10 3.95 2.4830.0049 1 Compiles FCC ID: 2ARUDTS8132 EST Technology Co. ,Ltd Report No. ESTE-R2101021 Page 7 of 8 WiFi Antenna 2 Mode Target power (dBm) Antenna gain Power Density (S) (mW/cm 2 ) Limited of Power Density (S) (mW/cm 2 ) Test Result (dBi) (Linear) 2.4G Band IEEE 802.11b 16 3.34 2.1580.0171 1 Compiles IEEE 802.11g 16 3.34 2.1580.0171 1 Compiles IEEE 802.11n HT20 14 3.34 2.1580.0108 1 Compiles IEEE 802.11n HT40 13 3.34 2.1580.0086 1 Compiles 5G Band IEEE 802.11a 12 3.76 2.3770.0075 1 Compiles IEEE 802.11n HT20 10 3.76 2.3770.0047 1 Compiles IEEE 802.11ac VHT20 10 3.76 2.3770.0047 1 Compiles IEEE 802.11n HT40 10 3.76 2.3770.0047 1 Compiles IEEE 802.11ac VHT40 10 3.76 2.3770.0047 1 Compiles IEEE 802.…

Text truncated - open the document above for the full version.

FCC ID: 2ARUDTS8132 EST Technology Co.,Ltd Report No. ESTE-R2101019 Page 1 of 64 FCC PART 15E TEST REPORT FOR CERTIFICATION On Behalf of TCL Entertainment Solutions Limited 3.1.2 Channel Dolby Atmos Sound Bar with Wireless Subwoofer Model Number: TS8132 Additional Model: TDS8132, FS8132, OS8132, Alto8e, TS8132K, TDS8132K, ***8132 FCC ID: 2ARUDTS8132 Prepared for: TCL Entertainment Solutions Limited 7/F, building 22E, 22 science park east avenue, Hong Kong science park, SHATIN, N.T., Hong Kong 999077 China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2101019 Date of Test: Dec. 17, 2020~Jan. 08, 2021 Date of Report: Jan. 12, 2021 FCC ID: 2ARUDTS8132 EST Technology Co.,Ltd Report No. ESTE-R2101019 Page 2 of 64 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. The antenna information for EUT .................................................................................................... 5 2. SUMMARY OF TEST ......................................................................................................................... 6 2.1. Summary of test result ...................................................................................................................... 6 2.2. Test Facilities ................................................................................................................................... 7 2.3. Measurement uncertainty for EST Technology Co., Ltd. ................................................................ 8 2.4. Assistant equipment used for test ..................................................................................................... 8 2.5. Block Diagram ................................................................................................................................. 8 2.6. Test Mode ......................................................................................................................................... 9 2.7. Channel List ................................................................................................................................... 10 2.8. Power Setting of Test Software ...................................................................................................... 11 2.9. Duty Cycle of Test Signal .............................................................................................................. 11 2.10. Test Equipment List ....................................................................................................................... 12 3. 6DB BANDWIDTH & 99% OCCUPIED BANDWIDTH ....................................................................... 14 3.1. Limit ............................................................................................................................................... 14 3.2. Test Setup ....................................................................................................................................... 14 3.3. Spectrum Analyzer Setting ............................................................................................................. 14 3.4. Test Procedure ................................................................................................................................ 15 3.5. Test Result ...................................................................................................................................... 15 3.6. Test Result ...................................................................................................................................... 16 4. MAXIMUM CONDUCTED OUTPUT POWER ..................................................................................... 17 4.1. Limit ............................................................................................................................................... 17 4.2. Test Setup ....................................................................................................................................... 17 4.3. Test Procedure ................................................................................................................................ 17 4.4. Test Result ...................................................................................................................................... 17 5. PEAK POWER SPECTRAL DENSITY ................................................................................................ 18 5.1. Limit ............................................................................................................................................... 18 5.2. Test Setup ....................................................................................................................................... 18 5.3. Spectrum Analyzer Setting ............................................................................................................. 18 5.4. Test Procedure ................................................................................................................................ 18 5.5. Test Result ...................................................................................................................................... 18 6. UNWANTED EMISSIONS AND BAND EDGE ..................................................................................... 20 6.1. Limit ............................................................................................................................................... 20 6.2.…

Text truncated - open the document above for the full version.

FCC ID: 2ARUDTS8132 EST Technology Co.,Ltd Report No. ESTE-R2101020 Page 1 of 25 DFS TEST REPORT FOR CERTIFICATION On Behalf of TCL Entertainment Solutions Limited 3.1.2 Channel Dolby Atmos Sound Bar with Wireless Subwoofer Model Number: TS8132 Additional Model: TDS8132, FS8132, OS8132, Alto8e, TS8132K, TDS8132K, ***8132 FCC ID: 2ARUDTS8132 Prepared for: TCL Entertainment Solutions Limited 7/F, building 22E, 22 science park east avenue, Hong Kong science park, SHATIN, N.T., Hong Kong 999077 China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2101020 Date of Test: Dec. 17, 2020~Jan. 08, 2021 Date of Report: Jan. 12, 2021 FCC ID: 2ARUDTS8132 EST Technology Co.,Ltd Report No. ESTE-R2101020 Page 2 of 25 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ........................................................................................................................ 4 1.1. Description Of Device (EUT) .................................................................................................................. 4 1.2. The Antenna Information For EUT ......................................................................................................... 4 2. SUMMARY OF TEST ................................................................................................................................. 5 2.1. Summary Of Test Result .......................................................................................................................... 5 2.2. Test Facilities ........................................................................................................................................... 6 2.3. Measurement Uncertainty For EST Technology Co., Ltd. ...................................................................... 7 2.4. Test Equipment List ................................................................................................................................. 8 3. EIRP POWER .......................................................................................................................................... 9 4. DYNAMIC FREQUENCY SELECTION REQUIREMENTS ............................................................................. 10 4.1. DFS Overview ....................................................................................................................................... 10 4.2. DFS Detection Thresholds ..................................................................................................................... 11 4.3. Response Requirements ......................................................................................................................... 11 4.4. Radar Test Waveforms .......................................................................................................................... 12 4.4.1.Short Pulse Radar Test Waveforms ............................................................................................. 12 4.4.2. Long Pulse Radar Test Waveform .............................................................................................. 14 4.4.3. Frequency Hopping Radar Test Waveform ................................................................................ 15 5. TEST SETUP .......................................................................................................................................... 16 5.1. Setup Configuration of EUT and TS8997 System ................................................................................. 16 5.2. Radar Waveform Calibration ................................................................................................................. 16 5.2.1. Radar Waveform Calibration Result ......................................................................................... 17 5.2.2. Radar Waveform Calibration Result ......................................................................................... 18 5.3. Chanel Loading ...................................................................................................................................... 19 5.4. Chanel Loading ...................................................................................................................................... 19 6. IN-SERVICE MONITORING FOR CHANNEL MOVE TIME, CHANNEL CLOSING TRANSMISSION TIME AND NON-OCCUPANCY PERIOD ................................................................................................................... 20 6.1. Test Procedure ....................................................................................................................................... 20 6.2. Channel Move Time&Channel Close Transmission Time Test Result ................................................. 21 6.3. Non-Occupancy Period Test Result ....................................................................................................... 22 6.4. Channel Move Time&Channel Close Transmission Time Test Result ................................................. 23 6.5. Non-Occupancy Period Test Result ....................................................................................................... 24 7. TEST SETUP PHOTO ........................................................................................................................ 25 FCC ID: 2ARUDTS8132 EST Technology Co.,Ltd Report No. ESTE-R2101020 Page 4 of 25 1. GENERAL INFORMATION 1.1.Description Of Device (EUT) Note： For a more detailed features description, please refer to the manufacturer’s specifications or the user's manual. 1.2.The Antenna Information For EUT FCC ID : Product Name : 3.1.2 Channel Dolby Atmos Sound Bar with Wireless Subwoofer Model Number : TS8132 Software Version : V008 Hardware Version : 40-TS8132-MAC4G Number of channel : U-NII-2A: IEEE 802.11a / n HT20 / ac VHT20: 4 Channels; IEEE 802.11n HT40 / ac VHT40: 2 Channels; IEE…

Text truncated - open the document above for the full version.

FCC ID: 2ARUDTS8132 EST Technology Co.,Ltd Report No. ESTE-R2101018 Page 1 of 194 FCC PART 15E TEST REPORT FOR CERTIFICATION On Behalf of TCL Entertainment Solutions Limited 3.1.2 Channel Dolby Atmos Sound Bar with Wireless Subwoofer Model Number: TS8132 Additional Model: TDS8132, FS8132, OS8132, Alto8e, TS8132K, TDS8132K, ***8132 FCC ID: 2ARUDTS8132 Prepared for: TCL Entertainment Solutions Limited 7/F, building 22E, 22 science park east avenue, Hong Kong science park, SHATIN, N.T., Hong Kong 999077 China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2101018 Date of Test: Dec. 17, 2020~Jan. 08, 2021 Date of Report: Jan. 12, 2021 FCC ID: 2ARUDTS8132 EST Technology Co.,Ltd Report No. ESTE-R2101018 Page 2 of 194 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. The antenna information for EUT .................................................................................................... 7 2. SUMMARY OF TEST .............................................................................................…

Text truncated - open the document above for the full version.
