2ARWQSMART-200Smart LED Orb Light

文件编号 客户编号系统成品料号配置方案 客户代码版本 美工 核对核准 美工组长 BOM组 材质表面处理尺寸 标记 版本 修改内容 签名 日期 ZONE REV DESCRIPTION APPROVED DATE L A C Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note:This equipment has been tested and found to comply with the limits for a class B digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequence energy and,if not installed and used in accordance with the instructions,may cause harmful interference to radio communications.However,there is no guarantee that interference will not occur in a particular installation.if this equipmemt does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on,the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an autlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The devicecan be used in portable exposure condition without restriction.

SCS-F019:ConfidentialityRequestLetterPage 1 of 3 Rev7.0 775MontagueExpressway Milpitas,CA95035 Tel:408-526-1188 Fax:408-526-1088 Email:[email protected] Website:https://www.cps.bureauveritas.com/ Confidentiality RequestLetter ReasonforAmendment(current/obsolete) RevisionHistory ApprovedDate FromTo InitialRelease(obsolete)1.01.0Nov-14-2006 AddingCFR2.459(obsolete)1.02.0August–11-2008 Updatedcompanytemplate&Addedtext box(obsolete) 2.03.0Jan-31-2012 AddedICconfidentialityletterform (obsolete) 3.04.0March-26-2015 CorrectionstoSTCform.Addedreference toKDB(obsolete) 4.05.0Nov-19-2015 Updatedcompanylogo(current)5.06.0Jun-26-2019 UpdatedReferencesandContactInfo6.07.0Aug-30-2020 SCS-F019:ConfidentialityRequestLetterPage 2 of 3 Rev7.0 GuangDongLACSmartLightingCo.,Ltd. (2021-02-28) To: FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046-1609 Cc: BureauVeritasConsumerProductsServicesInc. 775MontagueExpressway Milpitas,CA95035 Subject:ConfidentialityRequestforFCCID:2ARWQSMART-200 PursuanttoCFR47sections0.457and0.459,werespectfullyrequestpermanentconfidentialtreatmentofthe followingExhibitsaccompanyingthisapplicationbeheldconfidential: TypeofConfidentialityRequestedExhibit ShortTermPermanentBlockDiagram ShortTermExternalPhotos ShortTermPermanent i InternalPhotos ShortTermPermanentOperationalDescription/TheoryofOperation ShortTermPermanentPartsList ShortTermPermanentTune-UpProcedure ShortTermPermanentSchematics ShortTermTestSetupPhotos ShortTermPermanent i User’sManual Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedtothepublic. Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovideunjustifiedbenefitstoits competitors. PermanentConfidentiality: Theapplicantrequeststheexhibitslistedaboveaspermanentlyconfidentialbepermanentlywithheldfrom publicreviewduetomaterialsthatcontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic. Short-TermConfidentiality: Toavoidprematurereleaseofsensitiveinformationpriortomarketingorreleaseoftheproducttothepublic,the applicantrequeststhefollowingdocumentscontainedinthiscertificationapplicationbetemporarilywithheld frompublicdisclosureforaninitialperiodof45or180days;orforaspecifieddateofnottoexceed 180daysfromtheGrantDate Theapplicantunderstandsthatdisclosureofthisapplicationandallaccompanyingdocumentationwillnotbe madebeforethedateoftheGrantforthisapplication. SCS-F019:ConfidentialityRequestLetterPage 3 of 3 Rev7.0 Sincerely, YiMinChen Manager GuangDongLACSmartLightingCo.,Ltd. No.4ofZheLiaoIndustrialZone,HuaiDeVillageHumenTown,DongGuan,China i PermanentconfidentialitymayberequestedinaccordancewithFCCKDB726920

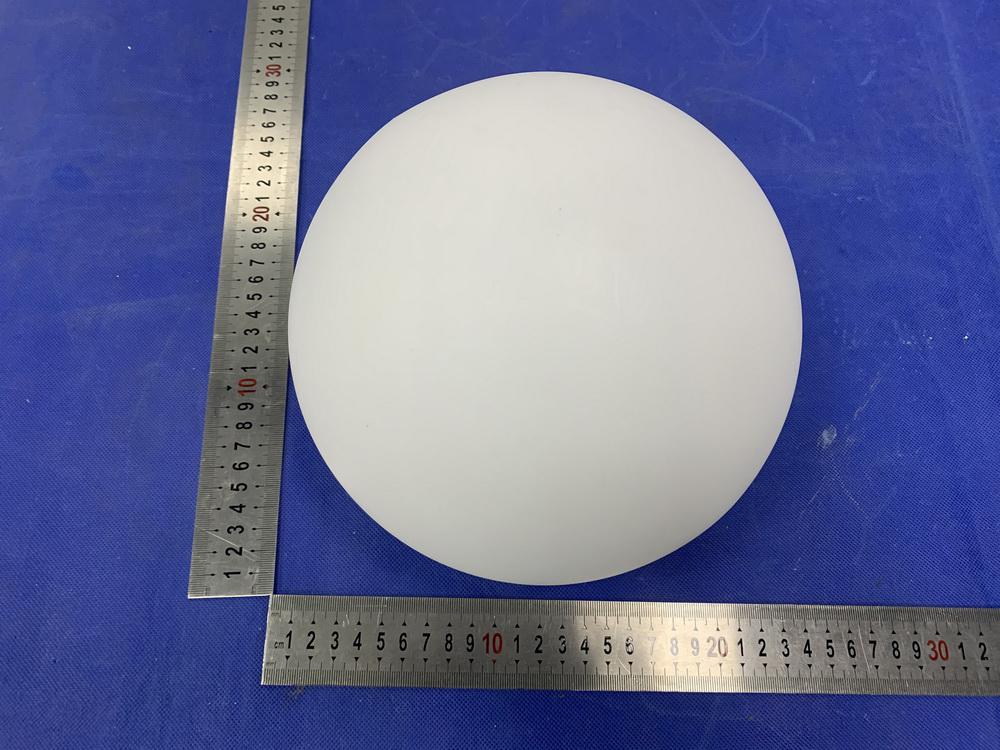

GuangDongLACSmartLightingCo.,Ltd. Declarationonmodeldifference Wetheundersignedherebyconfirmthatthesemodelsareidentical,andallmodelshavethe sameRFmoduleandantenna,PCBlayout,schematicsandcomponent.Exceptforthedifferent Sphericalshellsize. ProductionnameFCCIDModelno. SmartLED OrbLight 2ARWQSMART-200Smart-aaa-x (aaa=120mmand200mm representdifferentsizes, x=Pandblank,represent whetheritisCLASS2 POWERUNIT.Piswith CLASS2POWERUNIT, blankiswithoutCLASS2 POWERUNIT.) Sincerely, YiMinChen Manager GuangDongLACSmartLightingCo.,Ltd. No.4ofZheLiaoIndustrialZone,HuaiDeVillageHumenTown,DongGuan,China

Label: Model:Smart-200-P FCCID:2ARWQSMART-200 Input:DC5V,1.2A Madeinchina ThisdevicecomplieswithPart15oftheFCCRules. Operationissubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference. (2)Thisdevicemustacceptanyinterferencereceived, includinginterferencethatmaycauseundesiredoperation. Labellocation:

ANT

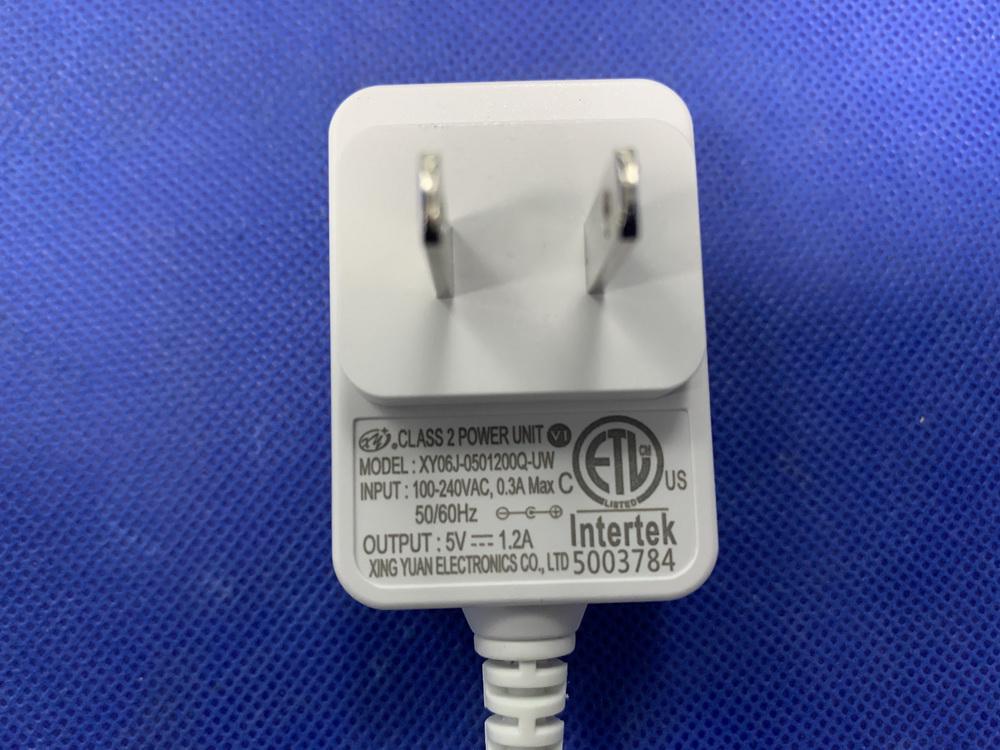

RFEXPOSUREEVALUATION EUTSpecification EUTSmartLEDOrbLight ModelNumberSmart-200-P FCCID2ARWQSMART-200 Antennagain(Max)2.5dBi OperationFrequencyBT:2402-2480MHz InputRatingInputforCLASS2POWERUNIT(XY06J-0501200Q-UW): 100-240VAC,50/60Hz,0.3Amax InputforSmartBallLamp:5Vdc,1.2A. ClassificationPer StipulatedTestStandard §15.247(i),§2.1093 ModulationGFSK Max.outputpower4.85dBm(0.0031W) TestRequirement: Accordingto§15.247(i)and§1.1307(b)(1),systemsoperatingunderthe provisionsofthissectionshallbeoperatedinamannerthatensuresthatthe publicisnotexposedtoradiofrequencyenergylevelinexcessofthe Commission’sguidelines. RoutineSARevaluationreferstothatspecificallyrequiredby§2.1093,using measurementsorcomputersimulation.WhenroutineSARevaluationisnot required,portabletransmitterswithoutputpowergreaterthantheapplicable lowthresholdrequireSARevaluationtoqualityforTCBapproval. OneantennaisavailablefortheEUT.Theminimumseparationdistanceis 5mm. BLEDTS: AccordingtoKDB447498,nostand-alonerequiredforBTantenna,andno simultaneousSARmeasurementisrequired. Signature: AlanHe Date:2021-03-01 Transmit Frequency (MHz) Mode Measured Power (dBm) Tuneup Power (dBm) Maxtuneup power(dBm) Calculation Result 1-g SAR 2402GFSK 2.08 2±130.6184793 2440GFSK3.824±150.9879343 2480GFSK4.855±161.2538893

Report No.: EA20120381F01001 1 of 54 TRF No. FCC Part 15.247/A Ver.1.0 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT FCC PART 15 SUBPART C REQUIREMENT OF Smart LED Orb Light Model No.: Smart-aaa-x (aaa=120mm and 200mm represent different sizes, x=P and blank, represent whether it is CLASS 2 POWER UNIT. P is with CLASS 2 POWER UNIT, blank is without CLASS 2 POWER UNIT.) Trademark: N/A FCC ID:2ARWQSMART-200 Report No.: EA20120381F01001 Issue Date: Feb. 25, 2021 Prepared for GuangDong LAC Smart Lighting Co.,Ltd. No.4 of ZheLiao Industrial Zone, HuaiDe Village Humen Town, DongGuan, China Prepared by Dong Guan Anci Electronic Technology Co., Ltd. 1-2 Floor, Building A, No.11, Headquarters 2 Road, Songshan, Lake Hi-tech Industrial Development Zone, Dongguan City, Guangdong Pr., China. This report shall not be reproduced, except in full, without the written approval of Dong Guan Anci Electronic Technology Co., Ltd. Report No.: EA20120381F01001 2 of 54 TRF No. FCC Part 15.247/A Ver.1.0 VERIFICATION OF COMPLIANCE Applicant: GuangDong LAC Smart Lighting Co.,Ltd. No.4 of ZheLiao Industrial Zone, HuaiDe Village Humen Town, DongGuan, China Manufacturer: GuangDong LAC Smart Lighting Co.,Ltd. No.4 of ZheLiao Industrial Zone, HuaiDe Village Humen Town, DongGuan, China Product Description: Smart LED Orb Light Trade Mark: N/A Model Number: Smart-aaa-x (aaa=120mm and 200mm represent different sizes, x=P and blank, represent whether it is CLASS 2 POWER UNIT. P is with CLASS 2 POWER UNIT, blank is without CLASS 2 POWER UNIT.) (Note:Except for the difference in color, lampshade size and whether it has CLASS 2 POWER UNIT, the others have the same structure.We choose the model: Smart-200-P to do all the tests.) We hereby certify that: The above equipment was tested by Dong Guan Anci Electronic Technology Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10-2013 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247(2020). Date of Test : Dec. 22, 2020 to Feb. 24, 2021 Prepared by : Tomas Yang/Editor Approved & Authorized Signer : Alan He/Manager Report No.: EA20120381F01001 3 of 54 TRF No. FCC Part 15.247/A Ver.1.0 Modified Information Version Summary Revision Date Report No. Ver.1.0 Original Report / EA20120381F01001 Report No.: EA20120381F01001 4 of 54 TRF No. FCC Part 15.247/A Ver.1.0 Table of Contents 1. GENERAL INFORMATION ..................................................................................................... 6 1.1 PRODUCT DESCRIPTION .............................................................................................................. 6 1.2 TEST METHODOLOGY .................................................................................................................. 6 2. TEST FACILITY ....................................................................................................................... 7 3. DESCRIPTION OF TEST MODES ......................................................................................... 8 4. SUMMARY OF TEST RESULTS .......................................................................................... 12 6DB BANDWIDTH MEASUREMENT ....................................................................................... 12 5. TEST SYSTEM UNCERTAINTY ........................................................................................... 13 6. CONDUCTED EMISSIONS TEST ........................................................................................ 14 6.1MEASUREMENT PROCEDURE: ..................................................................................................... 14 6.2TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 14 6.3MEASUREMENT EQUIPMENT USED: ............................................................................................. 14 6.4 CONDUCTED EMISSION LIMIT ..................................................................................................... 14 6.5 MEASUREMENT RESULT: ........................................................................................................... 15 7. RADIATED EMISSION TEST ............................................................................................... 18 7.1MEASUREMENT PROCEDURE ...................................................................................................... 18 7.2TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 20 7.3MEASUREMENT EQUIPMENT USED: ............................................................................................. 21 7.4 RADIATED EMISSION LIMIT .......................................................................................................... 22 7.5 MEASUREMENT RESULT .......................................................................................................... 23 7.6 RADIATED MEASUREMENT PHOTOS: ........................................................................................... 29 8. 6DB BANDWIDTH MEASUREMENT ................................................................................... 30 8.1MEASUREMENT PROCEDURE ...................................................................................................... 30 8.2TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 30 8.3 MEASUREMENT EQUIPMENT USED: ............................................................................................ 30 8.4 LIMIT ........................................................................................................................................ 30 8.5MEASUREMENT RESULTS: ...................................................................................................…
