2ARXWSINOVAN09Plastic toys

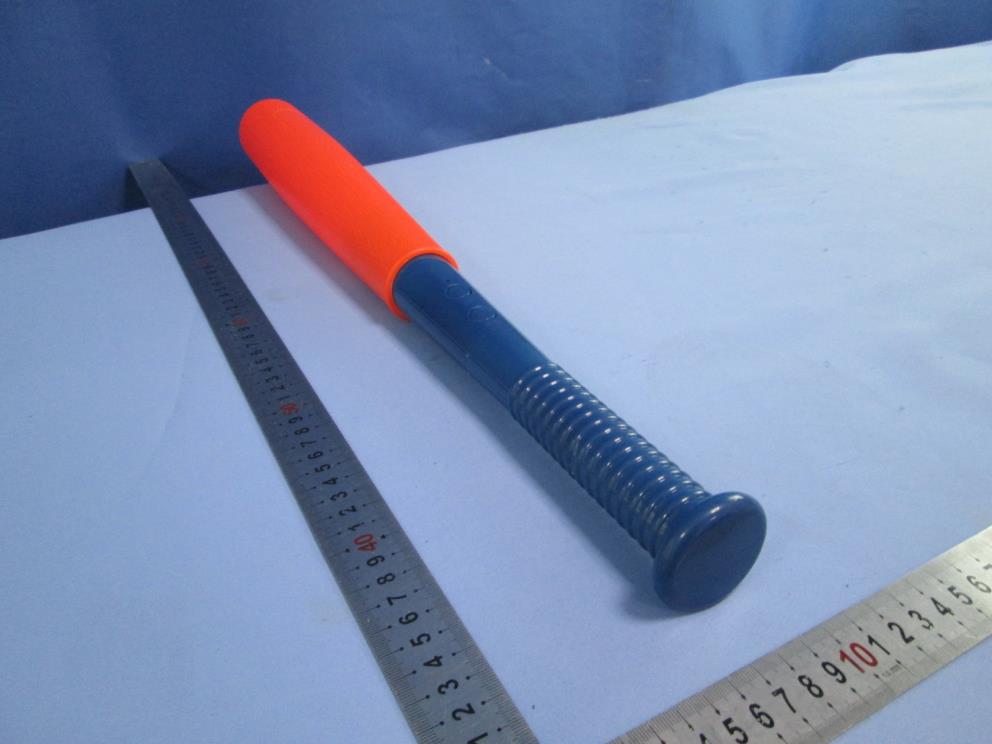

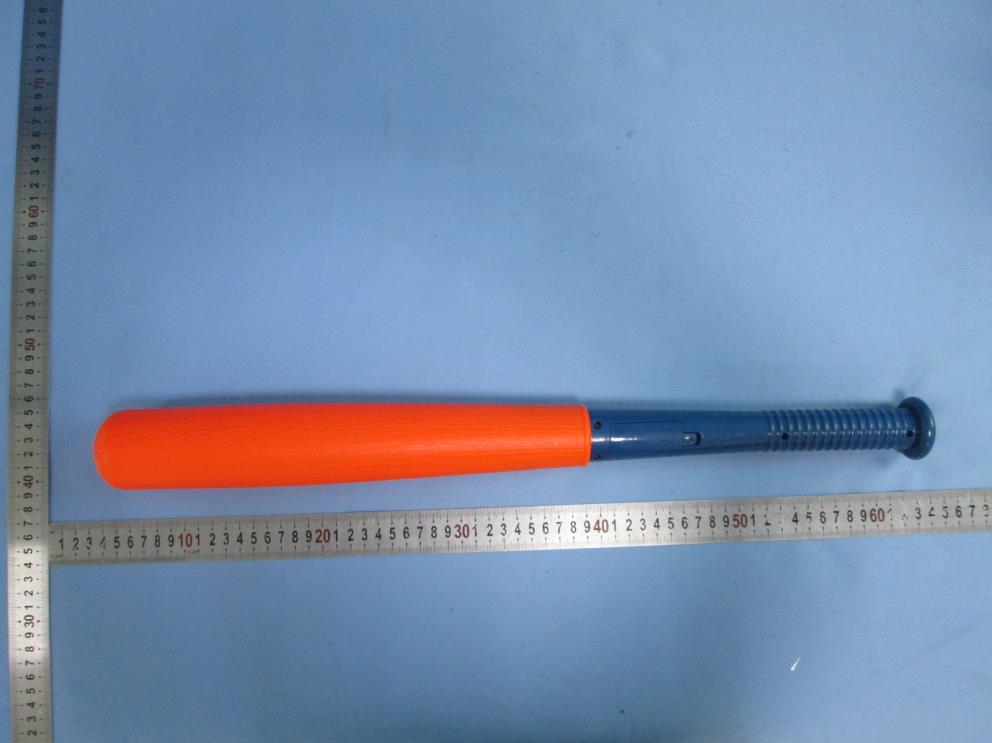

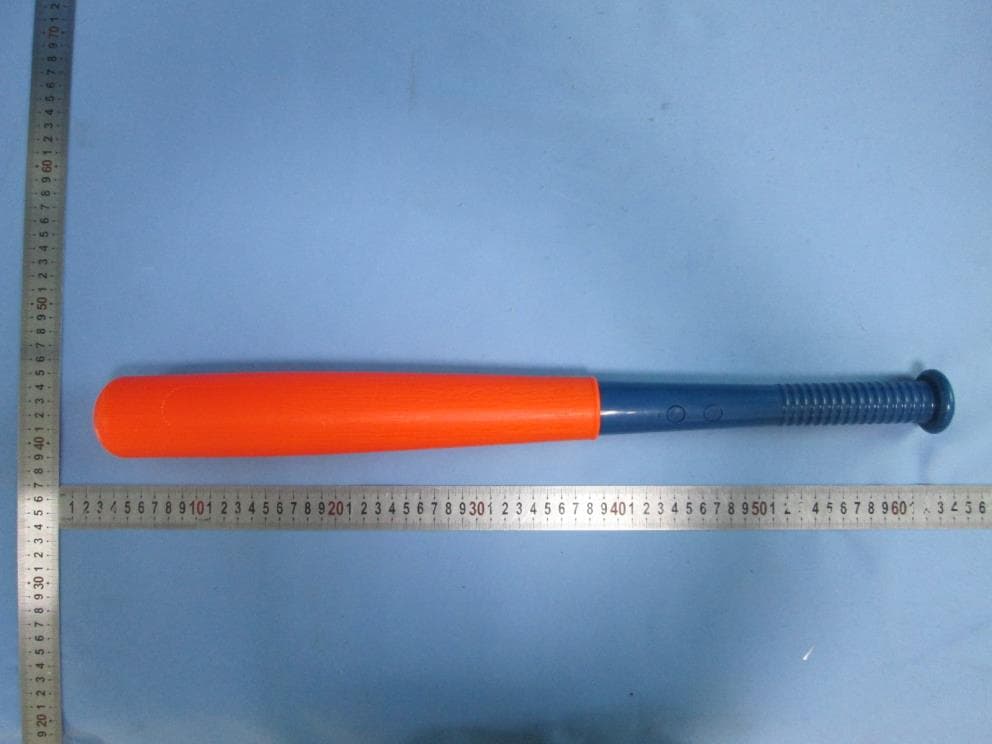

Page 1 of 2 EXTERNAL PHOTOS Page 2 of 2

Label Artwork and Location Size: 40mm*15mm

Page 1 of 3 INTERNAL PHOTOS Page 2 of 3 Page 3 of 3 ANT Length：36mm

1 INTERTEK TESTING SERVICES RF Exposure The equipment under test (EUT) is an Plastic toys operating at 2.4G Band. The EUT can be powered by DC 3.0V (2 x 1.5V AAA batteries). For more detail information pls. refer to the user manual. Antenna Type: Integral antenna. Antenna Gain: 0dBi. The normal radiated output power (e.i.r.p) is: -4.0dBm (tolerance: +/- 3dB). The normal conducted output power is -4.0dBm (tolerance: +/- 3dB). Modulation Type: GFSK. According to the KDB 447498: The Maximum peak radiated emission for the EUT is 92.2 dBμV/m at 3m in the frequency 2405MHz The EIRP = [(FS*D) ^2 / 30] mW = -3.03dBm which is within the production variation. The Minimum peak radiated emission for the EUT is 90.2 dBμV/m at 3m in the frequency 2480MHz The EIRP = [(FS*D) ^2 / 30] mW = -5.03dBm which is within the production variation. The maximum conducted output power specified is -1.0dBm= 0.794mW The source- based time-averaging conducted output power =0.794mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.475) mW = 9.53 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. FCC ID: 2ARXWSINOVAN09

GUANGDONG SINOVAN CULTURE CO.,LTD. TEST REPORT SCOPE OF WORK FCC TESTING– MODEL: S0005B REPORT NUMBER GZHH00464624-001 ISSUE DATE September 20, 2022 PAGES 24 DOCUMENT CONTROL NUMBER FCC ID 249_C © 2017 INTERTEK Intertek Report No.: GZHH00464624-001 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Service Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community GuanHu Subdistrict, LongHua District, Shenzhen, People’s Republic of China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 24 FCC ID 249_C Test Report GUANGDONG SINOVAN CULTURE CO.,LTD. Application for Certification FCC ID: 2ARXWSINOVAN09 Plastic toys Model: S0005B Additional Model: S0001; S0001A; S0001B; S0001C; S0001D; S0001E; S0001F; S0001G; S0001H; S0002; S0002A; S0002B; S0002C; S0002D; S0002E; S0002F; S0002G; S0002H; S0002I; S0002J; S0002K; S0002L; S0002M; S0002N; S0002O; S0002P; S0002Q; S0003; S0003A; S0003B; S0003C; S0003D; S0003E; S0003F; S0003G; S0003H; S0005; S0005A; S0005C; S0005D; S0005E; S0005F; S0005G; S0005H; S0005I; S0005J; S0005K; S0005L; S0005M; S0005N; S0005O; S0005P; S0005Q; S0006; S0006A; S0006B; S0006C; S0006D; S0006E; S0006F; S0006G; S0006H; S0007; S0007A; S0007B; S0007C; S0007D; S0007E; S0007F; S0007G; S0007H; S0008; S0008A; S0008B; S0008C; S0008D; S0008E; S0008F; S0008G; S0008H; S0009; S0009A; S0009B; S0009C; S0009D; S0009E; S0009F; S0009G; S0009H; S0010; S0010A; S0010B; S0010C; S0010D; S0010E; S0010F; S0010G; S0010H 2.4GHz Transceiver Report No.: GZHH00464624-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-21] Prepared and Checked by: Approved by: Sign on file Maura Wang Engineer Peter Kang Senior Technical Supervisor Date: September 20, 2022 Intertek Report No.: GZHH00464624-001 Version: 01-November-2017 Page: 2 of 24 FCC ID 249_C Test Report MEASUREMENT/TECHNICAL REPORT This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-21 Edition] provision. Report prepared by: Maura Wang Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community GuanHu Subdistrict, LongHua District, Shenzhen, People’s Republic of China Tel / Fax: 86-755-8601 6288/86-755-8601 6751 Intertek Report No.: GZHH00464624-001 Version: 01-November-2017 Page: 3 of 24 FCC ID 249_C Test Report Table of Contents 1.0 Summary of Test Result .......................................................................................... 4 2.0 General Description ................................................................................................. 5 2.1 Product Description ................................................................................................. 5 2.2 Related Submittal(s) Grants .................................................................................... 5 2.3 Test Methodology .................................................................................................... 5 2.4 Test Facility ............................................................................................................ 5 3.0 System Test Configuration ...................................................................................... 6 3.1 Justification ............................................................................................................. 6 3.2 EUT Exercising Software ......................................................................................... 6 3.3 Special Accessories ................................................................................................ 6 3.4 Equipment Modification ........................................................................................... 6 3.5 Measurement Uncertainty ....................................................................................... 6 3.6 Support Equipment List and Description .................................................................. 6 4.0 Emission Results ..................................................................................................... 7 4.1 Radiated Test Results ............................................................................................. 7 4.1.1 Field Strength Calculation ..................................................................................... 7 4.1.2 Radiated Emission Configuration Photograph ....................................................... 8 4.1.3 Radiated Emissions .............................................................................................. 8 4.1.4 Transmitter Spurious Emiss…

Text truncated - open the document above for the full version.

Page 1 of 2 RADIATED PHOTOS Up to 1GHz (EUT was placed in the centre of the turntable) Page 2 of 2 Above 1GHz (EUT was placed in the centre of the turntable)
