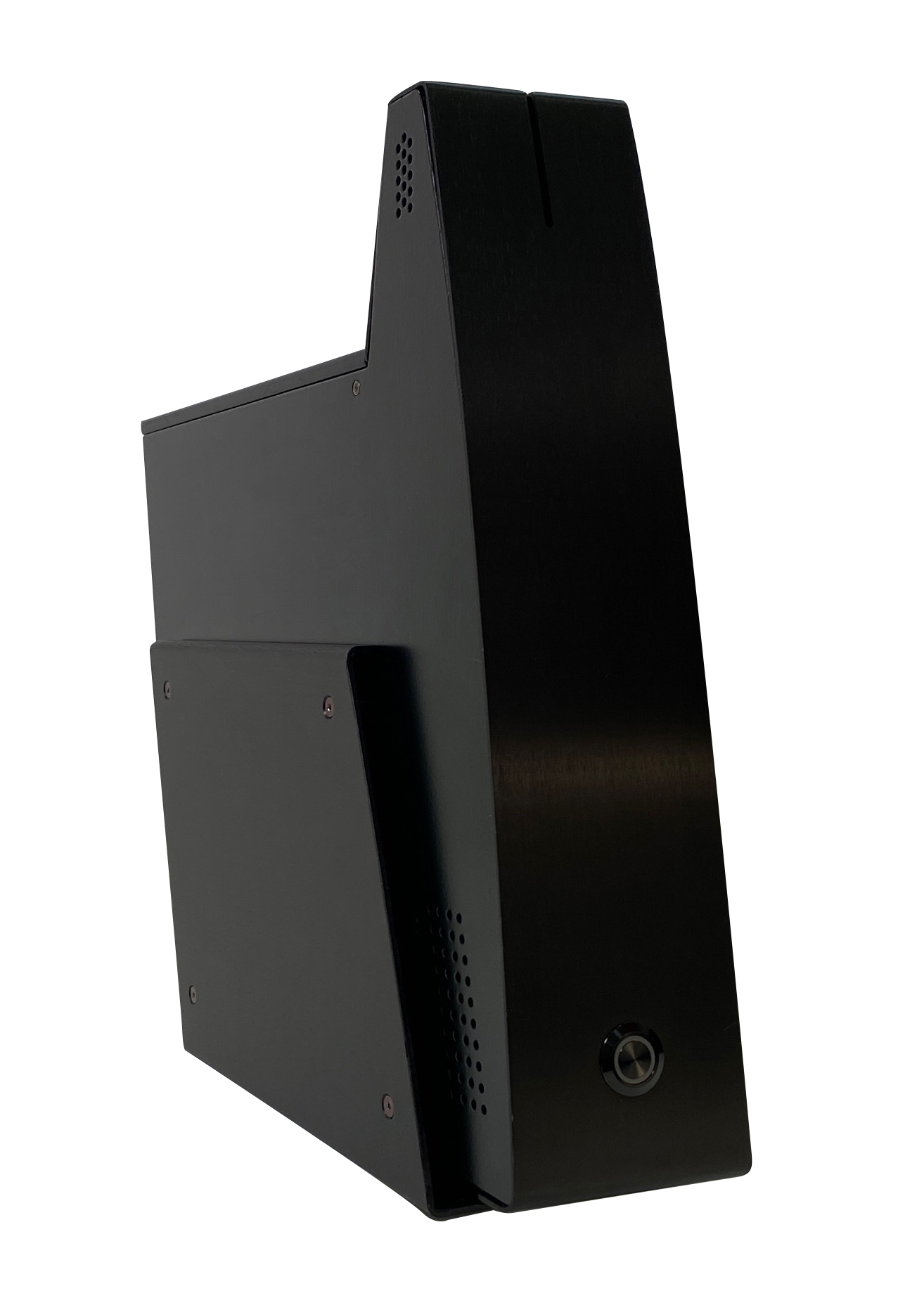

2AS2X800N036HaptiSync Hub

242-914-0003-EN3 ǀ January 2021 1 TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ...................................................................................................................... 3 HAPTISYNC SYSTEM User Manual 2 REGULATORY COMPLIANCE STATEMENTS ............................................................................................................. 4 1. INTRODUCTION ............................................................................................................................................... 6 2. GETTING STARTED .......................................................................................................................................... 7 HaptiSync System Overview ............................................................................................................................... 7 STEP 1: Prepare your HaptiSync Hub ................................................................................................................ 8 STEP 2: Prepare your Haptic Seat: .................................................................................................................... 8 STEP 3: Create your D-BOX Connect Account ................................................................................................. 10 STEP 4: Complete the HaptiSync Configuration from the D-BOX Connect Website ...................................... 10 1. Install the D-BOX HaptiSync App ........................................................................................................ 11 2. Connect your HaptiSync Hub to your Network .................................................................................. 11 3. Activate your HaptiSync Hub .............................................................................................................. 11 4. Test your HaptiSync System ............................................................................................................... 11 5. Enjoy your Favourite Immersive Content! ......................................................................................... 11 6. Calibrate your Sound System (optional) ............................................................................................. 12 3. HAPTISYNC HUB ............................................................................................................................................ 12 3.1 Part Names & Functions ......................................................................................................................... 12 3.2 Power Operation Button Functionalities ............................................................................................... 14 3.3 Content Synchronization using the AUDIO IN Jack ................................................................................ 14 Recommended Connection Setup ................................................................................................................ 15 Alternate HDMI Connection Setup ............................................................................................................... 15 Alternate Optical or Coaxial Connection Setup ............................................................................................ 15 3.4 HaptiSync Recognition Technology ........................................................................................................ 16 4. TROUBLESHOOTING ...................................................................................................................................... 16 APPENDIX A: CONNECTIONS FOR JAYMAR LIFESTYLE & LIVING MODELS ........................................................... 17 A.1 Single Seat Configuration ....................................................................................................................... 18 A.2 Multiple Seat Configuration ................................................................................................................... 19 APPENDIX B: CONNECTIONS FOR G1 HAPTIC SYSTEMS ...................................................................................... 19 B.1 Single Seat Configuration (2-3 Actuators) .............................................................................................. 21 B.2 Single Seat Configuration (4 Actuators) ................................................................................................. 21 B.3 Multiple Seat Configuration (2-3 Actuators) .......................................................................................... 22 B.4 Multiple Seat Configuration (4 Actuators) ............................................................................................. 22 3 IMPORTANT SAFETY INSTRUCTIONS • Read, keep and follow these instructions. • Heed all warnings: . Owners and/or users of this D-BOX Haptic System are responsible for the dissemination of this information to all such persons named herein. Each owner and/or user of this D-BOX Haptic System agrees to evaluate and bear all risks associated with the use of this D-BOX Haptic System for themselves and for any subsequent users of this D-BOX Haptic System and any subsequent users of this D-BOX Haptic System shall be deemed to be using this D-BOX Haptic System under the direct supervision of such owner/user and such owner/user will be deemed to have communicated this advisory to all person described herein. D-BOX Technologies Inc. is in no way responsible for any damages of any kind arising from the use of this D-BOX Haptic System and the owners and/or users of this D-BOX Haptic System hereby agree not to hold D-BOX Technologies Inc. responsible for any and all damages of any kind arising from the use of this D-BOX Haptic System including, but not limited to direct or indirect, punitive, incidental, special or consequential damages arising out of or in any way connected with the use of this D-BOX Haptic System. This D-BOX Haptic System may be harmful to women who…

Text truncated - open the document above for the full version.

1/4/2021 Nemko Canada Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 FCC ID: 2AS2X800N036 Model: H300 Model: H301 Request for Permanent Confidentiality Pursuant to Sections 0.457(d) and 0.459 of the Commission’s rules, we hereby request that the following documents be held confidential: •Schematics •Block diagram •Bill of Materials •Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated: 1/4/2021 Signed: Printed name: Alexandre Loiseau Title: Director, Software Engineering On behalf of: D-BOX Technologies Inc.

Nemko Canada, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 Tel: +1 613 737 9680 Attn: Director of Certification Subject: Models Differences Declaration FCC We hereby request the following models listed under FCC ID: 2AS2X800N036 For Models: H300 H301 We declare that these models are identical, except for the fact that H300 has the PulseLarsen W1010 2dBi SMA antenna, fixed to the connector, and H301 has the PulseLarsen W1030 2dBi RP- SMA removable antenna. Besides the connector, both antennas have identical specifications. Sincerely, Alexandre Loiseau Director, Software Engineering 1/27/2021 On behalf of: D-BOX Technologies Inc.

1/4/2021 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent FCC On our behalf, I appoint Geremy Bradshaw of Nemko USA, Inc. 2650 FM 407, Suite 145, Box 101, Bartonville, TX 76226, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with D-BOX Technologies Inc. 2172 rue de la Province, Longueuil, QC. J4G 1R7 Dated this 4th Day of January 20 21 Agency agreement expiration date: January 4, 2022 By: Alexandre Loiseau Signature Printed Title: Director, Software Engineering On behalf of : D-BOX Technologies Inc. Telephone: 450-442-3003 x335

LONGUEUIL, QUEBEC, CANADA DESCRIPTION NO. DESSIN / DRAWING NO. B LES DIMENSIONS SONT EN POUCES SAUF INDICATION CONTRAIRE, APPLICABLES APRES LA FINITION. DIMENSIONS ARE IN INCHES, UNLESS OTHERWISE SPECIFIED AND APPLY AFTER FINISHING. TOLÉRANCES/TOLERANCES: PROJECTION: .X .XX .XXX FRACTIONS ANGLES HOLE DIA. + - .1 .02 .010 1/64 1 + - + - + - + - +.002 -.000 MATIERE / MATERIAL: TRAITEMENT / TREATMENT: FINITION / FINISH: INTERPRÉTER SUIVANT ASME Y14.5M-1994/ INTERPRET PER ASME Y14.5M-1994 REVZONEDESCRIPTION APPR. DATE DESSINÉ / DRAWN DATE VÉRIFIÉ / CHECKED DATE APPROUVÉ / APPROVED DATE APPROUVÉ / APPROVED DATE APPROUVÉ / APPROVED DATE APPROUVÉ / APPROVED DATE APPROUVÉ / APPROVED DATE COULEUR(S) / COLOR(S): ÉCHELLE / SCALE FEUILLE / PAGE AVIS : Ce dessin contient des renseignements qui peuvent être confidentiels ou soumis au secret professionnel. Si vous n'êtes pas le véritable destinataire, la diffusion ou l'usage de ce dessin, des renseignements qu'il contient ou des documents qui lui sont joints pourrait être illégal. Il est donc strictement interdit de les diffuser ou de les utiliser. Si vous avez reçu ce dessin par erreur, nous vous saurions gré d'en aviser l'expéditeur immédiatement et de le supprimer sans le lire, l'imprimer, le sauvegarder ou le diffuser. Nous vous remercions de votre aimable collaboration. NOTICE: This drawing contains information that may be confidential or solicitor/client privileged. If you are not the intended recipient, any disclosure or other use of this drawing or the information contained herein or attached hereto may be unlawful and is strictly prohibited. If you have received this drawing in error, please notify the sender immediately and delete this drawing without reading, printing, copying or forwarding it to anyone.Thank you for your kind cooperation. CONFIDENTIAL LEXAN, NAME PLATE, HOME HAPTIC PROCESSOR 1:11 / 1 D-BOX TECHNOLOGIES INC. (JJ/MM/AAAA) (JJ/MM/AAAA) D-BOX PART NUMBER 242-180-0023-B01 S.BOULAIS 25/09/2020 0.75" 2.25" LEXAN 8b35 0.010" ADHESIF : 9472 2 COULEURS 2.25" X 0.75" FCC ID: 2AS2X800N036 IC ID: 24991-800N036 HaptiSync Hub Model: H300 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. 242-180-0023-B01 242-906-0023-B01 B01FCC ID AND IC ID CHANGED MODEL NAME CHANGED S.B. 08/01/2021

LONGUEUIL, QUEBEC, CANADA DESCRIPTION NO. DESSIN / DRAWING NO. B LES DIMENSIONS SONT EN POUCES SAUF INDICATION CONTRAIRE, APPLICABLES APRES LA FINITION. DIMENSIONS ARE IN INCHES, UNLESS OTHERWISE SPECIFIED AND APPLY AFTER FINISHING. TOLÉRANCES/TOLERANCES: PROJECTION: .X .XX .XXX FRACTIONS ANGLES HOLE DIA. + - .1 .02 .010 1/64 1 + - + - + - + - +.002 -.000 MATIERE / MATERIAL: TRAITEMENT / TREATMENT: FINITION / FINISH: INTERPRÉTER SUIVANT ASME Y14.5M-1994/ INTERPRET PER ASME Y14.5M-1994 REVZONEDESCRIPTION APPR. DATE DESSINÉ / DRAWN DATE VÉRIFIÉ / CHECKED DATE APPROUVÉ / APPROVED DATE APPROUVÉ / APPROVED DATE APPROUVÉ / APPROVED DATE APPROUVÉ / APPROVED DATE APPROUVÉ / APPROVED DATE COULEUR(S) / COLOR(S): ÉCHELLE / SCALE FEUILLE / PAGE AVIS : Ce dessin contient des renseignements qui peuvent être confidentiels ou soumis au secret professionnel. Si vous n'êtes pas le véritable destinataire, la diffusion ou l'usage de ce dessin, des renseignements qu'il contient ou des documents qui lui sont joints pourrait être illégal. Il est donc strictement interdit de les diffuser ou de les utiliser. Si vous avez reçu ce dessin par erreur, nous vous saurions gré d'en aviser l'expéditeur immédiatement et de le supprimer sans le lire, l'imprimer, le sauvegarder ou le diffuser. Nous vous remercions de votre aimable collaboration. NOTICE: This drawing contains information that may be confidential or solicitor/client privileged. If you are not the intended recipient, any disclosure or other use of this drawing or the information contained herein or attached hereto may be unlawful and is strictly prohibited. If you have received this drawing in error, please notify the sender immediately and delete this drawing without reading, printing, copying or forwarding it to anyone.Thank you for your kind cooperation. CONFIDENTIAL LEXAN, NAME PLATE, HOME HAPTIC PROCESSOR, 301 1:11 / 1 D-BOX TECHNOLOGIES INC. (JJ/MM/AAAA) (JJ/MM/AAAA) D-BOX PART NUMBER 242-180-0030-A01 S.BOULAIS 25/09/2020 0.75" 2.25" LEXAN 8b35 0.010" ADHESIF : 9472 2 COULEURS 2.25" X 0.75" FCC ID: 2AS2X800N036 IC ID: 24991-800N036 HaptiSync Hub Model: H301 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. 242-906-0030-A01

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Fundamental transmit (prediction) frequency:2412MHz Maximum measured conducted peak output power:24.30dBm Cable and/or jumper loss:0.0dB Maximum peak power at antenna input terminal:24.30dBm Tx On time:100.000ms Tx period time:100.000ms Average factor:100% Maximum calculated average power at antenna input terminal:269.153mW Single Antenna gain (typical):1dBi Number of antennae:1 Total system gain (typical):1.000dBi MPE limit for uncontrolled exposure at prediction frequency:1mW/cm 2 10W/m 2 Minimum calculated prediction distance for compliance:5cm Typical (declared) distance:20cm Average power density at prediction frequency:0.067411 mW/cm 2 0.67411W/m 2 Margin of Compliance:11.71270dB Maximum allowable antenna gain:12.71270dBi 2 4R PG S  = Choose Scandinavian trust

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation FCC 15.247, RSS-247 Issue 2; Date: April, 2020 SCC Accredited LAB LAB Accrédité CCN TM Choose Scandinavian trust RADIO TEST REPORT – 410987-1TRFWL Type of assessment: Final product testing Applicant: Product: D-BOX Technologies Inc. HaptiSync Hub Model: Model variant: H300 H301 FCC ID: IC Registration number: 2AS2X800N036 24991-800N036 Specifications:  FCC 47 CFR Part 15 Subpart C, §15.247  RSS-247, Issue 2, Feb 2017, Section 5 Date of issue: January 26, 2021 Yong Huang, EMC/RF Specialist Tested by Signature David Duchesne, EMC/RF Lab Manager Reviewed by Signature Report reference ID: 410987-1TRFWL Page 2 of 53 Lab locations Company name Nemko Canada Inc. Facilities Ottawa site: 303 River Road Ottawa, Ontario Canada K1V 1H2 Tel: +1 613 737 9680 Fax: +1 613 737 9691 Montréal site: 292 Labrosse Avenue Pointe-Claire, Québec Canada H9R 5L8 Tel: +1 514 694 2684 Fax: +1 514 694 3528 Cambridge site: 1-130 Saltsman Drive Cambridge, Ontario Canada N3E 0B2 Tel: +1 519 650 4811 Almonte site: 1500 Peter Robinson Road West Carleton, Ontario Canada K0A 1L0 Tel: +1 613 256-9117 Test site identifier Organization Ottawa/Almonte Montreal Cambridge FCC: CA2040 CA2041 CA0101 ISED: 2040A-4 2040G-5 24676 Website www.nemko.com Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contained in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Copyright notification Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. © Nemko Canada Inc. Report reference ID: 410987-1TRFWL Page 3 of 53 Table of Contents Table of Contents ......................................................................................................................................................................................................... 3 Report summary ................................................................................................................................................................................. 4 1.1 Test specifications .................................................................................................................................................................................................... 4 1.2 Test methods ............................................................................................................................................................................................................ 4 1.3 Exclusions ................................................................................................................................................................................................................. 4 1.4 Statement of compliance .......................................................................................................................................................................................... 4 1.5 Test report revision history ....................................................................................................................................................................................... 4 Engineering considerations ................................................................................................................................................................. 5 2.1 Modifications incorporated in the EUT for compliance ............................................................................................................................................ 5 2.2 Technical judgment .................................................................................................................................................................................................. 5 2.3 Deviations from laboratory tests procedures ........................................................................................................................................................... 5 Test conditions ................................................................................................................................................................................... 6 3.1 Atmospheric conditions ............................................................................................................................................................................................ 6 3.2 Power supply range .................................................................................................................................................................................................. 6 Measurement uncertainty .................................................................................................................................................................. 7 4.1 Uncertainty of measurement ................................................................................................................................................................................... 7 Information provided by the applicant ................................................................................................................................................ 8 5.1 Disclaimer ....................................…

Text truncated - open the document above for the full version.

Page 1 of 4 Section 1. Setup photos 1.1 Radiated Front view Setup photos NEX-410987 Page 2 of 4 1.2 Radiated back view Page 3 of 4 1.3 Conducted emissions Page 4 of 4 1.4 Conducted emissions
