2AS3E-CTEBT2Bluetooth Module

Bluetooth Module Model:CTE_BT2 Version:V1.0 1.Introduction CTE Tech Corp. introduces the pioneer of theBluetooth5.3 modulesORS-M81 which is a highperformance,lowpowerandcompactsolution. The Bluetooth module provides acomplete2.4GHzBluetooth systembased on the QCC5181 WLCSP chipset which is asinglechip radio and baseband IC for Bluetooth 2.4GHsystems. This module isfully qualified single-chip dual mode [email protected]. 2.Key Features Earbud and Headset Applications ■Bluetooth®v5.4 stack and profiles ■Qualcomm Bluetooth High Speed Link ■Qualcomm TrueWireless™Mirroring ■Feedforward, Feedback, and Hybrid Qualcomm ANC ■Qualcomm aptX™Adaptive audio, aptX Voice, and aptX Adaptive 96 kHz, and aptX Adaptive Lossless (R2.2), and Snapdragon Sound Gaming Codec ■1-Mic, 2-Mic, or 3-Mic Qualcomm®cVc™Echo Cancelling and Noise Suppression (cVc). 3-Mic: Earbud Application only ■3-Mic cVcwith Machine Learning-based noise suppression ■Adaptive Transparency Wind Noise Reduction ■Machine Learning Framework ■Bluetooth Low Energy Audio Broadcast Receiver (BMR) ■Low Latency Gaming Mode for A2DP ■LE Audio Unicast Music Receiver with Gaming mode, Call Terminal, and Stereo Recording ■LE Audio Gaming mode with Voice Back Channel ■Multipoint (BR/EDR only) with Barge-In support and 3-way call holding ■Microsoft Swift Pair ■Google Better Together, including Fast Pair and Audio Switching ■Tones and AAC Voice Prompts ■Google Voice Assistant PTT ■AMA Voice Assistant WuW and TTT ■MFi support (iAP2) ■Device Firmware Upgrade support and DFU over HID (ES quality) ■iAP2 (including GAIA framework) ■Wireless Debug Capability ■Over the air DFU (background and foreground): Earbud Application only ■Wireless device test service for manufacturing ■Over the air update for ST Micro-based Earbud RDP case ■In charger case pairing ■Charging Case Power Line Communications using the fast comms scheme Source Application ■Bluetooth®v5.4 stack and profiles ■Qualcomm Bluetooth High Speed Link ■Bluetooth Low Energy Audio Unicast Voice with call control (CCP) ■Bluetooth Low Energy Audio Unicast Music with media control (MCP) ■LEA Broadcast source support (TMAP and PBP) (CS quality) ■LE Audio Gaming mode with Voice Back Channel ■19 ms LEA Gaming latency ■Volume control using VCP ■DFU support ■aptX Adaptive Lossless (R2.1/R2.2) Audio subsystem ■Dual 32-bit Kalimba audio digital signal processor (or processing) (DSP) cores with flexible clocking from 2 MHz to 240 MHz to enable optimization of performance vs. power consumption ■DSPs execute code from ROM and from program RAM ■OEM and third party developed features can execute fromprogram RAM ■384 KB program RAM ■1408 KB data RAMApplication subsystem ■Dual-core application subsystem 32/80 MHz operation ■32-bit Firmware Processor (reserved for system use) Executes: □Bluetooth upper stack □Profiles □House-keeping code ■32-bit Developer Processor executes: □Developer applications ■Both cores execute code from external flash memory using QSPI clocked at 32 MHz or 80 MHz ■On-chip caches per core enable optimized performance and power consumption Bluetooth subsystem ■Qualified to Bluetooth v5.4specification including 2 MbpsBluetooth Low Energy and Bluetooth Low Energy Isochronous Channels ■Qualcomm® Bluetooth High Speed Link ■Single ended antenna connection with on-chip balun andTx/Rx switch ■Bluetooth, Bluetooth Low Energy, and mixed topologies supported ■Class 1 support 3.Applications ■Wired/wireless stereo headsets/headphones/Dongle ■Qualcomm TrueWireless™stereo earbuds 4.Generalspecifications ModelNameCTE_BT2 ProductNameBluetooth Module BluetoothStandardBluetooth5.4 ChipsetQCC5181 WLCSP Dimension17mm x19mm x1.7mm OperatingConditions Voltage3.0V~4.6V Temperature -40～+85°C Storage Temperature -40～+85°C ElectricalSpecifications FrequencyRange 2402～2480MHz Maximum RF TransmitPower13.5dBm π/4 DQPSK ReceiveSensitivity -94.5dBm 8DPSK ReceiveSensitivity-88dBm 5.Module Package Information 5.1DimensionPostage stamp hole 5.2Module Pindescriptions 5.3Device Terminal Functions 6Electrical Characteristics 6.1Absolute MaximumRatings RatingMinimumMaximum Storage temperature -40°C+85°C 6.2Recommended OperatingConditions Operating ConditionMinimumMaximum Operating temperature range -40°C+85°C Supply voltage: VBAT+3.0V+4.6V 7Label Laser engravingprinting label 8Wireless Certifications CountryMark U.SFCC ID: 2AS3E-CTEBT2 CanadaIC: 24983-CTEBT2 Europe Taiwan Japan Korea U. K 9Warning FCC Statement: FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occurin a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/ TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. …

Text truncated - open the document above for the full version.

Certification designating a U.S. Agent for service of process: As required by section 2.911(d)(7), the applicant must designate a contact located in the United States for purposes of acting as the applicant's agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. In either scenario, the designation of the U.S. agent for service of process should be provided as an attachment to the equipment authorization application. The applicant must provide a written certification, which must: i. Be signed by both the applicant and designated agent for service of process, if the agent is different from the applicant. ii. Acknowledge the applicant's consent and the designated agent's obligation to accept service of process. iii. Provide a physical U.S. address and email for the designated agent. iv. Acknowledge the applicant's acceptance to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment, Unofficial information provided by FCC personnel on February 14, 2023, via the monthly call with the TCB Council: The Agent for Process of Service: • cannot be a TCB or affiliated with a TCB ( e.g. could not be a person who works for a TCB or a company that owns or is owned by the TCB) • cannot be a [FCC recognised] Lab or affiliated with a test lab (e.g. could not be a person who works for a Lab or a company that owns or is owned by the Lab) • Agent can be Individual Entity or a Company Entity • Agent Entity must be located in US, US address/phone • Entity acting as Agent must have FRN (best practice, put FRN on Agent Letter) • Agent letter does not have to be FCC ID specific, can be general Agent for Grantee For devices being marketed or for which marketing has ceased for less than 1 year, if the Agent for Process of Service changes, then for every TC Number the TCB must request the FCC to put application into Audit Mode and Agent Letter needs to be updated (superseded), NOTE: The U.S. Agent for Service of Process should not be confused with the authorized agent used for signing the 731 form, other cover letters within the application, and/or the agent who may interface with theTCB. CTE TECH CORP. No. 1-7 Gongjian Rd., Cidu District, Keelung City 20647, Taiwan U.S. Agent Designation for Service of Process ATTENTION: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA REGARDING: FCC Ce1iification - Section 2.91 l(d)(7) Information Designated U.S. Agent Company Name: Approve-IT, Inc. Contact Name: Nathan Grinager Street Address: 8011 34 °1 Ave South, Suite 342 City/Province/Zip: B loomington, MN 55425 Telephone No: 651-247-1678 Email: [email protected] F RN #: 0027533835 T his letter is to confirm that we ("the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.91 l(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: D ate: July 30, 2025 Si gned by (Printed Name/Title): Nathan Grinager / Co-President The Applicant confirms its explicit consent and acknowledges that they must maintain an agent for no less than one year after terminating all marketing and imp01iation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent inf01mation above changes. Applicant Company name: CTE TECH CORP. Grantee FRN: 0028402295 FCC ID: 2AS3E-CTEBT2 Contact Name: Weber Chen Street Address: No. 1-7 Gongjian Rd., Cidu District City/Province/Zip: Keelung City /Taiwan/20647 Telephone No: +886-2-2452-2431 Ext 382 Email: [email protected] Applicant Signature: Date: Signed by (Printed Name/Title): Weber Chen/ Project Engineer

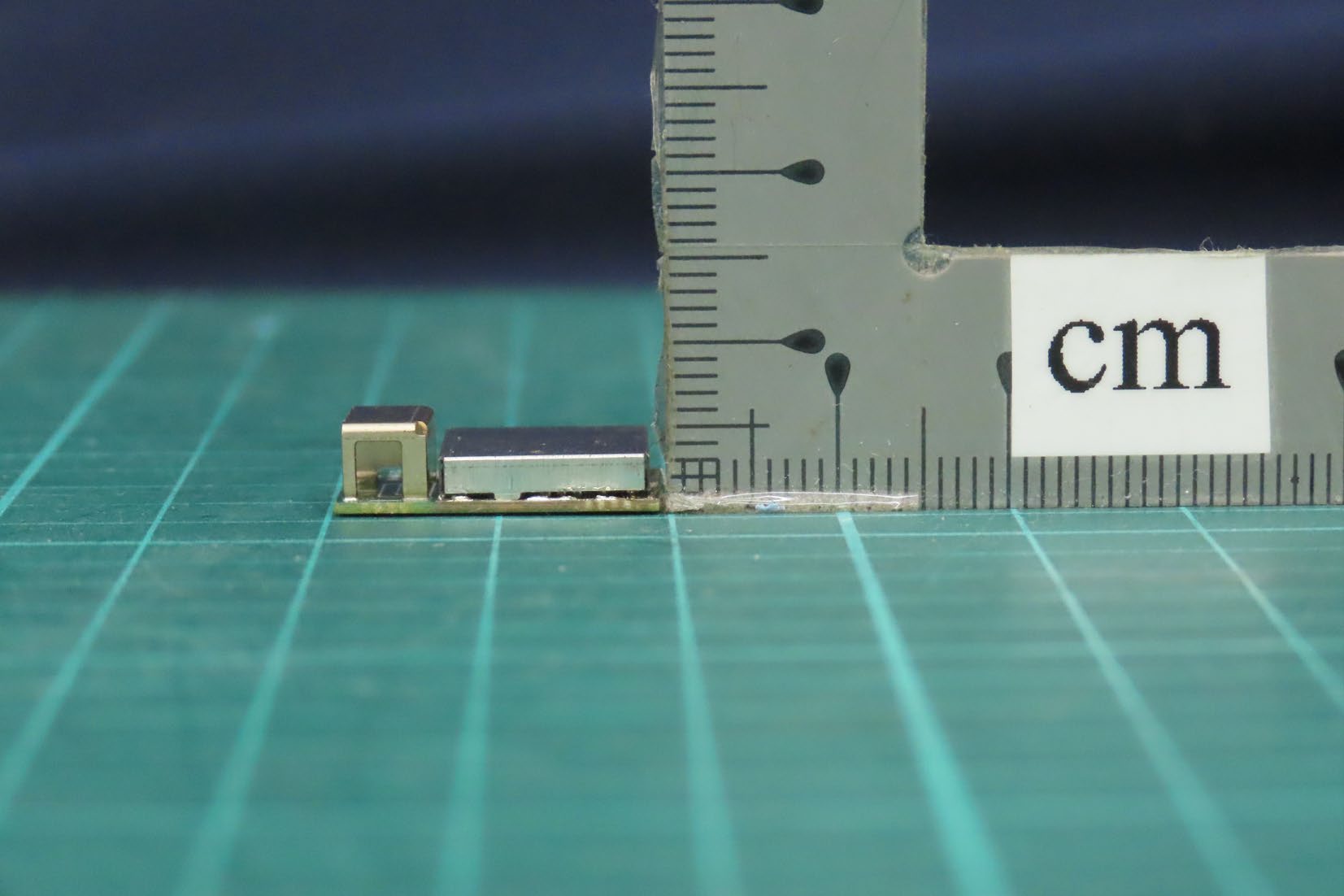

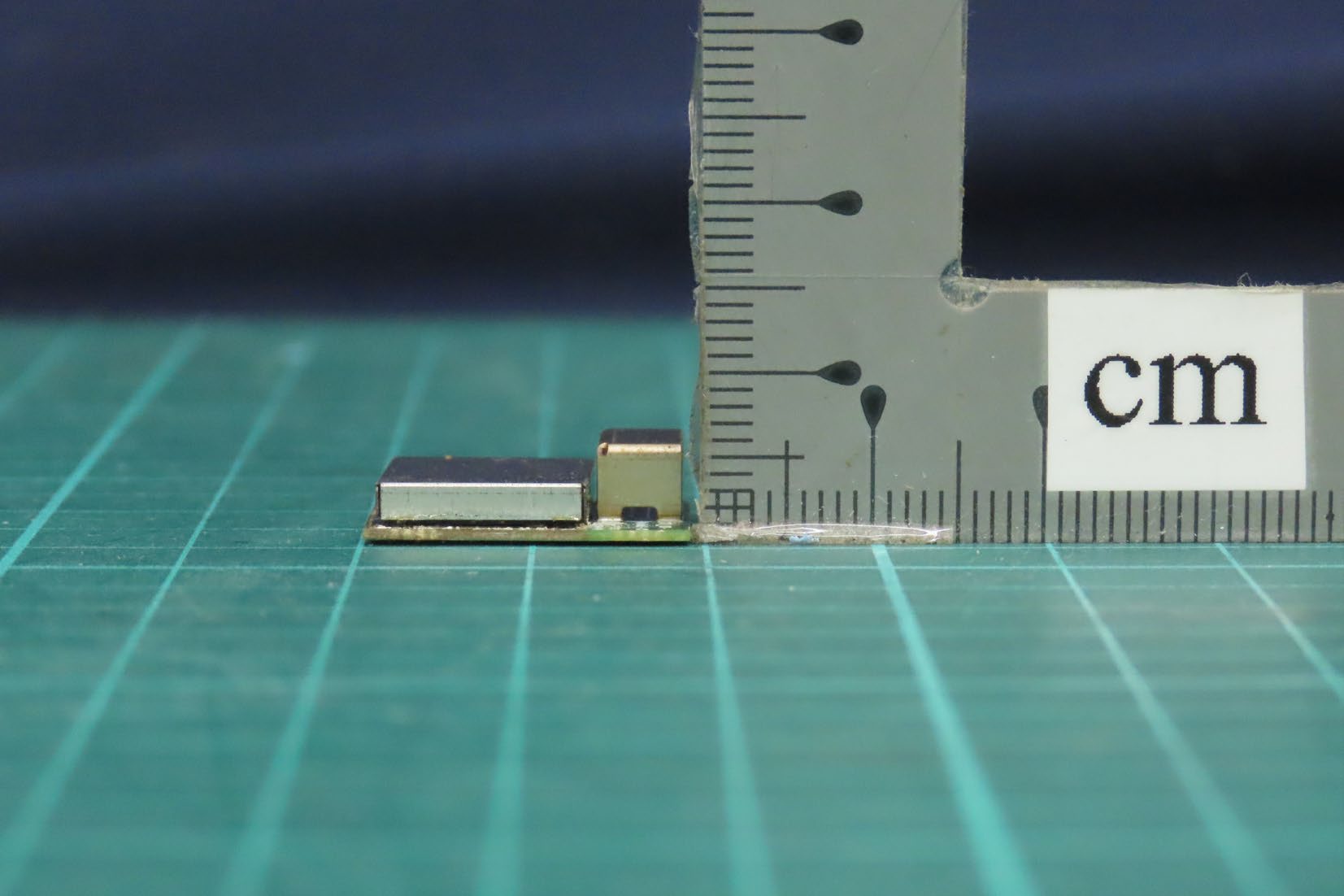

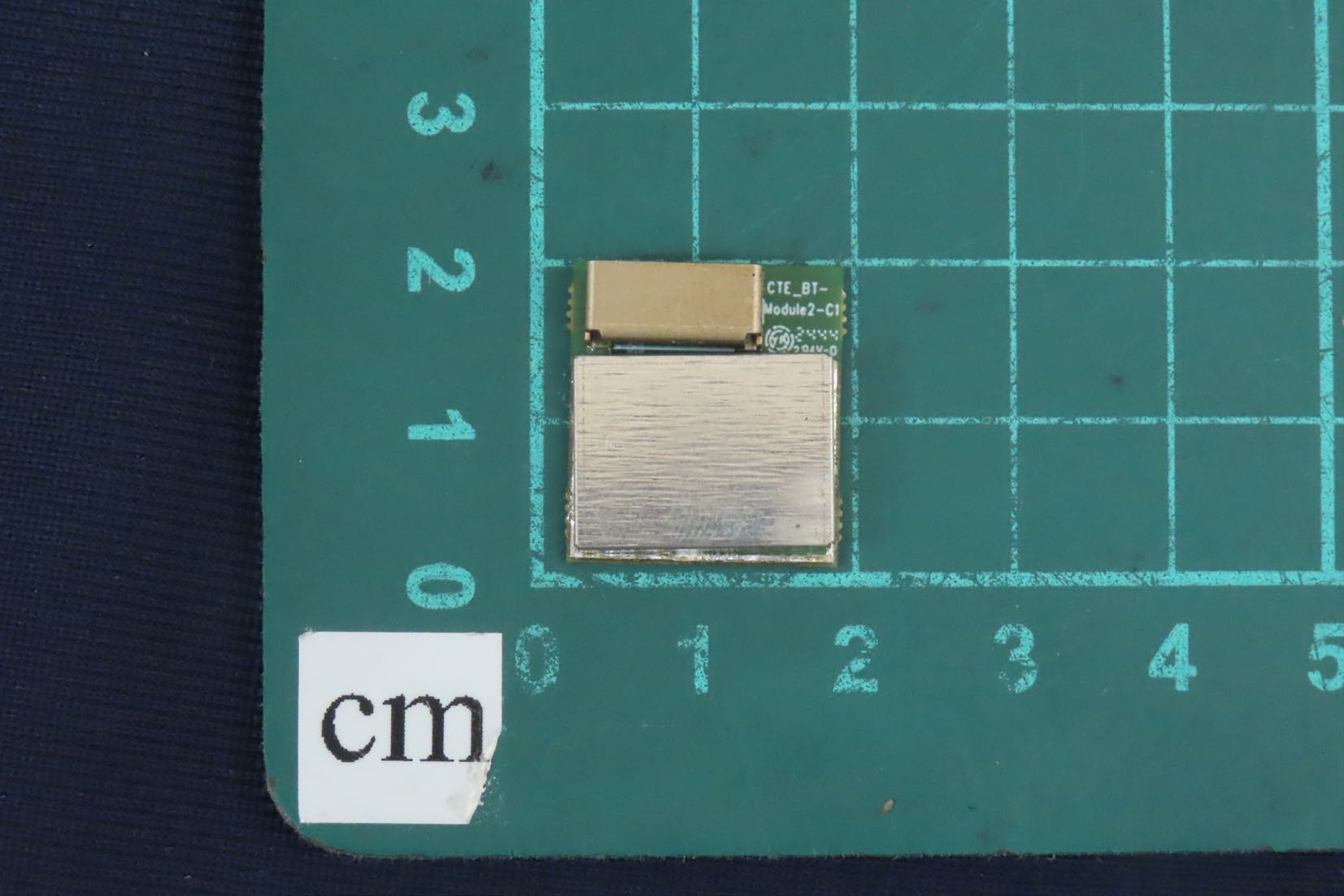

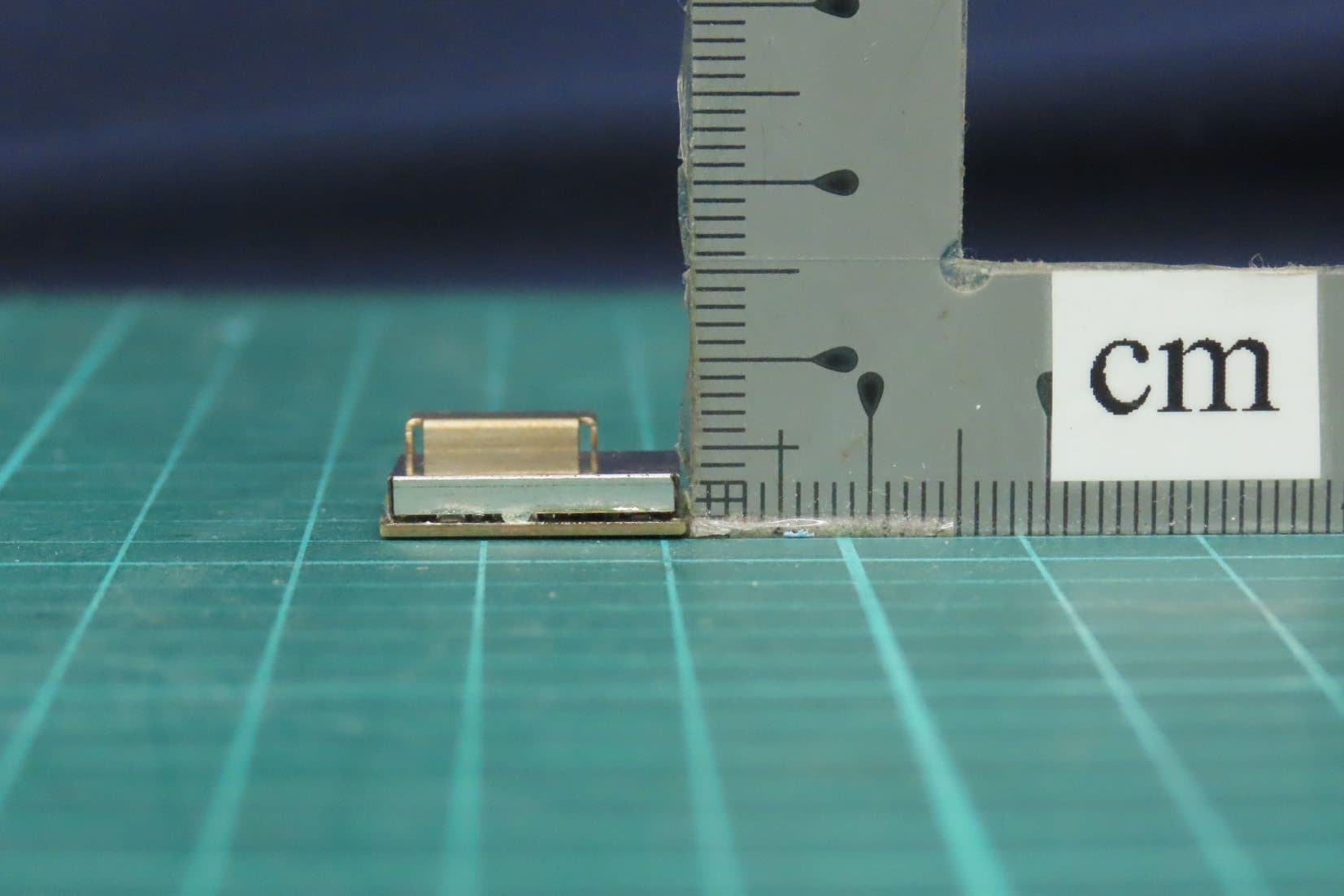

Report No.: 2510645R-Product Photos Page: 1 of 5 (1) EUT Photo (2) EUT Photo Report No.: 2510645R-Product Photos Page: 2 of 5 (3) EUT Photo (4) EUT Photo Report No.: 2510645R-Product Photos Page: 3 of 5 (5) EUT Photo (6) EUT Photo

6_CTE_BT-MODULE2 Outline Drawing • 17mm x19mm x 5.3mm Top ViewSide View 5.3

Laser engraving printing label

Report No.: 2510645R-Product Photos Page: 1 of 5 (1) EUT Photo (2) EUT Photo Report No.: 2510645R-Product Photos Page: 4 of 5 (7) EUT Photo (8) EUT Photo RF Antenna Report No.: 2510645R-Product Photos Page: 5 of 5 (9) EUT Photo

Report No.: 2510645R-RFUSV17S-A Page: 1 of 8 Test Report No: 2510645R-RFUSV17S-A RF EXPOSURE EVALUATION DECLARATION Product Name Bluetooth Module Brand Name CTE Model No. CTE_BT2 FCC ID 2AS3E-CTEBT2 Applicant ́s Name / Address CTE TECH CORP. No. 1-7 Gongjian Rd., Cidu District, Keelung City 20647, Taiwan Manufacturer’s Name CTE TECH CORP. Test Method Requested, Standard KDB 447498 D01 v06 Verdict Summary IN COMPLIANCE Documented By Jinn Chen Tested by Steven Tsai Approved By Tim Sung Date of Receipt 2025/01/20 Date of Issue 2025/09/15 Report Version V1.0 Report No.: 2510645R-RFUSV17S-A Page: 2 of 8 INDEX page Competences and Guarantees ................................................................................................................................ 3 General Conditions .................................................................................................................................................. 3 Revision History ....................................................................................................................................................... 4 1. General Information ............................................................................................................................... 5 1.1. EUT Description .................................................................................................................................... 5 1.2. Testing Location Information ................................................................................................................. 5 2. RF Exposure Evaluation ........................................................................................................................ 6 2.1. Standard Applicable .............................................................................................................................. 6 2.2. Test Limit ............................................................................................................................................... 6 2.3. Test Result of RF Exposure Evaluation ................................................................................................. 8 Report No.: 2510645R-RFUSV17S-A Page: 3 of 8 Competences and Guarantees DEKRA is a testing laboratory competent to carry out the tests described in this report. In order to assure the traceability to other national and international laboratories, DEKRA has a calibration and maintenance program for its measurement equipment. DEKRA guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated in the report and it is based on the knowledge and technical facilities available at DEKRA at the time of performance of the test. DEKRA is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Test Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of DEKRA. General Conditions 1. The test results relate only to the samples tested. 2. The test results shown in the test report are traceable to the national/international standard through the calibration report of the equipment and evaluated measurement uncertainty herein. 3. This report must not be used to claim product endorsement by TAF or any agency of the government. 4. The test report shall not be reproduced without the written approval of DEKRA Testing and Certification Co., Ltd. 5. Measurement uncertainties evaluated for each testing system and associated connections are given here to provide the system information for reference. Compliance determinations do not take into account measurement uncertainties for each testing system, but are based on the results of the compliance measurement. Report No.: 2510645R-RFUSV17S-A Page: 4 of 8 Revision History Version Description Issued Date V1.0 Initial issue of report 2025/09/15 Report No.: 2510645R-RFUSV17S-A Page: 5 of 8 1. General Information 1.1. EUT Description Product Name Bluetooth Module Brand Name CTE Model No. CTE_BT2 Note: For more detailed information, please refer to Report No. 2510645R-RFUSV01S-A and 2510645R-RFUSV01S-B. 1.2. Testing Location Information USA FCC Designation Number: TW0033 Canada CAB Identifier Number: TW3023 / Company Number: 26930 Site Description Accredited by TAF Accredited Number: 3023 Test Laboratory DEKRA Testing and Certification Co., Ltd. Linkou Laboratory Address No. 85, Wenlin St., Linkou Dist., New Taipei City 244017, Taiwan, R.O.C. Performed Location No. 26, Huaya 1st Rd., Guishan Dist.,Taoyuan City 333411, Taiwan, R.O.C. Phone Number +886-3-275-7255 Fax Number +886-3-327-8031 Report No.: 2510645R-RFUSV17S-A Page: 6 of 8 2. RF Exposure Evaluation 2.1. Standard Applicable 47CFR §2.1091(b) states, “A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the RF source's radiating structure(s) and the body of the user or nearby persons.” Also, 47CFR §1.1310(e)(3) states, that General population/uncontrolled exposure limits defined in §1.1310 “General population/uncontrolled exposure limits apply in situations in which the general public may be exposed, or in which persons who are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure.” 2.2. Test Limit (A) Test Limit for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time…

Text truncated - open the document above for the full version.

1 CTE BT2 ANTENNA Applicant Open Road NO.88-13 Shuili Road Hsinchu City 30059,Taiwan Brand ORS Manufacturer Open Road NO.88-13 Shuili Road Hsinchu City 30059,Taiwan Product Name CTE BT2 Antenna Model Name ORS-A81 2 List of Contents 1. Description of Antenna ........................................................................................................................ 1 2. Test Frequency and Polarization ......................................................................................................... 2 3. Measuring Instrument List (Test Equipment) ....................................................................................... 3 4. Test Connection Diagram and Condition ............................................................................................. 4 5. Test Procedure .................................................................................................................................... 5 6. Test Result .......................................................................................................................................... 6 Appendix I： Photographs of Test Configuration ...................................................................................... 7 Appendix II：Photographs of the Antenna Outview .................................................................................... 8 Appendix III：Antenna Pattern ................................................................................................................. 10 1 1. Description of Antenna Ant. No. Brand Name Model Name Ant. Type Operation Mode 1 ORS ORS-A81 PIFA BT 2.4GHz Note: 1. The above Antenna information is declared by manufacturer and for more detailed features description, please refer the manufacturer’s or user’s manual. 2 2. Test Frequency and Polarization The tests frequency is declared by manufacturer. Band (MHz) Test Frequency (MHz) 2300-2600 2300、2350 2400、2450、2500、2550、2600 Z X Y EUT Position and Polarization 3 3. Measuring Instrument List (Test Equipment) The measuring equipment utilized to perform the tests documented in this report has been calibrated in accordance with the manufacturer’s recommendations and is traceable to recognized national standards. Test Equipment List Equipment Manufacturer Model No. Serial No. Cal. Date Expired Date Trilog- Broadband Antenna Schwarzbeck VULB 9163 & N- 6-05 1059 & N0537 2025/1/20 2026/1/19 Broadband Horn Antenna SCHWARZBECK BBHA 9170 781 2025/12/17 2026/12/16 Signal Generator Keysight N5173B MY53271122 2024/12/3 2025/12/2 Spectrum Analyzer Keysight N9010A MY56070818 2025/3/12 2026/3/11 Cables Hanyitek K1K50-UP0264- K1K50-2500 170214-1 & 170214-2 2024/11/22 2025/11/21 Cables Hanyitek HPMC40KM90KF CB038 2025/1/16 2026/1/15 Software Version e3 6.191211 (V6) 4 4. Test Connection Diagram and Condition 5 5. Test Procedure 1. Set the Calibration Antenna on multi-axis positioner and connect to signal generator for capture the correction factor. 2. Signal generator insertion normalize and calculate the standard antenna factor with spectrum analyzer. 3. Calibration Antenna change to the EUT’s antenna. 4. The EUT is then stepped between 0 to 360 degrees along the theta axis. 6 6. Test Result Maximum gain result refer below table: Polarization Test X-Y Plane Y-Z Plane X-Z Plane Frequency Gain Gain Gain (MHz) (dBi) (dBi) (dBi) Avg. Gain 2300 -6.2 -8.5 -6.3 Peak Gain 2350 -5.2 -6.2 -5.5 Polarization Test X-Y Plane X-Z Plane Y-Z Plane Frequency Gain Gain Gain (MHz) (dBi) (dBi) (dBi) Avg. Gain 2400 -3.7 -6.0 -4.7 Peak Gain 2450 3.3 -2.2 -2.0 Polarization Test X-Y Plane X-Z Plane Y-Z Plane Frequency Gain Gain Gain (MHz) (dBi) (dBi) (dBi) Avg. Gain 2500 -3.6 -7.5 -4.6 Peak Gain 2550 2.6 -3.3 -2.2 Polarization Test X-Y Plane X-Z Plane Y-Z Plane Frequency Gain Gain Gain (MHz) (dBi) (dBi) (dBi) Avg. Gain 2600 -6.9 -10.1 -6.9 Peak Gain 2600 -1.8 -4.7 -5.8 7 Appendix I： Photographs of Test Configuration 8 Appendix II：Photographs of the Antenna Outview XY Plane XZ Plane 9 YZ Plane 10 Appendix III：Antenna Pattern Condition Peak Gain Test Mode 2400MHz_XY 2450MHz_XY 2500MHz_XY 11 Condition Peak Gain Test Mode 2400MHz_YZ 2450MHz_YZ 2500MHz_YZ 12 Condition Peak Gain Test Mode 2400MHz_ZX 2450MHz_ZX 2500MHz_ZX 13

Report No.: 2510645R-RFUSV01S-A Page: 1 of 23 Test Report No: 2510645R-RFUSV01S-A TEST REPORT FCC Rules & Regulations Product Name Bluetooth Module Brand Name CTE Model No. CTE_BT2 FCC ID 2AS3E-CTEBT2 Applicant ́s Name / Address CTE TECH CORP. No. 1-7 Gongjian Rd., Cidu District, Keelung City 20647, Taiwan Manufacturer’s Name CTE TECH CORP. Test Method Requested, Standard FCC CFR Title 47 Part 15 Subpart C Section 15.247 Verdict Summary IN COMPLIANCE Documented By Jinn Chen Tested By Bill Lin Approved By Steven Tsai Date of Receipt 2025/01/20 Date of Issue 2025/09/15 Report Version V1.0 Report No.: 2510645R-RFUSV01S-A Page: 2 of 23 INDEX page Competences and Guarantees ............................................................................................................................... 4 General Conditions ................................................................................................................................................. 4 Revision History ...................................................................................................................................................... 5 Summary of Test Result .......................................................................................................................................... 6 1. General Information ................................................................................................................................. 7 1.1. EUT Description ...................................................................................................................................... 7 1.2. EUT Information ...................................................................................................................................... 8 1.3. Testing Location Information ................................................................................................................... 8 1.4. Measurement Uncertainty ....................................................................................................................... 9 1.5. List of Test Equipment ........................................................................................................................... 10 2. Test Configuration of EUT ..................................................................................................................... 11 2.1. Test Condition ........................................................................................................................................ 11 2.2. Test Frequency Mode ............................................................................................................................ 11 2.3. Duty Cycle ............................................................................................................................................. 12 2.4. Measurement Configuration .................................................................................................................. 13 2.5. Tested System Details ........................................................................................................................... 14 2.6. Configuration of Tested System ............................................................................................................ 14 2.7. EUT Operating Procedures ................................................................................................................... 14 3. AC Power Line Conducted Emission .................................................................................................... 15 3.1. Test Setup ............................................................................................................................................. 15 3.2. Test Limit ............................................................................................................................................... 15 3.3. Test Procedure ...................................................................................................................................... 15 3.4. Test Result of AC Power Line Conducted Emission ............................................................................. 15 4. 20dB Bandwidth .................................................................................................................................... 16 4.1. Test Setup ............................................................................................................................................. 16 4.2. Test Limit ............................................................................................................................................... 16 4.3. Test Procedures .................................................................................................................................... 16 4.4. Test Result of 20dB Bandwidth ............................................................................................................. 16 5. Carrier Frequency Separation ............................................................................................................... 17 5.1. Test Setup ............................................................................................................................................. 17 5.2. Test Limit ............................................................................................................................................... 17 5.3. Test Procedures .................................................................................................................................... 17 5.4. Test Result of Carrier Frequency Separation ........................................................................................ 17 6. Maximum Peak Conducted Output Power ............................................................................................ 18 6.1. Test Setup ...............................................................................…

Text truncated - open the document above for the full version.

Report No.: 2510645R-RFUSV01S-A Page: 1 of 27 Appendix A. Test Result of AC Power Line Conducted Emission TX_BT3M_2441MHz_Line TX_BT3M_2441MHz_Neutral Report No.: 2510645R-RFUSV01S-A Page: 2 of 27 Appendix B. Test Result of 20dB Bandwidth Modulation Frequency (MHz) Measure Level (kHz) Limit (kHz) GFSK 2402 0.95 - 2441 0.95 - 2480 0.95 - 8DPSK 2402 1.30 - 2441 1.30 - 2480 1.30 - Report No.: 2510645R-RFUSV01S-A Page: 3 of 27 GFSK(DH5) / 2402 MHz GFSK(DH5) / 2441 MHz GFSK(DH5) / 2480 MHz 8DPSK(3DH5) / 2402 MHz 8DPSK(3DH5) / 2441 MHz 8DPSK(3DH5) / 2480 MHz Report No.: 2510645R-RFUSV01S-A Page: 4 of 27 Appendix C. Test Result of Carrier Frequency Separation Modulation Frequency (MHz) Measure Level (MHz) Limit (MHz) Result GFSK 2402 1.00 0.633 Pass 2441 1.00 0.633 Pass 2480 0.99 0.635 Pass 8DPSK 2402 0.99 0.867 Pass 2441 0.99 0.869 Pass 2480 0.99 0.868 Pass Report No.: 2510645R-RFUSV01S-A Page: 5 of 27 GFSK(DH5) / 2402 MHz GFSK(DH5) / 2441 MHz GFSK(DH5) / 2480 MHz 8DPSK(3DH5) / 2402 MHz 8DPSK(3DH5) / 2441 MHz 8DPSK(3DH5) / 2480 MHz Report No.: 2510645R-RFUSV01S-A Page: 6 of 27 Appendix D. Test Result of Maximum Peak Conducted Output Power Modulation Frequency (MHz) Maximum Conducted Peak Output Power (dBm) Limit (dBm) Result GFSK 2402 14.01 21.00 Pass 2441 13.87 21.00 Pass 2480 13.00 21.00 Pass 8DPSK 2402 13.85 21.00 Pass 2441 13.75 21.00 Pass 2480 12.60 21.00 Pass Report No.: 2510645R-RFUSV01S-A Page: 7 of 27 Appendix E. Test Result of Number of Hopping Frequency Frequency Range (MHz) Measure Level (Channels) Limit (Channels) 2402.0 ~ 2480.0 79 ≧ 15 GFSK(DH5) / 2402 MHz GFSK(DH5) / 2480 MHz 8DPSK(3DH5) / 2402 MHz 8DPSK(3DH5) / 2480 MHz Report No.: 2510645R-RFUSV01S-A Page: 8 of 27 Appendix F. Test Result of Dwell Time Modulation Occupancy Time of Frequency Hopping System GFSK A) 2402 MHz Test Time Period: 0.4*79=31.60 sec, Time slot length :2.87 = 0.002870 sec Dwell Time : 0.002870 *(266.67/79)* 31.60= 0.306 sec。 B) 2441 MHz Test Time Period: 0.4*79=31.60 sec, Time slot length :2.87 = 0.002870 sec Dwell Time : 0.002870 *(266.67/79)* 31.60= 0.306 sec。 C) 2480 MHz Test Time Period: 0.4*79=31.60 sec, Time slot length :2.87 = 0.002870 sec Dwell Time : 0.002870 *(266.67/79)* 31.60= 0.306 sec。 8DPSK A) 2402 MHz Test Time Period: 0.4*79=31.60 sec, Time slot length :2.87 = 0.002870 sec Dwell Time : 0.002870 *(266.67/79)* 31.60= 0.306 sec。 B) 2441 MHz Test Time Period: 0.4*79=31.60 sec, Time slot length :2.87 = 0.002870 sec Dwell Time : 0.002870 *(266.67/79)* 31.60= 0.306 sec。 C) 2480 MHz Test Time Period: 0.4*79=31.60 sec, Time slot length :2.87 = 0.002870 sec Dwell Time : 0.002870 *(266.67/79)* 31.60= 0.306 sec。 Test Result: The occupancy time of each highest, middle and lowest channel is less than 0.4 sec, and corresponds to the standard. Report No.: 2510645R-RFUSV01S-A Page: 9 of 27 GFSK(DH5) / 2402 MHz GFSK(DH5) / 2441 MHz GFSK(DH5) / 2480 MHz 8DPSK(3DH5) / 2402 MHz 8DPSK(3DH5) / 2441 MHz 8DPSK(3DH5) / 2480 MHz Report No.: 2510645R-RFUSV01S-A Page: 10 of 27 Appendix G. Test Result of Antenna Port Conducted Emission Modulation Measurement Level Δ (dB) Result GFSK > 20 Pass 8DPSK > 20 Pass Report No.: 2510645R-RFUS…
