2AS3H-BH-KF-001key finder

USER MANUAL Apple,APP Store,iPhone,iPad and iPod touch are trademarks of Apple Inc. Google play is a trademark of Google Inc. All other trademarks are properties of their respective owners. This guide is for your benet to make sure you fully understand how to use the product. This product is a Bluetooth wireless device running the “isearching’ application. Before using it, you need to place the things that are easily lost with the product together. In the eective Bluetooth connection range (About 15meters/45f no barrier) , you can make the product beeps to nd your things with your phone's app, you can double-click the product's button to cause your phone ring, and you can use the product to take photos. (With these features, you can nd anything you want to nd with ease. Such as keys, bags, remote control, wallet, mobile phone...) When the product is out of range with your phone's Bluetooth, the alert will be triggered in both of the product and your phone, and last lost location will be marked on the map in the “ isearching' app. (To use this feature, you need to open ‘Phone Alarm While Lost function’ in the setting. With these features, your belongings and mobile phone will be protected in a specied range. If yo u forget to take your belongings, you will be reminded with your phone alert. If your phone is left behind, you will be reminded with the tracker’s alert.) In order to use the product, your device will need both of the following: 1. Bluetooth4.0 2. IOS11.0 and higher, Android 8.0 and higher. APP DOWNLOAD AND INSTALL 1. You can download the 'isearching' APP from the APP Store. 2. You can download the ‘ isearching’ APP from the Google Play. POWER ON/OFF Power On: Hold down the tracker’s function button for at least 3 seconds You will hear two beeps, the tracker is now powered on. Power O: Hold down the tracker function button for at least 3 seconds. You will hear o long single beep. The tracker is now powered o. START APP Open the app on your smart phone. Please take time to review the tutorial page. Please click “Allow” of the notications of the APP. Tap here or drop-down interface to add devices Tap ‘connect’ to connect device. Tap ‘Find Device’ to make the tracker beeps. Tap ‘Cancel’ to stop the beeps. When your tracker is connected and within range, you may use your tracker to nd your lost phone, Press the button 2 times in succession and it will cause your phone to alert. Tap ‘Conrm’ to stop the alert. Go settings Slide it to the left, you can delete the device. You may edit the device name-such as Wallet, Key, Dog etc. You can take a picture and save for your reference. TO USE THE ANTI-LOST ALARM FEATURE, YOU MUST TURN ON THIS BUTTON. SELFIE Press ‘Camera’, the cemera will show up. Press the connected tracker’s button to take the photo, it works as a remote shutter. Switch the front and rear camera. Switch’No disturbance’ on, alarm function of all devices will be deactivated Setting for alarm or voice recording. Voice records will be here. Location: Location History: When you park your car, press the tracker's button, it will mark your current location on the map. Press the location history you will nd your vehicle. Lost History: If you lost your tracker, you can nd it in ‘Lost History’. A pin-drop will be marked automaticall on map and it will tell you the tracker’s location. Just press ‘Lost History’ to nd the record. BATTERY REPLACEMENT Battery type: CR2032 The CR2032 is a standard sized battery and easy to purchase. Open the case from the button of the device and replace the battery. &tĂƌŶŝŶŐ^ƚĂƚĞŵĞŶƚŚĂŶŐĞƐŽƌŵŽĚŝĨŝĐĂƚŝŽŶƐŶŽƚĞdžƉƌĞƐƐůLJĂƉƉƌŽǀĞĚďLJƚŚĞƉĂƌƚLJƌĞƐƉŽŶƐŝďůĞĨŽƌĐŽŵƉůŝĂŶĐĞĐŽƵůĚǀŽŝĚƚŚĞƵƐĞƌ͛ƐĂƵƚŚŽƌŝƚLJƚŽŽƉĞƌĂƚĞƚŚĞĞƋƵŝƉŵĞŶƚ͘dŚŝƐĞƋƵŝƉŵĞŶƚŚĂƐďĞĞŶƚĞƐƚĞĚ ĂŶĚĨŽƵŶĚƚŽĐŽŵƉůLJǁŝƚŚƚŚĞůŝŵŝƚƐĨŽƌĂůĂƐƐĚŝŐŝƚĂůĚĞǀŝĐĞ͕ƉƵƌƐƵĂŶƚƚŽWĂƌƚϭρŽĨƚŚĞ&ZƵůĞƐ͘dŚĞƐĞůŝŵŝƚƐĂƌĞĚĞƐŝŐŶĞĚƚŽƉƌŽǀŝĚĞƌĞĂƐŽŶĂďůĞƉƌŽƚĞĐƚŝŽŶĂŐĂŝŶƐƚŚĂƌŵĨƵů ŝŶƚĞƌĨĞƌĞŶĐĞŝŶĂƌĞƐŝĚĞŶƚŝĂůŝŶƐƚĂůůĂƚŝŽŶ͘dŚŝƐĞƋƵŝƉŵĞŶƚŐĞŶĞƌĂƚĞƐƵƐĞƐĂŶĚĐĂŶƌĂĚŝĂƚĞƌĂĚŝŽĨƌĞƋƵĞŶĐLJĞŶĞƌŐLJĂŶĚ͕ŝĨŶŽƚŝŶƐƚĂůůĞĚĂŶĚƵƐĞĚŝŶĂĐĐŽƌĚĂŶĐĞǁŝƚŚƚŚĞŝŶƐƚƌƵĐƚŝŽŶƐ͕ ŵĂLJĐĂƵƐĞŚĂƌŵĨƵůŝŶƚĞƌĨĞƌĞŶĐĞƚŽƌĂĚŝŽĐŽŵŵƵŶŝĐĂƚŝŽŶƐ͘,ŽǁĞǀĞƌ͕ƚŚĞƌĞŝƐŶŽŐƵĂƌĂŶƚĞĞƚŚĂƚŝŶƚĞƌĨĞƌĞŶĐĞǁŝůůŶŽƚŽĐĐƵƌŝŶĂƉĂƌƚŝĐƵůĂƌŝŶƐƚĂůůĂƚŝŽŶ͘/ĨƚŚŝƐĞƋƵŝƉŵĞŶƚĚŽĞƐĐĂƵƐĞ ŚĂƌŵĨƵůŝŶƚĞƌĨĞƌĞŶĐĞƚŽƌĂĚŝŽŽƌƚĞůĞǀŝƐŝŽŶƌĞĐĞƉƚŝŽŶ͕ǁŚŝĐŚĐĂŶďĞĚĞƚĞƌŵŝŶĞĚďLJƚƵƌŶŝŶŐƚŚĞĞƋƵŝƉŵĞŶƚŽĨĨĂŶĚŽŶ͕ƚŚĞƵƐĞƌŝƐĞŶĐŽƵƌĂŐĞĚƚŽƚƌLJƚŽĐŽƌƌĞĐƚƚŚĞŝŶƚĞƌĨĞƌĞŶĐĞďLJŽŶĞ ŽƌŵŽƌĞŽĨƚŚĞĨŽůůŽǁŝŶŐŵĞĂƐƵƌĞƐ͗ ϋϋZĞŽƌŝĞŶƚŽƌƌĞůŽĐĂƚĞƚŚĞƌĞĐĞŝǀŝŶŐĂŶƚĞŶŶĂ͘ ϋϋ/ ŶĐƌĞĂƐĞƚŚĞƐĞƉĂƌĂƚŝŽŶďĞƚǁĞĞŶƚŚĞĞƋƵŝƉŵĞŶƚĂŶĚƌĞĐĞŝǀĞƌ͘ ϋϋŽŶŶĞĐƚƚŚĞĞƋƵŝƉŵĞŶƚŝŶƚŽĂŶŽƵƚůĞƚŽŶĂĐŝƌĐƵŝƚĚŝĨĨĞƌĞŶƚĨƌŽŵƚŚĂƚƚŽǁŚŝĐŚƚŚĞƌĞĐĞŝǀĞƌŝƐĐŽŶŶĞĐƚĞĚ͘ ϋϋŽŶƐƵůƚƚŚĞĚĞĂůĞƌŽƌĂŶĞdžƉĞƌŝĞŶĐĞĚƌĂĚŝŽͬdsƚĞĐŚŶŝĐŝĂŶĨŽƌŚĞůƉ͘ dŚŝƐĚĞǀŝĐĞĐŽŵƉůŝĞƐǁŝƚŚƉĂƌƚϭρŽĨƚŚĞ&ZƵůĞƐ͘KƉĞƌĂƚŝŽŶŝƐƐƵďũĞĐƚƚŽƚŚĞĨŽůůŽǁŝŶŐƚǁŽĐŽŶĚŝƚŝŽŶƐ͗;ϭͿdŚŝƐĚĞǀŝĐĞŵĂLJŶŽƚĐĂƵƐĞŚĂƌŵĨƵůŝŶƚĞƌĨĞƌĞŶĐĞ͕ĂŶĚ;ϮͿƚŚŝƐĚĞǀŝĐĞ ŵƵƐƚĂĐĐĞƉƚĂŶLJŝŶƚĞƌĨĞƌĞŶĐĞƌĞĐĞŝǀĞĚ͕ŝŶĐůƵĚŝŶŐŝŶƚĞƌĨĞƌĞŶĐĞƚŚĂƚŵĂLJĐĂƵƐĞƵŶĚĞƐŝƌĞĚŽƉĞƌĂƚŝŽŶ͘

Shenzhen Bobotel Technology DEV. Co., Ltd. Agent Authorization Company: Shenzhen Bobotel Technology DEV. Co., Ltd. Address: No.20, Xiuling No.1 Road, Kengzi Street, Pingshan District, Shenzhen, Guangdong, 518118, China Product Name: key finder Model Number(s): BH-KF-001, OR1003 Product Description: key finder We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Mar. 10, 2021 Name: Jane Zhang Title: Business Manager Company: Shenzhen Bobotel Technology DEV. Co., Ltd.

Shenzhen Bobotel Technology DEV. Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Mar. 10, 2021 Subject; Request for Confidentiality FCC ID: 2AS3H-BH-KF-001 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jane Zhang Title: Business Manager

Model Difference Declaration To Whom It May Concern, We,Shenzhen Bobotel Technology DEV. Co., Ltd.(key finder) Trademark: Vivitar; Model Number: BH-KF-001, OR1003 All model’s the function, software and electric circuit are the same, only model named different. Test sample model: BH-KF-001 Please contact me if you have any question. Name: Jane Zhang Date: Mar. 10, 2021 Title: Business Manager Signature of applicant:

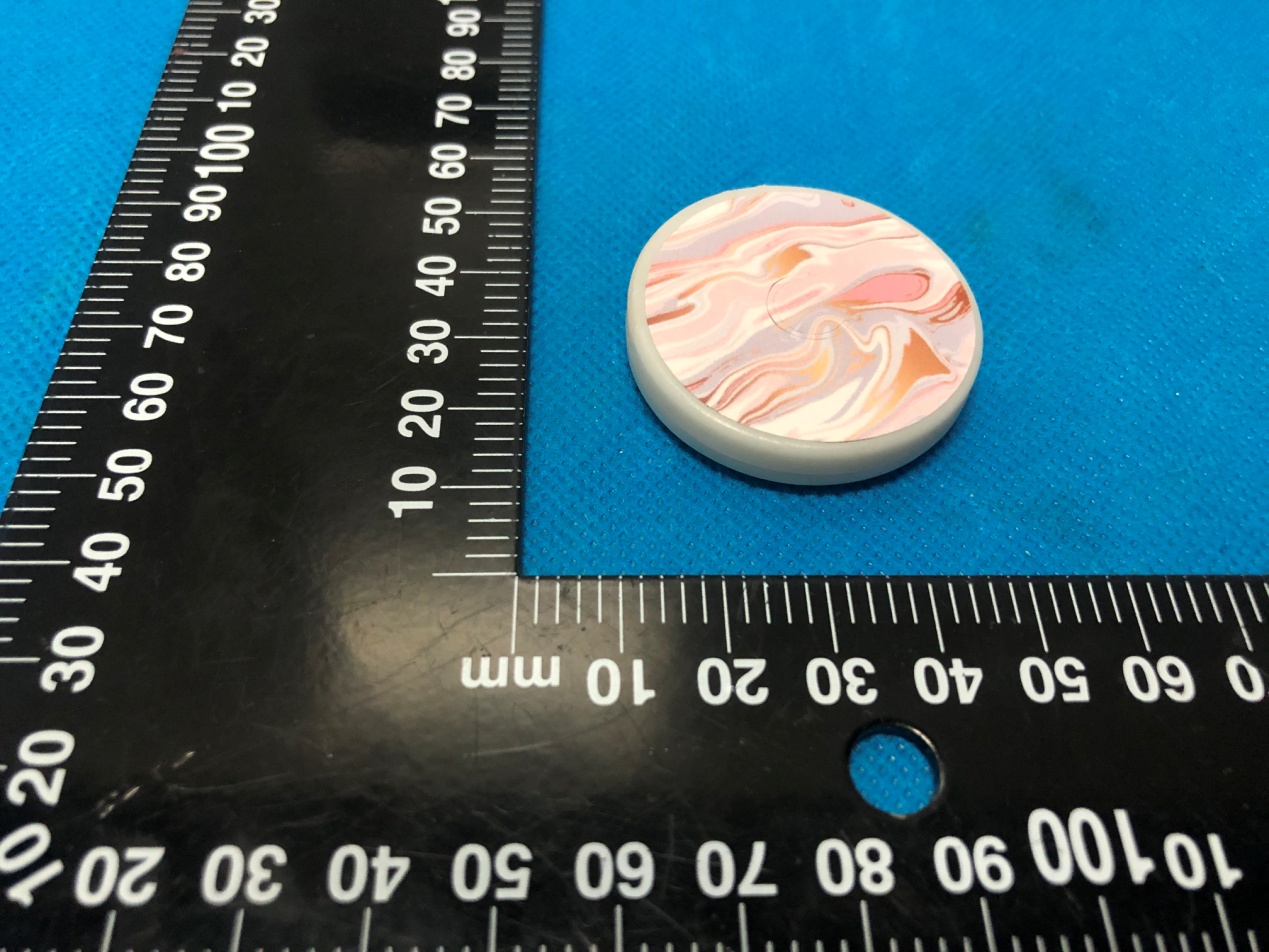

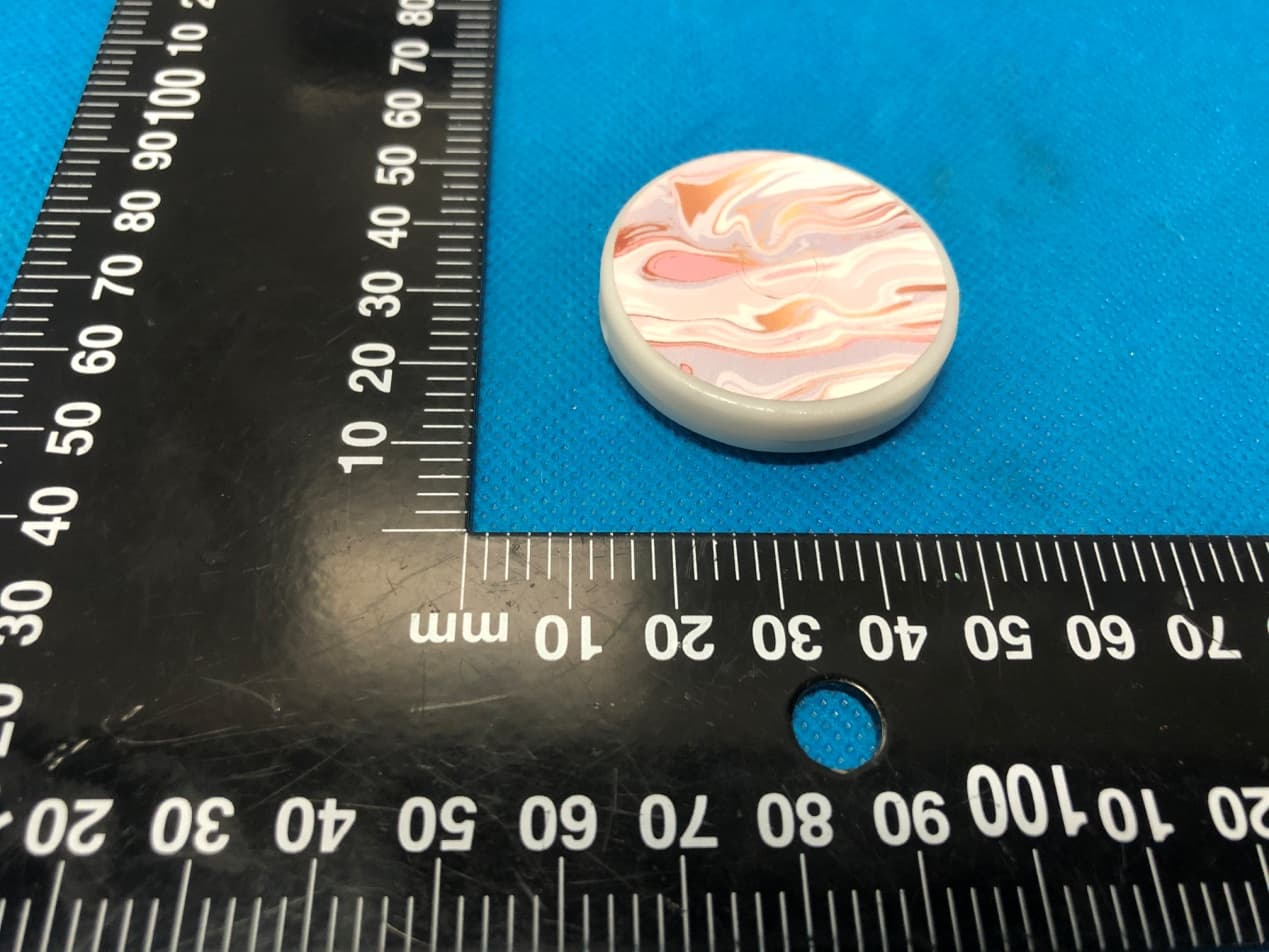

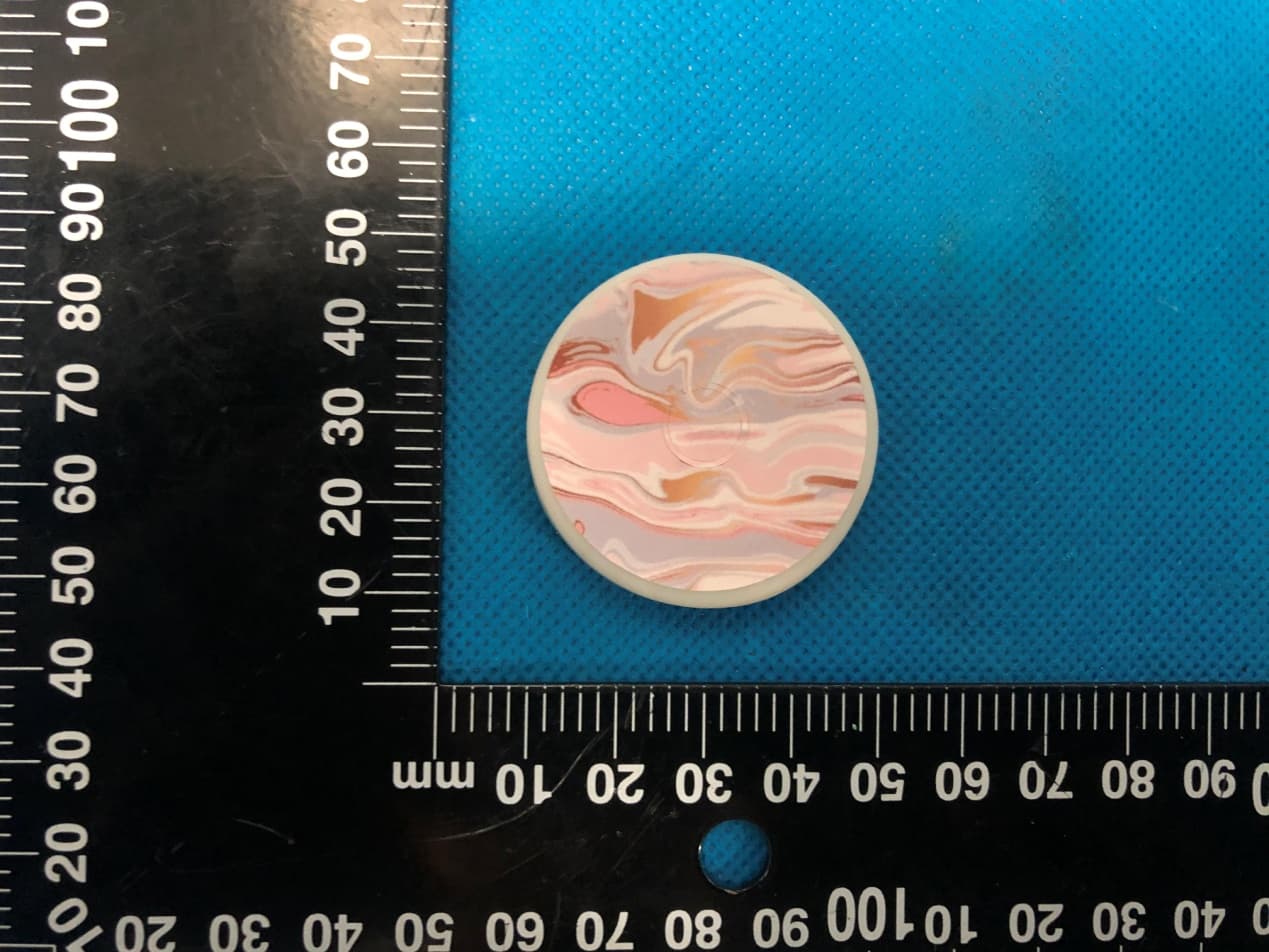

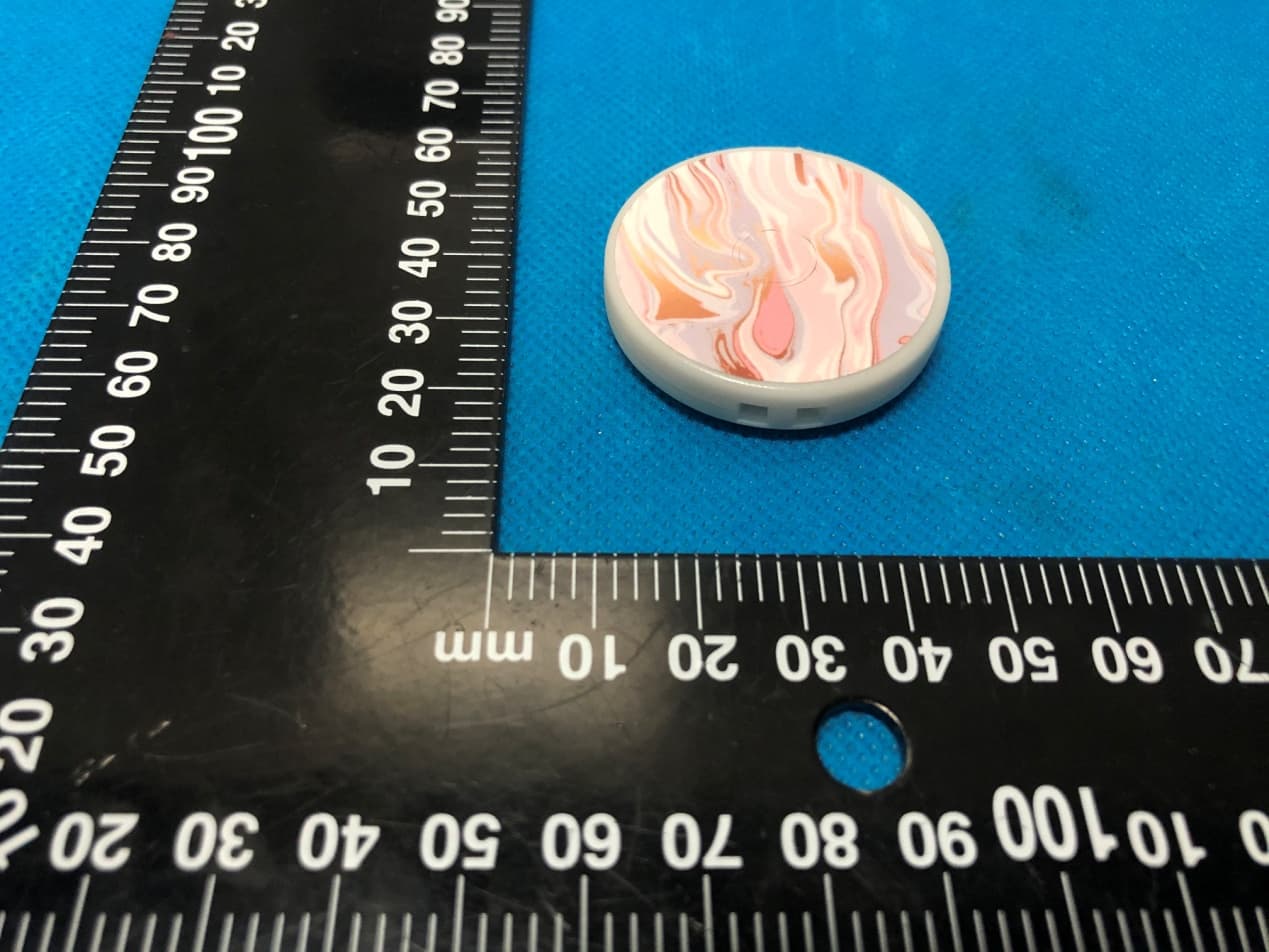

Annex A External Photos Model: BH-KF-001 Page 1 of 3 Model: BH-KF-001 Page 2 of 3 Model: BH-KF-001 Page 3 of 3

FCC ID LABEL: Ca. 5mm x 10mm Label Location FCC ID: 2AS3H-BH-KF-001

Annex B Internal Photo Model: BH-KF-001 Page 1 of 3 Model: BH-KF-001 Page 2 of 3 Antenna Model: BH-KF-001 Page 3 of 3

FCC RF Exposure EUT Description: key finder Model No.: BH‐KF‐001, OR1003 FCC ID : 2AS3H‐BH‐KF‐001 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]· [√ f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation 2.4G Output power （dBm ） Tune Up Power （dBm） Max Tune Up power dBm/mW Min test separatio n distance mm Result Limit SAR Test Exclusion BLE ‐11.793 ‐12±1 ‐11/ 0.08 5 0.0252 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2102250455‐E, antenna gain=0dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.0252 which is<= 3, RF Exposure testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

Page 1 of 40 Report No.: HK2102250455-E TEST REPORT FCC PART 15 SUBPART C 15.247 Test report On Behalf of Shenzhen Bobotel Technology DEV. Co., Ltd. For key finder Model No.: BH-KF-001, OR1003 FCC ID: 2AS3H-BH-KF-001 Prepared for : Shenzhen Bobotel Technology DEV. Co., Ltd. No.20, Xiuling No.1 Road, Kengzi Street, Pingshan District, Shenzhen, Guangdong, 518118, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Mar. 01, 2021 ~ Mar. 08, 2021 Date of Report: Mar. 08, 2021 Report Number: HK2102250455-E Page 2 of 40 Report No.: HK2102250455-E TEST RESULT CERTIFICATION Applicant’s name ................... : Shenzhen Bobotel Technology DEV. Co., Ltd. Address .................................... : No.20, Xiuling No.1 Road, Kengzi Street, Pingshan District, Shenzhen, Guangdong, 518118, China Manufacture's Name .............. : Shenzhen Bobotel Technology DEV. Co., Ltd. Address .................................... : No.20, Xiuling No.1 Road, Kengzi Street, Pingshan District, Shenzhen, Guangdong, 518118, China Product description Trade Mark: Vivitar Product name ............................. : key finder Model and/or type reference .. : BH-KF-001, OR1003 Standards ................................ : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test .............................................. : Date (s) of performance of tests ................ : Mar. 01, 2021 ~ Mar. 08, 2021 Date of Issue ............................................. : Mar. 08, 2021 Test Result ................................................. : Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 40 Report No.: HK2102250455-E Contents Page CONTENTS .............................................................................................................................................................. 3 1 TEST SUMMARY ............................................................................................................................................ 6 1.1 TEST DESCRIPTION ...................................................................................................................................... 6 1.2 MEASUREMENT UNCERTAINTY ...................................................................................................................... 7 2 TEST FACILITY ............................................................................................................................................... 8 3 GENERAL INFORMATION ............................................................................................................................. 8 3.1 GENERAL DESCRIPTION OF EUT .................................................................................................................. 8 3.2 DESCRIPTION OF TEST CONDITIONS ............................................................................................................ 10 3.3 DESCRIPTION OF TEST SETUP ........................................................................................................... 10 4 EQUIPMENTS LIST FOR ALL TEST ITEMS ............................................................................................... 11 5 TEST RESULT .............................................................................................................................................. 13 5.1 ANTENNA REQUIREMENT ............................................................................................................................ 13 5.1.1 Standard requirement ...................................................................................................................... 13 5.1.2 EUT Antenna ................................................................................................................................... 13 5.2 CONDUCTION EMISSIONS MEASUREMENT ................................................................................................... 14 5.2.1 Applied procedures / Limit ............................................................................................................... 14 5.2.2 Test procedure ................................................................................................................................. 14 5.2.3 Test setup ........................................................................................................................................ 15 5.2.4 Test results ...................................................................................................................................... 15 5.3 RADIATED EMISSIONS MEASUREMENT ........................................................................................................ 16 5.3.1 Applied procedures / Limit ............................................................................................................... 16 5.3.2 Test setup ........................................................................................................................................ 16 5.3.3 Test Result ....................................................................................................................................... 18 5.4 MAXIMUM OUTPUT POWER MEASUREMENT ................................................................................................. 25 5.4.1 Limit ....................................................................................................................…

Text truncated - open the document above for the full version.

Test Model：BH-KF-001 Radiated Emission
