2AS3L-G6WWireless Display Dongle

FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the follow ing two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, inc luding interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residentia l installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televis ion reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technic ian for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be insta lled and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna.

ShanghaiXinxieIndustrialCo.,Ltd. AgentAuthorization Company:ShanghaiXinxieIndustrialCo.,Ltd. Address:Room1517,No.69,Lane1399,HusongRoad,JiutingTown,Songjiang District,Shanghai,China ProductName:WirelessDisplayDongle ModelNumber(s):G6W G6W-TX,G7W,G7W-TX,G7W-RH,G7W-TH,G7W-TU,G8W,G8W-TX,G8W-RH, G8W-TH,G8W-TU,G9W,G9W-TX,G9W-RH,G9W-TH,G9W-TU,WLD15G, WFY0225G,WFY0235G,WFY0315G,WFY0325G,WFY0335G,WFY0415G, WFY0425G,WFY0435G,WFY0515G,WFY0525G,WFY0535G ProductDescription:WirelessDisplayDongle WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2021/8/21 Name:LeiBai Title:Manager Company:ShanghaiXinxieIndustrialCo.,Ltd.

ShanghaiXinxieIndustrialCo.,Ltd. OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2021/8/21 Subject;RequestforConfidentiality FCCID:2AS3L-G6W ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram softwaresecurityrequirement OperationalDescription Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:LeiBai Title:Manager

ShanghaiXinxieIndustrialCo.,Ltd. ModelDifference 2021/8/21 EUTNAME:WirelessDisplayDongle FCCID:2AS3L-G6W MODEL:G6W G6W-TX,G7W,G7W-TX,G7W-RH,G7W-TH,G7W-TU,G8W,G8W-TX,G8W-RH, G8W-TH,G8W-TU,G9W,G9W-TX,G9W-RH,G9W-TH,G9W-TU,WLD15G, WFY0225G,WFY0235G,WFY0315G,WFY0325G,WFY0335G,WFY0415G, WFY0425G,WFY0435G,WFY0515G,WFY0525G,WFY0535G AllthemodelarethesamecircuitandRFmodule,exceptmodelnamesand color . Regards Sincerely Client’ssignature Client’sname/title:LeiBai/SeniorManager Contactinformation/address:Room1517,No.69,Lane1399,HusongRoad, JiutingTown,SongjiangDistrict,Shanghai,China

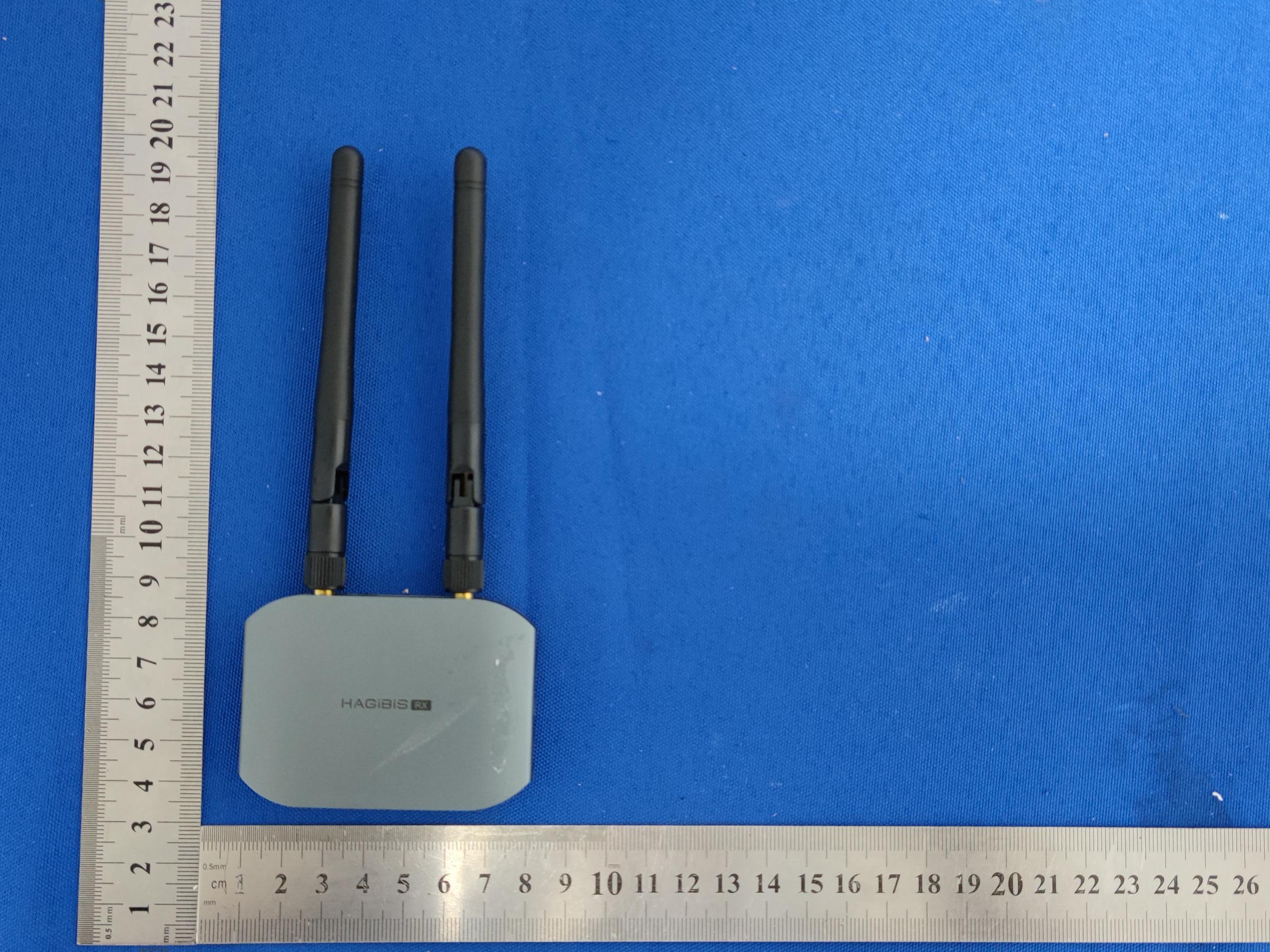

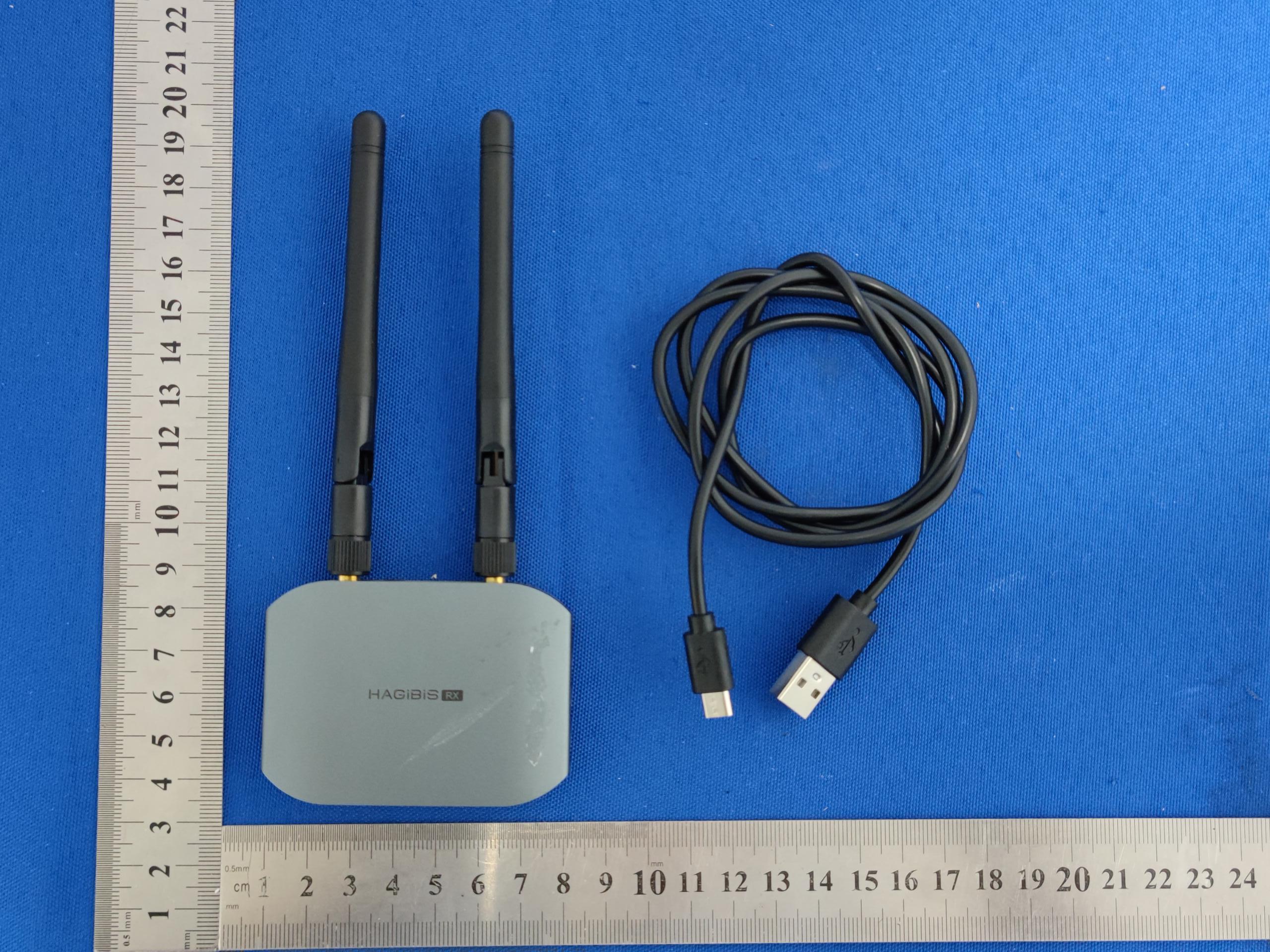

ExternalPhotos Antenna Nouse

Size:20*10mm Label location WirelessDisplayDongle FCCID:2AS3L-G6W

InternalPhotos

FCC§15.247(i),§2.1091–RFExposure FCCID:2AS3L-G6W Appliedprocedures/limit AccordingtoFCC§15.247(i)and§1.1307(b)(1),systemsoperatingundertheprovisionsofthis sectionshallbeoperatedinamannerthatensuresthatthepublicisnotexposedtoradio frequencyenergylevelinexcessoftheCommission’sguidelines. LimitsforOccupational/ControlledExposure Frequency Range(MHz) ElectricField Strength(E) (V/m) MagneticField Strength(H) (A/m) PowerDensity(S) (mW/cm 2 ) AveragingTime |E| 2 ,|H| 2 orS (minutes) 0.3-3.06141.63(100)*6 3.0-301842/f4.89/f(900/f)*6 30-30061.40.1631.06 300-1500F/3006 1500-100,00056 Note:ƒisfrequencyinMHz *=Powerdensitylimitisapplicableatfrequenciesgreaterthan100MHz LimitsforGeneralPopulation/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(E) (V/m) MagneticField Strength(H) (A/m) PowerDensity(S) (mW/cm 2 ) AveragingTime |E| 2 ,|H| 2 orS (minutes) 0.3-1.346141.63(100)*30 1.34-30824/f2.19/f(180/f)*30 30-30027.50.0730.230 300-1500F/150030 1500-100,0001.030 Note:f=frequencyinMHz *=Plane-waveequivalentpowerdensity MPEPREDICTION PredicationofMPElimitatagivendistance,EquationfromOETBulletin65,Edition97-01 Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecenterofradiationoftheantenna,R=0.2m TESTRESULTS Tuneup Produce power Maximu mpeak output power (dBm) Output power to antenn a (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result 5GWIFI16±11720.121.928(2.85dBi)0.019221Pass

No.：BCTC/RF-EMC-005Page: 1 of 75 Edition：A.3 TESTREPORT ShenzhenBCTCTestingCo.,Ltd. ReportNo.:BCTC2103325992E Applicant:ShanghaiXinxieIndustrialCo.,Ltd. ProductName:WirelessDisplayDongle Model/TypeRef.:G6W TestedDate:2021-06-01to2021-07-22 IssuedDate:2021-07-23 ReportNo.:BCTC2103325992E No.：BCTC/RF-EMC-005Page: 2 of 75 Edition：A.3 FCCID:2AS3L-G6W Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp.Thisresult(s)showninthis reportreferonlytothesample(s)tested.WithoutwrittenapprovalofShenzhenBCTCTestingCo.,Ltd,this reportcan’tbereproducedexceptinfull.Thetestedsample(s)andthesampleinformationareprovidedby theclient. ProductName: WirelessDisplayDongle Trademark: N/A Model/TypeRef.: G6W G6W-TX,G7W,G7W-TX,G7W-RH,G7W-TH,G7W-TU,G8W, G8W-TX,G8W-RH,G8W-TH,G8W-TU,G9W,G9W-TX, G9W-RH,G9W-TH,G9W-TU,WLD15G,WFY0225G, WFY0235G,WFY0315G,WFY0325G,WFY0335G,WFY0415G, WFY0425G,WFY0435G,WFY0515G,WFY0525G,WFY0535G PreparedFor: ShanghaiXinxieIndustrialCo.,Ltd. Address: Room1517,No.69,Lane1399,HusongRoad,JiutingTown, SongjiangDistrict,Shanghai,China Manufacturer: Hagibis(Shenzhen)IndustrialCo.,Ltd. Address: Room202,BuildingA,TumaoIndustrialZone,YucuiCommunity, LonghuaStreet,LonghuaDistrict,Shenzhen,China PreparedBy: ShenzhenBCTCTestingCo.,Ltd. Address: 1-2/F.,BuildingB,PengzhouIndustrialPark,No.158,Fuyuan1st Road,Tangwei,FuhaiSubdistrict,Bao'anDistrict,Shenzhen, Guangdong,China SampleReceivedDate: 2021-03-10 SampletestedDate: 2021-06-01to2021-07-22 IssueDate: 2021-07-23 ReportNo.:BCTC2103325992E TestStandards: FCCPart1515.407 ANSIC63.10-2013 KDB789033D02v02r01 TestResults: PASS Testedby:Approvedby: KelseyTan/ProjectHandlerZeroZhou/Reviewer ReportNo.:BCTC2103325992E No.：BCTC/RF-EMC-005Page: 3 of 75 Edition：A.3 TABLEOFCONTENT TestReportDeclarationPage 1.VERSION ........................................................................................................................ 5 2.TESTSUMMARY .......................................................................................................... 6 3.MEASUREMENTUNCERTAINTY ............................................................................. 7 4.PRODUCTINFORMATIONANDTESTSETUP ..................................................... 8 4.1ProductInformation .................................................................................................. 8 4.2TestSetupConfiguration ......................................................................................... 9 4.3SupportEquipment ................................................................................................... 9 4.4ChannelList ............................................................................................................. 10 4.5TestMode ................................................................................................................ 10 4.6tableofparametersoftextsoftwaresetting ....................................................... 10 5.TESTFACILITYANDTESTINSTRUMENTUSED .............................................. 12 5.1TestFacility .............................................................................................................. 12 5.2TestInstrumentUsed ............................................................................................. 12 6.CONDUCTEDEMISSIONS ....................................................................................... 14 6.1BlockDiagramOfTestSetup ............................................................................... 14 6.2Limit ........................................................................................................................... 14 6.3Testprocedure ........................................................................................................ 14 6.4EUToperatingConditions ..................................................................................... 14 6.5TestResult ............................................................................................................... 15 7.RADIATEDEMISSIONS ............................................................................................ 17 7.1BlockDiagramOfTestSetup ............................................................................... 17 7.2Limit ........................................................................................................................... 18 7.3Testprocedure ........................................................................................................ 19 7.4EUToperatingConditions ..................................................................................... 20 7.5TestResult ............................................................................................................... 21 8.POWERSPECTRALDENSITYTEST ..................................................................... 30 8.1BlockDiagramOfTestSetup ............................................................................... 30 8.2Limit ........................................................................................................................... 30 8.3Testprocedure ........................................................................................................ 31 8.4EUToperatingConditions ..................................................................................... 31 8.5TestResult ............................................................................................................... 32 9.6DB&99%EMISSIONBANDWIDTH ..................................................................... 36 9.1BlockDiagramOfTestSetup ............................................................................... 36 9.2Limit ........................................................................................................................... 36 9.3Testprocedure ........................................................................................................ 36 9.4EUToperatingConditions ...........................................................…

Text truncated - open the document above for the full version.

ReportNo.:BCTC2103325992E No.：BCTC/RF-EMC-005Page: 41 of 75 Edition：A.3 5785MHz 6dBbandwidth 5785MHz 99%bandwidth 5825MHz 6dBbandwidth ReportNo.:BCTC2103325992E No.：BCTC/RF-EMC-005Page: 42 of 75 Edition：A.3 5825MHz 99%bandwidth ReportNo.:BCTC2103325992E No.：BCTC/RF-EMC-005Page: 43 of 75 Edition：A.3 Mode: 802.11n-HT40 5755MHz 6dBbandwidth 5755MHz 99%bandwidth ReportNo.:BCTC2103325992E No.：BCTC/RF-EMC-005Page: 44 of 75 Edition：A.3 5795MHz 6dBbandwidth 5795MHz 99%bandwidth ReportNo.:BCTC2103325992E No.：BCTC/RF-EMC-005Page: 45 of 75 Edition：A.3 Mode:802.11ac-HT20 5745MHz 6dBbandwidth 5745MHz 99%bandwidth ReportNo.:BCTC2103325992E No.：BCTC/RF-EMC-005Page: 46 of 75 Edition：A.3 5785MHz 6dBbandwidth 5785MHz 99%bandwidth 5825MHz 6dBbandwidth ReportNo.:BCTC2103325992E No.：BCTC/RF-EMC-005Page: 47 of 75 Edition：A.3 5825MHz 99%bandwidth ReportNo.:BCTC2103325992E No.：BCTC/RF-EMC-005Page: 48 of 75 Edition：A.3 Mode: 802.11ac-HT40 5755MHz 6dBbandwidth 5755MHz 99%bandwidth ReportNo.:BCTC2103325992E No.：BCTC/RF-EMC-005Page: 49 of 75 Edition：A.3 5795MHz 6dBbandwidth 5795MHz 99%bandwidth ReportNo.:BCTC2103325992E No.：BCTC/RF-EMC-005Page: 50 of 75 Edition：A.3 Mode: 802.11ac-HT80 5775MHz 6dBbandwidth 5775MHz 99%bandwidth ReportNo.:BCTC2103325992E No.：BCTC/RF-EMC-005Page: 51 of 75 Edition：A.3 10.MAXIMUMCONDUCTEDOUTPUTPOWER 10.1BlockDiagramOfTestSetup 10.2Limit AccordingtoFCC§15.407 Themaximumconducedoutputpowershouldnotexceed: FrequencyBand(MHz)Limit 5150~52501W 5725~58501W 10.3Testprocedure Maximumconductedoutputpowermaybemeasuredusingaspectrumanalyzer/EMI receiveroranRFpowermeter. 1.DeviceConfiguration Ifpossible,configureormodifytheoperationoftheEUTsothatittransmitscontinuously atitsmaximumpowercontrollevel(seesectionII.B.). a)Theintentistotestat100percentdutycycle;howeverasmallreductioninduty cycle(tonolowerthan98percent)ispermittedifrequiredbytheEUTforamplitude controlpurposes.Manufacturersareexpectedtoprovidesoftwaretothetestlabtopermit suchcontinuousoperation. b)Ifcontinuoustransmission(oratleast98percentdutycycle)cannotbeachieved duetohardwarelimitations(e.g.,overheating),theEUTshallbeoperatedatitsmaximum powercontrollevelwiththetransmitdurationaslongaspossibleandthedutycycleas highaspossible. 2.MeasurementusingaSpectrumAnalyzerorEMIReceiver(SA) Measurementofmaximumconductedoutputpowerusingaspectrumanalyzerrequires integratingthespectrumacrossafrequencyspanthatencompasses,ataminimum, eithertheEBWorthe99-percentoccupiedbandwidthofthesignal.1However,theEBW mustbeusedtodeterminebandwidthdependentlimitsonmaximumconductedoutput powerinaccordancewith§15.407(a). a)Thetestmethodshallbeselectedasfollows:(i)MethodSA-1orSA-1Alternative (averagingwiththeEUTtransmittingatfullpowerthroughouteachsweep)shallbe appliedifeitherofthefollowingconditionscanbesatisfied: •TheEUTtransmitscontinuously(orwithadutycycle≥98percent). ReportNo.:BCTC2103325992E No.：BCTC/RF-EMC-005Page: 52 of 75 Edition：A.3 •Sweeptriggeringorgatingcanbeimplementedinawaythatthedevicetransmitsat themaximumpowercontrollevelthroughoutthedurationofeachoftheinstrument sweepstobeaveraged.Thisconditioncangenerallybeachievedbytriggeringthe instrument’ssweepifthedurationofthesweep(withtheanalyzerconfiguredasin MethodSA-1,below)isequaltoorshorterthanthedurationTofeachtransmissionfrom theEUTandifthosetransmissionsexhibitfullpowerthroughouttheirdurations. (ii)MethodSA-2orSA-2Alternative(averagingacrossonandofftimesoftheEUT transmissions,followedbydutycyclecorrection)shallbeappliediftheconditionsof(i) cannotbeachievedandthetransmissionsexhibitaconstantdutycycleduringthe measurementduration.Dutycyclewillbeconsideredtobeconstantifvariationsareless than±2percent. (iii)MethodSA-3(RMSdetectionwithmaxhold)orSA-3Alternative(reducedVBW withmaxhold)shallbeappliediftheconditionsof(i)and(ii)cannotbeachieved. b)MethodSA-1(traceaveragingwiththeEUTtransmittingatfullpowerthroughout eachsweep):(i)Setspantoencompasstheentireemissionbandwidth(EBW)(or, alternatively,theentire99%occupiedbandwidth)ofthesignal. (ii)SetRBW=1MHz. (iii)SetVBW≥3MHz. (iv)Numberofpointsinsweep≥2Span/RBW.(Thisensuresthatbin-to-binspacing is≤RBW/2,sothatnarrowbandsignalsarenotlostbetweenfrequencybins.) (v)Sweeptime=auto. (vi)Detector=RMS(i.e.,poweraveraging),ifavailable.Otherwise,usesample detectormode. (vii)Iftransmitdutycycle<98percent,useavideotriggerwiththetriggerlevelsetto enabletriggeringonlyonfullpowerpulses.Transmittermustoperateatmaximumpower controllevelfortheentiredurationofeverysweep.IftheEUTtransmitscontinuously(i.e., withnooffintervals)oratdutycycle≥98percent,andifeachtransmissionisentirelyat themaximumpowercontrollevel,thenthetriggershallbesetto“freerun”. (viii)Traceaverageatleast100tracesinpoweraveraging(i.e.,RMS)mode. (ix)ComputepowerbyintegratingthespectrumacrosstheEBW(or,alternatively, theentire99%occupiedbandwidth)ofthesignalusingtheinstrument’sbandpower measurementfunctionwithbandlimitssetequaltotheEBW(oroccupiedbandwidth) bandedges.Iftheinstrumentdoesnothaveabandpowerfunction,sumthespectrum 10.4EUToperatingConditions TheEUTwasconfiguredfortestinginatypicalfashion(asacustomerwouldnormally useit).TheEUThasbeenprogrammedtocontinuouslytransmitduringtest.This operatingconditionwastestedandusedtocollecttheincludeddata. ReportNo.:BCTC2103325992E No.：BCTC/RF-EMC-005Page: 53 of 75 Edition：A.3 10.5TestResult Temperature： 26°C Relative Humidity ： 54% Pressure： 101kPa TestVoltage： DC5V TestMode： TX(5.8G)ModeFrequencyU-NII-3(5745-5825MHz) ModeTestChannel Frequency Maximumoutputpower. Antennaport (AV) LIMIT Result (MHz)(dBm)dBm TX802.11aMode CH149574515.53330Pass CH157578514.59130Pass CH165582513.88130Pass TX802.11n20M Mode CH149574514.51330Pass CH157578513.18030Pass CH165582512.83030Pass TX802.11n40M Mode CH151575512.91430Pass CH159579511.39030Pass TX802.11AC20M Mode CH149574514.53030Pass CH157578512.97630Pass CH165582512.94630Pass TX802.11AC40M Mode CH151575512.74430Pass CH159579511.77130Pass TX802.11AC80M Mode CH151577510.97230Pass ReportNo.:BCTC2103325992E No.：BCTC/RF-EMC-005Page: 54 of 75 Edition：A…

Text truncated - open the document above for the full version.

ReportNo.:BCTC2103325992E No.：BCTC/RF-EMC-005Page: 65 of 75 Edition：A.3 TestPlot 802.11ac20onchannel165802.11ac40onchannel151 802.11ac20onchannel165802.11ac40onchannel151 802.11ac20onchannel165802.11ac40onchannel151 ReportNo.:BCTC2103325992E No.：BCTC/RF-EMC-005Page: 66 of 75 Edition：A.3 TestPlot 802.11ac40onchannel159802.11ac80onchannel151 802.11ac40onchannel159802.11ac80onchannel151 802.11ac40onchannel159802.11ac80onchannel151 ReportNo.:BCTC2103325992E No.：BCTC/RF-EMC-005Page: 67 of 75 Edition：A.3 13.FREQUENCYSTABILITYMEASUREMENT 13.1BlockDiagramOfTestSetup 13.2Limit ManufacturesofU-NIIdevicesareresponsibleforensuringfrequencystabilitysuchthat anemissionismaintainedwithinthebandofoperationunderallconditionsofnormal operationasspecifiedintheuser’smanual. Thetransmittercenterfrequencytoleranceshallbe±20ppmmaximumforthe5GHz band(IEEE802.11nspecification).. 13.3Testprocedure 1.Thetransmitteroutput(antennaport)wasconnectedtothespectrumanalyzer. 2.EUThavetransmittedabsenceofmodulationsignalandfixedchannelize. 3.Setthespectrumanalyzerspantoviewtheentireabsenceofmodulationemissions bandwidth. 4.SetRBW=10kHz,VBW=10kHzwithpeakdetectorandmaxholdsettings. 5.fcisdeclaringofchannelfrequency.Thenthefrequencyerrorformulais(fc-f)/fc× 106ppmandhelimitislessthan±20ppm(IEEE802.11nspecification). 6.Thetestextremevoltageistochangetheprimarysupplyvoltagefrom85to115 percentofthenominalvalue 7.Extremetemperatureis-20°C~70°C. ReportNo.:BCTC2103325992E No.：BCTC/RF-EMC-005Page: 68 of 75 Edition：A.3 13.4TestResult Temperature：26°C Relative Humidity： 54% Pressure： 101kPa TestVoltage ： DC5V HzstMode： TXFrequency(5745-5825MHz) Voltagevs.FrequencyStabilit TESTCONDITIONS ReferenceFrequency：5745MHz ffc Max. Deviation (MHz) Max. Deviation (ppm) Tnom (°C) 20 Vnom(V)5V5745.0081957450.008191.4259 Vmax(V)5.5V5745.00437 5745 0.004370.7606 Vmin(V)4.5V5745.01058 5745 0.010581.8423 Limits 5725-5850MHz Result Complies Temperaturevs.FrequencyStability TESTCONDITIONS ReferenceFrequency：5745MHz ffc Max. Deviation (MHz) Max. Deviation (ppm) Vnom (V) 5V T(°C)-205745.0012957450.001290.2250 T(°C)-105745.0091857450.009181.5977 T(°C)05745.0089257450.008921.5525 T(°C)105745.0114557450.011451.9922 T(°C)205745.0125657450.012562.1854 T(°C)305745.0050257450.005020.8737 T(°C)405745.0087457450.008741.5218 T(°C)505745.0043457450.004340.7552 T(°C)605745.0110057450.011001.9139 T(°C)705745.0070557450.007051.2278 Limits 5725-5850MHz Result Complies ReportNo.:BCTC2103325992E No.：BCTC/RF-EMC-005Page: 69 of 75 Edition：A.3 Voltagevs.FrequencyStability TESTCONDITIONS ReferenceFrequency ： 5785MHz ffc Max. Deviation (MHz) Max. Deviation (ppm) Tnom (°C) 20 Vnom(V)5V5785.0004457850.000440.0768 Vmax(V)5.5V5785.00631 5785 0.006311.0913 Vmin(V)4.5V5785.01015 5785 0.010151.7544 Limits 5725-5850MHz Result Complies Temperaturevs.FrequencyStability TESTCONDITIONS ReferenceFrequency ： 5785MHz ffc Max. Deviation (MHz) Max. Deviation (ppm) Vnom (V) 5V T(°C)-205785.0125757850.012572.1737 T(°C)-105785.0009257850.000920.1583 T(°C)05785.0047157850.004710.8138 T(°C)105785.0111357850.011131.9235 T(°C)205785.0114157850.011411.9718 T(°C)305785.0045957850.004590.7931 T(°C)405785.0050557850.005050.8728 T(°C)505785.0081457850.008141.4072 T(°C)605785.0114257850.011421.9738 T(°C)705785.0035257850.003520.6093 Limits 5725-5850MHz Result Complies ReportNo.:BCTC2103325992E No.：BCTC/RF-EMC-005Page: 70 of 75 Edition：A.3 Voltagevs.FrequencyStability TESTCONDITIONS ReferenceFrequency ： 5825MHz ffc Max. Deviation (MHz) Max. Deviation (ppm) Tnom (°C) 20 Vnom(V)5V5825.0042258250.004220.7252 Vmax(V)5.5V5825.0066258250.006621.1369 Vmin(V)4.5V5825.0044758250.004470.7676 Limits 5725-5850MHz Result Complies Temperaturevs.FrequencyStability TESTCONDITIONS ReferenceFrequency ： 5825MHz ffc Max. Deviation (MHz) Max. Deviation (ppm) Vnom (V) 5V T(°C)-205825.0033558250.003350.5748 T(°C)-105825.0031358250.003130.5375 T(°C)05825.0038058250.003800.6517 T(°C)105825.0040158250.004010.6888 T(°C)205825.0026458250.002640.4529 T(°C)305825.0066458250.006641.1406 T(°C)405825.0052958250.005290.9090 T(°C)505825.0016058250.001600.2754 T(°C)605825.0050958250.005090.8742 T(°C)705825.0046258250.004620.7923 Limits 5725-5850MHz Result Complies ReportNo.:BCTC2103325992E No.：BCTC/RF-EMC-005Page: 71 of 75 Edition：A.3 14.ANTENNAREQUIREMENT 14.1Limit 15.203requirement:Forintentionaldevice,accordingto15.203:anintentionalradiator shall bedesignedtoensurethatnoantennaotherthanthatfurnishedbytheresponsibleparty shallbeusedwiththedevice. 14.2EUTANTENNA TheEUTantennaisExternalantenna(antennagain:2.85dBi).Itcomplywiththe standardrequirement. ReportNo.:BCTC2103325992E No.：BCTC/RF-EMC-005Page: 72 of 75 Edition：A.3 15.EUTPHOTOGRAPHS EUTPhoto1 EUTPhoto2 ReportNo.:BCTC2103325992E No.：BCTC/RF-EMC-005Page: 73 of 75 Edition：A.3 16.EUTTESTSETUPPHOTOGRAPHS ConductedMeasurementPhotos RadiatedMeasurementPhotos ReportNo.:BCTC2103325992E No.：BCTC/RF-EMC-005Page: 74 of 75 Edition：A.3 TX ReportNo.:BCTC2103325992E No.：BCTC/RF-EMC-005Page: 75 of 75 Edition：A.3 STATEMENT 1.Theequipmentlistsaretraceabletothenationalreferencestandards. 2.Thetestreportcannotbepartiallycopiedunlesspriorwrittenapprovalisissuedfromour lab. 3.Thetestreportisinvalidwithoutstampoflaboratory. 4.Thetestreportisinvalidwithoutsignatureofperson(s)testingandauthorizing. 5.ThetestprocessandtestresultisonlyrelatedtotheUnitUnderTest. 6.ThequalitysystemofourlaboratoryisinaccordancewithISO/IEC17025. 7.Ifthereisanyobjectiontoreport,theclientshouldinformissuinglaboratorywithin15 daysfromthedateofreceivingtestreport. Address: 1-2/F.,BuildingB,PengzhouIndustrialPark,No.158,Fuyuan1stRoad,Tangwei,Fuhai Subdistrict,Bao'anDistrict,Shenzhen,Guangdong,China TEL：400-788-9558 P.C.:518103 FAX：0755-33229357 Website：http://www.chnbctc.com E-Mail：[email protected] ※※※※※END※※※※※

ReportNo.:BCTC2103325992E No.：BCTC/RF-EMC-005Page: 69 of 71 Edition：A.3 15.EUTTESTSETUPPHOTOGRAPHS ConductedMeasurementPhotos RadiatedMeasurementPhotos ReportNo.:BCTC2103325992E No.：BCTC/RF-EMC-005Page: 70 of 71 Edition：A.3 TX
