2AS3PITCONWSmart Watch

QUICK START GUIDE ANALOG SMARTWATCH We recommend plugging the USB charger into your computer to charge your watch. Align the adjustment knob to fit into the opening of the charger. Click the watch into place with the metal backing of the watch touching the metal pins on the charger. CHARGING YOUR WATCH CHARGING YOUR WATCH Power on: Tap and hold the screen anywhere between the 2-3 o’clock area on your watch.Power off: Tap anywhere between 2-3 o’clock on the watch to navigate to the power icon . While on this screen, simply tap and hold your watch between 2-3 o’clock to fully turn off your watch.HOW TO TURN ON/OFF Tap anywhere between 2-3 o’clock on the watch to navigate through the features of your device. Simply tap and hold the screen anywhere between 2-3 o’clock on your watch to activate a feature. ENJOYING YOUR ITOUCH CONNECTEDANALOG SMARTWATCH Download iTouch Wearables App Please make sure your Bluetooth is Turned OnOpen app to create a profilePlease make sure Location Services are TURNED ON Tap the “Add a Device” button on the top of the Home pageOnce connected, a Bluetooth icon will appear on your watch. To manually sync your fitness data with the app, drag down on the Home page to update. 1.2.3.4.5. 1.2.3.4.5.6. CONNECT THE APPFOR ANDROID Download iTouch Wearables App Please make sure your Bluetooth is Turned OnOpen app to create a profileWhen prompted to allow iTouch Go access to your location, please tap ‘Allow while using App’Tap “Turn On All Categories”, then tap “Allow” (top right corner) for your data to sync with Apple HealthTap the “Add a Device” button on the top of the Home pageOnce connected, a Bluetooth iconwill appear on your watch. To manually sync your fitness data with the app, drag down on the Home page to update. CONNECT THE APPFOR iPHONE SYSTEM REQUIREMENTS (Android 9.0 and up) (iOS 13.0 and up) Make sure your phone’s Bluetooth is turned on and enabled. For user manuals, please visit the Help Center at www.iTouchWearables.com Scan the QR code to be brought to the appropriate app for your phone to download. iTouch Wearables iTouch Connected iTouch Connected FIND OUR APP IN YOUR STORE iTouch Wearables HRBPM 75

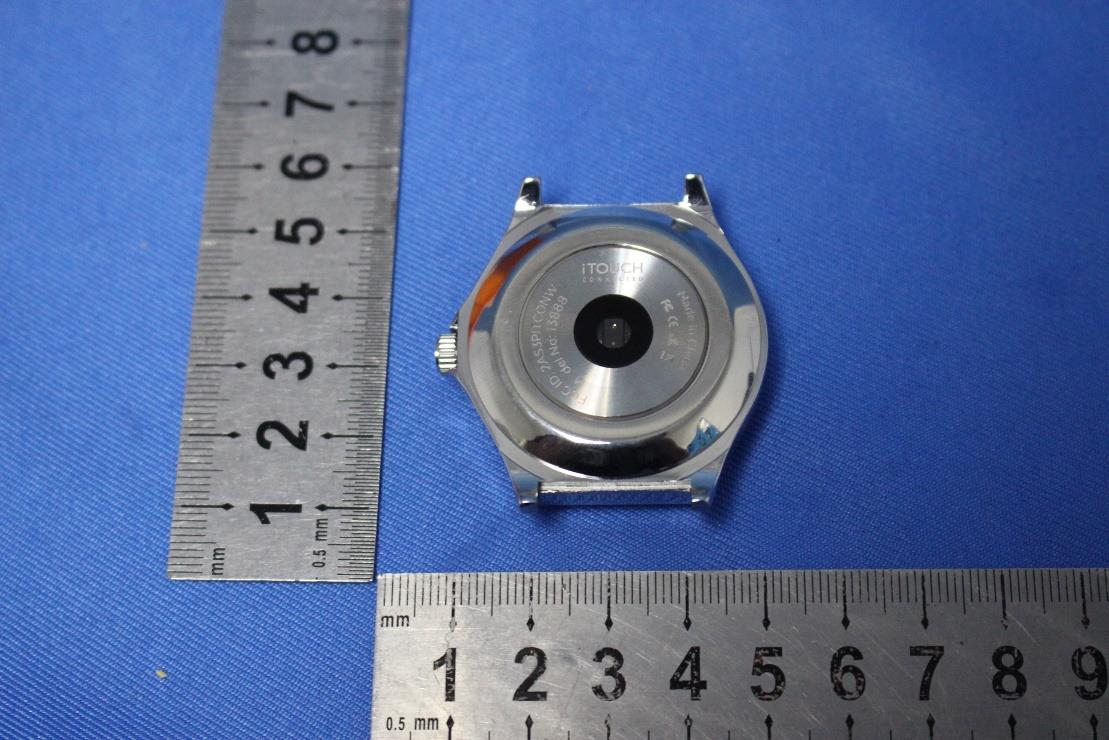

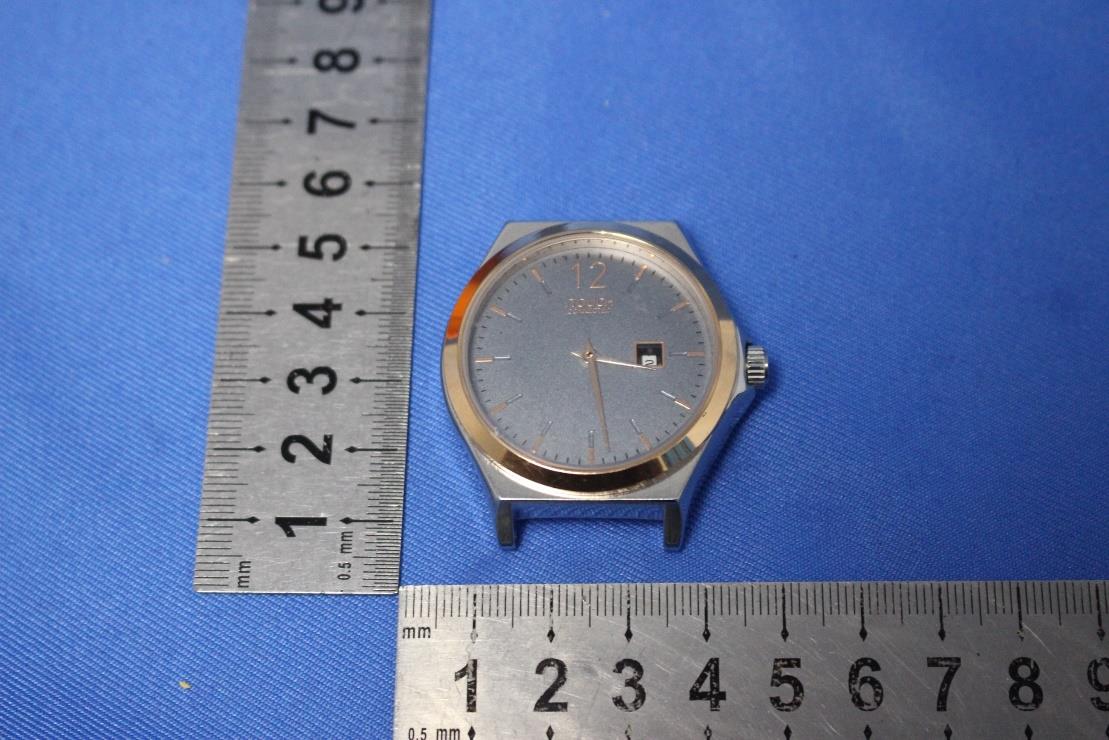

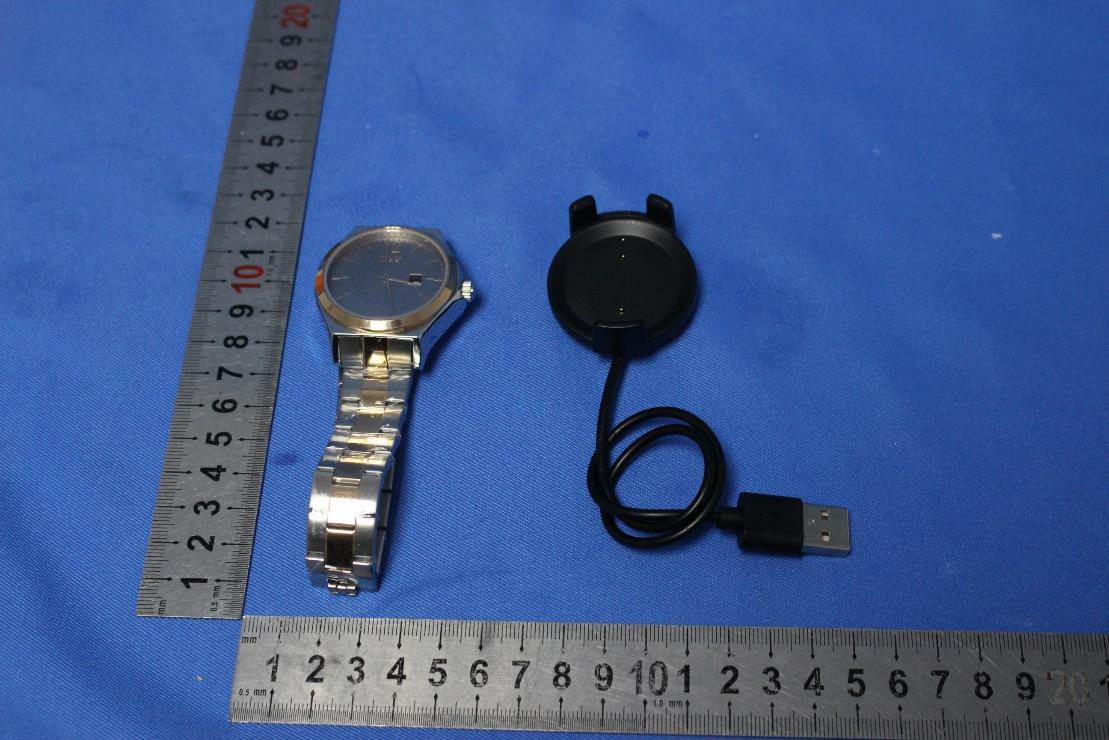

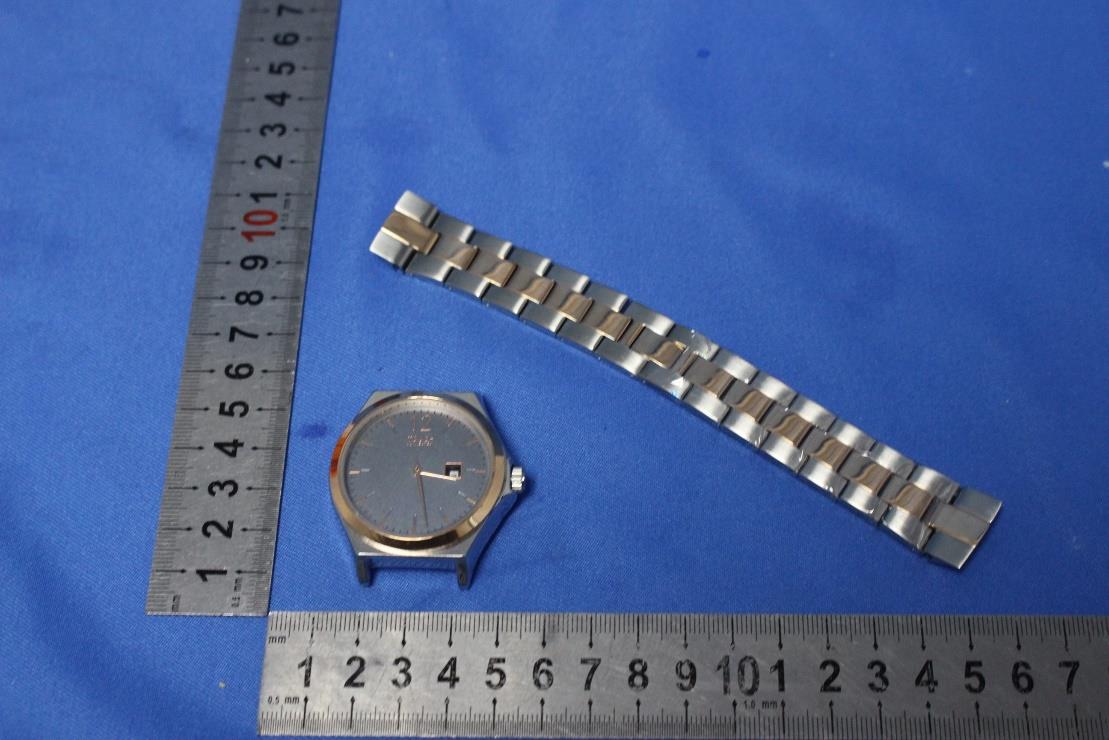

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 6 External Photos for SZEM2008007657CR FCC ID: 2AS3PITCONW SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 6 1 EUT Constructional Details SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 6 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 6 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 5 of 6 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 6 of 6

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 5 Internal Photos for SZEM2008007657CR FCC ID: 2AS3PITCONW SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 5 1 EUT Constructional Details SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 5 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 5 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 5 of 5 Antenna

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200800765703 Page: 1 of 6 Keny Xu EMC Laboratory Manager 1 Cover page SAR Evaluation Report Application No.: SZEM2008007657CR Applicant: American Exchange Time LLC Address of Applicant: No.1441 Broadway 27th Floor, New York, NY 10018, New York, 10018 United States Manufacturer: American Exchange Time LLC Address of Manufacturer: No.1441 Broadway 27th Floor, New York, NY 10018, New York, 10018 United States Factory: American Exchange Time LLC Address of Factory: No.1441 Broadway 27th Floor, New York, NY 10018, New York, 10018 United States Equipment Under Test (EUT): EUT Name: Smart Watch Model No.: 13941, 13887, 13888, 13914   Please refer to section 4 of this report which indicates which model was actually tested and which were electrically identical. Trade mark: ITOUCH CONNECTED FCC ID: 2AS3PITCONW Standards: 47 CFR Part 1.1307 47 CFR Part 2.1093 KDB447498D01 General RF Exposure Guidance v06 Date of Receipt: 2020-08-07 Date of Test: 2020-08-10 to 2020-09-02 Date of Issue: 2020-09-06 Test Result : PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200800765703 Page: 2 of 6 2 Version Revision Record Version Chapter Date Modifier Remark 01 2020-09-06 Original Authorized for issue by: Bill Chen/Project Engineer Eric Fu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200800765703 Page: 3 of 6 3 Contents Page 1 COVER PAGE ......................................................................................................................................... 1 2 VERSION ................................................................................................................................................. 2 3 CONTENTS ............................................................................................................................................. 3 4 GENERAL INFORMATION ..................................................................................................................... 4 4.1 GENERAL DESCRIPTION OF EUT ........................................................................................................ 4 4.2 TEST LOCATION ................................................................................................................................. 5 4.3 TEST FACILITY ................................................................................................................................... 5 4.4 DEVIATION FROM STANDARDS ............................................................................................................ 5 4.5 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................. 5 4.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER ........................................................................ 5 5 SAR EVALUATION ................................................................................................................................. 6 5.1 RF EXPOSURE COMPLIANCE REQUIREMENT ....................................................................................... 6 5.1.1 Standard Requirement ................................................................................................................ 6 5.1.2 Limits ........................................................................................................................................... 6 5.1.3 EUT RF Exposure ....................................................................................................................... 6 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200800765703 Page: 4 of 6 4 General Information 4.1 General Description of EUT Battery: Rechargeable battery: DC 3.7V 80mAh 0.3Wh (Charging by USB) Operation Frequency: 2402MHz to 2480MHz Bluetooth Version: V4.2LE Modulation Type: GFSK Number of Channels: 40 Channel Spacing: 2MHz Antenna Type: PIFA Antenna Gain: 0dBi Declaration of EUT Family Grouping: Model No.: 13941, 13887, 13888, 13914 Only the model 13888 was tested. According to the declaration from the applicant, the electrical circuit design, layout, components used, internal wiring and functions were identical for the above models, with only difference on trade mark and model name. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200800765703 Page: 5 of 6 4.2 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch No. 1 Workshop, M-10, Middle section, Science & Technology Park, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 No tests were sub-contracted. 4.3 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • A2LA (Certificate No. 3816.01) SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory is accredited by the American Association for Laboratory Accreditation(A2LA). Certificate No. 3816.01. • VCCI The 3m Fully-anechoic chamber for above 1GHz, 10m Semi-anechoic chamber for below 1GHz, Shielded Room for Mains Port Conducted Interference Measurement and Telecommunication Port Conducted Interference Measurement of SGS-CSTC Standards Technical Services Co., Ltd. have been registered in accordance with the Regulations for Voluntary Control Measures with Registration No.: G-20026, R-14188, C-12383 and T-11153 respectively. • FCC –Designation Number: CN1178 SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory has been recognized as an accredited testing laboratory. Designation Number: CN1178. Test Firm Registration Number: 406779. • Innovation, Science and Economic Development Canada SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory has been recognized by ISED a…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200800765702 Page: 1 of 52 Keny Xu EMC Laboratory Manager TEST REPORT Application No.: SZEM2008007657CR Applicant: American Exchange Time LLC Address of Applicant: No.1441 Broadway 27th Floor, New York, NY 10018, New York, 10018 United States Manufacturer: American Exchange Time LLC Address of Manufacturer: No.1441 Broadway 27th Floor, New York, NY 10018, New York, 10018 United States Factory: American Exchange Time LLC Address of Factory: No.1441 Broadway 27th Floor, New York, NY 10018, New York, 10018 United States Equipment Under Test (EUT): EUT Name: Smart Watch Model No.: 13941, 13887, 13888, 13914   Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Trade mark: ITOUCH CONNECTED FCC ID: 2AS3PITCONW Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2020-08-07 Date of Test: 2020-08-10 to 2020-09-02 Date of Issue: 2020-09-06 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200800765702 Page: 2 of 52 Revision Record Version Chapter Date Modifier Remark 01 2020-09-06 Original Authorized for issue by: Bill Chen/Project Engineer Eric Fu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200800765702 Page: 3 of 52 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.9.1 47 CFR Part 15, Subpart C 15.247(b)(3) Pass Minimum 6dB Bandwidth 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.8.1 47 CFR Part 15, Subpart C 15.247a(2) Pass Power Spectrum Density 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.10.2 47 CFR Part 15, Subpart C 15.247(e) Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.13.3.2 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Declaration of EUT Family Grouping: Model No.: 13941, 13887, 13888, 13914 Only the model 13888 was tested. According to the declaration from the applicant, the electrical circuit design, layout, components used, internal wiring and functions were identical for the above models, with only difference on trade mark and model name. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200800765702 Page: 4 of 52 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 TEST SUMMARY ....................................................................................................................................... 3 3 CONTENTS ................................................................................................................................................ 4 4 GENERAL INFORMATION ........................................................................................................................ 6 4.1 DETAILS OF E.U.T. ............................................................................................................................... 6 4.2 CABLE ................................................................................................................................................. 6 4.3 DESCRIPTION OF SUPPORT UNITS ......................................................................................................... 7 4.4 MEASUREMENT UNCERTAINTY .............................................................................................................. 7 4.5 TEST LOCATION .................................................................................................................................... 8 4.6 TEST FACILITY ...................................................................................................................................... 8 4.7 DEVIATION FROM STANDARDS ............................................................................................................... 8 4.8 ABNORMALITIES FROM STANDARD CONDITIONS ..................................................................................... 8 5 EQUIPMENT LIST ...................................................................................................................................... 9 6 RADIO SPECTRUM TECHNICAL REQUIREMENT ............................................................................... 12 6.1 ANTENNA REQUIREMENT .................................................................................................................... 12 6.1.1 Test Requirement: ....................................................................................................................... 12 7 RADIO SPECTRUM MATTER TEST RESULTS ..................................................................................... 13 7.1 CONDUCTED PEAK OUTPUT POWER .................................................................................................... 13 7.1.1 E.U.T. Operation .......................................................................................................................... 13 7.1.2 Test Mode Description ...............…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 2 Setup Photos for SZEM2008007657CR FCC ID: 2AS3PITCONW SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 2 1 Photographs Radiated Spurious Emissions Below 1GHz Above 1GHz
