2AS3Z-SME-NCT02NCT OFFICIAL FANLIGHT ver.2

NCT OFFICIAL FANLIGHT ver.2 91 X 77.5 X 240 (MM), 85 X 120 (MM) 510g ABS, PC, NYLON, PAPER 4 2050 SM ENTERTAINMENT Co., Ltd. BEATRO Co., Ltd. SME-NCT-OFL02 KC : R-R-BTr-SME-NCT02 FCC ID : 2AS3Z-SME-NCT02 Replacing Batteries TEL : 02) 783-1945 MAIL : [email protected] If the battery voltage is low, the power will automatically shut off, so please replace it with a new battery. Battery caution BEATRO Co., Ltd. TEL : +82) 2-783-1945 MAIL : [email protected] Warranty : 3 months from date of Purchase Product inquiry and customer service How to apply for the repair service MODE Double-click the button to switch to Bluetooth mode (blue blinking), and double-click the button again to return to normal mode. Bluetooth Mode (Button Double Click) Bluetooth mode connects SMTOWN applications and fanlight to enjoy vareity of contents. Specification Caution How to use Warranty Period and Repair Service Customer Service Center - Be careful not to give strong impact to the product or contact with water. - Do not disassemble or modify the product. - Please use a genuine alkaline AAA battery. - Please remove the batteries when they are not used for a long time. - Keep batteries out of the reach of children. - Please dispose of used batteries at the designated disposal location. - Be sure to check the positive(+) and negative(-) polarity of the batteries to ensure proper installation. - Incorrect installation of batteries may be the reason for product damage, as well as the danger of fire and burns. - There may be a confusion while operating the bluetooth function. In the case of proper use, we will provide information on how to repair or replace the product after consulting with the customer via phone call or email. In the event of improper use caused by the customer, we will provide a repair cost estimate that includes logistics costs for customer service. Normal Mode (Button One Click) POWER ON/OFF (Button Long Click) - Please insert the batteries properly from the (-) to the (+) pole in order. There may be a risk of rupture and leak due to heat in the reverse insertion. - Remove the batteries immediately if it suddenly heats up. (Don't hold by hands as there may be a risk of burns.) - Please use genuine alkaline AAA batteries. (If it is not genuine, there may be a damage to the product. Please use a genuine battery.) - Do not charge, disassemble, short circuit, or heat. There may be a risk of injury due to explosion or leakage. - Remove the batteries from the product after use it as the batteries may be leaked. - Please use a new battery for each performance. - Do not mix the batteries with new and used one. - Do not store batteries in a pocket or bag without any package. - Any defect, replacement, or refund of the product, please contact your dealer. - The free warranty period is three months from the date of purchase at no additional c ost. Even within the warranty period, repair costs may be charged if the defects of t he product occur due to the customer's fault. - If the product is subject to repair it with cost, the shipping cost may be charged. - Repair service is only provided after requesting the service through an email. - When sending an email, please include the purchase receipt (including the date of purchase) and details of the faulty evidence. Paid repair service: Within the one (1) year after the date of purchase, the product can be repaired for following reasons. - After the free warranty. (3 months after the date of purchase) - Damages on the product or the circuit caused by customer's fault. - Disassemble the product for any modification. - Damages on the circuit by using non-certified battery. - Damage on the circuits by water (i.e. using the product in the rain, soaked in water as powered on. - Defects of operation of LED and Wireless. - Malfunction of the power button. - Defects on the battery socket - Package damage is not eligible for a refund or replacement. PRODUCT : NCT OFFICIAL FANLIGHT ver.2 SIZE : ABOUT 91 X 77.5 X 240 (MM), 85 X 120 (MM) WEIGHT : ABOUT 510g POWER : AAA BATTERY 3EA MATERIAL : ABS, PC, NYLON, PAPER COMPONENTS : FANLIGHT, STRAP, USER MANUAL, STICKER OPERATING TIME : ABOUT 4 HOURS OPERATING TEMPERATURE : PLANNING & SALES : SM ENTERTAINMENT Co., Ltd. MANUFACTURER : BEATRO Co., Ltd. COUNTRY OF MANUFACTURE : CHINA CERTIFICATION MODEL : SME-NCT-OFL02 KC : R-R-BTR-SME-NCT02 FCC ID : 2AS3Z-SME-NCT02 If there is no connection with the app within 15 seconds of Bluetooth mode, it automatically switches to normal mode. The color change is not functioning in Bluetooth MODE, and it is not a product defect. Please change to normal mode and watch the concert in the concert hall. 2050 Free Warranty Period: Product can be replaced within the free warranty period (3 months after the purchase date) for the following reasons. Parts replacement method Fixation method By fitting the four hooks on both sides into the holes of the head and pushing them down, it will be fixed. - If you push the parts too hard or do not properly set them into the hole, the hooks may break. - Please be careful not to get any liquid in the Fanlight while the parts are separated. Separate way Push the logo part up to separate. Caution NCT OFFICIAL FANLIGHT NCT FANLIGHT VER.2 MANUAL SM ENTERTAINMENT Co., Ltd. All Rights Reserved. Ⓒ This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can ra diate ra dio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installa tion. If this equipment does cause harmful interference to radio or the user is encouraged to try to correct the interference by one or more…

Text truncated - open the document above for the full version.

BEATRO CO., LTD 709, 7F, 128, Gasan digital 1-ro, Geumcheon-gu, Seoul, South Korea Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-4-3 To whom it may concern: We, BEATRO CO., LTD, hereby certify that the equipment for which authorization is sought (FCC ID: 2AS3Z-SME-NCT02) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature SANG AH WI Manager BEATRO CO., LTD 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

BEATRO CO., L TD 709, 7F, 12 8, Gasan digital 1-ro, Geumcheon-gu, Seoul, South Korea Fede「al Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7 435 Oakland Mills Road Columbia, MD 21046 4/2/2024 U.S. Aaent Desianat1on BEA TR。CO., LTD acknowledges their consent for the following contact located in the United States to act as their agent for service of p「ocessfor the equipment for which authorization is sought (FCC ID: (2AS3Z-SM巳NCT02 ) : 1226North King St. #460,Wilmington,DE, 19801,United, States APEX US SPECIALISTS LIMITED 0033495250 Name and company of U.S. agent: Physical U.S. address of agent· FRN of U.S. agent: Email address of U.S. agent: [email protected] APEX US SPECIALISTS LIMITED acknowledges their obligation to accept service of process on behalf of BEATRO CO., LTD. BEATRO CO., LTD. with the FRN [0028411056) accepts its obligation to maintain an agent fo「serviceof p「ocess in the United States for no less than one year afte「eitherthe grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial p「oceedinginvolving the equipme时 ， whicheveris later. By signing this form, we confi「mthe above and that we are aware of the application requi「ementslisted under § 2.911 ( d)(7) . The information provided in this letter is based on the refe「enced「ule parts of Title 47 of the CFR as well as KDB 986446 001. An expi「ationdate for this lette「doesnot exist. In case the U.S. agent changes, the grantee is obligated to notify 听 ＼ b the FCC within 30 days via the g「antingTCB. Sincerely, lA J ， �c:w队 Di recto「 APEX US SPECIALISTS LIMITED Manager BEATRO CO., LTD 的。〉，DE ｛卜）（°C）二 AVNI －－ U 叫〈l 吕 D｛－o－uDg一∞－v

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-4-3> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AS3Z-SME-NCT02 SME-NCT-OFL02 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： SANG AH WI/Manager Company: BEATRO CO., LTD Address: 709, 7F, 128, Gasan digital 1-ro, Geumcheon-gu, Seoul, South Korea Phone: +82-70-4249-0546 Fax: +82-02-588-1946 E-Mail: [email protected]

BEATRO CO., LTD 709, 7F, 128, Gasan digital 1-ro, Geumcheon-gu, Seoul, South Korea Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-4-3 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AS3Z-SME-NCT02 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： SANG AH WI/Manager Company: BEATRO CO., LTD Address: 709, 7F, 128, Gasan digital 1-ro, Geumcheon-gu, Seoul, South Korea Phone: +82-70-4249-0546 Fax: +82-02-588-1946 E-Mail: [email protected]

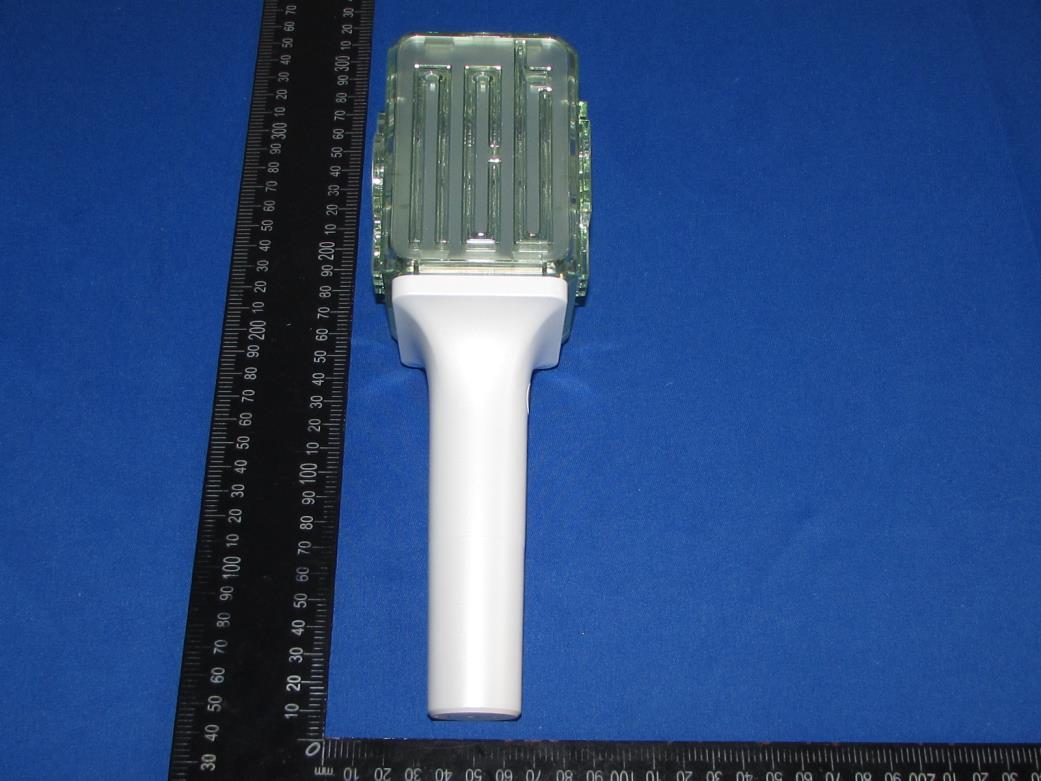

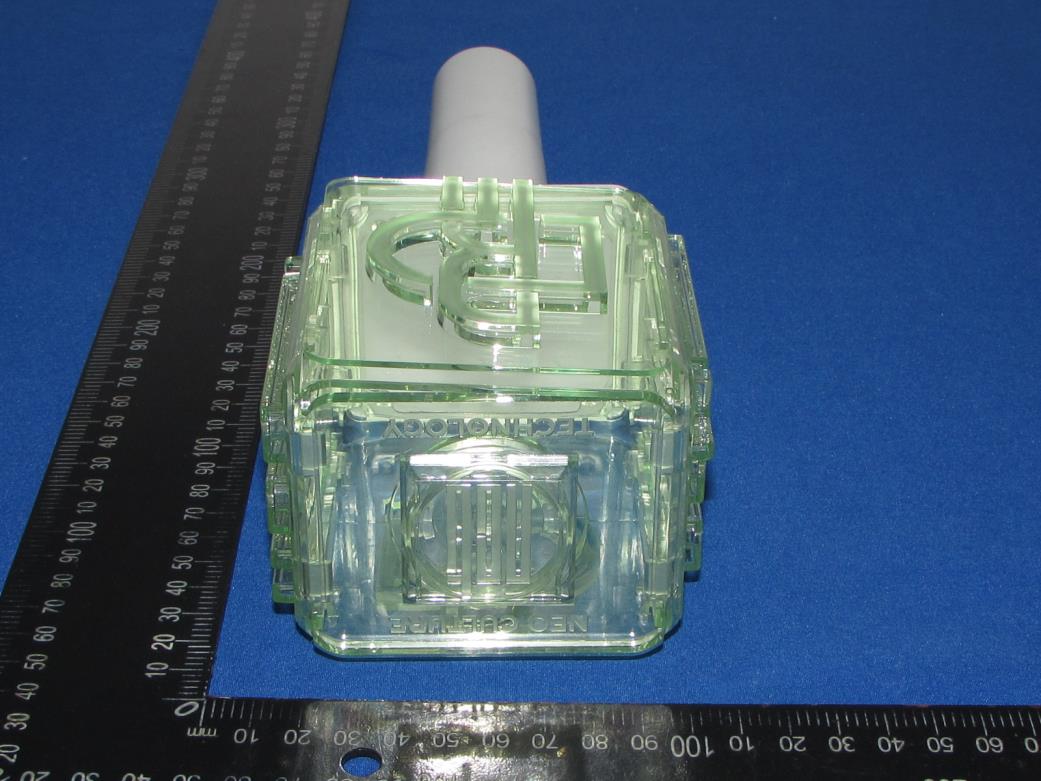

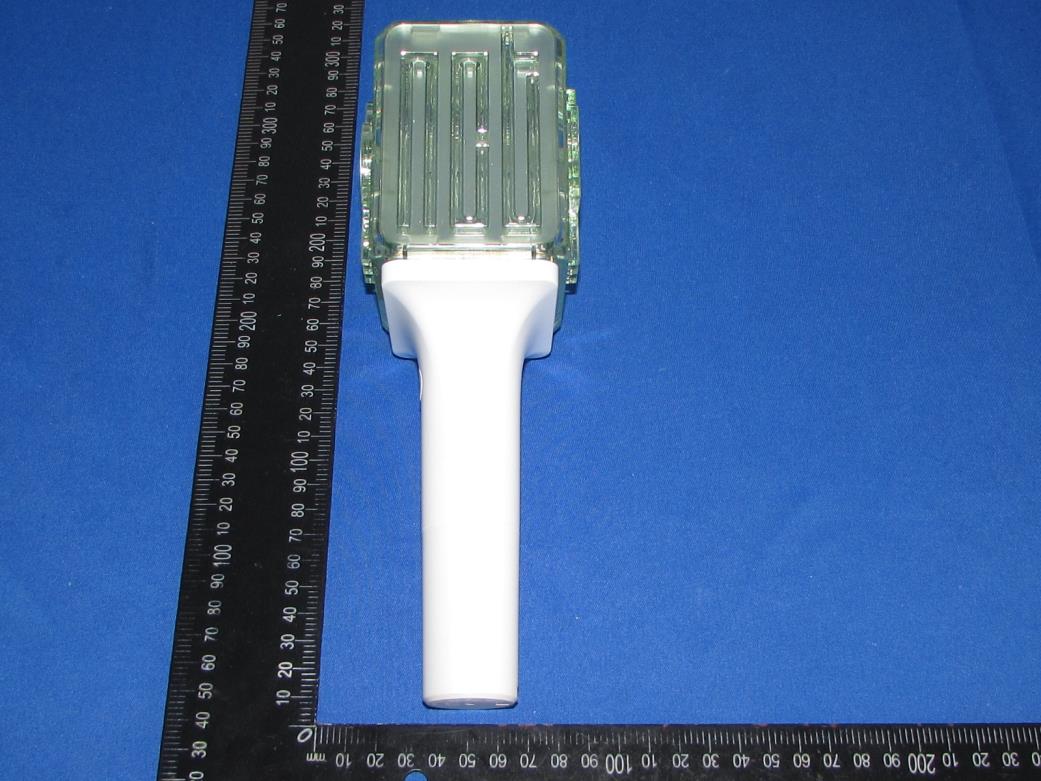

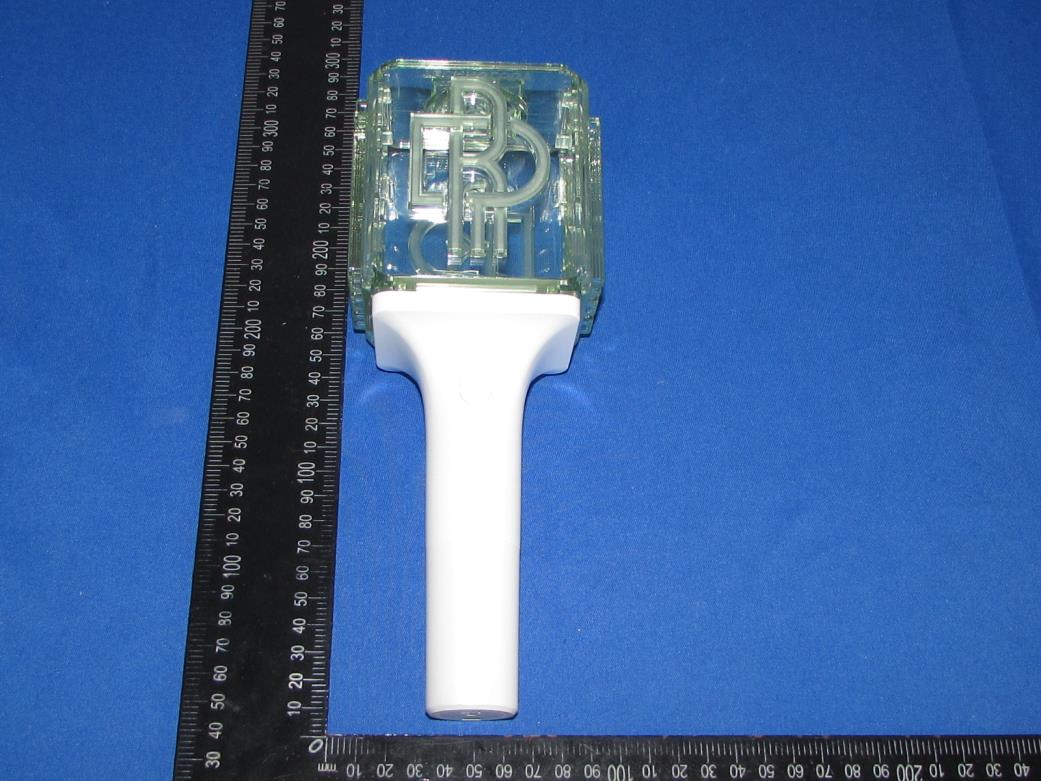

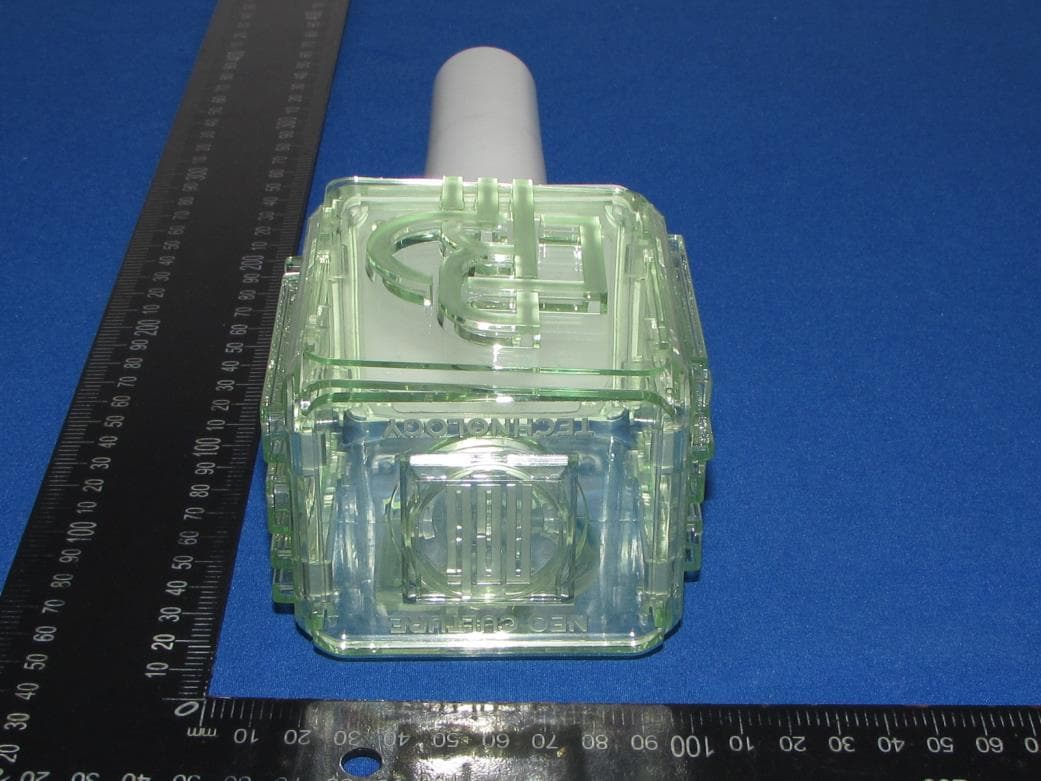

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AS3Z-SME-NCT02 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AS3Z-SME-NCT02 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AS3Z-SME-NCT02 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Fig.5 Fig.6

Label Location: FCC ID: 2AS3Z-SME-NCT02

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AS3Z-SME-NCT02 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 5 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AS3Z-SME-NCT02 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 5 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AS3Z-SME-NCT02 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 5 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AS3Z-SME-NCT02 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 5 Fig.7 Fig.8 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AS3Z-SME-NCT02 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 5 of 5 Fig.9 Bluetooth Antenna

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AS3Z-SME-NCT02 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AS3Z-SME-NCT02 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 The example values shown in Table B.2 are for illustration only. Frequency (MHz) Distance (mm) 5 10 15 20 25 30 35 40 45 50 300 39 65 88 110 129 148 166 184 201 217 450 22 44 67 89 112 135 158 180 203 226 835 9 25 44 66 90 116 145 175 207 240 1900 3 12 26 44 66 92 122 157 195 236 2450 3 10 22 38 59 83 111 143 179 219 3600 2 8 18 32 49 71 96 125 158 195 5800 1 6 14 25 40 58 80 106 136 169 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AS3Z-SME-NCT02 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Conducted Power Results Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) GFSK(1Mbps) 00 2402 -8.51 19 2440 -7.77 39 2480 -8.62 Manufacturing tolerance GFSK (1Mbps Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) -9.0 -8.0 -9.0 Tolerance ±(dB) 1.0 1.0 1.0 Results Test Mode Channel Frequency (MHz) Max. Tune Up Power (dBm, Peak) Max. Eirp including Tune Up (dBm, Peak) Max. Eirp including Tune Up (mW, Peak) Exemption Limit (mW) GFSK(1Mbps) 2402 -8.0 -8.0 0.16 10 2440 -7.0 -7.0 0.20 10 2480 -8.0 -8.0 0.16 10 The antenna gain of the EUT for BT is -2.96dBi (Max). the Maximum Eirp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AS3Z-SME-NCT02 Report No.: TZ240305483-BLE Page 1 of 19 Appendix Test Data for BLE (Conducted Measurement) Product Name: NCT OFFICIAL FANLIGHT ver.2 Trade Mark: N/A Test Model: SME-NCT-OFL02 FCC ID: 2AS3Z-SME-NCT02 Environmental Conditions Temperature: 22.8 C Relative Humidity: 56% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.688 2401.672 2402.360 0.5 PASS BLE_1M Ant1 2440 0.680 2439.672 2440.352 0.5 PASS BLE_1M Ant1 2480 0.720 2479.632 2480.352 0.5 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AS3Z-SME-NCT02 Report No.: TZ240305483-BLE Page 2 of 19 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS BLE_1M-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AS3Z-SME-NCT02 Report No.: TZ240305483-BLE Page 3 of 19 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0674 2401.4881 2402.5555 --- --- BLE_1M Ant1 2440 1.0734 2439.4774 2440.5508 --- --- BLE_1M Ant1 2480 1.0672 2479.4785 2480.5457 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AS3Z-SME-NCT02 Report No.: TZ240305483-BLE Page 4 of 19 Test Graphs BLE_1M-Ant1-2402 BLE_1M-Ant1-2440 BLE_1M-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AS3Z-SME-NCT02 Report No.: TZ240305483-BLE Page 5 of 19 Appendix C: Maximum peak conducted output power Test Result Peak TestMode Antenna Frequency[MHz] Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 -8.51 ≤30 PASS BLE_1M Ant1 2440 -7.77 ≤30 PASS BLE_1M Ant1 2480 -8.62 ≤30 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AS3Z-SME-NCT02 Report No.: TZ240305483-BLE Page 6 of 19 Test Graphs Peak BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS BLE_1M-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AS3Z-SME-NCT02 Report No.: TZ240305483-BLE Page 7 of 19 Appendix D: Maximum peak power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -23.57 ≤8.00 PASS BLE_1M Ant1 2440 -23.71 ≤8.00 PASS BLE_1M Ant1 2480 -24.60 ≤8.00 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AS3Z-SME-NCT02 Report No.: TZ240305483-BLE Page 8 of 19 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS BLE_1M-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AS3Z-SME-NCT02 Report No.: TZ240305483-BLE Page 9 of 19 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Frequency[MHz ] RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 -8.17 -50.77 ≤-28.17 PASS BLE_1M Ant1 High 2480 -10.14 -49.94 ≤-30.14 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AS3Z-SME-NCT02 Report No.: TZ240305483-BLE Page 10 of 19 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AS3Z-SME-NCT02 Report No.: TZ240305483-BLE Page 11 of 19 Appendix F: Conducted Spurious Emission Test Result TestMod e Antenn a Frequency[MHz ] FreqRange [MHz] RefLeve l [dBm] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 2402 0~Referenc e -8.67 -8.67 --- PASS BLE_1M Ant1 2402 30~1000 -8.67 -62.93 ≤-28.67 PASS BLE_1M Ant1 2402 1000~26500 -8.67 -40.91 ≤-28.67 PASS BLE_1M Ant1 2440 0~Referenc e -9.08 -9.08 --- PASS BLE_1M Ant1 2440 30~1000 -9.08 -62.52 ≤-29.08 PASS BLE_1M Ant1 2440 1000~26500 -9.08 -49.86 ≤-29.08 PASS BLE_1M Ant1 2480 0~Referenc e -10.23 -10.23 --- PASS BLE_1M Ant1 2480 30~1000 -10.23 -62.03 ≤-30.23 PASS BLE_1M Ant1 2480 1000~26500 -10.23 -50.08 ≤-30.23 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AS3Z-SME-NCT02 Report No.: TZ240305483-BLE Page 12 of 19 Test Graphs BLE_1M-Ant1-2402-0~Reference-PASS BLE_1M-Ant1-2402-30~1000-PASS BLE_1M-Ant1-2402-1000~26500-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AS3Z-SME-NCT02 Report No.: TZ240305483-BLE Page 13 of 19 BLE_1M-Ant1-2440-0~Reference-PASS BLE_1M-Ant1-2440-30~1000-PASS BLE_1M-Ant1-2440-1000~26500-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AS3Z-SME-NCT02 Report No.: TZ240305483-BLE Page 14 of 19 BLE_1M-Ant1-2480-0~Reference-PASS BLE_1M-Ant1-2480-30~1000-PASS BLE_1M-Ant1-2480-1000~26500-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AS3Z-SME-NCT02 Report No.: TZ240305483-BLE Page 15 of 19 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] ON Time [ms] Period [ms] Duty Cycle [%] Duty Cycle Factor[dB] BLE_1M Ant1 2402 0.40 0.63 63.49 1.97 BLE_1M Ant1 2440 0.00 0.02 100 ∞ BLE_1M Ant1 2480 0.40 0.45 88.89 0.51 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AS3Z-SME-NCT02 Report No.: TZ240305483-BLE Page 16 of 19 Test Graphs NTNV-BLE_1M-Ant1-2402 NTNV-BLE_1M-Ant1-2440 NTNV-BLE_1M-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AS3Z-SME-NCT02 Report No.: TZ240305483-BLE Page 17 of 19 Appendix H: Emissions in Restricted Bands Test Result TestMode Antenna ChName Frequenc y[MHz] Detector Freq [MHz] Result [dBm] Limit [dBm] Result [dBuV/m] Limit [dBuV/m] Verdict BLE_1M Ant1 Low 2402 Peak 2390.000 -42.79 ≤-21.20 52.41 ≤74 PASS BLE_1M Ant1 Low 2402 Peak 2310.000 -39.97 ≤-21.20 55.23 ≤74 PASS BLE_1M Ant1 Low 2402 Peak 2372.240 -39.54 ≤-21.20 55.66 ≤74 PASS BLE_1M Ant1 Low 2402 AV 2390.000 -48.47 ≤-41.20 46.73 ≤54 PASS BLE_1M Ant1 Low 2402 AV 2310.000 -49.17 ≤-41.20 46.03 ≤54 PASS BLE_1M Ant1 Low 2402 AV 2383.790 -47.43 ≤-41.20 47.77 ≤54 PASS BLE_1M Ant1 High 2480 Peak 2483.500 -41.86 ≤-21.20 53.34 ≤74 PASS BLE_1M Ant1 High 2480 Peak 2500.000 -41.77 ≤-21.20 53.43 ≤74 PASS BLE_1M Ant1 High 2480 Peak 2495.440 -38.89 ≤-21.20 56.31 ≤74 PASS BLE_1M Ant1 High 2480 AV 2483.500 -49.21 ≤-41.20 45.99 ≤54 PASS BLE_1M Ant1 High 2480 AV 2500.000 -48.95 ≤-41.20 46.25 ≤54 PASS BLE_1M Ant1 High 2480 AV 2498.320 -48.26 ≤-41.20 46.94 ≤54 PASS Note： 1. The Antenna Gain is compensated in the graph. 2. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for pe…

Text truncated - open the document above for the full version.

Report No.: TZ240305483-BLE Page 1 of 31 FCC TEST REPORT Test report On Behalf of BEATRO CO., LTD For NCT OFFICIAL FANLIGHT ver.2 Model No: SME-NCT-OFL02 FCC ID: 2AS3Z-SME-NCT02 Prepared for : BEATRO CO., LTD 709, 7F, 128, Gasan digital 1-ro, Geumcheon-gu, Seoul, South Korea Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2024/3/25 ~ 2024/4/1 Date of Report: 2024/4/2 Report Number: TZ240305483-BLE The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ240305483-BLE Page 2 of 31 TEST RESULT CERTIFICATION Applicant’s name ................. : BEATRO CO., LTD Address .................................. : 709, 7F, 128, Gasan digital 1-ro, Geumcheon-gu, Seoul, South Korea Manufacture's Name ............ : BEATRO CO., LTD Address .................................. : 709, 7F, 128, Gasan digital 1-ro, Geumcheon-gu, Seoul, South Korea Product description Trade Mark: N/A Product name ........................... : NCT OFFICIAL FANLIGHT ver.2 Model and/or type reference : SME-NCT-OFL02 Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ........................................... : Date (s) of performance of tests ............. : 2024/3/25 ~ 2024/4/1 Date of Issue .......................................... : 2024/4/2 Test Result .............................................. : Pass Testing Engineer : (Nancy Li) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ240305483-BLE Page 3 of 31 Revision History Revision Issue Date Revisions Revised By 000 2024/4/2 Initial Issue Andy Zhang Report No.: TZ240305483-BLE Page 4 of 31 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 5 1.1 Description of Device (EUT) ...................................................................................................... 5 1.2 Wireless Function Tested in this Report .................................................................................... 5 1.3 EUT configuration ...................................................................................................................... 6 1.4 Description of Test Facility ........................................................................................................ 6 1.5 Statement of the Measurement Uncertainty .............................................................................. 7 1.6 Measurement Uncertainty ......................................................................................................... 7 1.7 Description of Test Modes ......................................................................................................... 7 1.8 Frequency of Channels ............................................................................................................. 7 2 TEST METHODOLOGY ........................................................................................................ 8 2.1 EUT Configuration ..................................................................................................................... 8 2.2 EUT Exercise ............................................................................................................................. 8 2.3 Test Sample .............................................................................................................................. 8 3 SYSTEM TEST CONFIGURATION ....................................................................................... 9 3.1 Justification ................................................................................................................................ 9 3.2 EUT Exercise Software ............................................................................................................. 9 3.3 Special Accessories .................................................................................................................. 9 3.4 Block Diagram/Schematics ........................................................................................................ 9 3.5 Equipment Modifications ........................................................................................................... 9 3.6 Test Setup ................................................................................................................................. 9 4 SUMMARY OF TEST RESULTS ......................................................................................... 10 5 TEST RESULT..................................................................................................................... 11 5.1 On Time and Duty Cycle ......................................................................................................... 11 5.2 Maximum Peak Conducted Output Power Measurement ....................................................... 12 5.3 Power Spectral Density Measurement .................................................................................... 13 5.4 6 dB Spectrum Bandwidth Measurement ................................................................................ 14 5.5 Radiated Emissions Measurement .......................................................................................... 15 5.6 Conducted Spurious Emissions and …

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AS3Z-SME-NCT02 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 1 TEST SETUP PHOTOS OF THE EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz
