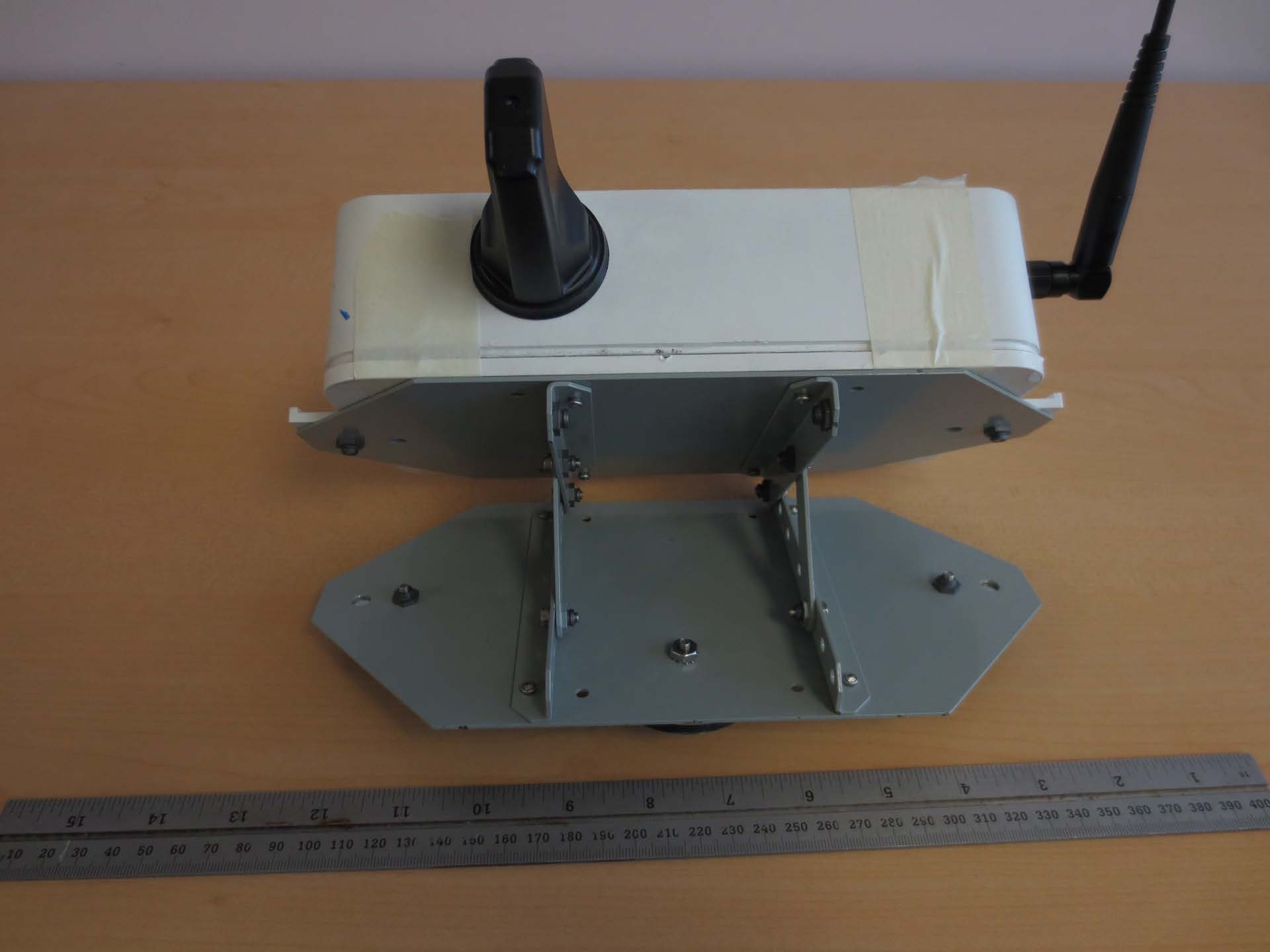

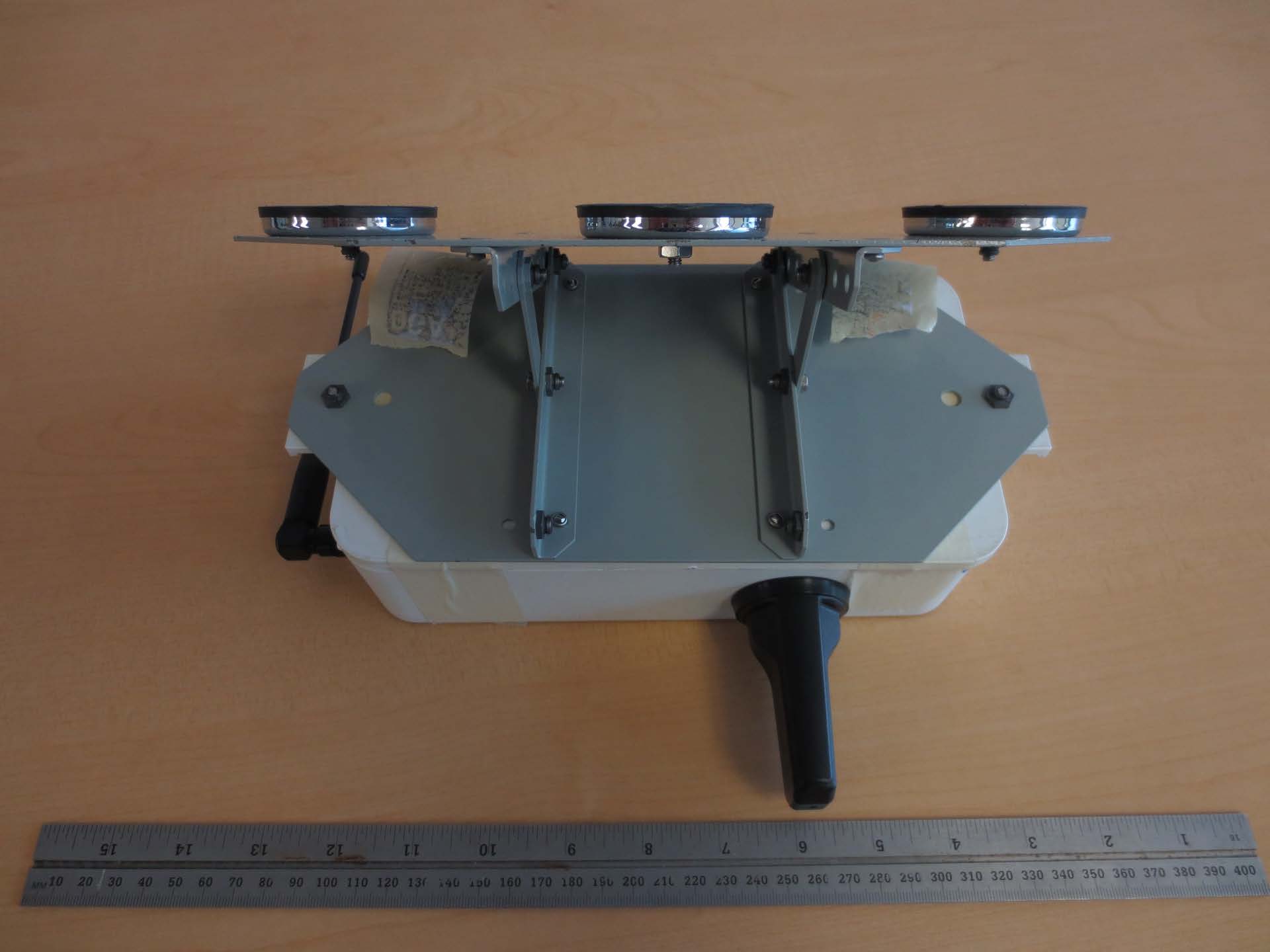

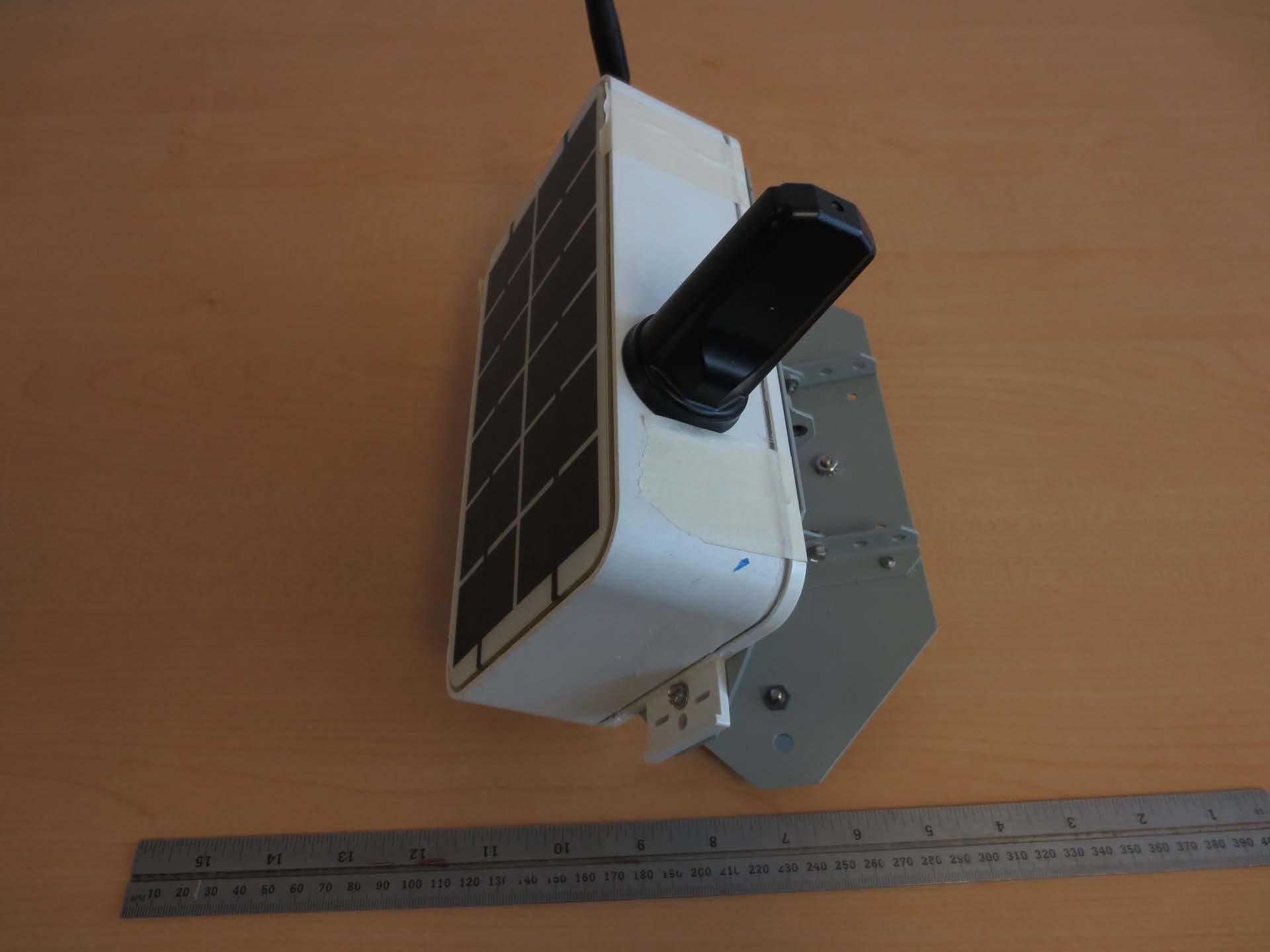

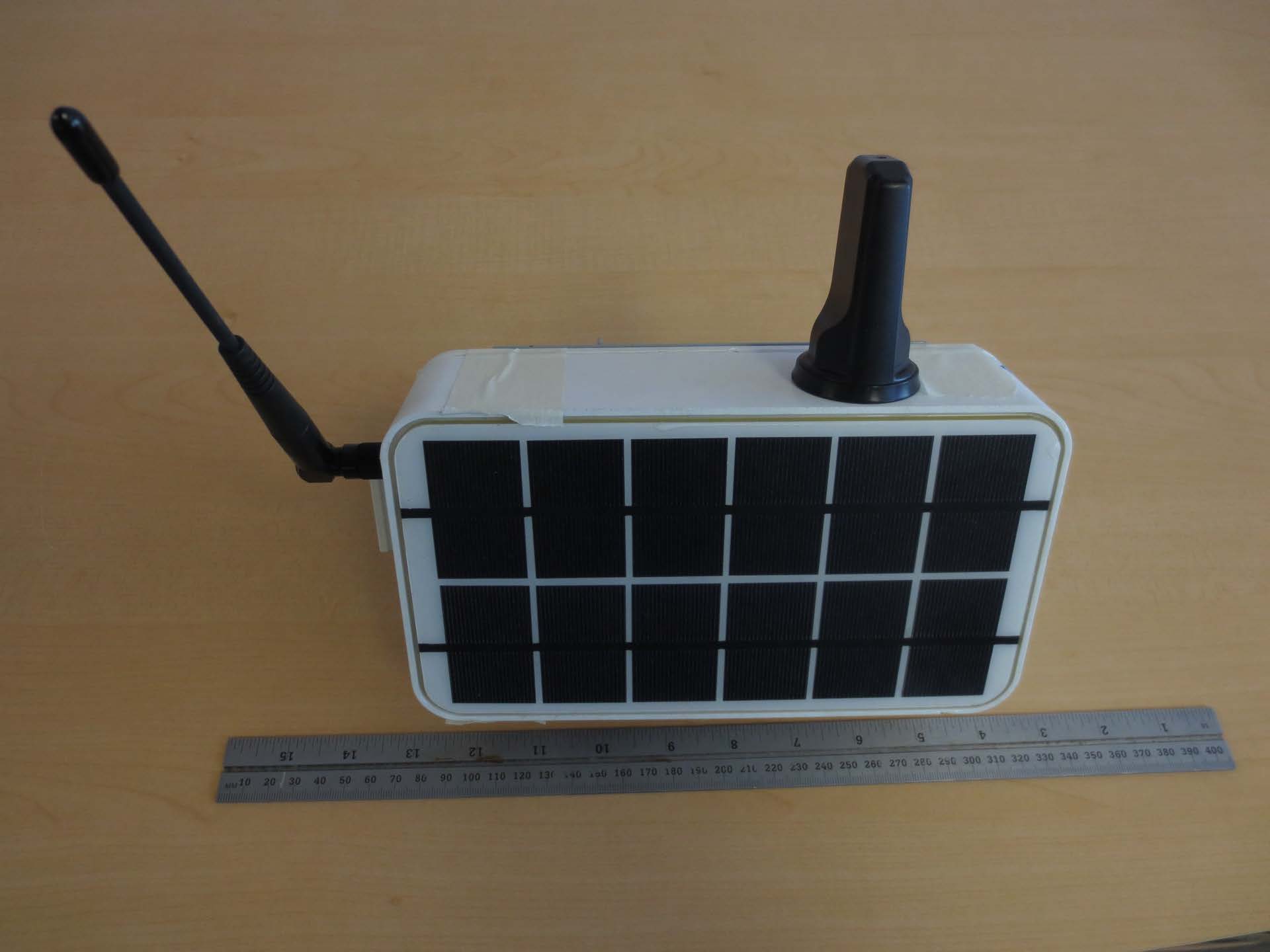

2AS43-GW200QGateway

Installation & User Guide www.qualitrolcorp.com QualConnex On-Line Transformer Monitor Installation & User Guide DGALT1-11120, DGA-LT1 GTW-RF-3311, QGateway, USA GTW-RF-3311-CA, QGateway, Canada Version: 2.0: July 2022 Legal www.qualitrolcorp.com Information in this document is subject to change without notice. This document is provided to purchasers or users of Qualitrol products for use in the installation, operation, and servicing of such products. No other use, nor any reproduction, distribution, or the making of any derivatives of this document is authorized, without the express prior written permission of Qualitrol Corporation. Qualitrol endeavors to ensure the accuracy and quality of its published materials; however, no warranty, expressed or implied, is provided. Qualitrol disclaims any responsibility or liability for any direct or indirect damage resulting from the use of the information in this manual or products described in it. The mention of any product or brand does not constitute an endorsement by Qualitrol of that product or brand. This document was originally composed in English and was subsequently translated into other languages. The fidelity of subsequent translations cannot be guaranteed. In case of conflict between the English version and another language version, the English version takes precedence. © 2022 Qualitrol Corporation. 1385 Fairport Rd, Fairport, NY 14450. All rights reserved. Information subject to change without notice. QUALITROL, DGA-LT1, QualConnex and QGateway are registered trademarks of Qualitrol Corporation Contents Table of Contents Product Overview .......................................................................................... 3 DGA-LT1 .................................................................................................................... 3 QGateway .................................................................................................................. 4 QualConnex ® Web Application ............................................................................... 4 Symbols ......................................................................................................... 4 Product Specifications ................................................................................. 5 Environmental Specifications ................................................................................. 5 DGA LT1 Specifications ........................................................................................... 5 QGateway Specifications ........................................................................................ 5 Site Preparation ............................................................................................. 6 Verify DGA-LT1 Clearance and Drain size ............................................................. 6 Transformer Selection ............................................................................................. 7 Transformer Configuration ............................................................................................................... 7 Transformer Distance Evaluation ..................................................................................................... 7 Transformer Elevation Evaluation .................................................................................................... 8 Line of Sight – Obstruction Evaluation ............................................................................................. 8 Cell Coverage Evaluation ................................................................................................................ 8 QGateway Quantity and Location. ................................................................................................... 8 Transformer Details to Prepare for Installation ................................................... 10 Monitor Installation ..................................................................................... 11 Items Shipped ......................................................................................................... 11 Configuration in QualConnex Website ................................................................. 13 Required Tools for Installation .............................................................................. 14 Contents Assembling the QGateway Antenna and Mount .................................................. 14 Determining the Magnetic Base Mount Angle and Configuration .................................................. 14 Assembling the Magnetic Mount .................................................................................................... 17 Connecting QGateway to Magnetic Base ...................................................................................... 19 Attaching LoRa Antenna to QGateway .......................................................................................... 20 Installing the QGateway ......................................................................................... 22 QGateway Positioning ................................................................................................................... 23 Power on and Confirm QGateway Cell Signal ............................................................................... 25 Notes for troubleshooting: .............................................................................................................. 26 Installing DGA-LT1 Monitor ................................................................................... 26 DGA-LT1 Installation check list ...................................................................................................... 26 DGA-LT1 Installation steps ............................................................................................................ 27 Bleeding the DGA-LT1 Monitor ............................................................................. 28 Confirm Comm…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: July 12, 2022 Subject: FCC Application for FCC ID: 2AS43-GW200 We, the undersigned, hereby claim the exemption to the Part 15 unintentional radiator limits. We also acknowledge and agree to marketing and sale of this device only to electrical power utilities, for use on their property and industrial users pursuant to CFR Title 47 Part15.103 (b). Dated: July 12, 2022 By: David Winfree (Signature) Title: Compliance Manager On behalf of : Qualitrol Corporation Phone No.: 585 586-1515 Fax No.: 585 377-0220 Email : [email protected] QUALITROL Corporation, 1385 Fairport Road, Fairport, New York, 14450, USA; Phone: (+1) 585-586-1515; Fax Orders: (+1) 585-377-0220 Email: [email protected] www.qualitrolcorp.com

Dated: July 12, 2022 To Whom It May Concern Subject: Attestation to use Original Test Reports in New Filing Applicant: Qualitrol Corporation FCC ID: 2AS43-GW200 IC: 24985-GW200 Dear Sir/Madam, We, Qualitrol Corporation, hereby attest to the fact that the transmitter module(s) report(s) listed below, used in support of the co-location RF exposure evaluation accurately represent test results under the new conditions. The integration of the module in co-location configurations will adhere to conditions of the original filing. Description Associated FCC ID Associated IC ID Test Report Identifiers FCC ISED SARA-R410M LTE Cat-M1 Module XPY2AGQN4NNN 8595A- 2AGQN4NNN N/A N/A Yours truly, David Winfree Compliance Manager Qualitrol Corporation QUALITROL Corporation, 1385 Fairport Road, Fairport, New York, 14450, USA; Phone: (+1) 585-586-1515; Fax Orders: (+1) 585-377-0220 Email: [email protected] www.qualitrolcorp.com

Date: June 30, 2022 To Whom It May Concern Subject: Authority to Act as an Agent Applicant: Qualitrol Corporation FCC ID: 2AS43-GW200 Dear Sir/Madam: I hereby appoint UltraTech Engineering Labs Inc. (UltraTech) to act as my agent in preparation of this application for authorization of above equipment under F.C.C. Rules. The applicant hereby certify that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a “party” for these purposes. I also certify that the information provided, properly describe the device or system for which authorization is required. Regards (David Winfree) QUALITROL Corporation, 1385 Fairport Road, Fairport, New York, 14450, USA; Phone: (+1) 585-586-1515; Fax Orders: (+1) 585-377-0220 Email: [email protected] www.qualitrolcorp.com

Date: June 30, 2022 To Whom It May Concern Subject: Confidentiality Letter Applicant: Qualitrol Corporation FCC ID: 2AS43-GW200 Dear Sir/Madam: The applicant would like to request the following documents submitted with this application for certification be withheld from public disclosure as per Section 0.457 & 0.459 of FCC Rules. 1. Operational Description 2. Block Diagram 3. Schematic(s) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Regards David Winfree QUALITROL Corporation, 1385 Fairport Road, Fairport, New York, 14450, USA; Phone: (+1) 585-586-1515; Fax Orders: (+1) 585-377-0220 Email: [email protected] www.qualitrolcorp.com

UltraTech Group of Labs FCC TCB & ISED CB Accreditations: APEC TEL CA0001 1309 CA0001/2049 AT-1945 SL2-IN-E-1119R Korea KCC-RRA CA0001 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] July 12, 2022 Ultratech Engineering Labs, Inc. 3000 Bristol Circle Oakville, Ontario L6H 6G4 Subject: Application for Equipment Certification under FCC Part 15, Subpart C, Section 15.247 - Digital Modulation Systems (DTS) Operating in 902 - 928 MHz Band Applicant: Qualitrol Corporation Product: QGateway Model: GTW-RF-3311 FCC ID: 2AS43-GW200 Dear Sir/Madam: As appointed agent for Qualitrol Corporation, we submit the application for certification of the above product. Kindly review all files uploaded to your electronic filing site. If you have any queries, please do not hesitate to contact us. Yours truly, Dan Huynh Dan Huynh Authorized Agent

FCC Part 15, Subpart C, Section 15.247 – DTS Page 16 of 20 QGateway, Model GTW-RF-3311 FCC ID: 2AS43-GW200 ULTRATECH GROUP OF LABS File #: 22QUALC008_FCC15C247 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 July 12, 2022 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 5.5. RF EXPOSURE REQUIRMENTS [§§ 15.247(i), 1.1310 & 2.1091] 5.5.1. Limits § 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 6141.63*(100) 6 3.0-30 1842/f4.89/f*(900/f 2 ) 6 30-300 61.40.1631.0 6 300-1500 f/300 6 1500-100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 6141.63*(100) 30 1.34-30 824/f2.19/f*(180/f 2 ) 30 30-300 27.50.0730.2 30 300-1500 f/1500 30 1500-100,000 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Note 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. Note 2: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. FCC Part 15, Subpart C, Section 15.247 – DTS Page 17 of 20 QGateway, Model GTW-RF-3311 FCC ID: 2AS43-GW200 ULTRATECH GROUP OF LABS File #: 22QUALC008_FCC15C247 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 July 12, 2022 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 5.5.2. Method of Measurements Calculation Method of Power Density/RF Safety Distance : 22 44r EIRP r PG S      Where, P: power input to the antenna in mW EIRP: Equivalent (effective) isotropic radiated power. S: power density mW/cm 2 G: numeric gain of antenna relative to isotropic radiator r: distance to centre of radiation in cm 5.5.3. RF Evaluation Pursuant to FCC KDB 447498 D01 General RF Exposure Guidance v06, Section 7.2: Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneously transmitting antennas incorporated in a host device is ≤ 1.0, according to calculated/estimated, numerically modeled, or measured field strengths or power density. The EUT consisted of a LoRa Transmitter and a certified u-blox AG SARA-R410M LTE Cat M1 module (FCC ID: XPY2AGQN4NNN, IC: 8595A-2AGQN4NNN). The table below is a summary of the calculated MPE ratios for co- location at an evaluation distance of 20 cm. Source Maximum MPE Ratio LoRa 915 MHz Transmitter 0.019 u-blox AG SARA-R410M LTE Cat M1 module 0.324 Sum of the MPE ratios from all sources 0.343 The sum of the MPE ratios from all sources is < 1. Thus, in compliant with general population/uncontrolled exposure MPE limit. For detailed MPE ratio calculation for LoRa Transmitter and certified u-blox AG LTE Cat M1 module, refer to the following tables. Calculated MPE Ratio for LoRA Transmitter (EUT) with 2.5 dBi Antenna Frequency (MHz) Maximum Conducted EUT Power (dBm) Maximum Antenna Gain (dBi) Maximum EIRP (mW) Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm2) MPE Ratio 915 17.33 2.5 96.161 20 0.019 1.000 0.019 FCC Part 15, Subpart C, Section 15.247 – DTS Page 18 of 20 QGateway, Model GTW-RF-3311 FCC ID: 2AS43-GW200 ULTRATECH GROUP OF LABS File #: 22QUALC008_FCC15C247 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 July 12, 2022 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) Calculated MPE Ratio for u-blox AG SARA-R410M LTE Cat-M1 Module LTE Band Frequency (MHz) 1 Input Power of the Antenna (dBm) 2 Antenna Gain (dBi) Max. E.I.R.P. (dBm) Max. E.I.R.P. (mW) Evaluation Distance (cm) Calculation (mW/cm 2 ) Limit (mW/cm 2 ) MPE Ratio B12 699.7 25.0 3.67 28.67 736.21 20 0.146 0.466467 0.314 B2 1909.3 25.0 7.12 32.12 1629.30 20 0.324 1.0 0.324 1 Data derived from u-blox AG SARA-R410M LTE Cat-M1 Module MPE test report is the worst case, Test Report No. N/A (FCC ID: XPY2AGQN4NNN, IC: 8595A-2AGQN4NNN). 2 Maximum permitted antenna gain.

TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 June 02, 2017 TUV SUD BABT Octagon House, Concorde Way Segensworth Rd N, Fareham PO15 5RL Attention: Director of Certification FCC ID: XPY2AGQN4NNN IC: 8595A-2AGQN4NNN RE: Antenna gain calculation per guidance from KDB 447498 D01 Mobile Portable RF Exposure v06 and RSS-102 Issue 5 March 2015. EUT u-blox San Diego, Inc. SARA-R410M LTE Cat-M1 Module Input Power of the Antenna 25.0 dBm / 0.316 mW (LTE Band 2, 4, 5 and 12) Frequency 699.7 MHz (LTE B12) to 1909.3 MHz (LTE B2) FCC Limit (§1.1310 (d)(4)) 4.66467 W/m 2 @ 699.7 MHz 10 W/m 2 @ 1909.3 MHz RSS-102 RF Limits (Table 4) 2.30329 W/m 2 @ 699.7 MHz 4.24313 W/m 2 @ 1710.7 MHz (worst case channel above 1GHz LTE Band 4) User separation distance 20 cm Equation for predicting RF field was used to determine the maximum antenna gain that can be used with the EUT and still comply with the requirements: 푆= 푃퐺 4휋푟 2 Where: S=the power flux P=input power of the antenna G=antenna gain relative to an isotropic antenna r=distance from the antenna to the point of investigation TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 From this formula, using 0.230329 mW/cm 2 as S (worst case than FCC limit), 20 cm as r then the antenna gain G is calculated. This is the maximum antenna gain in dBi that can be used with the EUT while still in compliance with the power density requirements. 퐺= 4휋푟 2 푆 푃 퐺= 4휋 ( 20 푐푚 ) 2 (0.230329 푚푊/푐푚 2 ) 316.0 푚푊 퐺= 1157.76 316.0 푚푊 Therefore G = 3.67 dBi for Band 12 and 4.1 dBi for Band 5 (using the same calculation approach) Using the same calculation for LTE Band 2: 퐺= 4휋 ( 20 푐푚 ) 2 (0.424313 푚푊/푐푚 2 ) 316.0 푚푊 퐺= 2132.83 316.0 푚푊 Therefore G = 6.74 dBi for Band 4 and 7.12 dBi for Band 2 (using the same calculation approach) Sincerely, Ferdie S. Custodio Name Authorized Signatory Title: Senior EMC/Wireless Test Engineer

QGateway Model: GTW-RF-3311 FCC ID: 2AS43-GW200 Applicant: Qualitrol Corporation 1385 Fairport Rd Fairport, NY 14450 USA In Accordance With Federal Communications Commission (FCC) Part 15, Subpart C, Section 15.247 Digital Modulation Systems (DTS) Operating in 902 – 928 MHz Band UltraTech's File No.: 22QUALC008_FCC15C247 This Test report is Issued under the Authority of Tri M. Luu Vice President of Engineering UltraTech Group of Labs Date: July 12, 2022 Report Prepared by: Dan Huynh Issued Date: July 12, 2022 Tested by: Nimisha Desai Test Dates: June 10, 13 &14, 2022  The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected.  This report must not be used by the client to claim product endorsement by any agency of the US Government.  This test report shall not be reproduced, except in full, without a written approval from UltraTech UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] Korea KCC-RRA APEC TEL CA0001 1309 CA0001-2049 AT-1945SL2-IN-E-1119R CA0001 FCC Part 15, Subpart C, Section 15.247 – DTS Contents i QGateway, Model GTW-RF-3311 FCC ID: 2AS43-GW200 ULTRATECH GROUP OF LABS File #: 22QUALC008_FCC15C247 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 July 12, 2022 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION .............................................................................................................................................. 1 1.1. SCOPE ........................................................................................................................................................................ 1 1.2. RELATED SUBMITTAL(S)/GRANT(S) ........................................................................................................................ 1 1.3. NORMATIVE REFERENCES ...................................................................................................................................... 1 EXHIBIT 2. PERFORMANCE ASSESSMENT ................................................................................................................... 2 2.1. CLIENT INFORMATION .............................................................................................................................................. 2 2.2. EQUIPMENT UNDER TEST (EUT) INFORMATION ................................................................................................... 2 2.3. EUT’S TECHNICAL SPECIFICATIONS ....................................................................................................................... 3 2.4. ASSOCIATED ANTENNA DESCRIPTIONS ................................................................................................................ 3 2.5. LIST OF EUT’S PORTS ............................................................................................................................................... 3 2.6. ANCILLARY EQUIPMENT ........................................................................................................................................... 3 EXHIBIT 3. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS .............................................. 4 3.1. CLIMATE TEST CONDITIONS .................................................................................................................................... 4 3.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TESTS ..................................................................... 4 EXHIBIT 4. SUMMARY OF TEST RESULTS ..................................................................................................................... 5 4.1. LOCATION OF TESTS ................................................................................................................................................ 5 4.2. APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS ....................................................................... 5 4.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES ................................................ 5 EXHIBIT 5. TEST DATA ..................................................................................................................................................... 6 5.1. OCCUPIED BANDWIDTH [§ 15.247(a)(2)] .................................................................................................................. 6 5.2. PEAK CONDUCTED OUTPUT POWER - DTS [§ 15.247(b)(3)] ................................................................................. 8 5.3. TRANSMITTER SPURIOUS RADIATED EMISSIONS AT 3 METERS [§§ 15.247(d), 15.209 & 15.205] .................... 9 5.4. POWER SPECTRAL DENSITY [§ 15.247(e)] ..................................................................................... ....................... 14 5.5. RF EXPOSURE REQUIRMENTS [§§ 15.247(i), 1.1310 & 2.1091] ............................................................................ 16 EXHIBIT 6. TEST EQUIPMENT LIST ............................................................................................................................... 19 EXHIBIT 7. MEASUREMENT UNCERTAINTY ................................................................................................................ 20 FCC Part 15, Subpart C, Section 15.247 – DTS Page 1 of 20 QGateway, Model GTW-RF-3311 FCC ID: 2AS43-GW200 ULTRATECH GROUP OF LABS File #: 22QUALC008_FCC15C247 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 July 12, 2022 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results containe…

Text truncated - open the document above for the full version.

All rights reserved NEARSON INC. Specification is subject to change without notice. ‘  3.15(80.0) 6.30(160)Ref. 1.14(29.0) ‘  Base ‘  ‘  3.15(80.0) 6.30(160)Ref. Base 3.15(80.0) 6.30(160)Ref. Base ‘  1.14(29.0) ‘  Connector Code -XX- SMA type Connector TNC plug Connector BNC plug Connector This is a RoHS compliant product. 1.10(28.2) NEARSON in.(mm) SCALE UNIT TITLE DWG. NO. SHEET http://www.nearson.com DATE Mechanical Properties: Material: Whip: Base: Connector: Operation Temp.: Storage Temp.: Electrical Properties: Frequency Range: Impedance: VSWR: Gain: Radiation: Polarization: Wave: 902~928MHz 50:nominal <2.0:1 2.5 dBi Omni Vertical 1 2 wave loaded Wire (Black) Polyacetal(Black) Brass with nickel plating(Black) ƒ&WRƒ& ƒ&WRƒ& S161XX-915R 1 OF 2 none 072115 900MHz ISM Band Antenna -161 Model Right Angle Series S161AM-915R S161TC-915R S161TR-915R S161BC-915R S161BR-915R S161AH-915R BC BR TC TR AM AH TNC Plug Reverse Polarity BNC Plug Reverse Polarity TNC Plug BNC Plug SMA Plug Reverse Polarity SMA Plug DescriptionP / N All rights reserved NEARSON INC. Specification is subject to change without notice. NEARSON in.(mm) SCALE UNIT TITLE DWG. NO. SHEET http://www.nearson.com DATE S161XX-915R 2 OF 2 none 072115 900MHz ISM Band Antenna -161 Model Right Angle Series

ANNEX 1 - TEST SETUP PHOTOS Qualitrol Corporation QGateway, Model GTW-RF-3311 FCC ID: 2AS43-GW200 A1 - 1 Radiated Emissions at 3 m ANNEX 1 - TEST SETUP PHOTOS Qualitrol Corporation QGateway, Model GTW-RF-3311 FCC ID: 2AS43-GW200 A1 - 2 Radiated Emissions at 3 m ANNEX 1 - TEST SETUP PHOTOS Qualitrol Corporation QGateway, Model GTW-RF-3311 FCC ID: 2AS43-GW200 A1 - 3 Radiated Emissions at 3 m ANNEX 1 - TEST SETUP PHOTOS Qualitrol Corporation QGateway, Model GTW-RF-3311 FCC ID: 2AS43-GW200 A1 - 4 Radiated Emissions at 3 m
