2AS5Z-EDGEPROWireless Charger

磁吸无线充电器 说明书 产品展示 产品参数 产品名称： 磁吸无线充电器 产品型号： EDGE PRO-Wireless Charger 材 质：铝合金+硅胶+磁铁 输 入： ≥9V-2A /5V-3A/12V-1.5A 输 出：功率15瓦，兼容10瓦/7.5瓦/5瓦 产品尺寸：56*56*8mm 彩盒尺寸：135*70*18mm 配件清单：磁吸无线充*1、充电线*1 、说明书*1 使用说明 1.使用前请将无线充设备连接到符合CCC认证要求的， 充电器或者车载充电头。为达到快速充电效率，请使 用PD18W或者 USB/QC3.0快速充电器供电。 2.iPhone12、iPhone13、iPhone14系列手机，直接 磁吸即可充电。 3.iPhone12、iPhone13、iPhone14系列手机，带磁 吸保护套 （确保保护套符合苹果磁吸标准），直接 磁吸即可 充电。 4.其它支持Qi无线充手机，平放充电只需对准无线 充电线圈的中心点，即可充电。 5.其它支持Qi无线充手机，如需体验磁吸功能，需 要在手机背后贴专用的铁圈或磁吸片可以实现磁 吸功能。 注意事项 1. 请确认您的手机是否支持无线充电功能，否则将 不会给您的手机充电。 2. 请不要将金属/磁片/信 用卡等有磁性物体放在手 机背面或者手机壳上，否则会导致无法充电。 3. 请勿使用超过2mm厚的手机壳，否则将导致无 法磁吸和影响充电效率。 4. 请勿在高温，潮湿环 境中使用本产品，避免出 现故障、损坏或漏电现象。 5. 请勿把水或者其它 液体溅到无线充电器上，如 需清洁，请确保断开电源。 Magnetic wireless charger User Manual Product Show Parameter Name： Magnetic Wireless charger Model：EDGE PRO-Wireless Charger Material： Aluminum alloy+silicone+magnet Input： ≥9V-2A /5V-3A/12V-1.5A Output： 15W/10W/7.5W/5W size： 56*56*8mm Packing size： 135*70*14mm Packaging List： Magnetic Wireless charging*1、clamp、 Manual*1 Instructions For Use 1.Please connect the wireless charging device to a charger or car charging head that meets the requirements of CCC certification before using. To achieve fast charging efficiency, please use PD18W or USB/QC3.0 fast charger for power supply 2.iPhone12 、iPhone13 and iPhone14 series mobile phones can be charged directly by magnetic attraction 3.iPhone12 、iPhone13 and iPhone14 series mobile phones are equipped with a magnetic protective cover (ensure that the protective cover conforms to Apple's magnetic standard), which can be charged directly by magnetic suction. 4.Others support Qi wireless charging mobile phones, you only need to align the center point of the wireless charging coil to charge when placed flat. 5.Others support Qi wireless charging mobile phones, if you need to experience the magnetic attraction function, you need to paste a special iron ring or magnetic sheet on the back of the mobile phone to achieve the magnetic attraction function 。 Cautions 1.Please confirm whether your mobile phone supports wireless charging, otherwise it will not charge your mobile phone 2.Please do not put magnetic objects such as metal/magnetic sheet/credit card on the back of the phone or the phone case, otherwise it will cause failing to charge. 3.Do not use a mobile phone case thicker than 2mm, otherwise it will not be magneticallyattracted and the charging efficiency will be affected 4.Do not use this product in a high temperature or humid environment to avoid malfunction, damage or leakage 5.Do not splash water or other liquids on the wireless charger. If you need to clean it, make sure to disconnect the power. 1 2 1.磁吸无线充电器 2.充电线 1 2 1.magnetic wireless charger 2.clamp Product diagram: 产 品 图 ： Name： Magnetic Wireless charger Model：EDGE PRO-Wireless Charger Material： Aluminum alloy+silicone+magnet Input： ≥9V-2A /5V-3A/12V-1.5A Output： 15W/10W/7.5W/5W size： 56*56*8mm Packing size： 135*70*14mm Packaging List： Magnetic Wireless charging*1、clamp、 Manual*1 Name： Magnetic Wireless charger Model：EDGE PRO-Wireless Charger Material： Aluminum alloy+silicone+magnet Input： ≥9V-2A /5V-3A/12V-1.5A Output： 15W/10W/7.5W/5W size： 56*56*8mm Packing size： 135*70*14mm Packaging List： Magnetic Wireless charging*1、clamp、 Manual*1 Name： Magnetic Wireless charger Model：EDGE PRO-Wireless Charger Material： Aluminum alloy+silicone+magnet Input： ≥9V-2A /5V-3A/12V-1.5A Output： 15W/10W/7.5W/5W size： 56*56*8mm Packing size： 135*70*14mm Packaging List： Magnetic Wireless charging*1、clamp、 Manual*1 Name： Magnetic Wireless charger Model：EDGE PRO-Wireless Charger Material： Aluminum alloy+silicone+magnet Input： ≥9V-2A /5V-3A/12V-1.5A Output： 15W/10W/7.5W/5W size： 56*56*8mm Packing size： 135*70*18mm Packaging List： Magnetic Wireless charging*1、clamp、 Manual*1 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this device.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. lf this equipment does cause harmful interference to radio or television reception，which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment should be installed and operated with minimum distance 20cm between the radiator&your body.

Ferraris Group Sagl Agent Authorization Letter 2023.02.21 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen Most Technology Service Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Name: Lorenzo Ferraris Position: Manager Company Name: Ferraris Group Sagl Address: Corso San Gottardo 99, Chiasso, Switzerland Tel / Fax 41 335333987/ 41 335333987 E-Mail: [email protected]

Ferraris Group Sagl Long Term Confidentiality Request Letter 2023.02.21 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR (FCC ID: 2AS5Z-EDGEPRO) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - e.g. Block diagram - e.g. SCH - e.g. Operational Description required to be submitted with this application be permanently withheld from public review. The above documents are company proprietary information that could never get into the possession of your competition. Please contact me if there is any information you may need. Sincerely, Name: Lorenzo Ferraris Position: Manager Company Name: Ferraris Group Sagl Address: Corso San Gottardo 99, Chiasso, Switzerland Tel / Fax 41 335333987/ 41 335333987 E-Mail: [email protected]

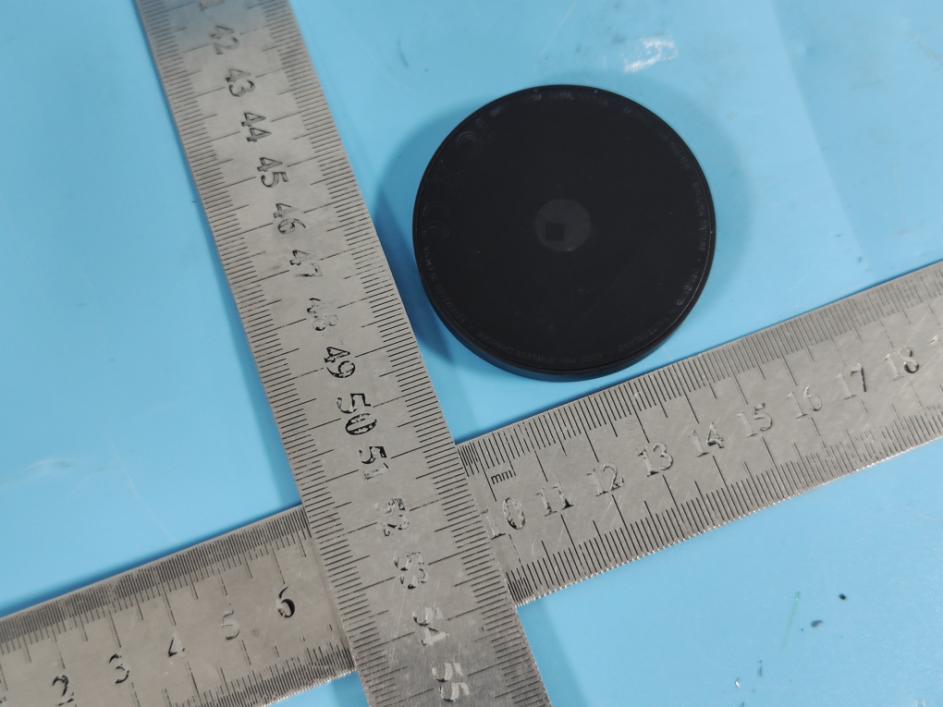

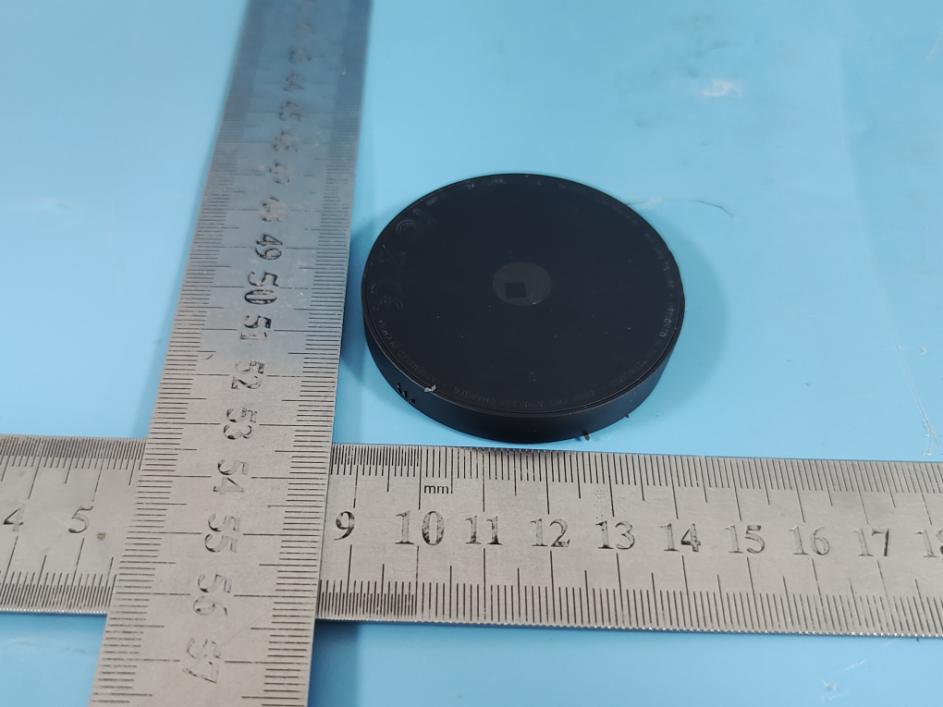

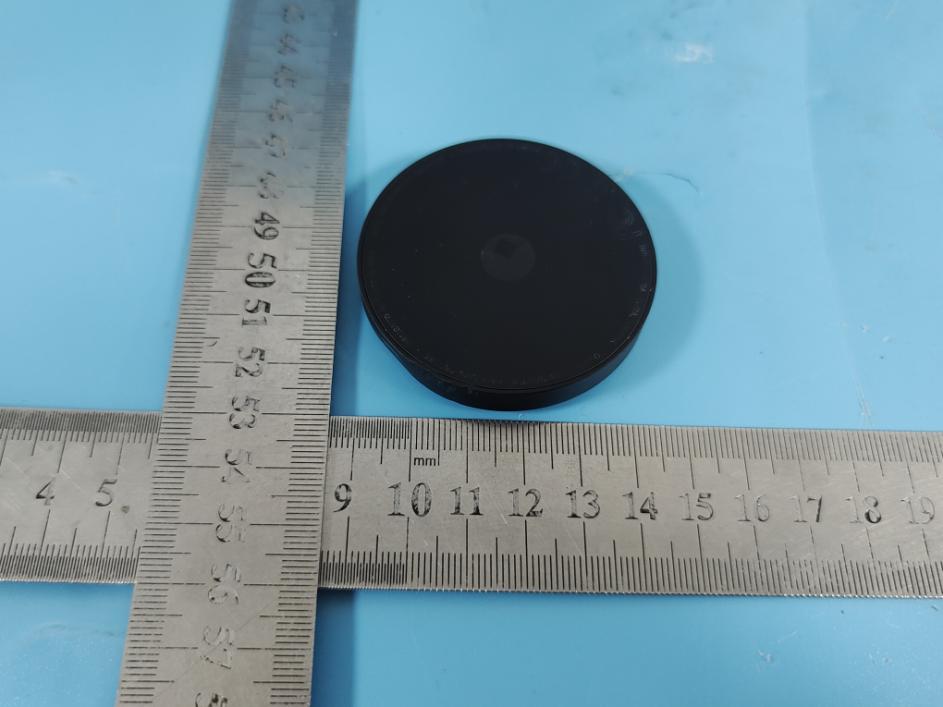

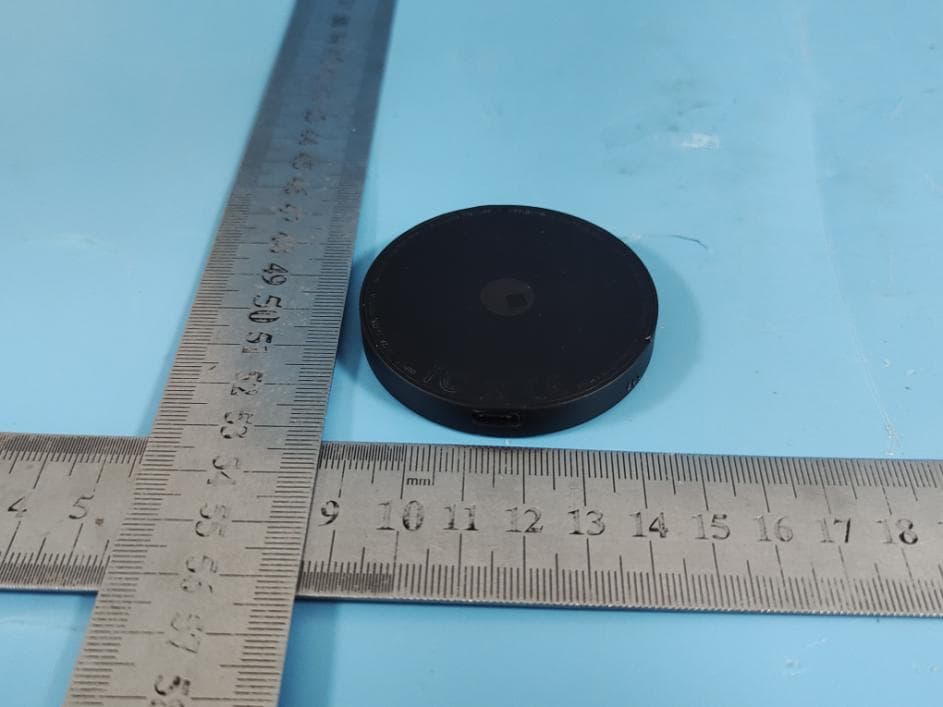

Model No.: EDGE PRO-Wireless Charger FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE Model No.: EDGE PRO-Wireless Charger LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE Model No.: EDGE PRO-Wireless Charger TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE

Label Location Model: EDGE PRO-Wireless Charger FCC ID: 2AS5Z-EDGEPRO

Model No.: EDGE PRO-Wireless Charger Page 1 of 2 INTERNAL PHOTO OF SAMPLE INTERNAL PHOTO OF SAMPLE PCB Model No.: EDGE PRO-Wireless Charger Page 2 of 2 INTERNAL PHOTO OF SAMPLE PCB INTERNAL PHOTO OF SAMPLE PCB Antenna

Shenzhen Most Technology Service Co., Ltd. No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China. RF Exposure Evaluation Report Report Reference No. ..................... : FCC ID.. ........................................... : MTEB22120269-H 2AS5Z-EDGEPRO Compiled by ( position+printed name+signature) .. : File administrators Alisa Luo Supervised by ( position+printed name+signature) .. : Test Engineer Sunny Deng Approved by ( position+printed name+signature) .. : Manager Yvette Zhou Date of issue ..................................... : December 30, 2022 Representative Laboratory Name .: Shenzhen Most Technology Service Co., Ltd. Address ............................................ : No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China. Applicant’s name ............................ : Ferraris Group Sagl Address ............................................ : Corso San Gottardo 99, Chiasso, Switzerland Test specification/ Standard ..........: FCC CFR Title 47 Part 15 Subpart C FCC KDB 680106 D01 RF Exposure Wireless Charging Apps v03r01 TRF Originator .................................. : Shenzhen Most Technology Service Co., Ltd. Shenzhen Most Technology Service Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Most Technology Service Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Most Technology Service Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Wireless Charger Trade Mark ....................................... : Rolling Square Manufacturer .................................... : Shenzhen Yuwei Technology Co., Ltd Model/Type reference....................... : EDGE PRO-Wireless Charger Modulation Type ............................... : FSK Operation Frequency ........................ : 110-205KHz Rating ............................................... : Input: DC5V/2A& 9.0V/2A&12V/1.67A Crest wireless charger Output:15W,10 W ,7.5 W ,5W Hardware Version ............................ : N/A Software Version ............................ : N/A Result................................................ : PASS Report No.: MTEB22120269-H Page 2 of 7 T E S T R E P O R T Equipment under Test : Wireless Charger Model /Type : EDGE PRO-Wireless Charger Applicant : Ferraris Group Sagl Address : Corso San Gottardo 99, Chiasso, Switzerland Manufacturer : Shenzhen Yuwei Technology Co., Ltd Address : 311, Floor 3, Building 1, Haochuang Longhua Industrial Park, 95 Yousong Road, Fukang Community, Longhua Street, Longhua District, Shenzhen Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: MTEB22120269-H Page 3 of 7 1. R e v i s i o n H i s t o r y Revision Issue Date Revisions Revised By 00 2022.12.30 Initial Issue Alisa Luo Report No.: MTEB22120269-H Page 4 of 7 2. S A R E v a l u a t i o n 2.1 RF Exposure Compliance Requirement 2.1.1 Standard Requirement According to FCC CFR Title 47 Part 15 Subpart C FCC KDB 680106 D01 RF Exposure Wireless Charging Apps v03r01 2.1.2 Limits According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure is calculated. According KDB680106 D01v03r01: RF Exposure Wireless Charging. Test Setup: E to position is 20cm. 2.1.3 Test Procedure: 1: The RF exposure test was performed on 80cm insulated table in anechoic chamber. 2: The measurement probe was placed at test distance (15cm) which is between the edge of the charger and the geometric centre of probe. 3: The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. 4: The EUT were measured according to the dictates of KDB 680106D01v03r01. 2.1.4 Test Mode: Charging + Transmitting Mode Report No.: MTEB22120269-H Page 5 of 7 2.1.5 Test Instruments Item Equipment Manufacturer Model No. Serial No. Last Cal. Cal. Interval 1 Exposure Level Tester narda ELT-400 N-0231 2022.4.15 1 Year 2 Magnetic field probe 100cm2 narda ELT probe 100cm2 M0675 2022.4.15 1 Year 3 Isotropic Electric Field Probe narda EP-601 511WX60706 2022.4.15 1 Year The EUT does comply with section 5 b) of KDB 680106 D01 RF Exposure Wireless charging App V03r01. Conditions requirement Answers Power transfer frequency is less than 1 MHz. After measuring the product the transfer frequency is 0.110-0.205MHz Output power from each primary coil is less than or equal to 15 watts. After measuring the product the each primary coil power is 15 watts The system may consist of more than one source primary coils, charging one or more clients. If more than one primary coil is present, the coil pairs may be powered on at the same time. The transfer system include signal primary. Client device is placed directly in contact with the transmitter. Client device is placed directly in contact with the transmitter. Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Mobile exposure conditions only. The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. After measuring the product the Max H-field Strength is 0.704 A/m Far less than 50% of the MPE limit. Report No.: MTEB22120269-H Page 6 of 7 2.1.6 Test data For Full load mode: H-Filed Strength at 15 cm for position A,B,C,D 20cm for position E fr…

Text truncated - open the document above for the full version.

Antenna specification Antenna type: Coil Antenna Antenna gain: 0 dBi Manufacturer: Shenzhen Yuwei Technology Co., Ltd Address: 311, Floor 3, Building 1, Haochuang Longhua Industrial Park, 95 Yousong Road, Fukang Community, Longhua Street, Longhua District, Shenzhen Antenna picture Length and width:38mm*38 mm Number of turns:20

Shenzhen Most Technology Service Co., Ltd. No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China. TEST REPORT FCC Rules Part 15C Report Reference No. ..................... : FCC ID.. ........................................... : MTEB22120269-R 2AS5Z-EDGEPRO Compiled by ( position+printed name+signature) .. : File administrators Alisa Luo Supervised by ( position+printed name+signature) .. : Test Engineer Sunny Deng Approved by ( position+printed name+signature) .. : Manager Yvette Zhou Date of issue ..................................... : December 26, 2022 Representative Laboratory Name .: Shenzhen Most Technology Service Co., Ltd. Address ............................................ : No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China. Applicant’s name ............................ : Ferraris Group Sagl Address ............................................ : Corso San Gottardo 99, Chiasso, Switzerland Test specification/ Standard ..........: FCC CFR47 Part 15 Subpart C TRF Originator .................................. : Shenzhen Most Technology Service Co., Ltd. Shenzhen Most Technology Service Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Most Technology Service Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Most Technology Service Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Wireless Charger Trade Mark ....................................... : Rolling Square Manufacturer .................................... : Shenzhen Yuwei Technology Co., Ltd Model/Type reference....................... : EDGE PRO-Wireless Charger Modulation Type ............................... : FSK Operation Frequency ........................ : 110-205KHz Rating ............................................... : Input: DC5V/2A& 9.0V/2A&12V/1.67A Crest wireless charger Output:15W,10 W ,7.5 W ,5W Hardware Version ............................ : N/A Software Version ............................ : N/A Result................................................ : PASS Report No.: MTEB22120269-R Page 2 of 23 T E S T R E P O R T Equipment under Test : Wireless Charger Model /Type : EDGE PRO-Wireless Charger Applicant : Ferraris Group Sagl Address : Corso San Gottardo 99, Chiasso, Switzerland Manufacturer : Shenzhen Yuwei Technology Co., Ltd Address : 311, Floor 3, Building 1, Haochuang Longhua Industrial Park, 95 Yousong Road, Fukang Community, Longhua Street, Longhua District, Shenzhen Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: MTEB22120269-R Page 3 of 23 Contents 1. R E V I S I O N H I S T O R Y ................................................................ 4 2. T E S T S T A N D A R D S ................................................................. 5 3. S U M M A R Y ............................................................................ 6 3.1. General Remarks 6 3.2. Product Description 6 3.3. Equipment Under Test 6 3.4. Short description of the Equipment under Test (EUT) 6 3.5. EUT operation mode 6 3.6. Block Diagram of Test Setup 7 3.7. Test Item (Equipment Under Test) Description* 7 3.8. Auxiliary Equipment (AE) Description 7 3.9. Antenna Information* 7 3.10. EUT configuration 7 3.11. Modifications 7 4. T E S T E N V I R O N M E N T .............................................................. 8 4.1. Address of the test laboratory 8 4.2. Environmental conditions 8 4.3. Test Description 9 4.4. Statement of the measurement uncertainty 9 4.5. Equipments Used during the Test 10 5. T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 5.1. AC Power Conducted Emission ................................................................................... 11 5.2. Radiated Emission ........................................................................................................ 14 5.3. 20dB Bandwidth ........................................................................................................... 20 5.4. Antenna Requirement ................................................................................................... 21 6. T E S T S E T U P P H O T O S O F T H E E U T ......................................... 22 7. E X T E R N A L A N D I N T E R N AL P H O T O S O F T H E E U T ...................... 23 Report No.: MTEB22120269-R Page 4 of 23 1. R e v i s i o n H i s t o r y Revision Issue Date Revisions Revised By 00 2022.12.26 Initial Issue Alisa Luo Report No.: MTEB22120269-R Page 5 of 23 2. T E S T S T A N D A R D S The tests were performed according to following standards: The tests were performed according to following standards: ANSI C63.10:2013 : American National Standard for Testing Unlicensed Wireless Devices Report No.: MTEB22120269-R Page 6 of 23 3. S U M M A R Y 3.1. General Remarks Date of receipt of test sample : 2022.12.20 Testing commenced on : 2022.12.20 Testing concluded on : 2022.12.26 3.2. Product Description Product Name: Wireless Charger Model/Type reference: EDGE PRO-Wireless Charger Power Supply： Input:DC 12V/1.67A Testing sample ID： MT22120247 Modulation: FSK Operation frequency: 110-205KHz Antenna type: Coil Antenna Antenna gain: 0 dBi 3.3. Equipment Under Test Power supply system utilised Power supply voltage : ○ 230V / 50 Hz ○ 120V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 12V1.67A 3.4. Short description of the Equipment under Test (EUT) This is a Wireless Charger For more details, refer to the user’s manual of the EUT. 3.5. EUT operation mode Test Item Test…

Text truncated - open the document above for the full version.

Model No.: EDGE PRO-Wireless Charger RE TEST SETUP RE TEST SETUP Model No.: EDGE PRO-Wireless Charger CE TEST SETUP
