2AS6X-58616Wireless Charging Station

Read and follow all instructions and warranty information prior to use to ensure protection to connected equipment and warranty compliance. Packing List • Wireless charger • USB-A to USB-C cable Installation 1. Plug the USB-A power adapter (sold separately) into a standard grounding duplex wall receptacle. Ensure there are no exposed conductors 2. Insert USB-A connector of charging cable (included) into port on power adapter. 3. Connect the USB-C connector of charging cable to the port on the wireless charging station. 4. A glowing blue light indicates the charging station is plugged in properly. 5. Place AirPods® or AirPods Pro® charging case (must support wireless charging) on the charging pad correctly. 6. Light will turn from blue to green to indicate earphones are charging. WARNING: Avoid using ring holders or AirPods ® cases that contain metal. Metallic objects should not be placed between the wireless charging pad and your AirPods – metal can interrupt the charging process, as well as create heat, posing a burn risk. Important Notes: 1. This wireless charging station is compatible with AirPods® and AirPods Pro® wireless charging cases only. 2. Please remove the protective case when charging, to ensure safety and efficient charging. 3. The USB port is used to charge portable electronic devices only. There is no data transfer capability. 4. Do not disassemble the charger. Keep away from fire and water, to avoid causing a short circuit leakage. 5. Do not use wireless charger in severely hot, humid or corrosive environments, to avoid circuit damage. 6. Do not place devices with magnetic strips or chips (ID card, bank cards, etc.) on wireless charging pad to avoid magnetic failure. 7. Please keep the distance at least 8in. between implantable medical devices (pacemakers, implantable cochlear, etc.) and the wireless charger, to avoid potential interference with the medical device. Warranty Replacement Procedure 1. Call Jasco Consumer Care at 1-800-654-8483 to get a Claim Number, shipping instructions and a prepaid return address label. 2. Return the Jasco wireless charger, freight prepaid, to Jasco. Wireless chargers returned to Jasco must have a Claim Number included in the mailing address to be accepted. 3. The original purchaser will be asked to send the wireless charger, a copy of the sales receipt for the product, his/her name, address, phone number and a description of the problem. FCC statement: Suppliers Declaration of Conformity | Model #: 58657 | Jasco Products Co., 10 E. Memorial Rd., Oklahoma City, OK 73114, www.byjasco.com This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are de- signed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfer- ence will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. Airpods® and Airpods Pro® are registered trademarks of Apple Inc. 58657 EnSp Manual v1 1/25/21 For deals, to register your purchase and to tell us how we’re doing, simply scan the code or visit byjasco.com/deals Instructions made easy Read instructions or watch easy-to-follow video. Scan code or visit https://byjasco.com/58657i Thank you for your purchase! Like our product? Leave a review on your favorite retailer website or amazon.com Having problems? Let us know how we can help. 1-800-654-8483 between 7AM-8PM, M-F, Central Time. Explore more from Cordinate at https://byjasco.com/cordinate WARNING • THIS PRODUCT IS NOT A TOY • NOT INTENDED FOR USE BY CHILDREN • USE INDOORS ONLY • PLUG ONLY INTO USB SAFETY CERTIFIED TYPE A PORT •THE INCLUDED USB CABLE SHOULD ONLY BE USED FOR THIS DEVICE. IT SHOULD NOT BE USED FOR ANY OTHER LIKE ITEMS, EVEN IF THE CABLE CAN BE INSERTED IN THEM. Wireless Charging Station For AirPods® and AirPods Pro® See reverse for easy-to-follow instructions and exclusive deals Wireless Charging Station for AirPods ® Cordinate and the Cordinate logo are registered trademarks owned by Jasco Products Company LLC. MADE IN CHINA Distributed by Jasco Products Company LLC, 10 E. Memorial Rd., Oklahoma City, OK 73114. This product comes with a limited-lifetime warranty. Visit www.cordinateme.com for warranty details. Questions? Contact our U.S.-based Consumer Care at 1-800-654-8483 between 7AM–8PM, M–F, Central Time. The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. During the operation of device a distance of 15cm surrounding the device and 20 cm above the top surface of the device must be respected. Lea y siga todas las instrucciones y la información de la garantía antes de usar para asegurar la protección del equipo conectado y el cumplimiento con la ga…

Text truncated - open the document above for the full version.

Shenzhen Future Charger Technology Co., LTD. Model Difference Product description: Wireless Charging Station Model name: 58616 58657 Trade Name: N/A FCC ID: 2AS6X-58616 All the model are the same circuit and RF module, only for model name. Regards Sincerely Client’s signature: Client’s name / title : David Wei ( Sales Manager) Contact information / address: Yongfengtian Industrial Park, fenghuang Third industrial Zone, Fuyong Town, Baoan District, Shenzhen, China

C5266091_X8_Ed.1 1/1 Letter of Authorization < Shenzhen Future Charger Technology Co., LTD. > Company: Shenzhen Future Charger Technology Co., LTD. Address: Yongfengtian Industrial Park, fenghuang Third industrial Zone, Fuyong Town, Baoan District, Shenzhen, China Product Name: Wireless Charging Station Model Number: 58616 58657 FCC Identifier: 2AS6X-58616 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: David Wei Date: 2021-03-04 Title: N/A Signature of applicant:

C5266091_X10_Ed.1 1/1 < Shenzhen Future Charger Technology Co., LTD.> Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2021-03 -04 Subject: Request for Confidentiality FCC ID:2AS6X-58616 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: David Wei Title: N/A

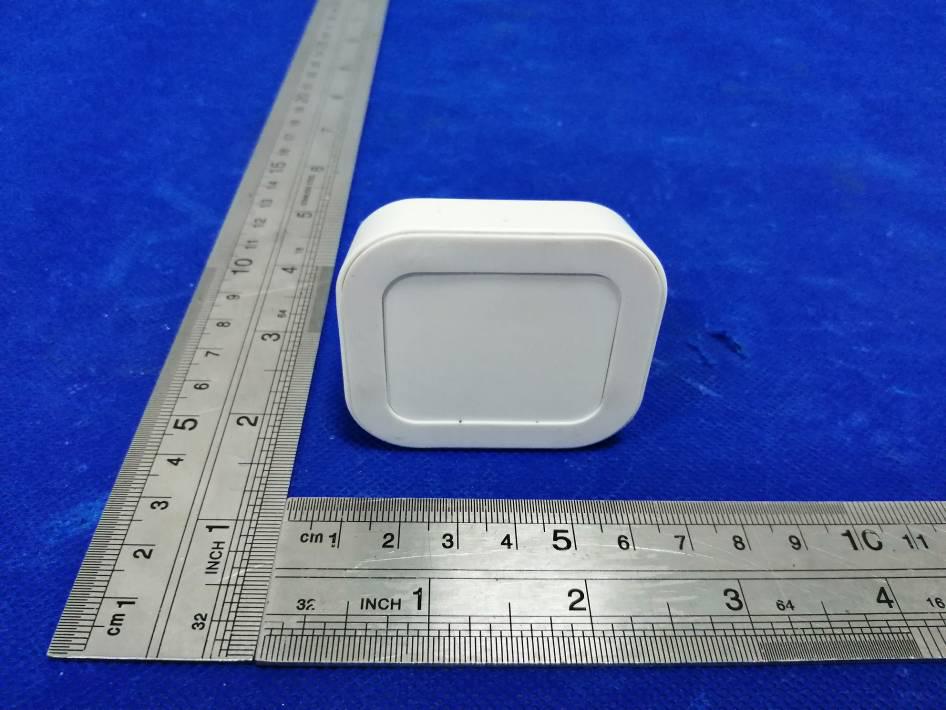

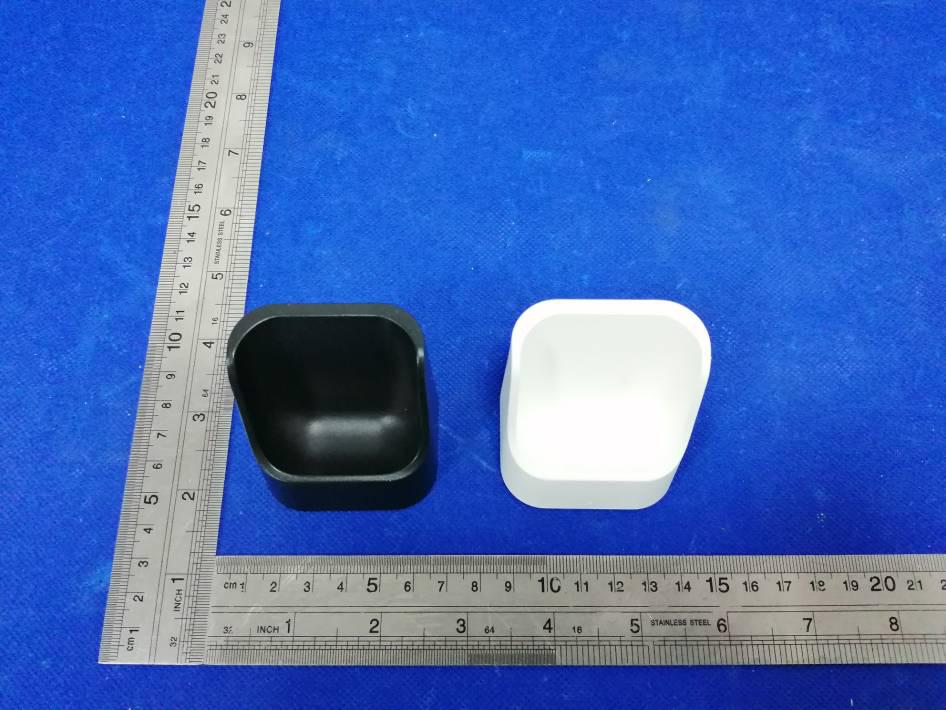

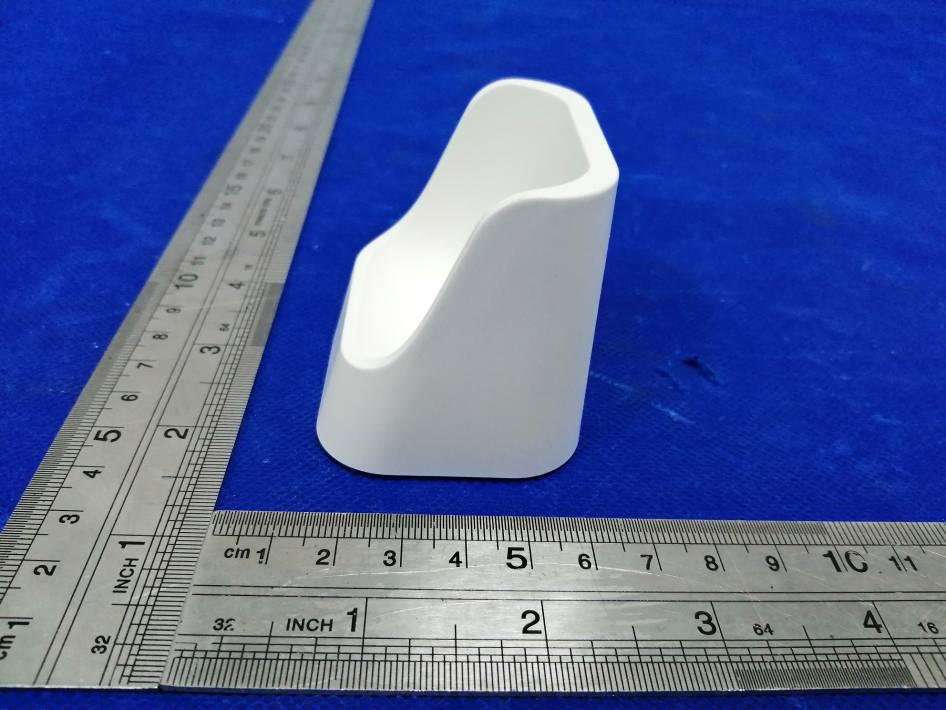

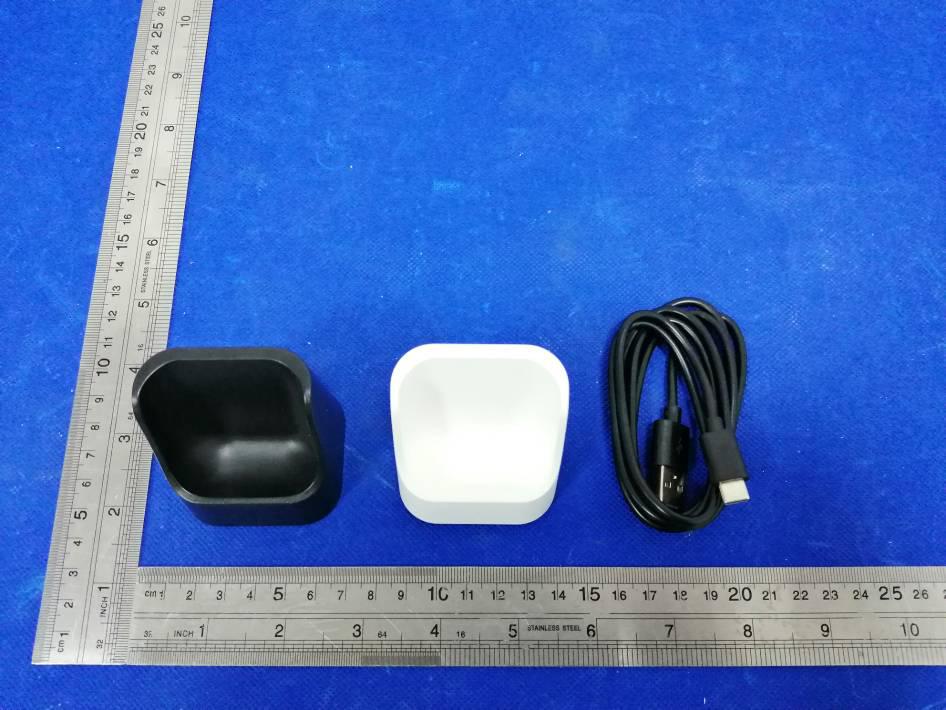

EUT PHOTO(External Photos) Model:58616

Label and label location Wireless Charging Station FCC ID:2AS6X-58616 Input: DC 5V 2A Wireless Output: 5W(Max)

EUTPHOTO(InternalPhotos) Model:58616 ※※※※※ENDOFREPORT※※※※※ ANT1

Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 1 of 4 FCC ID:2AS6X-58616 RF Exposure Evaluation 1 Measuring Standard KDB 680106 RF Exposure Wireless Charging Apps v03r01 2 Requirements According to the item 5 of KDB 680106 v03r01: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Power transfer frequency is less than 1MHz. (2) Output power from each primary coil is less than or equal to 15 watts. (3) The system may consist of more than one source primary coils, charging one or more clients. If more than one primary coil is present, the coil pairs may be powered on at the same time. (4) Client device is placed directly in contact with the transmitter. (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). (6) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the surface from all coils that by design can simultaneously transmit, and while those coils are simultaneously energized, are demonstrated to be less than 50% of the applicable MPE limit. Remark: Meet all the above requirements. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 4 3 Test Setup 4 Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The measurement probe was placed at test distance (15 cm from all sides and 20 cm from the top) which is between the edge of the charger and the geometric center of probe. 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. 4) The EUT was measured according to the dictates of KDB 680106 v03r01. Remark：The EUT’s test position A, B, C, D and E is valid for the E and H field measurements. Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 4 5 Test Instruments list Test Equipment Manufacturer Model No. SN. Cal.Date (mm-dd-yy) Cal.Due date (mm-dd-yy) Exposure Level Tester Narda ELT-400 N-0231 June. 26 2020 June. 25 2021 Magnetic field probe 100cm 2 Narda ELT probe 100cm 2 M0675 June. 26 2020 June. 25 2021 6 Test Result E-Filed Strength at 15 cm from the edges surrounding the EUT (V/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Limits (V/m) 0.110-0.205 0.72 0.71 0.70 0.71 614 E-Filed Strength at 20 cm from the top of the EUT (V/m) Frequency Range (MHz) Test Position E Limits (V/m) 0.110-0.205 0.71 614 H-Filed Strength at 15 cm from the edges surrounding the EUT (A/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Limits (A/m) 0.110-0.205 0.13 0.13 0.14 0.14 1.63 H-Filed Strength at 20 cm from the top of the EUT (A/m) Frequency Range (MHz) Test Position E Limits (A/m) 0.110-0.205 0.14 1.63 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 4 7 Test Set-up Photo

Global United Technology Services Co., Ltd. Report No.:GTSL202101000229F01 Authorized Signature: Robinson Luo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 19 TEST REPORT Applicant: Shenzhen Future Charger Technology Co., LTD. Address of Applicant: Yongfengtian Industrial Park, fenghuang Third industrial Zone, Fuyong Town, Baoan District, Shenzhen, China Manufacturer/Factory: Shenzhen Future Charger Technology Co., LTD. Address of Manufacturer/Factory: Yongfengtian Industrial Park, fenghuang Third industrial Zone, Fuyong Town, Baoan District, Shenzhen, China Equipment Under Test (EUT) Product Name: Wireless Charging Station Model No.: 58616 58657 FCC ID: 2AS6X-58616 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Date of sample receipt: Jan. 31, 2021 Date of Test: Jan. 31, 2021 to Feb. 09, 2021 Date of report issued: Feb. 09, 2021 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.:GTSL202101000229F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 19 2 Version Version No. Date Description 00 Feb. 09, 2021 Original Prepared By: Date: Feb. 09, 2021 Project Engineer Check By: Date: Feb. 09, 2021 Reviewer Report No.:GTSL202101000229F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 19 3 Contents Page 1 COVER PAGE .............................................................................................................................................1 2 VERSION ...................................................................................................................................................2 3 CONTENTS ...............................................................................................................................................3 4 TEST SUMMARY ......................................................................................................................................4 4.1 MEASUREMENT UNCERTAINTY .............................................................................................................4 5 GENERAL INFORMATION .......................................................................................................................5 5.1 GENERAL DESCRIPTION OF EUT ..........................................................................................................5 5.2 TEST MODE .........................................................................................................................................6 5.3 DESCRIPTION OF SUPPORT UNITS ........................................................................................................6 5.4 TEST FACILITY ....................................................................................................................................6 5.5 TEST LOCATION ..................................................................................................................................6 5.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER ..........................................................................6 6 TEST INSTRUMENTS LIST ......................................................................................................................7 7 TEST RESULTS AND MEASUREMENT DATA .......................................................................................9 7.1 ANTENNA REQUIREMENT: .....................................................................................................................9 7.2 CONDUCTED EMISSIONS ....................................................................................................................10 7.3 SPURIOUS EMISSION .........................................................................................................................13 7.4 20DB OCCUPY BANDWIDTH ...............................................................................................................18 8 TEST SETUP PHOTO .............................................................................................................................19 9 EUT CONSTRUCTIONAL DETAILS .......................................................................................................19 Report No.:GTSL202101000229F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 19 4 Test Summary Test Item Section in CFR 47 Result Antenna requirement 15.203 Pass AC Power Line Conducted Emission 15.207 Pass Spurious Emission 15.209(a)(f) Pass 20dB Bandwidth 15.215 Pass Pass: The EUT complies with the essential requirements in the standard. 4.1 Measurement Uncertainty Test Item Frequency Range Measurement Uncertainty Notes Radiated Emission 30MHz-200MHz 3.8039dB (1) Radiated Emission 200MHz-1GHz 3.9679dB (1) Radiated Emission 1GHz-18GHz 4.29dB (1) Radiated Emission 18GHz-40GHz 3.30dB (1) AC Power Line Conducted Emission 0.15MHz ~ 30MHz 3.44dB (1) Note (1): The measurement uncertainty is for coverage factor of k=2 and a level of confidence of 95%. Report No.:GTSL202101000229F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixia…

Text truncated - open the document above for the full version.

EUT TEST PHOTO Model:58616
