2AS9JO4VBW2IP Camera

rd Address: 23 Floor, Block B4, Building NO.9, Shenzhen Bay Eco-Technology Park, Nanshan District, Shenzhen, Guangdong Province, P.R.China Tel: +86-755-36995888 Fax: +86-755-33104777 Web site: http://en.tvt.net.cn E-mail: [email protected] TVT DIGITAL TECHNOLOGY CO., LTD. en.tvt.net.cn For more information, please visit our website. Secure
The
World
With
You rd Address: 23 Floor, Block B4, Building NO.9, Shenzhen Bay Eco-Technology Park, Nanshan District, Shenzhen, Guangdong Province, P.R.China Shenzhen TVT DIGITAL TECHNOLOGY CO., LTD. Tel: +86-755-36995888Fax: +86-755-33104777 Web site: http://en.tvt.net.cn E-mail: [email protected] en.tvt.net.cn For more information, please visit our website CAMERA O4VBW2 4MP
IR
Water-proof
Bullet
Network
Camera H.265 /H.264/MJPEG coding Max.resolution: 4MP ( 2560 × 1440) ICR auto switch, true day / night vision 3D DNR, WDR, HLC, BLC, smart IR, etc. ROI coding 20~30m IR night view distance Built-in micro SD card slot, up to 256GB IP 67 ingress protection Support Wi-Fi Support three streams Support remote monitoring by smart phones& tablet PCs with iOS and Android OS Intelligent analytics WDR AWB Motion Detection VCA Defog IP67 H.265 PoE -30°~60° PoE BLCHLC H.265 Wi-Fi Wi-Fi 167.6 ×
74.7 ×
148.2 Approx. 0.465KG Available Model O4VBW2(D/PE/WF/AR2) O4VBW2 4MP
IR
Water-proof
Bullet
Network
Camera SPECIFICATIONS DIMENSIONS AVAILABLE ACCESSORIES AVAILABLE MODEL en.tvt.net.cn *All pictures and specifications are for reference only and are subject to change without prior notice. TD-YXH0301TD-YXH0103TD-YXH0104 TD-YXH0301+ TD-YZJ0501 TD-YXH0301+ TD-YZJ0601 TD-YXH0301+ TD-YZJ0810 Main stream: H.265 / H.264 Sub/Third stream: H.265 / H.264 / MJPEG Main [email protected] High Tier 64 Kbps ~ 8 Mbps VBR / CBR 20 ~ 30 m IP67 O4VBW2 < 5W DC12V 2.0A / PoE DC48V 0.35A 60Hz: 720P/D1/VGA/CIF (1~30fps);50Hz: 720P/D1/VGA/CIF (1~25fps) 60Hz: D1/480× 240/CIF (1~30fps);50Hz: D1/480× 240/CIF(1~25fps) Specifications Model Camera Image Size Image Sensor Electronic Shutter Iris Type Min. Illumination Lens Mount Day&Night Focus Wide Dynamic Range BLC HLC Angle Adjustment Lens Digital NR Image Video Compression H.265 Compression Standard Resolution Main Stream Sub Stream Third Stream Bit Rate Bit Rate Type Image Settings ROI Interfaces Network Audio Video Output Storage Reset Functions Remote Monitoring Online Connection Network Protocol Interface Protocol Storage Smart Alarm PoE IR Distance Ingress Protection Others Power Supply Operating Environment Dimensions ( mm ) Weight ( net ) Installation Power Consumption 1 / 3" CMOS 2560×1440 1 / 1s ~ 1 / 100000s Fixed Iris M12 120dB Pan: 0°~360°; Tilt:0°~80°;Rotation: 0°~360° Yes ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser Each ROI to be configured separately RJ 45 10M/100M self-adaptive Ethernet port 1CH audio input Built-in micro SD card slot, up to 256GB No Web browser /TVT NVR/NVMS2.X/Mobile APP Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPs, QoS Network remote storage; micro SD card storage Motion detection, SD card full, SD card error Yes - 30 °C ~ 60 °C (-22°F~140°F);Humidity: less than 95 % non-condensing)( General Function Yes Yes Ceiling mounting; Wall mounting 0.005 lux @F1.6, AGC ON; 0 lux with IR [email protected], Horizontal FoV: 94°;Vertical FoV:50°;Diagonal FoV:115° [email protected], Horizontal FoV:78°;Vertical FoV:40°;Diagonal FoV:97° 4MP ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, VGA (640×480), 480× 240, CIF 60Hz: 4MP/3MP/1080P/720P(1~30fps); 50Hz: 4MP/3MP/1080P/720P(1~25fps) ONVIF Yes Fixed ICR Certificate Environmental Protection CE, FCC Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) IE11(plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+ Web Browser Smart Event Video exception (scene change, video blur and abnormal color detection), line crossing detection, region intrusion detection, abandoned/missing object detection DORI Distance LensDetect ObserveRecognizeIdentify 2.8mm 3.6mm 61.76m(202.62ft) 79.13m(259.61ft) 24.70m(81.03ft) 31.65m(103.83ft) 12.35m(40.51ft) 15.83m(51.93ft) 6.18m(20.27ft) 7.91m(25.95ft) 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing- )Storage Environment S/N ratio ≥50dB Wi-Fi Wireless Standards IEEE802.11b/g/n 2.4GHz ~ 2.4835 GHz 20MHz WEP, WPA-PSK/WPA2-PSK Frequency Range Channel Bandwidth Security Wireless Range 80m Transfer Rates 11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps Security Watermark, video mask, heartbeat, corridor pattern Video encryption, firmware encryption, HTTPs encryption, configuration encryption, illegal
login
lock,
IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/HTTPs FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult th…

Text truncated - open the document above for the full version.

Components Specialties, Inc. 200 New Highway AmityvilleNew York United States Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023-7-26 U.S. Agent Designation Components Specialties, Inc. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2AS9JO4VBW2): Name and company of U.S. agent: Components Specialties, Inc. Physical U.S. address of agent: 200 New Highway AmityvilleNew York United States FRN of U.S. agent: 0028454866 Email address of U.S. agent: [email protected] Components Specialties, Inc. acknowledges their obligation to accept service of process on behalf of Components Specialties, Inc.. Components Specialties, Inc. with the FRN [0028454866] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Scott Pisani Product Manager Components Specialties, Inc. Signature Scott Pisani Product Manager Components Specialties, Inc. 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

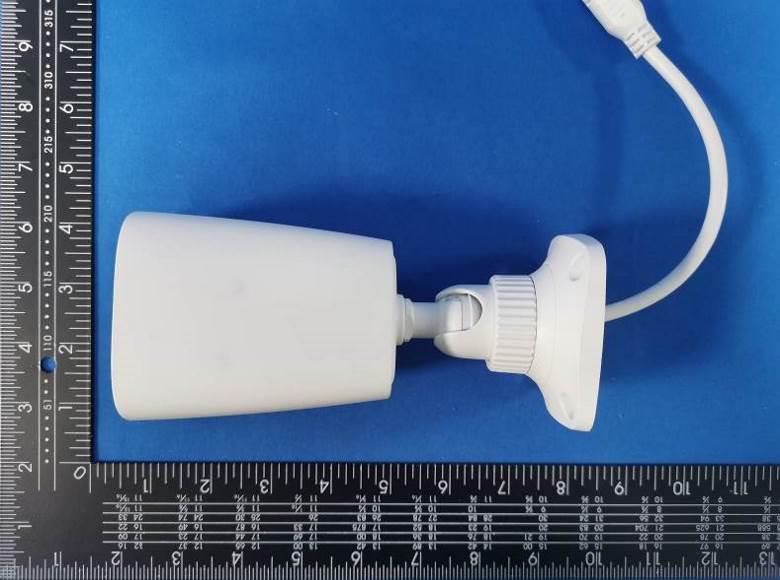

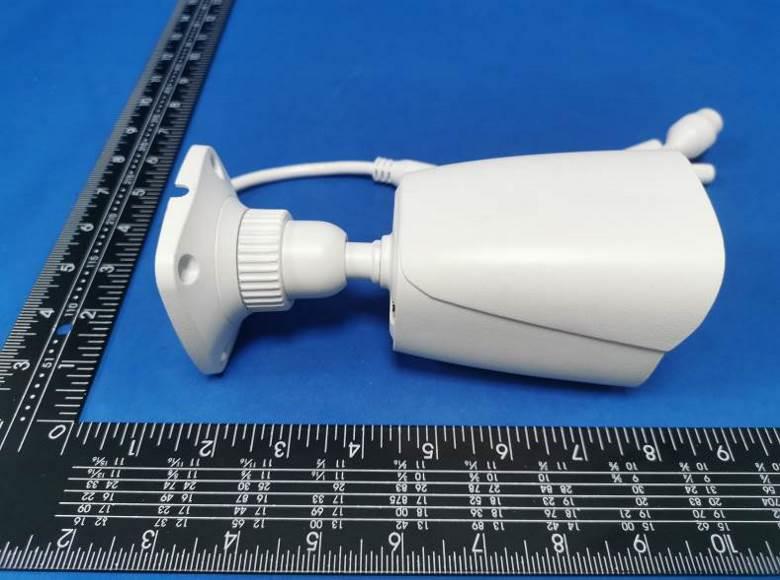

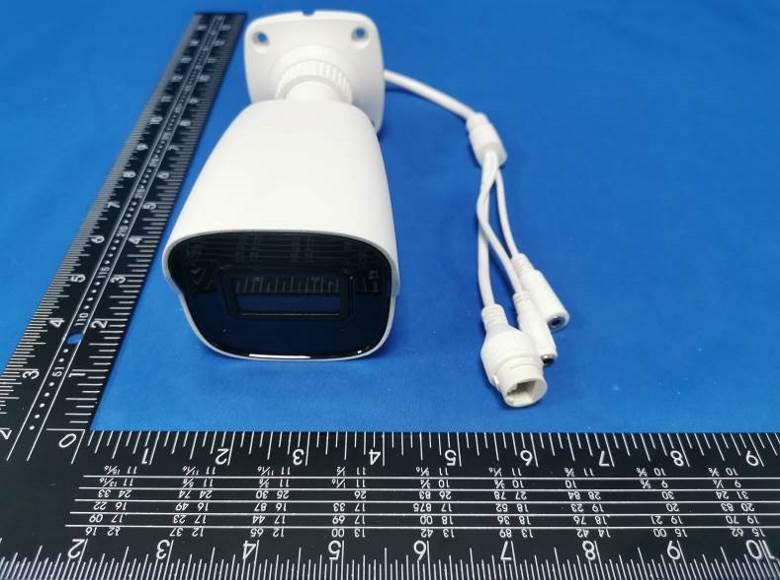

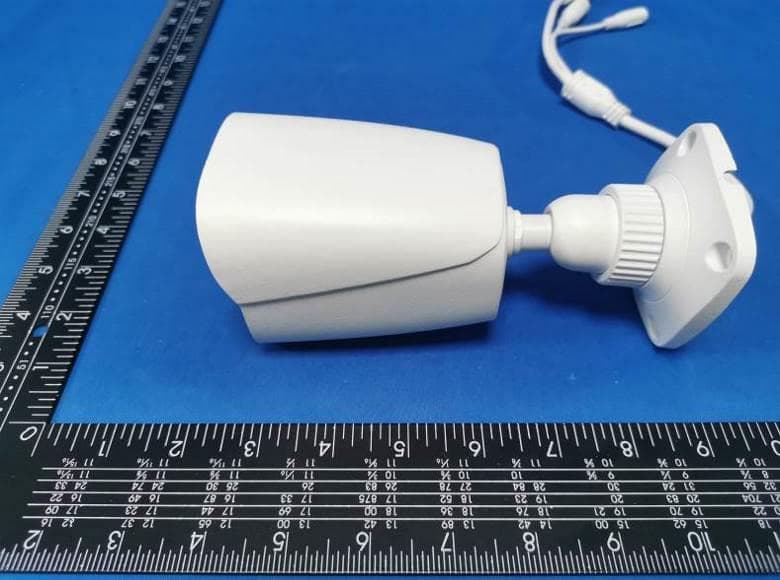

FCC ID: 2AS9JO4VBW2 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2AS9JO4VBW2 Photo 4 Photo 5 Photo 6 FCC ID: 2AS9JO4VBW2 Photo 7

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2AS9JO4VBW2

FCC ID: 2AS9JO4VBW2 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2AS9JO4VBW2 Photo 4 Photo 5 Photo 6 FCC ID: 2AS9JO4VBW2 Photo 7 Photo 8 Photo 10 2.4GWIFI External Antenna FCC ID: 2AS9JO4VBW2 Photo 11 Photo 12 Photo 13 FCC ID: 2AS9JO4VBW2 Photo 14 Photo 15 Photo 16

RF Exposure evaluation FCC ID: 2AS9JO4VBW2 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information EUT can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: 2.4GWIFI / External Antenna 2.38dBi for 2400-2500MHz 5. Manufacturing Tolerance WIFI(Peak) Frequency (MHz) 11b 2412 2437 2462 Target (dBm) 15.0 16.0 15.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11g 2412 2437 2462 Target (dBm) 15.0 15.0 15.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11n(HT20) 2412 2437 2462 Target (dBm) 15.0 15.0 15.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11n(HT40) 2422 2437 2452 Target (dBm) 14.0 14.0 14.0 Tolerance ± (dB) 1.0 1.0 1.0 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 2.38dBi, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW 2.4GWIFI 17.0 50.1187 2.38 1.7298 0.0173 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

1. Antenna Description: Antenna type 2.4G white waterproof split antenna Model YJC-60201-W23 Frequency range 2400-2500MHz Manufacturer SHENZHEN YINGJIACHUANG ELECTRONIC TECHNOLOGY CO., LTD. ANT Peak Gain 2.38 dBi 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA23070401301 2AS9JO4VBW2 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Amy Wen Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jul. 05, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ........................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ........................... : Components Specialties, Inc. Address ............................................ : 200 New Highway Amityville, NY 11701 Test specification ........................... : Standard ........................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : IP Camera Trade Mark ....................................... : Speco Manufacturer .................................... : Components Specialties, Inc. Model/Type reference ...................... : O4VBW2 Listed Models .................................. : N/A Modulation Type ............................... : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : DC 12V From Adapter(AC 100-240V 50/60Hz) DC 48V From POE Port Result ............................................... : PASS Report No.: CTA23070401301 Page 2 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : IP Camera Model /Type : O4VBW2 Series Model No. N/A Applicant : Components Specialties, Inc. Address : 200 New Highway Amityville, NY 11701 Manufacturer : Components Specialties, Inc. Address : 200 New Highway Amityville, NY 11701 Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23070401301 Page 3 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 6 2.4 Short description of the Equipment under Test (EUT) 6 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Test Description 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 13 4.3 Maximum Peak Conducted Output Power 19 4.4 Power Spectral Density 20 4.5 6dB Bandwidth 23 4.6 Out-of-band Emissions 26 4.7 Antenna Requirement 35 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 36 6 P H O T O S O F T H E E U T ........................................................... 37 Report No.: CTA23070401301 Page 4 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 v05r02: Guidance for Compliance Measurements on Digital Transmission Systems (DTS) ,Frequency Hopping Spread Spectrum System(HFSS), and Hybrid System Devices Operating Under §15.247 of The FCC rules. Report No.: CTA23070401301 Page 5 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Jun. 30, 2023 Te…

Text truncated - open the document above for the full version.

Report No.: CTA23070401301 Page 29 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11g Reference Reference CH06 CH11 30MHz-1GHz 30MHz-1GHz 1GHz -25GHz 1GHz -25GHz Report No.: CTA23070401301 Page 30 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 Reference Reference CH01 CH06 30MHz-1GHz 30MHz-1GHz 1GHz -25GHz 1GHz -25GHz Report No.: CTA23070401301 Page 31 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 802.11n40 Reference Reference CH11 CH03 30MHz-1GHz 30MHz-1GHz 1GHz -25GHz 1GHz -25GHz Report No.: CTA23070401301 Page 32 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n40 Reference Reference CH06 CH09 30MHz-1GHz 30MHz-1GHz 1GHz -25GHz 1GHz -25GHz Report No.: CTA23070401301 Page 33 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Band-edge Measurements for RF Conducted Emissions: 802.11b Left bandedge Right bandedge 802.11g Left bandedge Right bandedge Report No.: CTA23070401301 Page 34 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n(HT20) Left bandedge Right bandedge 802.11n(HT40) Left bandedge Right bandedge Report No.: CTA23070401301 Page 35 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.7 Antenna Requirement Standard Applicable For intentional device, according to FCC 47 CFR Section 15.203: An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator, the manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited FCC CFR Title 47 Part 15 Subpart C Section 15.247(c) (1) (I): (i) Systems operating in the 2400-2483.5 MHz band that is used exclusively for fixed. Point-to-point operations may employ transmitting antennas with directional gain greater than 6dBi provided the maximum conducted output power of the intentional radiator is reduced by 1 dB for every 3 dB that the directional gain of the antenna exceeds 6dBi. Test Result: The maximum gain of antenna was 2.38 dBi. Remark:The antenna gain is provided by the customer , if the data provided by the customer is not accurate, Shenzhen CTA Testing Technology Co., Ltd. does not assume any responsibility. Report No.: CTA23070401301 Page 36 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 5 T e s t S e t u p P h o t o s o f t h e E U T Report No.: CTA23070401301 Page 37 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 6 P h o t o s o f t h e E U T Report No.: CTA23070401301 Page 38 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA23070401301 Page 39 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA23070401301 Page 40 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA23070401301 Page 41 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA23070401301 Page 42 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA23070401301 Page 43 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA23070401301 Page 44 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qi…

Text truncated - open the document above for the full version.

FCC ID: 2AS9JO4VBW2 Test Setup Photos of the EUT
