2ASDTVR45Retro Wooden Radio with BT

1 ClearClick ® Retro Wooden Radio with BT (Model VR45) Quick Start Guide & User’s Manual Full 5-Year Warranty + FREE USA-Based Tech Support If you have any issue or question regarding this product, contacting us directly is the fastest way to resolve the issue. We are ClearClick®, a small USA-based business, and we stand behind our products with a full 5-year warranty & free USA tech support. If you have any issues with our product, please contact us at [email protected]. www.ClearClick.tech 2 Register Your Product & Extend Your Warranty Register your product at our website and we’ll extend your warranty period by one year for FREE! www.clearclicksoftware.com/Register/ Safety Precautions 1. Do not disassemble the unit. 2. Do not operate the unit around water or rain. Do not operate the unit around any kind of machines or appliances (other than computers). 3. Turn off and unplug the unit when not in use or charging. 4. Do not allow young children to use this device. Thank You! Thank you for your purchase of the ClearClick® Retro Wooden Radio! (Model VR45) We appreciate your business. At ClearClick®, we try to make our technology as clear to understand and use as possible. But if you get stuck at any point, you qualify for FREE USA-based tech support as a ClearClick® customer. Just email us at: [email protected] (Make sure you explain your issue in detail and tell us that you’re using our ClearClick® Retro Wooden Radio - Model Number VR45). Our USA-based tech support team members will normally reply to you within 24-48 business hours.) 3 QUICK START – Setting Up The Device 1. Fully charge the device. Using the included USB cable, plug the radio into a USB wall adapter (not included) to charge the device. 2. Switch the device on by turning the right knob clockwise. 3. The device will start up in either “radio” or “Bluetooth” mode, whichever it was set on during last use. QUICK START – Listening To AM/FM Radio 1. Fully charge the radio before use. 2. Switch to either “AM” or “FM” mode using the left knob. 3. Use the middle top knob (on the radio’s dial) to adjust the tuning of the radio. 4. Use the middle bottom knob to adjust the tone of the audio. 5. To adjust the volume, turn the right knob. Note: To improve the reception of FM radio, simply adjust the pigtail antenna in the back of the radio. 4 QUICK START – Playing Music via Bluetooth 1. NOTE: If the radio does not have enough power, it will not be able to use Bluetooth. The battery charging LED (the left LED under the knobs) should be green. If it is off, that means the radio needs to be charged before use. If you encounter any issues with Bluetooth, please plug in or fully charge the unit, and then try again. 2. Switch the radio to Bluetooth mode by turning the left knob to the “BT” setting. 3. On your phone, tablet, or computer, search for the Bluetooth device named “Vintage Radio VR45.” Connect to this device. 4. The radio’s BT indicator light will be solid blue once connected. 5. Start playing music on your phone, tablet, or computer. 6. To adjust the volume, turn the right knob. (Note: You may also need to adjust the volume on your phone or tablet.) 7. To adjust the tone of the audio, turn the middle bottom knob. 5 Radio Diagram & Features Front View 1. Mode Knob 2. Tuning Knob 3. Tone Knob 4. Power/Volume Knob 5. BT/Radio Indicator LED 6. Battery Charging LED 7. Speaker Grill 8. Radio Feet Rear View 9. FM Antenna 10. Micro USB charging socket 6 Troubleshooting 1. Bluetooth has stopped working or I can’t connect. A. Try charging or plugging in the radio. The “Battery Charging” LED needs to be green in order for the radio to work fully. B. Make sure no other Bluetooth devices are connected to the radio before trying to connect to it via Bluetooth. 2. In Bluetooth mode, the radio’s volume is turned up all the way, but the sound isn’t loud enough. Make sure you have turned up the volume on your phone, tablet, or MP3 player as well. 3. I need further assistance or information on the product’s warranty. Just email us at [email protected], and we’ll get right back to you! If you haven’t heard back from us within 1-2 business days, please check your “Spam” folder in your email. 7 (This page was intentionally left blank.) 8 www.ClearClic k.tech FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & y…

Text truncated - open the document above for the full version.

ClearClick Software LLC Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-04-07 Subject; Request for Long Term Confidentiality FCC ID: 2ASDTVR45 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name:Keith Gilbert Title: Owner

ClearClick Software LLC 3006 Teak Place, Fullerton, CA 92835, United States Agent Authorization Company:ClearClick Software LLC Address:3006 Teak Place, Fullerton, CA 92835, United States Product Name:Retro Wooden Radio with BT Model Number(s):VR45 Product Description: Retro Wooden Radio with BT We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-04-07 Name: Keith Gilbert Title: Owner Company: ClearClick Software LLC

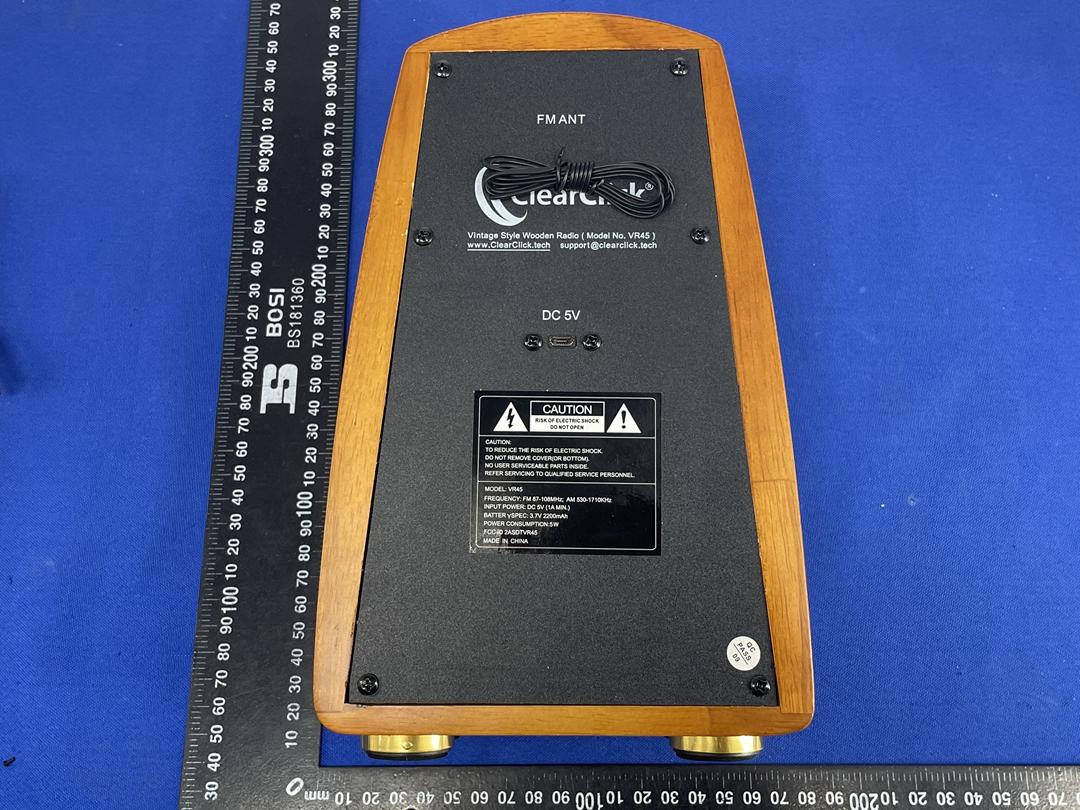

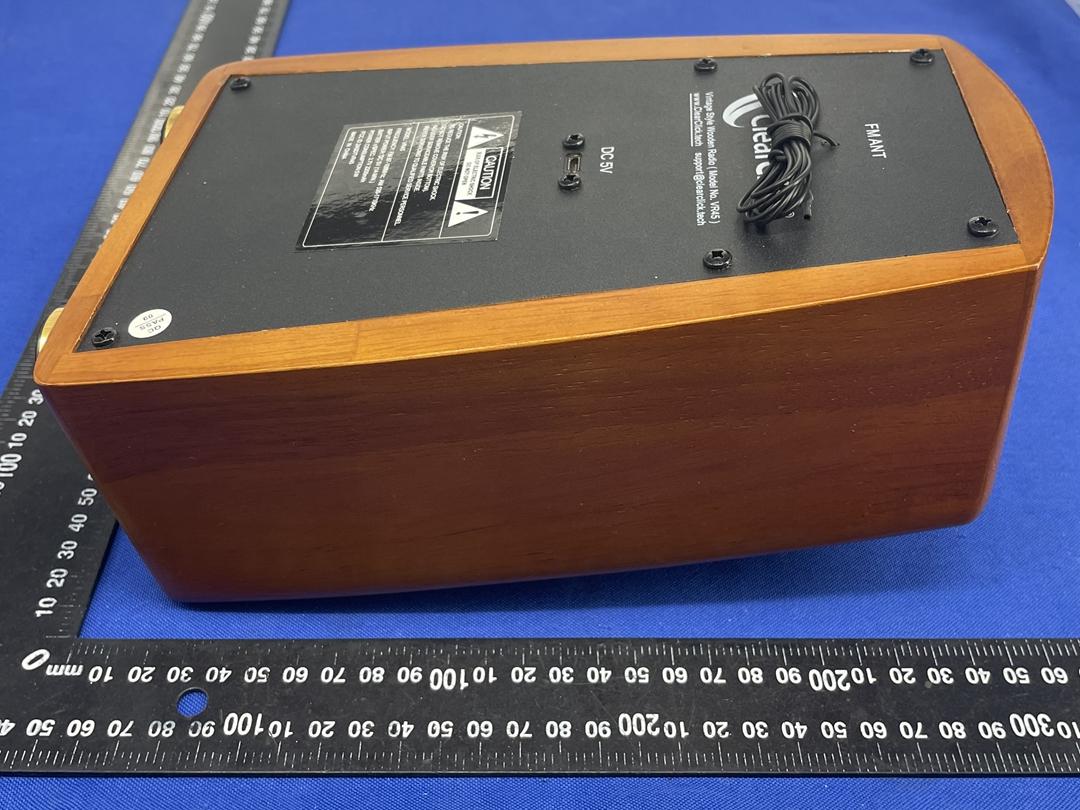

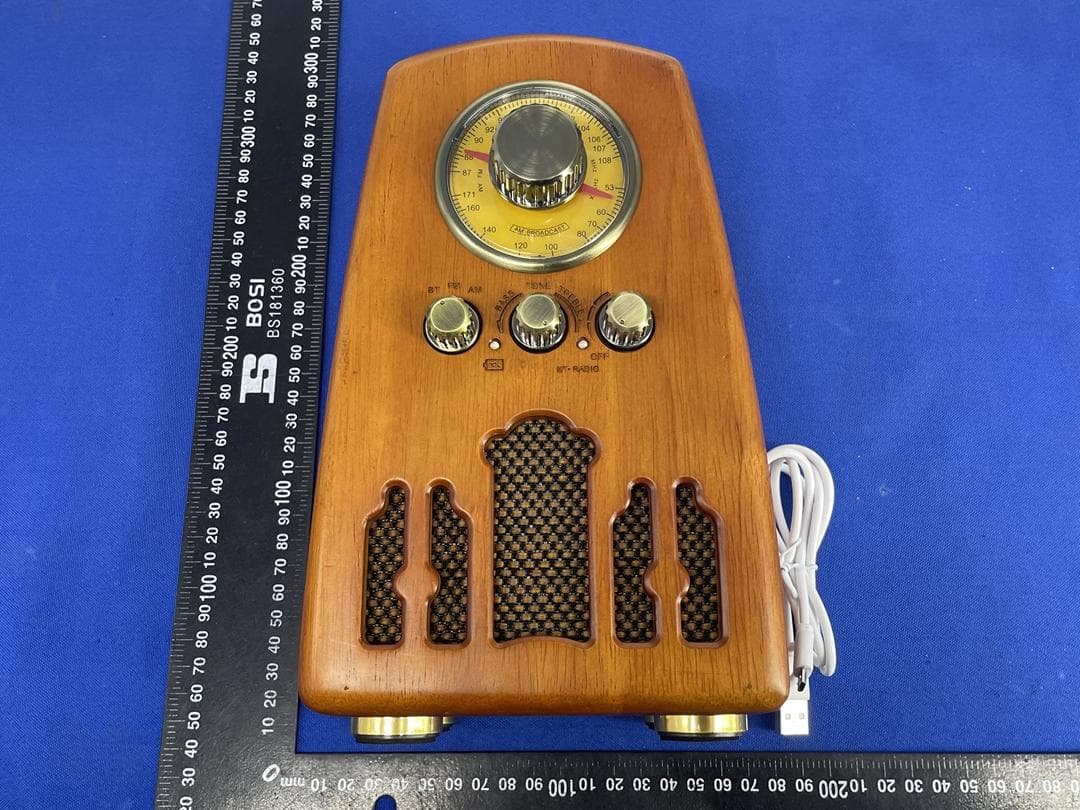

Page 1 of 4 Appendix B: Photographs of EUT Product: Retro Wooden Radio with BT Model: VR45 External Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

LabelArtworkandLocation Model:VR45 Label： Size:L*W=50*60mm FCCID:2ASDTVR45 Location

Page 1 of 5 Appendix B: Photographs of EUT Product: Retro Wooden Radio with BT Model: VR45 Internal Photos Page 2 of 5 Antenna Page 3 of 5 Page 4 of 5 Page 5 of 5

Maximum Permissible Exposure Applicable Standard According to §1.1307(b), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. Remark: 1) The maximum output power for antenna is 4.44dBm (2.78mW) at 2402MHz, 0dBi antenna gain(with 1.00numeric antenna gain.) 2) For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20cm, even if the calculation indicate that the MPE distance would be lesser. Maximum Permissible Exposure output power= 2.78mW Numeric Antenna gain= 1.00 Substituting the MPE safe distance using d=20cm into above equation. Yields: S=0.000199*P*G Where P=Power in mW G=Numeric antenna gain S=Power density in mW/cm 2 Power density= 0.000553mW/cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2ASDTVR45 Product: Retro Wooden Radio with BT Model No.: VR45 Additional Model No.: N/A Trade Mark: Clearclick Report No.: TCT210203E030 Issued Date: Feb. 23, 2021 Issued for: ClearClick Software LLC 3006 Teak Place, Fullerton, CA 92835, United States Issued By: Shenzhen Tongce Testing Lab. 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT210203E030 Page 2 of 65 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification ..................................................................................... 3 2. Test Result Summary .............................................................................. 4 3. EUT Description ....................................................................................... 5 4. General Information ................................................................................. 6 4.1. Test environment and mode ................................................................................. 6 4.2. Description of Support Units ................................................................................ 6 5. Facilities and Accreditations .................................................................. 7 5.1. Facilities ................................................................................................................. 7 5.2. Location ................................................................................................................. 7 5.3. Measurement Uncertainty ..................................................................................... 7 6. Test Results and Measurement Data ..................................................... 8 6.1. Antenna requirement ............................................................................................ 8 6.2. Conducted Emission ............................................................................................. 9 6.3. Conducted Output Power ................................................................................... 13 6.4. 20dB Occupy Bandwidth .................................................................................... 18 6.5. Carrier Frequencies Separation ......................................................................... 23 6.6. Hopping Channel Number .................................................................................. 28 6.7. Dwell Time ............................................................................................................ 31 6.8. Pseudorandom Frequency Hopping Sequence ................................................ 36 6.9. Conducted Band Edge Measurement ................................................................ 37 6.10.Conducted Spurious Emission Measurement .................................................. 41 6.11.Radiated Spurious Emission Measurement ..................................................... 45 Appendix A: Photographs of Test Setup Appendix B: Photographs of EUT Report No.: TCT210203E030 Page 3 of 65 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: Retro Wooden Radio with BT Model No.: VR45 Additional Model: N/A Trade Mark: Clearclick Applicant: ClearClick Software LLC Address: 3006 Teak Place, Fullerton, CA 92835, United States Manufacturer: Timsen Development Limited Address: 5F, 447# Tianhebei Road, Guangzhou, China Date of Test: Feb. 04, 2021 – Feb. 22, 2021 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10:2013 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date: Feb. 22, 2021 Rleo Reviewed By: Date: Feb. 23, 2021 Beryl Zhao Approved By: Date: Feb. 23, 2021 Tomsin Report No.: TCT210203E030 Page 4 of 65 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna Requirement §15.203/§15.247 (c) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(1) PASS 20dB Occupied Bandwidth §15.247 (a)(1) PASS Carrier Frequencies Separation §15.247 (a)(1) PASS Hopping Channel Number §15.247 (a)(1) PASS Dwell Time §15.247 (a)(1) PASS Radiated Emission §15.205/§15.209 PASS Band Edge §15.247(d) PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT210203E030 Page 5 of 65 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product Name: Retro Wooden Radio with BT Model: VR45 Additional Model: N/A Trade Mark: Clearclick Bluetooth version: V5.0 Operation Frequency: 2402MHz~2480MHz Transfer Rate: 1/2/3 Mbits/s Number of Channel: 79 Modulation Type: GFSK, π/4-DQPSK, 8DPSK Modulation Technology: FHSS Antenna Type: PCB Antenna Antenna Gain: 0dBi Power Supply: Rechargeable Li-ion battery DC 3.7V Note: The antenna gain listed in …

Text truncated - open the document above for the full version.

Page 1 of 2 Appendix A: Photographs of Test Setup Product: Retro Wooden Radio with BT Model: VR45 Radiated Emission Page 2 of 2 Conducted Emission
