2ASE7-BIOHB01021BioHub

FCC Statement Model: BIOHB01021 FCC ID: 2ASE7-BIOHB01021 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. <!> Radiofrequency radiation exposure information: the BioHub complies with the radiation exposure limits prescribed for an uncontrolled environment for fixed and mobile use conditions. The BioHub should be installed and operated with a minimum distance of 20cm between the radiator and the body of the user or nearby persons. This transmitter must not be co-located or operating in conjunction with any other antenna except as authorized in the certification of the product. The BioHub has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. The BioHub generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Increase the distance between the BioHub and television or radio receiver. • Consult the dealer, the manufacturer, or an experienced technician for help. Storage and Operating Conditions • Operating Temperature: 32 ° F to 122 ° F (-20 ° C to 50 ° C) • Storage Temperature: -4 ° F to 122 ° F (O ° Cto 50 ° C) • Operating and Storage Humidity: 10% to 95% RH • Operating and Storage Atmospheric Pressure: 70 to 102 kPa BHB-LB-DWG-SRI-Rev.2 Febrauary 2020 Any changes or modifications to this device not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 6.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.0 4.0 March-26-2015 Corrections to STC form. Added reference to KDB (obsolete) 4.0 5.0 Nov-19-2015 Updated company logo (current) 5.0 6.0 Jun-26-2019 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 6.0 May 14, 2020 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ASE7-BIOHB01021 Pursuant to sections 0.457 and 0.459 of CFR 47, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application as: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Tracy Cheng / Head of Manufacturing BioIntelliSense, Inc. 570 El Camino Real #200, Redwood City CA 94063 [email protected]

§15.19 Labeling requirements (5) When the device is so small or for such use that it is impracticable to label it with the statement specified under paragraph (a) of this section in a font that is four-point or larger, and the device does not have a display that can show electronic labeling, then the information required by this paragraph shall be placed in the user manual and must also either be placed on the device packaging or on a removable label attached to the device. Info sticker will be placed on device packaging.

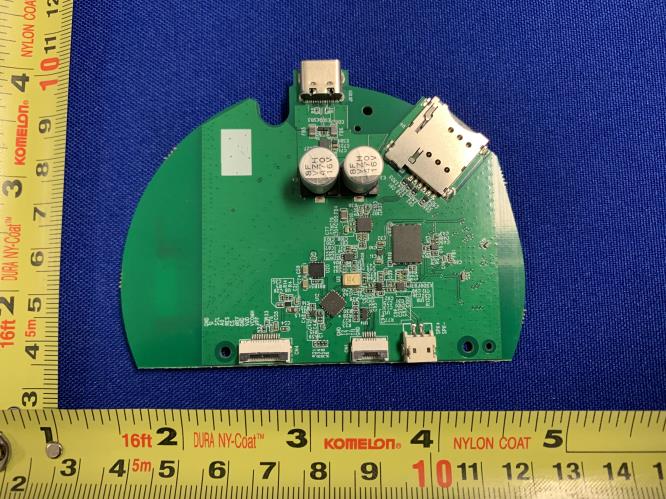

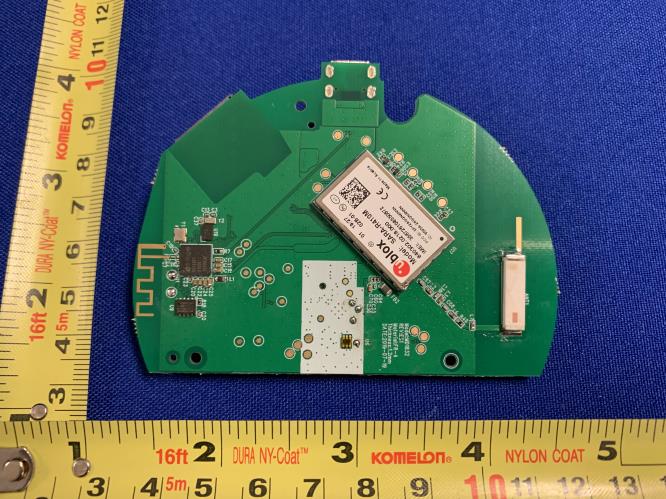

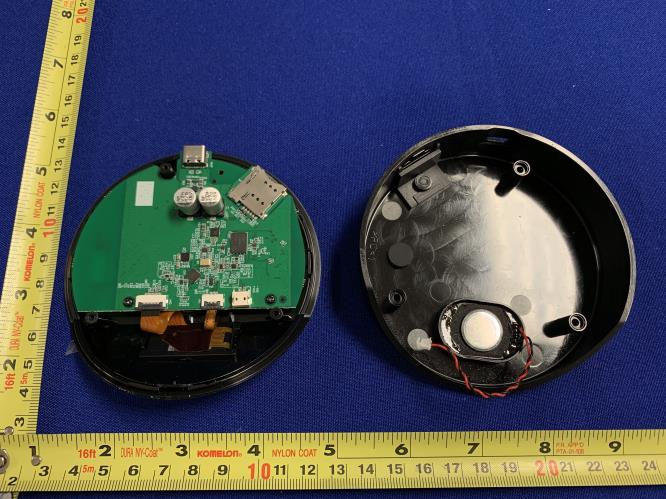

EUT Photo-Internal View EUT – Uncover View PCB1 Front View PCB1 Rear View Adapter Front View USB Type C View

Report No.: FCC_RF_SL20033001-KRE-003_MPE Page No. 1 / 6 Report Format Version: 6.1.1 RF Exposure Report Report No.: FCC_RF_SL20033001-KRE-003_MPE FCC ID: 2ASE7-BIOHB01021 XPY2AGQN4NNN Test Model: BIOHB01021 Series Model: N/A Received Date: 04/07/2020 Test Date: 04/09/2020-04/17/2020 Issued Date: 05/21/2020 Applicant: BioIntelliSense, Inc. Address: 570 El Camino Real #200 Redwood City, CA 94063 Manufacturer: BioIntelliSense, Inc. Address: 570 El Camino Real #200 Redwood City, CA 94063 Issued By: Bureau Veritas Consumer Products Services, Inc. Lab Address: 775 Montague Expressway, Milpitas, CA 95035 Test Location (1): 775 Montague Expressway, Milpitas, CA 95035 FCC Registration / Designation Number: 540430 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA or any government agencies. Report No.: FCC_RF_SL20033001-KRE-003_MPE Page No. 2 / 6 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 RF Exposure .......................................................................................................................................... 5 2.1 Limits for Maximum Permissible Exposure (MPE) .............................................................................. 5 2.2 MPE Calculation Formula ................................................................................................................... 5 2.3 Classification ....................................................................................................................................... 5 2.4 Antenna Gain ...................................................................................................................................... 5 2.5 Calculation Result of Maximum Conducted Power ............................................................................. 6 3 Conclusion ............................................................................................................................................ 6 Report No.: FCC_RF_SL20033001-KRE-003_MPE Page No. 3 / 6 Report Format Version: 6.1.1 Release Control Record Issue No. Description Date Issued FCC_RF_SL20033001-KRE-003_MPE Initial Release 05/01/2020 Report No.: FCC_RF_SL20033001-KRE-003_MPE Page No. 4 / 6 Report Format Version: 6.1.1 1 Certificate of Conformity Product: BioHub Brand: BioIntelliSense, Inc. Test Model: BIOHB01021 Sample Status: Engineering sample Applicant: BioIntelliSense, Inc. Test Date: 04/07/2020-04/17/2020 Standards: FCC Part 2 (Section 2.1093) KDB 447498 D01 General RF Exposure Guidance v06 IEEE C95.1-1992 The above equipment has been tested by Bureau Veritas Consumer Products Services, Inc., Milpitas Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. Prepared by : , Date: 05/21/2020 Deon Dai / Test Engineer Approved by : , Date: 05/21/2020 Chen Ge / Engineer Reviewer Report No.: FCC_RF_SL20033001-KRE-003_MPE Page No. 5 / 6 Report Format Version: 6.1.1 2 RF Exposure 2.1 Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 f = Frequency in MHz; *Plane-wave equivalent power density 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 2.4 Antenna Gain The antenna type is FR4 printed antenna with 0 dBi gain for BLE and Ceramic SMD antenna with 2.1 dBi for LTE. Report No.: FCC_RF_SL20033001-KRE-003_MPE Page No. 6 / 6 Report Format Version: 6.1.1 2.5 Calculation Result of Maximum Conducted Power Type Max Power (dBm) Max Power (mW) Turn-Up Tolerance Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit …

Text truncated - open the document above for the full version.

Report No.: FCC_IC_RF_SL20033001-KRE-003_BLE Page No. 1 / 39 Report Format Version: 6.1.1 FCC IC Test Report (BT-LE) Report No.: FCC_IC_RF_SL20033001-KRE-003_BLE FCC ID: 2ASE7-BIOHB01021 Test Model: BIOHB01021 Received Date: 04/07/2020 Test Date: 04/09/2020-04/17/2020 Issued Date: 04/20/2020 Applicant: BioIntelliSense, Inc. Address: 570 El Camino Real #200 Redwood City, CA 94063 Manufacturer: BioIntelliSense, Inc. Address: 570 El Camino Real #200 Redwood City, CA 94063 Issued By: Bureau Veritas Consumer Products Services, Inc. Lab Address: 775 Montague Expressway, Milpitas, CA 95035 Test Location (1): 775 Montague Expressway, Milpitas, CA 95035 FCC Registration / Designation Number: 540430 ISED# / CAB identifier: 4842D This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA or any government agencies. Report No.: FCC_IC_RF_SL20033001-KRE-003_BLE Page No. 2 / 39 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ...................................................................................................................... 5 2 Summary of Test Results ..................................................................................................................... 6 2.1 Measurement Uncertainty ................................................................................................................... 6 2.2 Modification Record ............................................................................................................................ 6 3 General Information .............................................................................................................................. 7 3.1 General Description of EUT ................................................................................................................ 7 3.2 Description of Test Modes ................................................................................................................... 8 3.2.1 Test Mode Applicability and Tested Channel Detail ............................................................................. 9 3.3 Duty Cycle of Test Signal .................................................................................................................. 10 3.4 Description of Support Units .............................................................................................................. 11 3.4.1 Configuration of System under Test ................................................................................................... 11 3.5 General Description of Applied Standards ......................................................................................... 11 4 Test Types and Results ...................................................................................................................... 12 4.1 Radiated Emission and Bandedge Measurement ............................................................................. 12 4.1.1 Limits of Radiated Emission and Bandedge Measurement .............................................................. 12 4.1.2 Test Instruments ................................................................................................................................ 13 4.1.3 Test Procedures ................................................................................................................................. 14 4.1.4 Deviation from Test Standard ............................................................................................................ 15 4.1.5 Test Setup .......................................................................................................................................... 15 4.1.6 EUT Operating Conditions ................................................................................................................. 16 4.1.7 Test Results ....................................................................................................................................... 17 4.2 Conducted Emission Measurement .................................................................................................. 23 4.2.1 Limits of Conducted Emission Measurement .................................................................................... 23 4.2.2 Test Instruments ................................................................................................................................ 23 4.2.3 Test Procedures ....................................................................................…

Text truncated - open the document above for the full version.

Report No.: FCC_IC_RF_SL20033001-KRE-003_Co-location Page No. 1 / 18 Report Format Version: 6.1.1 FCC IC Test Report Report No.: FCC_IC_RF_SL20033001-KRE-003_Co-location FCC ID: 2ASE7-BIOHB01021 XPY2AGQN4NNN Test Model: BIOHB01021 Series Model: N/A Received Date: 04/07/2020 Test Date: 04/15/2020 Issued Date: 04/23/2020 Applicant: BioIntelliSense, Inc. Address: 570 El Camino Real #200 Redwood City, CA 94063 Manufacturer: BioIntelliSense, Inc. Address: 570 El Camino Real #200 Redwood City, CA 94063 Issued By: Bureau Veritas Consumer Products Services, Inc. Lab Address: 775 Montague Expressway, Milpitas, CA 95035, USA Test Location (1): 775 Montague Expressway, Milpitas, CA 95035, USA FCC Registration / Designation Number: 540430 ISED# / CAB identifier: 4842D This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA or any government agencies. Report No.: FCC_IC_RF_SL20033001-KRE-003_Co-location Page No. 2 / 18 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 Summary of Test Results ..................................................................................................................... 5 2.1 Measurement Uncertainty ................................................................................................................... 5 2.2 Modification Record ............................................................................................................................ 5 3 General Information .............................................................................................................................. 6 3.1 General Description of EUT ................................................................................................................ 6 3.1.1 Test Mode Applicability and Tested Channel Detail ............................................................................. 7 3.2 Description of Support Units ............................................................................................................... 8 3.2.1 Configuration of System under Test .................................................................................................... 8 3.3 General Description of Applied Standards .......................................................................................... 9 4 Test Types and Results ...................................................................................................................... 10 4.1 Radiated Emission Measurement ..................................................................................................... 10 4.1.1 Limits of Radiated Emission Measurement ....................................................................................... 10 4.1.2 Test Instruments ................................................................................................................................. 11 4.1.3 Test Procedures ................................................................................................................................. 12 4.1.4 Deviation from Test Standard ............................................................................................................ 12 4.1.5 Test Setup .......................................................................................................................................... 13 4.1.6 Test Results ....................................................................................................................................... 15 5 Pictures of Test Arrangements .......................................................................................................... 17 Appendix – Information on the Testing Laboratories ................................................................................ 18 Report No.: FCC_IC_RF_SL20033001-KRE-003_Co-location Page No. 3 / 18 Report Format Version: 6.1.1 Release Control Record Issue No. Description Date Issued FCC_IC_RF_SL20033001-KRE-003_Co-location Original release 04/23/2020 Report No.: FCC_IC_RF_SL20033001-KRE-003_Co-location Page No. 4 / 18 Report Format Version: 6.1.1 1 Certificate of Conformity Product: BioHub Brand: BioIntelliSense, Inc. Test Model: BIOHB01021 Series Model: N/A Sample Status: Engineering Sample Applicant: BioIntelliSense, Inc. Test Date: 04/15/2020 Standards: 47 CFR FCC Part 15, Subpart C (Section 15.247) 47 CFR FCC Part 22/24/27 RSS247 RSS130 /RSS139 …

Text truncated - open the document above for the full version.

Setup Photo View Radiated Emission Test below 1GHz Front View Radiated Emission Test below 1GHz Rear View Radiated Emission Test Above 1GHz Front View Radiated Emission Test above 1GHz Rear View Conducted Emission Test Front View Conducted Emission Test Side View
