2ASEL-SKG417Micro.sp TPMS gateway for vehicular use

• • • • • • • • • • • • • • • • • • • • • • Master/Slave #3 RSSI on Rx Master 0

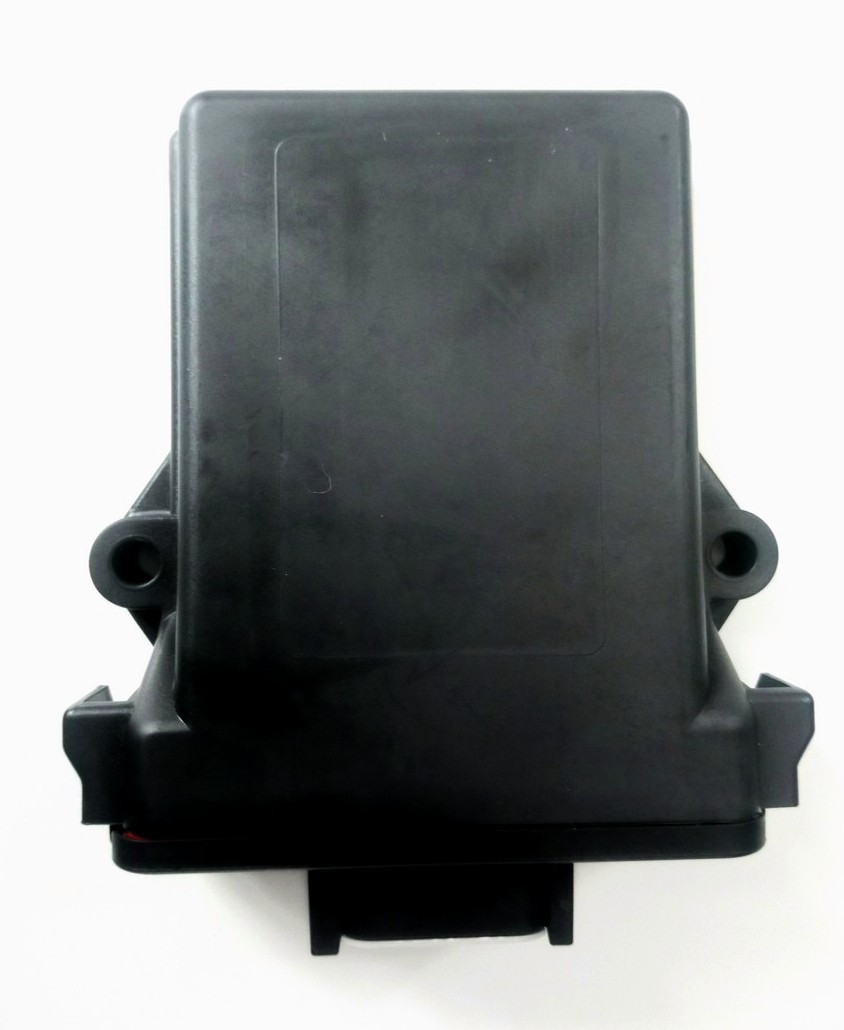

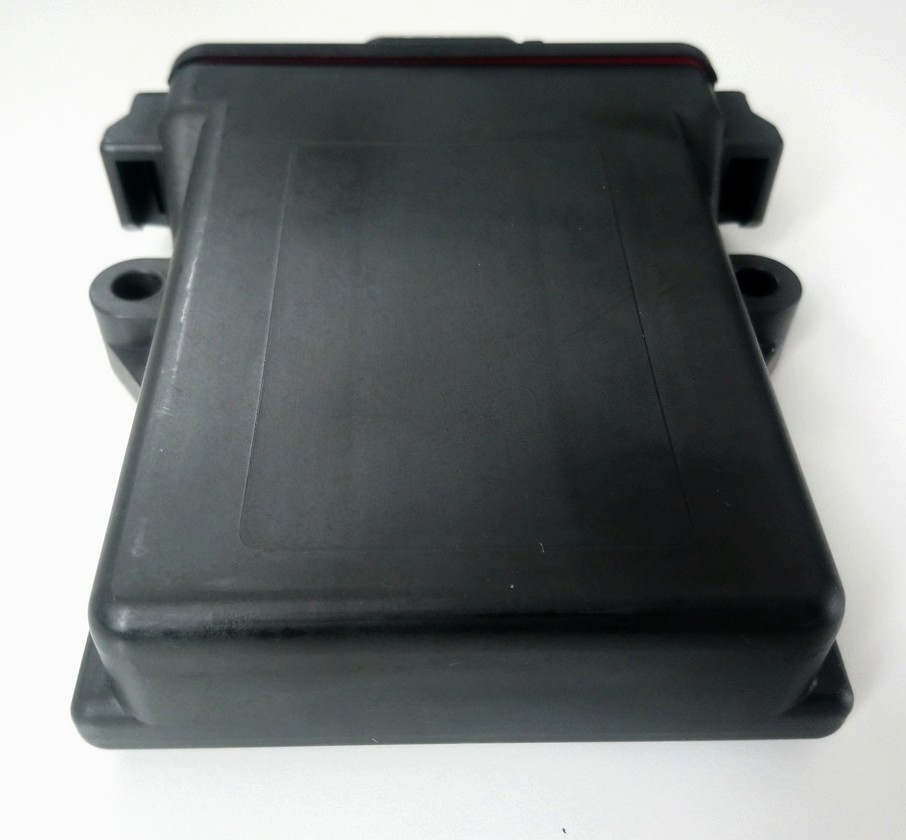

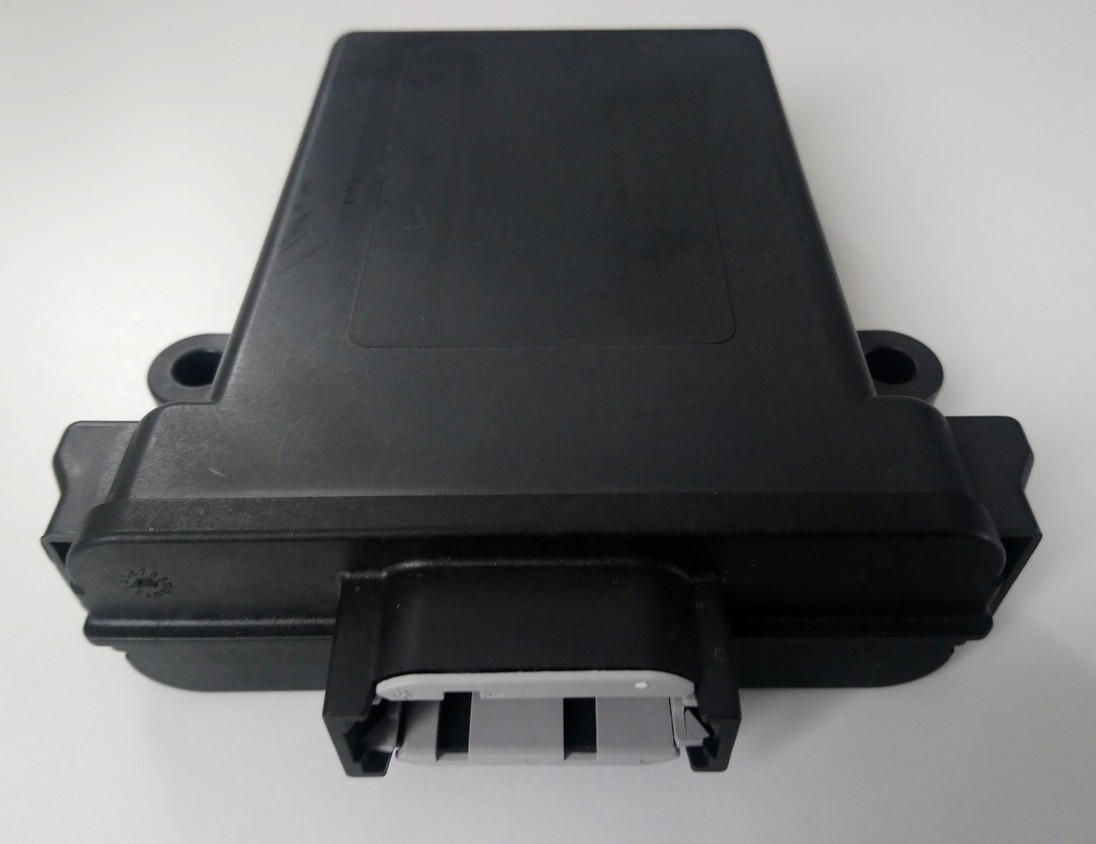

SKG417 PRODUCT DATA SHEET General Description THE CORE UNIT OF THE FLEET MANAGEMENT SKG417 is a flexible system designed to respond to different configuration scenarios. It acts as a gateway between Micro.sp ® technology and CANbus and it is configured as “addon” to on board telematics featuring tasks related to the data collection. Similarly to building monitoring gateway, the SKG417 can be capable to cover full range of application in truck monitoring and assist fleet management devices with full blend of data collected from Micro.sp ® sensors. The target application scenarios of this product are: ▪Addon Gateway (Master Gateway): data received from sensors are delivered through standard CANbus protocol ( J1939 compatible) with proprietary objects towards on board telematics. ▪Trailer System (Slave Gateway): sensors’ data are delivered on demand from Slave Gateway - by 2.4GHz link with proprietary protocol - to Master Gateway to be managed. Main Features MULTI-TECHNOLOGY GATEWAY EASY INSTALLATION INTERNAL ANTENNAS WATERPROOF IP69K –MICRO.SP ® –CANBUS PROTOCOL –2,4 GHZ RADIO Technical Data Dimensions135x120x35mm Weight240g MaterialPA 66 Black IP ProtectionIP69K Mounting Options2x Ø6 Bolts not supplied Operating Temperature Range-40 / +85°C Storage Temperature Range-40 / +85°C AntennaInternal CAN Bus specification2.0B CAN Bus ProtocolISO 11898-2 Radio TechnologyMicro.sp ® Technology 2,4 GHz Proprietary Technology Frequency Band Micro.sp ® technology 2,4 GHz radio 434 2400 - 2483,5 MHz MHz Bandwidth Micro.sp ® technology 2,4 GHz radio 300 80 KHz KHz Sensitivity for Micro.sp ® radio transmitter for 2,4 GHz radio transmitter -99 -100 dBm dBm Output Power for 2,4 GHz radio transmitter+1dBm Max Power Consumption1 W Input Voltage Nominal Max Range 12/24 6/32 Vdc Vdc CertificationRED Directive 2014/53/EU EN 300 220-2 EU EN 60950-1 Safety EN 60950-22 Outdoor FCC Part 15 FCC Disclaimer 1. The target application scenarios of this product are: 2. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 3. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ▪Reorient or relocate the receiving antenna. ▪Increase the separation between the equipment and receiver. ▪Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ▪Consult the dealer or an experienced radio/TV technician for help. 4. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 5. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and a human body. FCC ID: 2ASEL-SKG417 WWW.STE-INDUSTRIES.COM

35,01 117,60 118,80 117,71 133,45 7,39 101,60 Product Label Header for DTM06-12SA Connector Panel Mounting - 2x M6 Bolts NOTE: CODE UNITS PROJECT NAME DESCRIPTION REVISIONMODIFICATION DATESCALEPRINT LAYOUT SHEET APPROVED BY TITLE via Leonardo Bistolfi 49 - 20134 Milano Office: +39/26411765 Website: www.ste-industries.com Email: [email protected] Ste Industries srl has copyright and license of this drawing. All dimensions and drawing must be verified and approved by registered engineers and all relevant local authorities. All changes must be comunicated. SKG41 1/2 A3 mm1:1 CUSTOMER DESIGN BY MATERIAL ... Ste Industries SKG417ST1Overview Lorenzo OrlandiniFrancesco Pugliese 10000023-00 00... 28/10/2020 1 4 2 3 5 6 Pos.Q.tyCodeDescription 11403051DEUTSCH DTM Enclosure 2108825333-C-00PCA C Variant 32465075Round Spacer Nylon h 4mm 42566074Screw M3x14 52579111M3 Hexagonal Locking Nuts 61905220-00SKG417S1 Product Label 71FW00261-1.5Firmware SKG41 NOTE: CODE UNITS PROJECT NAME DESCRIPTION REVISIONMODIFICATION DATESCALEPRINT LAYOUT SHEET APPROVED BY TITLE via Leonardo Bistolfi 49 - 20134 Milano Office: +39/26411765 Website: www.ste-industries.com Email: [email protected] Ste Industries srl has copyright and license of this drawing. All dimensions and drawing must be verified and approved by registered engineers and all relevant local authorities. All changes must be comunicated. SKG41 2/2 A3 mm1:1 CUSTOMER DESIGN BY MATERIAL ... Ste Industries SKG417ST1Exploded View Lorenzo OrlandiniFrancesco Pugliese 10000023-00 00... 28/10/2020

This Test Report, when bearing the Nemko name and logo is only valid when issued by a Nemko laboratory, or by a laboratory having special agreement with Nemko. Test report 411757-3TRFWL Date of issue: January 15, 2021 Applicant: Ste Industries Srl Via Oslavia, 17/8D – 20134 Milano (MI) – Italy Product: Micro.sp TPMS gateway for vehicular use Model: SKG417ST1 FCC ID: 2ASEL-SKG417 Specifications: ♦ FCC 47 CFR Part 15 Subpart C, §15.249 Operation within the bands 902-928 MHz, 2400-2483.5 MHz, 5725-5875 MHZ, and 24.0-24.25 GHz. This test report may not be partially reproduced, except with the prior written permission of Nemko Spa The test report merely corresponds to the tested sample. The phase of sampling / collection of equipment under test is carried out by the customer. Report reference ID: 411757-3TRFWL Page B of CD Test location Company name Nemko Spa Address Via del Carroccio, 4 City Biassono Province MB Postal code 20853 Country Italy Telephone +39 039 220 12 01 Facsimile +39 039 220 12 21 Website www.nemko.com Site number FCC ID number 682159 (10 m semi anechoic chamber) Tested by (name, function and signature) P. Barbieri (project handler) Reviewed by (name, function and signature) D. Guarnone (verifier) Date January 15, 2021 Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contain in this report are within Nemko Spa’s ISO/IEC 17025 accreditation. Copyright notification Nemko Spa authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Spa accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Report reference ID: 411757-3TRFWL Page C of CD Table of contents Table of contents .......................................................................................................................................................................................................... 3 Section . Report summary ................................................................................................................................................................................. 4 1.1 Applicant and manufacturer info ............................................................................................................................................................................. 4 1.2 Test specifications .................................................................................................................................................................................................... 4 1.3 Test methods ............................................................................................................................................................................................................ 4 1.4 Statement of compliance ......................................................................................................................................................................................... 4 1.5 Exclusions ................................................................................................................................................................................................................. 4 1.6 Test report revision history ...................................................................................................................................................................................... 4 Section . Summary of test results ....................................................................................................................................................................... 5 2.1 FCC Part 15 Subpart C test results ............................................................................................................................................................................ 5 Section . Equipment under test (EUT) details ..................................................................................................................................................... 6 3.1 Sample information .................................................................................................................................................................................................. 6 3.2 EUT information ....................................................................................................................................................................................................... 6 3.3 Technical information .............................................................................................................................................................................................. 6 3.4 Product description and theory of operation ........................................................................................................................................................... 6 3.5 EUT exercise details .................................................................................................................................................................................................. 6 3.6 EUT setup diagram ................................................................................................................................................................................................... 6 3.7 EUT sub assemblies ....................................................................................................................…

Text truncated - open the document above for the full version.

ONE WORLDOURAPPROVAL Setup photos 411757-3TRFWL Date of issue: January 15, 2021 Applicant: STE Industries S.r.l. Via Oslavia, 17/8D – 20134 Milano (MI) – Italy Product name: Micro.sp TPMS gateway for vehicular use Model: SKG417 FCC ID: 2ASEL-SKG417 Report reference ID: 411757-3TRFWL Page 2 of 7 Section 1. Setup photos (§15.249) 1.1 Radiated emissions set-up for frequencies below 1 GHz Report reference ID: 411757-3TRFWL Page 3 of 7 Report reference ID: 411757-3TRFWL Page 4 of 7 Report reference ID: 411757-3TRFWL Page 5 of 7 1.2 Radiated emissions set-up for frequencies above 1 GHz Report reference ID: 411757-3TRFWL Page 6 of 7 Report reference ID: 411757-3TRFWL Page 7 of 7
