2ASEY-DREWMGAMING MOUSE

FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement.

Zhengzhou Fanshi Network Technology CO., Ltd. Agent Authorization Company: Zhengzhou Fanshi Network Technology CO., Ltd. Address: 606 Building G, No.10 Heguang St., Zhengdong New District, Zhengzhou, Henan, China Product Name: GAMING MOUSE Model Number(s): DRM-F35W, Falcon Wireless, Hawk Wireless, Eagle Wireless, Kite Wireless, Vulture Wireless, Harrier Wireless, Osprey Wireless, Owl Wireless, Owlet Wireless, Hawk, Eagle, Kite, Vulture, Harrier, Osprey, Owl, Owlet Product Description: GAMING MOUSE We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Mar. 18, 2021 Name: Lan Yu Title: Manager Company: Zhengzhou Fanshi Network Technology CO., Ltd.

Zhengzhou Fanshi Network Technology CO., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Mar. 18, 2021 Subject; Request for Confidentiality FCC ID: 2ASEY-DREWM To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Lan Yu Title: Manager

Model Difference Declaration To Whom It May Concern, We, Zhengzhou Fanshi Network Technology CO., Ltd.(GAMING MOUSE ) Trademark: ; Model Number:DRM-F35W, Falcon Wireless, Hawk Wireless, Eagle Wireless, Kite Wireless, Vulture Wireless, Harrier Wireless, Osprey Wireless, Owl Wireless, Owlet Wireless, Hawk, Eagle, Kite, Vulture, Harrier, Osprey, Owl, Owlet; All model’s the function, software and electric circuit are the same, only model named different for commercial purpose. Test sample model:DRM-F35W. Please contact me if you have any question. Name: Lan Yu Date: Mar. 18, 2021 Title: Manager Signature of applicant:

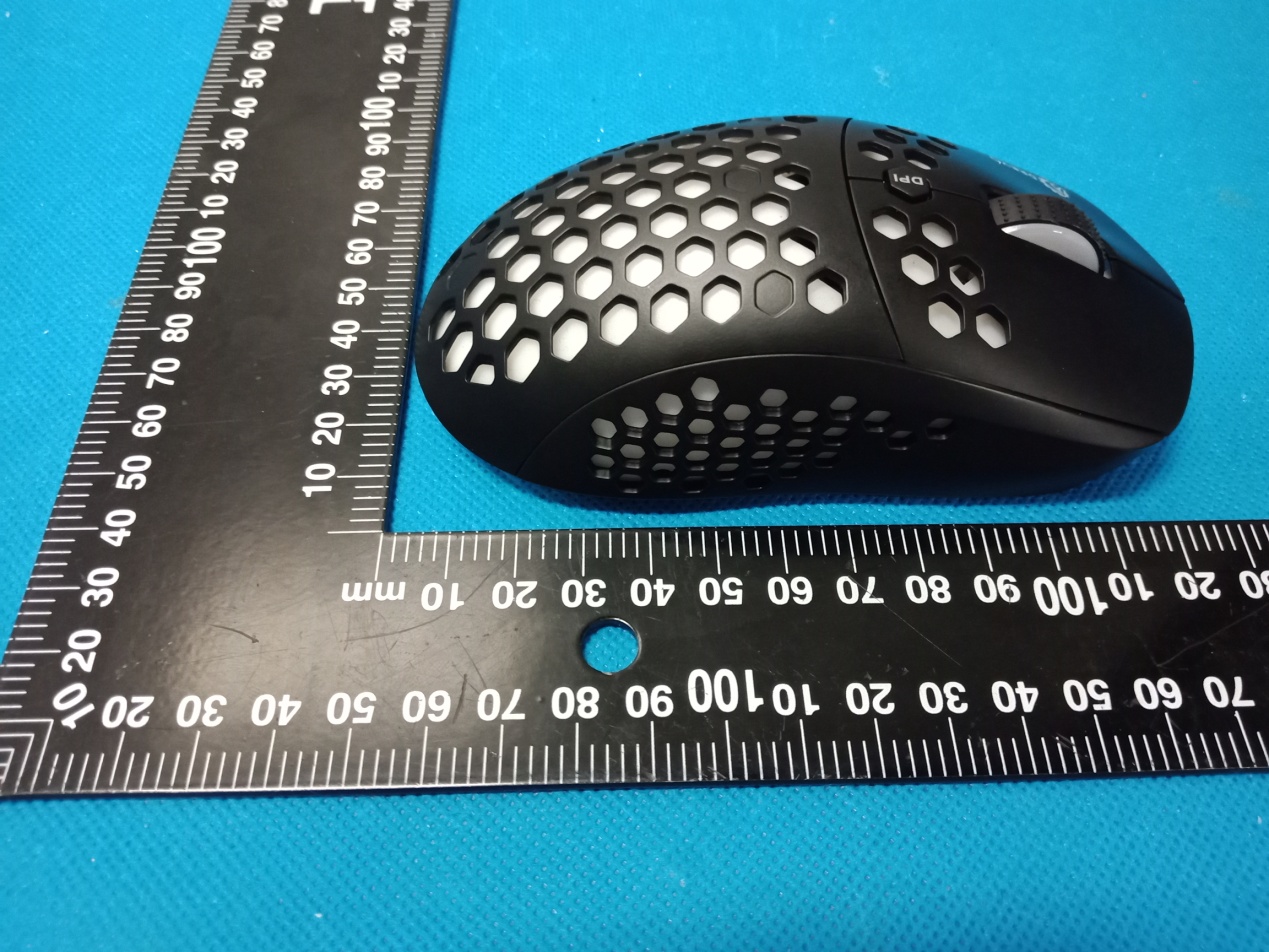

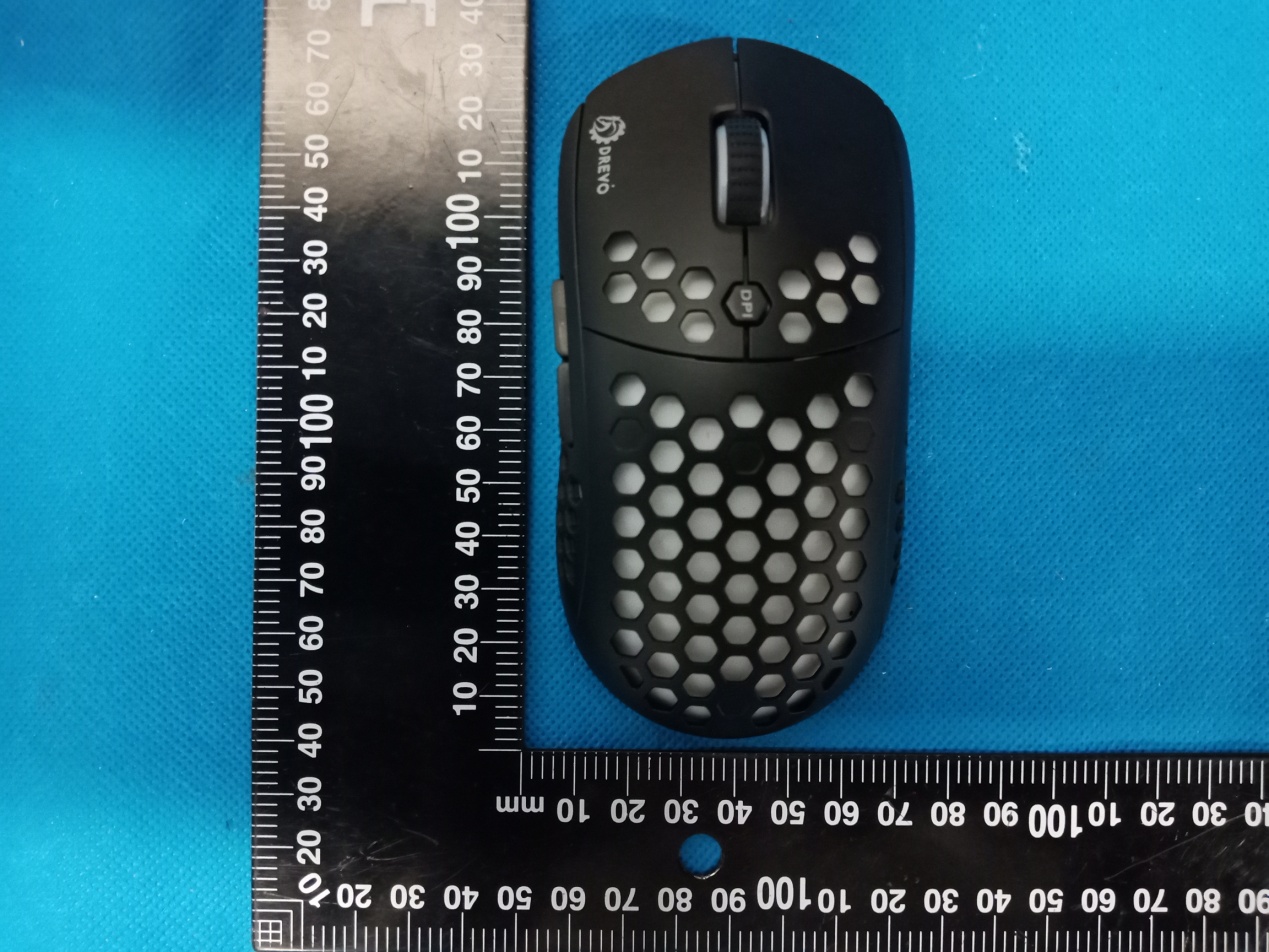

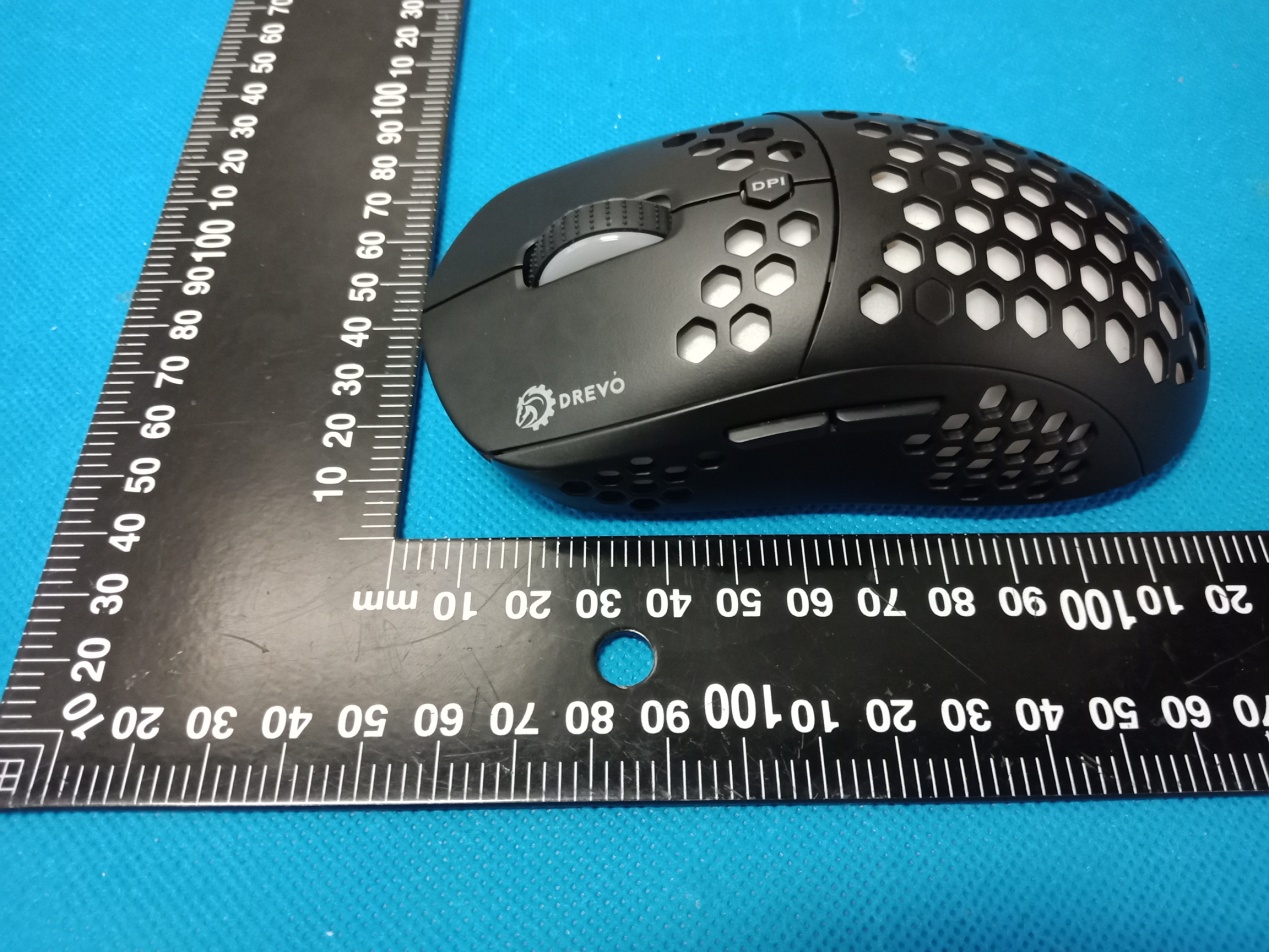

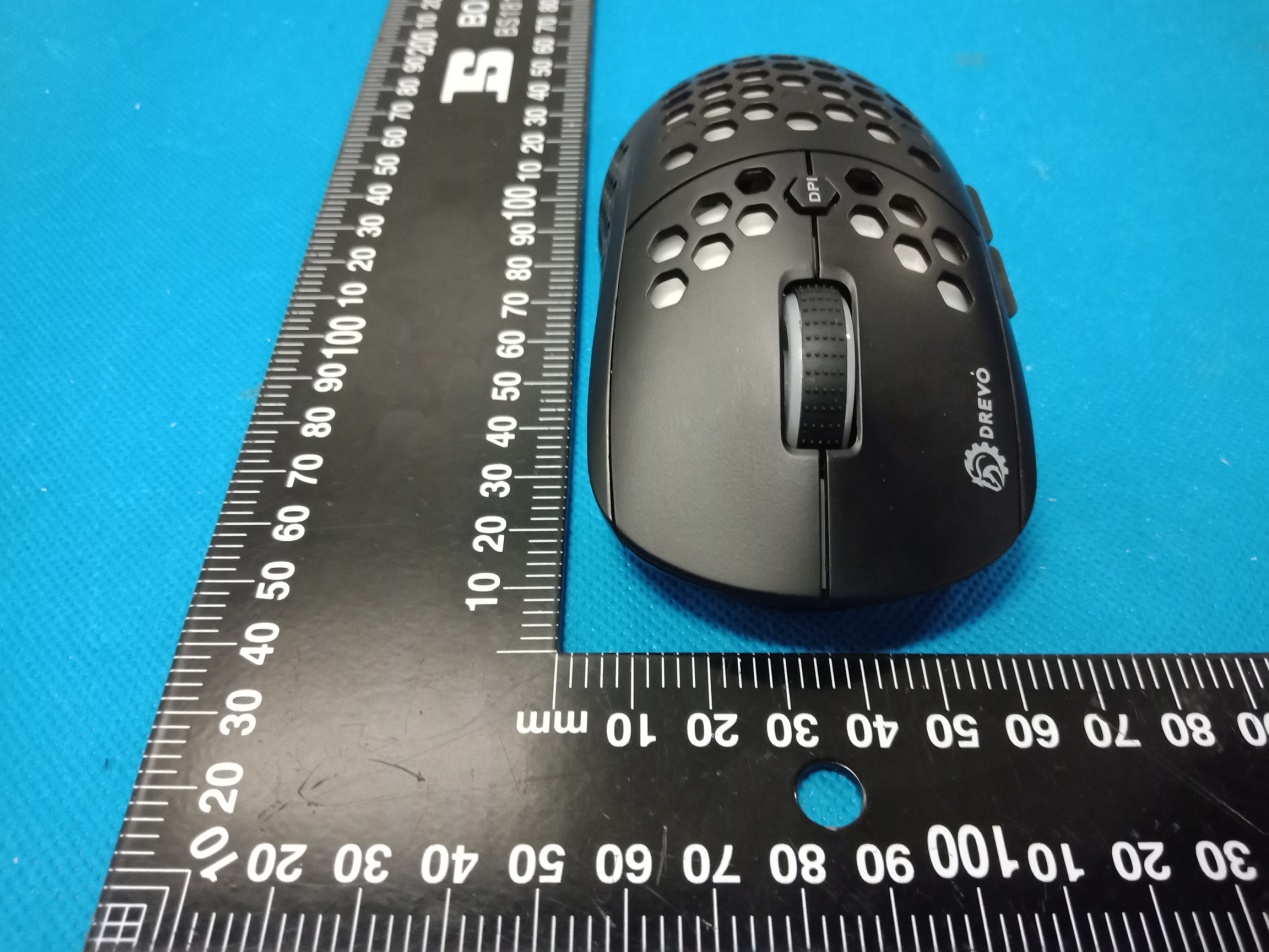

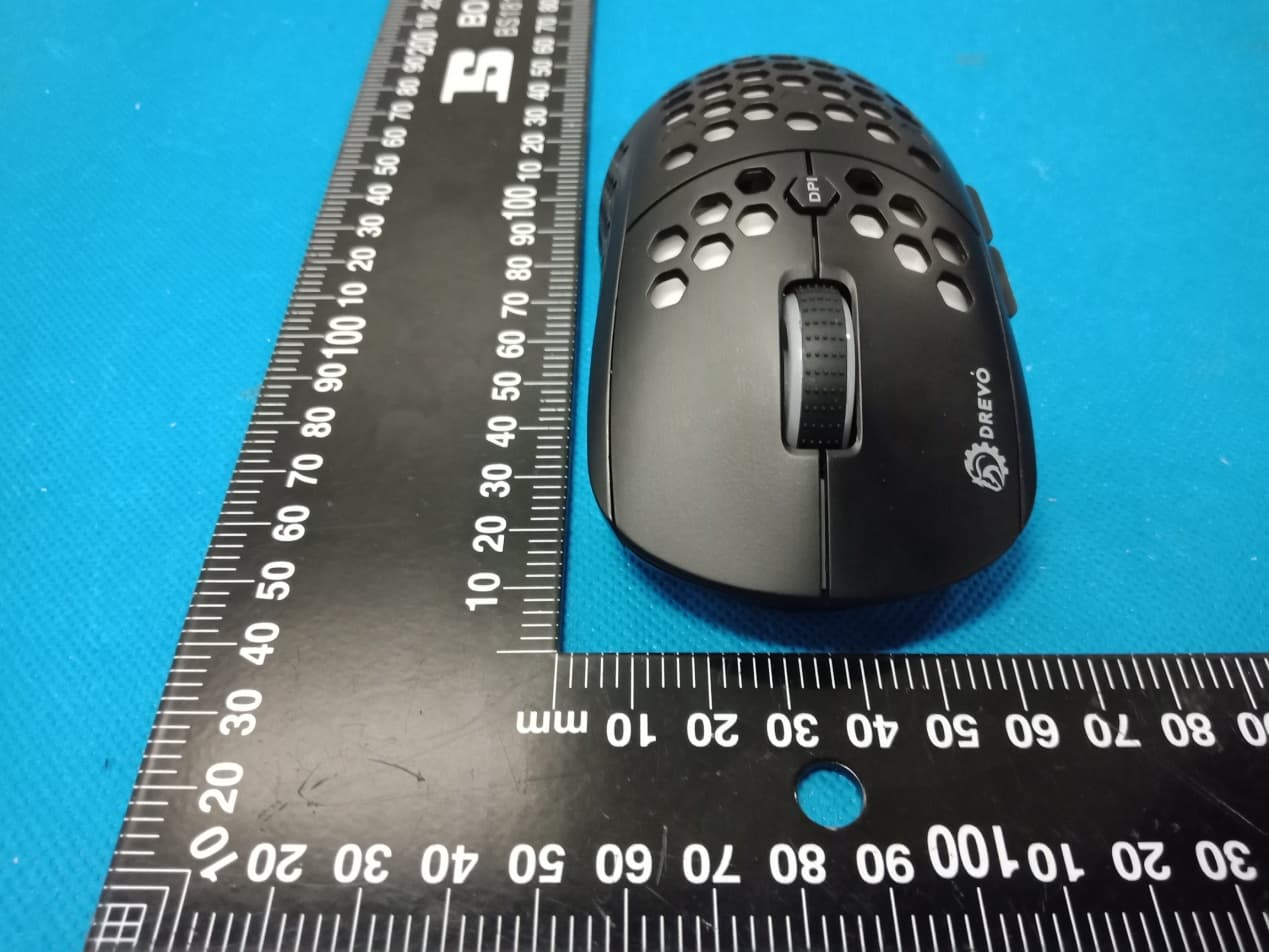

Annex A External Photos Report No.: HK2103090584‐E Page 1 of 4 Report No.: HK2103090584‐E Page 2 of 4 Report No.: HK2103090584‐E Page 3 of 4 Report No.: HK2103090584‐E Page 4 of 4

FCC ID LABEL: Label Location FCC ID: 2ASEY-DREWM

Annex B Internal Photo Report No.:HK2103090584-E Page 1 of 3 Antenna Report No.:HK2103090584-E Page 2 of 3 Report No.:HK2103090584-E Page 3 of 3

Page 1 of 28 Report No.: HK2103090584-E FCC TEST REPORT Test report On Behalf of Zhengzhou Fanshi Network Technology CO., Ltd. For GAMING MOUSE Model No.: DRM-F35W, Falcon Wireless, Hawk Wireless, Eagle Wireless, Kite Wireless, Vulture Wireless, Harrier Wireless, Osprey Wireless, Owl Wireless, Owlet Wireless, Hawk, Eagle, Kite, Vulture, Harrier, Osprey, Owl, Owlet FCC ID: 2ASEY-DREWM Prepared for : Zhengzhou Fanshi Network Technology CO., Ltd. 606 Building G, No.10 Heguang St., Zhengdong New District, Zhengzhou, Henan, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen, China Date of Test: Mar. 08, 2021 ~ Mar. 16, 2021 Date of Report: Mar. 16, 2021 Report Number: HK2103090584-E Page 2 of 28 Report No.: HK2103090584-E TEST RESULT CERTIFICATION Applicant’s name ................. : Zhengzhou Fanshi Network Technology CO., Ltd. Address ................................. : 606 Building G, No.10 Heguang St., Zhengdong New District, Zhengzhou, Henan, China Manufacture's Name ............ : Zhengzhou Fanshi Network Technology CO., Ltd. Address ................................. : 606 Building G, No.10 Heguang St., Zhengdong New District, Zhengzhou, Henan, China Product description Trade Mark: Product name ........................... : GAMING MOUSE Model and/or type reference : DRM-F35W, Falcon Wireless, Hawk Wireless, Eagle Wireless, Kite Wireless, Vulture Wireless, Harrier Wireless, Osprey Wireless, Owl Wireless, Owlet Wireless, Hawk, Eagle, Kite, Vulture, Harrier, Osprey, Owl, Owlet Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.249 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Mar. 08, 2021 ~ Mar. 16, 2021 Date of Issue ........................................... : Mar. 16, 2021 Test Result .............................................. : Pass Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou) Page 3 of 28 Report No.: HK2103090584-E Table of Contents Page 1 . Test Summary 5 1.1 . Test Procedures And Results 5 1.2 . Test Facility 5 1.3 . Measurement Uncertainty 5 2 . General Information 6 2.1 . General Description Of EUT 6 2.2 . Operation of EUT during testing 7 2.3 . Description Of Test Setup 8 2.4 . Measurement Instruments List 9 3 . Conducted Emissions Test 10 3.1. Conducted Power Line Emission Limit 10 3.2. Test Setup 10 3.3. Test Procedure 10 3.4. Test Result 11 4. Radiated Emission Test 13 4.1. Radiation Limit 13 4.2. Test Setup 13 4.3. Test Procedure 14 4.4. Test Result 14 5. Band Edge 20 5.1. Limits 20 5.2. Test Procedure 20 5.3. Test Result 21 6. Occupied Bandwidth Measurement 23 6.1. Test Setup 23 6.2. Test Procedure 23 6.3. Measurement Equipment Used 23 6.4. Test Result 23 7. Antenna Requirement 25 8. Photograph Of Test 26 9. Photos Of The EUT 28 Page 4 of 28 Report No.: HK2103090584-E ** Modifited History ** Revison Description Issued Data Remark Revsion 1.0 Initial Test Report Release Mar. 16, 2021 Jason Zhou Page 5 of 28 Report No.: HK2103090584-E 1. Test Summary 1.1. Test Procedures And Results DESCRIPTION OF TEST SECTION NUMBERRESULT CONDUCTED EMISSIONS TEST 15.207 COMPLIANT RADIATED EMISSION TEST 15.249(a) /15.209 COMPLIANT BAND EDGE 15.249(d)/15.205 COMPLIANT OCCUPIED BANDWIDTH MEASUREMENT 15.215（c） COMPLIANT ANTENNA REQUIREMENT 15.203 COMPLIANT 1.2. Test Facility Te s t F i r m ： Shenzhen HUAK Testing Technology Co., Ltd. Address ： 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen, China 1.3. Measurement Uncertainty Measurement Uncertainty Conducted Emission Expanded Uncertainty =2.71dB, k=2 Radiated emission expanded uncertainty(9kHz-30MHz) = 4.26dB, k=2 Radiated emission expanded uncertainty(30MHz-1000MHz)= 3.90dB, k=2 Radiated emission expanded uncertainty(Above 1GHz) = 4.28dB, k=2 Page 6 of 28 Report No.: HK2103090584-E 2. General Information 2.1. General Description Of EUT Equipment GAMING MOUSE Model Name DRM-F35W Serial Model Falcon Wireless, Hawk Wireless, Eagle Wireless, Kite Wireless, Vulture Wireless, Harrier Wireless, Osprey Wireless, Owl Wireless, Owlet Wireless, Hawk, Eagle, Kite, Vulture, Harrier, Osprey, Owl, Owlet Model Difference All model’s the function, software and electric circuit are the same, only with a product model named and product color different. Test sample model: DRM-F35W. FCC ID 2ASEY-DREWM Antenna Type PCB Antenna Antenna Gain 0dBi Operation frequency 2402-2480MHz Number of Channels 16CH Modulation Type GFSK Power Source DC 3.7V from battery or DC 5V from USB Power Rating DC 3.7V from battery or DC 5V from USB Page 7 of 28 Report No.: HK2103090584-E 2.1.1. Carrier Frequency of Channels Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 1 2402 7 2436 13 2463 2 2407 8 2439 14 2466 3 2414 9 2441 15 2473 4 2419 10 2445 16 2480 5 2422 11 2453 6 2426 12 2459 2.2. Operation of EUT during testing Operating Mode The mode is used: Transmitting mode Low Channel: 2402MHz Middle Channel: 2441MHz High Channel: 2480MHz Page 8 of 28 Report No.: HK2103090584-E 2.3. Description Of Test Setup Operation of EUT during conducted testing: AC Plug Operation of EUT during radiation below 1GHz testing: AC Plug Operation of EUT during radiation above 1GHz testing: PC information Model: ThinkPad E450 Input: 20V, 2.25A/3.25A The sample was placed (0.8m below 1GHz, 1.5m above 1GHz) above the ground plane of…

Text truncated - open the document above for the full version.

Radiated Emissions Conducted Emissions
