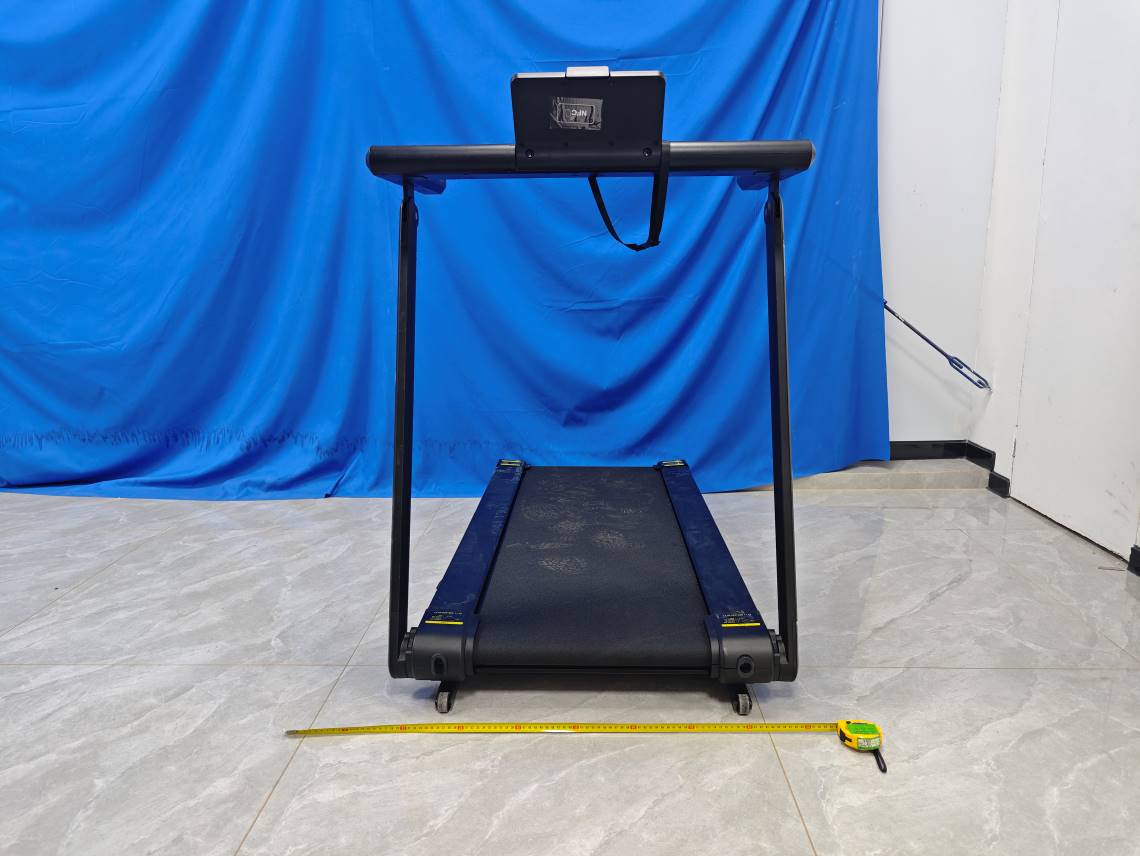

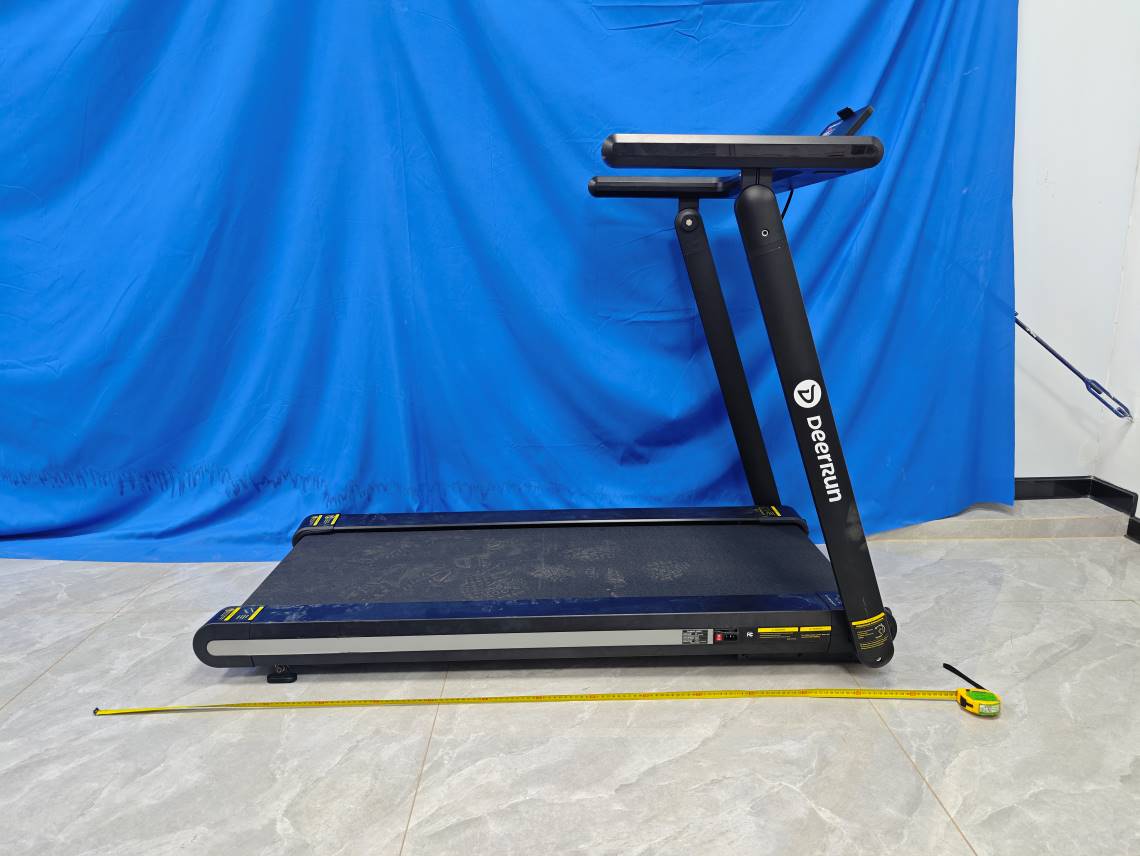

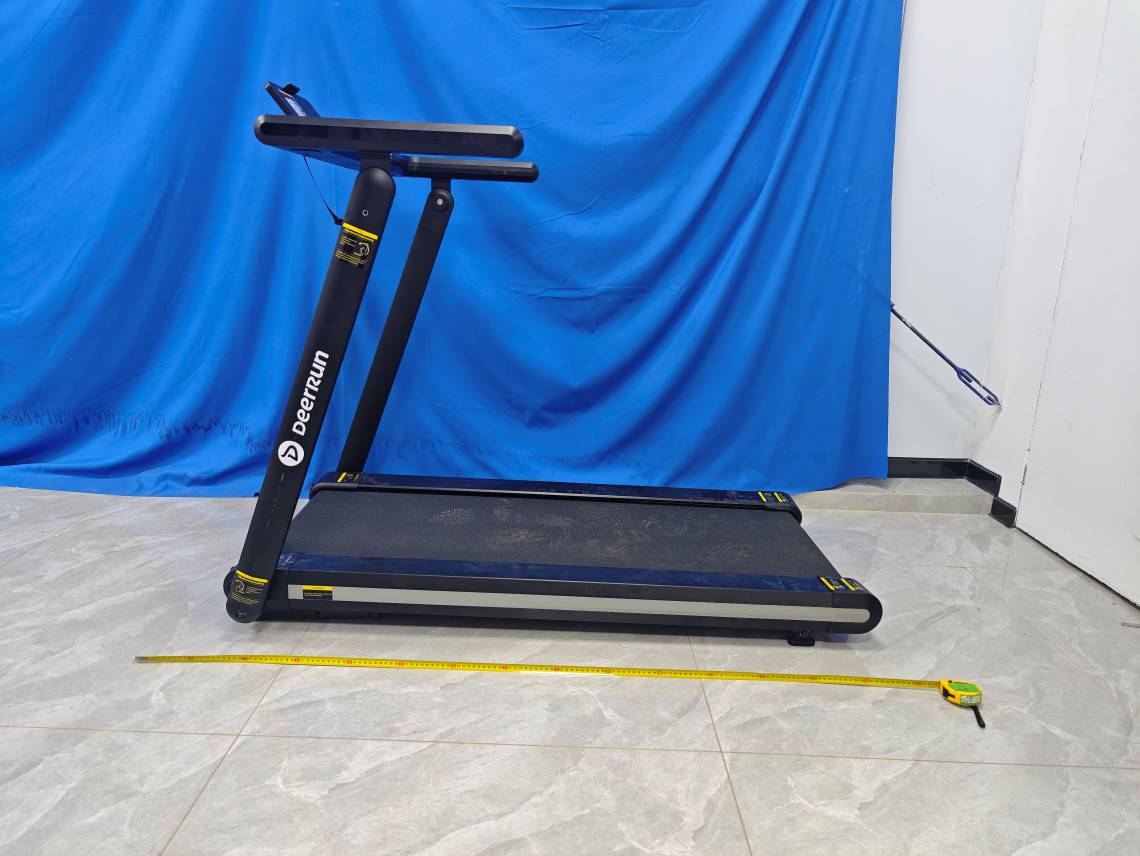

Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W27469E-RF-TSP Page 1 / 5 EUT SETUP PHOTOS CE - Front View CE –Near View Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W27469E-RF-TSP Page 2 / 5 RE (9kHz~30MHz) RE – Front View (30MHz~1GHz) Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W27469E-RF-TSP Page 3 / 5 RE – Back View (30MHz~1GHz) RE – Front View (1 GHz~18 GHz) Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W27469E-RF-TSP Page 4 / 5 RE – Back View (1 GHz~18 GHz) RE – Front View (Above 18 GHz) Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W27469E-RF-TSP Page 5 / 5 RE – Back View (Above 18 GHz) RF Conducted Test

FCC PART 15.247 RSS-GEN ISSUE 5, FEBRUARY 2021 AMENDMENT2 RSS-247 ISSUE 4, JULY 24, 2025 TEST REPORT For Xiamen Renhe Sports Equipment Co., Ltd FCC: 4F 1129 Jicheng Road Industrial Concentration Zone Tongan, Xiamen city Fujian Province, China IC: 4/F, 1129, Jicheng Road, Industrial Concentration Zone, Tong'an, Xiamen, Fujian 361100 China FCC ID: 2ASII-AP01 IC: 34495-AP01 Report Type: Original Report Product Name: TREADMILL Re port Number: 2507W27469E-RF-01 Re port Date: 2025-10-30 Reviewed By: Ash Lin Approved By: Miles Chen Prepared By: Bay Area Compliance Laboratories Corp. (Xiamen) Unit 102, No. 902 Meifeng South Road, Binhai West Avenue, Science and Technology Innovation Park, Torch High tech Zone XiaMen Tel: +86-592-3200111 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W27469E-RF-01 FCC Part 15.247; RSS-GEN ISSUE 5; RSS-247 ISSUE 4 Page 2 of 58 TABLE OF CONTENTS REPORT REVISION HISTORY ................................................................................................................................ 4 GENERAL INFORMATION ....................................................................................................................................... 5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 5 OBJECTIVE ................................................................................................................................................................... 5 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 6 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 TEST MODE AND VOLTAGE .......................................................................................................................................... 7 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 7 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 ★EUT EXERCISE SOFTWARE ...................................................................................................................................... 8 DUTY CYCLE ............................................................................................................................................................... 8 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 9 EXTERNAL I/O CABLE ................................................................................................................................................. 9 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 9 SUMMARY OF TEST RESULTS ............................................................................................................................. 11 TEST EQUIPMENT LIST ......................................................................................................................................... 12 FCC §15.203 & RSS-Gen Clause 6.8 - ANTENNA REQUIREMENT ................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 13 FCC §15.207 (a) & RSS-Gen Clause 8.8 – AC LINE CONDUCTED EMISSIONS .............................................. 14 APPLICABLE STANDARD ............................................................................................................................................ 14 EUT SETUP ................................................................................................................................................................ 14 EMI TEST RECEIVER SETUP ....................................................................................................................................... 14 TEST PROCEDURE ...................................................................................................................................................... 14 RESULT &MARGIN CALCULATION ............................................................................................................................. 15 TEST DATA ................................................................................................................................................................ 15 FCC §15.209, §15.205 & §15.247(d) & RSS-247 ISSUE 4 Clause 6.6, RSS-GEN ISSUE5 CLAUSE 8.10 - SPURIOUS EMISSIONS ............................................................................................................................................ 18 APPLICABLE STANDARD ............................................................................................................................................ 18 EUT SETUP ................................................................................................................................................................ 18 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 20 TEST PROCEDURE ..............................................................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W27469E-RF-02 FCC Part 15.247; RSS-GEN ISSUE 5; RSS-247 ISSUE 4 Page 103 of 115 802.11n20_2412MHz 802.11n20_2437MHz 802.11n20_2462MHz 802.11n40_2422MHz 802.11n40_2437MHz 802.11n40_2452MHz Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W27469E-RF-02 FCC Part 15.247; RSS-GEN ISSUE 5; RSS-247 ISSUE 4 Page 104 of 115 FCC §15.247(B) (3) & RSS-247 ISSUE 4 CLAUSE 6.3.2 – MAXIMUM CONDUCTED OUTPUT POWER Applicable Standard According to FCC §15.247(b) (3), for systems using digital modulation in the 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz bands: 1 Watt. As an alternative to a peak power measurement, compliance with the one Watt limit can be based on a measurement of the maximum conducted output power. Maximum Conducted Output Power is defined as the total transmit power delivered to all antennas and antenna elements averaged across all symbols in the signaling alphabet when the transmitter is operating at its maximum power control level. Power must be summed across all antennas and antenna elements. The average must not include any time intervals during which the transmitter is off or is transmitting at a reduced power level. If multiple modes of operation are possible (e.g., alternative modulation methods), the maximum conducted output power is the highest total transmit power occurring in any mode. According to RSS-247 Clause 6.3.2, for DTS operating in the band 2400-2483.5 MHz, the maximum peak conducted output power shall not exceed 1W, and the e.i.r.p. shall not exceed 4 W, except as provided in section 6.5 a) and b). As an alternative to a peak power measurement, compliance can be based on a measurement of the maximum conducted output power. EUT Setup Note: A short RF cable with low cable loss connected to the EUT antenna port. The insert loss of this RF cable was offset into the setting of test equipment: Offset = Insert loss of RF cable ★ The Insert loss was declared by manufacturer. Test Procedure According to ANSI C63.10-2020 + Cor.1-2023 ▲ Section 11.9.1.1 the DTS bandwidth is available to perform the measurement: a) Set the RBW ≥ DTS bandwidth. b) Set VBW ≥ [3 × RBW]. c) Set span ≥ [3 × RBW]. d) Sweep time = No faster than coupled (auto) time. e) Detector = peak. f) Trace mode = max-hold. g) Allow trace to fully stabilize. h) Use peak marker function to determine the peak amplitude level. Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W27469E-RF-02 FCC Part 15.247; RSS-GEN ISSUE 5; RSS-247 ISSUE 4 Page 105 of 115 Test Data Test Mode: Transmitting Test Engineer: Braylon Ma Test Date: 2025-08-11 Test Voltage: AC 120V/60Hz Test Result: Compliance Environment: Temp.: 25.3°C Humi.: 61% Atm :100.3kPa Test Modes Test Frequency (MHz) Maximum Peak Conducted Output Power(dBm) Limit (dBm) 802.11b 2412 17.01 30 2437 17.12 30 2462 16.65 30 802.11g 2412 21.33 30 2437 21.31 30 2462 20.83 30 802.11n ht20 2412 21.20 30 2437 21.16 30 2462 20.72 30 802.11n ht40 2422 21.14 30 2437 21.12 30 2452 20.82 30 Antenna gain(dBi): 0 Max.EIRP(dBm): 21.33 EIRP Limit for RSS-247:36 dBm Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W27469E-RF-02 FCC Part 15.247; RSS-GEN ISSUE 5; RSS-247 ISSUE 4 Page 106 of 115 FCC §15.247(d) & RSS-247 ISSUE 4 Clause 6.6 – 100 kHz BANDWIDTH OF FREQUENCY BAND EDGE Applicable Standard FCC §15.247 (d) In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter complies with the conducted power limits based on the use of RMS averaging over a time interval, as permitted under paragraph (b)(3) of this section, the attenuation required under this paragraph shall be 30 dB instead of 20 dB. Attenuation below the general limits specified in §15.209(a) is not required. In addition, radiated emissions which fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated emission limits specified in §15.209(a) (see §15.205(c)). RSS-247 Issue 4 Clause 6.6 In any 100 kHz bandwidth outside the frequency band in which the spread spectrum device, digitally modulated device, or hybrid system is operating, the RF power that is produced shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power – based on either an RF conducted or a radiated measurement – provided that the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter complies with the conducted power limits based on the use of root-mean-square averaging over a time interval, as permitted under section 6.3.2, the attenuation required shall be 30 dB instead of 20 dB. Attenuation below the general field strength limits specified in RSS- Gen is not required. EUT Setup Note: A short RF cable with low cable loss connected to the EUT antenna port. The insert loss of this RF cable was offset into the setting of test equipment: Offset = Insert loss of RF cable ★ The Insert loss was declared by manufacturer. Test Procedure According to ANSI C63.10-2020 + Cor.1-2023 ▲ Section 11.11 a) Set the center frequency and span to encompass frequency range to be measured. Note that the frequency range might need to be divided into multiple frequency ranges to retain frequency resolution. NOTE—the number of points can also be increased for large spans to retain frequency resolution b) Set the RBW = 100 kHz. c) Set the VBW ≥ [3 × RBW]. d) Detector = peak. e) Sweep time = No faster than coupled (auto) time. f) Trace mode = max-hold. g) Allow trace to fully stabilize. h) Use the p…

Text truncated - open the document above for the full version.

FCC PART 15.247 RSS-GEN ISSUE 5, FEBRUARY 2021 AMENDMENT2 RSS-247 ISSUE 4, JULY 24, 2025 TEST REPORT For Xiamen Renhe Sports Equipment Co., Ltd FCC: 4F 1129 Jicheng Road Industrial Concentration Zone Tongan, Xiamen city Fujian Province, China IC: 4/F, 1129, Jicheng Road, Industrial Concentration Zone, Tong'an, Xiamen, Fujian 361100 China FCC ID: 2ASII-AP01 IC: 34495-AP01 Report Type: Original Report Product Name: TREADMILL Re port Number: 2507W27469E-RF-02 Re port Date: 2025-10-31 Reviewed By: Ash Lin Approved By: Miles Chen Prepared By: Bay Area Compliance Laboratories Corp. (Xiamen) Unit 102, No. 902 Meifeng South Road, Binhai West Avenue, Science and Technology Innovation Park, Torch High tech Zone XiaMen Tel: +86-592-3200111 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W27469E-RF-02 FCC Part 15.247; RSS-GEN ISSUE 5; RSS-247 ISSUE 4 Page 2 of 115 TABLE OF CONTENTS REPORT REVISION HISTORY ................................................................................................................................ 4 GENERAL INFORMATION ....................................................................................................................................... 5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 5 OBJECTIVE ................................................................................................................................................................... 5 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 6 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 TEST MODE AND VOLTAGE .......................................................................................................................................... 7 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 7 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 ★EUT EXERCISE SOFTWARE ...................................................................................................................................... 8 DUTY CYCLE ............................................................................................................................................................... 9 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................. 10 EXTERNAL I/O CABLE ............................................................................................................................................... 10 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 10 SUMMARY OF TEST RESULTS ............................................................................................................................. 12 TEST EQUIPMENT LIST ......................................................................................................................................... 13 FCC §15.203 & RSS-Gen Clause 6.8 - ANTENNA REQUIREMENT ................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 14 FCC §15.207 (a) & RSS-Gen Clause 8.8 – AC LINE CONDUCTED EMISSIONS .............................................. 15 APPLICABLE STANDARD ............................................................................................................................................ 15 EUT SETUP ................................................................................................................................................................ 15 EMI TEST RECEIVER SETUP ....................................................................................................................................... 15 TEST PROCEDURE ...................................................................................................................................................... 15 RESULT &MARGIN CALCULATION ............................................................................................................................. 16 TEST DATA ................................................................................................................................................................ 16 FCC §15.209, §15.205 & §15.247(d) & RSS-247 ISSUE 4 Clause 6.6, RSS-GEN ISSUE5 CLAUSE 8.10 - SPURIOUS EMISSIONS ............................................................................................................................................ 19 APPLICABLE STANDARD ............................................................................................................................................ 19 EUT SETUP ................................................................................................................................................................ 19 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 21 TEST PROCEDURE ................................................................…

Text truncated - open the document above for the full version.

1 1.Antennadescribe; Antenna plate PCB antenna Make name/model name C-8601 Antenna gain 0dBi Frequency range 2.4GHZ—2.484GHZ Connector type Direct Manufacture 2.External view drawing; Picture of antenna Antenna Report Xiamen Renhe Sports Equipment Co., Ltd 4/F, 1129, Jicheng Road, Industrial Concentration Zone, Tong'an, Xiamen, Fujian 361100 China unit（ mm） 2 3 4

RF EXPOSURE REPORT For Xiamen Renhe Sports Equipment Co., Ltd 4F 1129 Jicheng Road Industrial Concentration Zone Tongan, Xiamen city Fujian Province, China FCC ID: 2ASII-AP01 Report Type: Original Report Product Name: TREADMILL Re port Number: 2507W27469E-RF-03 Re port Date: 2025-10-31 Reviewed By: Ash Lin Approved By: Miles Chen Prepared By: Bay Area Compliance Laboratories Corp. (Xiamen) Unit 102, No. 902 Meifeng South Road, Binhai West Avenue, Science and Technology Innovation Park, Torch High tech Zone XiaMen Tel: +86-592-3200111 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W27469E-RF-03 FCC §1.1307(b)(1) & §2.1091 Page 2 of 7 TABLE OF CONTENTS REPORT REVISION HISTORY................................................................................................................................. 3 GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 FCC§15.247 (i), §1.1307(b)(1) & §2.1091 – MAXIMUM PERMISSIBLE EXPOSURE (MPE) ............................ 5 CALCULATED DATA: .................................................................................................................................................... 5 APPENDIX A - EUT PHOTOGRAPHS ..................................................................................................................... 6 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W27469E-RF-03 FCC §1.1307(b)(1) & §2.1091 Page 3 of 7 REPORT REVISION HISTORY Number of Revisions Report No. Version Issue Date Description 0 2507W27469E-RF-03 R1V1 2025-10-31 Initial Release Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W27469E-RF-03 FCC §1.1307(b)(1) & §2.1091 Page 4 of 7 GENERAL INFORMATION Product Description for Equipment under Test (EUT) Applicant: Xiamen Renhe Sports Equipment Co., Ltd Product Name: TREADMILL Tested Model: AP01 Multiple Model(s): R3, X20 Trade Mark: N/A Power Supply: AC 120V/60Hz Maximum Peak Conducted Output Power: BLE: 5.02dBm 2.4G WIFI: 21.33 dBm Operating Band/Frequency: BLE: 2402-2480MHz 2.4G WIFI: 802.11b/g/n20: 2412-2462 MHz; 802.11n40: 2422-2452 MHz Modulation Type: BLE: GFSK 2.4G WIFI: 802.11b: DSSS; 802.11g/n: OFDM Antenna Type: PCB antenna ★Maximum Antenna Gain: 0 dBi EUT Received Status: Good Note: 1. The Maximum Antenna Gain was declared by manufacturer. 2. The test model is identify with the series model except for the model name, please refer to declaration letter for more detail. Test Facility The Test site used by Bay Area Compliance Laboratories Corp. (Xiamen) to collect test data is located on the Unit 102, No. 902 Meifeng South Road, Binhai West Avenue, Science and Technology Innovation Park, Torch High tech Zone XiaMen. Bay Area Compliance Laboratories Corp. (Xiamen) Lab is accredited to ISO/IEC 17025 by A2LA (Certificate Number: 7134.01) and the lab has been recognized as the FCC accredited lab under the KDB 974614 D01, the FCC Designation No. : CN1384. Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W27469E-RF-03 FCC §1.1307(b)(1) & §2.1091 Page 5 of 7 FCC§15.247 (i), §1.1307(b)(1) & §2.1091 – MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to FCC §1.1307(b)(1) & §2.1091, systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess o…
