2ASIJIABLEPTTBT DUAL PTT / BT PTT

IASUS_BTPTT_OPERATINGINSTRUCTIONS_v1_2020 1 AVAILABLE IN 2 CONFIGURATIONS: BUTTON+FINGER PTT AND BUTTON PTT b l e i n - g l o v e p t t / w i r e l e s s p o c p t t MODEL NUMBER: IAIG-PTT / IABTB-PTT Congratulations on purchasing the IASUS Concepts Bluetooth PTT! This wireless Bluetooth Low Energy PTT gives you the convenience and flexibility to initiate audio transmissions in ESChat and Zello on iPhone and Android operating systems without having to reach for your headset or smartphone. You must register your product to be eligible for warranty service.* To register online, please visit the IASUS Concepts website at: * To receive warranty service, you will need to provide a copy of your dated sales receipt to confirm warranty status. Please retain the original copy for your records. IASUS_BTPTT_OPERATINGINSTRUCTIONS_v1_2020 2 ABOUT THE IASUS WIRELESS PTT WARNINGS The BLE In-Glove PTT and Wireless POC PTT only work in ESChat and Zello for initiating audio transmissions and will not work for any other functions (ie. Music playback, answer/end calls, etc). They will keep working as long as an active ESChat or Zello chat session is running in your smartphone’s background. Any changes or modifications to this product not expressly approved by IASUS Concepts Ltd. could void the 1-year limited warranty. Should there be any questions or concerns about modifications, please contact IASUS. IASUS_BTPTT_OPERATINGINSTRUCTIONS_v1_2020 3 TABLE OF CONTENTS PARTS & CONTROLS REFERENCE ....................................................4 CHARGING .........................................................................................5 USING THE PTT BUTTON..................................................................6 LED INDICATOR ................................................................................5 USING THE FINGER PTT ...................................................................7 USING THE PTT WITH ONE APP ONLY ...........................................9 FAQ ..................................................................................................10 USING THE PTT WITH BOTH APPS ..................................................9 FCC COMPLIANCE STATEMENT ...................................................11 1-YEAR LIMITED WARRANTY .......................................................12 CONNECTING THE PTT TO YOUR SMARTPHONE .........................8 IASUS_BTPTT_OPERATINGINSTRUCTIONS_v1_2020 4 A E E I C G H B D F A .......... PTT Button B .......... LED indicator C .......... Velcro Strap D .......... Micro USB Charging Port E .......... Strap Loops F .......... Charging Cable Only available for BLE In-Glove PTT: G .......... Coiled Cable H .......... Finger PTT I ............ Finger Sleeve PARTS & CONTROLS REFERENCE IASUS_BTPTT_OPERATINGINSTRUCTIONS_v1_2020 5 The PTT component has a built-in non-removable lithium-ion battery. It can be charged using the micro-USB port on the backside by connecting the included charging cable to a computer’s USB port or a phone’s USB power source.* The PTT can be fully charged in 70 minutes. As the module uses very little power, a single charge enables long term use before charging is needed. *To prevent damage and shortening the life of the battery, we recommend a USB power source that does not exceed 1.0A. Red LED = ChargingGreen LED = Confirm PTT Button Press The PTT Button (A) has a LED indicator (B) embedded inside which lights up for indicating the following: CHARGING LED INDICATOR CHARGINGPRESSING THE PTT BUTTON IASUS_BTPTT_OPERATINGINSTRUCTIONS_v1_2020 6 It can also be used to wrap around an object such as a motorcycle handlebar or steering wheel. The strap ends can be cut for a custom fit to the selected mounting location. The BLE In-Glove PTT/Bluetooth POC PTT comes with a velcro strap for wrapping around your wrist. POSITION ON STEERING WHEELPOSITION ON WRIST USING THE PTT BUTTON IASUS_BTPTT_OPERATINGINSTRUCTIONS_v1_2020 7 These are a couple of examples of ways to wear and activate the Finger PTT: USING THE FINGER PTT The wired Finger PTT Button allows for a small button to be placed and activated by your finger tips, making it ideal for applications requiring the use of both hands or when a glove is used. To wear the Finger PTT Button, slip the included Neoprene sleeve onto your finger and slide the Finger PTT in between to be held in place. 1 2 3 1. On the side of your index finger, activated by your thumb. 2. On the underside of a finger, activated by pressing it against a surface such as the grip of a motorcycle handlebar. ava i l a b l e o n ly w i t h b l e i n - g lov e p t t IASUS_BTPTT_OPERATINGINSTRUCTIONS_v1_2020 8 CONNECTING THE PTT TO YOUR SMARTPHONE The IASUS Bluetooth PTT accessories are designed specifically for use with ESChat and Zello apps. To connect the Bluetooth PTT to each app, perform the following: 1. Ensure Bluetooth is turned on in your phone settings 2. In ESChat, click on ••• MORE 3. Select Settings 4. Select PTT Button 5. Under CONNECTION TYPE, select Bluetooth LE 6. Under BLUETOOTH DEVICES , select IASUS IG-PTT 7. The BT PTT setup is complete and ready to be used in ESChat c o n n e c t w i t h 1. Ensure Bluetooth is turned on in your phone settings 2. In Zello, select to bring up menu 3. Select 4. Select 5. Select Add New Device 6. When instructed, press the IASUS PTT button once -› IASUS IG-PTT will appear under OTHER BUTTONS 7. Select IASUS IG-PTT -› The device will be added under MY BUTTONS 8. The BT PTT setup is complete and ready to be used in Zello c o n n e c t w i t h NOTE: The IASUS Bluetooth PTT can be customized for PTT Activation Method (Hold to Talk or Toggle), and Button Mapping (map to a Contact or Channel). For more information on using the IASUS Bluetooth PTT with Zello, please refer to the Zello documentation. NOTE: For more information on using the IASUS Bluetooth PTT with ESChat, please refer to the ESChat documentation. IASUS_BTPTT_OPERATINGINSTRUCTIONS_v1_2020 9 USING THE …

Text truncated - open the document above for the full version.

Iasus Concepts Limited Flat 907A, 9/Fl., Shiu Fat Industrial Building 139-141 Wai Yip St., Kwun Tong Hong Kong Declaration letter Dear Sir, We, __ Iasus Concepts Limited _declare product: _ BT DUAL PTT / BT PTT _with the model numbers IAIG-PTT, IABTB-PTT _, there is no electrical change has been made to the equipment that alters the compliance characteristics. Both of models are the same except for model number and appearance. Please kindly handle on the project. FCC ID: 2ASIJIABLEPTT Thank you! Sincerely, Signature Carl Foo Iasus Concepts Limited

C5266091_X8_Ed.1 1/1 Letter of Authorization Company: Iasus Concepts Limited Address: Flat 907A, 9/Fl., Shiu Fat Industrial Building 139-141 Wai Yip St., Kwun Tong Hong Kong Product Name: BT DUAL PTT / BT PTT Model Number: IAIG-PTT, IABTB-PTT FCC Identifier: 2ASIJIABLEPTT We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Carl Foo Date: 3/1/2022 Title: N/A Signature of applicant:

C5266091_X10_Ed.1 1/1 Iasus Concepts Limited Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 3/1/2022 Subject: Request for Confidentiality FCC ID: 2ASIJIABLEPTT To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Carl Foo Title: N/A

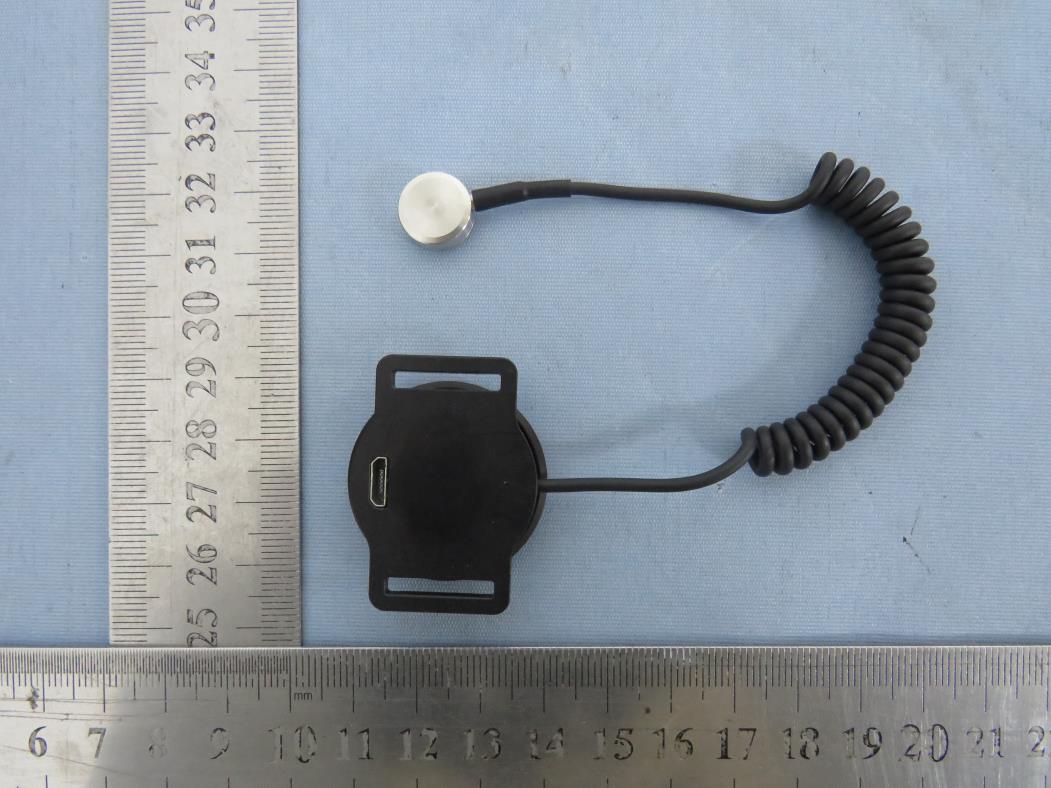

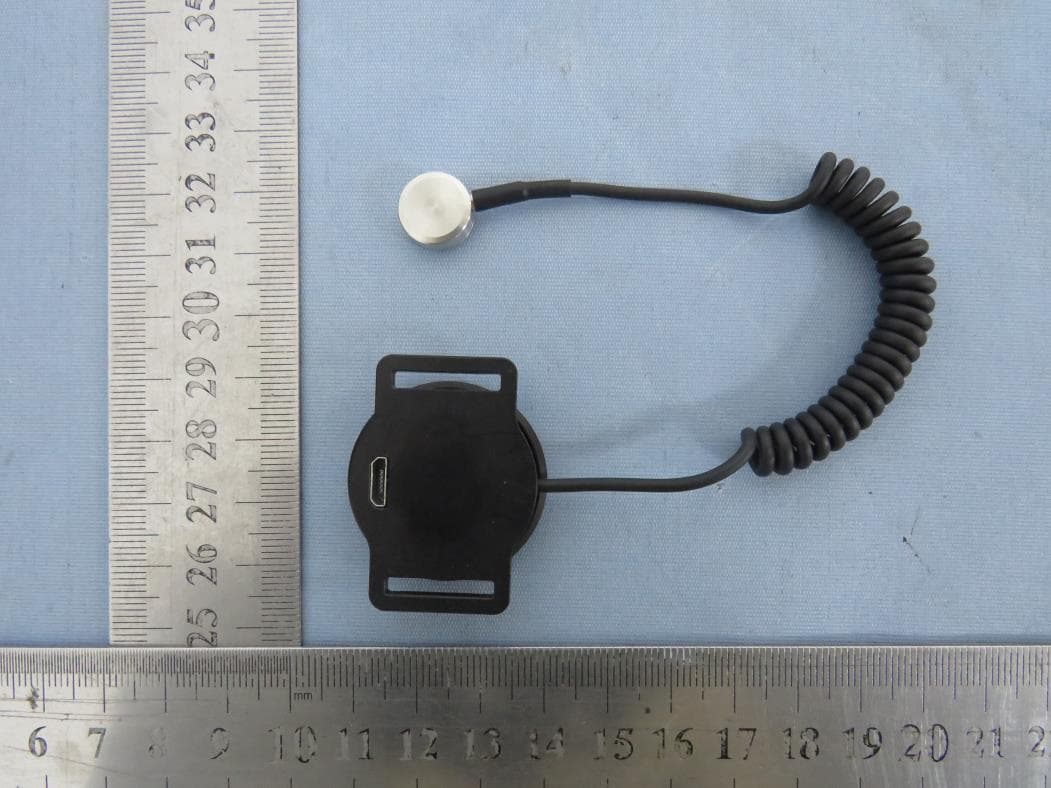

FCC ID: 2ASIJIABLEPTT Page 3 of 8 External photos FCC ID: 2ASIJIABLEPTT Page 4 of 8 FCC ID: 2ASIJIABLEPTT Page 5 of 8

FCC ID: 2ASIJIABLEPTT Page 6 of 8 Internal photos FCC ID: 2ASIJIABLEPTT Page 7 of 8 FCC ID: 2ASIJIABLEPTT Page 8 of 8 RF Chip RF Antenna

Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2202007F-1 FCC ID: 2ASIJIABLEPTT RF EXPOSURE EVALUATION EUT Specification EUT BT DUAL PTT / BT PTT Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others(Bluetooth: 2.402GHz ~ 2.480GHz) Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 0.177dBm(1.042mW) Antenna gain 0dBi Evaluation applied MPE Evaluation SAR Evaluation Standard Requirement Portable Device According to §15.247(i) and §1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See KDB 447498 D01 General RF Exposure Guidance v05, section 4.3.1. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, 16 where ·f(GHz) is the RF channel transmit frequency in GHz ·Power and distance are rounded to the nearest mW and mm before calculation17 ·The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2202007F-1 FCC ID: 2ASIJIABLEPTT Measurement Result Channel Channel Frequency (MHz) Max Output power (dBm) Max Output power (mW) Calculati on Value (Note 1) Threshold Value GFSK(RF PHY: 1Mbps) Low 2402 -0.090 0.98 0.304 3.0 Middle 2440 -0.102 0.98 0.306 3.0 High 2480 -0.326 0.93 0.293 3.0 GFSK(RF PHY: 2Mbps) Low 2402 0.177 1.04 0.322 3.0 Middle 2440 -0.043 0.99 0.309 3.0 High 2480 -0.281 0.94 0.296 3.0 Note 1: Calculation Value =[(max. power of channel, mW)/(min. test separation distance, mm)] ·[√f(GHz)]. Fox example: 1.04/5*√2.402=0.322 ≤ 3.0 According to KDB447498 D01 V06, threshold at which no SAR required is ≤3.0 for 1-g SAR, separation distance is 5mm, and no simultaneous SAR measurement is required.
