2ASIVPGD679E3Lockly Guard

PIN GENIE, INC. DBA LOCKLY
Lockly Guard - FCC ID 2ASIVPGD679E3 - PIN GENIE, INC. DBA LOCKLY
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Sep 23, 2025
Application Purpose
Original Equipment
Equipment Note
Lockly Guard
Frequency Range
2402.00000000 - 2480.00000000
Company
PIN GENIE, INC. DBA LOCKLY
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗
↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

PGD679LWSNE3 | PGD679LWMBE3 PGD679DWSNE3 | PGD679DWMBE3 LATCH (679L) | DUO (679D) | USER MANUAL For Commercial Use & Professional Installation LOCKLY GUARD ™ PRO www.LocklyPRO.com Lever Latch Smart Lock Interconnected Smart Lock ERP机型:PGD679LWSNE3-GLC-SMT000A Designed: 曹显贵Date:2025-08-25 描述: 说明书:PGD679LWSNE3,SMT000,REV.A(UMPGD679LWE320250710),140x190mm, 8 0g书纸,双面印单黑,16页32面装订本,RoHS2.0,REACH,Prop65,POPs,PAHs ERP P/N: REV:0.5 KYMC 7540C Table of Contents TABLE OF CONTENTS For additional support, visit https://www.locklypro.com/contact-us or email [email protected] Section 1 - Product Highlights 1.1 Product Features Section 2 - Product Overview 2.1 Product Overview - Exterior 2.2 Product Overview - Interior 2.3 Understanding Your New Lock 2.4 Reset Button 2.5 Rebooting Your Lock 2.6 Low Battery 2.7 Changing The Battery Section 3 - Using Your Smart Lock 3.1 Unlock with Digital Keypad 3.2 Programming Button 3.3 Adding Additional Access Codes 3.4 Adding Fingerprint Access 3.5 Fingerprint Scanning Tips & Troubleshoot 3.6 Adding an RFID Card 3.7 Adding Matter Link Section 4 - Locking and Unlocking 4.1 Unlocking with Access Codes 4.2 Unlocking with Fingerprint 4.3 Locking/Unlocking with app 4.4 Unlocking using RFID 4.5 Locking/Unlocking with Physical Key 4.6 Locking with Door Handle 4.7 Safe Mode 4.8 Rain Mode 4.9 Welcome Mode Section 5 - Advanced Features 5.1 Offline Access Code (OAC) 5.2 Sub Admin Access Section 6 - Re-keying 6.1 Re-keying Section 7 - Important Notes 7.1 Important Notes Section 8 - Maintenance and Cleaning 8.1 Cleaning 8.2 Calibrating the Lock Section 9 - Safety Precautions 9.1 Safety Precautions 1 2 3 4 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 24 25 26 27 27 28 1.1 Product Features 1 SECTION 1.1 Multiple Access Codes & Monitoring Store up to 500 access codes for family and guests, and monitor entry and exit records. Advanced 3D Fingerprint Recognition Register up to 99 fingerprints with biometric recognition. The system only accepts actual fingerprints, preventing unauthorized access from lifted prints. RFID Card Access Store up to 999 MIFARE RFID cards for easy access. Offline Access Code™ (OAC) Issue access codes and set usage duration without needing an Internet connection. This feature works even during power outages. Auto-Lock Users no longer have to worry about forgetting to lock the door. With Auto Lock enabled, Lockly Guard will automatically auto-lock the door based on your customized timing set between 5 seconds to 1080 minutes. Backup Keys and 9V Battery Socket Access the door with physical backup keys. A 9V battery socket provides emergency power to operate the keypad if the smart lock battery is low. Live Monitoring Through your smartphone, monitor door access from anywhere in the world and securely control who comes and goes with the Matter Link. 2.1 Product Overview - Exterior 2 SECTION 2.1 Key Hole Cover 9V Battery Backup Socket Key Hole Digital Numeric Keypad OK Button Backspace Bluetooth Indicator Exterior Handle Fingerprint Sensor Reboot Button RFID Card Reader SECTION 2.23 2.2 Product Overview - Interior Battery Cover Reset Button Interior Handle Program Button Battery Compartment (Operated by 4 x AA Batteries) Low Battery Indicator/ Door Lock Button 2.3 Understanding Your New Lock After installing your Lockly Guard, it's important to familiarize yourself with its key functions. This User Manual will guide you through: - Adding and deleting access codes - Adding and deleting fingerprints - Adding and deleting RFID cards - Configuring your Offline Access Code™ (OAC) - Other features of your lock For assistance, please visit https://www.locklypro.com/contact-us. Remember, Lockly Guard™ works best with our iOS and Android app. Download it using the link below. 4SECTION 2.3 ~ 2.4 2.4 Reset Button To reset your lock, you will need your Activation Code, which is provided on the Activation Card included with your smart lock. Resetting will erase all stored data. Follow the appropriate reset procedure below: Never Connected to app: Press the Reset Button for 3 seconds. The smart lock will restart and reset. Connected to app: 1. Open the Settings menu in the app. 2. Select "Factory Reset." The smart lock will restart and reset. 3. After resetting, you'll need the Activation Code to reconnect the app. Note: If you switch to a new smartphone, log into your existing Lockly Manager app account and reconnect to the smart lock following the app prompts. Reset Button Scan or visit Locklypro.com/app SECTION 2.55 2.5 Rebooting Your Lock Reboot your Lockly Guard if the battery is dead or if there's a malfunction. This process will not change any settings, and all access codes will remain stored. To Reboot: 1. Locate the reboot button on the bottom of the exterior side of the Lockly Guard, positioned between the two 9V battery backup sockets. 2. Use a small object, like a paperclip, to press the reboot button firmly. 3. Release the button. You should hear a beep indicating the reboot is successful. Note: Only reboot when necessary. Reboot Button 6SECTION 2.6 2.6 Low Battery 9V Alkaline Battery + - When the battery level is low, upon unlocking the door lock, the keypad will alert you with the display of "10" or "0" to indicate the battery percentage. Immediate replacement of the alkaline battery is recommended. A display of "10" warns that the battery is below 10%. During unlocking, the indoor status light will blink red, repeating 60 seconds, and the low battery alert will sound three Beeps, repeated three times. A display of "0" indicates that the battery is critically low, with enough power for only three more unlocks. When "0" flashes, it signals that the battery is fully depleted. Replace the batteries to prevent failure. After the battery is completed depleted, replace the batteries immediately. You can use the supplied physical backup keys to unlock the door. Alternatively, use a 9V battery to temporarily activate the lock (as shown below). Your Lockly G…

Text truncated - open the document above for the full version.

Attestation Statements

PIN GENIE, INC. DBA LOCKLY 2024 Macopin Rd., Unit E, West Milford, NJ 07480 United States -------------------------------------------------------------------------------------------------------------------------· Date: 2025-01-17 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Ref: Attestation Statements Part 2.911(d) (7) Filing Grantee Code: 2ASIV PIN GENIE, INC. DBA LOCKL Y certifies that, as of the date of the filing of the application, we designate ourselves as the U.S. agent for service of process. Designated U.S. Agent Information: Name: PIN GENIE, INC. DBA LOCKL Y FRN: 0028246908 Address: 2024 Macopin Rd., Unit E, West MIiford, NJ 07480 United States Contact Person: Cindy zhou Tel.:4159109522 Email: [email protected] Sincerel y , Signatory [Cindy zhou, COO)

External Photos

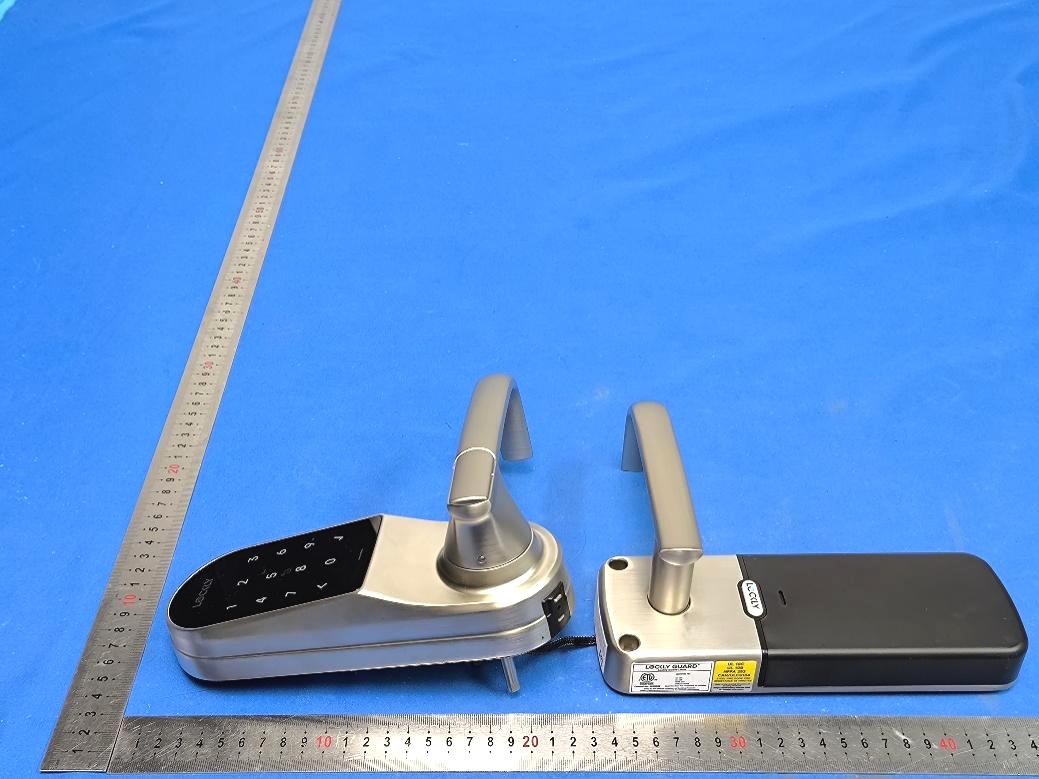

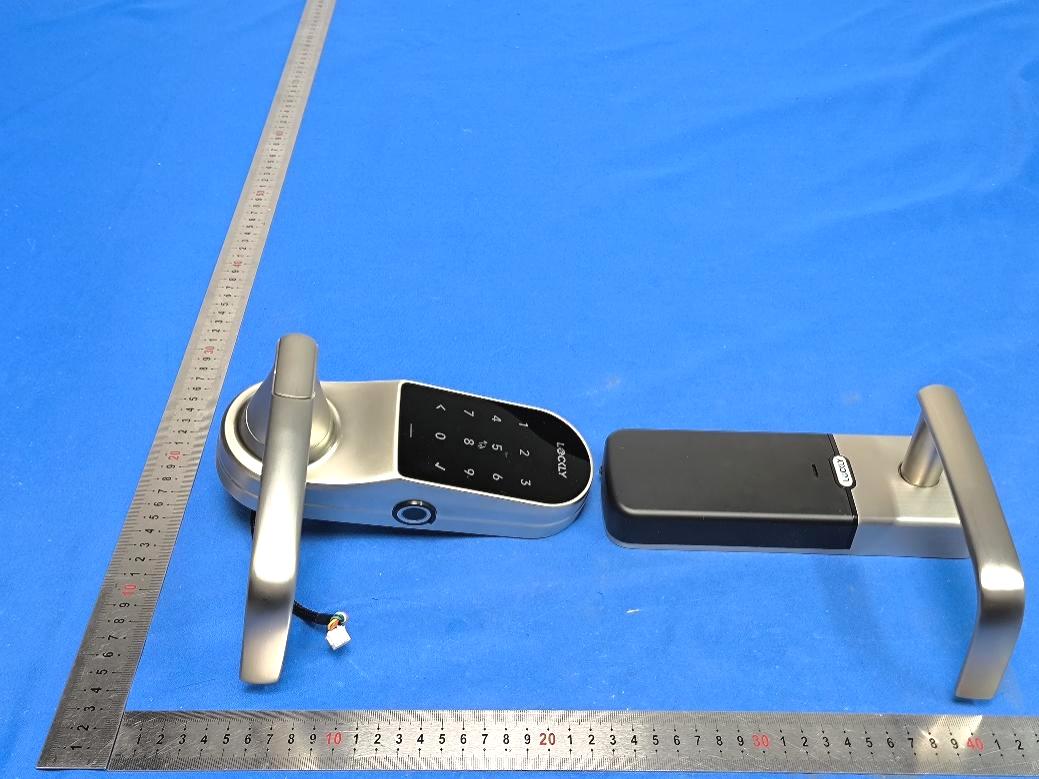

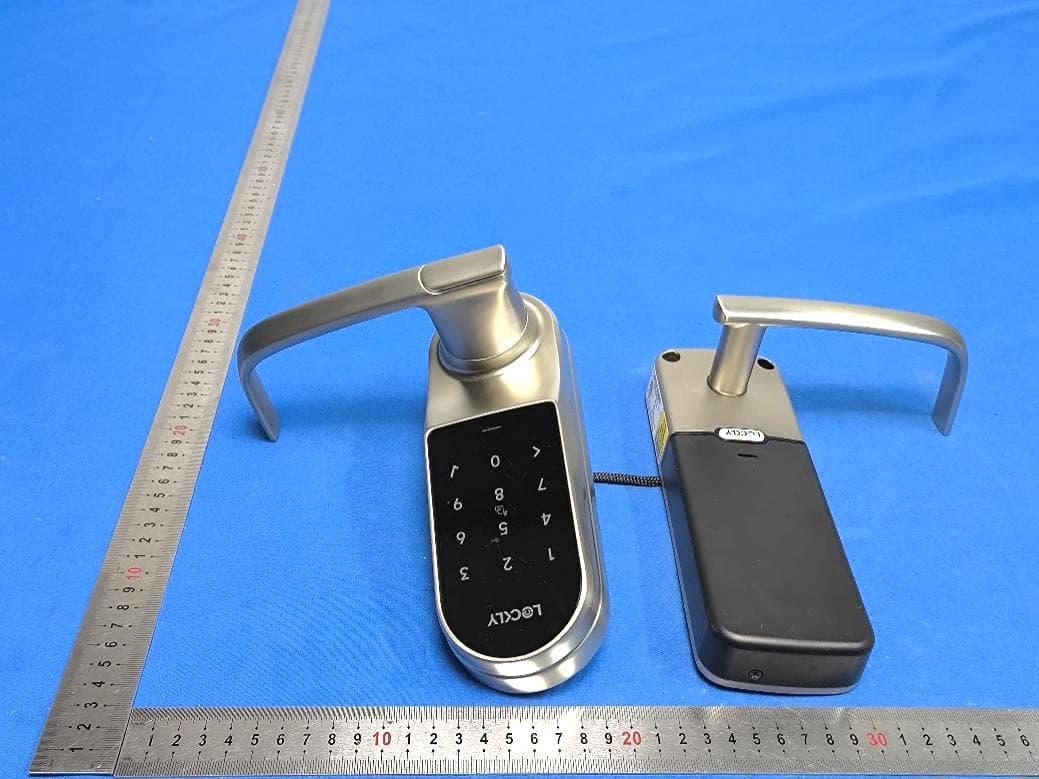

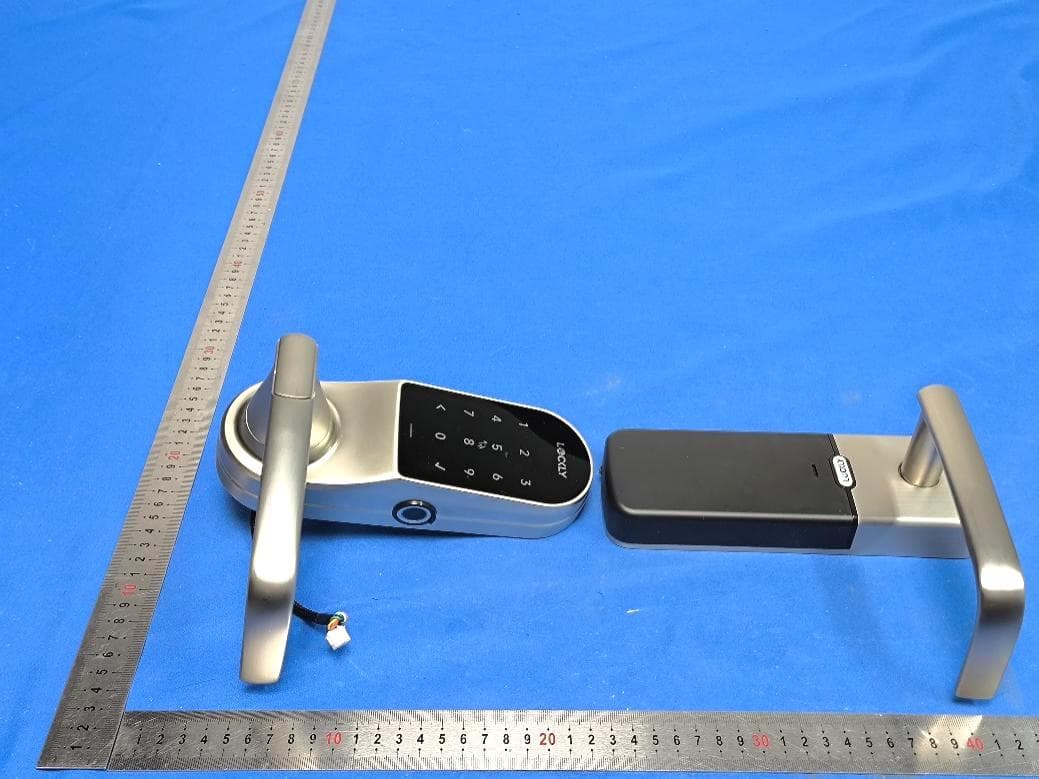

ReferenceNo.:WTX25X09233644W001/002Page2of16 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EXHIBIT2-EUTEXTERNALPHOTOGRAPHS EUTView1 EUTView2 ReferenceNo.:WTX25X09233644W001/002Page3of16 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EUTView3 EUTView4 ReferenceNo.:WTX25X09233644W001/002Page4of16 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EUTView5 EUTView6

ID Label/Location Info

ReferenceNo.:WTX25X09233644W001/002Page1of16 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT1-PRODUCTLABELING ProposedFCCIDLabelFormat Specifications:Thelabelshallbesecurelyaffixedtoapermanentlyattachedpartofthedevice,inalocation whereitisvisibleoreasilyaccessibletotheuser,andshallnotbereadilydetachable.Thelabelshallbe sufficientlydurabletoremainfullylegibleandintactonthedeviceinallnormalconditionsofusethroughout thedevice’sexpectedlifetime. ProposedLabelLocationonEUT FCCIDLabel Location

Internal Photos

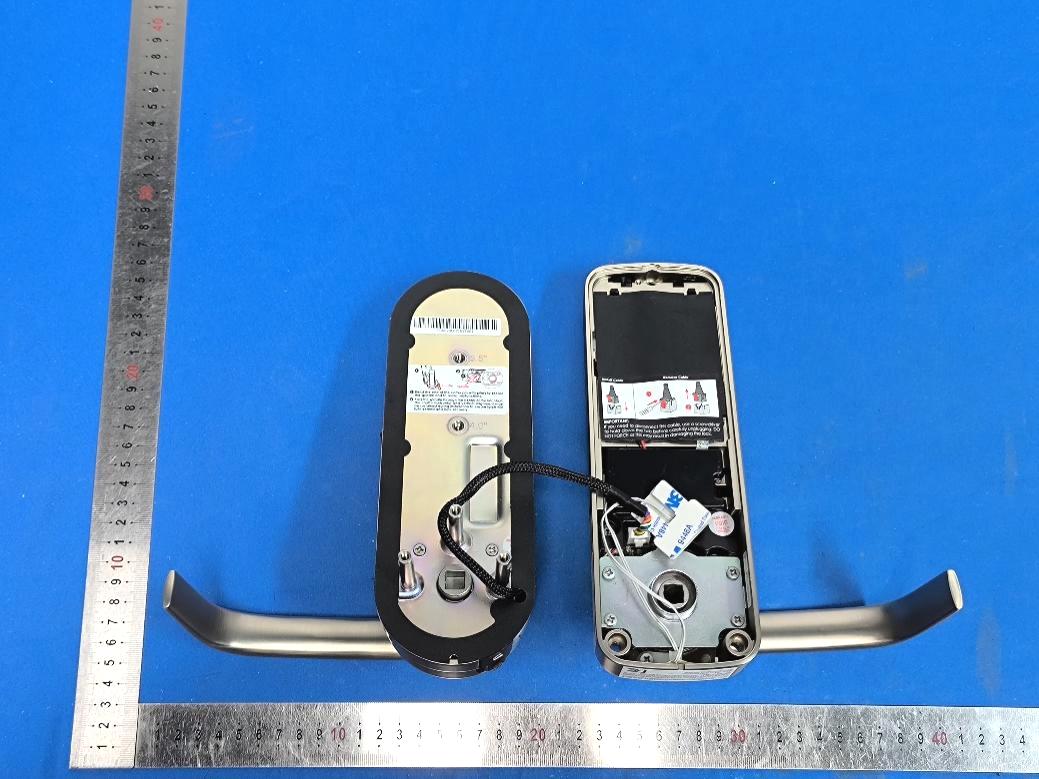

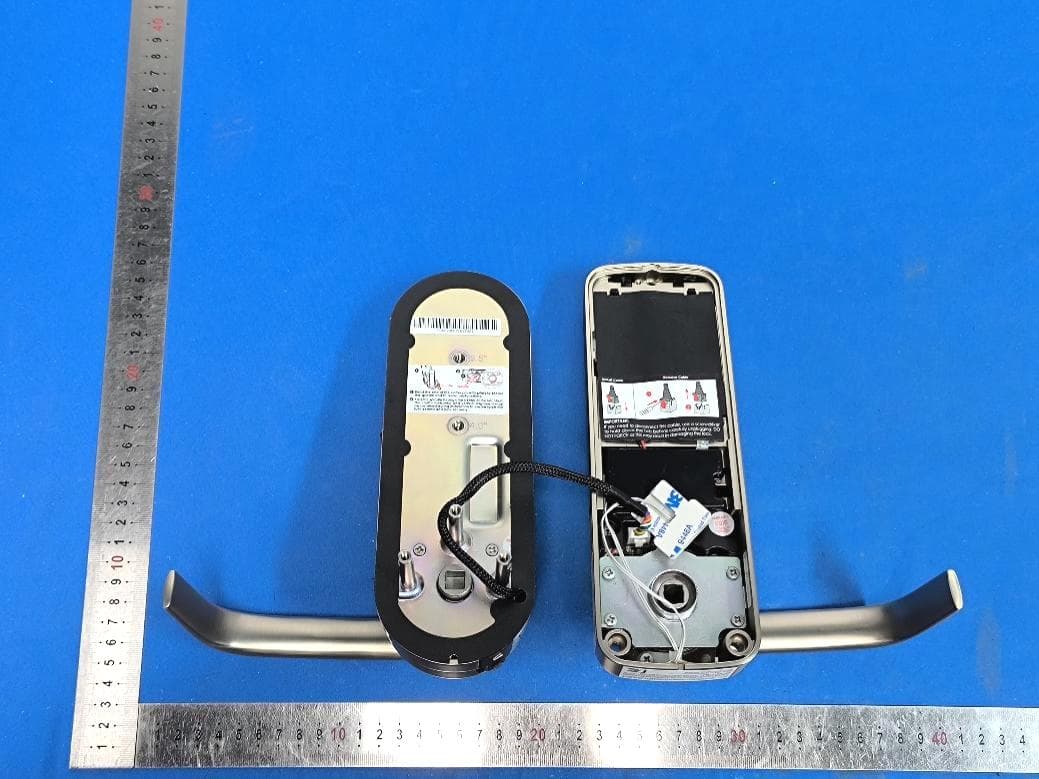

ReferenceNo.:WTX25X09233644W001/002Page5of16 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EXHIBIT3-EUTINTERNALPHOTOGRAPHS EUTHousingand BoardView1 EUTHousingand BoardView2 ReferenceNo.:WTX25X09233644W001/002Page6of16 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn Solder Board-Component View1 Solder Board-Component View2 ReferenceNo.:WTX25X09233644W001/002Page7of16 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn Solder Board-Component View3 Solder Board-Component View4 ReferenceNo.:WTX25X09233644W001/002Page8of16 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn Solder Board-Component View5 Solder Board-Component View6 ReferenceNo.:WTX25X09233644W001/002Page9of16 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn Solder Board-Component View7 Solder Board-Component View8 ReferenceNo.:WTX25X09233644W001/002Page10of16 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn Solder Board-Component View9 Solder Board-Component View10 ReferenceNo.:WTX25X09233644W001/002Page11of16 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn Solder Board-Component View11 Solder Board-Component View12 ReferenceNo.:WTX25X09233644W001/002Page12of16 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn Solder Board-Component View13 Solder Board-Component View14 ReferenceNo.:WTX25X09233644W001/002Page13of16 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn AntennaView1 AntennaView2 NFCAntenna LEAntenna

RF Exposure Info

1.RFExposureRequirements 1.1GeneralInformation ClientInformation Applicant:PINGENIE,INC.DBALOCKLY Addressofapplicant:2024MacopinRd.,UnitE,WestMilford,NJ07480U.S.A. Manufacturer:SmartElectronicIndustrial(DongGuan)Co.,Ltd. Addressofmanufacturer: QingLongRoad,LongJianTianVillage,HuangJiangTown,Dong Guan,GuangDong,China GeneralDescriptionofEUT: ProductName:LocklyGuard TradeNameLOCKLY ModelNo.:PGD679LWSNE3 AddingModel(s):PGD679LWMBE3,PGD679DWSNE3,PGD679DWMBE3 RatedVoltage:DC1.5V*4”AA” PowerAdapter:/ FCCID:2ASIVPGD679E3 EquipmentType:Fixeddevice TechnicalCharacteristicsofEUT: Bluetooth BluetoothVersion:V5.0(LEmode) FrequencyRange:2402-2480MHz RFOutputPower: 1Mbps:3.67dBm(Conducted) 2Mbps:3.67dBm(Conducted) DataRate:1Mbps,2Mbps Modulation:GFSK QuantityofChannels:40 ChannelSeparation:2MHz TypeofAntenna:FPCAntenna AntennaGain:0.5dBi NFC SupportStandards:NFC FrequencyRange:13.56MHz Max.FieldStrength:36.05dBuV/m(at3m) AntennaType:PCBAntenna AntennaGain0dBi 1.2RFExposureExemption Accordingto§1.1307(b)(3)andKDB447498D04InterimGeneralRFExposureGuidancev01,system operatingundertheprovisionsofthissectionshallbeoperatinginamannerthatthepublicisnotexposedto radiofrequencyenergylevelinexcesslimitformaximumpermissibleexposure. OptionA:FCCRulePart1.1307(b)(3)(i)(A):Theavailablemaximumtime-averagedpowerisnomorethan 1mW,regardlessofseparationdistance. OptionB:FCCRulePart1.1307(b)(3)(i)(B):Theavailablemaximumtime-averagedpoweroreffective radiatedpower(ERP),whicheverisgreater,islessthanorequaltothethresholdP th (mW)describedinthe followingformula.P th isgivenby: OptionC:FCCRulePart1.1307(b)(3)(i)(C):Theminimumseparationdistance(Rinmeters)fromthebodyof anearbypersonforthefrequency(finMHz)atwhichthesourceoperates,theERP(watts)isnomorethanthe calculatedvalueprescribedforthatfrequency.Rmustbeatleastλ/2π,whereλisthefree-spaceoperating wavelengthinmeters. SingleRFSourcesSubjecttoRoutineEnvironmentalEvaluation RFSourcefrequency(MHz)ThresholdERP(watts) 0.3-1.341,920R 2 1.34-303,450R 2 /f 2 30-3003.83R 2 300-1,5000.0128R 2 f 1,500-100,00019.2R 2 ForMultipleRFsources:FCCRulePart1.1307(b)(3)(ii): (A)Theavailablemaximumtime-averagedpowerofeachsourceisnomorethan1mWandthereisa separationdistanceoftwocentimetersbetweenanyportionofaradiatingstructureoperatingandthe nearestportionofanyotherradiatingstructureinthesamedevice,exceptifthesumofmultiplesourcesis lessthan1mWduringthetime-averagingperiod,inwhichcasetheymaybetreatedasasinglesource (separationisnotrequired). (B)InthecaseoffixedRFsourcesoperatinginthesametime-averagingperiod,orofmultiplemobileor portableRFsourceswithinadeviceoperatinginthesametimeaveragingperiod,ifthesumofthe fractionalcontributionstotheapplicablethresholdsislessthanorequalto1asindicatedinthefollowing equation. 1.3CalculatedResult Radio Access Technology Prediction Frequency Output Power Antenna Gain Duty Cycle Tune-Up Time-AveragedPower ERP (MHz)(dBm)(dBi)(%)(dBm)(dBm) Bluetooth24023.670.5100 4.002.35 NFC13.56-59.210/ -59.00-61.15 Frequency Option Min.DistanceMax.PowerExposureLimit Ratio Result (MHz)(cm)(dBm)(mW)(mW)Pass/Fail 2402C20.002.351.72768.000.01Pass 13.56B20.00-59.000.0027.66 0.01Pass Note:1.a.Time-AveragedPower=OutputPower*DutyCycle; ERP=Time-AveragedPower+Antennagain-2.15dB; b.EIRP=E-104.8+20logD;OutputPower=EIRP-AntennaGain; ERP=EIRP-2.15dB 2.OptionA,BandCrefersasclause1.2. 3.ForoptionB,Max(time-averagedpower,effectiveradiatedpower(ERP))convertstoMax.Power.For optionC,ERPconvertstoMax.Power; 4.ForoptionB,P th (mW)convertstoExposureLimit(mW);ForoptionC,ERP(W)convertstoExposure Limit(mW). 5.Ratio=Tune-UpERP(mW)/ExposureLimit(mW) ModeforSimultaneousMulti-bandTransmission: RadioAccessTechnologyRatio1Ratio2 Simultaneous Ratio Limit Result Pass/Fail Bluetooth+NFC0.010.010.021Pass Result:Pass

Test Report

ShenzhenGolden-Resource Electronic Co.,Ltd. SPECIFICATION FOR APPROVAL Date 2023/03/14 File No 23031401 Revision 1.0 CUSTOMER: SMART ELECTRONIC INDUSTRIAL CO.,LTD. CUSTOMER NO: PD6N BT Antenna PART NAME: BT Antenna SUPPLIER NO: YJW01.029.008.301A Date: Q"TY: PCS CUSTOMER APPROVED BY APPROVALCHIEFSUPERVISOR SUPPLIER SIGNATURE APPROVALCHECKDESIGN add: 17A-03A, Block B, Nanxian Commercial Plaza, Meilong Road, Longhua New District, Shenzhen APPROVALCHECKDESIGN ChenGuoqiangXieLiChenXingyi YJ-RD-F04-A Spec Item NO . Contents Number of Page Page Code 1 Spec Cover11 2 Spec Item 12 3Drawing133Drawing13 4 Antenna Specification14 5 S Parameter 15 6 Passive Test16 7 Radiation Pattern37 ~ 9 8 Antenna Profile110 9- -- 10--- 11--- add: 17A-03A, Block B, Nanxian Commercial Plaza, Meilong Road, Longhua New District, Shenzhen 12--- 13--- Antenna Specification Electrical Properties Frequency 2.4-2.5GHz qy Impedance50 Ohm Nominal V.S.W.R3.0 Max Gain 05dBi Gain 0.5 dBi RadiationOmni-directional PolarizationLinear Physical Properties ConnectorNone Cable TypeO.D.1.13mm Cable Length35mm Cable ColorGray add: 17A-03A, Block B, Nanxian Commercial Plaza, Meilong Road, Longhua New District, Shenzhen Operating Temp.-40 ~ +85 ̊C Storage Temp / Humidity 25±5 ̊C / <70% AntennaPerformance Test Agilent Antenna Performance Te s t Agilent E5071B SS Parameter Test // BT add: 17A-03A, Block B, Nanxian Commercial Plaza, Meilong Road, Longhua New District, Shenzhen Passive Test For BT Freq () Effi () Effi () Gain ()(MHz)(%)(dB)(dBi) 2400 71.1-1.5 0.5 2410 72.5-1.4 0.4 2420 71.3-1.5 0.2 2430 72.2-1.4 -0.2 2440 73.5-1.3 -0.4 2450 70.0-1.5 -0.2 2460 72.1-1.4 -0.3 2470 71.1-1.5 -0.2 2480 70.1-1.5 -0.3 add: 17A-03A, Block B, Nanxian Commercial Plaza, Meilong Road, Longhua New District, Shenzhen 2490 69.5-1.6 -0.3 2500 68.8-1.6 -0.4 Radiation Pattern For BT Antenna add: 17A-03A, Block B, Nanxian Commercial Plaza, Meilong Road, Longhua New District, Shenzhen Radiation Pattern For BT Antenna add: 17A-03A, Block B, Nanxian Commercial Plaza, Meilong Road, Longhua New District, Shenzhen Radiation Pattern For BT Antenna add: 17A-03A, Block B, Nanxian Commercial Plaza, Meilong Road, Longhua New District, Shenzhen Antenna BT add: 17A-03A, Block B, Nanxian Commercial Plaza, Meilong Road, Longhua New District, Shenzhen

Test Report

WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 1 of 56 TESTREPORT ReferenceNo.......................:WTX25X09233644W001 FCCID....................................:2ASIVPGD679E3 Applicant...............................:PINGENIE,INC.DBALOCKLY Address.................................:2024MacopinRd.,UnitE,WestMilford,NJ07480U.S.A. Manufacturer........................:SmartElectronicIndustrial(DongGuan)Co.,Ltd. Address.................................: QingLongRoad,LongJianTianVillage,HuangJiangTown,DongGuan, GuangDong,China ProductName......................:LocklyGuard ModelNo...............................:PGD679LWSNE3 Standards..............................:FCCPart15.247 DateofReceiptsample.....:2025-09-01 DateofTest...........................:2025-09-01to2025-09-16 DateofIssue........................:2025-09-16 TestReportFormNo.......... : WTX_Part15_247W TestResult............................:Pass Remarks: Theresultsshowninthistestreportreferonlytothesample(s)tested,thistestreportcannotbe reproduced,exceptinfull,withoutpriorwrittenpermissionofthecompany.Thereportwouldbeinvalidwithout specificstampoftestinstituteandthesignaturesofapprover. PreparedBy: WaltekTestingGroup(Shenzhen)Co.,Ltd. Address:1/F.,Room101,Building1,HongweiIndustrialPark,Liuxian2ndRoad, Block70Bao'anDistrict,Shenzhen,Guangdong,China Tel.:+86-755-33663308Fax.:+86-755-33663309Email:[email protected] Testedby:Approvedby: MikeShi/ProjectEngineerJasonSu/Manager ReferenceNo.:WTX25X09233644W001 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 2 of 56 TABLEOFCONTENTS 1.GENERALINFORMATION........................................................................................................................................4 1.1PRODUCTDESCRIPTIONFOREQUIPMENTUNDERTEST(EUT)............................................................................4 1.2TESTSTANDARDS.....................................................................................................................................................5 1.3TESTMETHODOLOGY...............................................................................................................................................5 1.4TESTFACILITY..........................................................................................................................................................5 1.5EUTSETUPANDTESTMODE.................................................................................................................................6 1.6MEASUREMENTUNCERTAINTY.................................................................................................................................7 1.7TESTEQUIPMENTLISTANDDETAILS......................................................................................................................8 2.SUMMARYOFTESTRESULTS.............................................................................................................................12 3.ANTENNAREQUIREMENT.....................................................................................................................................13 3.1STANDARDAPPLICABLE.........................................................................................................................................13 3.2EVALUATIONINFORMATION....................................................................................................................................13 4.POWERSPECTRALDENSITY...............................................................................................................................14 4.1STANDARDAPPLICABLE.........................................................................................................................................14 4.2TESTSETUPBLOCKDIAGRAM...............................................................................................................................14 4.3TESTPROCEDURE..................................................................................................................................................14 4.4SUMMARYOFTESTRESULTS/PLOTS....................................................................................................................14 5.DTSBANDWIDTH......................................................................................................................................................15 5.1STANDARDAPPLICABLE.........................................................................................................................................15 5.2TESTSETUPBLOCKDIAGRAM...............................................................................................................................15 5.3TESTPROCEDURE..................................................................................................................................................15 5.4SUMMARYOFTESTRESULTS/PLOTS....................................................................................................................15 6.RFOUTPUTPOWER................................................................................................................................................16 6.1STANDARDAPPLICABLE.........................................................................................................................................16 6.2TESTSETUPBLOCKDIAGRAM...............................................................................................................................16 6.3TESTPROCEDURE..................................................................................................................................................16 6.4SUMMARYOFTESTRESULTS/PLOTS....................................................................................................................16 7.FIELDSTRENGTHOFSPURIOUSEMISSIONS.................................................................................................17 7.1STANDARDAPPLICABLE.......................…

Text truncated - open the document above for the full version.

Test Report

ReferenceNo.:WTX25X09233644W001 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 50 of 56 LE_1M-Ant1-2440-1000~26500-PASS LE_1M-Ant1-2480-30~1000-PASS LE_1M-Ant1-2480-1000~26500-PASS ReferenceNo.:WTX25X09233644W001 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 51 of 56 LE_2M-Ant1-2402-30~1000-PASS LE_2M-Ant1-2402-1000~26500-PASS LE_2M-Ant1-2440-30~1000-PASS ReferenceNo.:WTX25X09233644W001 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 52 of 56 LE_2M-Ant1-2440-1000~26500-PASS LE_2M-Ant1-2480-30~1000-PASS LE_2M-Ant1-2480-1000~26500-PASS ReferenceNo.:WTX25X09233644W001 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 53 of 56 AppendixG:DutyCycle TestResult TestModeAntennaFrequency[MHz] ONTime [ms] Period [ms] DutyCycle [%] DutyCycle Factor [dB] LE_1MAnt124020.400.6363.491.97 LE_1MAnt124400.400.6363.491.97 LE_1MAnt124800.400.6363.491.97 LE_2MAnt124020.210.6333.334.77 LE_2MAnt124400.210.6333.334.77 LE_2MAnt124800.210.6333.334.77 ReferenceNo.:WTX25X09233644W001 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 54 of 56 TestGraphs NTNV-LE_1M-Ant1-2402 NTNV-LE_1M-Ant1-2440 NTNV-LE_1M-Ant1-2480 ReferenceNo.:WTX25X09233644W001 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 55 of 56 NTNV-LE_2M-Ant1-2402 NTNV-LE_2M-Ant1-2440 NTNV-LE_2M-Ant1-2480 ReferenceNo.:WTX25X09233644W001 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 56 of 56 APPENDIXPHOTOGRAPHS Pleasereferto“ANNEX” *****ENDOFREPORT*****

Test Setup Photos

ReferenceNo.:WTX25X09233644W001/002Page14of16 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EXHIBIT4-TESTSETUPPHOTOGRAPHS RadiationEmissionTest Setup(Below30MHz) RadiationEmissionTest Setup(30MHzto1GHz) ReferenceNo.:WTX25X09233644W001/002Page15of16 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn RadiationEmissionTest Setup(1GHzto18GHz) ReferenceNo.:WTX25X09233644W001/002Page16of16 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn RadiationEmissionTest Setup(Above18GHz) *****ENDOFREPORT*****

Contact Information

Applicant

Cindy zhou(COO)
[email protected]Fax: 4159109522

Test Firm

Waltek Testing Group (Shenzhen) Co., Ltd.Jandy So
[email protected]Fax: 86-755-33663309

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz2.30 mW
Confidentiality
Long Term
Grant Notes
Output Power listed is the maximum conducted output power. This device must be installed and operated so as to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures, or as evaluated in this filing. End-users must be informed of operating requirements for satisfying RF exposure compliance.
