2ASIVPGD738Lockly Fortis Series Smart Lock Deadbolt Edition

PIN GENIE, INC. DBA LOCKLY
Lockly Fortis Series Smart Lock Deadbolt Edition - FCC ID 2ASIVPGD738 - PIN GENIE, INC. DBA LOCKLY
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jul 29, 2026
Application Purpose
Original Equipment
Equipment Note
Lockly Fortis Series Smart Lock Deadbolt Edition
Frequency Range
2402.00000000 - 2480.00000000
Company
PIN GENIE, INC. DBA LOCKLY
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Lockly Fortis Setup and Use PGD738 2 Start Second We’re here to help Your Lockly smart lock includes lifetime support. If you get locked out, have any issues, or want to share feedback, just contact us, and we’ll help you quickly. (669) 500-8835 [email protected] support.Lockly.com 01 Lock Overview Charge/Install Battery App Download Setup Lockly Home App Setup Matter over Thread Digital Keypad Access Codes Safe Mode NFC Key Tag Unlock Use App Lock/Unlock with Physical Key More Ways to Access Troubleshooting FAQs 03 04 05 06 07/08 09 10 11 12 13 14 15 16 Setup 02 03 Getting to Know Your Smart Lock Before setup, you can unlock the door using the default PIN 123456. This temporary method works only during setup and will disable automatically once setup is complete. 2428-881-XXXX PGD738MB SN: PGD73800XXXX OK Button Numeric Keypad LED Indicator Doorbell Button Cancel Button NFC Reader Physical Keyhole USB-C Backup Power Port Lock/Unlock Thumbturn Serial Number/ Matter Code Interior LED Indicator Battery Compartment (8 AA Batteries Required) SET Button 04 Install Battery and Start Self-Check Insert NEW alkaline batteries, matching (+) and (–) signs. Keep battery sides from touching to avoid short circuits. If a battery leaks, remove it immediately and clean the holder with a dry cloth. + - + - - + - + AA Battery Perform Self-Check (skip if done) For the first-time installation of your door lock, press and hold the SET button for 4 seconds to start a self-diagnostic. The lock will extend and retract the deadbolt multiple times to determine the proper locking direction for your door. 05 Download the Lockly Home App Scan or visit Lockly.com/app The Lockly Home app will guide you through final installation, setup, and creating your user profile for a more tailored and optimized experience. Complete Setup in the Lockly Home App 06 1. Open the Lockly Home app. Register a new account via "Sign Up" or log in if you already have one. 2. Tap the + icon to add a new device. 3. Select Lockly Smart Lock. 4. Press the SET button to enter pairing mode. The status indicator will flash green, with a 10-minute pairing window available. 5. Scan the serial number barcode on the back of the lock, or choose to add the lock manually. For manual addition, select the Bluetooth device prefixed with PGD738 from the device list. 6. Follow the in-app prompts to finish the setup. To create user access credentials, follow the on-screen guidance in the app. 2428-881-XXXX PGD738MB SN: PGD73800XXXX SET Button During pairing with the Lockly Home app, you need to connect the smart lock to Wi-Fi. If the lock fails to connect to Wi-Fi, follow the steps below to troubleshoot. Check Your Wi-Fi Signal Ensure the lock is installed within coverage of a strong, stable Wi-Fi signal. 2.4 GHz Wi-Fi Only This lock only works with 2.4 GHz Wi-Fi networks, so please ensure the 2.4 GHz band of your router is enabled. Enable SSID Broadcast Hidden Wi-Fi networks cannot be detected by the lock, so turn on SSID broadcast in your router configuration to allow the lock to locate your wireless network. Wi-Fi Compatibility Settings If you are using a Wi-Fi 6 (802.11ax) or Wi-Fi 7 (802.11be) router, make sure Wi-Fi 4 (802.11b/g/n) compatibility is enabled. Complete Setup in the Matter over Thread 07 2428-881-XXXX PGD738MB SN: PGD73800XXXX SET Button You can connect your Lockly Fortis Series Smart Lock to smart home ecosystems including Apple Home, Google Home, Amazon Alexa and SmartThings via Matter over Thread for centralized lock management and configuration. A Thread border router compatible with your target platform is required beforehand. 1. Press the SET button on the lock to enter pairing mode. The status indicator will flash green, and the pairing window will remain active for 10 minutes. 2. Launch your smart home controller app with native Matter and Thread support. 3. Tap to add a new device in the app, then select the Matter smart lock device type. 4. Follow the on-screen instructions to finish device authentication and network binding to link the lock to your Matter over Thread network. During pairing, you may either scan the Matter QR code printed on the back of the lock or manually enter the 11-digit Setup PIN as prompted to complete authentication. 5. After successful pairing, you can remotely operate and manage your Lockly smart lock through any Matter-certified smart home platform. Complete Setup in the Matter over Thread 08 Matter over Thread requires a Thread Border Router. Please ensure you have a compatible and operational Thread Border Router at home, such as Apple HomePod mini, Apple TV 4K, Google Nest Hub Max, Nest Wifi Pro, 4th Gen Amazon Echo, SmartThings Station, etc. Excessive distance or walls between the Thread Border Router and the lock will weaken signals. The lock will repeatedly reconnect to the network and increase battery consumption. Keep the router close to the lock and avoid wall obstructions. If you intend to remove the smart lock from its original smart ecosystem or switch to a different ecosystem, first tap Delete Device within the original ecosystem App, then quickly press the SET button five times in a row; the lock will enter reset mode and clear all Matter configurations, and all user data and settings previously synced via Matter-certified third-party smart home platforms will be fully erased. 09 Digital Keypad When the screen is off, press any number key area, or press the Cancel Button () twice. Unlock Press any key to wake up the screen. Enter your PIN code, then press the OK Button ( ) after the last digit. Lock To lock, either press the OK Button () while the screen is on. 10 Access Codes 12345 6 Default PIN Code The default PIN code is 1 2 3 4 5 6. During setup, you will be prompted to set a new code to replace it. Adding a Code Select your lock in the Lockly Home app, then tap Access > User Access Codes, and follow the on-screen instructions to set up the various code types. If the Access Code entered…

Text truncated - open the document above for the full version.

Attestation Statements

PIN GENIE, INC. DBA LOCKLY Covered Equipment Certification Attestation Letter 7/17/2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2ASIVPGD738 PIN GENIE, INC. DBA LOCKLY (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. PIN GENIE, INC. DBA LOCKLY (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. PIN GENIE, INC. DBA LOCKLY (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name: Cindy zhou Title: COO Company Name: PIN GENIE, INC. DBA LOCKLY Date: 7/17/2026

Attestation Statements

PIN GENIE, INC. DBA LOCKLY U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: July 17, 2026 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2ASIVPGD738 PIN GENIE, INC. DBA LOCKLY(“the applicant”) certifies that, as of the date of the filing of the application, PIN GENIE, INC. DBA LOCKLY (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. PIN GENIE, INC. DBA LOCKLY ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: PIN GENIE, INC. DBA LOCKLY FRN: 0028246908 Address: 2024 Macopin Rd., Unit E, West Milford, New Jersey 07480 United States Signature: Contact Person: Cindy zhou Tel: 4159109522 Email: [email protected] Applicant Company Name: PIN GENIE, INC. DBA LOCKLY FRN: 0028246908 Address: 2024 Macopin Rd., Unit E, West Milford, New Jersey 07480 United States Signature: Contact Person: Cindy zhou Tel: 4159109522 Email: [email protected]

Cover Letter(s)

DATE: July 17, 2026 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen CCUT Quality Technology Co., Ltd. (1F, Building 35, Changxing Technology Indstrl Park Changzhen Community, Yutang Street, Shenzhen, China) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with PIN GENIE, INC. DBA LOCKLY (2024 Macopin Rd., Unit E, West Milford, New Jersey 07480 United States). <Signature> Name: Cindy zhou Title: COO Applicant Company: PIN GENIE, INC. DBA LOCKLY

Cover Letter(s)

Date: July 17, 2026 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature> Name: Cindy zhou Title: COO Company: PIN GENIE, INC. DBA LOCKLY

Cover Letter(s)

DATE: July 17, 2026 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ASIVPGD738 Product Name: Lockly Fortis Series Smart Lock Deadbolt Edition Product Model: PGD738 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Cindy zhou Title: COO Company: PIN GENIE, INC. DBA LOCKLY

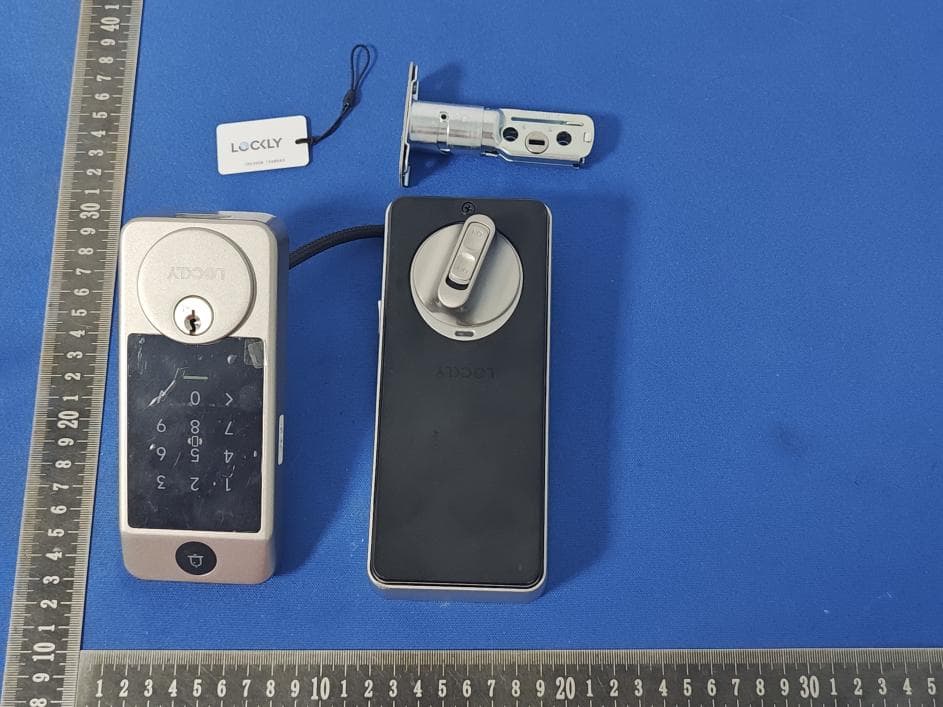

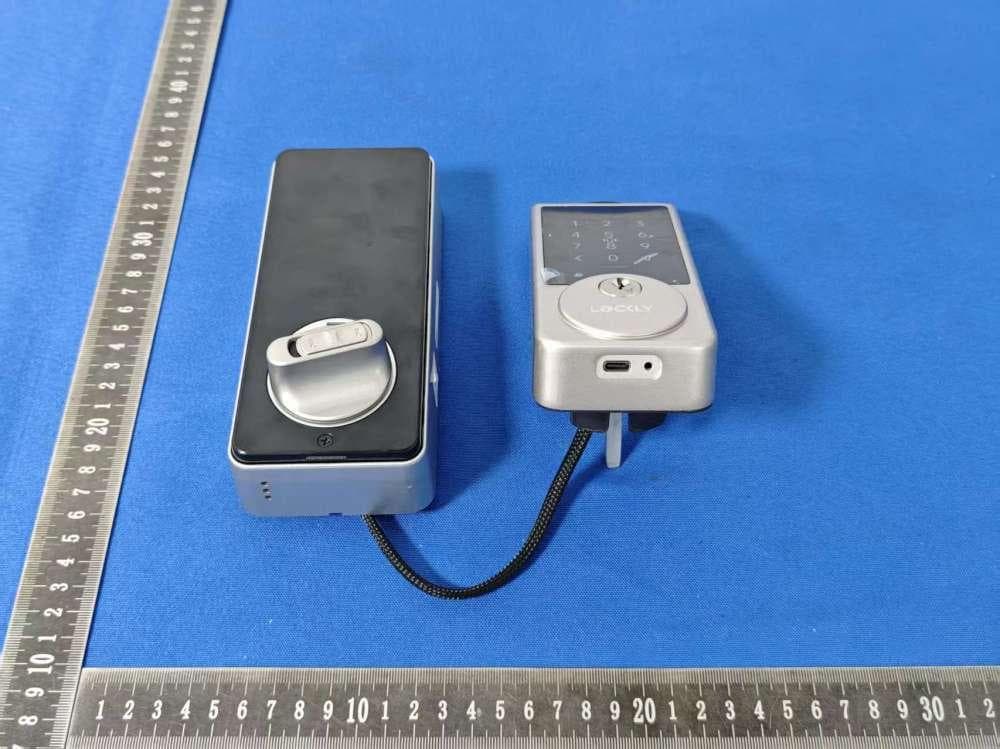

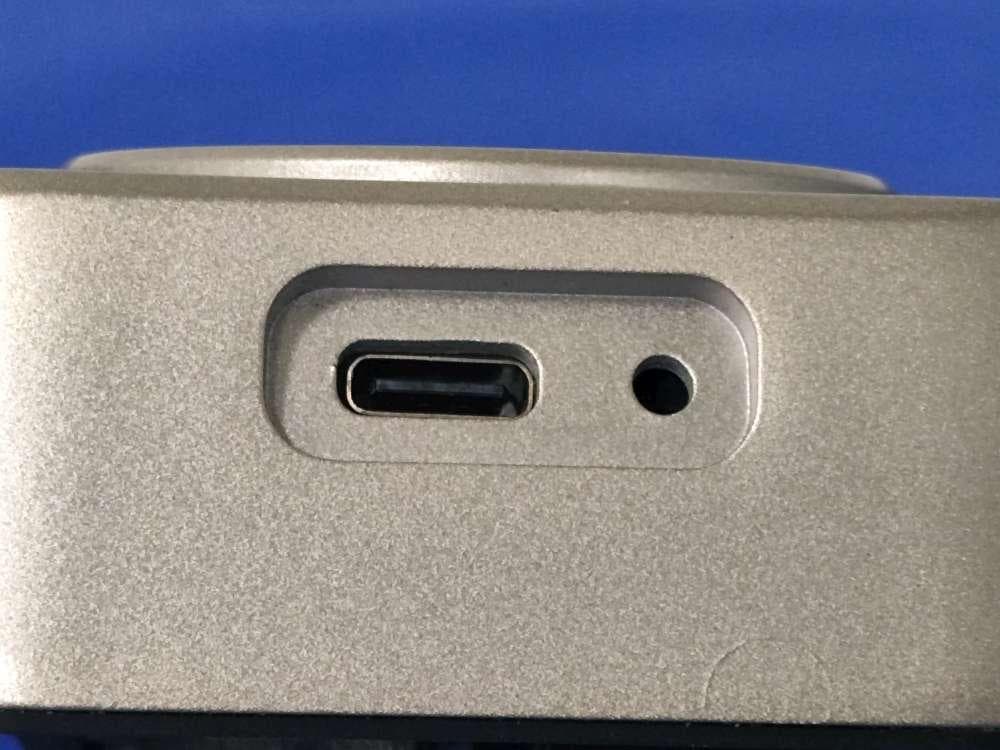

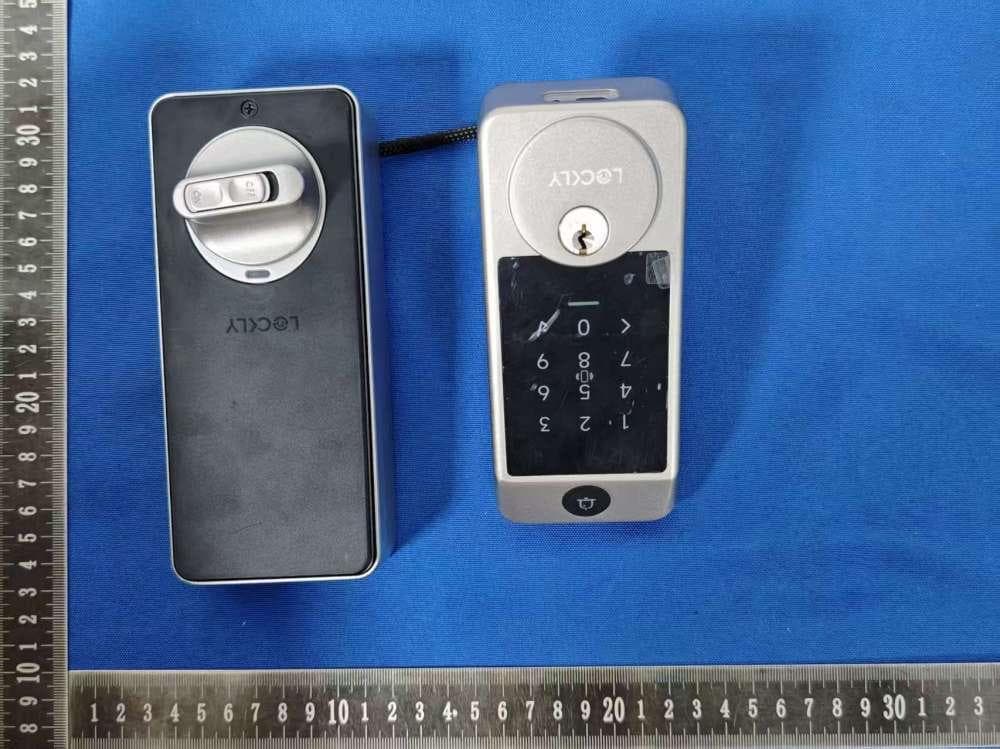

External Photos

Report No: SSP26060177-1&2&3&4E FCC ID: 2ASIVPGD738 Annex A. EUT External Photos EUT View 1 EUT View 2 Report No: SSP26060177-1&2&3&4E FCC ID: 2ASIVPGD738 EUT View 3 EUT View 4 Report No: SSP26060177-1&2&3&4E FCC ID: 2ASIVPGD738 EUT View 5 EUT View 6 Report No: SSP26060177-1&2&3&4E FCC ID: 2ASIVPGD738 EUT View 7 EUT View 8

ID Label/Location Info

Report No: SSP26060177-1&2&3&4E FCC ID: 2ASIVPGD738 Annex D. Label and Information FCC Label Sample FCC Labe Size: 2cm * 2cm FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location Label Location

Internal Photos

Report No: SSP26060177-1&2&3&4E FCC ID: 2ASIVPGD738 Annex B. EUT Internal Photos Model: PGD738 EUT Internal View 1 EUT Internal View 2 Report No: SSP26060177-1&2&3&4E FCC ID: 2ASIVPGD738 EUT Internal View 3 EUT Internal View 4 BT Antenna WIFI/BT Antenna Report No: SSP26060177-1&2&3&4E FCC ID: 2ASIVPGD738 EUT Internal View 5 EUT Internal View 6 Report No: SSP26060177-1&2&3&4E FCC ID: 2ASIVPGD738 EUT Internal View 7 EUT Internal View 8 NFC Antenna Report No: SSP26060177-1&2&3&4E FCC ID: 2ASIVPGD738 EUT Internal View 9 EUT Internal View 10

RF Exposure Info

FCC ID: 2ASIVPGD738 RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz, * = Plane-wave equivalent power density. Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Test Result of RF Exposure Evaluation For BLE-Matter Mode Output power to antenna (dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result BLE_1Mbps -1.47 -1(±1) 0 1.00 0.0003 1.0 PASS For BLE Mode Output power to antenna (dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result BLE_1Mbps -1.86 -1(±1) 0 1.00 0.0003 1.0 PASS For 2.4GWiFi Mode Output power to antenna (dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm2) Limit (mW/cm2) Result 802.11n20 11.49 11(±1) 12 15.85 0.0080 1.0 PASS For 13.56MHz Mode Output power to antenna (dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm2) Limit (mW/cm2) Result 13.56MHz -34.06 -34(±1) -33 0.001 0.0000001 0.9789333 PASS Field Strength: 61.14dBuV/m @3m 61.14dBuV/m -95.2=-34.06dBm Remark: antenna gain= BLE-Matter: 1.88dBi, BLE: 4.04dBi, 2.4GWiFi: 4.04dBi, 13.56MHz: 0dBi It can simultaneously use 2.4G Wi-Fi, Bluetooth BLE, Bluetooth BLE-Matter and NFC (13.56MHz) for data transmission. Calculations for simultaneously transmit Mode Ratios Result Limit Result BLE-Matter 0.0003 0.0086 1 PASS BLE 0.0003 2.4G Wi-Fi 0.0080 Ratios = Power Density / Power density Limit

Test Report

Report No: SSP26060177-3E FCC Test Report Page 1 of 54 FCC TEST REPORT FCC ID: 2ASIVPGD738 Report No. : SSP26060177-3E Applicant : PIN GENIE, INC. DBA LOCKLY Product Name : Lockly Fortis Series Smart Lock Deadbolt Edition Model Name : PGD738 Test Standard : FCC Part 15.247 Date of Issue : 2026-07-03 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.zrlklab.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. Report No: SSP26060177-3E FCC Test Report Page 2 of 54 Test Report Basic Information Applicant..................................: PIN GENIE, INC. DBA LOCKLY Address of Applicant...............: 2024 Macopin Rd., Unit E, West Milford, New Jersey 07480 United States Manufacturer..........................: Smart Electronic Industrial (Dong Guan) Co Ltd Address of Manufacturer........: Qing Long Road, Long Jian Tian-Cun, Huang Jiang-Zhen, Dong Guan, 523765 China Product Name.........................: Lockly Fortis Series Smart Lock Deadbolt Edition Brand Name.............................: - Main Model..............................: PGD738 Series Models..........................: - Test Standard..........................: FCC Part 15 Subpart C KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.4-2014 ANSI C63.10-2020 + Cor.1-2023 Date of Test .............................: 2026-06-23 to 2026-06-30 Test Result...............................: PASS Tested By ................................: (Colin Chen) Reviewed By............................: (Lorzix Luo) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. Report No: SSP26060177-3E FCC Test Report Page 3 of 54 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................9 2. Summary of Test Results ........................................................................................................................................... 10 3. Antenna Requirement ............................................................................................................................................... 11 3.1 Standard and Limit.............................................................................................................................................. 11 3.2 Test Result .......................................................................................................................................................... 11 4. Conducted Emissions ................................................................................................................................................ 12 4.1 Standard and Limit.............................................................................................................................................. 12 4.2 Test Procedure.................................................................................................................................................... 12 4.3 Test Data and Results .......................................................................................................................................... 13 5. Radiated Emissions ................................................................................................................................................... 16 5.1 Standard and Limit.............................................................................................................................................. 16 5.2 Test Procedure.................................................................................................................................................... 16 5.3 Test Data and Results .......................................................................................................................................... 18 6. Band-edge Emissions(Radiated) ............................................................................................................................... 27 6.1 Standard and Limit.............................................................................................................................................. 27 6.2 Test Procedure.................................................................................................................................................... 27 6.3 Test Data and Results ..........................................................................................................................…

Text truncated - open the document above for the full version.

Test Report

Report No: SSP26060177-1E FCC Test Report Page 1 of 41 FCC TEST REPORT FCC ID: 2ASIVPGD738 Report No. : SSP26060177-1E Applicant : PIN GENIE, INC. DBA LOCKLY Product Name : Lockly Fortis Series Smart Lock Deadbolt Edition Model Name : PGD738 Test Standard : FCC Part 15.247 Date of Issue : 2026-07-03 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.zrlklab.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. Report No: SSP26060177-1E FCC Test Report Page 2 of 41 Test Report Basic Information Applicant..................................: PIN GENIE, INC. DBA LOCKLY Address of Applicant...............: 2024 Macopin Rd., Unit E, West Milford, New Jersey 07480 United States Manufacturer..........................: Smart Electronic Industrial (Dong Guan) Co Ltd Address of Manufacturer........: Qing Long Road, Long Jian Tian-Cun, Huang Jiang-Zhen, Dong Guan, 523765 China Product Name.........................: Lockly Fortis Series Smart Lock Deadbolt Edition Brand Name.............................: - Main Model..............................: PGD738 Series Models..........................: - Test Standard..........................: FCC Part 15 Subpart C KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.4-2014 ANSI C63.10-2020 + Cor.1-2023 Date of Test .............................: 2026-06-23 to 2026-06-30 Test Result...............................: PASS Tested By ................................: (Colin Chen) Reviewed By............................: (Lorzix Luo) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. Report No: SSP26060177-1E FCC Test Report Page 3 of 41 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................9 2. Summary of Test Results ........................................................................................................................................... 10 3. Antenna Requirement ............................................................................................................................................... 11 3.1 Standard and Limit.............................................................................................................................................. 11 3.2 Test Result .......................................................................................................................................................... 11 4. Conducted Emissions ................................................................................................................................................ 12 4.1 Standard and Limit.............................................................................................................................................. 12 4.2 Test Procedure.................................................................................................................................................... 12 4.3 Test Data and Results .......................................................................................................................................... 13 5. Radiated Emissions ................................................................................................................................................... 16 5.1 Standard and Limit.............................................................................................................................................. 16 5.2 Test Procedure.................................................................................................................................................... 16 5.3 Test Data and Results .......................................................................................................................................... 18 6. Band-edge Emissions(Radiated) ............................................................................................................................... 27 6.1 Standard and Limit.............................................................................................................................................. 27 6.2 Test Procedure.................................................................................................................................................... 27 6.3 Test Data and Results ..........................................................................................................................…

Text truncated - open the document above for the full version.

Test Report

Report No: SSP26060177-2E FCC Test Report Page 1 of 41 FCC TEST REPORT FCC ID: 2ASIVPGD738 Report No. : SSP26060177-2E Applicant : PIN GENIE, INC. DBA LOCKLY Product Name : Lockly Fortis Series Smart Lock Deadbolt Edition Model Name : PGD738 Test Standard : FCC Part 15.247 Date of Issue : 2026-07-03 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.zrlklab.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. Report No: SSP26060177-2E FCC Test Report Page 2 of 41 Test Report Basic Information Applicant..................................: PIN GENIE, INC. DBA LOCKLY Address of Applicant...............: 2024 Macopin Rd., Unit E, West Milford, New Jersey 07480 United States Manufacturer..........................: Smart Electronic Industrial (Dong Guan) Co Ltd Address of Manufacturer........: Qing Long Road, Long Jian Tian-Cun, Huang Jiang-Zhen, Dong Guan, 523765 China Product Name.........................: Lockly Fortis Series Smart Lock Deadbolt Edition Brand Name.............................: - Main Model..............................: PGD738 Series Models..........................: - Test Standard..........................: FCC Part 15 Subpart C KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.4-2014 ANSI C63.10-2020 + Cor.1-2023 …

Text truncated - open the document above for the full version.

Contact Information

Applicant

Cindy zhou(COO)
[email protected]Fax: 4159109522

Technical Contact

PIN GENIE, INC. DBA LOCKLYCindy zhou
[email protected]Fax: 4159109522

2024 Macopin Rd., Unit E, · West Milford, New Jersey, 07480 · United States

Test Firm

Shenzhen CCUT Quality Technology Co., Ltd.Lahm Peng
[email protected]

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz710.00 µW
215C2.40 GHz - 2.48 GHz650.00 µW
315C2.41 GHz - 2.46 GHz14.10 mW
Confidentiality
Long Term
Grant Notes
Power listed is conducted.
