2ASJK-F33Digital piano

1 Safety Guideline Before playing the digital piano, please read the following content. Please put this instruction book in a safety place, in order to read it in the future. Warning In case of getting seriously injured or killed because of electric shock, short circuit, damage, fire or other dangers, please obey the following warnings. These warnings include but not limited to the following situations: Power/Electric Cable * The rated voltage of this device is fixed. The required voltage is printed on the nameplate of this device. * Check the plug regularly, clean the dirt and ash piled up on the plug. * This digital piano only matches with the provided power cable and plug. 2 * Please don't put electric cable beside heaters or radiators. Don't bend too much or cause damage to electric cable. Don't put any heavy stuff on the wire. Don't put it where it may be run over or trampled to make people stumble. Do Not Open * Please do not open this device and try to dismantle inner components or transform it in any ways. This device does not include any components for users to fix. If you find any problems, please stop using and ask qualified Pearl River service staffs to examine and repair the device. Warning about humidity * I n case of any liquid splashing into the device, please do not get this device rained or use it nearby water, in a wet surrounding or put a container of liquid on it. If any liquid, like water, splashes into the instrument, please cut off power and pull out the electric cable from the AC socket immediately. Then ask qualified Pearl River service staffs to examine and repair the device. * Do not plug with wet hands. 3 Fire * Do not place any burning stuff, like candle, on the instrument. It may cause fire. * When sensing any unusual situations, such as worn away and damage of power cable, sound suddenly stops during playing and the smell and smoke it causes, please turn off the power immediately and pull out plug from the socket. Ask qualified Pearl River service staffs to examine and repair the device. Attention In case that people around you and you get injured or get loss of device and property, please obey the following basic instructions. These instructions include but not limited to following situations. Power/Electric Cable * When pulling out plug from socket, please grab the plug instead of power cable. Drawing directly will cause damage to the power cable. * If not using the instruments for a long time or during a lighting storm, please 4 * Do not connect the instrument to the socket by multiple connector, or it will lower the sound quality, or it will make socket overheat. Assemble Use * Please carefully read the attachment that explains the assemble process. If assembling the instrument in a wrong order, it will damage the instrument and hurt the user. * Please connect the external equipment while the digital piano is off. * Before using, please install the supporting screw and adjust it close to the ground, in case of trampling pedal. Installation place * In case of deformation of control panel and damage to inner components, please do not place this device in an environment with a lot of dirt, vibration, extreme cold and hot (such as, direct sunshine, closing to heater and inside a car under the burning sun) * Please do not use this device near the television, radio, stereo, cell phone or other electronic devices. This may make noise on the device itself and 5 television or radio nearby. * Please do not put this device on unstable place, or it may cause a sudden fall down. * Before moving the device, please pull out all electric cables from the socket. * When you set this device, please confirm the AC socket going to be used is reachable. The device should be connected to the socket with protecting grounding connection. If you find any problems and questions, please immediately turn off the power and pull out the plug from the socket. Even though the power is turned off, there is still a small amount of electricity current flowing though it. If you decide not using this device for a long time, please pull out the plug from AC socket. * This product uses all extreme power switch as a device to cut off from network power. The power switch button is on the right side of the keyboard. When the power button is pressed, it is switched on. When the power button up rises, it is switched off. The graphic and screen in this hand book is only for introduction purpose. It may be different from the instrument you buy. 6 Catalogue Installation Guideline ............................................................................................... 8 Control Panel ............................................................................................................ 9 Power\Adjust Volume\Connect the Headset ................................ .......................... 10 Demo song\Sound .................................................................................................. 11 Function\1) Chord .................................................................................................... 12 2) Octave ............................................................................................................... 13 3)Transpose .......................................................................................................... 14 4)Soundboard resonance\5 ） Effect ...................................................................... 15 6) Reverb ................................................................................................................ 16 7)Chorus\8) Beat ................................................................................................... 17 9)Touch .................................................................................................................. 18 10)Split\Touch switch.............................................................................................. 19 Sound choosing.....................…

Text truncated - open the document above for the full version.

Guangzhou Pearl River Amason Digital Musical Instrument Co., Ltd. Agent Authorization Company: Guangzhou Pearl River Amason Digital Musical Instrument Co., Ltd. Address: 2nd-4th FLoor of Building 1, No.38 Xiangshan Ave, Zengcheng Economic and Technological, Development Zone, Guangzhou, China Product Name: Digital piano Model Number(s): F-33 Product Description: Digital piano We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jan. 06, 2020 Name: Huang Zhi biao Title: Manager Company: Guangzhou Pearl River Amason Digital Musical Instrument Co., Ltd.

Guangzhou Pearl River Amason Digital Musical Instrument Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Jan. 06, 2020 Subject; Request for Confidentiality FCC ID: 2ASJK-F33 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Huang Zhi biao Title: Manager

Annex A External Photos Report No.:HK1912193297‐1E/2E Page 1 of 5 Report No.:HK1912193297‐1E/2E Page 2 of 5 Report No.:HK1912193297‐1E/2E Page 3 of 5 Report No.:HK1912193297‐1E/2E Page 4 of 5 Report No.:HK1912193297‐1E/2E Page 5 of 5

FCC ID LABEL: Ca. 2cm x 4cm Label Location FCC ID: 2ASJK-F33

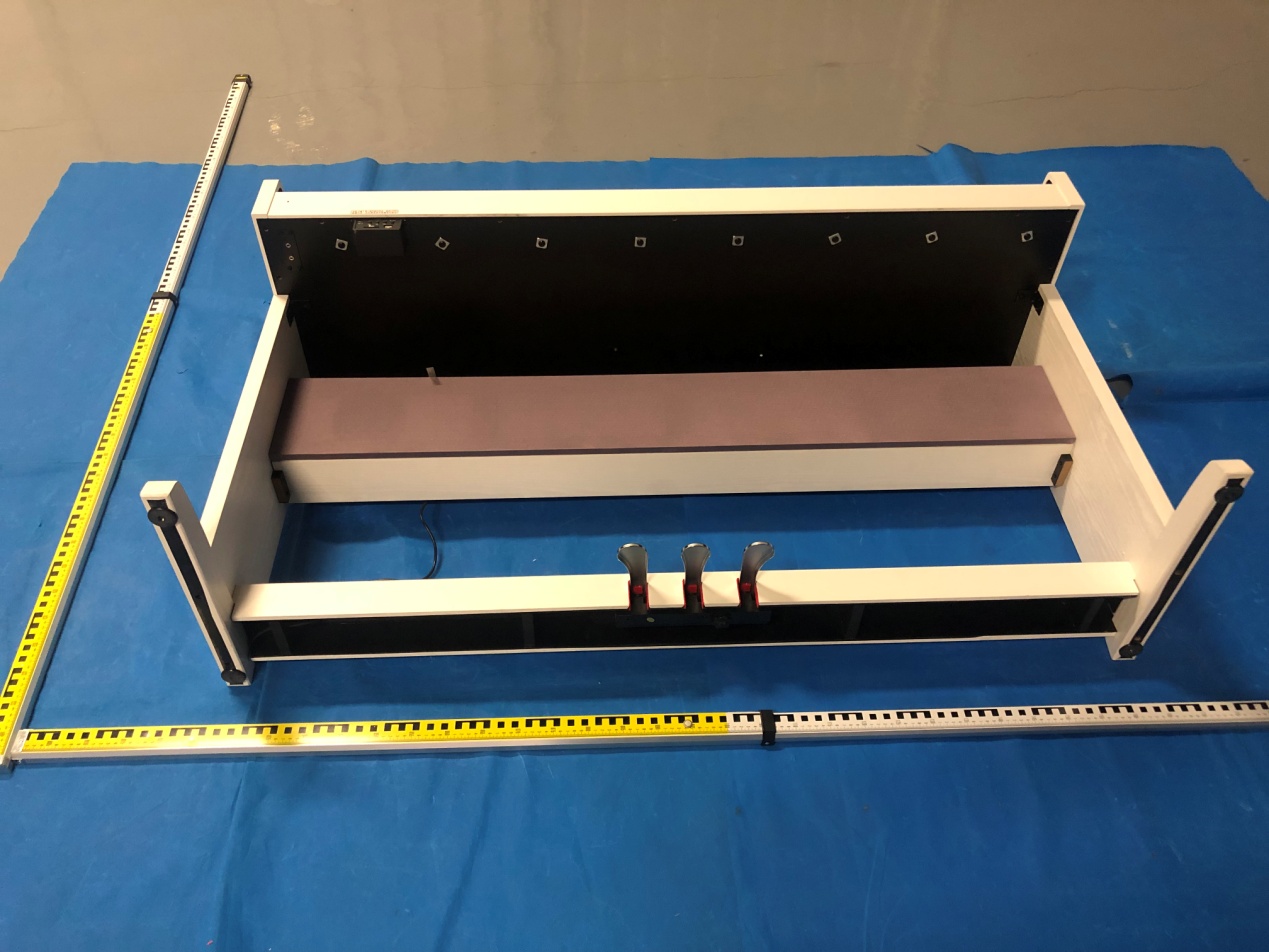

Annex B Internal Photo Report No.:HK1912193297‐1E/2E Page 1 of 10 Report No.HK1912193297‐1E/2E Page 2 of 10 Report No.:HK1912193297‐1E/2E Page 3 of 10 Report No.:HK1912193297‐1E/2E Page 4 of 10 Report No.:HK1912193297‐1E/2E Page 5 of 10 Antenna Report No.:HK1912193297‐1E/2E Page 6 of 10 Report No.:HK1912193297‐1E/2E Page 7 of 10 Report No.:HK1912193297‐1E/2E Page 8 of 10 Antenna Report No.:HK1912193297‐1E/2E Page 9 of 10 Report No.:HK1912193297‐1E/2E Page 10 of 10

Page 1 of 30 Report No.: HK1912193297-1E FCC TEST REPORT Test report On Behalf of Guangzhou Pearl River Amason Digital Musical Instrument Co., Ltd. For Digital piano Model No.: F-33 FCC ID: 2ASJK-F33 Prepared for : Guangzhou Pearl River Amason Digital Musical Instrument Co., Ltd. 2nd-4th FLoor of Building 1, No.38 Xiangshan Ave, Zengcheng Economic and Technological, Development Zone, Guangzhou, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Dec. 20, 2019 ~Dec. 27, 2019 Date of Report: Dec. 27, 2019 Report Number: HK1912193297-1E Page 2 of 30 Report No.: HK1912193297-1E TEST RESULT CERTIFICATION Applicant’s name ................. : Guangzhou Pearl River Amason Digital Musical Instrument Co., Ltd. Address ................................. : 2nd-4th FLoor of Building 1, No.38 Xiangshan Ave, Zengcheng Economic and Technological, Development Zone, Guangzhou, China Manufacture's Name ............ : Guangzhou Pearl River Amason Digital Musical Instrument Co., Ltd. Address ................................. : 2nd-4th FLoor of Building 1, No.38 Xiangshan Ave, Zengcheng Economic and Technological, Development Zone, Guangzhou, China Product description Trade Mark: Pearl River Product name ........................... : Digital piano Model and/or type reference : F-33 Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.249 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Dec. 20, 2019 ~Dec. 27, 2019 Date of Issue ........................................... : Dec. 27, 2019 Test Result ............................................... : Pass Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou) Page 3 of 30 Report No.: HK1912193297-1E Table of Contents Page 1 . TEST SUMMARY 4 2 . GENERAL INFORMATION 5 2.1 GENERAL DESCRIPTION OF EUT 5 2.2 Operation of EUT during testing 6 2.3 DESCRIPTION OF TEST SETUP 7 2.4 MEASUREMENT INSTRUMENTS LIST 8 3 . CONDUCTED EMISSIONS TEST 9 3.1 Conducted Power Line Emission Limit 9 3.2 Test Setup 9 3.3 Test Procedure 9 3.4 Test Result 10 4 RADIATED EMISSION TEST 12 4.1 Radiation Limit 12 4.2 Test Setup 12 4.3 Test Procedure 13 4.4 Test Result 13 5 out of Band Emissions 19 5.1 Limits 19 5.2 Test Procedure 19 5.3 Test Result 19 6 OCCUPIED BANDWIDTH MEASUREMENT 21 6.1 Test Setup 21 6.2 Test Procedure 21 6.3 Measurement Equipment Used 21 6.4 Test Result 21 7 ANTENNA REQUIREMENT 27 8 PHOTOGRAPH OF TEST 28 8.1 Radiated Emission 28 8.2 Conducted Emission 29 9 PHOTOGRAPH OF TEST 30 Page 4 of 30 Report No.: HK1912193297-1E 1. TEST SUMMARY 1.1 TEST PROCEDURES AND RESULTS FCC PART 15.249 CONDUCTED EMISSIONS TEST §15.207 PASS RADIATED EMISSION TEST §15.249 (a) (d)/ §15.209 PASS out of Band Emissions §15.249 (d)/ §15.205 PASS OCCUPIED BANDWIDTH MEASUREMENT§15.215 (c) PASS ANTENNA REQUIREMENT §15.203 PASS 1.2 TEST FACILITY Test Firm : Shenzhen HUAK Testing Technology Co., Ltd. Address : 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Designation Number : CN1229 1.3 MEASUREMENT UNCERTAINTY Measurement Uncertainty Conducted Emission Expanded Uncertainty =2.23dB, k=2 Radiated emission expanded uncertainty(9kHz-30MHz) = 3.08dB, k=2 Radiated emission expanded uncertainty(30MHz-1000MHz)= 4.42dB, k=2 Radiated emission expanded uncertainty(Above 1GHz) = 4.06dB, k=2 Page 5 of 30 Report No.: HK1912193297-1E 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Digital piano Model Name F-33 Serial No N/A Model Difference N/A FCC ID 2ASJK-F33 Antenna Type PCB Antenna Antenna Gain 4dBi BT Operation frequency 2402-2480MHz Number of Channels 79CH Modulation Type GFSK, π/4DQPSK, 8DPSK Power Source AC120V, 60Hz Power Rating AC120V, 60Hz Page 6 of 30 Report No.: HK1912193297-1E 2.1.1 Carrier Frequency of Channels Channel List Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 00 2402 27 2429 54 2456 01 2403 28 2430 55 2457 02 2404 29 2431 56 2458 03 2405 30 2432 57 2459 04 2406 31 2433 58 2460 05 2407 32 2434 59 2461 06 2408 33 2435 60 2462 07 2409 34 2436 61 2463 08 2410 35 2437 62 2464 09 2411 36 2438 63 2465 10 2412 37 2439 64 2466 11 2413 38 2440 65 2467 12 2414 39 2441 66 2468 13 2415 40 2442 67 2469 14 2416 41 2443 68 2470 15 2417 42 2444 69 2471 16 2418 43 2445 70 2472 17 2419 44 2446 71 2473 18 2420 45 2447 72 2474 19 2421 46 2448 73 2475 20 2422 47 2449 74 2476 21 2423 48 2450 75 2477 22 2424 49 2451 76 2478 23 2425 50 2452 77 2479 24 2426 51 2453 78 2480 25 2427 52 2454 26 2428 53 2455 2.2 Operation of EUT during testing Operating Mode The mode is used: Transmitting mode Low Channel: 2402MHz Middle Channel: 2441MHz High Channel: 2480MHz Page 7 of 30 Report No.: HK1912193297-1E 2.3 DESCRIPTION OF TEST SETUP Operation of EUT during conducted testing and Radiation testing: AC Plug Operation of EUT Above1GHz Radiation testing: AC Plug The sample was placed (0.1m below 1GHz, 0.1m above 1GHz) above the ground plane of 3m chamber. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating the turntable, varying antenna height …

Text truncated - open the document above for the full version.

Page 1 of 26 Report No.: HK1912193297-2E FCC TEST REPORT Test report On Behalf of Guangzhou Pearl River Amason Digital Musical Instrument Co., Ltd. For Digital piano Model No.: F-33 FCC ID: 2ASJK-F33 Prepared for : Guangzhou Pearl River Amason Digital Musical Instrument Co., Ltd. 2nd-4th FLoor of Building 1, No.38 Xiangshan Ave, Zengcheng Economic and Technological, Development Zone, Guangzhou, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Dec. 20, 2019 ~ Dec. 31, 2019 Date of Report: Dec. 31, 2019 Report Number: HK1912193297-2E Page 2 of 26 Report No.: HK1912193297-2E TEST RESULT CERTIFICATION Applicant’s name ................. : Guangzhou Pearl River Amason Digital Musical Instrument Co., Ltd. Address ................................. : 2nd-4th FLoor of Building 1, No.38 Xiangshan Ave, Zengcheng Economic and Technological, Development Zone, Guangzhou, China Manufacture's Name ............ : Guangzhou Pearl River Amason Digital Musical Instrument Co., Ltd. Address ................................. : 2nd-4th FLoor of Building 1, No.38 Xiangshan Ave, Zengcheng Economic and Technological, Development Zone, Guangzhou, China Product description Trade Mark: Pearl River Product name ........................... : Digital piano Model and/or type reference : F-33 Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.249 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Dec. 20, 2019 ~ Dec. 31, 2019 Date of Issue ........................................... : Dec. 31, 2019 Test Result .............................................. : Pass Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou) Page 3 of 26 Report No.: HK1912193297-2E Table of Contents Page 1 . TEST SUMMARY 4 2 . GENERAL INFORMATION 5 2.1 GENERAL DESCRIPTION OF EUT 5 2.2 Carrier Frequency of Channels 6 2.3 Operation of EUT during testing 6 2.4 DESCRIPTION OF TEST SETUP 6 2.5 MEASUREMENT INSTRUMENTS LIST 7 3 . CONDUCTED EMISSIONS TEST 8 3.1 Conducted Power Line Emission Limit 8 3.2 Test Setup 8 3.3 Test Procedure 8 3.4 Test Result 8 4 RADIATED EMISSION TEST 11 4.1 Radiation Limit 11 4.2 Test Setup 11 4.3 Test Procedure 12 4.4 Test Result 12 5 BAND EDGE 18 5.1 Limits 18 5.2 Test Procedure 18 5.3 Test Result 19 6 OCCUPIED BANDWIDTH MEASUREMENT 21 6.1 Test Setup 21 6.2 Test Procedure 21 6.3 Measurement Equipment Used 21 6.4 Test Result 21 7 ANTENNA REQUIREMENT 23 8 PHOTOGRAPH OF TEST 24 8.1 Radiated Emission 24 8.2 Conducted Emission 25 9 PHOTOS OF THE EUT 26 Page 4 of 26 Report No.: HK1912193297-2E 1. TEST SUMMARY 1.1 TEST PROCEDURES AND RESULTS DESCRIPTION OF TEST RESULT CONDUCTED EMISSIONS TEST 15.207 COMPLIANT RADIATED EMISSION TEST 15.249(a) /15.209 COMPLIANT BAND EDGE 15.249(d)/15.205COMPLIANT OCCUPIED BANDWIDTH MEASUREMENT 15.215（c） COMPLIANT ANTENNA REQUIREMENT 15.203 COMPLIANT 1.2 TEST FACILITY Te s t F i r m ： Shenzhen HUAK Testing Technology Co., Ltd. Address ： 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China 1.3 MEASUREMENT UNCERTAINTY Measurement Uncertainty Conducted Emission Expanded Uncertainty =2.23dB, k=2 Radiated emission expanded uncertainty(9kHz-30MHz) = 3.08dB, k=2 Radiated emission expanded uncertainty(30MHz-1000MHz)= 4.42dB, k=2 Radiated emission expanded uncertainty(Above 1GHz) = 4.06dB, k=2 Page 5 of 26 Report No.: HK1912193297-2E 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Digital piano Model Name F-33 Serial Model N/A Model Difference N/A FCC ID 2ASJK-F33 Antenna Type Internal Antenna Antenna Gain 4dBi Equipment Digital piano Operation frequency 2402-2480MHz Number of Channels 40CH Modulation Type GFSK Power Source AC120V, 60Hz Power Rating AC120V, 60Hz Page 6 of 26 Report No.: HK1912193297-2E 2.2 Carrier Frequency of Channels Channel List Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 01 2402 11 2422 21 2442 31 2462 02 2404 12 2424 22 2444 32 2464 03 2406 13 2426 23 2446 33 2466 04 2408 14 2428 24 2448 34 2468 05 2410 15 2430 25 2450 35 2470 06 2412 16 2432 26 2452 36 2472 07 2414 17 2434 27 2454 37 2474 08 2416 18 2436 28 2456 38 2476 09 2418 19 2438 29 2458 39 2478 10 2420 20 2440 30 2460 40 2480 2.3 Operation of EUT during testing Operating Mode The mode is used: Transmitting mode Low Channel: 2402MHz Middle Channel: 2440MHz High Channel: 2480MHz 2.4 DESCRIPTION OF TEST SETUP Operation of EUT during conducted testing and Radiation testing: AC Plug Operation of EUT Above1GHz Radiation testing: AC Plug The sample was placed (0.1m below 1GHz, 0.1m above 1GHz) above the ground plane of 3m chamber. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating the turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations.The emissions worst-case are shown in Test Results of the following pages. The worst case is X position. EUT EUT Page 7 of 26 Report No.: HK1912193297-2E 2.5 MEASUREMENT INSTRUMENTS LIST Item Equipment Manufacturer Model No.Serial No. Last Cal. Cal. …

Text truncated - open the document above for the full version.

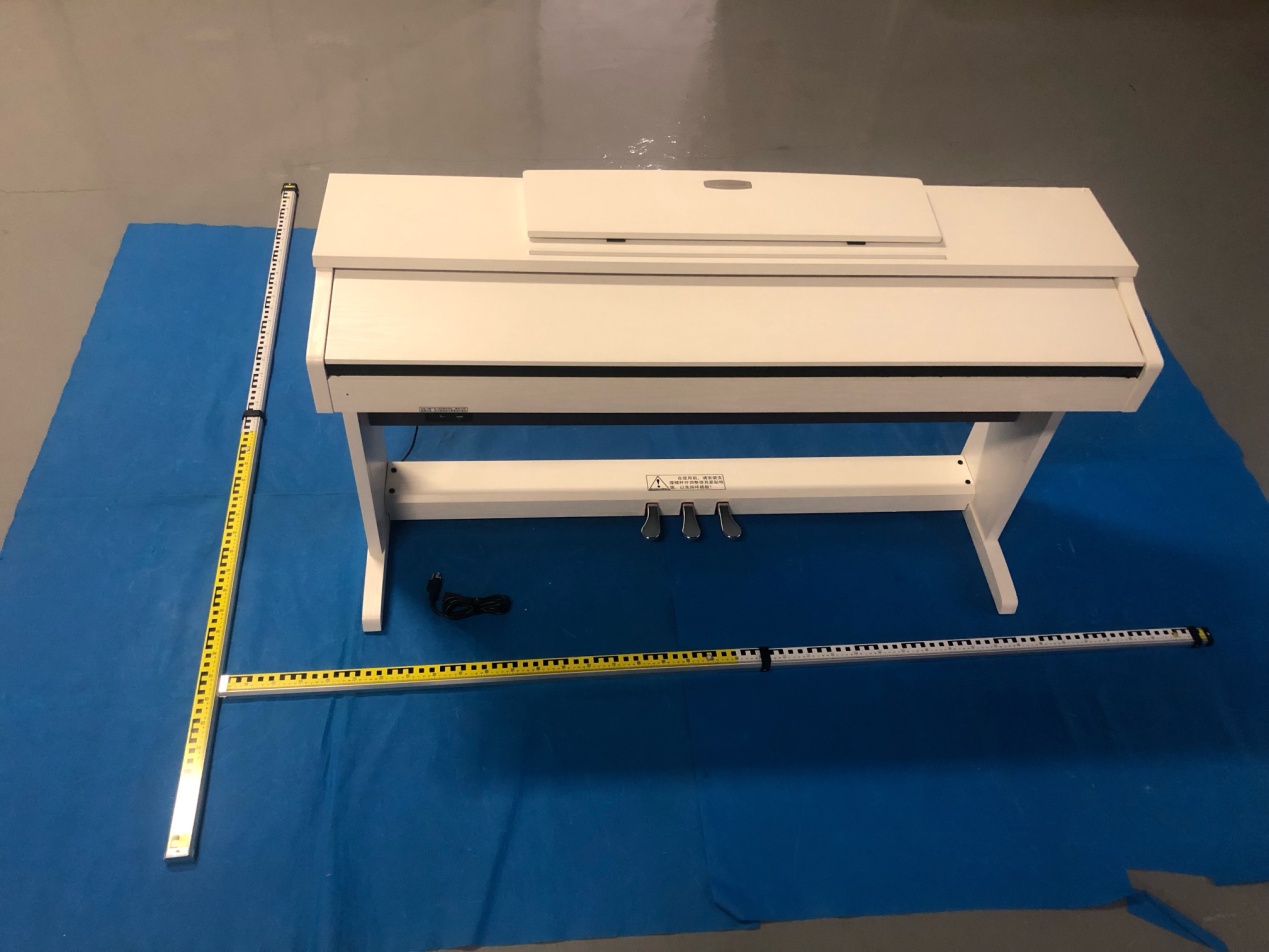

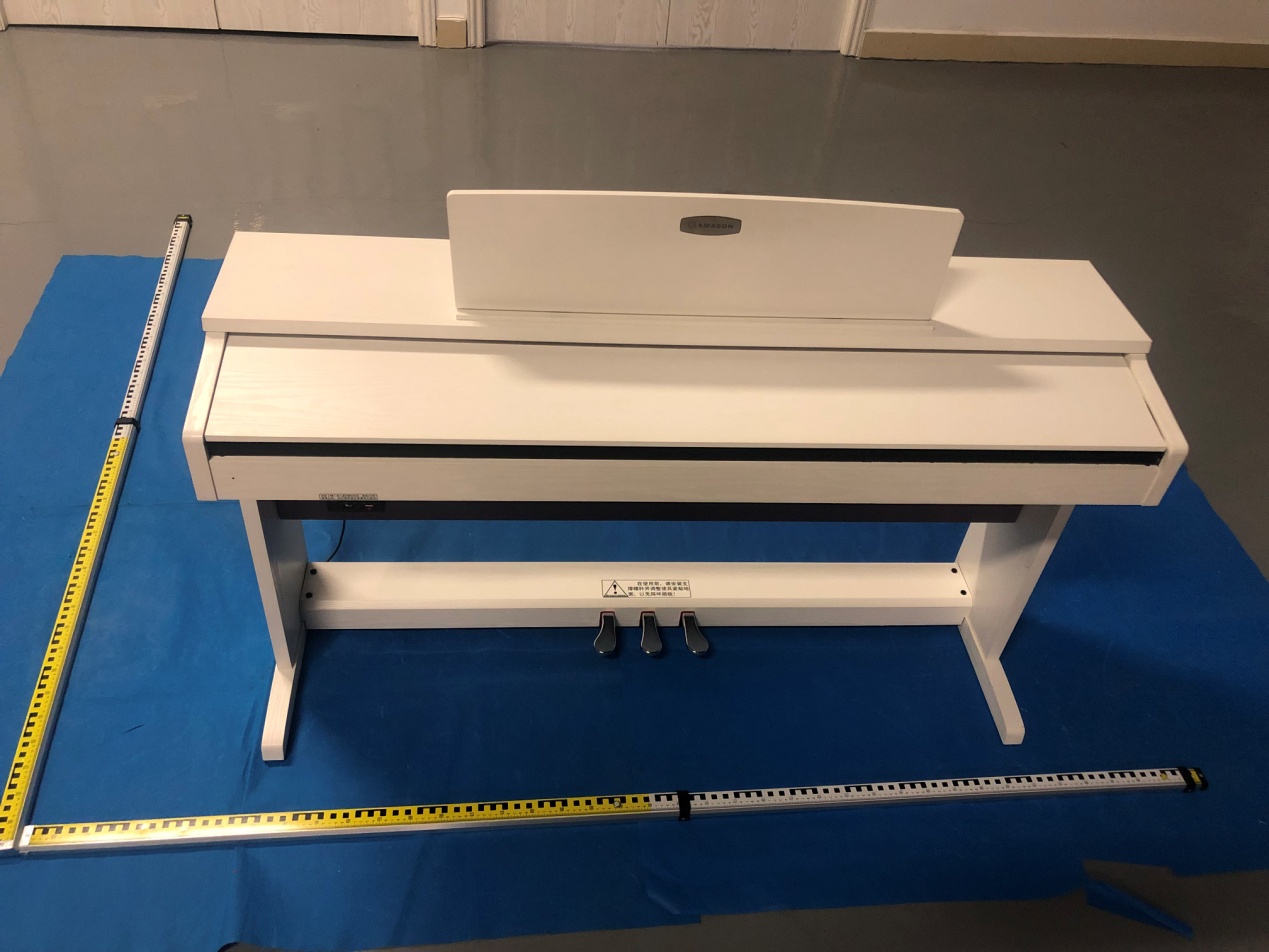

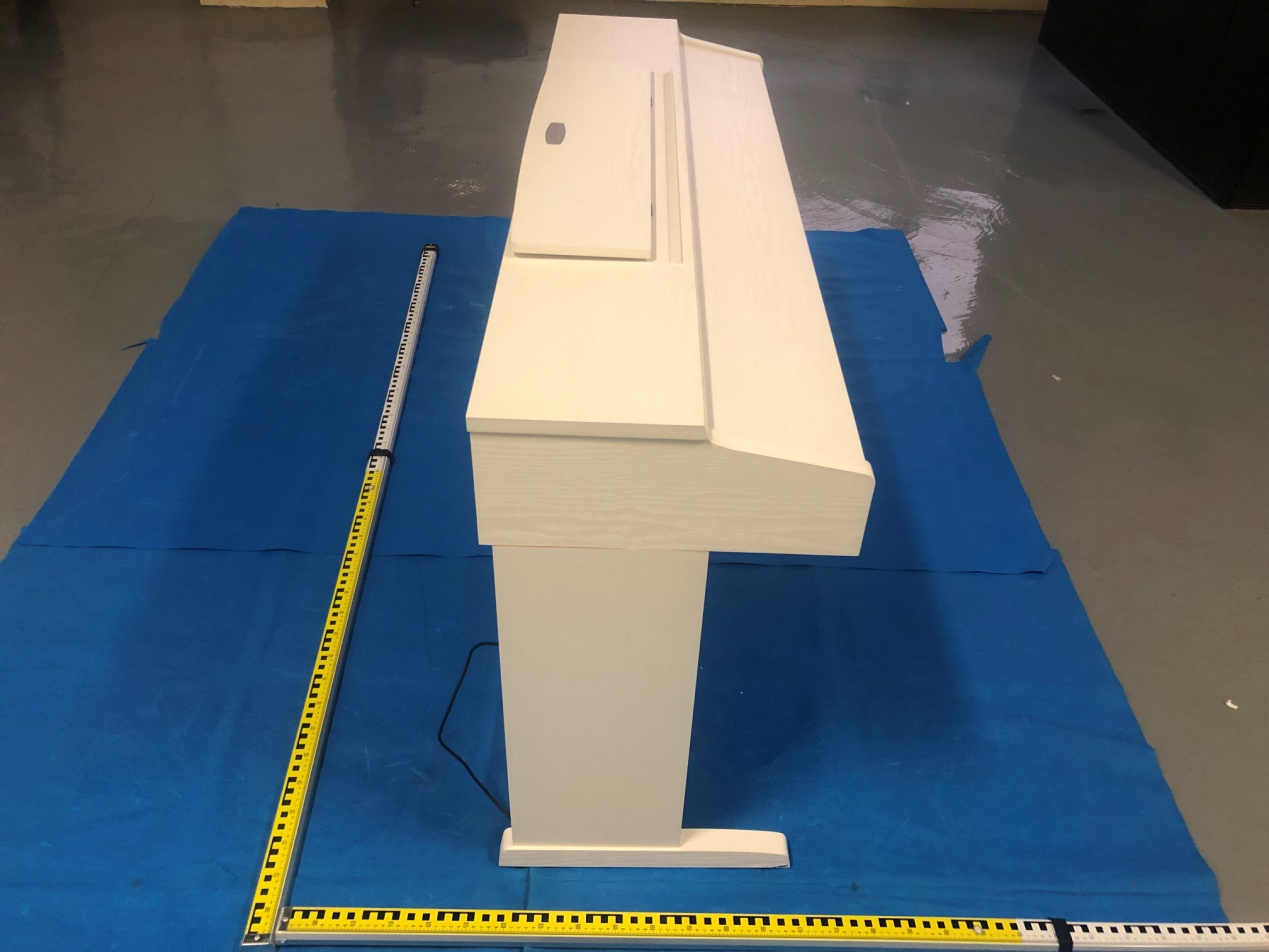

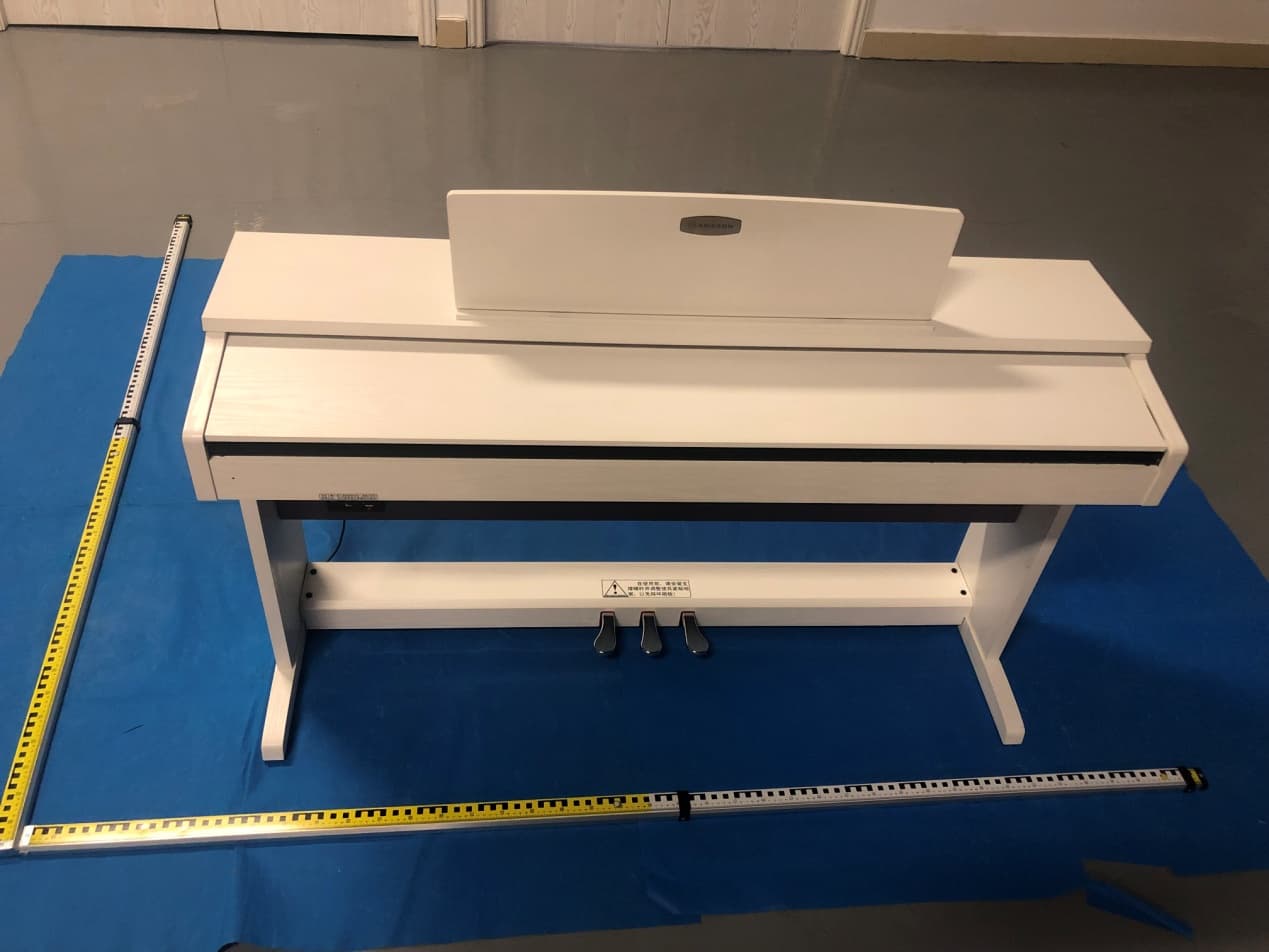

Test Model：F-33 Radiated Emission Conducted Emission
