2ASKOHD-025LSoundbar

FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the follow ing two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, inc luding interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residentia l installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televis ion reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technic ian for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be insta lled and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna.

(ShenZhenHanHongDigitalTechnologyCo.,Ltd) FederalCommunicationsCommission AuthorizationandEvaluationDivision 1435OaklandMillsRoad Columbia,MD21046 Date:2020.08.11 SUBJECT:FCCApplicationforFCCID:2ASKOHD-025L ToWhomItMayConcern: We,theundersigned,herebyauthorizeAlanMeiatShenzhenBCTCTestingCo.,Ltd.on ourbehalf,toapplytotheFederalCommunicationsCommissiononourequipment.Any andallactscarriedoutbyAlanMeiofShenzhenBCTCTestingCo.,Ltd.onourbehalf shallhavethesameeffectasactsofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We,the applicant,arenotsubjecttoadenialoffederalbenefitspursuanttoSection5301ofthe Anti-DrugActof1988,21USC853a,andnopartytotheapplicationissubjecttoadenial offederalbenefitspursuanttothatsection. Regards, (Mr.xie)

ShenZhenHanHongDigitalTechnologyCo.,Ltd ModelDifference Productdescription:Soundbar Modelname:HD-025L 90100PI,AF-40 TradeName:N/A FCCID:2ASKOHD-025L AllthemodelarethesamecircuitandRFmodule,exceptmodelnames. Regards Sincerely Client’ssignature: Client’sname/title:Mr.xie/N/A Contactinformation/address:BuildingARoom#303-305,HuafengInternet-Innovation TechnologyPark,GongheIndustryRoad107#,XixiangStreet,Baoan,Shenzhen,China

Rev11/20/07 (ShenZhenHanHongDigitalTechnologyCo.,Ltd) FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationofFCCID:2ASKOHD-025L PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName BlockDiagram, Schematics, OperationalDescription BlockDiagram Schematics OperationalDescription Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethedateoftheGrant forthisapplication. Sincerely, (Mr.xie)

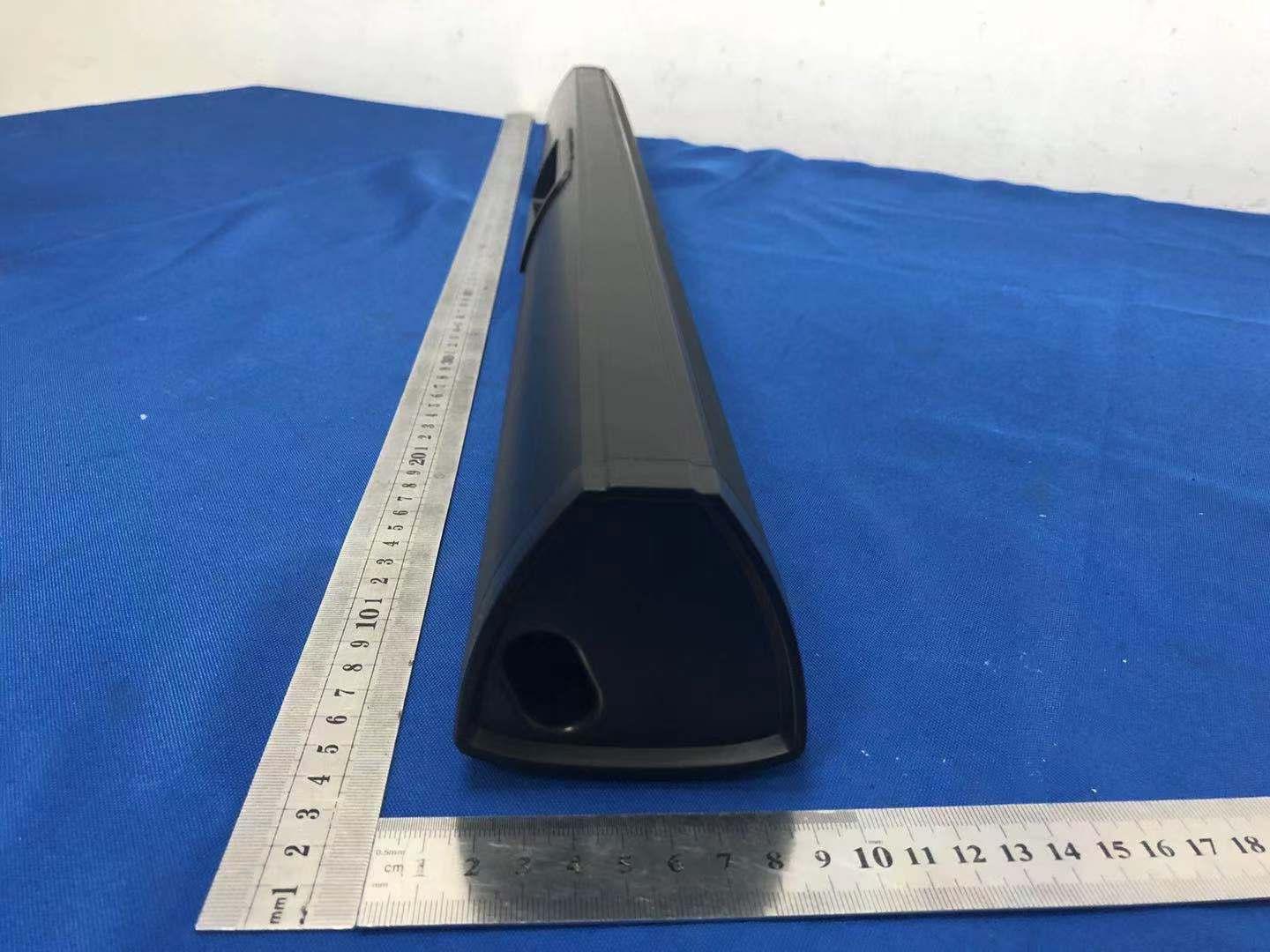

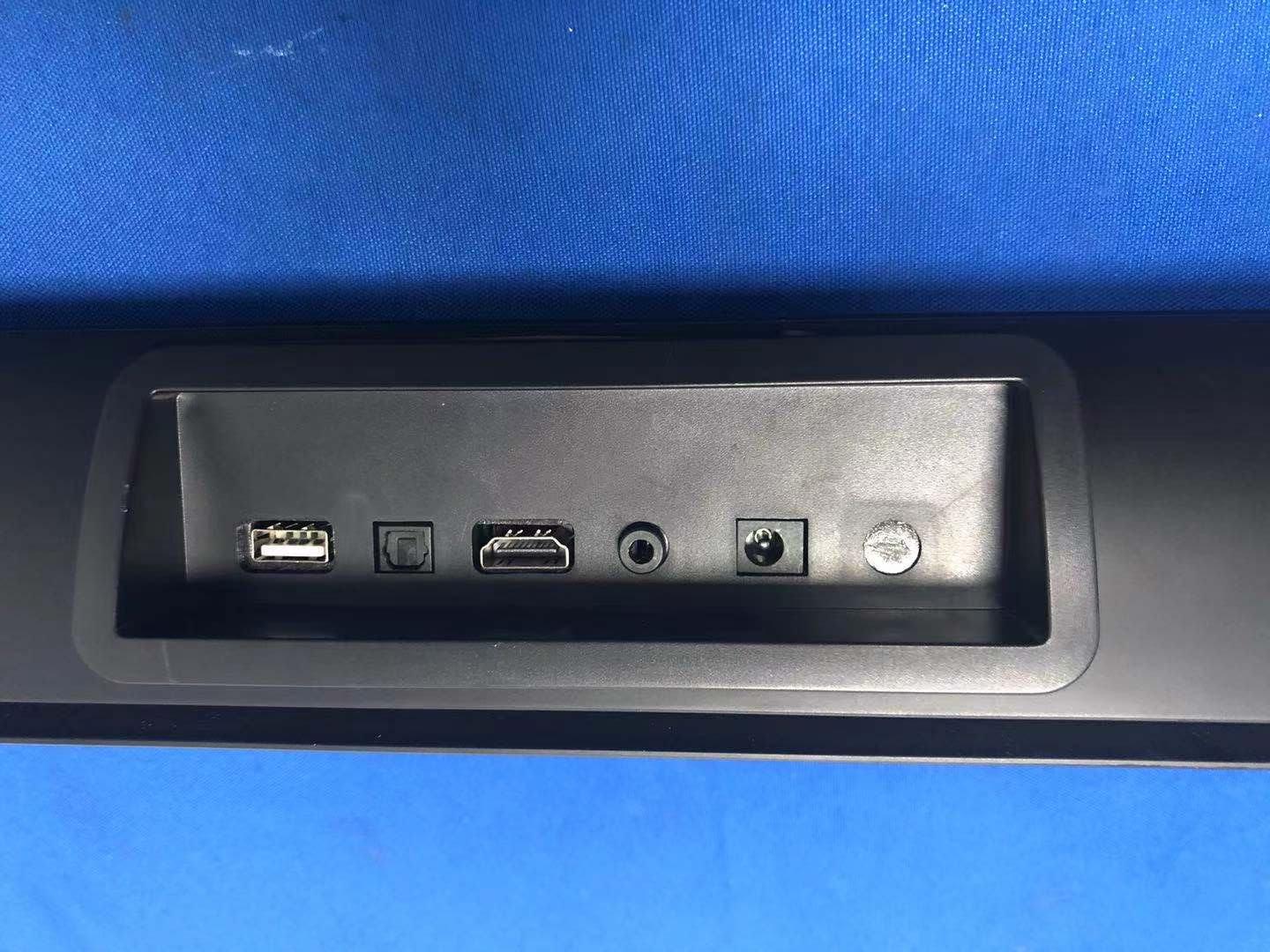

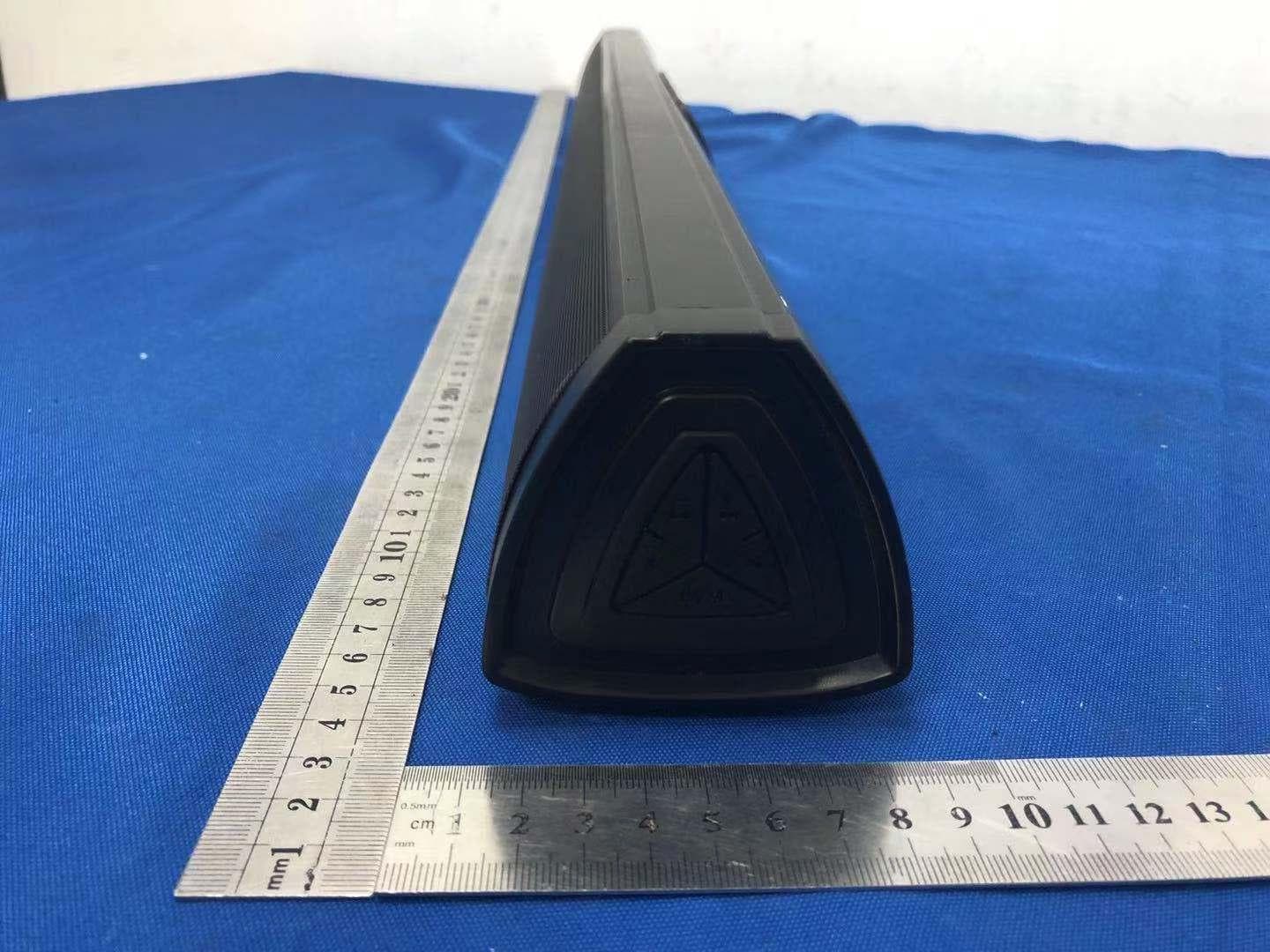

External Photos

Label&labellocation Soundbar FCCID:2ASKOHD-025L

Internal Photos Antenna

FCC§15.247(i),§2.1091–RFExposure FCCID:2ASKOHD-025L Appliedprocedures/limit AccordingtoFCC§15.247(i)and§1.1307(b)(1),systemsoperatingundertheprovisionsofthis sectionshallbeoperatedinamannerthatensuresthatthepublicisnotexposedtoradio frequencyenergylevelinexcessoftheCommission’sguidelines. LimitsforOccupational/ControlledExposure Frequency Range(MHz) ElectricField Strength(E) (V/m) MagneticField Strength(H) (A/m) PowerDensity(S) (mW/cm 2 ) AveragingTime |E| 2 ,|H| 2 orS (minutes) 0.3-3.06141.63(100)*6 3.0-301842/f4.89/f(900/f)*6 30-30061.40.1631.06 300-1500F/3006 1500-100,00056 Note:ƒisfrequencyinMHz *=Powerdensitylimitisapplicableatfrequenciesgreaterthan100MHz LimitsforGeneralPopulation/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(E) (V/m) MagneticField Strength(H) (A/m) PowerDensity(S) (mW/cm 2 ) AveragingTime |E| 2 ,|H| 2 orS (minutes) 0.3-1.346141.63(100)*30 1.34-30824/f2.19/f(180/f)*30 30-30027.50.0730.230 300-1500F/150030 1500-100,0001.030 Note:f=frequencyinMHz *=Plane-waveequivalentpowerdensity MPEPREDICTION PredicationofMPElimitatagivendistance,EquationfromOETBulletin65,Edition97-01 Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecenterofradiationoftheantenna,R=0.2m TESTRESULTS Tuneup Produce power Maximum peakoutput power (dBm) Output power toantenna (mW) Antenna Gain (numeric) PowerDensity (S) (mW/cm2) Limit (mW/ cm2) Result BT1±121.58 2.178 (3.38dBi) 0.000691Pass BLE1±121.58 2.178 (3.38dBi) 0.000691Pass

No.：BCTC/RF-EMC-005Page: 1 of 44 Edition：A.3 TESTREPORT ShenzhenBCTCTestingCo.,Ltd. ReportNo.: BCTC2107125725-2E Applicant:ShenZhenHanHongDigitalTechnologyCo.,Ltd ProductName:Soundbar Model/TypeRef.:HD-025L TestedDate:2021-07-09to2021-07-12 IssuedDate:2021-07-12 ReportNo.:BCTC2107125725-2E No.：BCTC/RF-EMC-005Page: 2 of 44 Edition：A.3 FCCID:2ASKOHD-025L Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp.Thisresult(s)showninthis reportreferonlytothesample(s)tested.WithoutwrittenapprovalofShenzhenBCTCTestingCo.,Ltd,this reportcan’tbereproducedexceptinfull.Thetestedsample(s)andthesampleinformationareprovidedby theclient. ProductName: Soundbar Trademark: N/A Model/TypeRef.: HD-025L 90100PI,AF-40 PreparedFor: ShenZhenHanHongDigitalTechnologyCo.,Ltd Address: BuildingARoom#303-305,HuafengInternet-Innovation TechnologyPark,GongheIndustryRoad107#,XixiangStreet, Baoan,Shenzhen,China Manufacturer: ShenZhenHanHongDigitalTechnologyCo.,Ltd Address: BuildingARoom#303-305,HuafengInternet-Innovation TechnologyPark,GongheIndustryRoad107#,XixiangStreet, Baoan,Shenzhen,China PreparedBy: ShenzhenBCTCTestingCo.,Ltd. Address: 1-2/F.,BuildingB,PengzhouIndustrialPark,No.158,Fuyuan1st Road,Tangwei,FuhaiSubdistrict,Bao'anDistrict,Shenzhen, Guangdong,China SampleReceivedDate: 2021-07-09 SampletestedDate: 2021-07-09to2021-07-12 IssueDate: 2021-07-12 ReportNo.: BCTC2107125725-2E TestStandards: FCCPart15.247 ANSIC63.10-2013 TestResults: PASS Remark:Thisis BluetoothBLE radiotestreport. Testedby:Approvedby: KelseyTan/ProjectHandlerZeroZhou/Reviewer ReportNo.:BCTC2107125725-2E No.：BCTC/RF-EMC-005Page: 3 of 44 Edition：A.3 TABLEOFCONTENT TestReportDeclarationPage 1.VERSION ............................................................................................................................ 5 2.TESTSUMMARY .............................................................................................................. 6 3.MEASUREMENTUNCERTAINTY ................................................................................. 7 4.PRODUCTINFORMATIONANDTESTSETUP ......................................................... 8 4.1ProductInformation ........................................................................................................... 8 4.2TestSetupConfiguration ................................................................................................. 9 4.3SupportEquipment ........................................................................................................... 9 4.4ChannelList ..................................................................................................................... 10 4.5TestMode ......................................................................................................................... 10 4.6Tableofparametersoftextsoftwaresetting ............................................................... 10 5.TESTFACILITYANDTESTINSTRUMENTUSED .................................................. 11 5.1TestFacility ...................................................................................................................... 11 5.2TestInstrumentUsed ..................................................................................................... 11 6.CONDUCTEDEMISSIONS ........................................................................................... 13 6.1BlockDiagramOfTestSetup ........................................................................................ 13 6.2Limit ................................................................................................................................... 13 6.3Testprocedure ................................................................................................................. 13 6.4EUToperatingConditions .............................................................................................. 14 6.5TestResult ....................................................................................................................... 15 7.RADIATEDEMISSIONS ................................................................................................ 17 7.1BlockDiagramOfTestSetup ........................................................................................ 17 7.2Limit ................................................................................................................................... 18 7.3Testprocedure ................................................................................................................. 19 7.4EUToperatingConditions .............................................................................................. 21 7.5TestResult ....................................................................................................................... 22 8.RADIATEDBANDEMISSIONMEASUREMENTANDRESTRICTED BANDSOFOPERATION ....................................................................................................... 26 8.1BlockDiagramOfTestSetup ........................................................................................ 26 8.2Limit ................................................................................................................................... 26 8.3Testprocedure ................................................................................................................. 27 8.4EUToperatingConditions .............................................................................................. 27 8.5TestResult ....................................................................................................................... 28 9.POWERSPECTRALDENSITYTEST ........................................................................ 29 9.1BlockDiagramOfTestSetup ........................................................................................ 29 9.2Limit ................................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: BCTC2107125725-1E No.：BCTC/RF-EMC-005 Page 52 of 70 Edition：A.3 12.4 Test Result Modulation Test Channel Separation (MHz) Limit(MHz) Result GFSK Low 1.004 0.676 PASS GFSK Middle 1.014 0.677 PASS GFSK High 0.998 0.677 PASS Pi/4 DQPSK Low 1.002 0.861 PASS Pi/4 DQPSK Middle 1.004 0.855 PASS Pi/4 DQPSK High 1.002 0.860 PASS 8DPSK Low 1.006 0.853 PASS 8DPSK Middle 1.006 0.853 PASS 8DPSK High 1.006 0.854 PASS Test plots GFSK Low Channel Report No.: BCTC2107125725-1E No.：BCTC/RF-EMC-005 Page 53 of 70 Edition：A.3 GFSK Middle Channel GFSK High Channel Report No.: BCTC2107125725-1E No.：BCTC/RF-EMC-005 Page 54 of 70 Edition：A.3 Pi/4 DQPSK Low Channel Pi/4 DQPSK Middle Channel Report No.: BCTC2107125725-1E No.：BCTC/RF-EMC-005 Page 55 of 70 Edition：A.3 Pi/4 DQPSK High Channel 8DPSK Low Channel Report No.: BCTC2107125725-1E No.：BCTC/RF-EMC-005 Page 56 of 70 Edition：A.3 8DPSK Middle Channel 8DPSK High Channel Report No.: BCTC2107125725-1E No.：BCTC/RF-EMC-005 Page 57 of 70 Edition：A.3 13. NUMBER OF HOPPING FREQUENCY 13.1 Block Diagram Of Test Setup 13.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. 13.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 100kHz. VBW = 300kHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. It may prove necessary to break the span up to sections. in order to clearly show all of the hopping frequencies. The limit is specified in one of the subparagraphs of this Section. 4. Set the spectrum analyzer: Start Frequency = 2.4GHz, Stop Frequency = 2.4835GHz. Sweep=auto; Report No.: BCTC2107125725-1E No.：BCTC/RF-EMC-005 Page 58 of 70 Edition：A.3 13.4 Test Result Test Plots: 79 Channels in total GFSK Pi/4 DQPSK Report No.: BCTC2107125725-1E No.：BCTC/RF-EMC-005 Page 59 of 70 Edition：A.3 8DPSK Report No.: BCTC2107125725-1E No.：BCTC/RF-EMC-005 Page 60 of 70 Edition：A.3 14. DWELL TIME 14.1 Block Diagram Of Test Setup 14.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 seconds multiplied by the number of hopping channels employed. Frequency hopping systems may avoid or suppress transmissions on a particular hopping frequency provided that a minimum of 15 channels are used. 14.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set spectrum analyzer span = 0. Centred on a hopping channel; 3. Set RBW = 1MHz and VBW = 3MHz.Sweep = as necessary to capture the entire dwell time per hopping channel. Set the EUT for DH5, DH3 and DH1 packet transmitting. 4. Use the marker-delta function to determine the dwell time. If this value varies with different modes of operation (e.g.. data rate. modulation format. etc.). repeat this test for each variation. The limit is specified in one of the subparagraphs of this Section. Submit this plot(s). Report No.: BCTC2107125725-1E No.：BCTC/RF-EMC-005 Page 61 of 70 Edition：A.3 14.4 Test Result DH5 Packet permit maximum 1600 / 79 / 6 hops per second in each channel (5 time slots RX, 1 time slot TX). DH3 Packet permit maximum 1600 / 79 / 4 hops per second in each channel (3 time slots RX, 1 time slot TX). DH1 Packet permit maximum 1600 / 79 /2 hops per second in each channel (1 time slot RX, 1 time slot TX). So, the Dwell Time can be calculated as follows: DH5:1600/79/6*0.4*79*(MkrDelta)/1000 DH3:1600/79/4*0.4*79*(MkrDelta)/1000 DH1:1600/79/2*0.4*79*(MkrDelta)/1000 Remark: Mkr Delta is once pulse time. Modulation Channel Data Packet pulse time(ms) Dwell Time(s) Limits(s) GFSK Middle DH1 0.377 0.121 0.4 DH3 1.641 0.263 0.4 DH5 2.890 0.308 0.4 Pi/4DQPSK Middle 2DH1 0.383 0.123 0.4 2DH3 1.629 0.261 0.4 2DH5 2.880 0.307 0.4 8DPSK Middle 3DH1 0.383 0.123 0.4 3DH3 1.632 0.261 0.4 3DH5 2.880 0.307 0.4 Test Plots GFSK DH1 Middle Channel Report No.: BCTC2107125725-1E No.：BCTC/RF-EMC-005 Page 62 of 70 Edition：A.3 GFSK DH3 Middle Channel GFSK DH5 High Middle Channel Report No.: BCTC2107125725-1E No.：BCTC/RF-EMC-005 Page 63 of 70 Edition：A.3 Pi/4DQPSK DH1 Middle Channel Pi/4DQPSK DH3 Middle Channel Report No.: BCTC2107125725-1E No.：BCTC/RF-EMC-005 Page 64 of 70 Edition：A.3 Pi/4DQPSK DH5 Middle Channel 8DPSK DH1 Middle Channel Report No.: BCTC2107125725-1E No.：BCTC/RF-EMC-005 Page 65 of 70 Edition：A.3 8DPSK DH3 Middle Channel 8DPSK DH5 Middle Channel Report No.: BCTC2107125725-1E No.：BCTC/RF-EMC-005 Page 66 of 70 Edition：A.3 15. ANTENNA REQUIREMENT 15.1 Limit 15.203 requirement: For intentional device, according to 15.203: an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. 15.2 Test Result The EUT antenna is PCB antenna, fulfill the requirement of this section. Report No.: BCTC2107125725-1E No.：BCTC/RF-EMC-005 Page 67 of 70 Edition：A.3 16. EUT PHOTOGRAPHS EUT Photo 1 EUT Photo 2 Report No.: BCTC2107125725-1E No.：BCTC/RF-EMC-005 Page 68 of 70 Edition：A.3 17. EUT TEST SETUP PHOTOGRAPHS Conducted emissions Radiated Measurement Photos Report No.: BCTC2107125725-1E No.：BCTC/RF-EMC-005 Page 69 of 70 Edition：A.3 Report No.: BCTC2107125725-1E No.：BCTC/RF-EMC-005 Page 70 of 70 Edition：A.3 STATEMENT 1.The equipment lists are traceable to the national reference standards. 2.The test report can not be partially copied unless prior written approval is issued from our lab. 3.The test report is invalid without stamp of laboratory. 4.The test report is invalid without signature of person(s) testing and authorizing. 5.The test process and test result is only related to the Unit Under Test. 6.The quality system of our laboratory is in accordance with ISO/IEC17025. 7.If there is any objection to report, the client should inform issuing laboratory within 15 days from the da…

Text truncated - open the document above for the full version.

No.：BCTC/RF-EMC-005 Page 1 of 70 Edition：A.3 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2107125725-1E Applicant: ShenZhen HanHong Digital Technology Co., Ltd Product Name: Soundbar Model/Type Ref.: HD-025L Tested Date: 2021-07-09 to 2021-07-12 Issued Date: 2021-07-12 Report No.: BCTC2107125725-1E No.：BCTC/RF-EMC-005 Page 2 of 70 Edition：A.3 FCC ID:2ASKOHD-025L The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Soundbar Trademark: N/A Model/Type Ref.: HD-025L 90100PI, AF-40 Prepared For: ShenZhen HanHong Digital Technology Co., Ltd Address: Building A Room #303-305, Huafeng Internet - Innovation Technology Park, Gonghe Industry Road 107#, Xixiang Street, Baoan, Shenzhen, China Manufacturer: ShenZhen HanHong Digital Technology Co., Ltd Address: Building A Room #303-305, Huafeng Internet - Innovation Technology Park, Gonghe Industry Road 107#, Xixiang Street, Baoan, Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2021-07-09 Sample tested Date: 2021-07-09 to 2021-07-12 Issue Date: 2021-07-12 Report No.: BCTC2107125725-1E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Kelsey Tan/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2107125725-1E No.：BCTC/RF-EMC-005 Page 3 of 70 Edition：A.3 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ............................................................ 5 2. TEST SUMMARY ..................................................... 6 3. MEASUREMENT UNCERTAINTY ....................................... 7 4. PRODUCT INFORMATION AND TEST SETUP............................ 8 4.1 Product Information ..................................................... 8 4.2 Test Setup Configuration ................................................ 9 4.3 Support Equipment ..................................................... 9 4.4 Channel List .......................................................... 10 4.5 Test Mode ............................................................ 10 4.6 table of parameters of text software setting ................................ 11 5. TEST FACILITY AND TEST INSTRUMENT USED ........................ 12 5.1 Test Facility ........................................................... 12 5.2 Test Instrument Used .................................................. 12 6. CONDUCTED EMISSIONS ............................................ 14 6.1 Block Diagram Of Test Setup ............................................ 14 6.2 Limit ................................................................. 14 6.3 Test procedure ........................................................ 14 6.4 EUT operating Conditions ............................................... 15 6.5 Test Result ........................................................... 16 7. RADIATED EMISSIONS .............................................. 18 7.1 Block Diagram Of Test Setup ............................................ 18 7.2 Limit ................................................................. 19 7.3 Test procedure ........................................................ 20 7.4 EUT operating Conditions ............................................... 21 7.5 Test Result ........................................................... 22 8. RADIATED BAND EMISSION MEASUREMENT AND RESTRICTED BANDS OF OPERATION .................................................. 26 8.1 Block Diagram Of Test Setup ............................................ 26 8.2 Limit ................................................................. 26 8.3 Test procedure ........................................................ 27 8.4 EUT operating Conditions ............................................... 27 8.5 Test Result ........................................................... 28 9. CONDUCTED EMISSION ............................................. 29 9.1 Block Diagram Of Test Setup ............................................ 29 9.2 Limit ................................................................. 29 9.3 Test procedure ........................................................ 29 9.4 Test Result ........................................................... 30 10. 20 DB BANDWIDTH .................................................. 39 10.1 Block Diagram Of Test Setup .......................................... 39 Report No.: BCTC2107125725-1E No.：BCTC/RF-EMC-005 Page 4 of 70 Edition：A.3 10.2 Limit ................................................................ 39 10.3 Test procedure ....................................................... 39 10.4 Test Result .......................................................... 40 11. MAXIMUM PEAK OUTPUT POWER .................................... 45 11.1 Block Diagram Of Test Setup .......................................... 45 11.2 Limit ................................................................ 45 11.3 Test procedure ....................................................... 45 11.4 Test Result .......................................................... 46 12. HOPPING CHANNEL SEPARATION ................................... 51 12.1 Block Diagram Of Test Setup .......................................... 51 12.2 Limit ................................................................ 51 12.3 Test procedure ....................................................... 51 12.4 Test Result .......................................................... 52 13. NUMBER OF HOPPING FREQUENCY .................................. 57 13.1 Bl…

Text truncated - open the document above for the full version.

ReportNo.:BCTC2107125725-1E No.：BCTC/RF-EMC-005Page 68 of 70 Edition：A.3 17.EUTTESTSETUPPHOTOGRAPHS Conductedemissions RadiatedMeasurementPhotos ReportNo.:BCTC2107125725-1E No.：BCTC/RF-EMC-005Page 69 of 70 Edition：A.3
