2ASLP-DVR-FTD8-16DVR

Not Connecting to the Internet? QSG-BTD-2217REV 210429 iPhone, iPad, Mac and Mac OS X are registered trademarks of Apple Inc. Windows, Windows XP, Windows Vista, Windows 7, Windows 8 and Windows 10 are registered trademarks of Microsoft Corporation in the United States and/or other countries. Night Owl strongly recommends connecting the DVR to the Internet. If you have decided not to connect, follow the onscreen prompts within the Startup Wizard. Please note that not connecting your DVR means: You must manually update the device's firmware to the latest version to receive Technical Phone Support. The latest firmware version is available on the device’s support page on the Night Owl Support Site. The DVR must be registered to receive Technical Phone Support. You cannot view your system remotely. Resetting your password is a much longer process to ensure security. For system manuals, troubleshooting guides, FAQs, video tutorials and more: Please visit Support.NightOwlSP.com Enter the Series listed on the Product Support Sticker (on top of the DVR) into the Search bar. Access the support material needed. Need More Help? Night Owl Technical Support If you require Technical Support, you should always go to Support.NightOwlSP.com first. With 24/7 access to system manuals, troubleshooting guides, FAQs, video tutorials, and more, you'll have all the support you could need. DVR Hardware Setup Video Your device is running the latest firmware version. Your device is registered. To register your device: Download Night Owl Protect from your Smart Device's App Store. Click "Sign Up" to create an account. or Go to www.no-protect.com and manually register your device. You are in front of the device with it powered on. Follow along as we guide you through the DVR's hardware setup. Step-by-step instructions make it even easier to connect your system! Still need more support? Before calling Night Owl Technical Support, keep in mind we can only provide phone support if: For more Support Videos, go to Night Owl’s YouTube page by typing www.youtube.com/nightowlsp into your web browser. Use the QR Code for easy access to the DVR Hardware Setup Video on Night Owl’s YouTube Channel. Thank you for being a Night Owl Customer! Secure, Protect, Connect your world! What’s in the Box DVR DVR Power Adapter (x1) USB Mouse (x1) 6 ft. HDMI (x1) 6 ft. Ethernet (x1) Power Splitter(s) (1 per 4 Cameras) Camera(s)Camera Power Adapter(s) (1 per 4 Cameras) Mounting Hardware (Varies by Model) 60 ft. Video/Power Cables (1 per Camera) DISCLAIMER: The exact components of your system, images, and quantities may vary depending on your model number. While these may vary, this QSG addresses the setup of your DVR and cameras. While we make every effort to provide accurate information, inaccuracies or errors may occur. We reserve the right to make changes, corrections, and/or improvements to the information and to the products, at any time without notice. DVR / Accessories Camera / Accessories Items Not Included NOTE: If connecting to a TV or Monitor (Not Required), it must have a minimum resolution of 1080p HD. Use all of the included Night Owl accessories. Third-party accessories may not work correctly. Monitor Router / Network Access Point RESET LAN1LAN2LAN3LAN4WAN (Not required for Bluetooth® Setup) Quick Setup Guide Digital Video Recorder (DVR) Product Setup Quick Setup Guide Wired DVR Security System 1 Visit Support.NightOwlSP.com 2 Enter the Series listed on the product support sticker into the search bar 3 Access the support material needed For system manuals, troubleshooting guides, FAQs, video tutorials and more: Need Help? Why call? Our 24/7 online support site has it all! Product support information can be found on the top of your Recorder a Plug one end of the included HDMI cable into the HDMI port on the back of the DVR. Plug the other end of the cable into your TV or Monitor. Plug the USB mouse into the USB port on the back of the DVR. HDMI ETHERNET 1 6 Connect the end of the camera’s cable to the end of a video / power cable labeled TO CAMERA ONLY. VIDEO / POWER CABLEFROM CAMERA 4 Connect the video / power cable labeled TO DVR ONLY to an open video input on the DVR. NOTE: Make sure you twist and lock BNC connectors. 5 Connect the red female power leads of the video / power cables to the male power splitter ends. POWER SPLITTER CONNECTORS POWER CABLE CONNECTORS 6 Connect the power splitter to the camera power adapter and plug the adapter into a surge protector or Uninterruptible Power Supply (UPS). CAMERA POWER ADAPTER POWER SPLITTER SURGE PROTECTOR (NOT INCLUDED) 7 Connect the DVR power adapter to the Power Input on the rear of the DVR. POWER 8 SURGE PROTECTOR (NOT INCLUDED) Plug the DVR power adapter into a surge protector or Uninterruptible Power Supply (UPS). Some systems beep upon booting up. Step 1: Connecting Your System b USB NOTE: Make sure the UPS or surge protector is switched ON. Plug the other end of the Ethernet cable into a port on the back of your router / network access point. ETHERNET Router / Network Access Point (NOT INCLUDED) 2 RESET LAN1LAN2LAN3LAN4WAN NOTE: To view cameras, TV or Monitor must be tuned to the same input the HDMI is plugged into. NOTE: Watch our Recorder Setup Video on YouTube. To CAMERA To CAMERA 3 Plug one end of the included Ethernet cable into the LAN port on the back of the DVR. NOTE: Night Owl recommends connecting to the Internet for the best user experience. NOTE: As long as your DVR is hardwired using Ethernet cabling, you can connect to any working network access point. See your product manual for more details. BEFORE installing, connect and test each camera locally to confirm they function properly. With our easy Bluetooth ® wireless setup, no TV / Monitor is required. Once your system is connected using the steps below, you can quickly finish the setup right from the app on your Smart Device. This is the preferred setup method for your system. Please proceed to step 1. Optio…

Text truncated - open the document above for the full version.

Hangzhou Yuncool Technology Co., Ltd. 10TH Floor,Building 9, Yinhu Innovation Center, Yinhu Street, Fuyang District, Hangzhou, Zhejiang, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023-6-30 To whom it may concern: We, Hangzhou Yuncool Technology Co., Ltd., hereby certify that the equipment for which authorization is sought FCC ID: 2ASLP-DVR-FTD8-16 is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Wenjia Shao Oversea sales Hangzhou Yuncool Technology Co., Ltd. 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

Hangzhou Yuncool Technology Co., Ltd. 10TH Floor,Building 9, Yinhu Innovation Center, Yinhu Street, Fuyang District, Hangzhou, Zhejiang, China Date: 2023-6-30 FCC ID: 2ASLP-DVR-FTD8-16 Dear Sir/Madam, We, Hangzhou Yuncool Technology Co., Ltd. Hereby declares the following statement for Federal Communications Commission, All PCB boards and circuit diagrams are the same, the only difference is that model names.: Product name: DVR Model no.: DVR-FTD8-16, DVR-FTD8-162, CL-FT8D2-1610L, FTD8-162-10L, FTD8-162-9L-B， FTD8-162-12L-B Sincerely, Name/Title： Wenjia Shao/Oversea sales Company: Hangzhou Yuncool Technology Co., Ltd. Address: 10TH Floor,Building 9, Yinhu Innovation Center, Yinhu Street, Fuyang District, Hangzhou, Zhejiang, China Phone: 18758133696 Fax: 0571-23271690 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2023-6-30> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2ASLP-DVR-FTD8-16 DVR-FTD8-16 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Wenjia Shao/Oversea sales Company: Hangzhou Yuncool Technology Co., Ltd. Address: 10TH Floor,Building 9, Yinhu Innovation Center, Yinhu Street, Fuyang District, Hangzhou, Zhejiang, China Phone: 18758133696 Fax: 0571-23271690 E-Mail: [email protected]

Hangzhou Yuncool Technology Co., Ltd. 10TH Floor,Building 9, Yinhu Innovation Center, Yinhu Street, Fuyang District, Hangzhou, Zhejiang, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023-6-30 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2ASLP-DVR-FTD8-16 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Wenjia Shao/Oversea sales Company: Hangzhou Yuncool Technology Co., Ltd. Address: 10TH Floor,Building 9, Yinhu Innovation Center, Yinhu Street, Fuyang District, Hangzhou, Zhejiang, China Phone: 18758133696 Fax: 0571-23271690 E-Mail: [email protected]

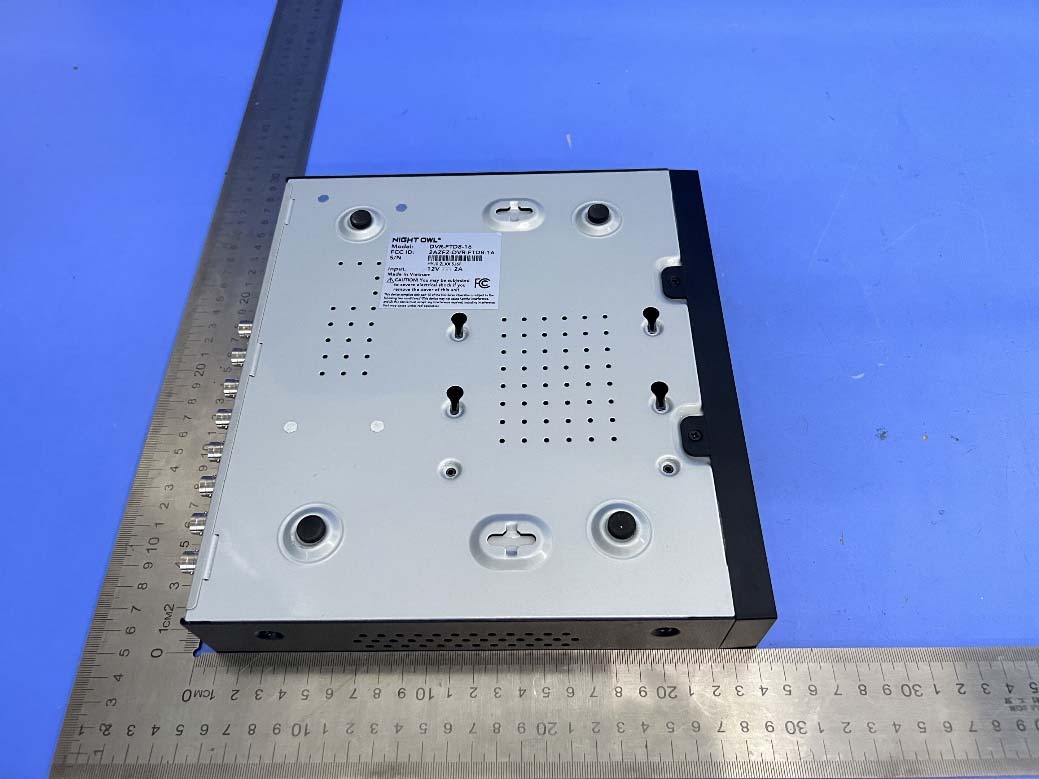

FCC ID: 2ASLP-DVR-FTD8-16 TB-RF-074-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT FCC ID: 2ASLP-DVR-FTD8-16 TB-RF-074-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT FCC ID: 2ASLP-DVR-FTD8-16 TB-RF-074-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of Adapter

FCC ID: 2ASLP-DVR-FTD8-16 TB-RF-074-1.0 AppendixI Label FCC ID: 2ASLP-DVR-FTD8-16 TB-RF-074-1.0 Appendix II Label Location

FCC ID: 2ASLP-DVR-FTD8-16 TB-RF-074-1.0 Appendix IV EUT Internal Photographs Photo 7 Internal of EUT Photo 8 Appearance of PCB FCC ID: 2ASLP-DVR-FTD8-16 TB-RF-074-1.0 Photo 9 Appearance of PCB Photo 10 Appearance of PCB BLE Antenna

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202305-0183-2 Page: 1 of 3 TB-RF-074-1.0 1 A/F., Building.6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao’an, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 Maximum Permissible Exposure Evaluation FCC ID: 2ASLP-DVR-FTD8-16 1. Client Information Applicant : HANGZHOU YUNCOOL TECHNOLOGY CO., LTD Address : 10TH Floor,Building 9, Yinhu Innovation Center, Yinhu Street, Fuyang District, Hangzhou, Zhejiang, China Manufacturer : Dongguan City Jufeng Information Technology Company Limited Address : 1-3rd Floor Building NO.8, Xinfeng Street, Changlong Village, Huangjiang Town, Dongguan City, China. 2. General Description of EUT EUT Name : DVR Models No. : DVR-FTD8-16, DVR-FTD8-162, CL-FT8D2-1610L, FTD8-162-10L, FTD8-162-9L-B，FTD8-162-12L-B Model Different : All PCB boards and circuit diagrams are the same, the only difference is that model names. Product Description : Operation Frequency: Bluetooth 5.0(BLE): 2402MHz~2480MHz Number of Channel: Bluetooth 5.0(BLE): 40 channels Antenna Gain: 1dBi PCB Antenna Power Rating : For Adapter (Model: CS-1202000) Input: 100-240V~ 50/60Hz 1.5A Max Output: 12V2A Software Version : ---- Hardware Version : ---- Connecting I/O Port(S) : : Please refer to the User's Manual Remark : the evaluation report used the EUT(202305-0183-2-2#). Report No.: TBR-C-202305-0183-2 Page: 2 of 3 TB-RF-074-1.0 MPE Calculations for WIFI 1. EUT Operation Condition: Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 2. Exposure Evaluation: Equation from page 18 of OET Bulletin 65, Edition 97-01 S=(PG)/4πR 2 Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna 3. Simultaneous transmission MPE Considerations According to KDB447498: All transmitters and antennas in the host must be either evaluated for MPE compliance, by measurement or computational modeling, or qualify for the standalone MPE test exclusion in section 7.1. Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modeled or measured field strengths or power density, is ≤ 1.0. This means that: ∑ of MPE ratios ≤ 1.0 4. Test Result: Bluetooth LE worst reported. Mode Frequency (MHz) Conducted Power(max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] ANT Gain (dBi) [G] Distance (cm) [R] Power Density (mW/ cm 2 ) [S] Limit of Power Density (mW/ cm 2 ) (S) BLE 1Mbps 2402 9.183 9±1 10 1 20 0.0025 1 2440 8.318 8±1 9 1 20 0.0020 1 2480 7.992 8±1 9 1 20 0.0020 1 BLE 2Mbps 2402 9.169 9±1 10 1 20 0.0025 1 2440 8.293 8±1 9 1 20 0.0020 1 2480 7.985 8±1 9 1 20 0.0020 1 Report No.: TBR-C-202305-0183-2 Page: 3 of 3 TB-RF-074-1.0 5. Conclusion: As specified in Table 1B of 47 CFR 1.1310- Limits for Maximum Permissible Exposure (MPE), Limits for General Population/ Uncontrolled Exposure Frequency Range (MHz) Power density (mW/ cm 2 ) 300-1,500 F/1500 1,500-100,000 1.0 For Bluetooth LE MPE limit S: 1mW/ cm 2 The MPE is calculated as 0.0025 < limit 1mW / cm 2 . So, RF exposure limit warning or SAR test are not required. The EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47 CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference. Note For a more detailed features description, please refer to the RF Test Report. 6. Conclusion: The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. -----END OF REPORT-----

ProductSpecification QuickReferenceData Antennamoduleonthesystemboard FrequencyRange2400-2500MHz Ant.PortInputPwr.(dBm)0(Typ.BTclass2outputpower) Tot.Rad.Pwr.(dBm)-1.3(Inputpwr–losspwr) PeakEIRP(dBm)1.3 Directivity(dBi)2.01 Efficiency(dB)35.16% Gain(dBi)1 MaximumPower(dBm)1.8 MinimumPower(dBm)-4 Avg.Power(dBm)0 InputImpendence(ohm)50 PolarizationTypeVertical&Horizontal VSWR ＜ 1.7 Allthetechnicaldataandinformationcontainedhereinaresubjecttochange withoutpriornotice. AntennaLayout&moduleonthesystemboard ReturnLoss Type:BT-BL3633Q Manufacturer:SichuanAI-LinkTechnologyCo.,Ltd. Address:AnzhouIndustrialPark,MianyangCity,SichuanProvince

Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0183-3 Page: 1 of 39 FCC ID: 2ASLP-DVR-FTD8-16 TB-RF-074-1.0 RF Test Data for Bluetooth LE (Conducted Measurements) General Description of EUT Product Name: DVR Test Model: DVR-FTD8-16 Sample ID: 202305-0183-2-2# Environmental Conditions Temperature: 25°C Relative Humidity: 55% Test Voltage: DC 12V Test Engineer: Huang jian ping Note: For a more detailed features description, please refer to the report TBR-C-202305-0183-3 The report only show the worst case data. Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0183-3 Page: 2 of 39 FCC ID: 2ASLP-DVR-FTD8-16 TB-RF-074-1.0 Contents 1. Duty Cycle ............................................................................................................................................................................................... 3 2. Maximum Conducted Output Power ..................................................................................................................................................... 7 3. -6dB Bandwidth ..................................................................................................................................................................................... 11 4. Occupied Channel Bandwidth ............................................................................................................................................................. 15 5. Maximum Power Spectral Density Level ............................................................................................................................................ 19 6. Band Edge ............................................................................................................................................................................................. 23 7. Conducted RF Spurious Emission ...................................................................................................................................................... 28 8. Restrict Band ......................................................................................................................................................................................... 35 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0183-3 Page: 3 of 39 FCC ID: 2ASLP-DVR-FTD8-16 TB-RF-074-1.0 1. Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT BLE 1Mbps 2402 Ant1 66.13 1.8 2.44 NVNT BLE 1Mbps 2440 Ant1 66.67 1.76 2.38 NVNT BLE 1Mbps 2480 Ant1 66.13 1.8 2.44 NVNT BLE 2Mbps 2402 Ant1 38.1 4.19 4.17 NVNT BLE 2Mbps 2440 Ant1 25.81 5.88 6.25 NVNT BLE 2Mbps 2480 Ant1 25.81 5.88 6.25 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0183-3 Page: 4 of 39 FCC ID: 2ASLP-DVR-FTD8-16 TB-RF-074-1.0 Test Graphs Duty Cycle NVNT BLE 1Mbps 2402MHz Ant1 Duty Cycle NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0183-3 Page: 5 of 39 FCC ID: 2ASLP-DVR-FTD8-16 TB-RF-074-1.0 Duty Cycle NVNT BLE 1Mbps 2480MHz Ant1 Duty Cycle NVNT BLE 2Mbps 2402MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0183-3 Page: 6 of 39 FCC ID: 2ASLP-DVR-FTD8-16 TB-RF-074-1.0 Duty Cycle NVNT BLE 2Mbps 2440MHz Ant1 Duty Cycle NVNT BLE 2Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0183-3 Page: 7 of 39 FCC ID: 2ASLP-DVR-FTD8-16 TB-RF-074-1.0 2. Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT BLE 1Mbps 2402 Ant1 9.183 30 Pass NVNT BLE 1Mbps 2440 Ant1 8.318 30 Pass NVNT BLE 1Mbps 2480 Ant1 7.992 30 Pass NVNT BLE 2Mbps 2402 Ant1 9.169 30 Pass NVNT BLE 2Mbps 2440 Ant1 8.293 30 Pass NVNT BLE 2Mbps 2480 Ant1 7.985 30 Pass Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0183-3 Page: 8 of 39 FCC ID: 2ASLP-DVR-FTD8-16 TB-RF-074-1.0 Test Graphs Power NVNT BLE 1Mbps 2402MHz Ant1 Power NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0183-3 Page: 9 of 39 FCC ID: 2ASLP-DVR-FTD8-16 TB-RF-074-1.0 Power NVNT BLE 1Mbps 2480MHz Ant1 Power NVNT BLE 2Mbps 2402MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0183-3 Page: 10 of 39 FCC ID: 2ASLP-DVR-FTD8-16 TB-RF-074-1.0 Power NVNT BLE 2Mbps 2440MHz Ant1 Power NVNT BLE 2Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0183-3 Page: 11 of 39 FCC ID: 2ASLP-DVR-FTD8-16 TB-RF-074-1.0 3. -6dB Bandwidth Condition …

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202305-0183-3 Page: 1 of 39 TB-RF-074-1.0 1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 Radio Test Report FCC ID: 2ASLP-DVR-FTD8-16 Report No. : TBR-C-202305-0183-3 Applicant : HANGZHOU YUNCOOL TECHNOLOGY CO., LTD Equipment Under Test (EUT) EUT Name : DVR Model No. : DVR-FTD8-16 Series Model No. : DVR-FTD8-162, CL-FT8D2-1610L, FTD8-162-10L, FTD8-162-9L-B，FTD8-162-12L-B Brand Name : Nightowl Sample ID : 202305-0183-2-1# & 202305-0183-2-2# Receipt Date : 2023-06-20 Test Date : 2023-06-20 to 2023-06-30 Issue Date : 2023-06-30 Standards : FCC Part 15 Subpart C 15.247 Test Method : ANSI C63.10: 2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above. Witness Engineer : Seven Wu Engineer Supervisor : Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TBR-C-202305-0183-3 Page: 2 of 39 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 7 1.4 Description of Support Units .............................................................................................. 8 1.5 Description of Test Mode .................................................................................................... 8 1.6 Description of Test Software Setting ................................................................................ 9 1.7 Measurement Uncertainty .................................................................................................. 9 1.8 Test Facility ......................................................................................................................... 10 2. TEST SUMMARY ..................................................................................................................... 11 3. TEST SOFTWARE ................................................................................................................... 11 4. TEST EQUIPMENT .................................................................................................................. 12 5. CONDUCTED EMISSION ....................................................................................................... 14 5.1 Test Standard and Limit .................................................................................................... 14 5.2 Test Setup ........................................................................................................................... 14 5.3 Test Procedure ................................................................................................................... 14 5.4 Deviation From Test Standard ......................................................................................... 15 5.5 EUT Operating Mode ........................................................................................................ 15 5.6 Test Data ............................................................................................................................. 15 6. RADIATED AND CONDUCTED UNWANTED EMISSIONS ............................................ 16 6.1 Test Standard and Limit .................................................................................................... 16 6.2 Test Setup ........................................................................................................................... 18 6.3 Test Procedure ................................................................................................................... 19 6.4 Deviation From Test Standard ......................................................................................... 20 6.5 EUT Operating Mode ........................................................................................................ 20 6.6 Test Data ............................................................................................................................. 20 7. RESTRICTED BANDS REQUIREMENT ............................................................................. 21 7.1 Test Standard and Limit .................................................................................................... 21 7.2 Test Setup ........................................................................................................................... 21 7.3 Test Procedure ................................................................................................................... 22 Report No.: TBR-C-202305-0183-3 Page: 3 of 39 TB-RF-074-1.0 7.4 Deviation From Test Standard ......................................................................................... 24 7.5 EUT Operating Mode ........................................................................................................ 24 7.6 Test Data ............................................................................................................................. 24 8. BANDWIDTH TEST ...........................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: 2ASLP-DVR-FTD8-16 TB-RF-074-1.0 Appendix V EUT Test Photographs Photo of Setup for Radiated Emission (30MHz~1GHz) Photo of Setup for Radiated Emission (Above 1 GHz) FCC ID: 2ASLP-DVR-FTD8-16 TB-RF-074-1.0 Photo of Setup for Conducted Emission -----END OF REPORT-----
