2ASNB-G03bone conduction bluetooth headset

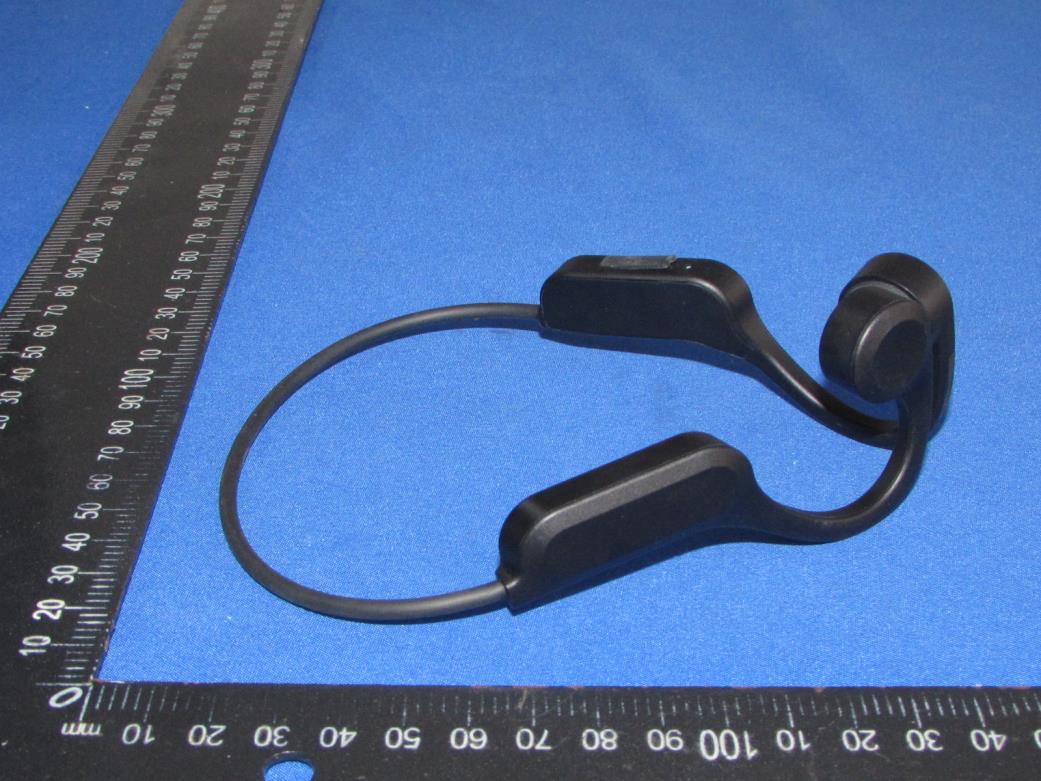

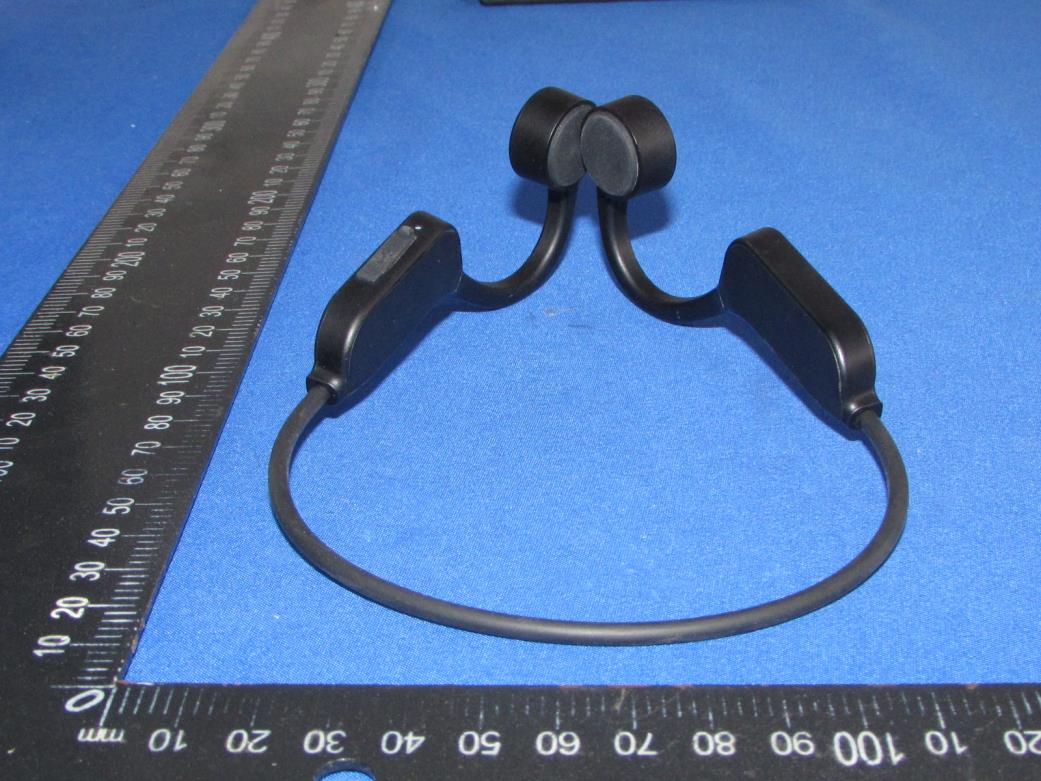

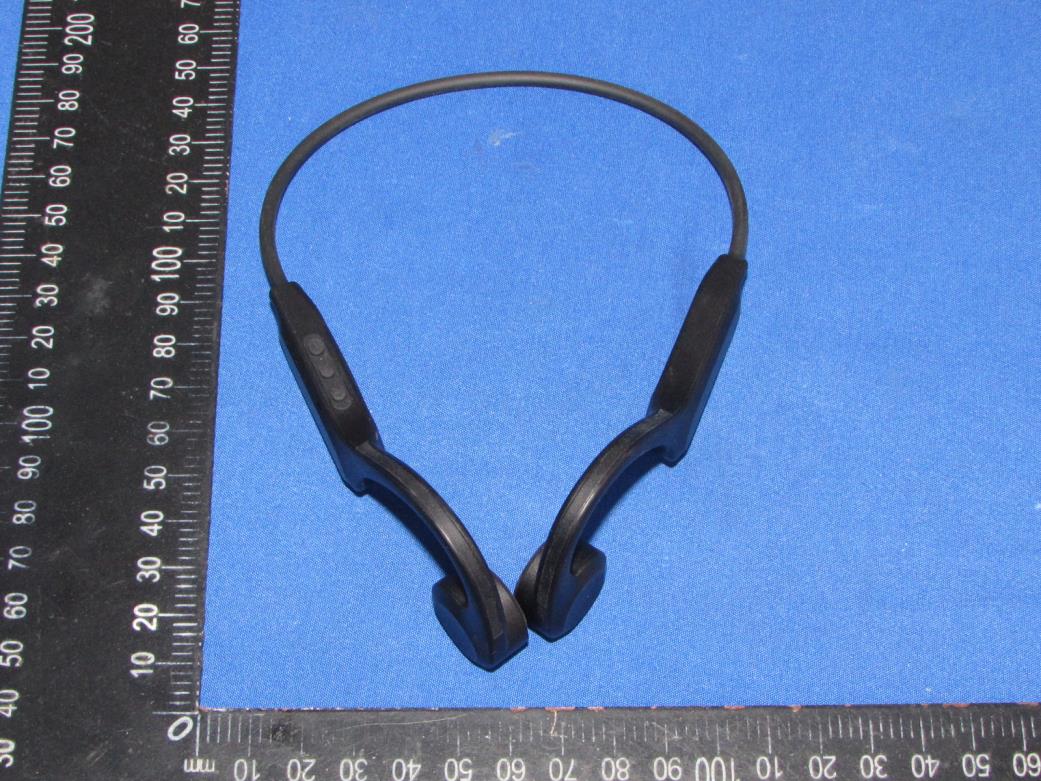

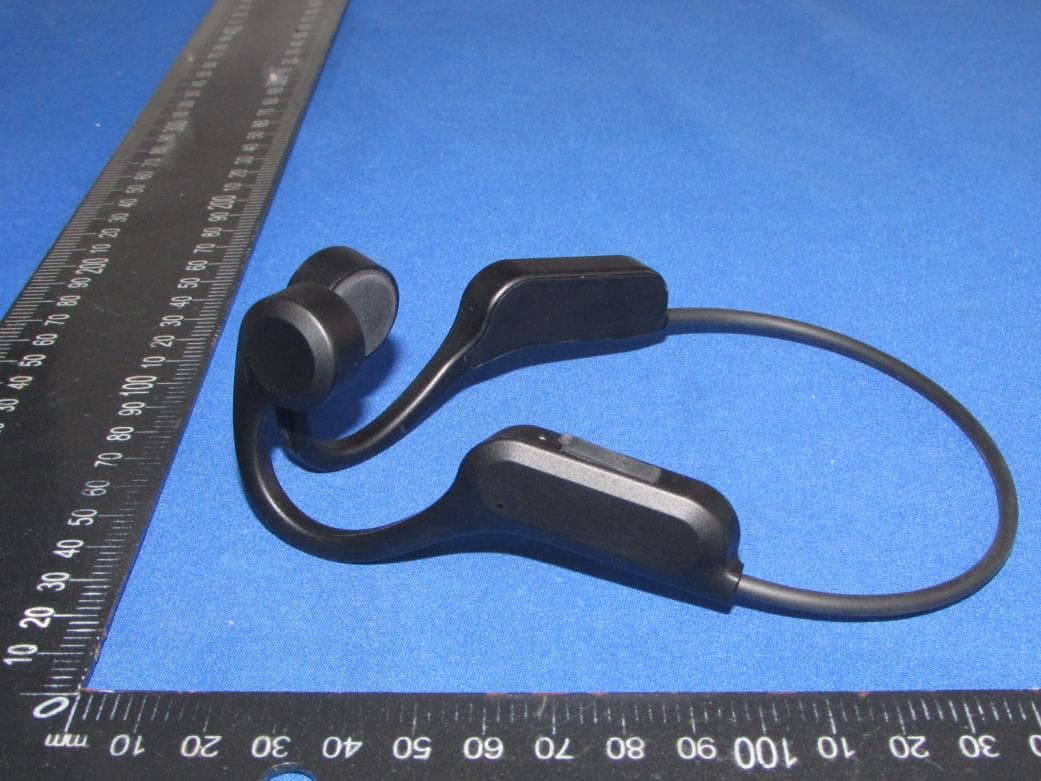

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 Fig.3 Fig.4 Bluetooth Antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Fig.5 Fig.6

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 The example values shown in Table B.2 are for illustration only. Frequency (MHz) Distance (mm) 5 10 15 20 25 30 35 40 45 50 300 39 65 88 110 129 148 166 184 201 217 450 22 44 67 89 112 135 158 180 203 226 835 9 25 44 66 90 116 145 175 207 240 1900 3 12 26 44 66 92 122 157 195 236 2450 3 10 22 38 59 83 111 143 179 219 3600 2 8 18 32 49 71 96 125 158 195 5800 1 6 14 25 40 58 80 106 136 169 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Conducted Power Results Test Mode Antenna Frequency[MHz] Result[dBm] DH5 Ant1 2402 -2.04 DH5 Ant1 2441 -2.62 DH5 Ant1 2480 -3.88 2DH5 Ant1 2402 -1.31 2DH5 Ant1 2441 -1.99 2DH5 Ant1 2480 -3.19 Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.5 -3.0 -4.5 Tolerance ±(dB) 1 1 1 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2 -2.5 -3.5 Tolerance ±(dB) 1 1 1 Results Test Mode Max Conducted Tune Up Power(dBm) Max of ERP and Conducted Power including Tune Up (dBm) Max of ERP and Conducted Power including Tune Up (mW) Exemption Limit(mW) GFSK -1.5 -1.5 0.71 3 π/4-DQPSK -1 -1.0 0.79 3 Max of ERP and Conducted Power including Tune Up (dBm) = Max Conducted Tune Up Power(dBm) and Max Conducted Tune Up Power(dBm) + Antenna Gain(dBi)-2.15), whichever is greater. The antenna gain of the EUT for BT is 1.95dBi (Max). the Maximum Eirp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

2.4GHz2012ChipAntenna:RANT2012F245X5 Dimension(mm) L2.05+-0.15 W1.20+-0.15 T0.85+-0.10 No.TerminalName 1Feeding/GNG 2GND Application: WLAN,802.11b/g,Bluetooth,WLAN,etc... Features SMD,highreliability,ultraImpact,Omni-directional... PartnumberInformation RANT2012F245X5 (A)(B)(C)(D)(E)(F) (A)ProductTypeChipAntenna (B)SizeCode2.0x1.2mm(+-0.2mm) (C)MaterialHighKmaterial (D)Frequency2.4~2.5GHz (E)FeedingmodePIFA&SingleFeeding (F)AntennatypeType=5 ElectricalSpecification WorkingFrequencyRange2400~2484MHz Bandwidth84(Min.) PeakGain2.0dBi(Typ.) Impedance50Ohm Returnloss10dB(Min) PolarizationLinear AzimuthBeamwidthOmni-directional OperationTemperature( °C )-40~85 °C ResistancetoSolderingHeats 10sec.(@280°C) TerminationNi/Au(Leadless) ThespecificationisdefinedonEVB. DimensionandTerminalConfiguration RAINInternationalTechnologyCo.,Ltd.TEL:13530576606 2.4GHz2012ChipAntenna:RANT2012F245X5 EvaluationBoardReference PCBDimensionAntennaLayoutReference Unit:mm ElectricalCharacteristics ReturnLoss ReturnLoss&Radiation 1 Frequency(MHz) S11(dB) 2400-10.77 2450-24.81 2484-10.243 Radiation Z Y X 2400MHz2450MHz2500MHz Efficiency70.56%75.25%71.01% PeakGain1.72dBi1.95dBi1.69dBi Directivity2.26dBi2.69dBi2.11dBi 2.4GHz2012ChipAntenna:RANT2012F245X5 TapingSpecifications ReelandTapingSpecification ReelSpecification TYPESIZEABCD 20127”5K/Reel 9.0±0.5 60±213.5±0.5178±2 TappingSpecification PackagingTypeABWEFGHTDP PaperType2012 1.50±0.202.30±0.208.0±0.201.75±0.103.5±0.054.0±0.102.0±0.050.75±0.101.57±0.104.0±0.1 2.4GHz2012ChipAntenna:RANT2012F245X5 ReliabilityTable TestItemProcedure Requirements CeramicType Remark (Reference) Electrical Characterization Fulfilltheelectrical specification UserSpec. Thermal Shock 1.Preconditioning: 50±10°C/1hr,thenkeepfor24±1hrsatroomtemp. 2.Initialmeasure:Spec:referInitialspec. 3.Rapidchangeoftemperaturetest: -30°Cto+85°C;100cycles; 15minutesatLowercategorytemperature; 15minutesatUppercategorytemperature. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 107 Temperature Cycling 1.Initialmeasure:Spec:referInitialspec. 2.100Cycles(-30°Cto+85°C),SoakMode=1(2Cycle/hours). 3.Measurementat24±2Hoursaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. JESD22 JA104 HighTemperature Exposure 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered;500hours@T=+85°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 LowTemperature Storage 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered:500hours@T=-30°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 Solderability (SMDBottomSide) Dippingmethod: a.Temperature:235±5°C b.Dippingtime:3±0.5s Thesoldershouldcover over95%ofthecritical areaofbottomside. IEC60384-21/22 4.10 SolderingHeat Resistance (RSH) Preheatingtemperature:150±10°C. Preheatingtime:1~2min. Soldertemperature:260±5°C. Dippingtime:5±0.5s NoVisibleDamage.IEC60384-21/22 4.10 Vibration5g'sfor20min.,12cycleseachof3orientations Note:Use8"X5"PCB.031"thick7securepointson,onelong sideand2securepointsatcornersofoppositesides.Parts mountedwithin2"fromanysecurepoint.Testfrom10-2000 Hz. NoVisibleDamage.MIL-STD-202 Method204 Mechanical Shock Threeshocksineachdirectionshallbeappliedalongthethree mutuallyperpendicularaxesofthetestspecimen(18shocks) Peakvalue:1,500g’s Duration:0.5ms Velocitychange:15.4ft/s Waveform:Half-sine NoVisibleDamage.MIL-STD-202 Method213 Humidity Bias 1.Humidity:85%R.H.,Temperature:85±2°C. 2.Time:500±24hours. 3.Measurementat24±2hrsaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 Method106 2.4GHz2012ChipAntenna:RANT2012F245X5 2.4GHz2012ChipAntenna:RANT2012F245X5 _ Board Flex (SMD) 1.Mountingmethod: IR-Reflow.PCBSize(L:100×W:40×T:1.6mm) 2.Applytheloadindirectionofthearrowuntilbendingreaches 2mm. NoVisibleDamage.AEC-Q200 005 AdhesionForceof1.8Kgfor60seconds.NoVisibleDamage Magnificationof20Xor greatermaybeemployed forinspectionofthe mechanicalintegrityofthe devicebodyterminalsand body/terminaljunction. AEC-Q200 006 Physical Dimension Anyapplicablemethodusingx10magnification,micrometers, calipers,gauges,contourprojectors,orothermeasuring equipment,capableofdeterminingtheactualspecimen dimensions. Inaccordancewith specification. JESD22 JB100 RevisionHistory RevisionDateContent 12020/10/15NewDatasheet

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 Report No.: TZ0002240804FRF01 Page 1 of 35 Appendix Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: bone conduction bluetooth headset Trade Mark: aigo Test Model: G03 FCC ID: 2ASNB-G03 Environmental Conditions Temperature: 23.8°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Hugo Chen NOTE N/A Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.960 2401.529 2402.489 --- --- DH5 Ant1 2441 0.954 2440.535 2441.489 --- --- DH5 Ant1 2480 0.969 2479.526 2480.495 --- --- 2DH5 Ant1 2402 1.323 2401.334 2402.657 --- --- 2DH5 Ant1 2441 1.305 2440.349 2441.654 --- --- 2DH5 Ant1 2480 1.323 2479.337 2480.660 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 Report No.: TZ0002240804FRF01 Page 2 of 35 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 Report No.: TZ0002240804FRF01 Page 3 of 35 DH5-Ant1-2480 2DH5-Ant1-2402 2DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 Report No.: TZ0002240804FRF01 Page 4 of 35 2DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 Report No.: TZ0002240804FRF01 Page 5 of 35 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.88909 2401.5571 2402.4462 --- --- DH5 Ant1 2441 0.87090 2440.5601 2441.4310 --- --- DH5 Ant1 2480 0.89943 2479.5531 2480.4525 --- --- 2DH5 Ant1 2402 1.1921 2401.4030 2402.5951 --- --- 2DH5 Ant1 2441 1.2056 2440.4011 2441.6067 --- --- 2DH5 Ant1 2480 1.1939 2479.4056 2480.5995 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 Report No.: TZ0002240804FRF01 Page 6 of 35 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 Report No.: TZ0002240804FRF01 Page 7 of 35 DH5-Ant1-2480 2DH5-Ant1-2402 2DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 Report No.: TZ0002240804FRF01 Page 8 of 35 2DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 Report No.: TZ0002240804FRF01 Page 9 of 35 Appendix C: Maximum peak conducted output power Test Result Test Mode Antenna Frequency[MHz] Conducted Peak Power[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 -2.04 ≤30 PASS DH5 Ant1 2441 -2.62 ≤30 PASS DH5 Ant1 2480 -3.88 ≤30 PASS 2DH5 Ant1 2402 -1.31 ≤20.97 PASS 2DH5 Ant1 2441 -1.99 ≤20.97 PASS 2DH5 Ant1 2480 -3.19 ≤20.97 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 Report No.: TZ0002240804FRF01 Page 10 of 35 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 Report No.: TZ0002240804FRF01 Page 11 of 35 DH5-Ant1-2480-PASS 2DH5-Ant1-2402-PASS 2DH5-Ant1-2441-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 Report No.: TZ0002240804FRF01 Page 12 of 35 2DH5-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 Report No.: TZ0002240804FRF01 Page 13 of 35 Appendix D: Carrier frequency separation Test Result TestMode Antenna Frequency[MHz] Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 0.998 ≥0.969 PASS 2DH5 Ant1 Hop 1.134 ≥0.882 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 Report No.: TZ0002240804FRF01 Page 14 of 35 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 Report No.: TZ0002240804FRF01 Page 15 of 35 Appendix E: Time of occupancy Test Result TestMode Antenna Frequency[MHz] BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH5 Ant1 Hop 2.885 100 0.289 ≤0.4 PASS 2DH5 Ant1 Hop 2.891 130 0.376 ≤0.4 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 Report No.: TZ0002240804FRF01 Page 16 of 35 Test Graphs DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 Report No.: TZ0002240804FRF01 Page 17 of 35 2DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 Report No.: TZ0002240804FRF01 Page 18 of 35 Appendix F: Number of hopping channels Test Result TestMode Antenna Frequency[MHz] Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 Report No.: TZ0002240804FRF01 Page 19 of 35 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 Report No.: TZ0002240804FRF01 Page 20 of 35 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -2.60 -49.63 ≤-22.6 PASS DH5 Ant1 High 2480 -4.52 -49.56 ≤-24.52 PASS DH5 Ant1 Low Hop_2402 -2.91 -50.73 ≤-22.91 PASS DH5 Ant1 High Hop_2480 -4.31 -49.26 ≤-24.31 PASS 2DH5 Ant1 Low 2402 -2.52 -49.99 ≤-22.52 PASS 2DH5 Ant1 High 2480 -4.87 -49.28 ≤-24.87 PASS 2DH5 Ant1 Low Hop_2402 -5.35 -50.45 ≤-25.35 PASS 2DH5 Ant1 High Hop_2480 -4.91 -49.46 ≤-24.91 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 Report No.: TZ0002240804FRF01 Page 21 of 35 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 Report No.: TZ0002240804FRF01 Page 22 of 35 DH5-Ant1-Hop_2402-PASS DH5-Ant1-Hop_2480-PASS 2DH5-Ant1-2402-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 Report No.: TZ0002240804FRF01 Page 23 of 35 2DH5-Ant1-2480-PASS 2DH5-Ant1-Hop_2402-PASS 2DH5-Ant1-Hop_2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 Report No.: TZ0002240804FRF01 Page 24 of 35 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 0~Reference -3.20 -3.20 --- PASS DH5 Ant1 2402 30~1000 -3.20 -62.19 ≤-23.2 PASS DH5 Ant1 2402 1000~26500 -3.20 -47.2 ≤-23.2 PASS DH5 Ant1 2441 0~Reference -3.99 -3.99 --- PASS DH5 Ant1 2441 30~1000 -3.99 -62.4 ≤-23.99 PASS DH5 Ant1 2441 1000~26500 -3.99 -43.29 ≤-23.99 PASS DH5 Ant1 2480 0~Reference -5.03 -5.03 --- PASS DH5 Ant1 2480 30~100…

Text truncated - open the document above for the full version.

FCC TEST REPORT Test report On Behalf of Beijing EROS Technology Co.,Ltd. For bone conduction bluetooth headset Model No.: G03, G05 FCC ID: 2ASNB-G03 Prepared for : Beijing EROS Technology Co.,Ltd. 1-7, 6/F, Building 1, 76 Zhichun Road, Haidian District, Beijing, China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2024/8/18 ~ 2024/8/25 Date of Report: 2024/8/26 Report Number: TZ0002240804FRF01 The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ0002240804FRF01 Page 2 of 37 TEST RESULT CERTIFICATION Applicant’s name ................. : Beijing EROS Technology Co.,Ltd. Address .................................. : 1-7, 6/F, Building 1, 76 Zhichun Road, Haidian District, Beijing, China Manufacture's Name ............ : Beijing EROS Technology Co.,Ltd Address .................................. : 1-7, 6/F, Building 1, 76 Zhichun Road, Haidian District, Beijing, China Product description Trade Mark ................................ : aigo Product name ............................ : bone conduction bluetooth headset Model and/or type reference . : G03, G05 Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ........................................... : Date (s) of performance of tests ............. : 2024/8/18 ~ 2024/8/25 Date of Issue .......................................... : 2024/8/26 Test Result .............................................. : Pass Testing Engineer : (Allen Lai) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ0002240804FRF01 Page 3 of 37 Revision History Revision Issue Date Revisions Revised By 00 2024/8/26 Initial Issue Andy Zhang Report No.: TZ0002240804FRF01 Page 4 of 37 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................ 5 1.1 Description of Device (EUT) ................................................................................................... 5 1.2 Wireless Function Tested in this Report ................................................................................. 5 1.3 EUT configuration ................................................................................................................... 6 1.4 Description of Test Facility ...................................................................................................... 6 1.5 Statement of the Measurement Uncertainty ............................................................................ 6 1.6 Measurement Uncertainty ....................................................................................................... 7 1.7 Description of Test Modes ...................................................................................................... 7 1.8 Frequency of Channels........................................................................................................... 7 2 TEST METHODOLOGY ..................................................................................................... 8 2.1 EUT Configuration .................................................................................................................. 8 2.2 EUT Exercise ......................................................................................................................... 8 2.3 Test Sample ........................................................................................................................... 8 3 SYSTEM TEST CONFIGURATION .................................................................................... 9 3.1 Justification ............................................................................................................................. 9 3.2 EUT Exercise Software........................................................................................................... 9 3.3 Special Accessories ............................................................................................................... 9 3.4 Block Diagram/Schematics ..................................................................................................... 9 3.5 Equipment Modifications ......................................................................................................... 9 3.6 Test Setup .............................................................................................................................. 9 4 SUMMARY OF TEST RESULTS ...................................................................................... 10 5 MEASUREMENT RESULTS ............................................................................................ 11 5.1 Maximum Peak Conducted Output Power ............................................................................ 11 5.2 Frequency Separation and 20 dB Bandwidth ........................................................................ 12 5.3 Number of Hopping Frequency ............................................................................................. 13 5.4 Time of Occupancy (Dwell Time) .......................................................................................... 14 5.5 Conducted Spurious Emissions and Band Edges Test ......................................................... 16 5.6 Restricted Band Emission Limit ...…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 TEST SETUP PHOTOS OF THE EUT Conducted Emission Radiated Emission Below 1GHz Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASNB-G03 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Radiated Emission Above 1GHz
