2ASP8ASTRO5PROPHONE

10

MAXWEST COMMUNICATION LIMITED Add: ROOM 1802B FORTRESS TOWER 250 KING'S ROAD NORTH POINT Hong Kong Tel: 00852-3464 9345 Fax: 00852-3007 9834 E-mail: [email protected] Date: 2020-11-11 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We, MAXWEST COMMUNICATION LIMITED, hereby authorize Bay Area Compliance Laboratories Corp. to act as a laboratory for testing and test report generation for the following project(s): (Product name: PHONE, Model name: ASTRO 5 PRO, FCC ID:2ASP8ASTRO5PRO) The chipset SC9832E supports 2G, WCDMA and LTE Band, But only 2G,WCDMA Band 2/5 and LTE Band2/4/5/7/28 were active, the other were disable by software. Sincerely Yours, Client’s signature Printed Name: Celina He Title: Manager

QA-FR-170-B MAXWEST COMMUNICATION LIMITED ADD: ROOM 1802B FORTRESS TOWER 250 KING'S ROAD NORTH POINT Hong Kong TEL: 00852-3464 9345 FAX: 00852-3007 9834 E-mail: [email protected] FCC Authorization Date: 2020-11-11 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , MAXWEST COMMUNICATION LIMITED, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Celina He Manager

QA-FR-171-A MAXWEST COMMUNICATION LIMITED Add: ROOM 1802B FORTRESS TOWER 250 KING'S ROAD NORTH POINT Hong Kong Tel: 00852-3464 9345 FAX: 00852-3007 9834 Email: [email protected] FCC Confidential Authorization Date: 2020-11-11 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ASP8ASTRO5PRO In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, (MAXWEST COMMUNICATION LIMITED) hereby requests long-term confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operation Description Parts List/Tune up procedure (for licensed devices) The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Celina He Manager

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Aux Antenna Wifi/BT Antenna 2G/3G/4G Antenna

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*”. SAR EVALUATION REPORT For MAXWEST COMMUNICATION LIMITED ROOM 1802B FORTRESS TOWER, 250 KING'S ROAD, NORTH POINT, HONG KONG FCC ID: 2ASP8ASTRO5PRO Report Type: Original Report Product Type: PHONE Report Number: RDG200918005-20A Report Date: 2020-10-28 Reviewed By: Rocky Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-20A SAR Evaluation Report 2 of 72 Attestation of Test Results EUT Information EUT Description PHONE Tested Model ASTRO 5 PRO FCC ID 2ASP8ASTRO5PRO Serial Number RDG200918005-SA-S1 Test Date 2020-10-6~ 2020-10-9 MODE Max. SAR Level(s) Reported(W/kg) Limit (W/kg) GSM 850 1g Head SAR 0.27 1.6 1g Body SAR 0.41 PCS 1900 1g Head SAR 0.16 1g Body SAR 0.27 WCDMA Band 2 1g Head SAR 0.27 1g Body SAR 0.40 WCDMA Band 5 1g Head SAR 0.19 1g Body SAR 0.37 LTE Band 2 1g Head SAR 0.31 1g Body SAR 0.76 LTE Band 4 1g Head SAR 0.27 1g Body SAR 0.68 LTE Band 5 1g Head SAR 0.25 1g Body SAR 0.42 LTE Band 7 1g Head SAR 0.94 1g Body SAR 1.23 WLAN 2.4G 1g Head SAR 0.04 1g Body SAR 0.12 Simultaneous 1g Head SAR 1.12 1g Body SAR 1.32 1g Body SAR 1.35 (Hotspot) Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices RF Exposure Procedures: TCB Workshop April 2019 IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEC 62209-1:2016 Measurement procedure for the assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Part 1: Devices used next to the ear (Frequenc y range of 300 MHz to 6 GHz) KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 648474 D04 Handset SAR v01r03 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 KDB 941225 D01 3G SAR Procedures v03r01 KDB 941225 D05 SAR for LTE Devices v02r05 KDB 941225 D06 Hotspot Mode v02r01 KDB 248227 D01 802 11 Wi-Fi SAR v02r02 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-20A SAR Evaluation Report 3 of 72 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-20A SAR Evaluation Report 4 of 72 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 5 EUT DESCRIPTION .................................................................................................................................................... 6 TECHNICAL SPECIFICATION ......................................................................................................................................... 6 REFERENCE, STANDARDS, AND GUIDELINES .................................................................................................. 7 SAR LIMITS ................................................................................................................................................................. 8 FACILITIES .................................................................................................................................................................. 9 DESCRIPTION OF TEST SYSTEM ........................................................................................................................ 10 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 16 EQUIPMENTS LIST & CALIBRATION INFORMATION .................................................................................................... 16 SAR MEASUREMENT SYSTEM VERIFICATION .............................................................................................. 17 LIQUID VERIFICATION ............................................................................................................................................... 17 SYSTEM ACCURACY VERIFICATION ........................................................................................................................... 19 SAR SYSTEM VALIDATION DATA ..................................................................................................................... 20 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 25 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................ 25 CHEEK/TOUCH POSITION ........................................................................................................................................... 26 EAR/TILT POSITION .......................................................................................................…

Text truncated - open the document above for the full version.

PROBE CALIBRATION CERTIFICATES DIPOLE CALIBRATION CERTIFICATES

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-20A Page 1 of 136 Test Plot 1#: GSM 850_Head Left Cheek_Middle DUT: Mobile Phone; Type: ASTRO 5 PRO; Serial: RDG200918005-SA-S1 Communication System: Generic GSM ; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.893 S/m; ε r = 41.383; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(10.33, 10.33, 10.33) @ 836.6 MHz; Calibrated: 2020/2/8  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE3 Sn471; Calibrated: 2019/12/25  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (61x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.171 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.315 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 0.182 W/kg SAR(1 g) = 0.140 W/kg; SAR(10 g) = 0.107 W/kg Maximum value of SAR (measured) = 0.166 W/kg 0 dB = 0.166 W/kg = -7.80 dBW/kg Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-20A Page 2 of 136 Plot 2#: GSM 850_Head Left Tilt_Middle DUT: Mobile Phone; Type: ASTRO 5 PRO; Serial: RDG200918005-SA-S1 Communication System: Generic GSM ; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.893 S/m; ε r = 41.383; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(10.33, 10.33, 10.33) @ 836.6 MHz; Calibrated: 2020/2/8  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE3 Sn471; Calibrated: 2019/12/25  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (61x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.132 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.190 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 0.149 W/kg SAR(1 g) = 0.116 W/kg; SAR(10 g) = 0.090 W/kg Maximum value of SAR (measured) = 0.139 W/kg 0 dB = 0.139 W/kg = -8.57 dBW/kg Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-20A Page 3 of 136 Plot 3#: GSM 850_Head Right Cheek_Middle DUT: Mobile Phone; Type: ASTRO 5 PRO; Serial: RDG200918005-SA-S1 Communication System: Generic GSM ; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.893 S/m; ε r = 41.383; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(10.33, 10.33, 10.33) @ 836.6 MHz; Calibrated: 2020/2/8  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE3 Sn471; Calibrated: 2019/12/25  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (61x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.321 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.982 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 0.350 W/kg SAR(1 g) = 0.261 W/kg; SAR(10 g) = 0.196 W/kg Maximum value of SAR (measured) = 0.316 W/kg 0 dB = 0.316 W/kg = -5.00 dBW/kg Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-20A Page 4 of 136 Plot 4#: GSM 850_Head Right Tilt_Middle DUT: Mobile Phone; Type: ASTRO 5 PRO; Serial: RDG200918005-SA-S1 Communication System: Generic GSM ; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.893 S/m; ε r = 41.383; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(10.33, 10.33, 10.33) @ 836.6 MHz; Calibrated: 2020/2/8  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE3 Sn471; Calibrated: 2019/12/25  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (61x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.243 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.36 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 0.251 W/kg SAR(1 g) = 0.198 W/kg; SAR(10 g) = 0.154 W/kg Maximum value of SAR (measured) = 0.231 W/kg 0 dB = 0.231 W/kg = -6.36 dBW/kg Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-20A Page 5 of 136 Plot 5#: GSM 850_Body Worn Back_Middle DUT: Mobile Phone; Type: ASTRO 5 PRO; Serial: RDG200918005-SA-S1 Communication System: Generic GSM ; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.893 S/m; ε r = 41.383; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(10.33, 10.33, 10.33) @ 836.6 MHz; Calibrated: 2020/2/8  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE3 Sn471; Calibrated: 2019/12/25  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (61x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.454 W/kg Zoom Scan (7x9x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.99 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 0.491 W/kg SAR(1 g) = 0.333 W/kg; SAR(10 g) = 0.248 W/kg Maximum value of SAR (measured) = 0.408 W/kg 0 dB = 0.408 W/kg = -3.89 dBW/kg Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-20A Page 6 of 136 Plot 6#: GSM 850_Body Worn Front_Middle DUT: Mobile Phone; Type: ASTRO 5 PRO; Serial: RDG200918005-SA-S1 Communication System: Generic GSM ; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.893 S/m; ε r = 41.383; ρ = 1000 kg/m 3 Pha…

Text truncated - open the document above for the full version.

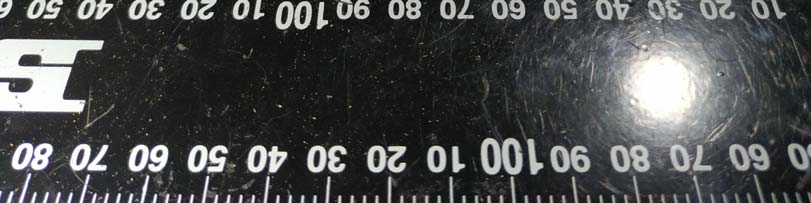

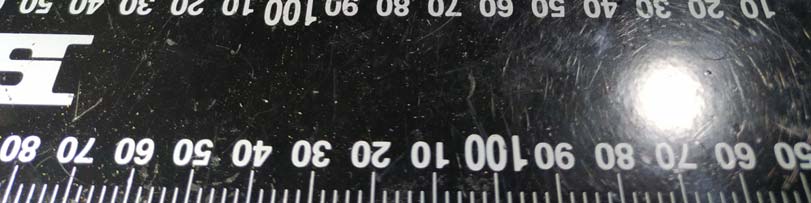

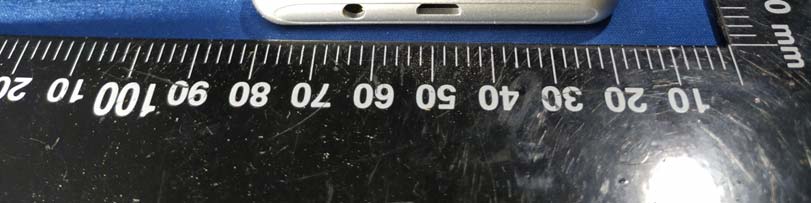

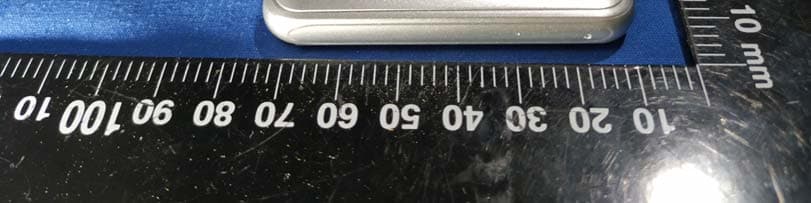

Report No.: RDG200918005-20A Page 1 of 6 APPENDIX B EUT TEST POSITION PHOTOS Liquid depth ≥ 15cm Phantom Type: Twin SAM; Model: Twin SAM V5.0; S/N: 1412 Report No.: RDG200918005-20A Page 2 of 6 Head Left Cheek Setup Photo Head Left Tilt Setup Photo Report No.: RDG200918005-20A Page 3 of 6 Head Right Cheek Setup Photo Head Right Tilt Setup Photo Report No.: RDG200918005-20A Page 4 of 6 Body (Worn) Back Setup Photo (10mm) Body (Worn) Front Setup Photo (10mm) 10 mm 10 mm Report No.: RDG200918005-20A Page 5 of 6 Body Left Setup Photo (10mm) Body Right Setup Photo (10mm) 10 mm 10 mm Report No.: RDG200918005-20A Page 6 of 6 Body Bottom Setup Photo (10mm) Body Top Setup Photo (10mm) 10mm 10mm

FCC PART 22H, PART 24E,PART 27 MEASUREMENT AND TEST REPORT For MAXWEST COMMUNICATION LIMITED ROOM 1802B FORTRESS TOWER, 250 KING'S ROAD, NORTH POINT, HONG KONG Report Type: Original Report Product Type: PHONE Re port Number: RDG200918005-00C Re port Date: 2020-11-17 Reviewed B y: Ivan Cao Assistant Manager Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn FCC ID: 2ASP8ASTRO5PRO Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 2 of 121 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 DECLARATIONS ............................................................................................................................................................ 6 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 JUSTIFICATION ............................................................................................................................................................. 7 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 CONFIGURATION OF TEST SETUP ................................................................................................................................. 8 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 8 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 FCC §1.1310 & §2.1093- RF EXPOSURE .................................................................................................................. 10 APPLICABLE STANDARD ............................................................................................................................................ 10 TEST RESULT ............................................................................................................................................................. 10 FCC §2.1047 - MODULATION CHARACTERISTIC ............................................................................................ 11 FCC § 2.1046, § 22.913 (A) & § 24.232 (C) & § 27.50- RF OUTPUT POWER ...................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 TEST PROCEDURE ...................................................................................................................................................... 13 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 18 TEST DATA ................................................................................................................................................................ 18 FCC §2.1049, §22.917, §22.905 & §24.238 & §27.53- OCCUPIED BANDWIDTH ............................................... 31 APPLICABLE STANDARD ............................................................................................................................................ 31 TEST PROCEDURE ...................................................................................................................................................... 31 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 31 TEST DATA ................................................................................................................................................................ 31 FCC §2.1051, §22.917(A) & §24.238(A) & §27.53- SPURIOUS EMISSIONS AT ANTENNA TERMINALS ... 60 APPLICABLE STANDARD ............................................................................................................................................ 60 TEST PROCEDURE ...................................................................................................................................................... 60 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 60 TEST DATA ............................................................................................................................................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 51 of 121 20M, QPSK, Low Channel 20M, 16QAM, Low Channel 20M, QPSK, Middle Channel 20M, 16QAM, Middle Channel 20M, QPSK, High Channel 20M, 16QAM, High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 52 of 121 LTE Band 5: 1.4M, QPSK, Low Channel 1.4M, 16QAM, Low Channel 1.4M, QPSK, Middle Channel 1.4M, 16QAM, Middle Channel 1.4M, QPSK, High Channel 1.4M, 16QAM, High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 53 of 121 3M, QPSK, Low Channel 3M, 16QAM, Low Channel 3M, QPSK, Middle Channel 3M, 16QAM, Middle Channel 3M, QPSK, High Channel 3M, 16QAM, High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 54 of 121 5M, QPSK, Low Channel 5M, 16QAM, Low Channel 5M, QPSK, Middle Channel 5M, 16QAM, Middle Channel 5M, QPSK, High Channel 5M, 16QAM, High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 55 of 121 10M, QPSK, Low Channel 10M, 16QAM, Low Channel 10M, QPSK, Middle Channel 10M, 16QAM, Middle Channel 10M, QPSK, High Channel 10M, 16QAM, High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 56 of 121 LTE Band 7: 5M, QPSK, Low Channel 5M, 16QAM, Low Channel 5M, QPSK, Middle Channel 5M, 16QAM, Middle Channel 5M, QPSK, High Channel 5M, 16QAM, High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 57 of 121 10M, QPSK, Low Channel 10M, 16QAM, Low Channel 10M, QPSK, Middle Channel 10M, 16QAM, Middle Channel 10M, QPSK, High Channel 10M, 16QAM, High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 58 of 121 15M, QPSK, Low Channel 15M, 16QAM, Low Channel 15M, QPSK, Middle Channel 15M, 16QAM, Middle Channel 15M, QPSK, High Channel 15M, 16QAM, High Channel A Att 30 dB * Offset 7 dB LVL Ref 30 dBm 3 MHz/Center 2.5625 GHzSpan 30 MHz * * 3DB RBW 300 kHz VBW 1 MHz SWT 2.5 ms 1 PK MAXH -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -14.40 dB m 2.555359615 GHz 1 Delta 1 [T1 ] 1.39 dB 14.403846154 MHz OBW 13.500000000 MHz T1 Temp 1 [T1 OBW] 5.92 dB m 2.555780000 GHz T2 Temp 2 [T1 OBW] 9.43 dB m 2.569280000 GHz D1 14.23 dBm D2 -11.77 dBm Date: 13.NOV.2020 18:58:34 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 59 of 121 20M, QPSK, Low Channel 20M, 16QAM, Low Channel 20M, QPSK, Middle Channel 20M, 16QAM, Middle Channel 20M, QPSK, High Channel 20M, 16QAM, High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 60 of 121 FCC §2.1051, §22.917(a) & §24.238(a) & §27.53- SPURIOUS EMISSIONS AT ANTENNA TERMINALS Applicable Standard FCC §2.1051, §22.917(a) , §24.238(a) and §27.53. The spectrum was to be investigated to the tenth harmonics of the highest fundamental frequency as specified in § 2.1051. Test Procedure The RF output of the transceiver was connected to a spectrum analyzer and simulator through appropriate attenuation. Sufficient scans were taken to show any out of band emissions up to 10 th harmonic. Test Equipment List and Details Manufacturer Description Model Serial Number Calibration Date Calibration Due Date R&S Spectrum Analyzer FSV40 101474 2020-07-07 2021-07-07 yzjingcheng Coaxial Cable KTRFBU- 141-50 41005011 Each time N/A Unknown Coaxial Cable C-SJ00-0010C0010/01 Each time N/A E-Microwave Blocking Control EMDCB- 00036 0E01201047Each time N/A E-Microwave Two-way Spliter ODP-1-6-2SOE0120142 Each time N/A * Statement of Traceability: Bay Area Compliance Laboratories Corp. (Dongguan) attests that all calibrations have been performed, traceable to National Primary Standards and International System of Units (SI). Test Data Environmental Conditions Temperature: 25.6~26.3 °C Relative Humidity: 30~47% ATM Pressure: 101~101.9kPa Tester: Taylor Li Test Date: 2020-10-30~2020-11-03 Test Result: Compliance. Please refer to the following plots. EUT Spectrum Analyzer Splitter CMU200/CMW500 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 61 of 121 GSM 850, Low Channel GSM 850, Middle Channel GSM 850, High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 62 of 121 PCS 1900, Low Channel PCS 1900, Middle Channel PCS 1900, High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 63 of 121 WCDMA Band II, R99, Low Channel WCDMA Band II, R99, Middle Channel WCDMA Band II, R99, High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 64 of 121 WCDMA Band V, R99, Low Channel WCDMA Band V, R99, Middle Channel WCDMA Band V, R99, High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 65 of 121 LTE Band 2: 1.4M, QPSK, Low Channel 1.4M, QPSK, Middle Channel 1.4M, QPSK, High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 66 of 121 3M, QPSK, Low Channel 3M, QPSK, Middle Channel 3M, QPSK, High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 67 of 121 5M, QPSK, Low Channel 5M, QPSK, Middle Channel 5M, QPSK, High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 68 of 121 10M, QPSK, Low Channel 10M, QPSK, Middle Channel 10M, QPSK, High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 69 of 121 15M, QPSK, Low Channel 15M, QPSK, Middle Channel 15M, QPSK, High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 70 of 121 20M, QPSK, Low Channel 20M, QPSK, Middle Channel 20M, QPSK, High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 71 of 121 LTE Band 4: 1.4M, QPSK, Low Channel 1.4M, QPSK, Middle Channel 1.4M, QPSK, High…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 76 of 121 20M, QPSK, Low Channel 20M, QPSK, Middle Channel 20M, QPSK, High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 77 of 121 LTE Band 5: 1.4M, QPSK, Low Channel 1.4M, QPSK, Middle Channel 1.4M, QPSK, High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 78 of 121 3M, QPSK, Low Channel 3M, QPSK, Middle Channel 3M, QPSK, High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 79 of 121 5M, QPSK, Low Channel 5M, QPSK, Middle Channel 5M, QPSK, High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 80 of 121 10M, QPSK, Low Channel 10M, QPSK, Middle Channel 10M, QPSK, High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 81 of 121 LTE Band 7: 5M, QPSK, Low Channel 5M, QPSK, Middle Channel 5M, QPSK, High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 82 of 121 10M, QPSK, Low Channel 10M, QPSK, Middle Channel 10M, QPSK, High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 83 of 121 15M, QPSK, Low Channel 15M, QPSK, Middle Channel 15M, QPSK, High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 84 of 121 20M, QPSK, Low Channel 20M, QPSK, Middle Channel 20M, QPSK, High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918005-00C Page 85 of 121 FCC §2.1053, §22.917 & §24.238 & §27.53- SPURIOUS RADIATED EMISSIONS Applicable Standard FCC § 2.1053, §22.917, § 24.238 and § 27.53; Test Procedure The transmitter was placed on a wooden turntable, and it was transmitting into a non-radiating load which was also placed on the turntable. The measurement antenna was placed at a distance of 3 meters from the EUT. During the tests, the antenna height and polarization as well as EUT azimuth were varied in order to identify the maximum level of emissions from the EUT. The test was performed by placing the EUT on 3-orthogonal axis. The frequency r…

Text truncated - open the document above for the full version.
