2ASP8NITRON62Phone

MAXWEST COMMUNICATION LIMITED ADD: FLAT/RM 707 7/F, FORTRESS TOWER 250 KING'S ROAD,NORTH POINT, HONG KONG TEL: 0086-755-83453835 FAX: 0086-755-83453835 E-mail: [email protected] Date: 2023-04-14 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We, MAXWEST COMMUNICATION LIMITED, hereby authorize China Certification ICT Co., Ltd (Dongguan). to act as a laboratory for testing and test report generation for the following project(s): (Product description: Phone, Model name: NITRO N62,FCC ID: 2ASP8NITRON62) The chipset MT6739 supports BT,BLE,2.4G WiFi 802.11b/g/n ht20/n ht40 , 5G Wifi,GSM/GPRS/EDGE,WCDMA and LTE, But for this device, only BT, BLE,2.4G WiFi ,5G WiFi(5150~5250MHz, 5725~5850MHz),GSM/GPRS/EDGE 8 50/1900,WCDMA Band2/4/5, LTE Band2/4/5/12/17/41/66/71 were active, the others were disabled by software. Sincerely, Signature: Pr inted Name: Rita Yu Title: Manager

ATTESTATION STATEMENT Applicant: MAXWEST COMMUNICATION LIMITED Add: FLAT/RM 707 7/F, FORTRESS TOWER 250 KING'S ROAD,NORTH POINT,HONG KONG Tel: 0086-755-83453835 FAX: 0086-755-83453835 Email: [email protected] Date: 2023-04-14 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d)(5)(i), (ii) Filing FCC ID: 2ASP8NITRON62 MAXWEST COMMUNICATION LIMITED, (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. And MAXWEST COMMUNICATION LIMITED, (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signed by (printed name): Rita Yu Signature:

U.S. AGENT LETTER OF ATTESTATION Date: 2023-04-14 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d)(7 ) Filing FCC ID: 2ASP8NITRON62 MAXWEST COMMUNICATION LIMITED certifies that, as of the date of the filing of the application, OC CONTINENTAL SOURCE INC. is our designated U.S. agent for service of process for the above referenced FCC ID. MAXWEST COMMUNICATION LIMITED accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. OC CONTINENTAL SOURCE INC accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: OC CONTINENTAL SOURCE INC Address:13772 GOLDEN WEST ST. UNIT. 618 WESTMINSTER, CA. 92683-3123 FRN:0033598186 Tel.: 714-862-5327 Email: [email protected] Signed by (printed name): sabah mus Signature: Applicant: MAXWEST COMMUNICATION LIMITED Add: FLAT/RM 707 7/F, FORTRESS TOWER 250 KING'S ROAD,NORTH POINT, HONG KONG Tel: 0086-755-83453835 Email: [email protected] Signed by (printed name): Rita Yu Signature:

QA-FR-170-B MAXWEST COMMUNICATION LIMITED ADD: FLAT/RM 707 7/F, FORTRESS TOWER 250 KING'S ROAD,NORTH POINT, HONG KONG TEL: 0086-755-83453835 FAX: 0086-755-83453835 E-mail: [email protected] FCC Authorization Date: 2023-04-14 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , MAXWEST COMMUNICATION LIMITED, Hereby authorizes China Certification ICT Co., Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co., Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Printed Name: Rita Yu Title: Manager

QA-FR-171-A MAXWEST COMMUNICATION LIMITED ADD: FLAT/RM 707 7/F, FORTRESS TOWER 250 KING'S ROAD,NORTH POINT, HONG KONG TEL: 0086-755-83453835 FAX: 0086-755-83453835 E-mail: [email protected] FCC Confidential Authorization Date: 2023-04-14 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID:2ASP8NITRON62 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, (MAXWEST COMMUNICATION LIMITED) hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description  Parts List/Tune up procedure (for licensed devices)  SOFTWARE SECURITY DESCRIPTION The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed Name: Rita Yu Title: Manager

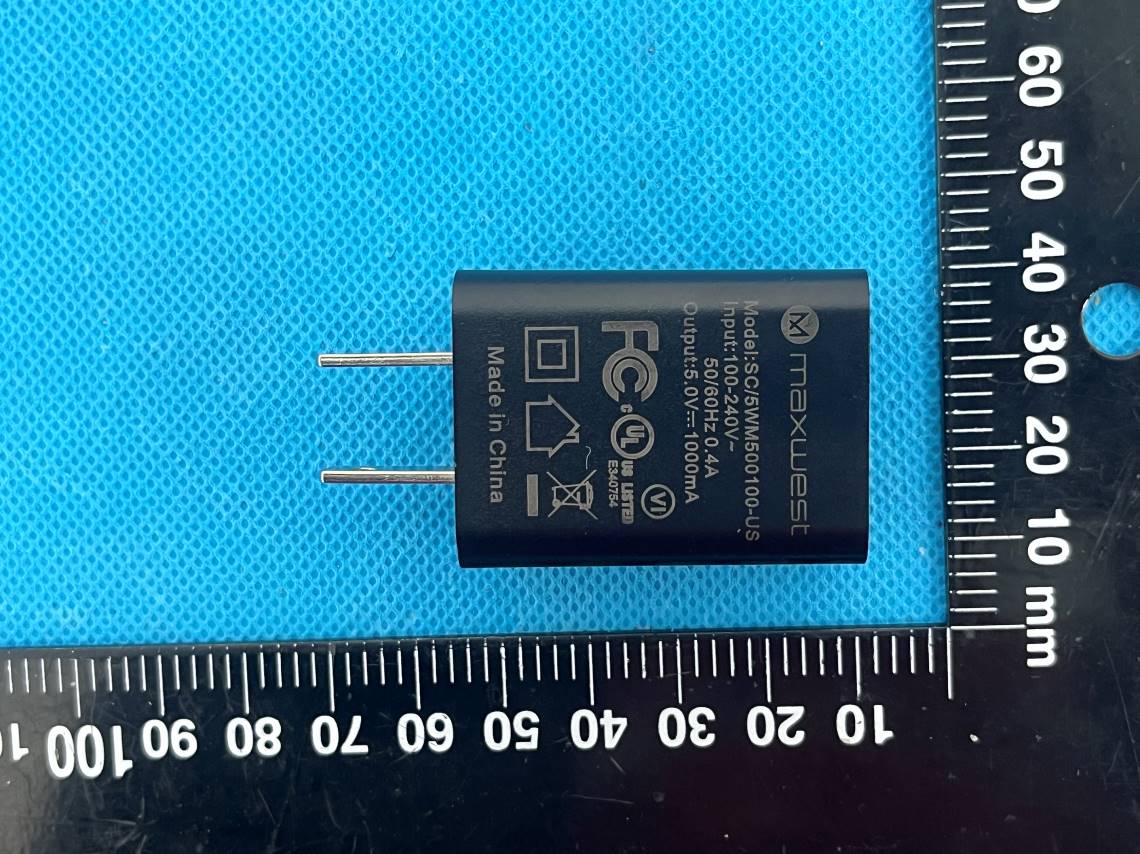

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Port Port Adapter 1 Adapter 2

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Uncover LTE DIV Antenna GPS/WiFi/BT Antenna GSM/WCDMA/LTE Main Antenna Chip Chip Chip

Report No.: CR230312980-20A Page 1 of 6 APPENDIX B EUT TEST POSITION PHOTOS Liquid depth ≥ 15cm Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412 Report No.: CR230312980-20A Page 2 of 6 Head Left Cheek Setup Photo Head Left Tilt Setup Photo Report No.: CR230312980-20A Page 3 of 6 Head Right Cheek Setup Photo Head Right Tilt Setup Photo Report No.: CR230312980-20A Page 4 of 6 Body (Worn) Front Setup Photo (10mm) Body (Worn) Back Setup Photo (10mm) 10 mm 10 mm Report No.: CR230312980-20A Page 5 of 6 Body Left Setup Photo (10mm) Body Right Setup Photo (10mm) 10 mm 10 mm Report No.: CR230312980-20A Page 6 of 6 Body Bottom Setup Photo (10mm) Body Top Setup Photo (10mm) 10 mm 10 mm

APPENDIX C PROBE CALIBRATION CERTIFICATES PROBE CALIBRATION CERTIFICATES

DIPOLE CALIBRATION CERTIFICATES

SAR TEST REPORT Applicant: MAXWEST COMMUNICATION LIMITED Address: ROOM 1802B FORTRESS TOWER 250 KING'S ROAD, NORTH POINT HONG KONG FCC ID: 2ASP8NITRON62 Product Name: Phone Model Number: NITRO N62 Standard(s): 47 CFR Part 2(2.1093) The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR230312980-20 Date Of Issue: 2023-04-13 Reviewed By: Karl Gong Title: SAR Engineer Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230312980-20A Page 2 of 106 SAR TEST RESULTS SUMMARY Operation Frequency Bands Highest Reported 1g SAR (W/kg) Limits (W/kg) Head SAR Body SAR (Gap 10mm) GSM 850 0.170.7 1.6 PCS 1900 0.070.62 WCDMA Band 20.10.46 WCDMA Band 40.040.24 WCDMA Band 50.040.45 LTE Band 2 0.080.85 LTE Band 5 0.040.31 LTE Band 12&170.020.14 LTE Band 41 0.240.72 LTE Band 66&40.050.42 LTE Band 71 0.050.13 WLAN 2.4G 0.510.16 WLAN 5.2G 0.680.6 WLAN 5.8G 0.680.28 Maximum Simultaneous Transmission SAR Items Head Body-Worn (Gap 10mm) Hotspot (Gap 10mm) Limits Sum SAR(W/kg) 0.92 1.45 1.45 1.6 SPLSR / / / 0.04 EUT Received Date: 2023/03/20 Tested Date: 2023/03/31~2023/04/07 Tested Result: Pass China Certification ICT Co., Ltd (Dongguan) Report No.: CR230312980-20A Page 3 of 106 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR230312980-20A Page 4 of 106 CONTENTS SAR TEST RESULTS SUMMARY .............................................................................................. 2 TEST FACILITY .......................................................................................................................................... 3 DECLARATIONS .......................................................................................................................................... 3 DOCUMENT REVISION HISTORY .......................................................................................... 6 1. GENERAL INFORMATION .................................................................................................... 7 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 7 1.2 TEST SPECIFICATION, METHODS AND PROCEDURES ........................................................................ 8 1.3 SAR LIMTS ........................................................................................................................................... 9 2. SAR MEASUREMENT SYSTEM .......................................................................................... 10 3. EQUIPMENT LIST AND CALIBRATION .......................................................................... 18 3.1 EQUIPMENTS LIST & CALIBRATION INFORMATION ....................................................................... 18 4. SAR MEASUREMENT SYSTEM VERIFICATION ........................................................... 19 4.1 LIQUID VERIFICATION ...................................................................................................................... 19 4.2 SYSTEM ACCURACY VERIFICATION ................................................................................................. 22 4.3 SAR SYSTEM VALIDATION DATA ............................................................................................. 23 5. EUT TEST STRATEGY AND METHODOLOGY .............................................................. 33 5.1 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR ......................................... 33 5.2 CHEEK/TOUCH POSITION .................................................................................................................. 34 5.3 EAR/TILT POSITION ........................................................................................................................... 34 5.4 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS ................................................ 35 5.5 TEST DISTANCE FOR SAR EVALUATION .......................................................................................... 36 5.6 SAR EVALUATION PROCEDURE ....................................................................................................... 37 6. CONDUCTED OUTPUT POWER MEASUREMENT ........................................................ 38 6.1 TEST PROCEDURE .............................................................................................................................. 38 6.2 DESCRIPTION OF TEST CONFIGURATION .........................................…

Text truncated - open the document above for the full version.

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230312980-20A Page 1 of 207 Test Plot 1#: GSM 850_Head Left Cheek_Middle DUT: Phone; Type: NITRON62; Serial: 23CH_1 Communication System: Generic GSM (0); Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.927 S/m; ε r = 41.536; ρ = 1000 kg/m 3 ; Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(9.7, 9.7, 9.7) @836.6 MHz; Calibrated: 2022/5/6;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2022/10/31  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0354 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.378 V/m; Power Drift = -0.19 dB Peak SAR (extrapolated) = 0.0380 W/kg SAR(1 g) = 0.031 W/kg; SAR(10 g) = 0.025 W/kg Maximum value of SAR (measured) = 0.0347 W/kg 0 dB = 0.0347 W/kg = -14.60 dB dBW/kg China Certification ICT Co., Ltd (Dongguan) Report No.: CR230312980-20A Page 2 of 207 Test Plot 2#: GSM 850_Head Left Tilt_Middle DUT: Phone; Type: NITRON62; Serial: 23CH_1 Communication System: Generic GSM (0); Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.927 S/m; ε r = 41.536; ρ = 1000 kg/m 3 ; Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(9.7, 9.7, 9.7) @836.6 MHz; Calibrated: 2022/5/6;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2022/10/31  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0355 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.897 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.0380 W/kg SAR(1 g) = 0.029 W/kg; SAR(10 g) = 0.023 W/kg Maximum value of SAR (measured) = 0.0340 W/kg 0 dB = 0.0340 W/kg = -14.69 dB dBW/kg China Certification ICT Co., Ltd (Dongguan) Report No.: CR230312980-20A Page 3 of 207 Test Plot 3#: GSM 850_Head Right Cheek_Middle DUT: Phone; Type: NITRON62; Serial: 23CH_1 Communication System: Generic GSM (0); Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.927 S/m; ε r = 41.536; ρ = 1000 kg/m 3 ; Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(9.7, 9.7, 9.7) @836.6 MHz; Calibrated: 2022/5/6;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2022/10/31  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.184 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.942 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.202 W/kg SAR(1 g) = 0.157 W/kg; SAR(10 g) = 0.123 W/kg Maximum value of SAR (measured) = 0.184 W/kg 0 dB = 0.184 W/kg = -7.35 dB dBW/kg China Certification ICT Co., Ltd (Dongguan) Report No.: CR230312980-20A Page 4 of 207 Test Plot 4#: GSM 850_Head Right Tilt_Middle DUT: Phone; Type: NITRON62; Serial: 23CH_1 Communication System: Generic GSM (0); Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.927 S/m; ε r = 41.536; ρ = 1000 kg/m 3 ; Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(9.7, 9.7, 9.7) @836.6 MHz; Calibrated: 2022/5/6;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2022/10/31  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0569 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.252 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 0.0610 W/kg SAR(1 g) = 0.044 W/kg; SAR(10 g) = 0.035 W/kg Maximum value of SAR (measured) = 0.0550 W/kg 0 dB = 0.0550 W/kg = -12.60 dB dBW/kg China Certification ICT Co., Ltd (Dongguan) Report No.: CR230312980-20A Page 5 of 207 Test Plot 5#: GSM 850_Body Worn Front_Middle DUT: Phone; Type: NITRON62; Serial: 23CH_1 Communication System: Generic GSM (0); Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.927 S/m; ε r = 41.536; ρ = 1000 kg/m 3 ; Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(9.7, 9.7, 9.7) @836.6 MHz; Calibrated: 2022/5/6;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2022/10/31  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.221 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.414 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.234 W/kg SAR(1 g) = 0.131 W/kg; SAR(10 g) = 0.079 W/kg Maximum value of SAR (measured) = 0.190 W/kg 0 dB = 0.190 W/kg = -7.21 dB dBW/kg China Certification ICT Co., Ltd (Dongguan) Report No.: CR230312980-20A Page 6 of 207 Test Plot 6#: GSM 850_Body Worn Back_Middle DUT: Phone; Type: NITRON62; Serial: 23CH_1 Communication System: Generic GSM (0); Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.927 S/m; ε r = 41.536; ρ = 1000 kg/m 3 ; Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(9.7, 9.7, 9.7) @836.6 MHz; Calibrated: 2022/5/6;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  E…

Text truncated - open the document above for the full version.

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230312980-20A Page 91 of 207 Test Plot 91#: LTE Band 5_Body Back_1RB_Middle DUT: Phone; Type: NITRON62; Serial: 23CH_1 Communication System: Generic FDD-LTE (0); Frequency: 836.5 MHz;Duty Cycle: 1:1 Medium parameters used: f = 836.5 MHz; σ = 0.923 S/m; ε r = 41.615; ρ = 1000 kg/m 3 ; Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(9.7, 9.7, 9.7) @836.5 MHz; Calibrated: 2022/5/6;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2022/10/31  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.466 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.276 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.590 W/kg SAR(1 g) = 0.305 W/kg; SAR(10 g) = 0.165 W/kg Maximum value of SAR (measured) = 0.459 W/kg 0 dB = 0.459 W/kg = -3.38 dB dBW/kg China Certification ICT Co., Ltd (Dongguan) Report No.: CR230312980-20A Page 92 of 207 Test Plot 92#: LTE Band 5_Body Back_1RB_High DUT: Phone; Type: NITRON62; Serial: 23CH_1 Communication System: Generic FDD-LTE (0); Frequency: 844 MHz;Duty Cycle: 1:1 Medium parameters used: f = 844 MHz; σ = 0.936 S/m; ε r = 41.357; ρ = 1000 kg/m 3 ; Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(9.7, 9.7, 9.7) @844 MHz; Calibrated: 2022/5/6;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2022/10/31  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.318 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.21 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 0.429 W/kg SAR(1 g) = 0.202 W/kg; SAR(10 g) = 0.109 W/kg Maximum value of SAR (measured) = 0.319 W/kg 0 dB = 0.319 W/kg = -4.96 dB dBW/kg China Certification ICT Co., Ltd (Dongguan) Report No.: CR230312980-20A Page 93 of 207 Test Plot 93#: LTE Band 5_Body Back_50%RB_Middle DUT: Phone; Type: NITRON62; Serial: 23CH_1 Communication System: Generic FDD-LTE (0); Frequency: 836.5 MHz;Duty Cycle: 1:1 Medium parameters used: f = 836.5 MHz; σ = 0.923 S/m; ε r = 41.615; ρ = 1000 kg/m 3 ; Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(9.7, 9.7, 9.7) @836.5 MHz; Calibrated: 2022/5/6;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2022/10/31  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.353 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.938 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.480 W/kg SAR(1 g) = 0.247 W/kg; SAR(10 g) = 0.134 W/kg Maximum value of SAR (measured) = 0.370 W/kg 0 dB = 0.370 W/kg = -4.32 dB dBW/kg China Certification ICT Co., Ltd (Dongguan) Report No.: CR230312980-20A Page 94 of 207 Test Plot 94#: LTE Band 5_Body Left_1RB_Middle DUT: Phone; Type: NITRON62; Serial: 23CH_1 Communication System: Generic FDD-LTE (0); Frequency: 836.5 MHz;Duty Cycle: 1:1 Medium parameters used: f = 836.5 MHz; σ = 0.923 S/m; ε r = 41.615; ρ = 1000 kg/m 3 ; Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(9.7, 9.7, 9.7) @836.5 MHz; Calibrated: 2022/5/6;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2022/10/31  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0423 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.481 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 0.0490 W/kg SAR(1 g) = 0.031 W/kg; SAR(10 g) = 0.021 W/kg Maximum value of SAR (measured) = 0.0420 W/kg 0 dB = 0.0420 W/kg = -13.77 dB dBW/kg China Certification ICT Co., Ltd (Dongguan) Report No.: CR230312980-20A Page 95 of 207 Test Plot 95#: LTE Band 5_Body Left_50%RB_Middle DUT: Phone; Type: NITRON62; Serial: 23CH_1 Communication System: Generic FDD-LTE (0); Frequency: 836.5 MHz;Duty Cycle: 1:1 Medium parameters used: f = 836.5 MHz; σ = 0.923 S/m; ε r = 41.615; ρ = 1000 kg/m 3 ; Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(9.7, 9.7, 9.7) @836.5 MHz; Calibrated: 2022/5/6;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2022/10/31  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0323 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.138 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.0380 W/kg SAR(1 g) = 0.024 W/kg; SAR(10 g) = 0.016 W/kg Maximum value of SAR (measured) = 0.0320 W/kg 0 dB = 0.0320 W/kg = -14.95 dB dBW/kg China Certification ICT Co., Ltd (Dongguan) Report No.: CR230312980-20A Page 96 of 207 Test Plot 96#: LTE Band 5_Body Right_1RB_Middle DUT: Phone; Type: NITRON62; Serial: 23CH_1 Communication System: Generic FDD-LTE (0); Frequency: 836.5 MHz;Duty Cycle: 1:1 Medium parameters used: f = 836.5 MHz; σ = 0.923 S/m; ε r = 41.615; ρ = 1000 kg/m 3 ; Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(9.7, 9.7, 9.7) @836.5 MHz; Calibrated: 2022/5/6;  Sensor-Surface: 1.4mm (…

Text truncated - open the document above for the full version.

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230312980-20A Page 138 of 207 Test Plot 140#: LTE Band 66_Head Left Cheek_1RB_Middle DUT: Phone; Type: NITRON62; Serial: 23CH_1 Communication System: Generic FDD-LTE (0); Frequency: 1745 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1745 MHz; σ = 1.335 S/m; ε r = 40.647; ρ = 1000 kg/m 3 ; Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(8.1, 8.1, 8.1) @1745 MHz; Calibrated: 2022/5/6;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2022/10/31  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0661 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.622 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.0730 W/kg SAR(1 g) = 0.045 W/kg; SAR(10 g) = 0.029 W/kg Maximum value of SAR (measured) = 0.0631 W/kg 0 dB = 0.0631 W/kg = -12.00 dB dBW/kg China Certification ICT Co., Ltd (Dongguan) Report No.: CR230312980-20A Page 139 of 207 Test Plot 141#: LTE Band 66_Head Left Cheek_50%RB_Middle DUT: Phone; Type: NITRON62; Serial: 23CH_1 Communication System: Generic FDD-LTE (0); Frequency: 1745 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1745 MHz; σ = 1.335 S/m; ε r = 40.647; ρ = 1000 kg/m 3 ; Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(8.1, 8.1, 8.1) @1745 MHz; Calibrated: 2022/5/6;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2022/10/31  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0491 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.358 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.0580 W/kg SAR(1 g) = 0.039 W/kg; SAR(10 g) = 0.026 W/kg Maximum value of SAR (measured) = 0.0507 W/kg 0 dB = 0.0507 W/kg = -12.95 dB dBW/kg China Certification ICT Co., Ltd (Dongguan) Report No.: CR230312980-20A Page 140 of 207 Test Plot 142#: LTE Band 66_Head Left Tilt_1RB_Middle DUT: Phone; Type: NITRON62; Serial: 23CH_1 Communication System: Generic FDD-LTE (0); Frequency: 1745 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1745 MHz; σ = 1.335 S/m; ε r = 40.647; ρ = 1000 kg/m 3 ; Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(8.1, 8.1, 8.1) @1745 MHz; Calibrated: 2022/5/6;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2022/10/31  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0536 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.000 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.0690 W/kg SAR(1 g) = 0.045 W/kg; SAR(10 g) = 0.029 W/kg Maximum value of SAR (measured) = 0.0601 W/kg 0 dB = 0.0601 W/kg = -12.21 dB dBW/kg China Certification ICT Co., Ltd (Dongguan) Report No.: CR230312980-20A Page 141 of 207 Test Plot 143#: LTE Band 66_Head Left Tilt_50%RB_Middle DUT: Phone; Type: NITRON62; Serial: 23CH_1 Communication System: Generic FDD-LTE (0); Frequency: 1745 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1745 MHz; σ = 1.335 S/m; ε r = 40.647; ρ = 1000 kg/m 3 ; Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(8.1, 8.1, 8.1) @1745 MHz; Calibrated: 2022/5/6;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2022/10/31  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0452 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.779 V/m; Power Drift = -0.16 dB Peak SAR (extrapolated) = 0.0510 W/kg SAR(1 g) = 0.035 W/kg; SAR(10 g) = 0.023 W/kg Maximum value of SAR (measured) = 0.0448 W/kg 0 dB = 0.0448 W/kg = -13.49 dB dBW/kg China Certification ICT Co., Ltd (Dongguan) Report No.: CR230312980-20A Page 142 of 207 Test Plot 144#: LTE Band 66_Head Right Cheek_1RB_Middle DUT: Phone; Type: NITRON62; Serial: 23CH_1 Communication System: Generic FDD-LTE (0); Frequency: 1745 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1745 MHz; σ = 1.335 S/m; ε r = 40.647; ρ = 1000 kg/m 3 ; Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(8.1, 8.1, 8.1) @1745 MHz; Calibrated: 2022/5/6;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2022/10/31  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0527 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.027 V/m; Power Drift = 0.18 dB Peak SAR (extrapolated) = 0.0670 W/kg SAR(1 g) = 0.045 W/kg; SAR(10 g) = 0.031 W/kg Maximum value of SAR (measured) = 0.0602 W/kg 0 dB = 0.0602 W/kg = -12.20 dB dBW/kg China Certification ICT Co., …
