2ASPOTX100BRemote Controller

WHAT’S INCLUDED The Reign TX-100-NC & XRE-100 transmitter/receiver kit is a revolutionary product. This product allows for wirelessly triggering a relay through a battery powered fixed transmitter with extreme range, no line-of-sight wireless technology. HOW I T WORKS... Congratulat ions on your purchase of the Trans m itter Soluti ons TX -100 -NC to XRE -100 - Transmitter/Receiver kit. It has been designed with state-of -the-art radio tech nolo gy to provide maximum transmission through obstruction and interference. The TX-100-NC to XRE-100 kit can be easily pair ed together wit h the program/learn button on the XRE-100 board. Simply con nect the Dry output closure to the device you are triggering and you will be up and running. The TX-100-NC is a send/receiver unit that sends a signal when the button is pressed, indicated by a red LED light. And rece ives a signal back, indicated by a green LED lig ht. This allows users to know the signal was sent and received by the corresponding XRE-100 unit. v.12.05.22 T X – 100 – nc & XRE – 100 TRANSMITTER & RECEIVER KIT There are two pieces inclu ded in the TX-100-NC to XRE-100 kit. The Reign TX-100-NC to XRE-100 kit includes (1) TX-100-NC (trans mitter) and (1) XRE-100 (receiver units). R EIGN wire less t echno l o g y IMPORTANT - When using XRE to TX-100-NC, Mode Dipswitch 2 ON CONTENTS: . R E CEIVER SPECI F I C ATIONS . . . ................. . .... . ........ . .... . .... . ........ . . . .... . . . .... . .... . .... 3 . TRANSMIT TER SPECIF I C AT IONS........................... . .................................... . .... . . 4 . POWER DETA I L S . . . ........ . . . ...... . .... . ........ . .... . .... . ........ . . . .... . . . .... . . . .... . . . .............. 5 . LED I NDIC A T O RS...... . . . . .... . . . .... . . . . . .... . . . .... . . . . . . . . . .... . . . .... . ...............................6 . RELAY D I AGRA M A N D WIRI N G . . .................. . .... . ........ . .... . .... . ........ . . . ............... . 7 . D I P S W I TCHE S . . . ........ . . . ...... ...... ........ . .... . .... . ........ . . . .... . . . .... . . . .... . . . .............. . . . 8 . B ATTER Y B AC K U P. . . . . .... . . . ........ .... . . . . . ............................................................9 . PA I R ING I N THE FIELD. . . ........ . . . . ..... . .... . ........ . .... . .... . ........ . . . .... . . . .... . . . . . .... . ......9 . T ROUBLESHOOT I N G . . . ........ . . . ...... . .... . ........ . .... . .... . ........ . . . .... . . . .... . . . ..............10 2 1 . . . . ................... . .... . .... . . . . . . ...................... . . R E CEIVER SPECIFICAT IONS Power Input: 12-24 Volt AC/DC Relays: 10A 250 VAC/ 28VDC 12V: 50mA (idle) 1A (transmit) 24V: 25mA (idle) 500ma (transmit) Range: 1/2 mile (Through obstructions) Relays: 10A 250 VAC/ 28VDC Minimum / Maximum Temperature Range: -40°F to 185°F (-40°C to 85°C) Security Encryption: AES POWER INPUT: 12 to 24 VOLTS AC/DC. - 1 AMP Min imum Al ways follow polarity when DC Power is used. BATTERY INPUT: for 12 Volt Sealed Lead Acid (SLA) battery only. Solid GREEN LED indicates battery charging. Momentaril y flashing GREEN LED indicates battery is charged and a trickle/conditioning charge is occurring. 3 . R E CEIVER SPECIFICAT IONS 1 . TB TX-100-NC while in use must have, such as vehicle visor mount or wall mount, MODE DIP SWITCHES SWITCH 1 – Learn Mode SWITCH 2 – Not used SWITCH 3 – Not used TRANSMIT L EVEL USB Version ONLY Clockwise for more power when transmitting. Counterclock wise for less power when transmitting. (Battery life will vary based on transmit power level set) . TRANSMITTER SPECIFI C ATION S Minimum / Maximum Temperature Range: -40°F to 185°F (-40°C to 85°C) Security Encryption: AES Range: 1/2 mile (Through obstructions) Power: 9V Lithiom Battery 2-3/8” 2 1 1 2 4 3-1/2” . POWER DE TA I L S The XRE-100 requires 1 amp of current draw to transmit at full power. IMPORTANT - XRE REQUIRES AT LEAST 1AMP POWER SUPPLY POWER INPUT: Power Input: 1 2 to 24 VOLTS AC/DC. Always follow polarity when DC Power is used. 1 AMP Minimum BATTERY INPUT: Battery Input: fo r 12 Volt Sealed Lead Acid (SLA) battery only. Solid Green LED = Battery charging Momentary Flashing LED = Battery is fully charged and a trickle/conditioning charge is occurring 1 2 21 5 . LED I NDIC AT O R S STATUS LEDs: RECEIVE - flashes GREEN momentarily when a valid radio transmission is received. TRANSMIT - flashes RED momentarily when the unit transmits a packet as a result of an Relay Input change event or handshake. STATUS/ PROG - flashes yellow patterns indicating status of the unit: pairing, error, etc. RUN - flashes ORANGE 1 second ON and 1 second OFF indicating the microprocessor is running. POWER LED - Glows solid orange when power is present. 5 volt relay supply, 3.3 volt logic supply, and VPA 3.6 volt power amplifier supply. – 1 3 1 2 3 4 5 4 2 5 6 . R E L AY DIAGRAM AND WIRING RELAY OUTPUTS Relay Outputs - The Reign XRE-100 comes with 2-relay outputs. Relay 1 is the relay specified for use when the TX-100-NC is triggered. Relay 2 is used as a delay relay set for a certain amount of time to trigger after relay 1 is activated. Please refer to DIP switch 6 setting on page 8 for more information. The relay state is in dicated by the Green ACTIVE LED above the relay. 1 1 7 D IP SWITCH E S MODE SWITCHES SWITCH 1 – PROG (PAIR) – Use for programming TX- 100-NC to XRE-100 SWITCH 2 – TX-100 mode : Must stay ON in this mode SWITCH 3 – Not used SWITCH 4 – Not used The behavior of the relay(s) is controlled by Dipswitch 5 & 6. SWITCH 5 = momentary or latching SWITCH 6 = single or dual relays PROGRAM/TEST BUTTON: To program turn DIP switch 1 to the on pos ition in bo th the XRE-100 and TX-100-NC. With both DIP switches turned on press the TX-100-NC transmit button. If do ne correctly the XRE-100 will flas h yel low stat us LED 3 times and TX-100 will fl ash gr ee n LED 3 times. RELAY DELAY P…

Text truncated - open the document above for the full version.

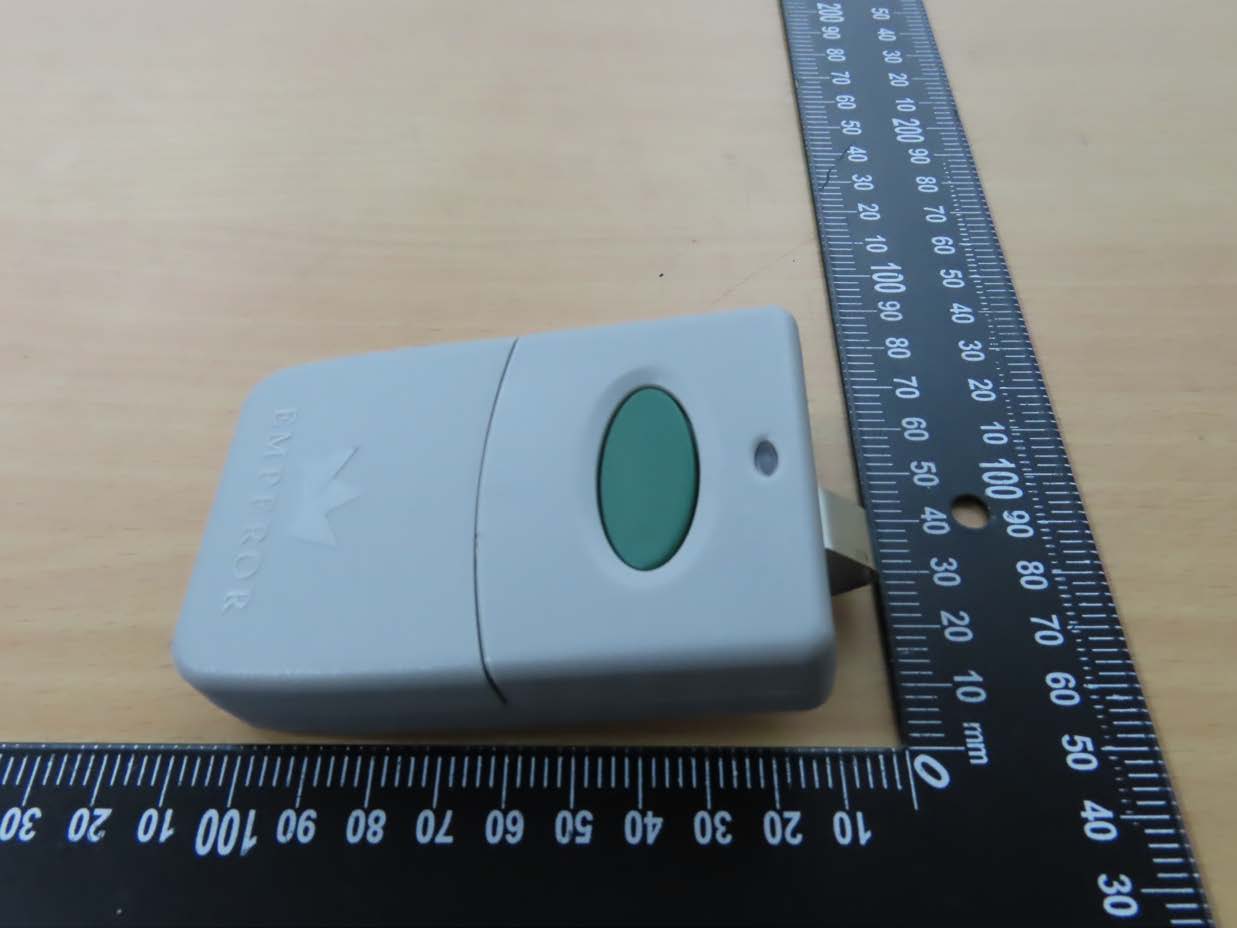

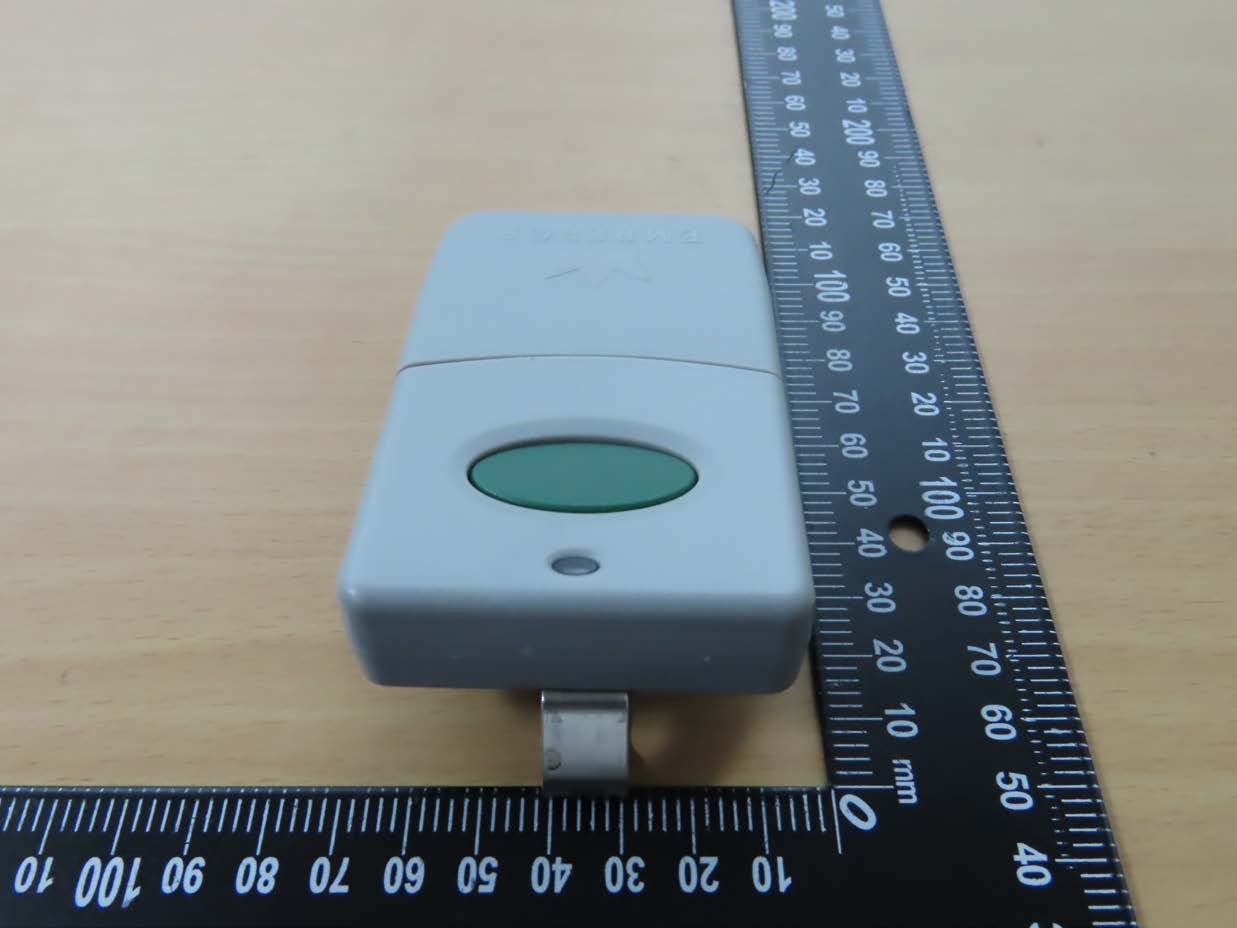

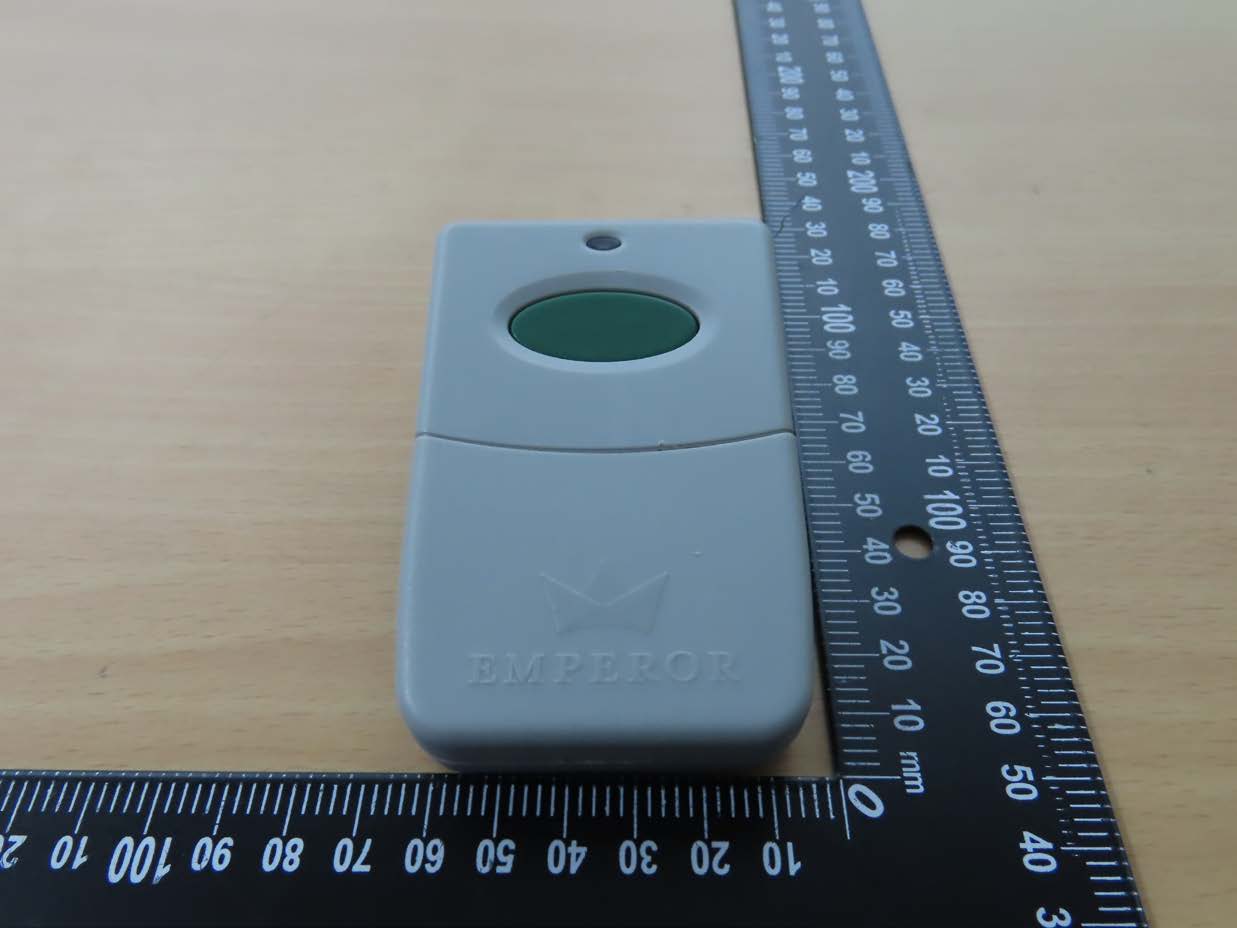

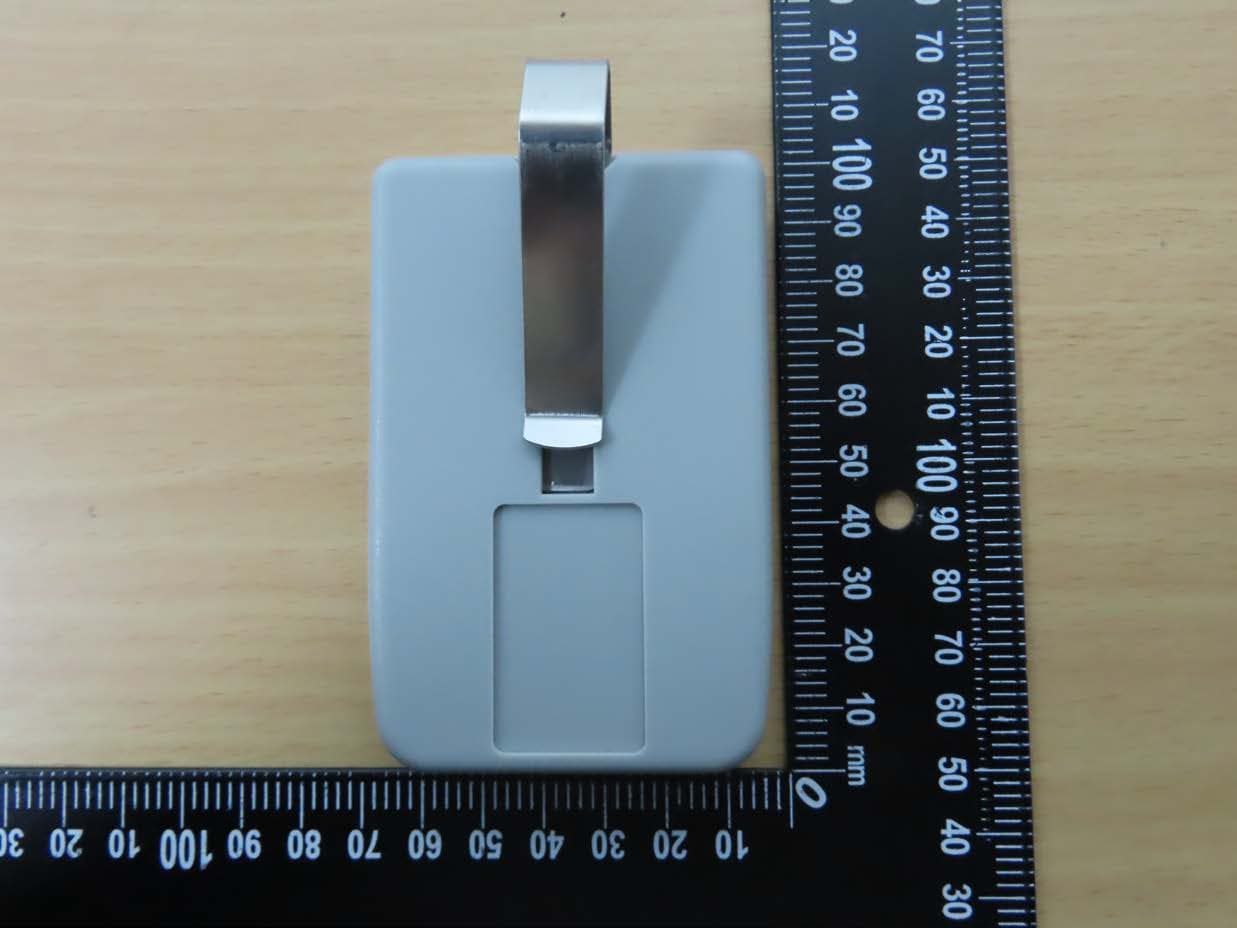

Registration number: W6M22508-24651-FCC FCC ID: 2ASPOTX100B Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 17 External Photos Registration number: W6M22508-24651-FCC FCC ID: 2ASPOTX100B Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 17 Registration number: W6M22508-24651-FCC FCC ID: 2ASPOTX100B Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 4 of 17 Registration number: W6M22508-24651-FCC FCC ID: 2ASPOTX100B Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 5 of 17 Registration number: W6M22508-24651-FCC FCC ID: 2ASPOTX100B Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 6 of 17 Registration number: W6M22508-24651-FCC FCC ID: 2ASPOTX100B Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 7 of 17

Registration number: W6M22508-24651-FCC FCC ID: 2ASPOTX100B Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 8 of 17 Internal Photos Registration number: W6M22508-24651-FCC FCC ID: 2ASPOTX100B Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 9 of 17 Registration number: W6M22508-24651-FCC FCC ID: 2ASPOTX100B Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 10 of 17 Registration number: W6M22508-24651-FCC FCC ID: 2ASPOTX100B Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 11 of 17 Registration number: W6M22508-24651-FCC FCC ID: 2ASPOTX100B Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 12 of 17 Registration number: W6M22508-24651-FCC FCC ID: 2ASPOTX100B Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 13 of 17 Registration number: W6M22508-24651-FCC FCC ID: 2ASPOTX100B Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 14 of 17

of Applicant: Transmitter Solutions Address: 2480 South 3850 West, Suite B Salt Lake City, UT 84120 United States Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: TW1072, TW1140, TW1146, TW1477, TW0037 Industry Canada filed test laboratory Reg. No.: 20037, 31634 Report No.: W6M22508-24651-EE 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC RF Exposure Exemption report for Remote Controller Model No.: TX-100 FCC ID: 2ASPOTX100B Registration number: W6M22508-24651-EE FCC ID: 2ASPOTX100B Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 7 TABLE OF CONTENTS 1 GENERAL INFORMATION .......................................................................................................... 2 1.1 NOTES .......................................................................................................................................... 2 1.2 TESTING LABORATORY ................................................................................................................ 3 1.3 APPLICATION DETAILS ................................................................................................................. 3 1.4 G ENERAL INFORMATION OF TEST ITEM ........................................................................................ 4 1.5 TEST STANDARDS ......................................................................................................................... 4 2 TEST CONFIGURATION .............................................................................................................. 5 2.1 T EST ENVIRONMENT .................................................................................................................... 5 2.2 M EASUREMENT UNCERTAINTY .................................................................................................... 5 2.3 TEST EQUIPMENT LIST ................................................................................................................. 5 3 EQUIVALENT ISOTROPIC RADIATED POWER (EIRP)....................................................... 6 3.1 EXEMPTION LIMITS FOR ROUTINE EVALUATION .......................................................................... 6 Registration number: W6M22508-24651-EE FCC ID: 2ASPOTX100B Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 7 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. Laboratory disclaimer- 1. The test results of this test report relate exclusively to the item tested as specified in 1.5. 2. The test report may only be reproduced or published in full. 3. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. 4. Antenna gain is provided by applicant and laboratory issue relevant data and results. Tester: December 05, 2025 Kent Lin Date WTS-Lab. Name Signature Technical responsibility for area of testing: December 05, 2025 Kevin Wang Date WTS Name Signature Registration number: W6M22508-24651-EE FCC ID: 2ASPOTX100B Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 7 1.2 Testing laboratory 1.2.1 Location 10m OATS No.5-1, Lishui, Shuang Sing Village, Wanli Dist., New Taipei City 207, Taiwan (R.O.C.) 3 meter semi-anechoic chamber No. 99, Sec. 1, Balian Rd., Xizhi Dist., New Taipei City 221032, Taiwan (R.O.C.) Worldwide Testing Services (Taiwan) Co., Ltd. 6F., No. 58, Ln. 188, Ruiguang Rd., Neihu Dist., Taipei City 114 , Taiwan (R.O.C.) Tel: 886-2- 6606-8877 1.2.2 Details of accreditation status Accredited testing laboratory FCC filed test laboratory Reg. No.: TW1072, TW1140, TW1146, TW1477, TW0037 Industry Canada filed test laboratory Reg. No.: 20037, 31634 Test location, where different from Worldwide Testing Services (Taiwan) Co., Ltd. : Name: ./. Accredited no.: ./. Street: ./. Town: ./. Country: ./. 1.3 Application details Approval holder Name: Transmitter Solutions Street: 2480 South 3850 West, Suite B Salt Lake City, Town: UT 84120 Country: United States Manufacturer: (if applicable) Name: Lighting Tech Co., Ltd. Street: Room 1, 5F., No.530,Sec.2, Jhongshan Rd., Jhonghe Dist, Town: New Taipei City 235, Country: Taiwan R.O.C. Registration num ber: W6M22508-24651-EE FCC ID: 2ASPOTX100B Worldwide Testing Services(Taiwan) Co., Ltd. Page 4 of 7 Date of receipt of test item: August 14, 2025 Date of test: from August 15, 2025 to October 27, 2025 1.4 General information of Test item Type of test item: Remote Controller Model no.: TX-100 Multi-listing model no.: ./. Brand name: ./. Power supply: Battery 9Vd.c. Type of antenna: PC Board Chip Antenna Antenna gain: 3.32 dBi Technical data Bluetooth Band Frequency Power (dBm) 900 902.250061 MHz 25.93 914.750061MHz 25.14 926.750061 MHz 24.57 Operation modes: Duplex Modulation type: FHSS Sample no.: #01 Special statement: ./. Classification: Fixed Device Mobile Device (Human Body distance ＞ 20cm) Portable Device (Human Body distance ＜ 20cm) 1.5 Test standards 47 CFR FCC Part 1 Subpart I, section 1.1310 FCC KDB Publication 447498 D01 General RF Exposure Guidance v06 Registration number: W6M22508-24651-EE FCC ID: 2ASPOTX100B Worldwide Testing Services(Taiwan) Co., Ltd. Page 5 of 7 2 Test co…

Text truncated - open the document above for the full version.

of Applicant: Transmitter Solutions Address: 2480 South 3850 West, Suite B Salt Lake City, UT 84120 United States Tested and Prepared By Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: TW1072, TW1140, TW1146, TW1477, TW0037 Industry Canada filed test laboratory Reg. No.: 20037, 31634 Report No.: W6M22508-24651-C-1 6F., No. 58, Ln. 188, Rueiguang Rd., Neihu Dist., Taipei City , Taiwan (R.O.C.) TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] 47 CFR PART 15 SUBPART C TEST REPORT for Remote Controller Model No.: TX-100 FCC ID: 2ASPOTX100B Registration number: W6M22508-24651-C-1 FCC ID: 2ASPOTX100B Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 32 TABLE OF CONTENTS CERTIFICATION OF TEST REPORT ................................................................................................ 2 1 GENERAL INFORMATION .......................................................................................................... 2 1.1 NOTES .............................................................................................................................................. 2 1.2 T ESTING LABORATORY .................................................................................................................... 3 1.3 D ETAILS OF APPROVAL HOLDER ....................................................................................................... 3 1.4 A PPLICATION DETAILS ..................................................................................................................... 3 1.5 GENERAL INFORMATION OF TEST ITEM ............................................................................................ 4 1.6 TEST STANDARDS ............................................................................................................................. 4 2 TECHNICAL TEST ......................................................................................................................... 5 2.1 S UMMARY OF TEST RESULTS ............................................................................................................ 5 2.2 T EST ENVIRONMENT ........................................................................................................................ 5 2.3 TEST EQUIPMENT LIST ..................................................................................................................... 6 2.4 G ENERAL TEST PROCEDURE ............................................................................................................ 7 3 TEST RESULTS (ENCLOSURE) .................................................................................................. 9 3.1 P EAK OUTPUT POWER (TRANSMITTER) .......................................................................................... 10 3.2 T RANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS ........................................................ 13 3.3 SPURIOUS EMISSIONS (TX) ............................................................................................................ 14 3.4 CARRIER FREQUENCY SEPARATION ............................................................................................. 16 3.5 NUMBER OF HOPPING FREQUENCIES ............................................................................................ 18 3.6 TIME OF OCCUPANCY (DWELL TIME) ........................................................................................... 20 3.7 20DB BANDWIDTH ....................................................................................................................... 24 3.8 BAND-EDGE COMPLIANCE OF RF EMISSIONS ............................................................................... 27 3.9 RADIATED EMISSIONS FROM DIGITAL PART ................................................................................. 30 3.10 P OWER LINE CONDUCTED EMISSION ............................................................................................. 31 Registration num ber: W6M22508-24651-C-1 FCC ID: 2ASPOTX100B Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 32 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. Laboratory disclaimer- 1. The test results of this test report relate exclusively to the item tested as specified in 1.5. 2. The test report may only be reproduced or published in full. 3. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. 4. Antenna gain is provided by applicant and laboratory issue relevant data and results. Tester: December 05, 2025 Kent Lin Date WTS-Lab. Name Signature Technical responsibility for area of testing: December 05, 2025 Kevin Wang Date WTS Name Signature Registration num ber: W6M22508-24651-C-1 FCC ID: 2ASPOTX100B Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 32 1.2 Testing laboratory 1.2.1 Location 10m OATS No.5-1, Lishui, Shuang Sing Village, Wanli Dist., New Taipei City 207, Taiwan (R.O.C.) 3 meter semi-anechoic chamber No. 99, Sec. 1, Balian Rd., Xizhi Dist., New Taipei City 221032, Taiwan (R.O.C.) Worldwide Testing Services (Taiwan) Co., Ltd. 6F., No. 58, Ln. 188, Ruiguang Rd., Neihu Dist., Taipei City 114 , Taiwan (R.O.C.) Tel: 886-2-6606-8877 1.2.2 Details of accreditati…

Text truncated - open the document above for the full version.

Operator: Temperature:21.6 °C File :3Data :#7Date: 2025/10/15 Radiated Emission Measurement Address:No.99,Sec.1,Balian Rd.,Xizhi Dist.,New Taipei City Echo Tel:+886-2-2646-1508 Fax:+886-2-2646-1533 Humidity:55.7 % Time: 上午 06:34:00 Condition : EUT : M/N: Note : TX 914.750061MHz #24651 FCC Restricted bands 4000-8000 W6M22508-24651 Test Mode : Polarization: Vertical Distance: 3m 9 Vd.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site : 966A Chamber Comment *4572.00051.7147.0974.00-22.29peak4.62150131 5488.00048.0841.9399.77-51.69peak6.15150127 6404.00043.4732.9899.77-56.30peak10.4915086 7320.00047.8235.5974.00-26.18peak12.23150256 *:Maximum data x:Over limit !:over margin Operator: Temperature:21.6 °C File :3Data :#4Date: 2025/10/15 Radiated Emission Measurement Address:No.99,Sec.1,Balian Rd.,Xizhi Dist.,New Taipei City Echo Tel:+886-2-2646-1508 Fax:+886-2-2646-1533 Humidity:55.7 % Time: 上午 06:31:53 Condition : EUT : M/N: Note : TX 914.750061MHz #24651 FCC Restricted bands 8000-26500 W6M22508-24651 Test Mode : Polarization: Horizontal Distance: 3m 9 Vd.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site : 966A Chamber Comment *8228.00054.8042.0474.00-19.20peak12.76150163 8228.00033.3820.6254.00-20.62AVG12.76150163 9147.50146.2233.0374.00-27.78peak13.19150159 *:Maximum data x:Over limit !:over margin Operator: Temperature:21.6 °C File :3Data :#8Date: 2025/10/15 Radiated Emission Measurement Address:No.99,Sec.1,Balian Rd.,Xizhi Dist.,New Taipei City Echo Tel:+886-2-2646-1508 Fax:+886-2-2646-1533 Humidity:55.7 % Time: 上午 06:34:41 Condition : EUT : M/N: Note : TX 914.750061MHz #24651 FCC Restricted bands 8000-26500 W6M22508-24651 Test Mode : Polarization: Vertical Distance: 3m 9 Vd.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site : 966A Chamber Comment 8232.75144.2431.4874.00-29.76peak12.7615069 *9144.75047.9134.7174.00-26.09peak13.20150113 *:Maximum data x:Over limit !:over margin Operator: Temperature:21.6 °C File :3Data :#1Date: 2025/10/15 Radiated Emission Measurement Address:No.99,Sec.1,Balian Rd.,Xizhi Dist.,New Taipei City Echo Tel:+886-2-2646-1508 Fax:+886-2-2646-1533 Humidity:55.7 % Time: 上午 06:42:37 Condition : EUT : M/N: Note : TX 926.750061MHz #24651 FCC Restricted bands 1000-2000 W6M22508-24651 Test Mode : Polarization: Horizontal Distance: 3m 9 Vd.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site : 966A Chamber Comment *1854.00070.5676.6099.77-29.21peak-6.04150201 *:Maximum data x:Over limit !:over margin Operator: Temperature:21.6 °C File :3Data :#5Date: 2025/10/15 Radiated Emission Measurement Address:No.99,Sec.1,Balian Rd.,Xizhi Dist.,New Taipei City Echo Tel:+886-2-2646-1508 Fax:+886-2-2646-1533 Humidity:55.7 % Time: 上午 06:45:24 Condition : EUT : M/N: Note : TX 926.750061MHz #24651 FCC Restricted bands 1000-2000 W6M22508-24651 Test Mode : Polarization: Vertical Distance: 3m 9 Vd.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site : 966A Chamber Comment *1854.00063.0069.0499.77-36.77peak-6.04150112 *:Maximum data x:Over limit !:over margin Operator: Temperature:21.6 °C File :3Data :#2Date: 2025/10/15 Radiated Emission Measurement Address:No.99,Sec.1,Balian Rd.,Xizhi Dist.,New Taipei City Echo Tel:+886-2-2646-1508 Fax:+886-2-2646-1533 Humidity:55.7 % Time: 上午 06:43:17 Condition : EUT : M/N: Note : TX 926.750061MHz #24651 FCC Restricted bands 2000-4000 W6M22508-24651 Test Mode : Polarization: Horizontal Distance: 3m 9 Vd.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site : 966A Chamber Comment *2780.00062.6264.5674.00-11.38peak-1.94150274 2780.00041.2043.1454.00-12.80AVG-1.94150274 3708.00054.0053.1074.00-20.00peak0.901506 3708.00032.5831.6854.00-21.42AVG0.901506 *:Maximum data x:Over limit !:over margin Operator: Temperature:21.6 °C File :3Data :#6Date: 2025/10/15 Radiated Emission Measurement Address:No.99,Sec.1,Balian Rd.,Xizhi Dist.,New Taipei City Echo Tel:+886-2-2646-1508 Fax:+886-2-2646-1533 Humidity:55.7 % Time: 上午 06:46:05 Condition : EUT : M/N: Note : TX 926.750061MHz #24651 FCC Restricted bands 2000-4000 W6M22508-24651 Test Mode : Polarization: Vertical Distance: 3m 9 Vd.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site : 966A Chamber Comment *2780.00066.6268.5674.00-7.38peak-1.94150160 2780.00045.2047.1454.00-8.80AVG-1.94150160 3708.00057.4456.5474.00-16.56peak0.9015024 3708.00036.0235.1254.00-17.98AVG0.9015024 *:Maximum data x:Over limit !:over margin Operator: Temperature:21.6 °C File :3Data :#3Date: 2025/10/15 Radiated Emission Measurement Address:No.99,Sec.1,Balian Rd.,Xizhi Dist.,New Taipei City Echo Tel:+886-2-2646-1508 Fax:+886-2-2646-1533 Humidity:55.7 % Time: 上午 06:43:58 Condition : EUT : M/N: Note : TX 926.750061MHz #24651 FCC Restricted bands 4000-8000 W6M22508-24651 Test Mode : Polarization: Horizontal Distance: 3m 9 Vd.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site : 966A Chamber Comment *4632.00063.6358.8374.00-10.37peak4.80150188 4632.00042.2137.4154.00-11.79AVG4.80150188 5560.00047.3940.8799.77-52.38peak6.5215039 6488.00043.9633.2399.77-55.81peak10.73150278 7416.00047.1634.7674.00-26.84peak12.40150141 *:Maximum data x:Over limit !:over margin Operator: Temperature:21.6 °C File :3Data :#7Date: 2025/10/15 Radiated Emission Measurement Address:No.99,Sec.1,Balian R…

Text truncated - open the document above for the full version.

DATA SHEET WIRELESS COMPONENTS Ceramic Chip Antenna ANT1204LL05R0915A 915 MHz 1204 Series Product Specification – May 29, 2013 V.0 Wireless Components www.yageo.com May. 29, 2013 V0 2 2 Product specification Ceramic Chip Antenna FEATURES  Compact size  Omni-directional radiation  Tape & reel automatic mounting  Reflow process compatible  RoHS compliant APPLICATIONS  Smart meter  Industrial remote control  ISM band equipment  Zigbee device  ISM band equipment ORDERING INFORMATION All part numbers are identified by the series, packing type, material, size, antenna type, working frequency and packing quantity. PART NUMBER ANT 1204 L L05 R 0915A (1) (2) (3) (4) (5) (6) ( 1 ) PRODUCT ANT = Antenna ( 2 ) SIZE 1204= 12 × 4 mm ( 3 ) ANTENNA TYPE L,F,A = Chip Antenna ( 4 ) SERIAL NO. L05 ( 5 ) PACKING STYLE R = Tape and Reel ( 6 ) WORKING FREQUENCY 0915 =0.915GHz PHYCOMP CTC CAN4311759050911K 12NC 431175905091 Wireless Components www.yageo.com May. 29, 2013 V0 3 3 Product specification Ceramic Chip Antenna SPECIFICATION DESCRIPTION VALUE Centre Frequency 915 MHz Bandwidth 20 MHz (Typ.) VSWR 2.0 Max. Polarization Linear Azimuth Beamwidth Omni-directional Peak Gain 3.32 dBi (Typ.) Impedance 50 Ω Operating Temperature -40 ~ 105 °C Maximum Power 1 W Termination Ni / Sn (Environmentally-Friendly Leadless) Resistance to Soldering Heats 260°C , 10sec. NOTE 1. The specification is defined on Yageo evaluation board Ta b l e 1 O O U U T T L L I I N N E E S S Fig. 1 Antenna outlines DIMENSIONS DIMENSION L (mm) 12.1 ±0.20 W (mm) 4.10 ±0.20 T (mm) 1.60 ±0.20 F (mm) 0.85 ±0.35 Table 2 Machinical Dimension TERMINAL NAME FUNCTION W Feeding Point L Soldering Point Table 3 Termination configuration Wireless Components www.yageo.com May. 29, 2013 V0 4 4 Product specification Ceramic Chip Antenna Fig. 2 Outlook and dimension of evaluation board REFERENCE DESIGN OF EVALUATION BOARD Fig. 3 Details of soldering Pad Wireless Components www.yageo.com May. 29, 2013 V0 5 5 Product specification Ceramic Chip Antenna Fig. 4 Return loss ELECTRICAL PERFORMANCES Fig. 5 Radiation pattern Frequency= 915 MHz Max gain = 3.32dBi, at (150,180) MEG (mean effective gain)= -3.11 dBi Directivity (dB) = 5.92 Efficiency = -2.60dB, 55.02 % Wireless Components www.yageo.com May. 29, 2013 V0 6 6 Product specification Ceramic Chip Antenna REVISION HISTORY REVISION DATE CHANGE NOTIFICATION DESCRIPTION Version 0 May 29, 2013 - - New data sheet for SMD type antenna, 915 MHz application, 1204 series. Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Yageo: ANT1204LL05R0915A

Registration number: W6M22508-24651-FCC FCC ID: 2ASPOTX100B Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 15 of 17 Set Up Photo of Radiated Emission Below 1GHz Registration number: W6M22508-24651-FCC FCC ID: 2ASPOTX100B Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 16 of 17 Above 1GHz Registration number: W6M22508-24651-FCC FCC ID: 2ASPOTX100B Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 17 of 17
