2ASRB-2INCHLabel Maker

Print Master 2. Getting Started 2.1 Downloading the App Method 1: Search for the "Print Master" app on App Store® or Google Play™ for download and installation. Print Master Method 2: Scan the QR code to download the app. You can scan the code using your cell phone's camera, the built-in QR code scanning feature of your browser, or a dedicated QR code scanning app. As the Safari browser on Apple devices does not support direct QR code scanning, please use your device's built-in QR code scanner instead. 2.2 User Guide 04After printing, tear off the label along the Paper Exit. 03Open the app and follow the instructions to print a label. Print Master 05Remove the liner.06Attach the label to a dry, flat surface. Hi 01Remove the protective film. This step is required for first use. 02To turn on the printer, long press the Power Button for 3 seconds until the Indicator Light turns green. Long press for 3s to turn on printer The company assumes full responsibility for the revision and explanation of this manual, exercising utmost diligence to guarantee its accuracy. Nevertheless, please note that any technical improvements to the product may not be separately notified, and that the images of the product, accessories, software interfaces, etc. in this manual serve solely as illustrations and references. Due to product updates and upgrades, the actual product may vary slightly from the images. Please refer to the physical product for accurate representations. Special Notes 1.1 Packing List 1. Product Introduction Printer ×1 M108 Quick Start Guide Quick Start Guide ×1 Type-C Cable ×1 Paper Roll Spindle ×1 100-Pc 40*30㎜ Paper Roll ×1 The Paper Roll and Paper Roll Spindle have been installed in the printer. However, if you have purchased a bundled printer package, it does not include a 40*30㎜ -100pc Paper Roll. Indicator Light Power/Menu Button Paper Exit Top Cover Feed/Select Button Lanyard Hole Type-C Charger Port Paper Compartment Reset Hole Paper Roll Spindle Manual Cutter 1.2 Printer Parts Instruction 3. Replacing the Paper Roll 04 Anti-loosening Sticker This QR code is for demonstration only. Please scan the actual QR code on your paper roll. If you have purchased boxed paper rolls separately, or if there is no QR code on the paper roll, please see 4. Identifying Label Sizes in the Online Guide for instructions on how to quickly access the editing page. 01To turn on the printer, long press the Power Button for 3 seconds until the Indicator Light turns green. Long press for 3s to turn on printer 02Open the "Print Master" app. Print Master 03Tap [Scan]. Take out the unused paper roll. Scan M102 Please use [Scan] after connecting the printer to the app. Otherwise, scanning will fail and the editing page will not be displayed. 05Scan the QR code on the Anti- loosening Sticker of the paper roll. 06Paper roll size has been identified. Enter the editing page. White-4030 40×30㎜ 07Hold both sides of the Top Cover and pull it upwards to open it, as illustrated. 08Take out the Paper Roll Spindle. 09Remove the Movable Damper. Fixed Damper Movable Damper Please remove the existing paper roll from the Paper Roll Spindle before loading a new paper roll. 10Place the paper roll as shown in the diagram and secure the Movable Damper. 11Tear off the Anti-loosening Sticker, place the paper roll in the printer as shown in the diagram, and ensure the two ends of the spindle are inserted into the notches inside the printer. Slots 12Pull the label paper out of the Paper Exit and close the Top Cover. The printer will then auto-calibrate. Label Paper Paper Exit 4. Charging Instructions 1. Please prepare your own power adapter (DC 5V/2A) with a Type-A port. 2. Insert the Type-C end (flat end) of the USB cable into M102's Type-C Port; insert the Type-A end (wide end) of the USB cable into the Type-A port of the power adapter. 3. Upon connecting the printer to an outlet using the power adapter, please check the status of the Indicator Light. A slow flashing green light when the printer is off or a fast flashing green light when the printer is on indicates that the printer is successfully charging. 4. When the battery is depleted, charge for 20 minutes for quick usage. For a full charge, please charge for 2-3 hours or until the Indicator Light turns solid green. 5. As the printer may heat up during charging, avoid placing it on materials such as cotton or linen. Once the battery is fully charged, please unplug the charger promptly. Avoid using the printer while charging, as this may lead to reduced charging speed, compromised print quality, and shortened battery life. Type-A End (Wide End) Power Adapter with Type-A Port (not included) DC 5V/2A Type-C End (Flat End) 5. Accessing Detailed Online Guide Method 2: Scan the QR code. You can scan the code using your cell phone's camera, the built-in QR code scanning feature of your browser, or a dedicated QR code scanning app. As the Safari browser on Apple devices does not support direct QR code scanning, please use your device's built-in QR code scanner instead. You can find more guides, video tutorials, and answers to FAQs through any of the following methods: Method 1: Visit ms.phomemo.com/?mo=M102 ms.phomemo.com/?mo=M102 - English: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. - French: L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: 1) L’appareil ne doit pas produire de brouillage; 2) L’appareil doit accepter tout brouillage radioélectrique s…

Text truncated - open the document above for the full version.

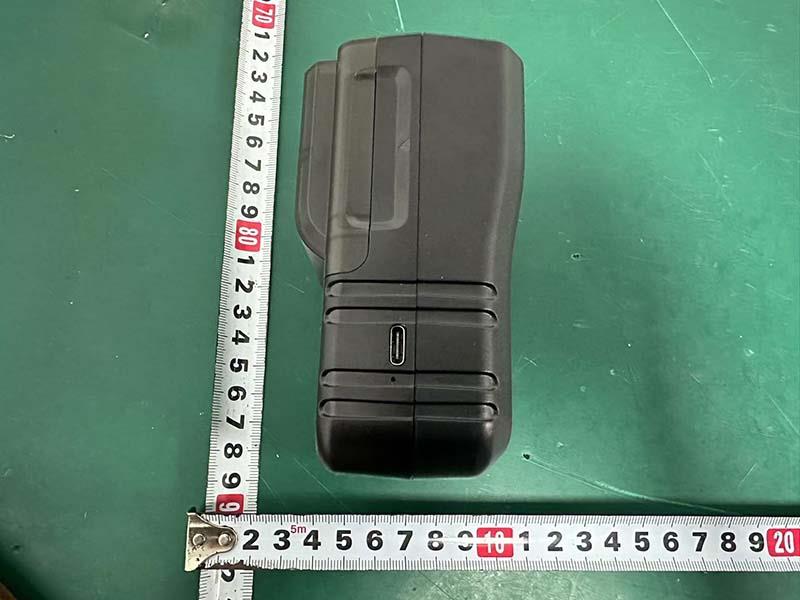

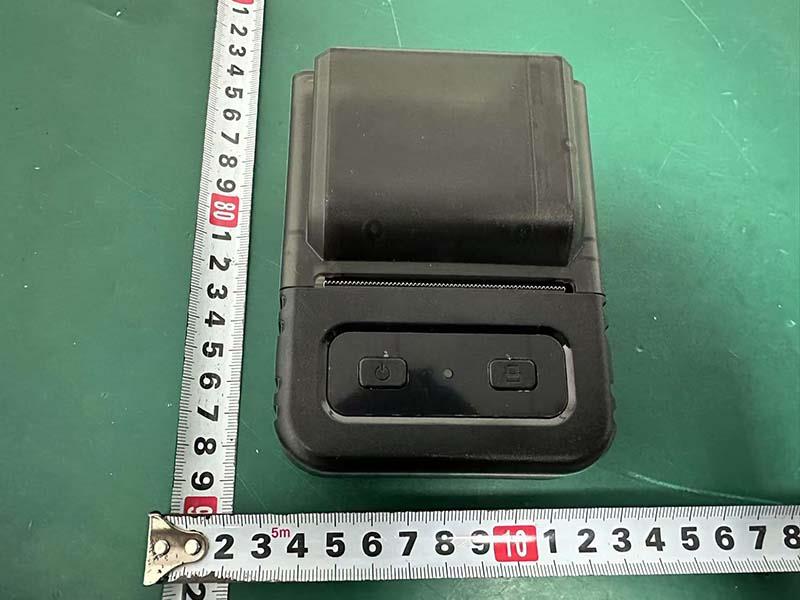

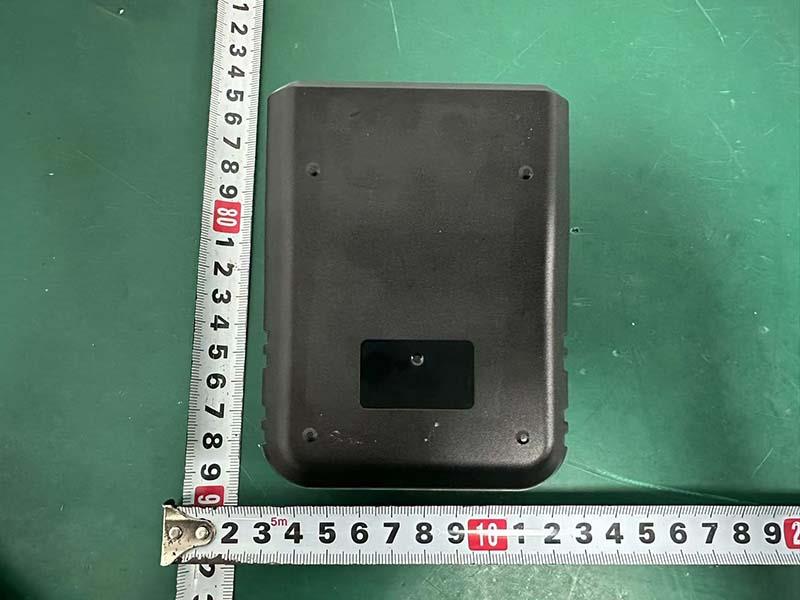

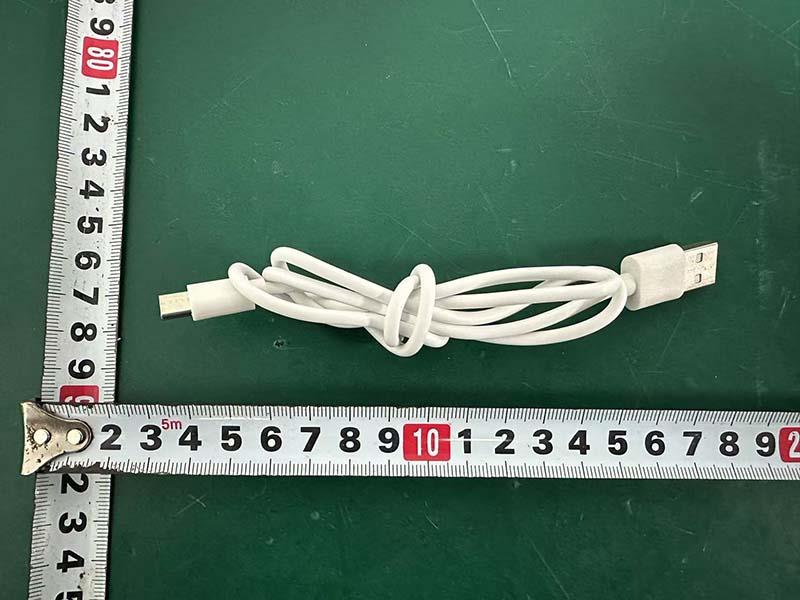

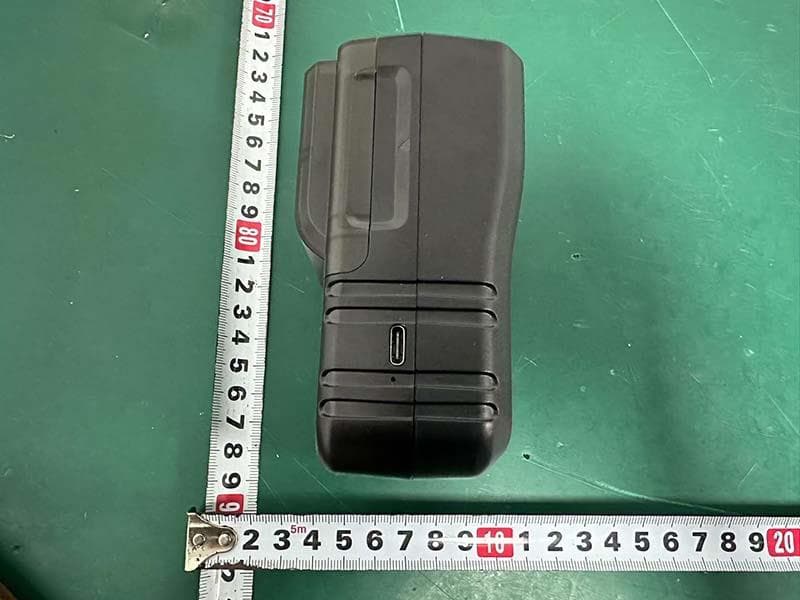

External Photos M/N: M102 External Photos M/N: M102 External Photos M/N: M102 External Photos M/N: M102 External Photos M/N: M102

材质： 书写铜版纸覆膜 尺寸： 30×18mm 色值： C(%)M(%)Y(%)K(%) Pantone （参考） 0 0 0 100- Label Maker Model：M102 IC： 29002-2INCH HVIN：M102 CAN ICES(B)/NMB(B) FCC ID：2ASRB-2INCH Zhuhai Quin Technology Co.,Ltd. Made in China Input：5V 2A Label Maker Model：M108 IC： 29002-2INCH HVIN：M108 CAN ICES(B)/NMB(B) FCC ID：2ASRB-2INCH Zhuhai Quin Technology Co.,Ltd. Made in China Input：5V 2A

Internal Photos M/N: M102 Bluetooth Antenna Internal Photos M/N: M102 Internal Photos M/N: M102 Internal Photos M/N: M102 Internal Photos M/N: M102 Internal Photos M/N: M102

Page 1 of 3 Report No. ESTE-R2411068 FCC RF EXPOSURE REPORT Zhuhai Quin Technology Co., Ltd. Label Maker Model Number: M102 Addition Model: M108, M103, QY-M103, M103 PRO, M103Pro, QY-M103 PRO, QY-M103 Pro, M104, QY-M104, M104 PRO, M104 Pro, QY-M104 PRO, QY-M104 Pro, M105, QY-M105, M105 PRO, M105 Pro, QY-M105 PRO, QY-M105 Pro, M106, QY-M106, M106 PRO, M106 Pro, QY-M106 PRO, QY-M106 Pro, M107, QY-M107, M107PRO, M107 Pro, QY-M107 PRO, QY-M107 Pro, QY-M108, M108 PRO, M108Pro, QY-M108 PRO, QY-M108 Pro, M109, QY-M109, M109 PRO, M109 Pro, QY-M109 PRO, QY-M109 Pro, QY-M102, M102 PRO, M102 Pro, QY-M102PRO, QY-M102 Pro, A421, A422, A42, A423, A424 FCC ID: 2ASRB-2INCH Applicant: Zhuhai Quin Technology Co., Ltd. Address: ROOM 103-029(CENTRALIZED OFFICE AREA),1F, BUILDING 1, NO.18 FUTIAN ROAD, XIANGZHOU DISTRICT, ZHUHAI CITY, CHINA Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2411068 Date of Test: Oct. 24, 2024 ~ Nov. 06, 2024 Date of Report: Nov. 09, 2024 Page 2 of 3 Report No. ESTE-R2411068 1. Applicable Standards FCC Part 2(Section 2.1093) FCC KDB 447498 D04 Interim General RF Exposure Guidance v01 2. Exposure Evaluation of Portable or Mobile Devices Human exposure to RF emissions from portable devices (47 CFR §2.1093), as defined by the FCC, must be evaluated with respect to the FCC-adopted limits for SAR. Evaluation of mobile devices, as defined by the FCC, may also be performed with respect to SAR limits, but in such cases it is usually simpler and more cost-effective to evaluate compliance with respect to field strength or power density limits. For certain devices that are designed to be used in both mobile and portable configurations similar to those described in 47 CFR §2.1091(d)(4), such as certain desktop phones and wireless modem modules, compliance for mobile configurations is also satisfied when the same device is evaluated for SAR compliance in portable configurations. Page 3 of 3 Report No. ESTE-R2411068 The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 300 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. 3. Evaluation Results Mode CH Peak output Power （dBm） Antenna Gain (dBi) effective radiated power （dBm） Target power (dBm) Max. Target power (mW) SAR Test Exemption Limit (mW) GFSK 2402 -5.61 -0.58 -8.34 -5±1 0.398 2.72 2441 -5.03 -0.58 -7.76 -5±1 0.398 2.72 2480 -4 -0.58 -6.73 -4±1 0.501 2.72 π/4- DQPSK 2402 -4.96 -0.58 -7.69 -4±1 0.501 2.72 2441 -4.32 -0.58 -7.05 -4±1 0.501 2.72 2480 -3.3 -0.58 -6.03 -3±1 0.631 2.72 BLE 1M 2402 -1.12 -0.58 -3.85 -1±1 1.000 2.72 2440 -0.4 -0.58 -3.13 0±1 1.259 2.72 2480 0.63 -0.58 -2.1 0±1 1.259 2.72 BLE 2M 2402 -0.96 -0.58 -3.69 0±1 1.259 2.72 2440 -0.16 -0.58 -2.89 0±1 1.259 2.72 2480 0.87 -0.58 -1.86 0±1 1.259 2.72 Note: 1. Limited=3060*(0.5/20)^x, x=-log(60/(3060*√f)). 2. We choose f=2.48GHz (Highest frequency operate at bluetooth) to calculate MPE limit as higher frequency will have lower MPE limits. 3. SAR Test Exclusion Thresholds is 2.72mW for separation distance 5mm. Therefore, SAR test is not required. End of Test Report

Page 1 of 89 Report No. ESTE-R2411066 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Zhuhai Quin Technology Co., Ltd. Label Maker Model Number: M102 Addition Model: M108, M103, QY-M103, M103 PRO, M103Pro, QY-M103 PRO, QY-M103 Pro, M104, QY-M104, M104 PRO, M104 Pro, QY-M104 PRO, QY-M104 Pro, M105, QY-M105, M105 PRO, M105 Pro, QY-M105 PRO, QY-M105 Pro, M106, QY-M106, M106 PRO, M106 Pro, QY-M106 PRO, QY-M106 Pro, M107, QY-M107, M107PRO, M107 Pro, QY-M107 PRO, QY-M107 Pro, QY-M108, M108 PRO, M108Pro, QY-M108 PRO, QY-M108 Pro, M109, QY-M109, M109 PRO, M109 Pro, QY-M109 PRO, QY-M109 Pro, QY-M102, M102 PRO, M102 Pro, QY-M102PRO, QY-M102 Pro, A421, A422, A42, A423, A424 FCC ID: 2ASRB-2INCH Applicant : Zhuhai Quin Technology Co., Ltd. Address: ROOM 103-029(CENTRALIZED OFFICE AREA),1F, BUILDING 1, NO.18 FUTIAN ROAD, XIANGZHOU DISTRICT, ZHUHAI CITY, CHINA Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2411066 Date of Test: Oct. 24, 2024 ~ Nov. 06, 2024 Date of Report: Nov. 09, 2024 Page 2 of 89 Report No. ESTE-R2411066 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION .......................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................... 5 1.1. Description of Device (EUT) ............................................................................................................ 5 1.2. Antenna Information ......................................................................................................................... 5 1.3. Information of RF Cable ................................................................................................................... 5 2. SUMMARY OF TEST ........................................................................................................................... 6 2.1. Summary of test result ..................................................................................................................... 6 2.2. Test Facilities ..................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................ 8 2.4. Assistant equipment used for test .................................................................................................. 8 2.5. Block Diagram ................................................................................................................................... 8 2.6. Test mode .......................................................................................................................................... 9 2.7. Channel List ..................................................................................................................................... 10 2.8. Power Setting of Test Software .................................................................................................... 10 2.9. Test Equipment ............................................................................................................................... 11 3. MAXIMUM PEAK OUTPUT POWER ................................................................................................... 13 3.1. Limit ................................................................................................................................................... 13 3.2. Test Setup ........................................................................................................................................ 13 3.3. Spectrum Analyzer Setting ............................................................................................................ 13 3.4. Test Procedure ................................................................................................................................ 13 3.5. Test Result ....................................................................................................................................... 13 4. 20 DB BANDWIDTH ......................................................................................................................... 14 4.1. Limit ................................................................................................................................................... 14 4.2. Test Setup ........................................................................................................................................ 14 4.3. Spectrum Analyzer Setting ............................................................................................................ 14 4.4. Test Procedure ................................................................................................................................ 14 4.5. Test Result ....................................................................................................................................... 14 5. CARRIER FREQUENCY SEPARATION .............................................................................................. 15 5.1. Limit ................................................................................................................................................... 15 5.2. Test Setup ........................................................................................................................................ 15 5.3. Spectrum Analyzer Setting ............................................................................................................ 15 5.4. Test Procedure ................................................................................................................................ 15 5.5. Test Result .................................................…

Text truncated - open the document above for the full version.

Page 61 of 89 Report No. ESTE-R2411066 DH5-Ant1-Hop_2480-PASS 2DH5-Ant1-2402-PASS 2DH5-Ant1-2480-PASS Page 62 of 89 Report No. ESTE-R2411066 2DH5-Ant1-Hop_2402-PASS 2DH5-Ant1-Hop_2480-PASS Page 63 of 89 Report No. ESTE-R2411066 Appendix G: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 30~26500 -6.31 -42.2 ≤-26.31 PASS DH5 Ant1 2441 30~26500 -5.80 -42.94 ≤-25.8 PASS DH5 Ant1 2480 30~26500 -5.12 -42.07 ≤-25.12 PASS 2DH5 Ant1 2402 30~26500 -6.93 -42.68 ≤-26.93 PASS 2DH5 Ant1 2441 30~26500 -5.78 -43.16 ≤-25.78 PASS 2DH5 Ant1 2480 30~26500 -4.70 -41.96 ≤-24.7 PASS Page 64 of 89 Report No. ESTE-R2411066 Test Graphs DH5-Ant1-2402-30~26500-PASS DH5-Ant1-2441-30~26500-PASS DH5-Ant1-2480-30~26500-PASS Page 65 of 89 Report No. ESTE-R2411066 2DH5-Ant1-2402-30~26500-PASS 2DH5-Ant1-2441-30~26500-PASS 2DH5-Ant1-2480-30~26500-PASS Page 66 of 89 Report No. ESTE-R2411066 Appendix H: Reference level measurement Test Result TestMode Antenna Freq(MHz) Max.Point[MHz] Result[dBm] DH5 Ant1 2402 2401.85 -6.31 DH5 Ant1 2441 2440.86 -5.80 DH5 Ant1 2480 2480.05 -5.12 2DH5 Ant1 2402 2401.83 -6.93 2DH5 Ant1 2441 2440.84 -5.78 2DH5 Ant1 2480 2479.85 -4.70 Page 67 of 89 Report No. ESTE-R2411066 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS DH5-Ant1-2480-PASS Page 68 of 89 Report No. ESTE-R2411066 2DH5-Ant1-2402-PASS 2DH5-Ant1-2441-PASS 2DH5-Ant1-2480-PASS Page 69 of 89 Report No. ESTE-R2411066 14.TEST SETUP PHOTO Conducted Test Page 70 of 89 Report No. ESTE-R2411066 Radiated Test (Below 1GHz) Radiated Test (Above 1GHz) Page 71 of 89 Report No. ESTE-R2411066 15. EUT PHOTO External Photos M/N: M102 Page 72 of 89 Report No. ESTE-R2411066 External Photos M/N: M102 Page 73 of 89 Report No. ESTE-R2411066 External Photos M/N: M102 Page 74 of 89 Report No. ESTE-R2411066 External Photos M/N: M102 Page 75 of 89 Report No. ESTE-R2411066 External Photos M/N: M102 Page 76 of 89 Report No. ESTE-R2411066 Internal Photos M/N: M102 Bluetooth Antenna Page 77 of 89 Report No. ESTE-R2411066 Internal Photos M/N: M102 Page 78 of 89 Report No. ESTE-R2411066 Internal Photos M/N: M102 Page 79 of 89 Report No. ESTE-R2411066 Internal Photos M/N: M102 Page 80 of 89 Report No. ESTE-R2411066 Internal Photos M/N: M102 Page 81 of 89 Report No. ESTE-R2411066 Internal Photos M/N: M102 Page 82 of 89 Report No. ESTE-R2411066 External Photos M/N: M108 Page 83 of 89 Report No. ESTE-R2411066 External Photos M/N: M108 Page 84 of 89 Report No. ESTE-R2411066 External Photos M/N: M108 Page 85 of 89 Report No. ESTE-R2411066 External Photos M/N: M108 Page 86 of 89 Report No. ESTE-R2411066 Internal Photos M/N: M108 Page 87 of 89 Report No. ESTE-R2411066 Internal Photos M/N: M108 Page 88 of 89 Report No. ESTE-R2411066 Internal Photos M/N: M108 Page 89 of 89 Report No. ESTE-R2411066 Internal Photos M/N: M108 End of Test Report

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26-0.76-0.58-5.25-2.46-1.86 MAX. Gain -0.58dBi PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) 14.4mm 11.5mm 4.44 5.84mm mm Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBi) M ax: 0 Min: -40 Scale: 5/div Gain (dB) Frequency (MHz) MaxMinAvg 2400-1.26174-30.0801-7.18716 2450-0.765802-36.5604-7.48023 2500-0.585582-22.0315-6.59127 Vertical: 2400 MHz 2450 MHz 2500 M Hz Power (dBi) Max: 0 Min: -30 Scale: 5/div Gain (dB) Frequency (MHz) MaxMinAvg 2400-5.2537-22.1424-12.4294 2450-2.4652-24.5837-10.4702 2500-1.86120-29.5214-9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Radiated emission test: Below 1GHz Radiated emission test: Above 1GHz Conducted emission test:
