2ASRB-M02SCMini printer

Zhuhai Quyin Technology Co., Ltd. I, the signer, Chloe Xu The only differences between these models are the appearance of color. They are electrically identical. Item Name ：Mini printer Model Number: M02S Additional Model: M02 pro, M02BS, Y02S, YR2S, M02SH, M02SC, M02 proC, MR-M02S, M02H, QY-M02pro FCC ID: 2ASRB-M02SC <Signature> Name: Chloe Xu Title: Engineer Company: Zhuhai Quyin Technology Co., Ltd.

DATE : 2021.02.26 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ASRB-M02SC Product Name: Mini printer Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Chloe Xu Title: Engineer Company: Zhuhai Quyin Technology Co., Ltd.

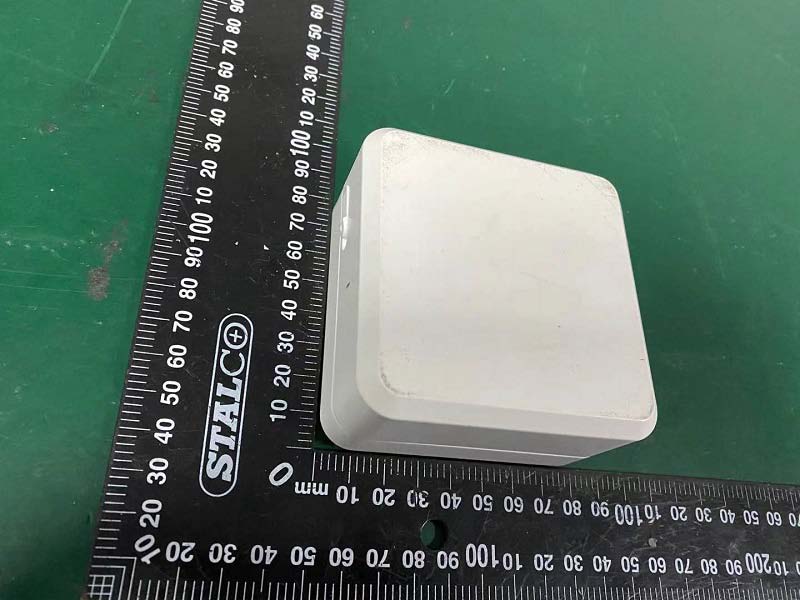

External photos M/N: M02S External photos M/N: M02S External photos M/N: M02S External photos M/N: M02S

Internal photos M/N: M02S Internal photos M/N: M02S Internal photos M/N: M02S Internal photos M/N: M02S Bluetooth Antenna

FCC ID: 2ASRB-M02SC EST Technology Co., Ltd Report No. ESTE-R2102080 Page 1 of 3 FCC RF EXPOSURE REPORT Zhuhai Quyin Technology Co., Ltd. Mini printer Model Number: M02S Additional Model: M02 pro, M02BS, Y02S, YR2S, M02SH, M02SC, M02 proC, MR-M02S, M02H, QY-M02pro FCC ID: 2ASRB-M02SC Prepared for: Zhuhai Quyin Technology Co., Ltd. Office 105-38942, No. 6 Baohua Road Hengqin New District, Zhuhai City China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2102080 Date of Test: Dec. 31, 2020~Feb. 23, 2021 Date of Report: Feb. 24, 2021 FCC ID: 2ASRB-M02SC EST Technology Co., Ltd Report No. ESTE-R2102080 Page 2 of 3 1. Applicable Standards FCC Part 2(Section 2.1093) FCC KD B447498 D01 General RF Exposure Guidance v06 2. Exposure Evaluation of Portable or Mobile Devices Human exposure to RF emissions from portable devices (47 CFR §2.1093), as defined by the FCC, must be evaluated with respect to the FCC-adopted limits for SAR. Evaluation of mobile devices, as defined by the FCC, may also be performed with respect to SAR limits, but in such cases it is usually simpler and more cost-effective to evaluate compliance with respect to field strength or power density limits. For certain devices that are designed to be used in both mobile and portable configurations similar to those described in 47 CFR §2.1091(d)(4), such as certain desktop phones and wireless modem modules, compliance for mobile configurations is also satisfied when the same device is evaluated for SAR compliance in portable configurations. SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID: 2ASRB-M02SC EST Technology Co., Ltd Report No. ESTE-R2102080 Page 3 of 3 3. Evaluation Results Mode Frequency (MHz) Peak output Power (dBm) Peak output Power (mW) Target power (dBm) Results BLE 2402 -1.53 0.703 -1±2 0.390 2440 -0.77 0.838 0±2 0.495 2480 -1.57 0.697 -1±2 0.397 Note: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required. End of Test Report

FCC ID: 2ASRB-M02SC EST Technology Co., Ltd Report No. ESTE-R2102080 Page 1 of 58 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Zhuhai Quyin Technology Co., Ltd. Mini printer Model Number: M02S Additional Model: M02 pro, M02BS, Y02S, YR2S, M02SH, M02SC, M02 proC, MR-M02S, M02H, QY-M02pro FCC ID: 2ASRB-M02SC Prepared for: Zhuhai Quyin Technology Co., Ltd. Office 105-38942, No. 6 Baohua Road Hengqin New District, Zhuhai City China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2102080 Date of Test: Dec. 31, 2020~Feb. 23, 2021 Date of Report: Feb. 24, 2021 FCC ID: 2ASRB-M02SC EST Technology Co., Ltd Report No. ESTE-R2102080 Page 2 of 58 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. Antenna Information ........................................................................................................................ 5 2. SUMMARY OF TEST ......................................................................................................................... 6 2.1. Summary of test result ...................................................................................................................... 6 2.2. Test Facilities ................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................. 8 2.4. Assistant equipment used for test ..................................................................................................... 8 2.5. Block Diagram ................................................................................................................................. 8 2.6. Test Mode ......................................................................................................................................... 9 2.7. Power Setting of Test Software ........................................................................................................ 9 2.8. Duty Cycle ...................................................................................................................................... 10 2.9. Channel List ................................................................................................................................... 11 2.10. Test Equipment List ....................................................................................................................... 12 3. 6DB BANDWIDTH .......................................................................................................................... 13 3.1. Limit ............................................................................................................................................... 13 3.2. Test Setup ....................................................................................................................................... 13 3.3. Spectrum Analyzer Setting ............................................................................................................. 13 3.4. Test Procedure ................................................................................................................................ 13 3.5. Test Result ...................................................................................................................................... 14 4. MAXIMUM PEAK OUTPUT POWER ................................................................................................. 16 4.1. Limit ............................................................................................................................................... 16 4.2. Test Setup ....................................................................................................................................... 16 4.3. Spectrum Analyzer Setting ............................................................................................................. 16 4.4. Test Procedure ................................................................................................................................ 16 4.5. Test Result ...................................................................................................................................... 17 5. POWER SPECTRAL DENSITY .......................................................................................................... 19 5.1. Limit ............................................................................................................................................... 19 5.2. Test Setup ....................................................................................................................................... 19 5.3. Spectrum Analyzer Setting ............................................................................................................. 19 5.4. Test Procedure ................................................................................................................................ 19 5.5. Test Result ...................................................................................................................................... 20 6. CONDUCTED BAND EDGE ............................................................................................................. 22 6.1. Limit ..............................................................................................................................................…

Text truncated - open the document above for the full version.

Radiated test: Below 1GHz Radiated test: Above 1GHz Conducted test:
