2ASRI-BT018Wireless Adapter with Bluetooth

Address: FLAT/RM 1279 12/F Eton Tower NO.8 Hysan Avenue Causeway Bay HK Wireless Adapter FCC statements: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications or changes to this equipment. Such modifications or changes could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Federal Communication Commission (FCC) Radiation Exposure Statement When using the product, maintain a distance of 20cm from the body to ensure compliance with RF exposure requirements. FCC ID:2ASRI-BT018

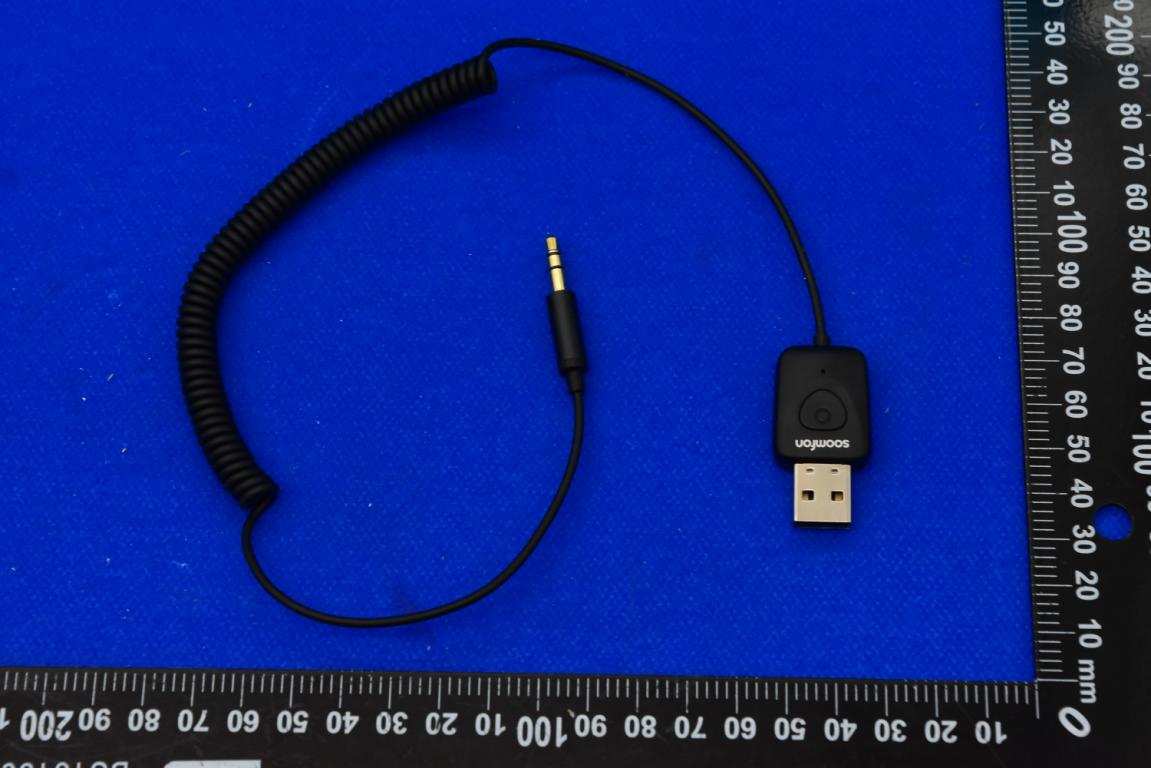

FCC ID: 2ASRI-BT018 External Photos 1. EUT front view 2. EUT rear view

1.Label 2.Label location Printed on the device FCC ID: 2ASRI-BT018

FCC ID: 2ASRI-BT018 Internal Photos 1. EUT uncover view 2. Antenna view Bluetooth Antenna

NOTE: This document is issued by Shenzhen Morlab Communications Technology Co., Ltd., the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 9 REPORT No.：SZ23040252S01 RF EXPOSURE EXEMPT REPORT APPLICANT : SHENZHEN XFANIC TECHNOLOGY CO.,LTD PRODUCT NAME : Wireless Adapter MODEL NAME : SF-BT018, XF-B9201A BRAND NAME : SOOMFON, XFANIC FCC ID : 2ASRI-BT018 STANDARD(S) : 47 CFR Part 2(2.1093) RECEIPT DATE : 2023-05-09 TEST DATE :2023-05-10 to 2023-05-26 ISSUE DATE : 2023-07-05 Edited by: Peng Mi (Rapporteur) Approved by: Shen Junsheng (Supervisor) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 9 REPORT No.：SZ23040252S01 DIRECTORY 1. Technical Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.1 Applicant and Manufacturer Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.2 Equipment Under Test (EUT) Description ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.3 Applied Reference Documents ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 2. Device Category and RF Exposure Limit ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 5 3. RF Output Power ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 4. RF Exposure Assessment ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 7 Annex A Testing Laboratory Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 9 Change History Version Date Reason for change 1.0 2023-07-05 First edition MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 9 REPORT No.：SZ23040252S01 1. Technical Information Note: Provide by applicant. 1.1 Applicant and Manufacturer Information Applicant: SHENZHEN XFANIC TECHNOLOGY CO.,LTD Applicant Address: 1-4/F,Block 2, Longcheng Industrial Area, 39 Longguan West Road, Gaofeng Community, Dalang Subdistrict, Longhua District, Shenzhen GD 518000, China Manufacturer: Xfanic Group (HK)Limited Manufacturer Address: FLAT/RM 1279 12/F Eton Tower NO.8 Hysan Avenue Causeway Bay HK 1.2 Equipment Under Test (EUT) Description Product Name: Wireless Adapter Sample No.: 6# Hardware Version: A3 Software Version: V3.1 Equipment Type: Bluetooth LE Bluetooth Version: 5.3 Operating Frequency Range: 2402MHz-2480MHz Modulation Type: FHSS (GFSK(1Mbps), π/4-DQPSK(EDR 2Mbps), 8-DPSK(EDR 3Mbps)) Antenna Type: PCB Antenna Antenna Gain: -0.69dBi Note 1: According to the certificate holder, they declared that the models SF-BT018 and XF-B9201A only the model numbers are different, everything else is the same. These two models each have a brand: Brand Name: SOOMFON Model name: F-BT018 Brand Name: XFANIC Model Name: XF-B9201A The main measuring model is SF-BT018, only the results for SF-BT018 were recorded in this report. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 4 of 9 REPORT No.：SZ23040252S01 1.3 Applied Reference Documents Leading reference documents for testing: Identity Document Title Method Determination /Remark 47 CFR Part 2(2.1093) Radio Frequency Radiation Exposure Assessment: Portable devices No deviation KDB 447498 D04v01 RF Exposure Procedures and Equipment Authorization Policies for Mobile and Portable Devices No deviation Note 1: Additions to, deviation, or exclusions from the method shall be judged in the "method determination" column of add, deviate or exclude from the specific method shall be explained in the "Remark" of the above table. Note 2: When the test result is a critical value, we will use the measurement uncertainty give the judgment result based on the 95% confidence intervals. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 5 of 9 REPORT No.：SZ23040252S01 2. Device Category and RF Exposure Limit Per user manual, this device is a Wireless Adapter. Based on 47 CFR 2.1093, this device belongs to portable device category with General Population/Uncontrolled exposure. Portable Devices: 47 CFR 2.1093(b) For purposes of this section, a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. General Population/Uncontrolled Exposure: 47 CFR 2.1093(d) (2) Limits for General Population/Uncontrolled exposure: 0.08 W/kg as averaged over the whole-body and spatial peak SAR not exceeding 1.6 W/kg as averaged over any 1 gram of tissue (defined as a ti…

Text truncated - open the document above for the full version.

InvertedFAntennaSpecification Summary ITEMANTSPEC ModelName2.4GANT ManufactureSHENZHENXFANICTECHNOLOGYCO.,LTD Address1-4/F,Block2,LongchengIndustrialArea,39LongguanWestRoad,Gaofeng Community,DalangSubdistrict,LonghuaDistrict,ShenzhenGD518000,China Center Frequency HorizontalVertical 2400mhz2400mhz2500mhz2400mhz2400mhz2500mhz -1.73-0.84-0.68-6.15-3.70-2.32 MAX.Gain-0.68 PolarizationHorizontalandVertical AzimuthBeam Pattern Omni-directional Impedance50Ohm AntennaLength35.20mm AntennaPhoto&Length(mm) Horizontal:2400MHz2450MHz2500MHz Power(dBm) Max:0Min:-40Scale:5/div Frequency(MHZ)Gain(db) MAXMINAVG 2400-1.73178-30.0815-8.48713 2450-0.845801-38.5605-7.88012 2500-0.685586-24.0318-6.79139 Vertical:2400MHz2450MHz2500MHz Power(dBm) Max:0Min:-30Scale:5/div Frequency(MHZ)Gain(db) MAXMINAVG 2400-6.1530-24.1420-13.0295 2450-3.7054-26.5836-10.6700 2500-2.32122-30.4301-9.70536

NOTE: This document is issued by Shenzhen Morlab Communications Technology Co., Ltd., the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 110 REPORT No.：SZ23040252W01 TEST REPORT APPLICANT : SHENZHEN XFANIC TECHNOLOGY CO.,LTD PRODUCT NAME : Wireless Adapter MODEL NAME : SF-BT018, XF-B9201A BRAND NAME : SOOMFON, XFANIC FCC ID :2ASRI-BT018 STANDARD(S) :47 CFR Part 15 Subpart C RECEIPT DATE : 2023-05-09 TEST DATE :2023-05-10 to 2023-05-26 ISSUE DATE : 2023-07-05 Edited by: Peng Mi (Rapporteur) Approved by: Shen Junsheng (Supervisor) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 110 REPORT No.：SZ23040252W01 DIRECTORY 1. Summary of Test Result ················································································ 4 1.1. Testing Applied Standards ·········································································· 5 1.2. Test Equipment List ··················································································· 6 1.3. Measurement Uncertainty ··········································································· 8 1.4. Testing Laboratory ····················································································· 8 2. General Description ····················································································· 9 2.1. Information of Applicant and Manufacturer ··················································· 9 2.2. Information of EUT ····················································································· 9 2.3. Channel List of EUT ·················································································· 10 2.4. Test Configuration of EUT ·········································································· 11 2.5. Test Conditions ························································································ 11 2.6. Test Setup Layout Diagram ········································································ 11 3. Test Results ······························································································· 14 3.1. Antenna Requirement ··············································································· 14 3.2. Hopping Mechanism ················································································· 14 3.3. Number of Hopping Frequency ··································································· 15 3.4. Duty Cycle of Test Signal ··········································································· 16 3.5. Maximum Peak Conducted Output Power ···················································· 17 3.6. Maximum Average Conducted Output Power ··············································· 18 3.7. 20 dB Bandwidth ······················································································ 19 3.8. Carried Frequency Separation ···································································· 20 3.9. Time of Occupancy (Dwell time) ································································· 21 3.10. Conducted Spurious Emissions and Band Edge ··········································· 22 3.11. Conducted Emission ················································································· 23 3.12. Restricted Frequency Bands ······································································ 24 3.13. Radiated Emission ···················································································· 25 MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 110 REPORT No.：SZ23040252W01 Annex A Test Data and Result ·········································································· 27 Change History Version Date Reason for change 1.0 2023-07-05 First edition MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 4 of 110 REPORT No.：SZ23040252W01 1. Summary of Test Result No. Section Description Test Date Test Engineer Result Method Determination /Remark 1 15.203 Antenna Requirement N/A N/A PASS No deviation 2 15.247(a) 15.247(h) Hopping Mechanism N/A N/A PASS No deviation 3 15.247(a) Number of Hopping Frequency May 10, 2023 Zhong Yanshan PASS No deviation 4 ANSI C63.10 Duty Cycle May 10, 2023 Zhong Yanshan PASS No deviation 5 15.247(b) Maximum Peak Conducted Output Power May 10, 2023 Zhong Yanshan PASS No deviation 6 15.247(b) Maximum Average Conducted Output Power May 10, 2023 Zhong Yanshan PASS No deviation 7 15.247(a) 20dB Bandwidth May 10, 2023 Zhong Yanshan PASS No deviation 8 15.247(a) Carrier Frequency Separation May 10, 2023 Zhong Yanshan PASS No deviation 9 15.247(a) Time of Occupancy (Dwell time) May 10, 2023 Zhong Yanshan PASS No deviation 10 15.247(d) Conducted Spurious Emission May 10, 2023 Zhong Yanshan PASS No deviation 11 15.207 Conducted Emission May 12, 2023 Fan Zehang PASS No deviation 12 15.247(d) Res…

Text truncated - open the document above for the full version.

FCC ID: 2ASRI-BT018 Test Setup Photos 1. Conducted emission main’s port front view 2. Conducted emission main’s port side view 3. Radiated emission (9KHz-30MHz) 4. Radiated emission (30MHz-1GHz) 5. Radiated emission (above 1GHz) 6. RF measurement setup (Bluetooth BR+EDR)
