2ASRY-MG401LTE Module

Aquila Solutions Inc. MG401 Module Product Specification MG401 Module October 31, 2018 AQUILA is a trademark of Aquila Solutions, registered in the United States and other countries. Other product and brand names may be trademarks or registered trademarks of their respective owners. This technical data may be subject to U.S. and international export, re-export, or transfer (“export”) laws. Diversion contrary to U.S. and international law is strictly prohibited. Aquila Solutions Inc No. 418 Guiping Road, Shanghai, China © 2018 Aquila Solutions Inc. All rights reserved. Aquila Confidential 1 Product Overview The MG401 module is an industrial-grade LTE module, which provides multiple bands support and covers most of LTE bands in North America. This module can be adapted to various types of terminal devices, providing LTE network connection and data communication, such as industrial routers, industrial handsets, tablet computers, laptops, etc. The MG401 module achieves download rates up to 150Mbps and uplink rates to 50Mbps (FDD). The MG401 module passed FCC, GCF, PTCRB, IC certifications. Aquila Confidential 2 General Features Parameter Value Main Chipset GCT GDM7243ST Dual ARM1136JFS processer 400MHz Memory 1Gb Nand Flash + 1Gb LPDDR2 Band support Band 8/12/17/13/14/25/2/26/5/41/66/4/42/43/48 Antenna 3 UFL ports LTE: Main and auxiliary antenna GNSS antenna Tx / Rx 1Tx / 2Rx MIMO DL: 4x2 MIMO or 2x2 MIMO UL: 1x2 MU-MIMO Modulation Uplink: QPSK / 16QAM / 64QAM Downlink: QPSK / 16QAM / 64QAM Power output +23dBm(Power Class 3) Throughput FDD DL: 150Mbps UL: 50Mbps Interface USB2.0 USIM1 / USIM2 GPIO Voltage Input 3.0VDC ~ 3.6VDC ( Recommend 3.3V) GNSS Output rating 0.3W with a voltage range of (3v -> 3.25v) Operating Temperature -40°C ~ +85°C ( Reduce RF performance: -40°C~ -30 °C，+70°C~ +85°C Storage Temperature -40°C ~ +85°C Aquila Confidential 3 Pin Definitions Pin direction definition: I: Carrier board to Module O: Module to Carrier board I/O: both direction among module and carrier board PI: Power input PO: Power output Pin Description Pin No. LTE_WAKE# 1 GPIO1 3 GPIO2 5 USIM2_RESET 7 GND 9 VREF_1V8 11 USIM2_PWR 13 GND 15 USIM2_CLK 17 USIM2_DATA 19 GND 21 NC 23 NC 25 GND 27 GND 29 NC 31 NC 33 GND 35 GND 37 VCC_Main 39 VCC_Main 41 GND 43 NC 45 NC 47 NC 49 NC 51 Pin Description Pin No. VCC_Main 2 GND 4 NC 6 USIM1_PWR 8 USIM1_DATA 10 USIM1_CLK 12 USIM1_RESET 14 NC 16 GND 18 W_DISABLE# 20 PERST# 22 VCC_Main 24 GND 26 NC 28 NC 30 NC 32 GND 34 USB_D- 36 USB_D+ 38 GND 40 NC 42 GPIO3 44 NC 46 NC 48 GND 50 VCC_Main 52 Aquila Confidential Pin Name Pin No. Description I/O Voltage Domain Power VCC_Main 2, 24,39, 41, 52 VCC source PI 3.3V VREF_1V8 11 1.8V output PO 1.8V GND 4, 9, 15, 18, 21, 26, 27, 29, 34, 35, 37, 40, 43, 50 Return current path Universal Serial Bus ( USB) USB_D+ 38 USB serial data interface compliant to the USB 2.0 specification I/O USB_D- 36 I/O Auxiliary Signals PERST# 22 Functional reset to the card I 1.8V LTE_WAKE# 1 Open Drain active Low signal. This signal is used to request that the system return from a sleep/suspended state to service a function initiated wake event. O Communications Specific Signals W_DISABLE# 20 Active low signal. This signal is used by the system to disable radio operation on add-in cards that implement radio frequency applications. When implemented, this signal requires a pull-up resistor on the card. I GPIO1 3 1.8V GPIO2 5 1.8V GPIO3 44 1.8V User Identity Module ( UIM) Signals USIM1_PWR 8 Power source for the UIM. Compliant to the ISO/IEC 7816-3 O 1.8V/3V Aquila Confidential specification ( VCC ) USIM1_RESET 14 UIM reset signal. Compliant to the ISO/IEC 7816-3 specification ( RST). O 1.8V/3V USIM1_CLK 12 UIM clock signal. Compliant to the ISO/IEC 7816-3 specification ( CLK). O 1.8V/3V USIM1_DATA 10 UIM data signal. Compliant to the ISO/IEC 7816-3 specification ( I/O). I/O 1.8V/3V USIM2_PWR 13 Power source for the UIM. Compliant to the ISO/IEC 7816-3 specification ( VCC ) O 1.8V/3V USIM2_RESET 7 UIM reset signal. Compliant to the ISO/IEC 7816-3 specification ( RST). O 1.8V/3V USIM2_CLK 17 UIM clock signal. Compliant to the ISO/IEC 7816-3 specification ( CLK). O 1.8V/3V USIM2_DATA 19 UIM data signal. Compliant to the ISO/IEC 7816-3 specification ( I/O). I/O 1.8V/3V Others NC 6, 16, 23, 25, 28, 30, 31, 32, 33, 42, 45, 46, 47, 48, 49, 51 Should be floating Aquila Confidential 4 DC Electrical MG401 recommends the application condition as following table. Parameter Description Minimum Value Maximum Value Unit V IH High-level input voltage 1.17 V DD_IO V V IL Low-level input voltage -0.3 0.63 V V OH high-level output voltage 1.6 V DD_IO V V OL low-level output voltage 0 0.4 V Pin Name Pin No. Pull-up PERST# 22 Pull-up W_DISABLE# 20 Pull-up 5 Power Consumption 6 RF Performance Operating Band Transmit Power (dBm) Antenna Interface receiving sensitivity Band 8 23±2 < –99dBm @10MHz bandwidth Band 12/17 23±2 < –99dBm @10MHz bandwidth Band 13 23±2 < –99dBm @10MHz bandwidth Band 14 23±2 < –99dBm @10MHz bandwidth Band 25/2 23±2 < –98dBm @10MHz bandwidth Band 26/5 23±2 < –99dBm @10MHz bandwidth Band 41 23±2 < –95dBm @20MHz bandwidth Band 42/43/48 23±2 < –97dBm @20MHz bandwidth Band 66/4 23±2 < –98dBm @10MHz bandwidth Aquila Confidential 7 Agency Certifications MG401 has been tested and certified with PTCRB/GCF/FCC/IC. Test Specification LTE FDD/TDD 3GPP TS 34.121 (RF/RRM-R8/R9) 3GPP TS 36.521-1 RF-R8 3GPP TS 36.521-1 RF-R9 3GPP TS 36.521-3 RRM-R8 3GPP TS 36.521-3 RRM-R9 3GPP TS 36.523-1 Protocol-R8 3GPP TS 36.523-1 Protocol-R9 3GPP TS 36.523-1 Protocol-(i-RAT) ETSI EN 102 230 (UICC) 3GPP TS 31.121 USIM (R8) 3GPP TS 31.124 USAT (R8) 3GPP TS 26.132 (Acoustic) - Rel-12 3GPP TS 36.124 (LTE RSE eFDD) - PTCRB 3GPP TS 34.229-1 (IMS) 3GPP TS 37.571-1 (LTE A-GPS RF) 3GPP TS 37.571-2 (LTE A-GPS Protocol) AE AT Command (PTCRB) LTE Data throughput (PTCRB) GCF FT Country Item Standard FCC EMC FCC Part 15B RF FCC Part 22/24/27/90 FCC Part 2.1093 MPE Country Item Standard IC LTE RSS-1…

Text truncated - open the document above for the full version.

Suzhou Aquila Solutions Inc. Room 201, Building 3, 18 Dongchang Road, Suzhou Industry Park, Suzhou, Jiangsu Province, 215000, China Tel: +86 21-64856677; Fax: +86 21-64040262 Date: May 11, 2020 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd. Columbia, MD 21046 SUBJECT: Class II Permissive Change for FCC ID: 2ASRY-MG401 Dear Examiner, This is to request a Class II Permissive Change for FCC ID: 2ASRY-MG401, Model: MG401 (approval date: 06/10/2019) The change filed under this application is:  Enable LTE Band B42/43/48 via software. Except for the change above, no other modification is performed. Also, the change does not have any impact on the approved radio parameter such as power, frequency range, modulation etc. We would like to certify the additional of certified FCC ID: 2ASRY-MG401 as a Class II Permissive Change in this device. If you have any questions regarding this application, please feel free to contact me. Sincerely, Contact Person: Zheng Guo E-mail: [email protected]

Rev. 1/1/03 Suzhou Aquila Solutions Inc. Room 201, Building 3, 18 Dongchang Road, Suzhou Industry Park, Suzhou, Jiangsu Province, 215000, China Tel: +86 21-64856677; Fax: +86 21-64040262 Date: May 11, 2020 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2ASRY-MG401 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _____________________ Zheng Guo

Suzhou Aquila Solutions Inc. Room 201, Building 3, 18 Dongchang Road, Suzhou Industry Park, Suzhou, Jiangsu Province, 215000, China Tel: +86 21-64856677; Fax: +86 21-64040262 Date: May 11, 2020 Power of Attorney To whom it may concern, Please be notified that I, Zheng Guo, have designated Jim Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jim Tsai in Sporton International Inc., on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C 862. This authorization is limited to the product of as following: FCC ID: 2ASRY-MG401 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, ____ Contact Person: Zheng Guo E-mail: [email protected]

Applicant/Grantee Suzhou Aquila Solutions Inc. / 2ASRY FCC ID: 2ASRY-MG401 Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The radio portion of this module is shielded, please see exhibition external photos. Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The module has buffer modulation/data inputs. Y 3 The modular transmitter must have its own power supply regulation. The module has its own power supply regulation. Please see the schem.pdf Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. The requirements of antenna connector and spurious emission have been fulfilled. Please refer to the Test Report exhibition. Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting Please refer to the Setup Photo exhibition for the stand-alone test configuration. Y equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. The Module will be labeled with its own FCC ID, and the instruction on the labeling rule of the end product has been stated in the User Manual of this module. Please refer to the Label and User Manual exhibition. Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The required FCC rule has been fulfilled and all the instructions for maintaining compliance have been clearly stated in the User Manual. Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Y _________________________________ Contact Person: Zheng Guo Company: Suzhou Aquila Solutions Inc. TEL: +86 21-64856677 FAX: +86 21-64040262 E-mail: [email protected]

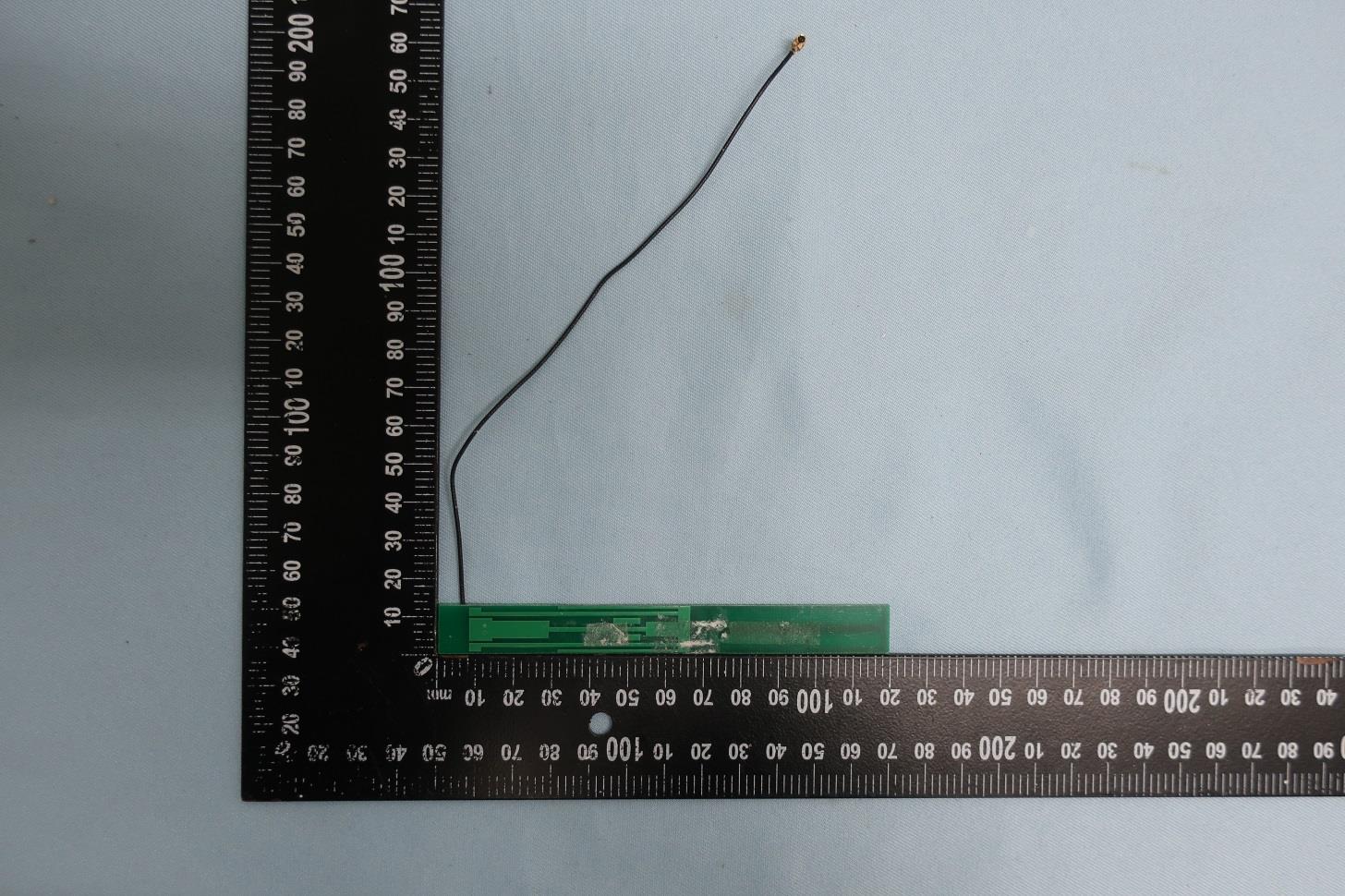

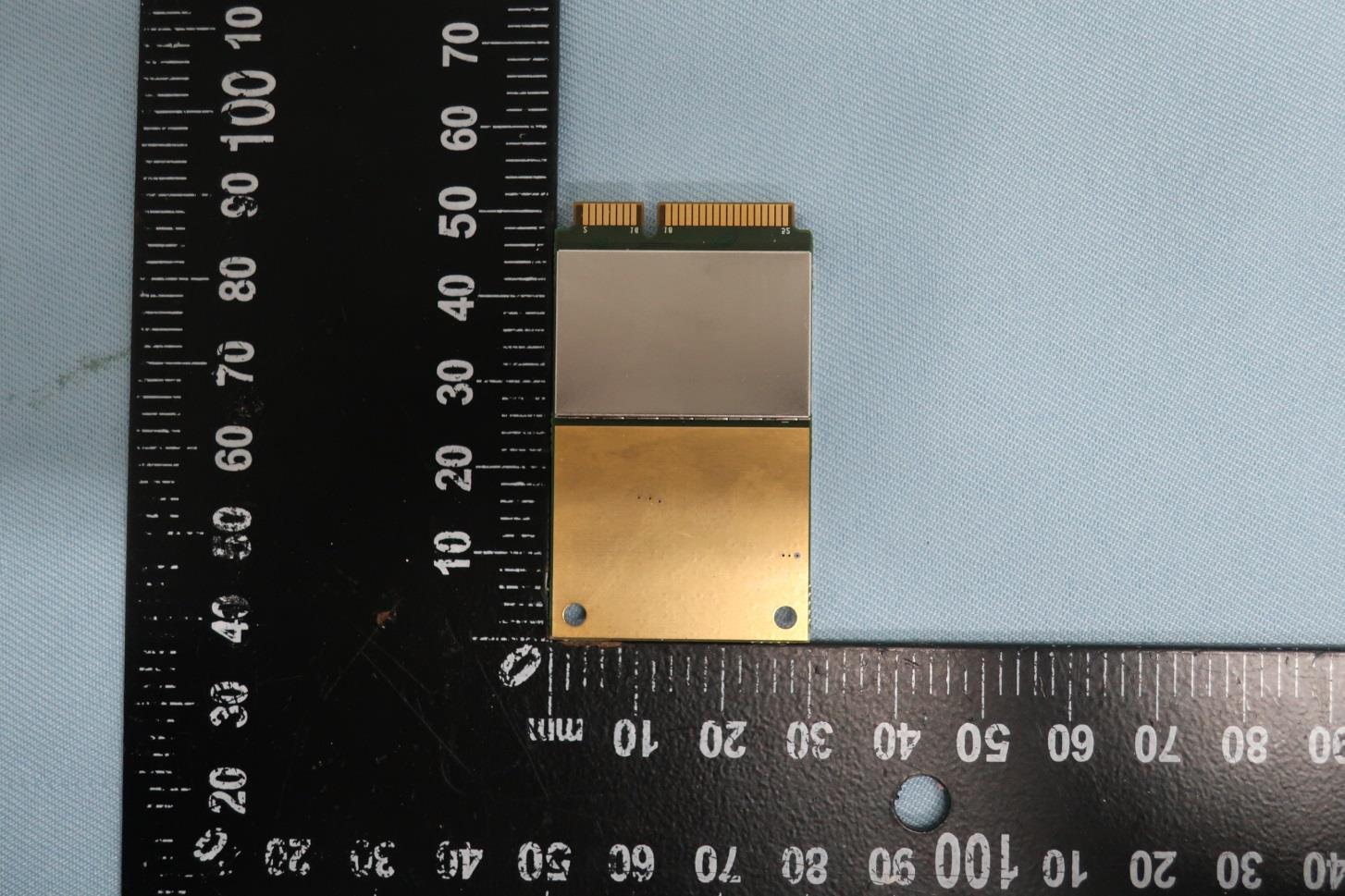

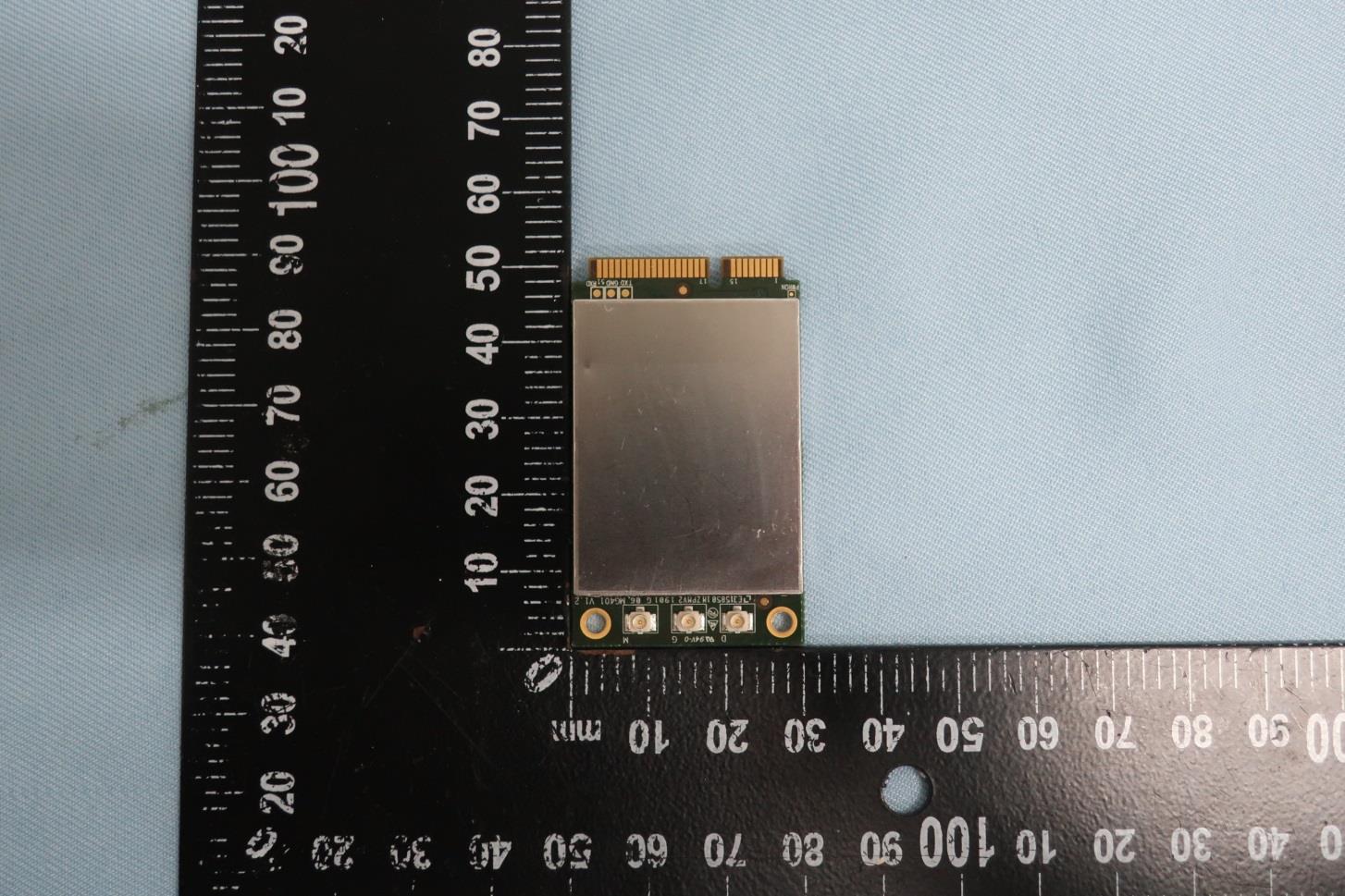

Photographs of EUT Report No.: EP022705 Brand Name: AQUILA; Model Name: MG401 Sporton International (Kunshan) Inc. Page Number : 1 of 12 TEL : 86-0512-5790-0158 Report Issued Date : May 14, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ASRY-MG401 720510 1. External Photograph of EUT Module Photographs of EUT Report No.: EP022705 Brand Name: AQUILA; Model Name: MG401 Sporton International (Kunshan) Inc. Page Number : 2 of 12 TEL : 86-0512-5790-0158 Report Issued Date : May 14, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ASRY-MG401 Photographs of EUT Report No.: EP022705 Brand Name: AQUILA; Model Name: MG401 Sporton International (Kunshan) Inc. Page Number : 3 of 12 TEL : 86-0512-5790-0158 Report Issued Date : May 14, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ASRY-MG401 720510 2. Photograph of Accessory WWAN Diversity Antenna <Rx> GNSS Antenna <Rx> WWAN Main Antenna <Tx/Rx> Module Test Jig Photographs of EUT Report No.: EP022705 Brand Name: AQUILA; Model Name: MG401 Sporton International (Kunshan) Inc. Page Number : 4 of 12 TEL : 86-0512-5790-0158 Report Issued Date : May 14, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ASRY-MG401 WWAN Main Antenna <Tx/Rx> Photographs of EUT Report No.: EP022705 Brand Name: AQUILA; Model Name: MG401 Sporton International (Kunshan) Inc. Page Number : 5 of 12 TEL : 86-0512-5790-0158 Report Issued Date : May 14, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ASRY-MG401 Photographs of EUT Report No.: EP022705 Brand Name: AQUILA; Model Name: MG401 Sporton International (Kunshan) Inc. Page Number : 6 of 12 TEL : 86-0512-5790-0158 Report Issued Date : May 14, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ASRY-MG401 GNSS Antenna <Rx> Photographs of EUT Report No.: EP022705 Brand Name: AQUILA; Model Name: MG401 Sporton International (Kunshan) Inc. Page Number : 7 of 12 TEL : 86-0512-5790-0158 Report Issued Date : May 14, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ASRY-MG401 Photographs of EUT Report No.: EP022705 Brand Name: AQUILA; Model Name: MG401 Sporton International (Kunshan) Inc. Page Number : 8 of 12 TEL : 86-0512-5790-0158 Report Issued Date : May 14, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ASRY-MG401 WWAN Diversity Antenna <Rx> Photographs of EUT Report No.: EP022705 Brand Name: AQUILA; Model Name: MG401 Sporton International (Kunshan) Inc. Page Number : 9 of 12 TEL : 86-0512-5790-0158 Report Issued Date : May 14, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ASRY-MG401 Photographs of EUT Report No.: EP022705 Brand Name: AQUILA; Model Name: MG401 Sporton International (Kunshan) Inc. Page Number : 10 of 12 TEL : 86-0512-5790-0158 Report Issued Date : May 14, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ASRY-MG401 Test Jig Photographs of EUT Report No.: EP022705 Brand Name: AQUILA; Model Name: MG401 Sporton International (Kunshan) Inc. Page Number : 11 of 12 TEL : 86-0512-5790-0158 Report Issued Date : May 14, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ASRY-MG401 Photographs of EUT Report No.: EP022705 Brand Name: AQUILA; Model Name: MG401 Sporton International (Kunshan) Inc. Page Number : 12 of 12 TEL : 86-0512-5790-0158 Report Issued Date : May 14, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ASRY-MG401

Photographs of EUT Report No.: EP022705 Brand Name: AQUILA; Model Name: MG401 Sporton International (Kunshan) Inc. Page Number : 1 of 7 TEL : 86-0512-5790-0158 Report Issued Date : May 14, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ASRY-MG401 3. Internal Photograph of EUT Module Internal photo Photographs of EUT Report No.: EP022705 Brand Name: AQUILA; Model Name: MG401 Sporton International (Kunshan) Inc. Page Number : 2 of 7 TEL : 86-0512-5790-0158 Report Issued Date : May 14, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ASRY-MG401 Photographs of EUT Report No.: EP022705 Brand Name: AQUILA; Model Name: MG401 Sporton International (Kunshan) Inc. Page Number : 3 of 7 TEL : 86-0512-5790-0158 Report Issued Date : May 14, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ASRY-MG401 Photographs of EUT Report No.: EP022705 Brand Name: AQUILA; Model Name: MG401 Sporton International (Kunshan) Inc. Page Number : 4 of 7 TEL : 86-0512-5790-0158 Report Issued Date : May 14, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ASRY-MG401 Photographs of EUT Report No.: EP022705 Brand Name: AQUILA; Model Name: MG401 Sporton International (Kunshan) Inc. Page Number : 5 of 7 TEL : 86-0512-5790-0158 Report Issued Date : May 14, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ASRY-MG401 Photographs of EUT Report No.: EP022705 Brand Name: AQUILA; Model Name: MG401 Sporton International (Kunshan) Inc. Page Number : 6 of 7 TEL : 86-0512-5790-0158 Report Issued Date : May 14, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ASRY-MG401 Photographs of EUT Report No.: EP022705 Brand Name: AQUILA; Model Name: MG401 Sporton International (Kunshan) Inc. Page Number : 7 of 7 TEL : 86-0512-5790-0158 Report Issued Date : May 14, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ASRY-MG401

Sporton International (Kunshan) Inc. Page Number : 1 of 11 TEL : +86-512-57900158 Report Issued Date : May 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : 2ASRY-MG401 RF Exposure Evaluation Report Report No. : FA022705 RF Exposure Evaluation Report APPLICANT : Suzhou Aquila Solutions Inc. EQUIPMENT : LTE Module BRAND NAME : AQUILA MODEL NAME : MG401 FCC ID : 2ASRY-MG401 STANDARD : 47 CFR Part 2.1091 FCC KDB 447498 D01 v06 We, Sporton International (Kunshan) Inc., would like to declare that the device has been evaluated in accordance with 47 CFR Part 2.1091 and FCC KDB 447498 D01 v06, and pass the limit. Without written approval of Sporton International (Kunshan) Inc., the test report shall not be reproduced except in full. Reviewed by: Rose Wang / Supervisor Approved by: Kat Yin / Manager Sporton International (Kunshan) Inc. No. 1098, Pengxi North Road, Kunshan Economic Development Zone Jiangsu Province 215300 People’s Republic of China Sporton International (Kunshan) Inc. Page Number : 2 of 11 TEL : +86-512-57900158 Report Issued Date : May 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : 2ASRY-MG401 RF Exposure Evaluation Report Report No. : FA022705 Table of Contents 1. ADMINISTRATION DATA ........................................................................................................................... 4 1.1. Testing Laboratory ............................................................................................................................. 4 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 5 3. MAXIMUM RF AVERAGE OUTPUT POWER AMONG PRODUCTION UNITS ........................................ 6 4. RF EXPOSURE LIMIT INTRODUCTION .................................................................................................... 7 5. RADIO FREQUENCY RADIATION EXPOSURE EVALUATION ............................................................... 8 5.1. Standalone Power Density Calculation ............................................................................................. 8 5.2. Collocated Power Density Calculation ............................................................................................... 9 Sporton International (Kunshan) Inc. Page Number : 3 of 11 TEL : +86-512-57900158 Report Issued Date : May 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : 2ASRY-MG401 RF Exposure Evaluation Report Report No. : FA022705 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA022705 Rev. 01 Initial issue of report May 13, 2020 Sporton International (Kunshan) Inc. Page Number : 4 of 11 TEL : +86-512-57900158 Report Issued Date : May 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : 2ASRY-MG401 RF Exposure Evaluation Report Report No. : FA022705 1. Administration Data 1.1. Testing Laboratory Sporton International (Kunshan) Inc. is accredited to ISO/IEC 17025:2017 by American Association for Laboratory Accreditation with Certificate Number 5145.02. Testing Laboratory Test Firm Sporton International (Kunshan) Inc. Test Site Location No. 1098, Pengxi North Road, Kunshan Economic Development Zone Jiangsu Province 215300 People’s Republic of China TEL : +86-512-57900158 FAX : +86-512-57900958 Test Site No. FCC Designation No. FCC Test Firm Registration No. CN1257 314309 Applicant Company Name Suzhou Aquila Solutions Inc. Address Room 201, Building 3, 18 Dongchang Road,Suzhou Industry ParkSuzhou, 215000 China Manufacturer Company Name Suzhou Aquila Solutions Inc. Address Room 201, Building 3, 18 Dongchang Road,Suzhou Industry ParkSuzhou, 215000 China Sporton International (Kunshan) Inc. Page Number : 5 of 11 TEL : +86-512-57900158 Report Issued Date : May 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : 2ASRY-MG401 RF Exposure Evaluation Report Report No. : FA022705 2. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type LTE Module Brand Name AQUILA Model Name MG401 FCC ID 2ASRY-MG401 Wireless Technology and Frequency Range LTE Band 2: 1850.7 MHz ~ 1909.3 MHz LTE Band 4: 1710.7 MHz ~ 1754.3 MHz LTE Band 5: 824.7 MHz ~ 848.3 MHz LTE Band 12: 699 MHz ~ 716 MHz LTE Band 13: 777 MHz ~ 787 MHz LTE Band 14: 790.5 MHz ~ 795.5 MHz LTE Band 17: 706.5 MHz ~ 713.5 MHz LTE Band 25: 1850.7 MHz ~ 1914.3 MHz LTE Band 26: 814.7 MHz ~ 848.3 MHz LTE Band 41: 2498.5 MHz ~ 2687.5 MHz LTE Band 42: 3552.5 MHz ~ 3597.5 MHz LTE Band 43: 3602.5 MHz ~ 3697.5 MHz LTE Band 48: 3552.5 MHz ~ 3697.5 MHz LTE Band 66: 1710.7 MHz ~1779.3 MHz Mode LTE: QPSK, 16QAM Antenna Type PCB Antenna HW Version V1.2 SW Version CAT4_GS_BYPASS_0.3.3.2_V1.4 EUT Stage Identical Prototype Remark: 1. This is a variant report, the difference is to open LTE Band 42, Band 43 and Band 48 by software. According to the difference, added LTE Band 42/43/48 evaluation based on original report FA8N3015. 2. LTE band 42/43 covered by LTE band 48 with the same power level, so only chose LTE band 48 to perform standalone power density calculation. Sporton International (Kunshan) Inc. Page Number : 6 of 11 TEL : +86-512-57900158 Report Issued Date : May 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : 2ASRY-MG401 RF Exposure Evaluation Report Report No. : FA022705 3. Maximum RF average output power among production units Mode Maximum Average power(dBm) LTE Band 2 25.00 Band 4 25.00 Band 5 24.00 Band 12 24.00 Band 13 25.00 Band 14 25.00 Band 17 24.00 Band 25 25.00 Band 26 22.00 Band 41 25.00 Band 42 24.00 Band 43 24.00 Band 48 24.00 Band 66 25.00 Sporton International (Kunshan) Inc. Page Number : 7 of 11 TEL : +86-512-57900158 Report Issued Date : May 13, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : 2ASRY-MG401 RF Exposure Evaluation Report Report No. : FA022705 4. RF Exposure Limit Introduction According to ANSI/IEEE C95.1-1992, the criteria listed in Table 1 shall be used to evaluate the environmental impact…

Text truncated - open the document above for the full version.

TEL : 886-3-327-3456 Page Number : 1 of 22 FAX : 886-3-328-4978 Issued Date : May 11, 2020 Report Template No.: BU5-FGLTE96 Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FG030207B FCC RADIO TEST REPORT FCC ID : 2ASRY-MG401 Equipment : LTE Module Brand Name : AQUILA Model Name : MG401 Applicant : Suzhou Aquila Solutions Inc. Room 201, Building 3, 18 Dongchang Road, Suzhou Industry ParkSuzhou, 215000 China Manufacturer : Suzhou Aquila Solutions Inc. Room 201, Building 3, 18 Dongchang Road, Suzhou Industry ParkSuzhou, 215000 China Standard : 47 CFR Part 2, 96 The product was received on Mar. 24, 2020 and testing was started from Mar. 24, 2020 and completed on May 08, 2020. We, SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, would like to declare that the tested sample has been evaluated in accordance with the test procedures given in ANSI / TIA-603-E and has been in compliance with the applicable technical standards. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any agency of government. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. Approved by: Louis Wu SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) TEL : 886-3-327-3456 Page Number : 2 of 22 FAX : 886-3-328-4978 Issued Date : May 11, 2020 Report Template No.: BU5-FGLTE96 Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FG030207B Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result................................................................................................................................... 4 1 General Description ................................................................................................................................... 5 1.1 Product Feature of Equipment Under Test ....................................................................................... 5 1.2 Modification of EUT ........................................................................................................................... 5 1.3 Testing Location ................................................................................................................................ 5 1.4 Applied Standards ............................................................................................................................. 6 2 Test Configuration of Equipment Under Test ......................................................................................... 7 2.1 Test Mode.......................................................................................................................................... 7 2.2 Connection Diagram of Test System ................................................................................................ 8 2.3 Support Unit used in test configuration ............................................................................................. 8 2.4 Measurement Results Explanation Example .................................................................................... 8 2.5 Frequency List of Low/Middle/High Channels ................................................................................... 9 3 Conducted Test Items .............................................................................................................................. 10 3.1 Measuring Instruments ..............................................................…
