2ASTI-27800AAFloor ID Sensor

DATEPART WEIGHT (kg) APPL:REMARKS 2019-03-27AAA27800AA1--------- PART: AAA27800AA1 MODEL : AAA27800AA FCC ID : 2ASTI27800AA FLOOR NUMBER SENSOR - USER MANUAL SEE NOTE E PART: AAA27800AA1 NOTES: 1. DIMENSION "E" SHOULD BE <=100mm. PART: AAA817A1 FLOOR NUMBER SENSOR - USER MANUAL OPERATIONAL DESCRIPTION : THE FLOOR ID SENSOR IS USED TO IDENTIFY THE FLOOR NUMBER AS THE ELEVATOR CAR IS STOPPED AT A LANDING. THE FLOOR ID SENSOR CONSISTS OF AN RFID READER THAT READS UNIQUE RFID TAGS THAT ARE INSTALLED AT EACH LANDING. FLOOR ID SENSOR GET CONNECTED TO DATA ACQUISITION DEVICE AND COLLECT DATA PERIODICALLY. SPECIFICATIONS OF THE PRODUCT: 1. OPERATING FREQUENCY: 13.56 MHZ 2. NO. OF CHANNEL: SINGLE 3. CHANNEL SPACING: NOT APPLICABLE 4. TRANSMITTED POWER: 17DBM 5. MODULATION: AMPLITUDE SHIFT KEYING 6. DATA RATE: HIGH 26.48 KBIT/S (FC/512) 7. ANTENNA TYPE: PCB PRINTED ANTENNA 8. NUMBER OF ANTENNA: 1 PER MODULE 9. ANTENNA GAIN (PROVIDE ANTENNA DATA SHEET): TBD 10. SUPPLY VOLTAGE: 5V 11. DIMENSIONS: REMAINING 12. ENVIRONMENTAL (STORAGE AND OPERATIONAL CONDITIONS): 12.1. OPERATIONAL TEMPERATURE: -10
$C TO +70
$C 12.2 STORAGE TEMPERATURE: -10
$C TO +70
$C FLOOR NUMBER SENSOR - USER MANUAL FCC ID: 2ASTI27800AA FCC COMPLIANCE STATEMENTS 1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2. THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, 3. INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION FCC CAUTION!!! 1. ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THIS EQUIPMENT 2. THIS EQUIPMENT SHOULD BE INSTALLED AND OPERATED WITH MINIMUM DISTANCE 20 CM BETWEEN THE RADIATOR & YOUR BODY. PART 15B COMPLIANCE STATEMENTS FOR DIGITAL DEVICES: NOTE: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS B DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE IN A RESIDENTIAL INSTALLATION. THIS EQUIPMENT GENERATES, USES AND CAN RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTIONS, MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. HOWEVER, THERE IS NO GUARANTEE THAT INTERFERENCE WILL NOT OCCUR IN A PARTICULAR INSTALLATION. IF THIS EQUIPMENT DOES CAUSE HARMFUL INTERFERENCE TO RADIO OR TELEVISION RECEPTION, WHICH CAN BE DETERMINED BY TURNING THE EQUIPMENT OFF AND ON, THE USER IS ENCOURAGED TO TRY TO CORRECT THE INTERFERENCE BY ONE OR MORE OF THE FOLLOWING MEASURES: 1. REORIENT OR RELOCATE THE RECEIVING ANTENNA. 2. INCREASE THE SEPARATION BETWEEN THE EQUIPMENT AND RECEIVER. 3. CONNECT THE EQUIPMENT INTO AN OUTLET ON A CIRCUIT DIFFERENT FROM THAT TO WHICH THE RECEIVER IS CONNECTED. 4. CONSULT THE DEALER OR AN EXPERIENCED RADIO/TV TECHNICIAN FOR HELP. FCC COMPLIANCE STATEMENTS FLOOR NUMBER SENSOR - USER MANUAL

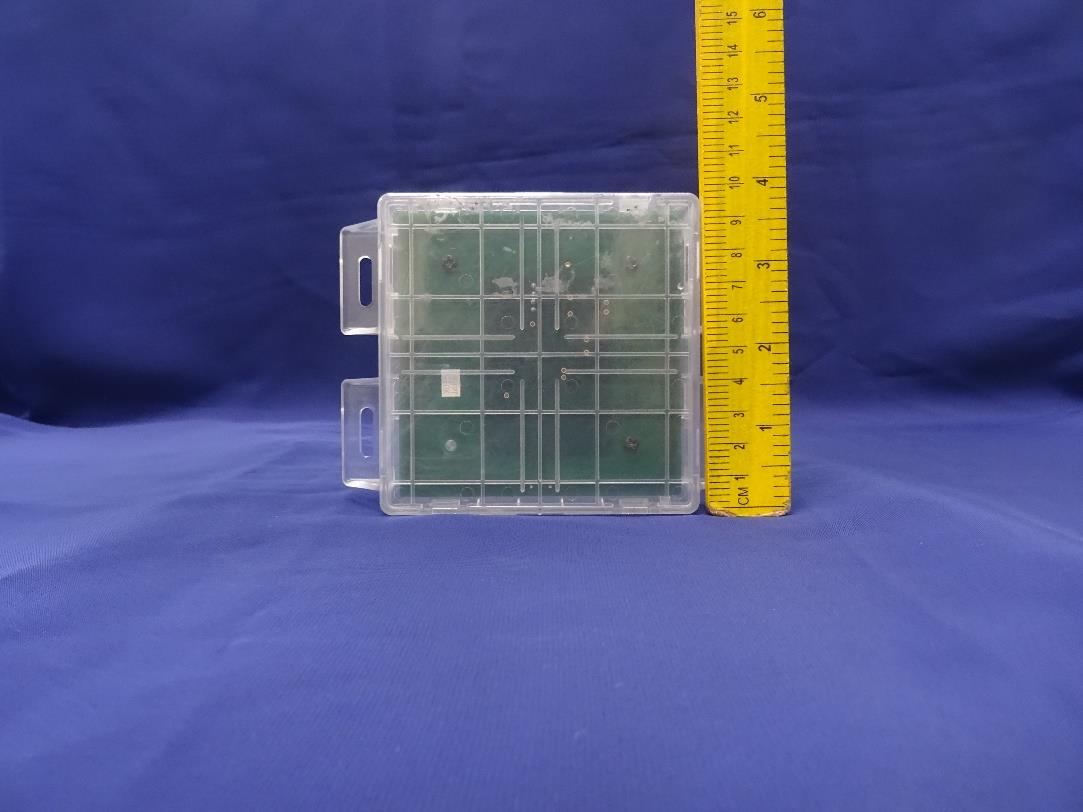

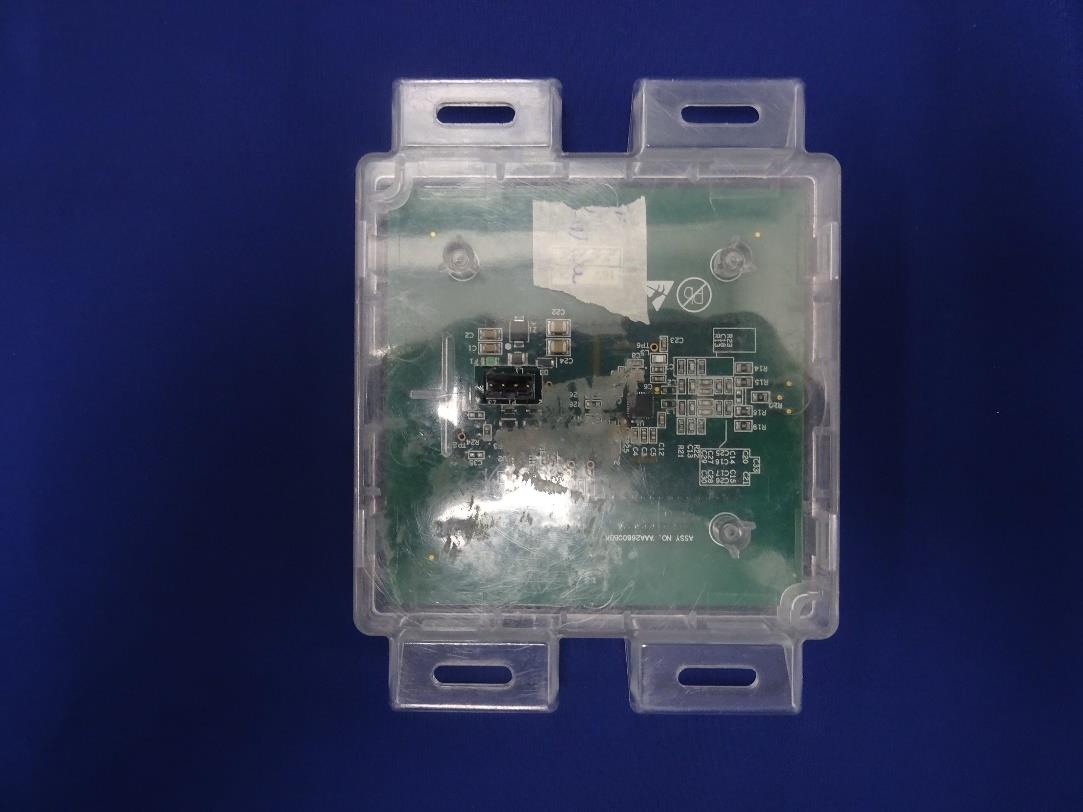

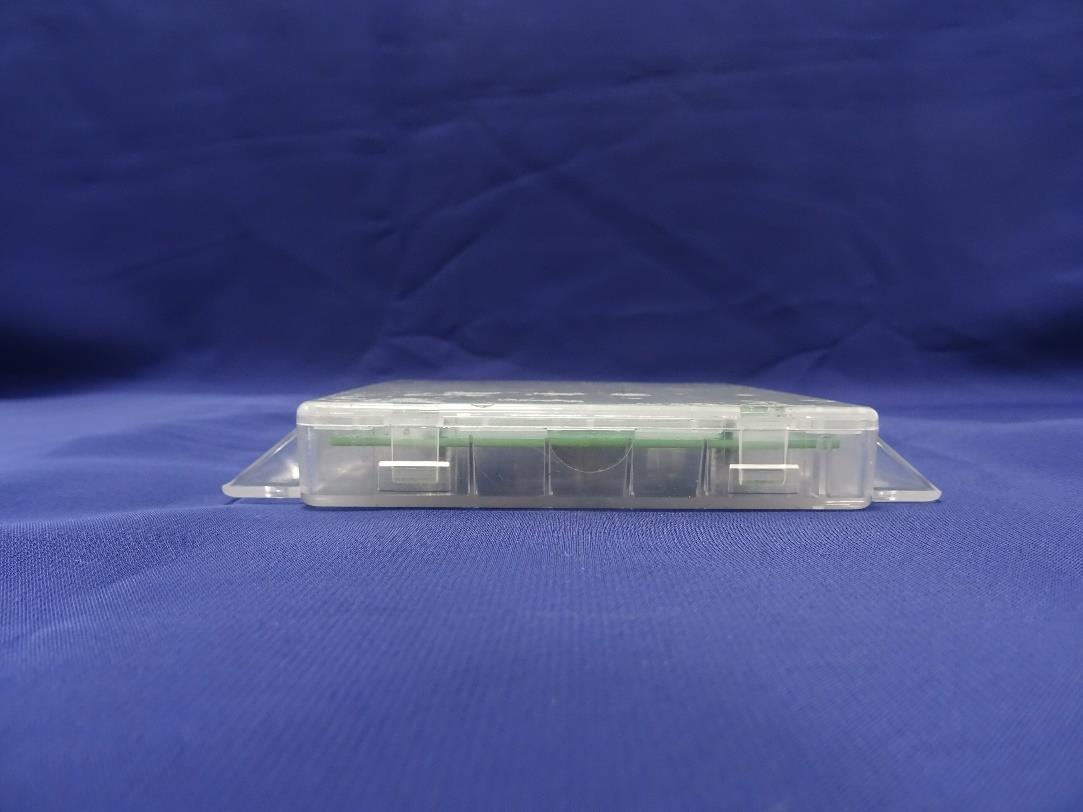

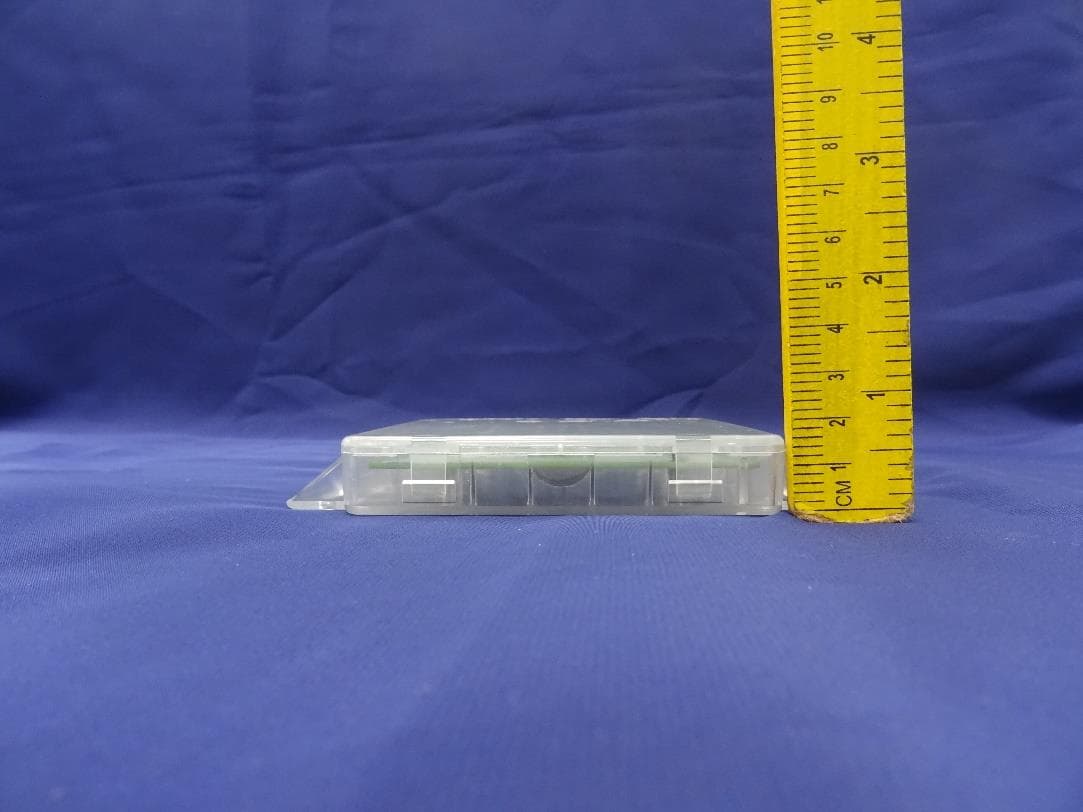

Produkte Products www.tuv.com Prüfbericht - Nr.: Test Report No.: ULR-TC568819300000007F Seite 1 von 3 Page 1 of 3 1 EUT External Photos Photo 1: EUT Front view Photo 2: EUT rear view Produkte Products www.tuv.com Prüfbericht - Nr.: Test Report No.: ULR-TC568819300000007F Seite 2 von 3 Page 2 of 3 Photo 3:EUT Side view Photo 4:EUT Dimensional view(Width) Produkte Products www.tuv.com Prüfbericht - Nr.: Test Report No.: ULR-TC568819300000007F Seite 3 von 3 Page 3 of 3 Photo 5: EUT Dimensional view(Length) Photo 6:EUT Dimensional view( height) ***END OF EUT EXTERNAL PHOTOS***

30 60 R5 2.5 3.9 7.6 2.5 11.3 16.3 DATEPART WEIGHT (kg) APPLREMARKS 2019-03-27AAA102BEL1---AAA27800AA--- PART: AAA102BEL1 NOTES: 1. MATERIAL: WHITE POLYESTER ON VINYL BACKED LABEL STOCK, WITH PRESSURE SENSITIVE ADHESIVE PER AAA26YC. 2. LETTERS TO BE PRINTED USING BLACK COLOUR ON WHITE BACKGROUND AND LOCATION OF THE PRINTING AS SHOWN IN THE DRAWING . FLOOR NUMBER SENSOR - USER MANUAL C D BA DATEPART WEIGHT (kg) APPL:REMARKS 2019-03-27AAA27800AA1--------- PART: AAA27800AA1 ABCD 35.43020.460 LABEL LOCATION DETAIL DIAGRAM MODEL : AAA27800AA FCC ID : 2ASTI27800AA FLOOR NUMBER SENSOR - USER MANUAL

Produkte Products www.tuv.com Prüfbericht - Nr.: Test Report No.: ULR-TC568819300000007F Seite 1 von 2 Page 1 of 2 1 EUT Internal Photos Photo 1:PCB front view Photo 2:PCB rear view Produkte Products www.tuv.com Prüfbericht - Nr.: Test Report No.: ULR-TC568819300000007F Seite 2 von 2 Page 2 of 2 Photo 3: PCB Dimensional view(Length) Photo 4:PCB Dimensional view( Width) ***END OF EUT INTERNAL PHOTOS***

Produkte Products www.tuv.com Prüfbericht - Nr.: Test Report No.: Reference test report No: ULR-TC568819300000007F Seite 1 von 2 Page 1 of 2 1 RF Exposure Report 1.1 RF Exposure Measurement The limit for Maximum Permissible Exposure (MPE) specified in FCC Part 1 Subpart I 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over- prediction for near field power density. It is taken as worst case to specify the safety range. 1.2 RF Exposure Limit According to FCC Part 1 Subpart I 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Table 1: Limits for Maximum Permissible Exposure (MPE) F= Frequency in MHz Produkte Products www.tuv.com Prüfbericht - Nr.: Test Report No.: Reference test report No: ULR-TC568819300000007F Seite 2 von 2 Page 2 of 2 1.2.1 Friss Formula Friss Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value at distance 20cm. 1.2.2 EUT Operation condition EUT was enabled to transmit and receive at lowest, middle and highest channels. 1.2.3 Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance from the antenna should be included in the User manual. So, this device is classified as fixed device. Protocol: RFID Data Rate: 26.48 Kbit/s Antenna Gain: -64.31 dB = 0.00000071 (linear gain) Table 2: Test Results for Maximum Permissible Exposure Antenna Gain (dB) Channel frequency (MHz) Maximum Pout (dBm) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) -64.31 13.56 16.24 42.07266 59×10 −10 0.9789 ***END OF TEST REPORT***

Produkte Products www.tuv.com Prüfbericht - Nr.: Test Report No.: ULR-TC568819300000007F Seite 2 von 21 Page 2 of 21 TEST SUMMARY Test Item FCC Clause Result Frequency tolerance FCC part 15 Subpart C Section 15.225 (e) Pass Radiated Spurious Emission & Field Strength Measurement within the band 13.110-14.010 MHz FCC part 15 Subpart C Section 15.225 (a,b,c,d) / (15.209) Pass Conducted Emissions on A.C. Power Lines 15.207 Pass Product Category: Electronics Testing Test Discipline: EMC Test Facility Produkte Products www.tuv.com Prüfbericht - Nr.: Test Report No.: ULR-TC568819300000007F Seite 3 von 21 Page 3 of 21 Table of Contents 1 GENERAL REMARKS ........................................................................................................................................... 4 1.1 Complimentary Materials .............................................................................................................................. 4 2 TEST SITES .......................................................................................................................................................... 5 2.1 Testing Facilities............................................................................................................................................ 5 2.2 List of Test and Measurement Instruments ................................................................................................... 5 3 GENERAL PRODUCT INFORMATION ................................................................................................................. 6 3.1 Product Function and Intended Use.............................................................................................................. 6 3.2 Ratings and System Details .......................................................................................................................... 6 3.3 Measurement Uncertainty: ............................................................................................................................ 6 4 TEST SET-UP AND OPERATION MODE ............................................................................................................. 7 4.1 Principle of Configuration Selection .............................................................................................................. 7 4.2 Test Operation and Test Software ................................................................................................................ 7 4.3 Special Accessories and Auxiliary Equipment .............................................................................................. 7 4.4 Countermeasures to achieve EMC Compliance ........................................................................................... 7 4.5 Test modes – data rates and modulations .................................................................................................... 7 5 TEST METHODOLOGY ........................................................................................................................................ 8 5.1 Radiated Emission Test ................................................................................................................................ 8 5.1.1 Test Setup Configuration .......................................................................................................................... 8 6 TEST RESULTS .................................................................................................................................................. 10 6.1 Frequency tolerance ................................................................................................................................... 10 6.2 Radiated Spurious Emission & Field Strength Measurement within the band 13.110-14.010 MHz ........... 15 6.3 Conducted Spurious Emission Test on AC Power Line .............................................................................. 18 ................................................................................................................................................................................. 18 7 LIST OF TABLES ................................................................................................................................................. 21 8 LIST OF TEST PLOTS ........................................................................................................................................ 21 Produkte Products www.tuv.com Prüfbericht - Nr.: Test Report No.: ULR-TC568819300000007F Seite 4 von 21 Page 4 of 21 1 GENERAL REMARKS 1.1 Complimentary Materials All attachments are integral part of this test report. This applies especially to the following items. 1. Test Setup Photo 2. EUT External Photo 3. EUT Internal Photo 4. FCC Label and Label Location 5. Block Diagram 6. Specification of EUT 7. Schematic Diagrams 8. Bill of Material 9. User Manual 10. Maximum permissible exposure Produkte Products www.tuv.com Prüfbericht - Nr.: Test Report No.: ULR-TC568819300000007F Seite 5 von 21 Page 5 of 21 2 TEST SITES 2.1 Testing Facilities TÜV Rheinland (India) Pvt.Ltd., 27/B, 2nd Cross, Electronic City , Phase 1 Bangalore – 560 100, TUV Rheinland (India) Private Limited 108 , Beside ISBR Business School, Electronic city Phase I Bangalore - 560 100. 2.2 List of Test and Measurement Instruments Table 1: List of test and measurement instruments Equipment Name Manufacturer Model Name Serial Number Firmware Versions Calibration Due Date Periodicity Used for Test Items Environment al Chamber Envisys EM80- 40H ET/022/1 4-15 - 21-05-2020 Yearly Antenna – Port Measure ments Signal Analyser Rohde & Schwarz FSV7 101644 FW 3.40 29-12-2019 Yearly Antenna - Port Measure ments EMI Test Receiver Rohde & Schwarz ESU 40 100288 4.43 SP3 11-10-2020 Yearly Radiated Spurious Emission Active loop antenna Frankonia LAX-10 LAX-10- 800 - 15-01-2020 Yearly Biconical Antenna Schwarzbeck mess-elektronik VHBB- 9124 / BBA- 9106 91…
