2ASTZ-DONGLEDongle for Auto

Dongle for auto Product manual 1 Catalogue 一、 overview ......................................................................... 错误!未定义书签。 二、 Specification parameters ................................................ 错误!未定义书签。 三、 Operating instructions ................................................... 错误!未定义书签。 3.1 Power on the device .............................................................................. 1 3.2 Device Connect ..................................................................................... 1 四、 after-sale service ............................................................... 错误!未定义书签。 1 一、 overview The Dongle for Auto series is a hardware device used for automotive fault diagnosis and detection functions. This device detects the status of the vehicle's electronic control unit by connecting to the automotive standard OBDII diagnostic seat. 二、 Specification parameters 规格名称 Dongle for auto Interface OBDII Port BLUETOOTH 2.4GHz rated operational voltage DC 12V Maximum operating current 55mA Maximum power consumption 0.6W Weight 0.05kg Equipment size 70mm*43mm*24mm Ambient Temperatur -20°C~65°C 三、 Operating instructions 3.1 Power on the device Insert this device into the OBDII diagnostic seat of the car, the white power indicator light remains on, and the device is powered on normally. 3.2 Device Connect After the device is powered on normally, the APP connects to the device through Bluetooth, and the white Bluetooth connection indicator light remains on. Then, functional operations can be implemented on the APP end. 2 四、 after-sale service ➢ The equipment provides a one-year free warranty service from the date of purchase, and provides 7 * 24 hour technical support. ➢ After a hardware malfunction occurs, after confirmation by after-sales personnel, the equipment is first sent to the customer's site. After the malfunction is resolved, the customer returns the faulty equipment. The serial number is displayed on the physical nameplate of the equipment. Please provide the accurate serial number when the customer reports a malfunction。 ISED Statement ‐ English: This device complies with Industry Canada license‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, a nd (2) This device must accept any interference, including interference that may cause undesired operation of the device. The digital apparatus complies with Canadian CAN ICES‐3 (B)/NMB‐3(B). ‐ French: Le présentappareilestconforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitationestautorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareildoit accepter tout brouillageradi oélectriquesubi, mêmesi le brouillageest susceptible d'encompromettre le fonctionnement. l'appareil numérique du ciem conforme canadien peut ‐ 3 (b) / nmb ‐ 3 (b). This device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS 102 RF exposure, users can obtain Canadian information on RF exposure and compliance. cet appareil est conforme à l'exemption des limites d'évaluation courante dans la section 2.5 du cnr - 102 et conformité avec rss 102 de l'exposition aux rf, les utilisateurs peuvent obtenir des données canadiennes sur l'exposition aux champs rf et la conformité. This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator & your body. Cet équipement est conforme Canada limites d'exposition aux radiations dans un environnement non contrôlé. Cet équipement doit être installé et utilisé avec une distance minimale de 0 cm entre le radiateur et votre corps.

Smart Box Technology LLC 1600 Broadway Ste 1600 Denver Colorado United States Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023-8-25 U.S. Agent Designation Smart Box Technology LLC acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2ASTZ-DONGLE): Name and company of U.S. agent: Smart Box Technology LLC Physical U.S. address of agent: 1600 Broadway Ste 1600 Denver Colorado United States FRN of U.S. agent: 0028339000 Email address of U.S. agent: [email protected] Smart Box Technology LLC acknowledges their obligation to accept service of process on behalf of Smart Box Technology LLC. Smart Box Technology LLC with the FRN [0028339000] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Robert Smith Manager Smart Box Technology LLC Signature Robert Smith Manager Smart Box Technology LLC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Sincerely, Name/Title： Robert Smith/Manager Company: Smart Box Technology LLC Address: 1600 Broadway Ste 1600 Denver Colorado United States Phone: (855) 767-8291 Fax: N/A E-Mail: [email protected]

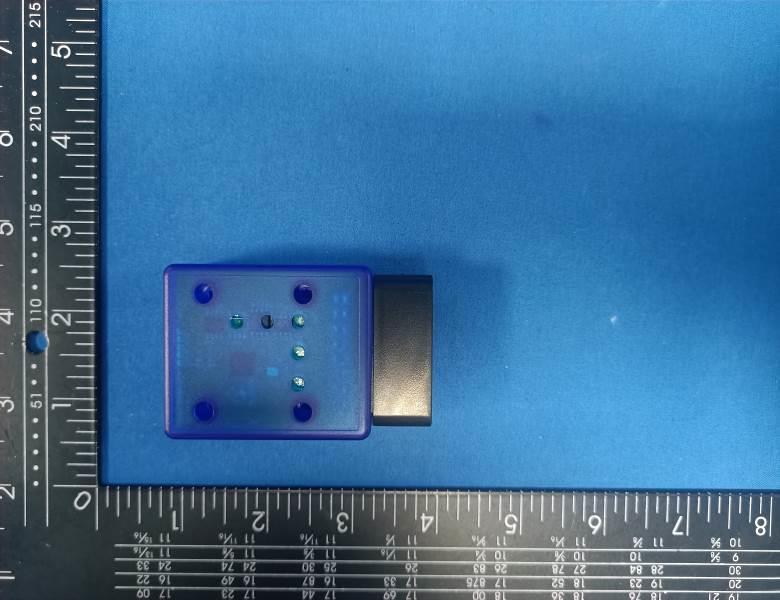

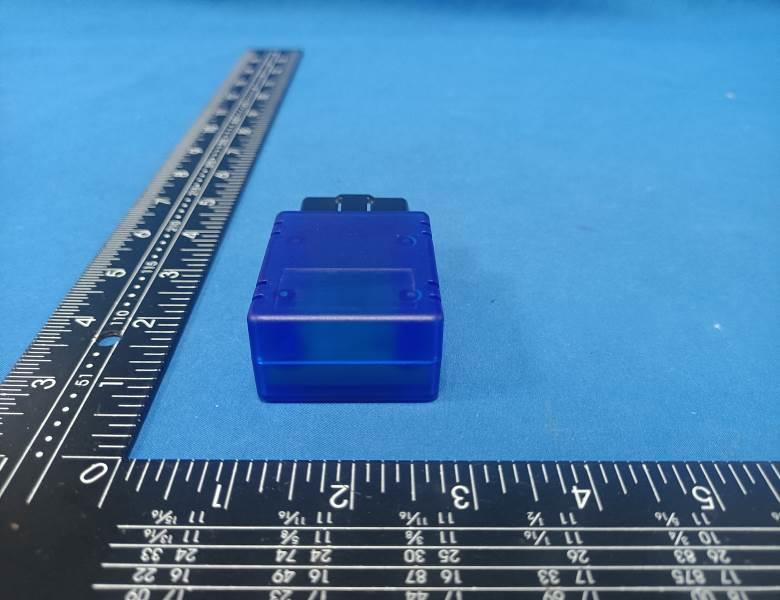

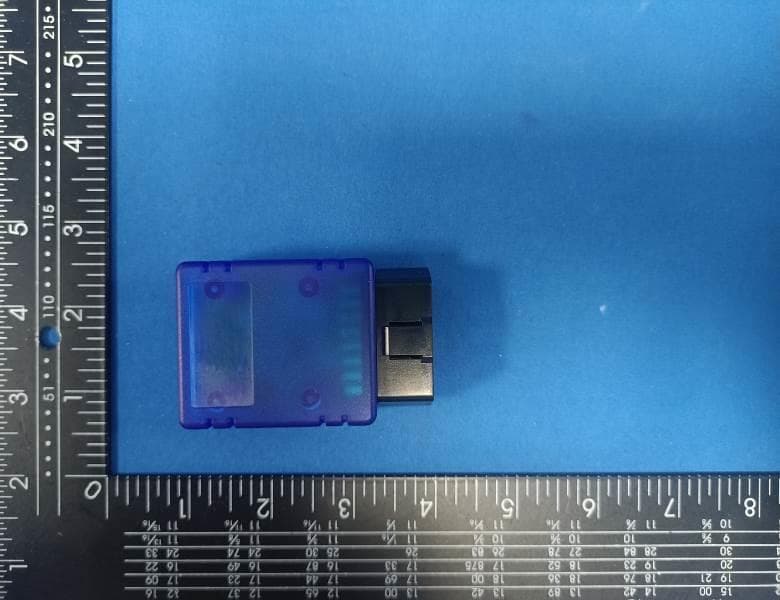

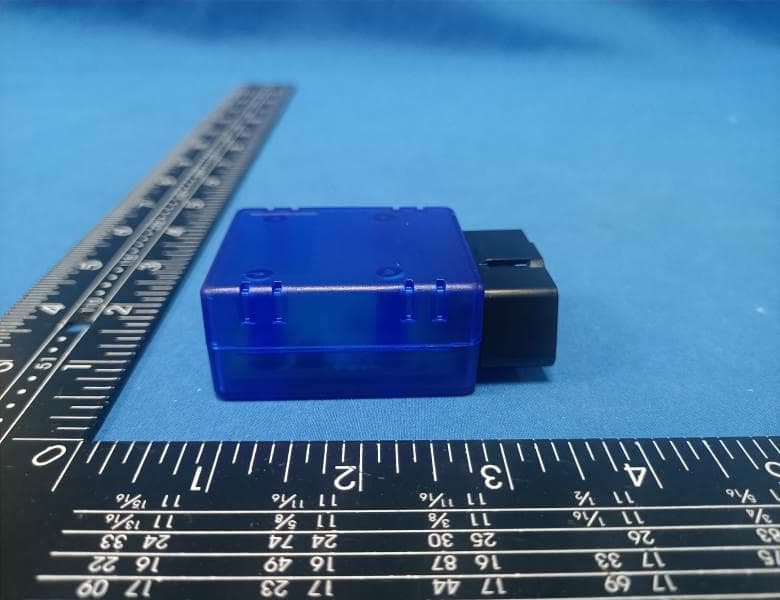

FCC ID: 2ASTZ-DONGLE External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2ASTZ-DONGLE Photo 4 Photo 5 Photo 6 FCC ID: 2ASTZ-DONGLE Photo 7

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location Model No.: Dongle Version A for Auto FCC ID : 2ASTZ-DONGLE

FCC ID: 2ASTZ-DONGLE Internal Photos of the EUT Photo 1 Photo 2 Photo 3 BLE PCB Antenna FCC ID: 2ASTZ-DONGLE Photo 4 Photo 5 Photo 6

RF Exposure evaluation FCC ID: 2ASTZ-DONGLE 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 2.0 2.0 2.0 Tolerance ±(dB) 1.0 1.0 1.0 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT 2.450 5 3.0 1.9953 0.6246<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

1. Antenna Description: Antenna type PCB antenna Model Dongle Version A for Auto Frequency range 2400-2500MHz Manufacturer Smart Box Technology LLC ANT Peak Gain 1.25dBi 2. Antenna Photo: Length :10.13mm Width:3.30mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ............................................ : CTA23080900601 2ASTZ-DONGLE Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Amy Wen Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Aug. 17, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Smart Box Technology LLC Address ............................................ : 1600 Broadway Ste 1600 Denver, CO 80202 United States Test specification ...........................: Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Dongle for Auto Trade Mark ....................................... : Smart Box Manufacturer .................................... : Smart Box Technology LLC Model/Type reference....................... : Dongle Version A for Auto Listed Models .................................. : Dongle Version B/C/D/E/F for Auto Modulation ....................................... : GFSK Frequency .......................................... From 2402MHz to 2480MHz Ratings ............................................. : DC 12.0V From external circuit Result................................................ : PASS Report No.: CTA23080900601 Page 2 of 35 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Dongle for Auto Model /Type : Dongle Version A for Auto Listed Models : Dongle Version B/C/D/E/F for Auto Applicant : Smart Box Technology LLC Address : 1600 Broadway Ste 1600 Denver, CO 80202 United States Manufacturer : Smart Box Technology LLC Address : 1600 Broadway Ste 1600 Denver, CO 80202 United States Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23080900601 Page 3 of 35 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C ON D I T I O N S A N D R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emissions and Band Edge 13 4.3 Maximum Peak Output Power 20 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 23 4.6 Out-of-band Emissions 25 4.7 Antenna Requirement 29 5 T E S T S E T U P P H O TO S O F T H E E U T ......................................... 30 6 P H O T O S O F T H E E U T ........................................................... 31 Report No.: CTA23080900601 Page 4 of 35 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 V05r02: Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247 Report No.: CTA23080900601 Page 5 of 35 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Aug. 09, 2023 Testing commenced on : Aug. 09, …

Text truncated - open the document above for the full version.

FCC ID: 2ASTZ-DONGLE Test Setup Photos of the EUT
