2ASVX-ZJWFCLALED Ceiling Light

UserManual LEDCeilingLight Thankyouforyourpurchase!Pleasereferthisinstruction WIFI+BLE SurplifeAPPRemoteController Productparameters Productname：LEDCeilingLight Wattage:30W ConnectionMethods：WiFi+BLE APP：Surplife SuitablePhoneOS：Android6.0/IOS11.0orlater ColorTemperature：2700K-6500K WorkingTemperature：-20TO+45°C EffectiveRemotedDistance：Visualrange40m Voltage：100-130VAC,50/60HZ(lowvoltage) AverageLife：20000H Installationinstructions Step1:Rotatethebucklebaseout Step2:Makethebucklebasepositionedanddrilledintheceiling,andthenlinkthefirelineand nullline,fixedwithscrewsatlast Step3:Embedthelampintothebase,rotateandfixit Howtoconnectwires？ 1.Peefofftheskintoexposethe1-1.5cmlengthofthewireoftheceilinglightandthewireofyour house. 2.Alighthewireofceilinglightwiththewireofyourhouse(don'tneedtodistinguishlivewire andnaughtwire).Thentwistthemclockwiseintothenuts. 3.Afterthetwosetsofwiresareconnected.andpullthecableandmakesurethatitistightened. DownloadSurplifeApp Download"Surplife"APPfromAppleStoreandGooglePlayStore,orscantheQRcode. FAQ Scanthe"Instruction"QRcodetoreadtheelectronicmanual.OrentertheAPP"FAQ"tolearn more. HowtoconnectsmartdeviceviaWiFi? 1.OpenyourphoneBluetooth,turnondevice. 2.Enter"Surplife"APP,tap"AddDevice"orclick"+"atthetoprightcorner. 3.Tapthedeviceonthelist,thenselectyourWiFinetwork,enterthepassword,done! HowtoconnectsmartdeviceviaBluetooth? 1.OpenyourphoneBluetooth,turnondevice 2.Enter"Surplife"APP,tap"AddDevice"orclick"+"atthetoprightcorner. 3.3.Tapthedeviceonthelist,thenselectupperrightcorner"BluetoothLocalMode",done! Tips: 1.WiFiandBluetoothconnectioncan'tbeconnectedsimultaneously. 2.Plsresetthedevicefirstwhenyouswitchtheconnectionmethod. Howtoresetthefactorysetting? 1.Ensurethedeviceispoweredoff. 2.Turnonthedevicethenoff,keep5seconds,repeatthisprocess3times,untiltheceilinglight flash. HowdoconnecttoAmazonAlexa？ Tips: 1.Plsmakesurethereisadeviceonthelist,andmodifyanameyouwanttoask. 2.Checkwhetherthedevice"CloudOnline". Step1:Clickthedeviceicon>tapupperrightcorner"···">DeviceInformation>Cloud "online". Step2:DirectlyLinkwithAlexa 1.Enter"Profile"page,thenclick"Alexa"icon. 2.EnterLoginPage,signinyourAmazonAlexaaccount,thenclick"LinkNow". Step3.SendcommandstoyourAlexa Supportedvoicecommands: •Turnon/off<lightname>. •Dim<lightname>. •Brighten<lightname>. •Set<lightname>to[0-100%]. •Turn<lightname>to[color]. SupportedColorOptions: Blue,Crimson,Cyan,Fuchsia,Gold,Green,Lavender, Lime,Magenta,Orange,Purple,Red,Salmon,Teal, SkyBlue,Turquoise,Violet,Yellow. ForScenes: Youcanactivatescenesbyfollowingvoice commands: Alexa,activate{scenename}. Alexa,turnon{scenename}. HowdoconnecttoGoogleAssistant？ Tips: 1.Plsmakesurethereisadeviceonthelist,andmodifyanameyouwanttoask. 2.Checkwhetherthedevice"CloudOnline". Step1:EnterGoogleHomeAppandclickonthe"+"atthetopleftcorner>setupdevice Step2:Click"WorkwithGoogle"thenenter“Surplife” Step3:Loginyour"Surplife"account. Step4:SendcommandstoyourGoogle,aftertheapp linkswithGoogleHomesuccessfully. Supportedvoicecommands: •Turnon/off<lightname>. •Dim<lightname>. •Brighten<lightname>. •Set<lightname>to[0-100%]. •Turn<lightname>to[color]. SupportedColorOptions: Blue,Crimson,Cyan,Fuchsia,Gold,Green,Purple ,Lime,Magenta,Orange,Red,Salmon,Lavender, SkyBlue,Teal,Turquoise,Violet,Yellow. ForScenes: Youcanactivatescenesbyfollowingvoice commands: HeyGoogle,activate{scenename}. HeyGoogle,turnon{scenename}. LightColorsSyncWithMusic-IOS 1.Forthemusicfilesthathavebeenloaded,click"Addmusic"-ImportfromPC CopythelinkandopenthewebonPC,thenuploadyourmusicfiles,rebacktotheapp,tap "Confirm" CreateaSchedule Clickthedeviceicon>tapupperrightcorner"···">Schedule. CreateaSMARTHome Pleasemakesureyourdeviceis"Cloudonline". Step1：Clickthedeviceicon>tapupperrightcorner"···">DeviceInformation>Cloud"on line". Step2:EnterSMARTpage>CreateSmart>Chooseamodeyouneed>SetyourLocation. FCCStatement ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice, pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotection againstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcan radiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions, maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethat interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmful interferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipment offandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe followingmeasures: Reorientorrelocatethereceivingantenna. Increasetheseparationbetweentheequipmentandreceiver. Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris connected. Consultthedealeroranexperiencedradio/TVtechnicianforhelp. Caution:Anychangesormodificationstothisdevicenotexplicitlyapprovedbymanufacturer couldvoidyourauthoritytooperatethisequipment. Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwo conditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustaccept anyinterferencereceived,includinginterferencethatmaycauseundesiredoperation. RFExposureInformation ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolled environment.Thisequipmentshouldbeinstalledandoperatedwithminimumdistance20cm betweentheradiatorandyourbody.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2023-1-11> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2ASVX-ZJWFCLA ZJ-BWCLAL-RGBWW-R12C2 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Xiaoxiong Feng/CEO Company: JM Zengge Co.,Ltd Address: Room 01,03,04, 14th Floor, The Torch Building No.288 Jin'ou Road Jiangmen China Phone: 0750-3075181 Fax: 0750-3075181 E-Mail: [email protected]

JM Zengge Co.,Ltd Room 01,03,04, 14th Floor, The Torch Building No.288 Jin'ou Road Jiangmen China Date: 2023-1-11 FCC ID: 2ASVX-ZJWFCLA Model Number: ZJ-BWCLAL-RGBWW-R12C2 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, JM Zengge Co.,Ltd , declare that this EUT (FCC ID: 2ASVX-ZJWFCLA) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name/Title： Xiaoxiong Feng/CEO Company: JM Zengge Co.,Ltd Address: Room 01,03,04, 14th Floor, The Torch Building No.288 Jin'ou Road Jiangmen China Phone: 0750-3075181 Fax: 0750-3075181 E-Mail: [email protected]

JM Zengge Co.,Ltd Room 01,03,04, 14th Floor, The Torch Building No.288 Jin'ou Road Jiangmen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023-1-11 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2ASVX-ZJWFCLA including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Xiaoxiong Feng/CEO Company: JM Zengge Co.,Ltd Address: Room 01,03,04, 14th Floor, The Torch Building No.288 Jin'ou Road Jiangmen China Phone: 0750-3075181 Fax: 0750-3075181 E-Mail: [email protected]

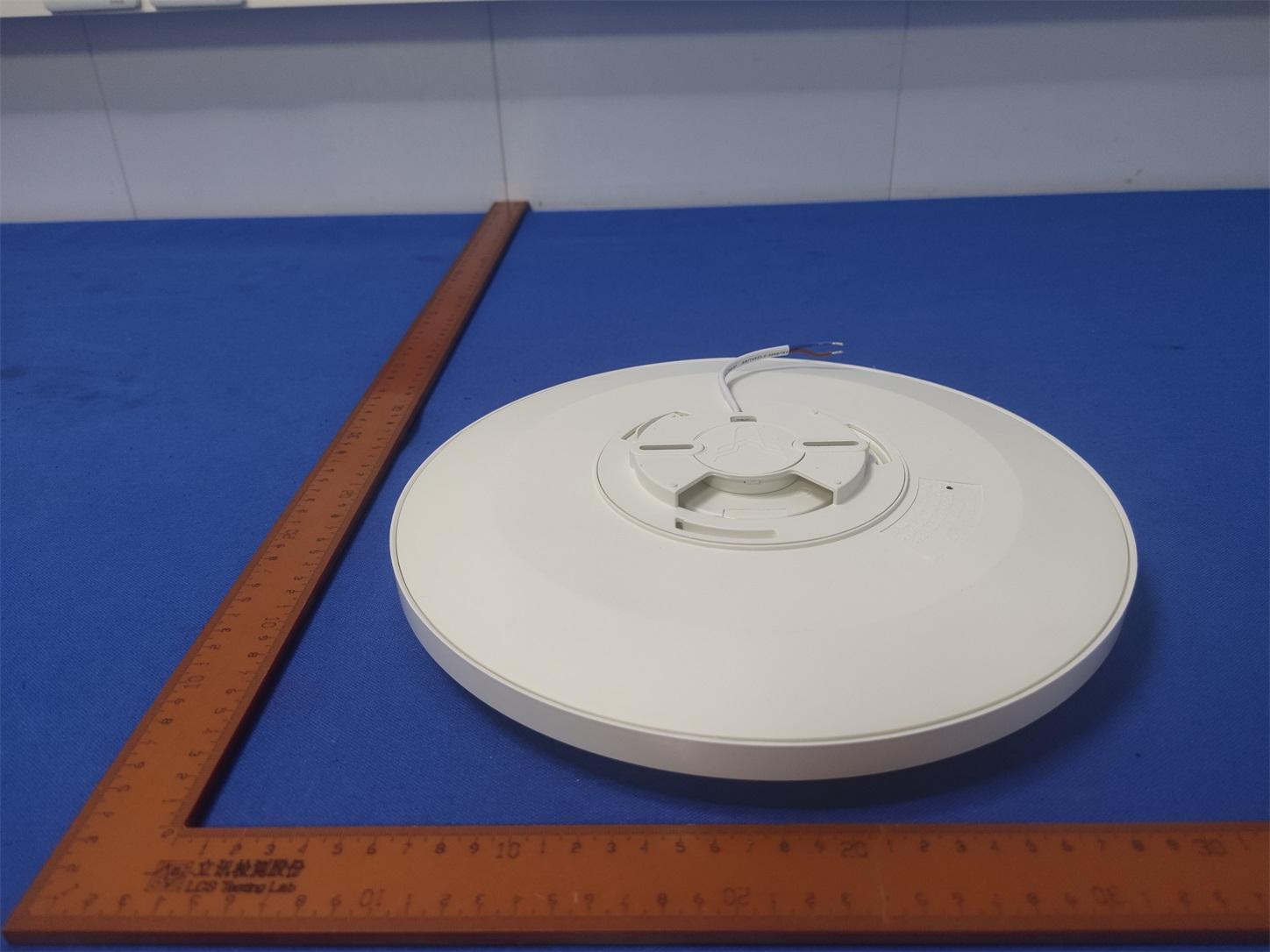

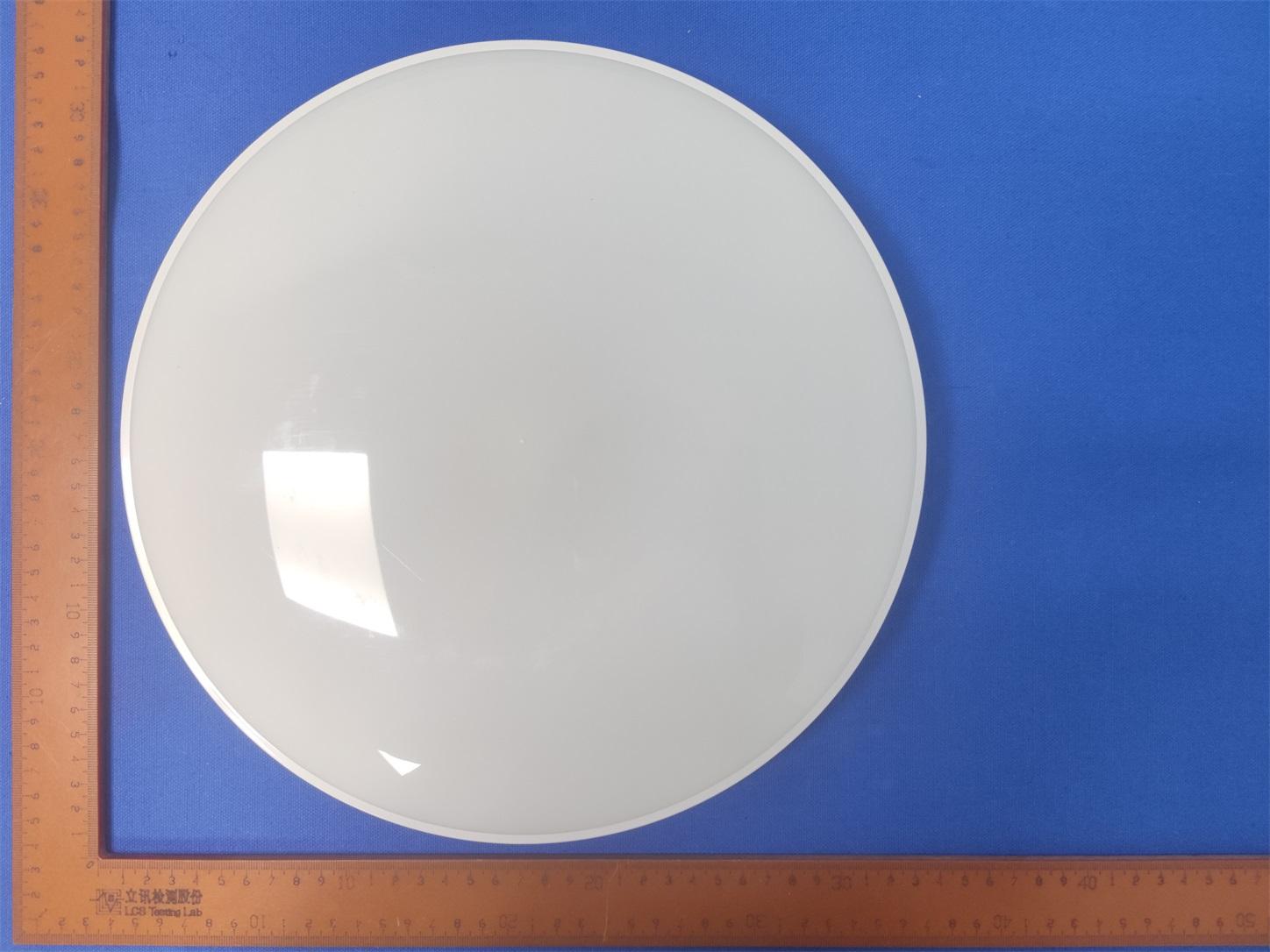

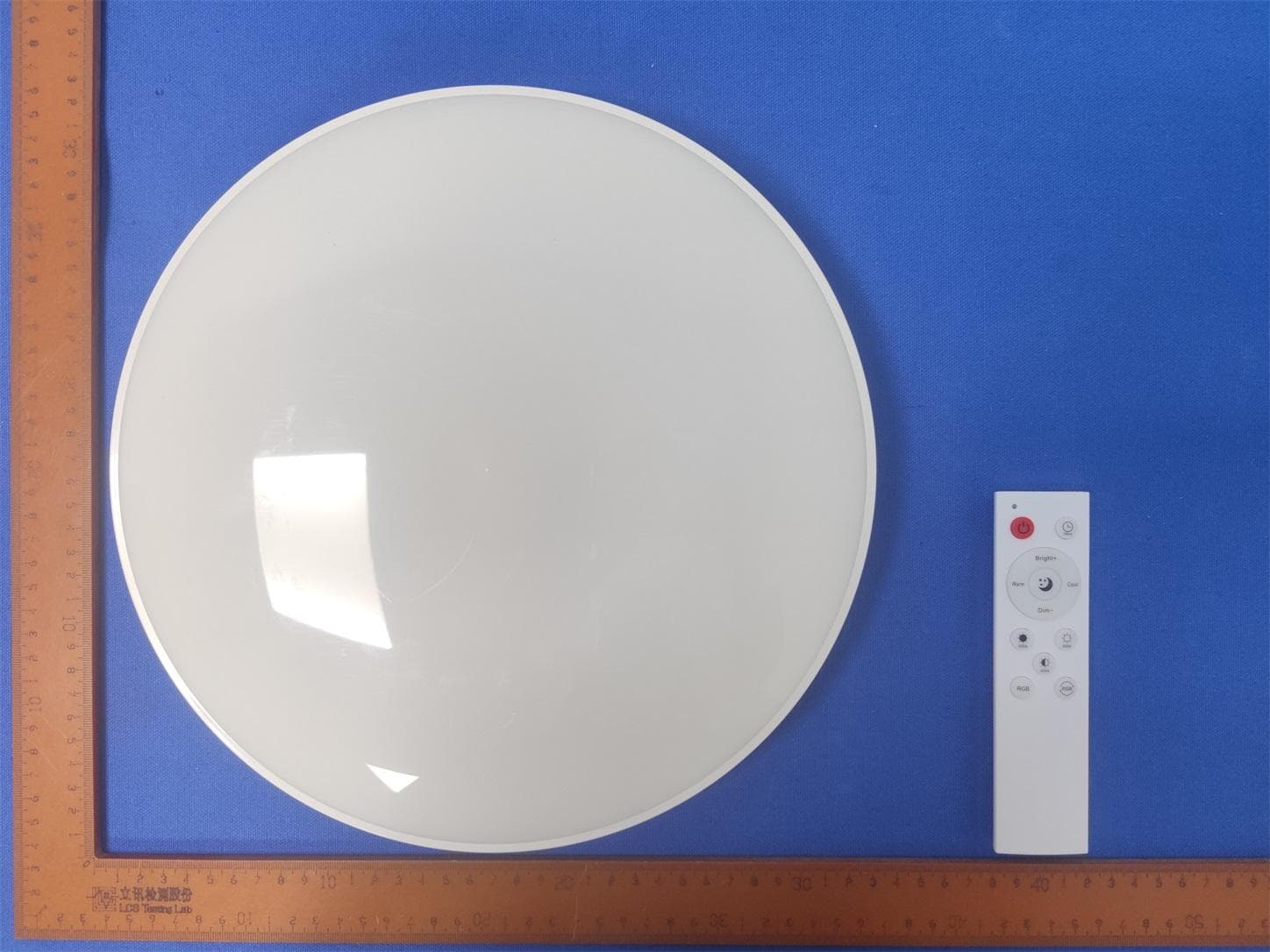

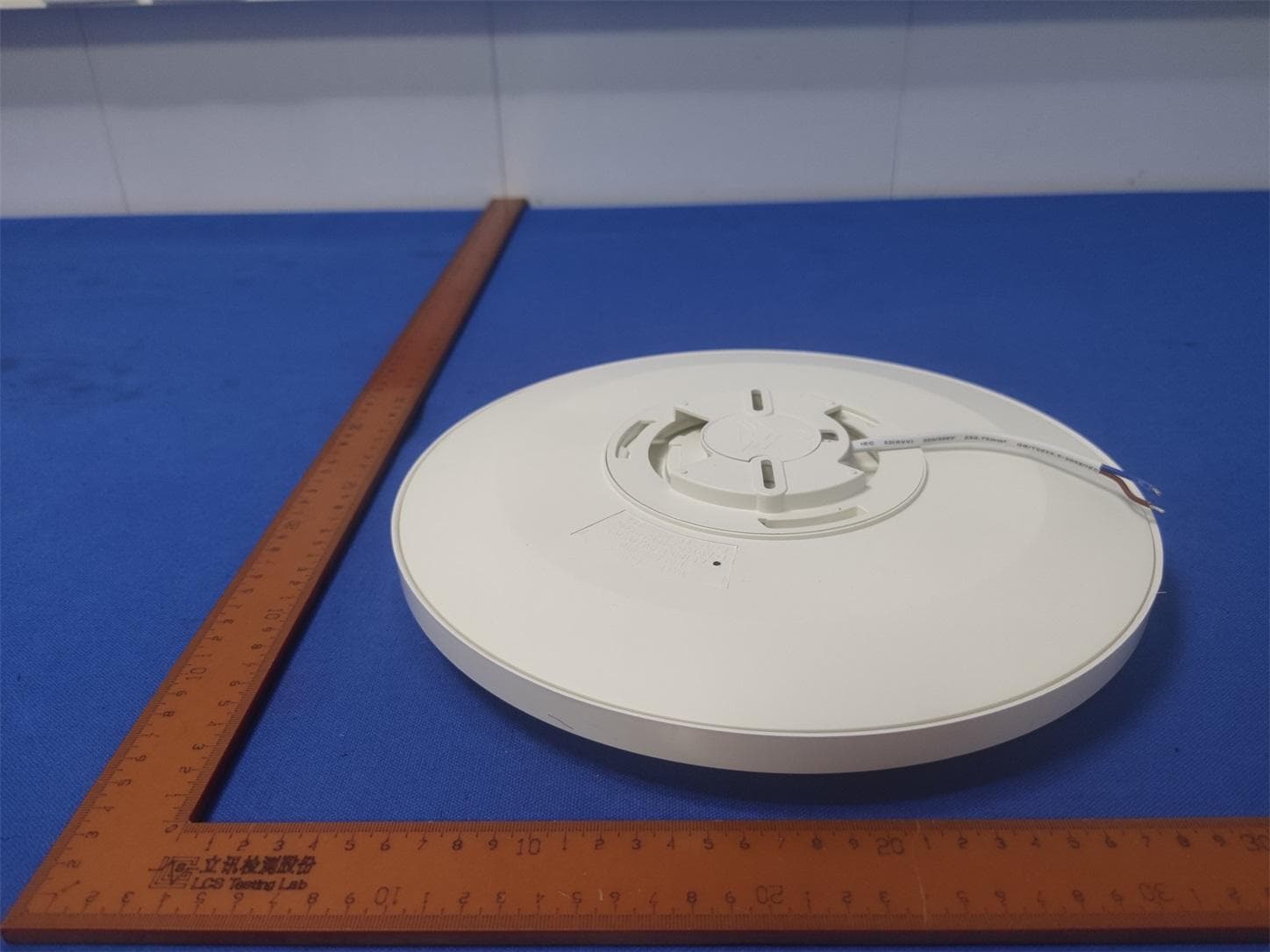

Page1of4FCCID:2ASVX-ZJWFCLA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity ExternalPhotosoftheEUT Fig.1 Fig.2 Page2of4FCCID:2ASVX-ZJWFCLA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of4FCCID:2ASVX-ZJWFCLA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 Page4of4FCCID:2ASVX-ZJWFCLA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.7

Page1of1FCCID:2ASVX-ZJWFCLA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity LABELANDLOCATION (Size:L6.0cmx3.0cm) LabelLocation LEDCeilingLight Model:ZJ-BWCLAL-RGBWW-R12C2 FCCID:2ASVX-ZJWFCLA

Page1of3FCCID:2ASVX-ZJWFCLA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity InternalPhotosoftheEUT Fig.1 Fig.2 Page2of3FCCID:2ASVX-ZJWFCLA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of3FCCID:2ASVX-ZJWFCLA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 BT/WIFIANT

Page1of5FCCID:2ASVX-ZJWFCLA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCRFExposureEvaluation 1.ProductInformation FCCID2ASVX-ZJWFCLA ProductnameLEDCeilingLight ModelnumberZJ-BWCLAL-RGBWW-R12C2 AdditionalModelNo. ZJ-BWCLAH-RGBWW-R12C2,ZJ-BWCLAL-RGBWW-R28A3, ZJ-BWCLAH-RGBWW-R28A3,ZJ-TMCLAL-RGBWW, ZJ-TMCLAH-RGBWW,ZJ-BWBL-RGBWW,ZJ-BWBH-RGBWW, ZJ-BWBL-RGBWW-24W,ZJ-BWBH-RGBWW-24W, ZJ-BWBL-RGBWW-R12C2,ZJ-BWBL-RGBWW-D328K, XG28ZJ-EU,ZJ-LXD-XG55,ZJ-LXD-XG68,ZJ-LXD-XG28-J, ZJ-LXD-XGP05-J,ZJ-BWCLBL-RGBWW,ZJ-BWCLBH-RGBWW, ZJ-BWCLBL-RGBWW-R12C2,ZJ-BWCLBH-RGBWW-R28A3 ModelDeclaration PCBboard,structureandinternalofthesemodel(s)arethesame, Sonoadditionalmodelsweretested PowersupplyInput:AC100-130V,50/60Hz,30W ModulationType GFSKforBluetoothV5.0(DTS) IEEE802.11b:DSSS(CCK,DQPSK,DBPSK) IEEE802.11g:OFDM(64QAM,16QAM,QPSK,BPSK) IEEE802.11n:OFDM(64QAM,16QAM,QPSK,BPSK) AntennaTypePCBAntenna AntennaGain1.2dBi(Max.) HardwareversionBL-M5V1.2/ZJ-LBL-RGBWW-CLAV1.4 SoftwareversionV1.0 FCCOperationfrequency 2402MHz-2480MHz 2412MHz-2462MHz ExposurecategoryGeneralpopulation/uncontrolledenvironment EUTTypeProductionUnit DeviceTypeMobileDevices Page2of5FCCID:2ASVX-ZJWFCLA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 2.EvaluationMethod SystemsoperatingundertheprovisionsofFCC47CFRsectionshallbeoperatedinamannerthatensures thatthepublicisnotexposedtoradiofrequencyenergylevelinexcessoftheCommission’sguidelines. Inaccordancewith47CFRFCCPart2SubpartJ,section2.1091thisdevicehasbeendefinedasmobile devicewherebyadistanceof0.2mnormallycanbemaintainedbetweentheuserandthedevice,andbelow RFPermissibleExposurelimitshallcomplywith. InaccordancewithKDB447498D01forSimultaneoustransmissionMPEtestexclusionapplieswhenthesum oftheMPEratiosforallsimultaneoustransmittingantennasincorporatedinahostdevice,basedonthe calculated/estimated,numericallymodelledormeasuredfieldstrengthsorpowerdensity,is≤1.0.TheMPE ratioofeachantennaisdeterminedattheminimumtestseparationdistancerequiredbytheoperating configurationsandexposureconditionsofthehostdevice,accordingtotheratiooffieldstrengthsorpower densitytoMPElimit,atthetestfrequency.Eitherthemaximumpeakorspatiallyaveragedresultsfrom measurementsornumericalsimulationsmaybeusedtodeterminetheMPEratios.Spatialaveragingdoesnot applywhenMPEisestimatedusingsimplecalculationsbasedonfar-fieldplane-waveequivalentconditions. Theantennainstallationandoperatingrequirementsforthehostdevicemustmeettheminimumtest separationdistancesrequiredbyallantennas,inbothstandaloneandsimultaneoustransmissionoperations, tosatisfycompliance. 3.Limit 3.1ReferEvaluationMethod ANSIC95.1–1999:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoRadioFrequency ElectromagneticFields,3kHzto300GHz. FCCKDBpublication447498D01General1RFExposureGuidancev06:MobileandPortableDevicesRF ExposureProceduresandEquipmentAuthorizationPolicies. FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1091:Radiofrequencyradiationexposureevaluation:mobiledevices 3.2Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100)* (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100)* (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequencyinMHz *=Plane-waveequivalentpowerdensity Page3of5FCCID:2ASVX-ZJWFCLA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 4.MPECalculationMethod PredicationofMPElimitatagivendistance Equationfrompage18ofOETBulletin65,Edition97-01 S=PG/4πR² Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecenterofradiationoftheantenna 5.AntennaInformation PCBAntennacanonlyuseantennascertificatedasfollowsprovidedbymanufacturer; Internal Identification Antennatypeand antennanumber Operatefrequency band Maximumantenna gain Note AntennaPCBAntenna2400MHz-2500MHz1.2dBi BTWIFI Antenna 6.ConductedPower <BTLEMaxConductedPower> ModeChannelFrequency(MHz) MaxConductedPower (dBm) GFSK 024023.22 1924403.13 3924803.48 <2.4GWLANMaxConductedPower> ModeChannelFrequency(MHz) MaxConductedPower (dBm) IEEE802.11b 1241214.43 6243713.74 11246213.14 IEEE802.11g 1241215.14 6243714.89 11246214.76 IEEE802.11n HT20 1241214.65 6243713.95 11246215.57 Page4of5FCCID:2ASVX-ZJWFCLA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 7.ManufacturingTolerance <BTLE> GFSK(Peak) ChannelChannel0Channel19Channel39 Target(dBm)3.03.03.0 Tolerance±(dB)1.01.01.0 <2.4GWIFI> 11B(Peak) ChannelChannel1Channel6Channel11 Target(dBm)14.013.013.0 Tolerance±(dB)1.01.01.0 11G(Peak) ChannelChannel1Channel6Channel11 Target(dBm)15.014.014.0 Tolerance±(dB)1.01.01.0 11N20SISO(Peak) ChannelChannel1Channel6Channel11 Target(dBm)14.013.015.0 Tolerance…
