2ASWV-D289North American WiFi video Stuck

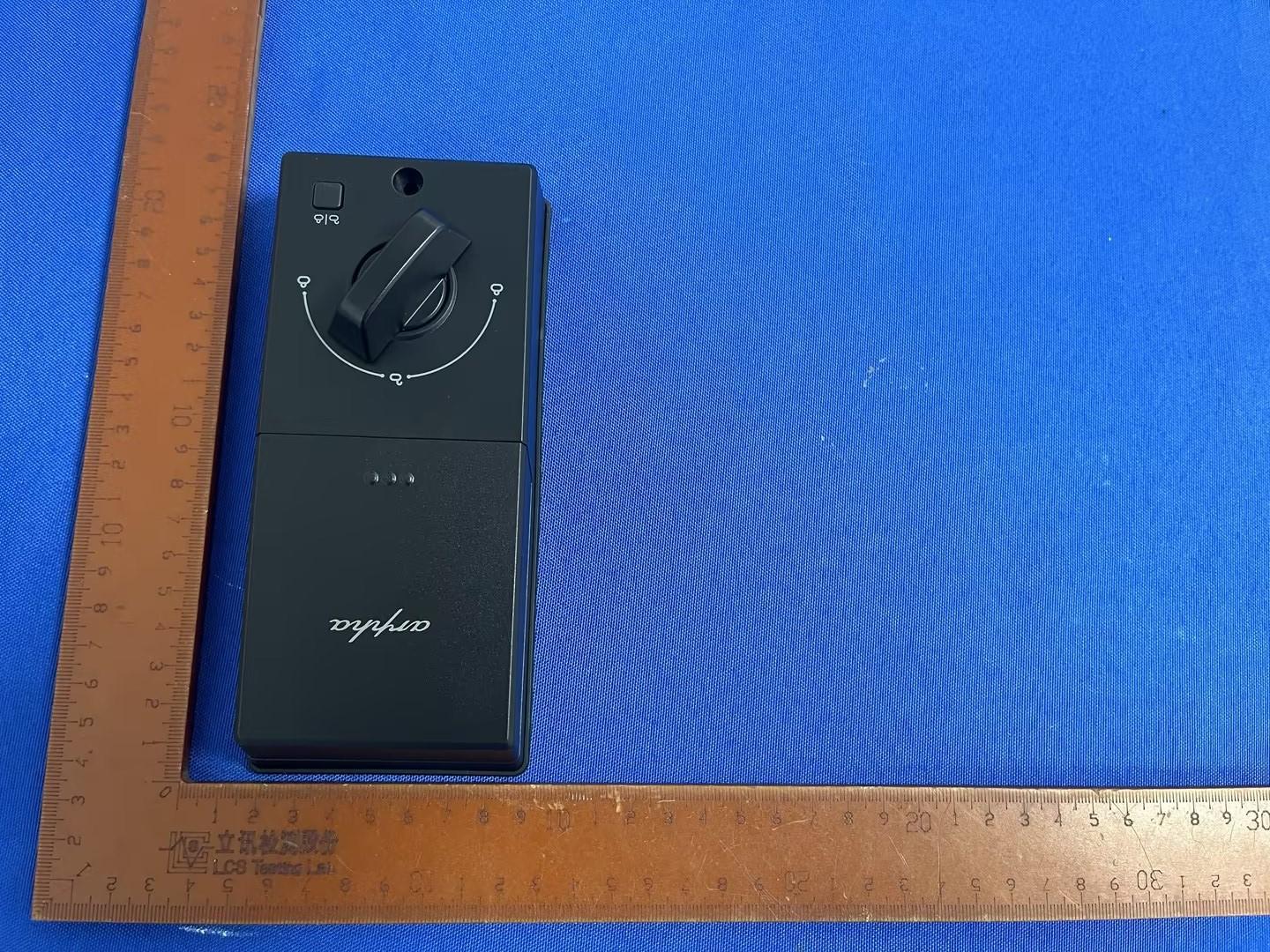

Page 1 of 4 FCC ID: 2ASWV-D289 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity External Photos of the EUT Fig. 1 Fig. 2 Page 2 of 4 FCC ID: 2ASWV-D289 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 3 Fig. 4 Page 3 of 4 FCC ID: 2ASWV-D289 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 5 Fig. 6 Page 4 of 4 FCC ID: 2ASWV-D289 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 7 Fig. 8

Page 1 of 1 FCC ID: 2ASWV-D289 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity LABEL AND LOCATION (Size: L3.0cm x 2.0cm) Label Location North American WiFi video Stuck Model: D289 FCC ID: 2ASWV-D289

Page 1 of 6 FCC ID: 2ASWV-D289 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Internal Photos of the EUT Fig. 1 Fig. 2 WiFi Antenna Page 2 of 6 FCC ID: 2ASWV-D289 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 3 Fig. 4 Page 3 of 6 FCC ID: 2ASWV-D289 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 5 Fig. 6 Page 4 of 6 FCC ID: 2ASWV-D289 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 7 Fig. 8 Not Used Page 5 of 6 FCC ID: 2ASWV-D289 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 9 Page 6 of 6 FCC ID: 2ASWV-D289 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 10 Fig. 11 Fig. 12 433 Receiver Antenna

Page 1 of 4 FCC ID: 2ASWV-D289 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC RF Exposure Evaluation 1. Product Information Product name North American WiFi video Stuck Test Model D289 Additional Model No. D289H, D289K, D289L, D289T, D289S, D289R, D289M, D289N, D289W, CA-01 Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested Power Supply DC 6V by 4*AA batteries Hardware Version Front main board: DFG011-D289_KEY_F_RV1.3 –PCBA; USB Board: DFG010-D288_ USB_RV1.0-PCBA; Rear main board: DFG011-D289_ BACK_RV1.0-PCBA Software Version Front board: 289109, Rear board: 289216 Frequency Range 2412MHz ~ 2462MHz Channel Spacing 5MHz Channel Number 11 Channels for 20MHz bandwidth (2412~2462MHz) 7 Channels for 40MHz bandwidth (2422~2452MHz) Modulation Type IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM, QPSK, BPSK) Antenna Description FPC Antenna, 1.36dBi (max.) Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Devices 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. Page 2 of 4 FCC ID: 2ASWV-D289 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information EUT can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Note Antenna FPC Antenna 2412MHz-2462MHz 1.36dBi(Max.) WIFI Antenna Page 3 of 4 FCC ID: 2ASWV-D289 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 6. Conducted Power <2.4G WIFI> Mode Channel Frequency(MHz) Max Conducted Power (dBm) IEEE 802.11b 1 2412 15.82 6 2437 15.44 11 2462 15.3 IEEE 802.11g 1 2412 14.41 6 2437 14.68 11 2462 14.29 IEEE 802.11n HT20 1 2412 13.22 6 2437 13.1 11 2462 13.02 IEEE 802.11n HT40 3 2422 12.58 6 2437 12.65 9 2452 12.5 7. Manufacturing Tolerance <2.4G WIFI> 11B (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 15.0 15.0 15.0 Tolerance ±(dB) 1.0 1.0 1.0 11G (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 14.0 14.0 14.0 Toler…

Text truncated - open the document above for the full version.

Frequency MHz Stander Effective % Effective dB GAIN dBi 240050% 49.51-3.051.15 240550% 49.9-3.021.18 241050% 50.19-2.991.22 241550% 50.21-2.991.31 242050% 50.57-2.961.24 242550% 51.37-2.891.23 243050% 52.23-2.821.21 243550% 52.5-2.801.31 244050% 52.72-2.781.32 244550% 52.39-2.811.33 245050% 52.76-2.781.36 245550% 51.37-2.891.32 246050% 51.82-2.861.33 246550% 51.44-2.891.19 247050% 50.74-2.950.99 247550% 50.83-2.940.96 248050% 50.13-3.000.89 248550% 51.22-2.910.92 249050% 53.43-2.720.92 249550% 52.87-2.770.92 250050% 51.99-2.840.82 MHz D289 1, the test requires that the temperature in the OTA darkroom is 25 ±5°C, a standard atmospheric pressure, and the humidity is greater than 45% and less than 75%. 2, DUT placement and turntable center, laser center through the center of the DUT. The coaxial line is on the other side of the antenna, avoid overlaying the antenna. 3. In the test frequency band, passives are tested every 2.4G every 5M points, 5G every 20M points, and theta and phi axes are tested every 30°. 4, the test results retain % efficiency dB efficiency and Gain value 2450MHz 3D chart (0,0,0)2450MHz 3D chart(0,0,-90)2450MHz 3D chart(90,-90,0) WIFI 2450MHz H-Plane2450MHz E12450MHz E2 Fixture photographTest photo驻波照片 D289 FreeSpace ｜＼ 2 3 4 56 ／ E：＼通诚无限＼ 版；欠 修改内�绘图设计日期 Al. 0 初版 Lyl YPH 2024. 05.10 Al. I Al. 2 A Al. 3 A 25.63±0.2 ←－－ ←－－ 面 叭」 +I 守＿＿， 02 9-WIFI-V1.。 守＿＿， B TC. 2024-04-29 0 B 叭」 叭」 ←－－ +I 0.81 c /2附于·黑色同锁线 c 、 ←－－ 币 � 深 圳通诚无限科技有限公 司 国＠ 第 一 视角 项目名称0289 日 期 2024.05.10 工艺要求g 。 ～ 3 ±0.10 ＠ 0.03 晶各规格 WIFI夫线 绘图 Lyl D 1.产品符合RoHS2.0要求。 3 ～ 3) ±o. 20 。 0.03 户晶料号 MD D 2. 无 朱标 卤油 公 墨 差尺。 寸 30 ～ 50 ±o. so 。 0.02 材质 电解钢，一对半 审核 3.，参考 一 般 公差 。 5 0 ～ +o. so ...L 0.02 外 观 黑油， 臼色字 RF Yg 4.不可有镀金后易断裂及脱落，导电不良，电路部分断裂等不良现象。 角度 ± 1 。 L:::7 0.05 i雷电点 焊锡 1比在 页码 1/1 青绞�测愚民 背胶3J.I 9471 LE 单位mm 比例I1:1版次队1.0 ｜／ 2 3 4 56 ＼

Page 1 of 55 FCC ID: 2ASWV-D289 Report No.: LCSA08194168EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Appendix A RF Test Data for 2.4GWIFI (Conducted Measurement) Product Name: North American WiFi video Stuck Test Model: D289 Environmental Conditions Temperature: 23.1 C Relative Humidity: 52.3% ATM Pressure: 100.0 kPa Test Engineer: Paddi Chen Supervised by: Nick Peng Page 2 of 55 FCC ID: 2ASWV-D289 Report No.: LCSA08194168EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity A.1 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT b 2412 Ant1 8.098 >=0.5 Pass NVNT b 2437 Ant1 7.791 >=0.5 Pass NVNT b 2462 Ant1 8.152 >=0.5 Pass NVNT g 2412 Ant1 16.053 >=0.5 Pass NVNT g 2437 Ant1 16.073 >=0.5 Pass NVNT g 2462 Ant1 16.322 >=0.5 Pass NVNT n20 2412 Ant1 16.643 >=0.5 Pass NVNT n20 2437 Ant1 16.993 >=0.5 Pass NVNT n20 2462 Ant1 17.167 >=0.5 Pass NVNT n40 2422 Ant1 35.442 >=0.5 Pass NVNT n40 2437 Ant1 35.216 >=0.5 Pass NVNT n40 2452 Ant1 35.747 >=0.5 Pass Page 3 of 55 FCC ID: 2ASWV-D289 Report No.: LCSA08194168EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs -6dB Bandwidth NVNT b 2412MHz Ant1 -6dB Bandwidth NVNT b 2437MHz Ant1 Page 4 of 55 FCC ID: 2ASWV-D289 Report No.: LCSA08194168EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT b 2462MHz Ant1 -6dB Bandwidth NVNT g 2412MHz Ant1 Page 5 of 55 FCC ID: 2ASWV-D289 Report No.: LCSA08194168EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT g 2437MHz Ant1 -6dB Bandwidth NVNT g 2462MHz Ant1 Page 6 of 55 FCC ID: 2ASWV-D289 Report No.: LCSA08194168EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT n20 2412MHz Ant1 -6dB Bandwidth NVNT n20 2437MHz Ant1 Page 7 of 55 FCC ID: 2ASWV-D289 Report No.: LCSA08194168EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT n20 2462MHz Ant1 -6dB Bandwidth NVNT n40 2422MHz Ant1 Page 8 of 55 FCC ID: 2ASWV-D289 Report No.: LCSA08194168EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT n40 2437MHz Ant1 -6dB Bandwidth NVNT n40 2452MHz Ant1 Page 9 of 55 FCC ID: 2ASWV-D289 Report No.: LCSA08194168EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity A.2 Maximum Peak Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT b 2412 Ant1 15.82 30 Pass NVNT b 2437 Ant1 15.44 30 Pass NVNT b 2462 Ant1 15.3 30 Pass NVNT g 2412 Ant1 14.41 30 Pass NVNT g 2437 Ant1 14.68 30 Pass NVNT g 2462 Ant1 14.29 30 Pass NVNT n20 2412 Ant1 13.22 30 Pass NVNT n20 2437 Ant1 13.1 30 Pass NVNT n20 2462 Ant1 13.02 30 Pass NVNT n40 2422 Ant1 12.58 30 Pass NVNT n40 2437 Ant1 12.65 30 Pass NVNT n40 2452 Ant1 12.5 30 Pass Page 10 of 55 FCC ID: 2ASWV-D289 Report No.: LCSA08194168EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity A.3 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT b 2412 Ant1 -9.96 8 Pass NVNT b 2437 Ant1 -8.83 8 Pass NVNT b 2462 Ant1 -9.62 8 Pass NVNT g 2412 Ant1 -17.26 8 Pass NVNT g 2437 Ant1 -15.86 8 Pass NVNT g 2462 Ant1 -16.52 8 Pass NVNT n20 2412 Ant1 -16.54 8 Pass NVNT n20 2437 Ant1 -17.44 8 Pass NVNT n20 2462 Ant1 -17.82 8 Pass NVNT n40 2422 Ant1 -20.77 8 Pass NVNT n40 2437 Ant1 -22.11 8 Pass NVNT n40 2452 Ant1 -21.41 8 Pass Page 11 of 55 FCC ID: 2ASWV-D289 Report No.: LCSA08194168EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China T…

Text truncated - open the document above for the full version.

Page 1 of 35 FCC ID: 2ASWV-D289 Report No.: LCSA08194168EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC TEST REPORT For Shenzhen LINGDU Auto Electronics Co., Ltd North American WiFi video Stuck Test Model: D289 Additional Model No.: Please Refer to Page 6 Prepared for : Shenzhen LINGDU Auto Electronics Co., Ltd Address : 1807-1808, Jinhua Building, No. 468, Minzhi Avenue Longhua New District,Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : August 21, 2024 Number of tested samples : 2 Sample number : A240819101-1, A240819101-2 Serial number : Prototype Date of Test : August 21, 2024 ~ August 28, 2024 Date of Report : August 29, 2024 Page 2 of 35 FCC ID: 2ASWV-D289 Report No.: LCSA08194168EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCSA08194168EA Date of Issue ................................... : August 29, 2024 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Shenzhen LINGDU Auto Electronics Co., Ltd Address ........................................... : 1807-1808, Jinhua Building, No. 468, Minzhi Avenue Longhua New District,Shenzhen, China Test Specification Standard .......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ................... : TRF-4-E-147 A/0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : North American WiFi video Stuck Trade Mark ...................................... : Arpha Test Model ...................................... : D289 Ratings ............................................ : DC 6V by 4*AA batteries Result ........................................... : Positive Compiled by: Supervised by: Approved by: Vera Deng/ Administrator Cary Luo/ Technique principal Gavin Liang/ Manager Page 3 of 35 FCC ID: 2ASWV-D289 Report No.: LCSA08194168EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCSA08194168EA August 29, 2024 Date of issue Test Model.............................. : D289 EUT......................................... : North American WiFi video Stuck Applicant............................... : Shenzhen LINGDU Auto Electronics Co., Ltd Address................................... : 1807-1808, Jinhua Building, No. 468, Minzhi Avenue Longhua New District,Shenzhen, China Telephone............................... : / Fax.......................................... : / Manufacturer......................... : Shenzhen LINGDU Auto Electronics Co., Ltd Address................................... : 1807-1808, Jinhua Building, No. 468, Minzhi Avenue Longhua New District,Shenzhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen LINGDU Auto Electronics Co., Ltd Address................................... : 1807-1808, Jinhua Building, No. 468, Minzhi Avenue Longhua New District,Shenzhen, China Telephone............................... : / Fax.......................................... : / Page 4 of 35 FCC ID: 2ASWV-D289 Report No.: LCSA08194168EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Revision History Report Version Issue Date Revision Content Revised By 000 August 29, 2024 Initial Issue -- Page 5 of 35 FCC ID: 2ASWV-D289 Report No.: LCSA08194168EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 5…

Text truncated - open the document above for the full version.

Page 1 of 1 FCC ID: 2ASWV-D289 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Setup Photos of the EUT Test Setup Photo(s) of Radiated Emissions Measurement Fig. 1 Fig. 2
