2ASWY20TLW212BAsset GPS TRACKER

TOPFLYtech TLW2-12B Asset GPS Tracker User Manual 20210223 Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved 2 Thanks for your purchasing of the high-quality GPS tracker from TOPFLYtech. Please read this user manual carefully before installation and operation. Information in this manual is the property of TOPFLYtech. Changes to the specifications and features in this manual may be made by TOPFLYtech without prior notice. No part of this manual could be reproduced, copied, translated, transmitted, or published in any form or by any means without TOPFLYtech's prior written permission. The tracker is using GNSS & LTE technologies and could collect device coordinates then transfer them via LTE network to the server. It provides customer with cost-effective, efficient and safety management. It has been widely used in commercial transportation, company vehicle fleet management, intelligent transportation, logistics, car rental, engineering machinery, marine transportation, and other segments. TLW2-12B Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved 3 Contents 1. QUICK REFERENCE .............................................................................................................................. 4 2. PRODUCT SPECIFICATIONS .............................................................................................................. 4 3. STANDARD ACCESSORIES INTRODUCTION ................................................................................ 6 4. LED INDICATOR ................................................................................................................................... 6 5. INSTALLATION GUIDE ....................................................................................................................... 6 5.1 SIM CARD PRE-INSTALLATION NOTE .......................................................................................................... 6 5.2 SIM CARD INSTALLATION AND TRACKER POWER SWITCH ........................................................................... 6 5.3 POWER EXTENSION CABLE.............................................................................................................................. 6 5.4 INSTALLATION ................................................................................................................................................. 7 6. QUICK TROUBLE SHOOTING ............................................................................................................ 7 6.1 UNABLE TO CONNECT TO THE TRACKING PLATFORM ................................................................................. 7 6.2 TRACKER SHOWS OFFLINE ............................................................................................................................. 7 6.3 UNABLE TO LOCATE ........................................................................................................................................ 7 6.4 LOCATION DRIFT............................................................................................................................................. 7 6.5 NO COMMAND REPLY ................................................................................................................................... 7 7. WARRANTY AND STOCK .................................................................................................................. 7 8. OPTIONAL ACCESSORIES LIST ......................................................................................................... 8 9. FCC WARNING ..................................................................................................................................... 8 Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved 4 1. Quick Reference Intelligent Power Management To extend the battery life, we designed an intelligent power management algorithm. This algorithm allows the tracker working for long period when battery is low and disconnected from external power. Once the battery is charged back, the tracker will report as normal. This function is enabled in default. Customer can disable it by command. The detail working logic is: ⚫ When the battery voltage value is down to 3.5V, then the tracker will report at every 24 hours no matter moving or standstill. ⚫ When the battery is charged back to 3.6V, the device will report as what are set by customer. FOTA (firmware over the air) Notification TOPFLYtech is committed to providing clients with the best user experience. We are offering automatic firmware update feature for every device. This feature allows devices always having the latest version firmware. It can save clients the time and effort of updating firmware manually. Please note that this feature is enabled in default. If you want to turn it off, please contact with TOPFLYtech. If this feature is disabled, the fw update only can be done by sending upgrade command manually. 2. Product Specifications Network Specifications Operating Band FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/ B20/B25/B26/B28 TDD: B39 (Cat M1 only) EGPRS: 850/900/1800/1900MHz Data Transmission eMTC: Max. 300Kbps (DL), Max. 375Kbps (UL) Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved 5 NB1: Max. 32Kbps (DL), Max. 70Kbps (UL) EDGE: Max. 296Kbps (DL), Max. 236.8Kbps (UL) GPRS: Max. 107Kbps (DL), Max. 85.6Kbps (UL) GNSS Specifications GNSS Chipset Qualcomm Gen 8 GNSS receiver GNSS System GPS+Glonass+Galileo+Beidou Receiver type: 33 tracking / 99 acquisitions- channel GNSS receiver Sensitivity Cold start: -149 dBm Tracking: -163 dBm Position Accuracy in open sky (CEP-50) < 2m Standalone TTFF Cold start: < 29s Warm start: < 27s Hot start: < 1s Interfaces Digital Input 3 Digital Output 3 Configurable Input 3 (input range 0-32V, ≥6V trigger in digital) Voltage Output (DC 5V/12V) 1 Charging DC 7-60V or USB cable Data Transmission USB cable Network, GNSS Antenna Internal only Indicator LED Network, GNSS and Battery FOTA Yes Light Sensor 1 back light senso…

Text truncated - open the document above for the full version.

SHENZHENTOPFLYtechCO.,LIMITED Rm409ScientificResearchBuildingTsinghuaHi-techParkHi-techIndustrialNanshanDistrict ShenzhenChina Tel:+8675526060058Extension:168 Email:[email protected] FCCConfidentialAuthorization Date:2021/02/22 FEDERALCOMMUNICATIONSCOMMISSIONS AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Subject:ConfidentialityRequestregardingapplicationforcertificationof FCCID:2ASWY20TLW212B InaccordancewithSections0.457and0.459oftheCommission’sRules,SHENZHENTOPFLYtech CO.,LIMITEDherebyrequestslong-termconfidentialtreatmentofinformationaccompanying thisapplicationasoutlinedbelow: BlockDiagram Schematics OperationDescription Theabovematerialscontainproprietaryandconfidentialinformationnotcustomarilyreleased tothepublic.Thepublicdisclosureofthesematerialsprovidesunjustifiedbenefitstoits competitorsinthemarket. SincerelyYours, Signature: FEICHENG Title:GM

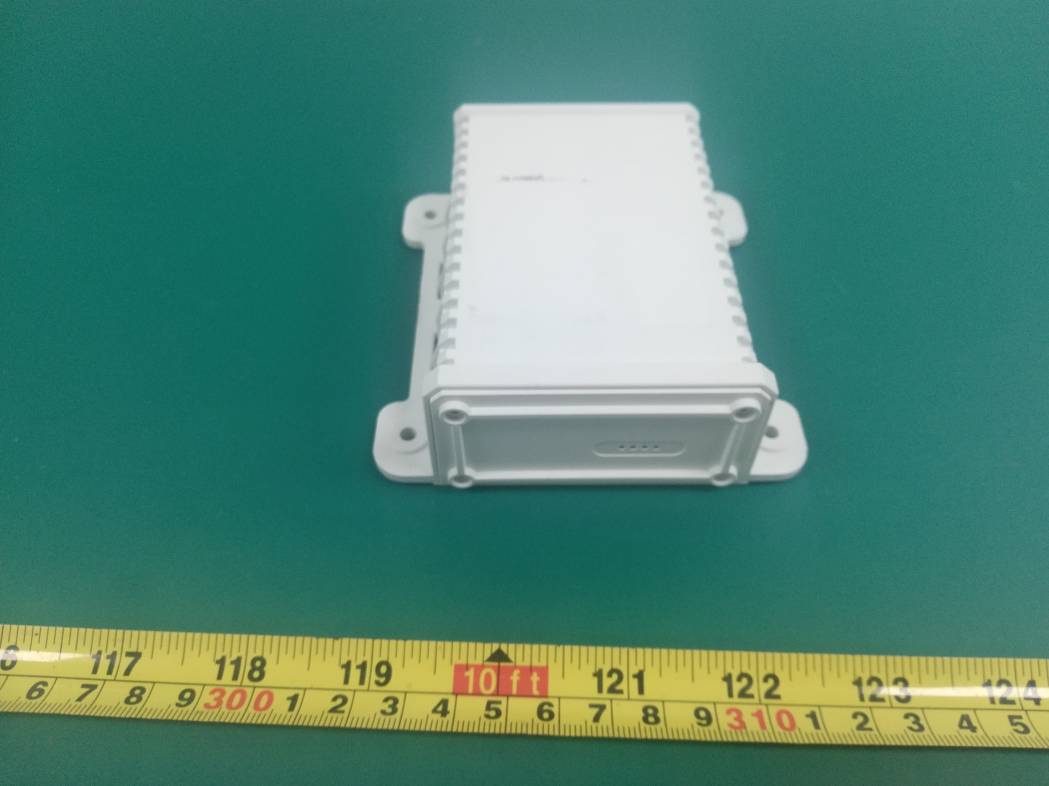

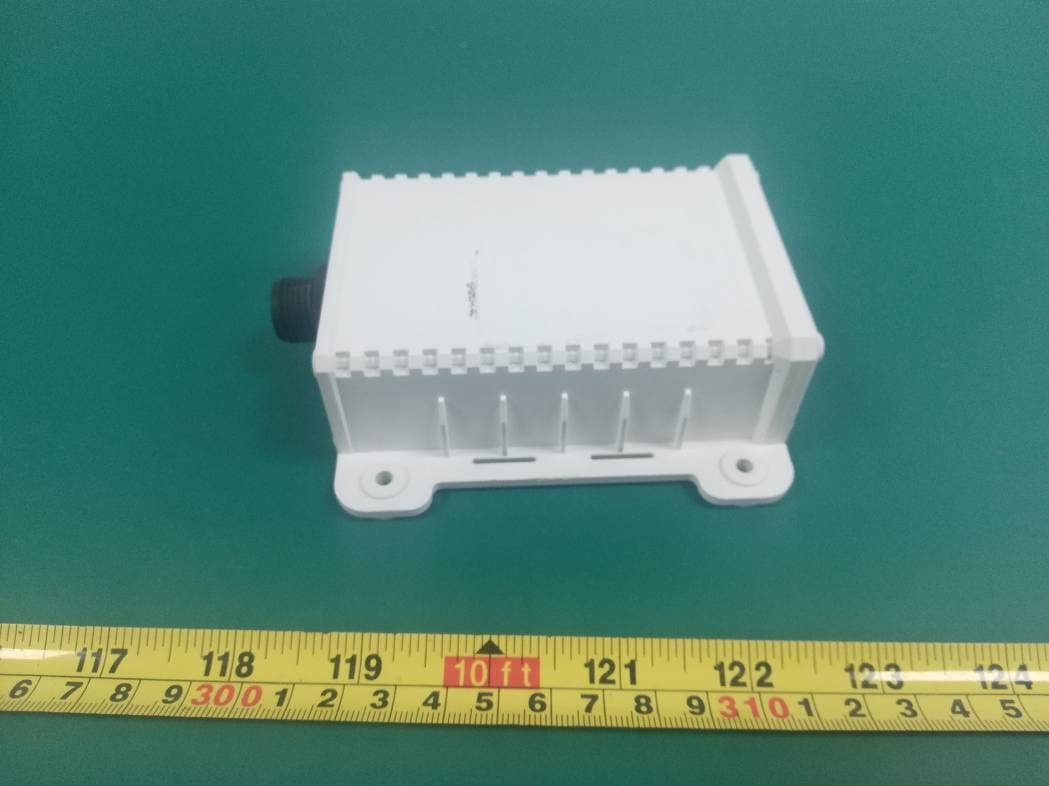

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201230004-RF Page 1 of 4 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201230004-RF Page 2 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201230004-RF Page 3 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201230004-RF Page 4 of 4

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201230004-RF EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201230004-RF Page 1 of 7 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201230004-RF Page 2 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201230004-RF Page 3 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201230004-RF Page 4 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201230004-RF Page 5 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201230004-RF Page 6 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201230004-RF Page 7 of 7 BT ANT GSM&LTE ANT

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201230004-00 FCC Part 15.247 Page 10 of 45 FCC §15.247 (i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247 (i) and subpart 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Result Calculated Formulary: Predication of MPE limit at a given distance S = 2 4R PG π S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201230004-00 FCC Part 15.247 Page 11 of 45 Mode Frequency (MHz) Antenna Gain Max Tune Up Conducted Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric)(dBm)(mW) BLE 2402-2480 1.10 1.29 -0.5 0.89 20 0.00023 1.0 GSM850 824-849 -0.5 0.89 23.97 249.46 20 0.044 0.55 GSM1900 1850-1910 -1.1 0.78 20.97 125.03 20 0.019 1.0 LTE Band 2 1850-1910 -1.1 0.78 24.0 251.19 20 0.039 1.0 LTE Band 4 1710-1755 -1.0 0.79 23.0 199.53 20 0.031 1.0 LTE Band 5 824-849 -0.5 0.89 24.0 251.19 20 0.044 0.55 LTE Band 12 699-716 -0.4 0.91 24.0 251.19 20 0.045 0.466 LTE Band 13 777-787 -0.4 0.91 24.0 251.19 20 0.045 0.518 LTE Band 25 1850-1915 -1.1 0.78 25.0 316.23 20 0.049 1.0 Note: 1. The antenna gain was provided by the applicant. 2. The BLE function can transmit at the same time with the GSM/NB-IoT/eMTC. 3. Please refer to the MPE report of the FCC ID: XMR201707BG96 for the GSM/LTE output power. So the worst simultaneous transmitting consideration: The ratio=MPE BLE /limit + MPE NB-IoT /limit=0.00023/1.0+0.045/0.466 =0.097＜1.0 To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Compliance

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For SHENZHEN TOPFLYtech CO., LIMITED Rm409 Scientific Research Building Tsinghua Hi-tech Park Hi-tech Industrial Nanshan District shenzhen China Report Type: Original Report Product Type: Asset GPS TRACKER Re port Number: RSZ201230004-00 Re port Date: 2021-02-07 Reviewed B y: Jacob Kong RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn FCC ID: 2ASWY20TLW212B Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201230004-00 FCC Part 15.247 Page 2 of 46 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 DUTY CYCLE ................................................................................................................................................................ 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 EXTERNAL I/O CABLE .................................................................................................................................................. 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 TEST EQUIPMENT LIST ......................................................................................................................................... 10 FCC §15.247 (i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ........................................................ 11 APPLICABLE STANDARD ............................................................................................................................................ 11 RESULT ...................................................................................................................................................................... 11 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 13 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 EUT SETUP ................................................................................................................................................................ 14 EMI TEST RECEIVER SETUP ....................................................................................................................................... 14 TEST PROCEDURE ...................................................................................................................................................... 14 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................................... 15 TEST DATA ................................................................................................................................................................ 15 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ..................................................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201230004-RF Page 1 of 3 EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200911007-RF Page 2 of 3 Charging through extension cable Radiated Emissions View (Below 1 GHz) Charging through USB cable Radiated Emissions View (Below 1 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200911007-RF Page 3 of 3 Radiated Emissions View (Above 1 GHz)
