2ASXW-C17Remote control

SHENZHEN YUANSU CHUANGDA TECHNOLOGY CO., LTD Room 526, Huamei Building, Zhenxing Road, Futian District, Shenzhen, China 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: SHENZHEN YUANSU CHUANGDA TECHNOLOGY CO., LTD Address: Room 526, Huamei Building, Zhenxing Road, Futian District, Shenzhen, China Product Name: Remote control FCC ID: 2ASXW-C17 Model(s): C17, C17ss, Q05f, C05f, L16f, L16ss f, C11 pro, C17d, F05, F06, F07, TT05, TT06 2.911(d)(5)(i) Equipment Type We, SHENZHEN YUANSU CHUANGDA TECHNOLOGY CO., LTD (“the applicant”) certify that the equipment for which authorization is sought through certification is not: • Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules. • Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Date: November 29, 2024 Name: Tok Xu Title: Manager Company: SHENZHEN YUANSU CHUANGDA TECHNOLOGY CO., LTD NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

SHENZHEN YUANSU CHUANGDA TECHNOLOGY CO., LTD Room 526, Huamei Building, Zhenxing Road, Futian District, Shenzhen, China 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: SHENZHEN YUANSU CHUANGDA TECHNOLOGY CO., LTD Address: Room 526, Huamei Building, Zhenxing Road, Futian District, Shenzhen, China Product Name: Remote control FCC ID: 2ASXW-C17 Model(s): C17, C17ss, Q05f, C05f, L16f, L16ss f, C11 pro, C17d, F05, F06, F07, TT05, TT06 2.911(d)(5)(ii) Applicant filing We, SHENZHEN YUANSU CHUANGDA TECHNOLOGY CO., LTD (“the applicant”) certify that, as of the date of the filing of the application, the applicant is is not identified on the “Covered List” NOTE 1 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Signature: Date: 2024/11/26 Name: Tok Xu Title: Manager Company: SHENZHEN YUANSU CHUANGDA TECHNOLOGY CO., LTD NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the- communications-supply-chain-through-the

SHENZHEN YUANSU CHUANGDA TECHNOLOGY CO., LTD Room 526, Huamei Building, Zhenxing Road, Futian District, Shenzhen, China Date: 2024/11/26 Dear Sir/Madam, We, SHENZHEN YUANSU CHUANGDA TECHNOLOGY CO., LTD, Hereby declares the following statement, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Remote control Model no.: C17, C17ss, Q05f, C05f, L16f, L16ss f, C11 pro, C17d, F05, F06, F07, TT05, TT06 Sincerely, Name/Title： Tok Xu / Manager Company: SHENZHEN YUANSU CHUANGDA TECHNOLOGY CO., LTD Address: Room 526, Huamei Building, Zhenxing Road, Futian District, Shenzhen, China Phone: +86-13823338785 Fax: +86-755-82567459 E-Mail: [email protected]

SHENZHEN YUANSU CHUANGDA TECHNOLOGY CO., LTD Room 526, Huamei Building, Zhenxing Road, Futian District, Shenzhen, China Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2024/11/26 Subject; Request for Confidentiality FCC ID: 2ASXW-C17 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Tok Xu Title: Manager

SHENZHEN YUANSU CHUANGDA TECHNOLOGY CO., LTD Room 526, Huamei Building, Zhenxing Road, Futian District, Shenzhen, China Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2024/11/26 Subject; Request for Confidentiality FCC ID: 2ASXW-C17 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Tok Xu Title: Manager

SHENZHEN YUANSU CHUANGDA TECHNOLOGY CO., LTD Room 526, Huamei Building, Zhenxing Road, Futian District, Shenzhen, China Letter of Authorization Company name: SHENZHEN YUANSU CHUANGDA TECHNOLOGY CO., LTD Address: Room 526, Huamei Building, Zhenxing Road, Futian District, Shenzhen, China Product Name: Remote control FCC ID: 2ASXW-C17 Model(s): C17, C17ss, Q05f, C05f, L16f, L16ss f, C11 pro, C17d, F05, F06, F07, TT05, TT06 Product Description: Remote control We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2024/11/26 Name: Tok Xu Title: Manager Company: SHENZHEN YUANSU CHUANGDA TECHNOLOGY CO., LTD

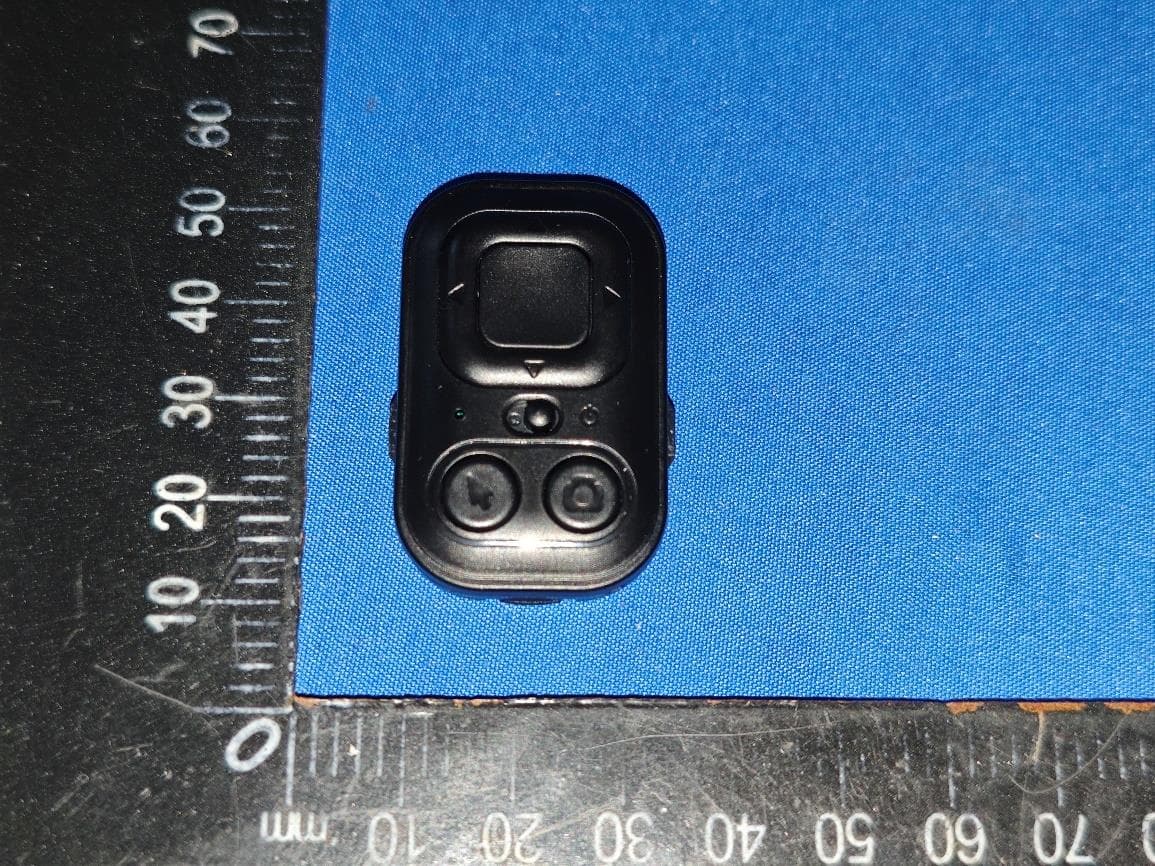

FCC ID:2ASXW-C17 Page 1 of 4 External Photographs of EUT Fig.1 Fig.2 FCC ID:2ASXW-C17 Page 2 of 4 Fig.3 Fig.4 FCC ID:2ASXW-C17 Page 3 of 4 Fig.5 Fig.6 FCC ID:2ASXW-C17 Page 4 of 4 Fig.7

FCC ID:2ASXW-C17 Page 1 of 4 External Photographs of EUT Fig.1 Fig.2 FCC ID:2ASXW-C17 Page 2 of 4 Fig.3 Fig.4 FCC ID:2ASXW-C17 Page 3 of 4 Fig.5 Fig.6 FCC ID:2ASXW-C17 Page 4 of 4 Fig.7

Label Location FCC ID: 2ASXW-C17

FCC ID:2ASXW-C17 Page 1 of 3 Internal Photographs of EUT Fig.1 Fig.2 FCC ID:2ASXW-C17 Page 2 of 3 Fig.3 Fig.4 Bluetooth antenna FCC ID:2ASXW-C17 Page 3 of 3 Fig.5 Fig.6

FCC ID:2ASXW-C17 Page 1 of 3 Internal Photographs of EUT Fig.1 Fig.2 FCC ID:2ASXW-C17 Page 2 of 3 Fig.3 Fig.4 Bluetooth antenna FCC ID:2ASXW-C17 Page 3 of 3 Fig.5 Fig.6

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASXW-C17 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASXW-C17 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 The example values shown in Table B.2 are for illustration only. Frequency (MHz) Distance (mm) 5 10 15 20 25 30 35 40 45 50 300 39 65 88 110 129 148 166 184 201 217 450 22 44 67 89 112 135 158 180 203 226 835 9 25 44 66 90 116 145 175 207 240 1900 3 12 26 44 66 92 122 157 195 236 2450 3 10 22 38 59 83 111 143 179 219 3600 2 8 18 32 49 71 96 125 158 195 5800 1 6 14 25 40 58 80 106 136 169 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASXW-C17 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Conducted Power Results TestMode Antenna Frequency[MHz] Result[dBm] BLE_1M Ant1 2402 0.29 BLE_1M Ant1 2440 0.09 BLE_1M Ant1 2480 -1.46 Manufacturing tolerance GFSK(1Mbps) (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 0 -0.5 -2 Tolerance ±(dB) 1 1 1 Results Test Mode Max Conducted Tune Up Power(dBm) Max of ERP and Conducted Power including Tune Up (dBm) Max of ERP and Conducted Power including Tune Up (mW) Exemption Limit(mW) GFSK(1Mbps) 1.0 1.0 1.26 3 Max of ERP and Conducted Power including Tune Up (dBm) = Max Conducted Tune Up Power(dBm) and Max Conducted Tune Up Power(dBm) + Antenna Gain(dBi)-2.15), whichever is greater. The antenna gain of the EUT for BT is -0.93 dBi (Max). the Maximum Eirp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

Bluetooth Antenna specification&Test report Yichip Microelectronics © 2014 Test Ccompany TA Technology (Shanghai) Co., Ltd. Test Address Building 1, No. 400, Fangchun Road, China (Shanghai) Pilot Free Trade Zone Test Date 2020/7/24 Test Instrument Keysight E5071B antenna design specification Antenna dimension show as the picture blow, 0.8mm of FR4 epoxy with 2 layers of 0.035mm copper. Gian and Efficiency Frequency (MHz) Efficiency(%) Gain(dBi) 2402 14.86 -0.93 2420 12.54 -1.17 2440 9.92 -2.03 2460 7.46 -2.47 2480 6.11 -2.98 3D and 1D Radiation Patterns Total Po wer (d Bm ) -25 0 -20 -15 -10 -5 X Y Z Azi m uth = 0.0 El evati on = 0.0 Rol l = 0.0 2440M TRP 1 Cut1 Po wer (d Bm ) Angl e (? Scal e: 2/di v Mi n: -16 Max : -2 0 180 30 210 60 240 90 270 120 300 150 330 Cut2 Po wer (d Bm ) Angl e (? Scal e: 2/di v Mi n: -22 Max : 0 0 180 30 210 60 240 90 270 120 300 150 330 Cut3 Po wer (d Bm ) Angl e (? Scal e: 2/di v Mi n: -14 Max : -2 0 180 30 210 60 240 90 270 120 300 150 330

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASXW-C17 Report No.: TZ0037241105FRF02 Page 1 of 22 Appendix Test Data for BLE (Conducted Measurement) Product Name: Remote control Trade Mark: N/A Test Model: C17 FCC ID: 2ASXW-C17 Environmental Conditions Temperature: 23.8°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Hugo Chen NOTE N/A Appendix A: DTS Bandwidth Test Result Test Mode Antenna Frequency [MHz] DTS BW [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict BLE_1M Ant1 2402 0.696 2401.668 2402.364 0.5 PASS BLE_1M Ant1 2440 0.704 2439.652 2440.356 0.5 PASS BLE_1M Ant1 2480 0.712 2479.664 2480.376 0.5 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASXW-C17 Report No.: TZ0037241105FRF02 Page 2 of 22 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASXW-C17 Report No.: TZ0037241105FRF02 Page 3 of 22 BLE_1M-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASXW-C17 Report No.: TZ0037241105FRF02 Page 4 of 22 Appendix B: Occupied Channel Bandwidth Test Result Test Mode Antenna Frequency [MHz] OCB [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict BLE_1M Ant1 2402 1.0886 2401.4731 2402.5617 --- --- BLE_1M Ant1 2440 1.0981 2439.4624 2440.5605 --- --- BLE_1M Ant1 2480 1.1013 2479.4574 2480.5587 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASXW-C17 Report No.: TZ0037241105FRF02 Page 5 of 22 Test Graphs BLE_1M-Ant1-2402 BLE_1M-Ant1-2440 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASXW-C17 Report No.: TZ0037241105FRF02 Page 6 of 22 BLE_1M-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASXW-C17 Report No.: TZ0037241105FRF02 Page 7 of 22 Appendix C: Maximum peak conducted output power Test Result Peak Test Mode Antenna Frequency [MHz] Conducted Peak Power [dBm] Conducted Limit [dBm] Verdict BLE_1M Ant1 2402 0.29 ≤30 PASS BLE_1M Ant1 2440 0.09 ≤30 PASS BLE_1M Ant1 2480 -1.46 ≤30 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASXW-C17 Report No.: TZ0037241105FRF02 Page 8 of 22 Test Graphs Peak BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASXW-C17 Report No.: TZ0037241105FRF02 Page 9 of 22 BLE_1M-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASXW-C17 Report No.: TZ0037241105FRF02 Page 10 of 22 Appendix D: Maximum peak power spectral density Test Result Test Mode Antenna Frequency [MHz] Result [dBm/3kHz] Limit [dBm/3kHz] Verdict BLE_1M Ant1 2402 -15.92 ≤8.00 PASS BLE_1M Ant1 2440 -16.42 ≤8.00 PASS BLE_1M Ant1 2480 -17.56 ≤8.00 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASXW-C17 Report No.: TZ0037241105FRF02 Page 11 of 22 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASXW-C17 Report No.: TZ0037241105FRF02 Page 12 of 22 BLE_1M-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASXW-C17 Report No.: TZ0037241105FRF02 Page 13 of 22 Appendix E: Band edge measurements Test Result Test Mode Antenna Ch. Name Frequency [MHz] Ref. Level [dBm] Result [dBm] Limit [dBm] Verdict BLE_1M Ant1 Low 2402 -1.18 -41.37 ≤-21.18 PASS BLE_1M Ant1 High 2480 -2.85 -48.88 ≤-22.85 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASXW-C17 Report No.: TZ0037241105FRF02 Page 14 of 22 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASXW-C17 Report No.: TZ0037241105FRF02 Page 15 of 22 Appendix F: Conducted Spurious Emission Test Result Test Mode Antenna Frequency [MHz] Freq. Range [MHz] Ref. Level [dBm] Result [dBm] Limit [dBm] Verdict BLE_1M Ant1 2402 0~Reference -1.57 -1.57 --- PASS BLE_1M Ant1 2402 30~1000 -1.57 -64.25 ≤-21.57 PASS BLE_1M Ant1 2402 1000~26500 -1.57 -40.59 ≤-21.57 PASS BLE_1M Ant1 2440 0~Reference -2.12 -2.12 --- PASS BLE_1M Ant1 2440 30~1000 -2.12 -63.83 ≤-22.12 PASS BLE_1M Ant1 2440 1000~26500 -2.12 -42.63 ≤-22.12 PASS BLE_1M Ant1 2480 0~Reference -3.19 -3.19 --- PASS BLE_1M Ant1 2480 30~1000 -3.19 -64.07 ≤-23.19 PASS BLE_1M Ant1 2480 1000~26500 -3.19 -42.11 ≤-23.19 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASXW-C17 Report No.: TZ0037241105FRF02 Page 16 of 22 Test Graphs BLE_1M-Ant1-2402-0~Reference-PASS BLE_1M-Ant1-2402-30~1000-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASXW-C17 Report No.: TZ0037241105FRF02 Page 17 of 22 BLE_1M-Ant1-2402-1000~26500-PASS BLE_1M-Ant1-2440-0~Reference-PASS BLE_1M-Ant1-2440-30~1000-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASXW-C17 Report No.: TZ0037241105FRF02 Page 18 of 22 BLE_1M-Ant1-2440-1000~26500-PASS BLE_1M-Ant1-2480-0~Reference-PASS BLE_1M-Ant1-2480-30~1000-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASXW-C17 Report No.: TZ0037241105FRF02 Page 19 of 22 BLE_1M-Ant1-2480-1000~26500-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASXW-C17 Report No.: TZ0037241105FRF02 Page 20 of 22 Appendix G: Duty Cycle Test Result Test Mode Antenna Frequency [MHz] ON Time [ms] Period [ms] Duty Cycle [%] Duty Cycle Factor [dB] BLE_1M Ant1 2402 19.00 19.00 100.00 0.00 BLE_1M Ant1 2440 19.00 19.00 100.00 0.00 BLE_1M Ant1 2480 19.00 19.00 100.00 0.00 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASXW-C17 Report No.: TZ0037241105FRF02 Page 21 of 22 Test Graphs NTNV-BLE_1M-Ant1-2402 NTNV-BLE_1M-Ant1-2440 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ASXW-C17 Report No.: TZ0037241105FRF02 Page 22 of 22 NTNV-BLE_1M-Ant1-2480

This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report apply only to the specific sample(s) tested under stated test conditions. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Page 1 of 29 TEST REPORT Report Number : TZ0037241105FRF02 Product Name : Remote control Model/Type reference : C17, C17ss, Q05f, C05f, L16f, L16ss f, C11 pro, C17d, F05, F06, F07, TT05, TT06 FCC ID : 2ASXW-C17 Prepared for : SHENZHEN YUANSU CHUANGDA TECHNOLOGY CO., LTD Room 526, Huamei Building, Zhenxing Road, Futian District, Shenzhen, China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd. 1st Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Standards : FCC CFR Title 47 Part 15C, ANSI C63.10: 2013 Date of Test : 2024-11-11 ~ 2024-11-14 Date of Issue : 2024-11-15 Prepared by : Lena Wen (File administrators) Reviewed by : Hugo Chen (Technical Manager) Approved by : Andy Zhang (General Manager) Report No.: TZ0037241105FRF02 Page 2 of 29 ** Report Revise Record ** Report Version Revise Time Issued Date Valid Version Notes V1.0 / 2024-11-15 Valid Initial release Report No.: TZ0037241105FRF02 Page 3 of 29 TABLE OF CONTENTS 1. G E N E R A L I N F O R M A T I O N ....................................................... 4 1.1. Client Information ................................................................................................................... 4 1.2. Description of Device (EUT) ................................................................................................... 4 1.3. Wireless Function Tested in this Report .............................................................................. 4 1.4. EUT configuration ................................................................................................................... 5 1.5. Description of Test Facility .................................................................................................... 5 1.6. Statement of the Measurement Uncertainty ......................................................................... 6 1.7. Measurement Uncertainty ...................................................................................................... 6 1.8. Description of Test Modes ..................................................................................................... 6 1.9. Frequency of Channels .......................................................................................................... 6 2. T E S T M E T H O D O L O G Y ............................................................ 7 2.1. EUT Configuration .................................................................................................................. 7 2.2. EUT Exercise ........................................................................................................................... 7 2.3. Test Sample ............................................................................................................................. 7 3. S Y S T E M T E S T C O N F I G U R A T I O N .............................................. 8 3.1. Justification ............................................................................................................................. 8 3.2. EUT Exercise Software ........................................................................................................... 8 3.3. Special Accessories ............................................................................................................... 8 3.4. Block Diagram/Schematics .................................................................................................... 8 3.5. Equipment Modifications ....................................................................................................... 8 3.6. Test Setup ................................................................................................................................ 8 4. S U M M A R Y O F T E S T R E S U L T S ................................................. 9 5. T E S T R E S U L T .................................................................... 10 5.1. On Time and Duty Cycle ....................................................................................................... 10 5.2. Maximum Peak Conducted Output Power Measurement ................................................. 11 5.3. Power Spectral Density Measurement ................................................................................ 12 5.4. 6 dB Spectrum Bandwidth Measurement ........................................................................... 13 5.5. Radiated Emissions Measurement ...................................................................................... 14 5.6. Conducted Spurious Emissions and Band Edges Test .................................................... 22 5.7. AC Power line conducted emissions .................................................................................. 23 5.8. Band-edge measurements for radiated emissions ........................................................... 24 5.9. Antenna Requirements ......................................................................................................... 27 6. L I S T O F M E A S U R I N G E Q U I P M E N T S ....................................... 28 7. T E S T S E T U P P H O T O G R A P H S O F E U T ..................................... 29 8. E X T E R I O R P H O T O G R A P H S O F E U T ........................................ 29 9. I N T E R I O R P H O T O G R A P H S O F E U T .....................…

Text truncated - open the document above for the full version.

FCC ID:2ASXW-C17 Page 1 of 1 Test Setup Photos of the EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz
