2AT4V-LYKANER-N5Asset Tracker

Document No. Lykaner N5 Title Lykaner N5 Technical User Manual Page 1/11 Version No. 0.3 Project LYKANER N5 AST 23/01/2023 Copy restricted Lykaner N5 User Manual Document No. Lykaner N5 Title Lykaner N5 Technical User Manual Page 2/11 Version No. 0.3 Project LYKANER N5 AST 23/01/2023 Copy restricted REVISION HISTORY Ver. Date BACKGROUND (Reason for change) Description of change Sections changed Approver Author 0.1 01/12/2022 Document Creation Adding initial information in draft format and defining different sections All SDR 0.2 02.01.2023 Content creation All sections All SDR 0.3 23.01.2023 Version for Certification All sections revisited, All SDR Abbreviations Abbreviation/Term Definition AP Access Point ACK Acknowledgement BSSID Basic Service Set Identifier DL Downlink FW Firmware N/A Not Applicable Downlink Message from cloud to device Firmware release version Internal firmware version, firmware version flashed to device Uplink Message from device to cloud LED Light Emitting Diode Document No. Lykaner N5 Title Lykaner N5 Technical User Manual Page 3/11 Version No. 0.3 Project LYKANER N5 AST 23/01/2023 Copy restricted TABLE OF CONTENTS 1. INTRODUCTION ............................................................................................................ 4 1.1. HW Description ............................................................................................................................ 4 1.2. Technical Specification.................................................................................................................. 5 1.3. Device Mounting Instructions ....................................................................................................... 5 1.3.1. Mechanical Enclosure Variants ....................................................................................................................... 7 2. DEVICE OPERATION ................................................................................................... 9 2.1. Activation ..................................................................................................................................... 9 2.2. Deactivation .................................................................................................................................. 9 2.3. BASIC OPERATION ...................................................................................................................... 10 2.3.1. Normal Scenario -Motion Based Transitions ................................................................................................. 10 3. PACKAGING INFORMATION ........................................................................................ 11 3.1. Disposal ...................................................................................................................................... 11 3.2. Disclaimer ................................................................................................................................... 11 Document No. Lykaner N5 Title Lykaner N5 Technical User Manual Page 4/11 Version No. 0.3 Project LYKANER N5 AST 23/01/2023 Copy restricted 1. INTRODUCTION Lykaner N5 tracker is a device that enables the user to track the locations of a moving asset, such as containers and trollies. It is an industrial grade device and can work over several years without maintenance. The core competence of the tracker is its smart motion algorithm, which allows sending messages (status messages and location update messages) only when motion event occurs and therefore the tracker ensures a long lifetime. In case there is no motion, the tracker sends a 'keep-alive' AP message every 1 day by default, which allows to minimise the tracker power consumption. Motion algorithm parameters and others can be configured via downlink message. Lykaner N5 tracker has additional features such as ‘temperature alarm' function, 'orientation detection' feature and 'low battery indication' feature that can be enabled via downlink configuration message. The tracker is a one-time activation device. This means that once the device is activated at the stage of its installation on the asset it cannot be deactivated afterwards. To activate the device, the activation switch on the top of the enclosure should stay pressed for at least 3 sec(s). Once activated the device supports a full list of its functional features. 1.1. HW Description Lykaner N5 tracker hardware contains the following components: •Enclosure •PCB •Battery Pack •Activation button •NB-IoT Module •MCU •WiFi （RX） •Acceleration Sensor •Pressure Sensor* •Temperature Sensor •Magnetic Sensor* •LED Document No. Lykaner N5 Title Lykaner N5 Technical User Manual Page 5/11 Version No. 0.3 Project LYKANER N5 AST 23/01/2023 Copy restricted 1.2. Technical Specification Dimensions [mm] (L x W x H): 140 x 50 x 31,5 Weight (gr): 94 Material: PC/PBT Operation Temperature [°C]: -20 to + 60 Protection Class: IP69, IK8 Battery: Not replaceable battery pack: Li-SoCl2, 2xER17505M-L Maximum relative humidity: Mounting Method: Screws, rivets, or double-sided tape Certifications: CE, UK-CA, FCC, CGF, PTCRB 1.3. Device Mounting Instructions Lykaner N5 tracker can be mounted onto the asset using three different methods detailed as following: ➢ The unit can be mounted using rivets. Recommended rivets: Gesipa Blind Rivets Aluminium/Steel Standard Flat Head with 5 x 16 mm Recommended rivet Gun - Gesipa ACCUBIRD PRO Document No. Lykaner N5 Title Lykaner N5 Technical User Manual Page 6/11 Version No. 0.3 Project LYKANER N5 AST 23/01/2023 Copy restricted ➢ The unit can be mounted using bolts and nuts. Recommended Bolt - M5 X 12mm (Bolt length depends on asset type) Electric Drill - Torque Setting recommended value is between 1.15 to 1.25 Nm ➢ The unit can be mounted using pre-assembled industrial grade double-sided adhesive tape. Recommended device mounting orientation for optimal battery usage are depicted in the below picture. Document No. Lyka…

Text truncated - open the document above for the full version.

Regulations & Safety Advice FCC Regulations: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not c ause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device has been tested in accordance with FCC Part 22/24/27 For more details about test mode configuration, please contact manufacture for more specific instruction. RF Exposure Information This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm(8 inches) during normal operation. ISED Notice This device complies with Innovation, Science and Economic Development Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1)this device may not cause interference, and (2)this device must accept any interference, including interference that may cause undesired operation of the dev ice. Le présent appareil est conforme aux CNR Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1)l'appareil ne doit pas produire de brouillage, et (2)l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. IS ED Radiation Exposure Statement This device complies with RSS-102 radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the ISED radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation. Cet appareil est conforme aux limites d'exposition aux rayonnements de la CNR-102 définies pour un environnement non c ontrôlé. Afin d'éviter la possibilité de dépasser les limites d'exposition aux fréquences radio de la CNR-102, la proximité humaine à l'antenne ne doit pas être inférieure à 20 cm (8 pouces) pendant le fonctionnement normal.

Applicant Declaration QSF27-14-04 Rev 1.0 Rev. Feb 6, 2023 Page 1 of 1 Original Issue: Jan. 4, 2021 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name ALPS Electric Ireland Ltd Address Clara Road, Millstreet Town, County Cork P51 XC56, Ireland Grantee Code 2AT4V FCC ID -LYKANER-N5 Authorized Contact Name Donal OSHEA Contact Email [email protected] Contact Phone 003532970677 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a)in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b)in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1)labeling the equipment with the exact FCC ID as specified in this application, (2)compliance statement labeling pursuant to the applicable rules, (3)compliance of the equipment with the applicable technical rules, c)if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d)in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e)in accordance with ISO 17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1)the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2)the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3)the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f)neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g)the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Link to the Covered List: Covered List ALPS Electric Ireland Ltd (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. ALPS Electric Ireland Ltd (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered list, established pursuant to §1.50002, as an entity producing “covered” equipment. Applicant Signature: Date:2023/9/7 Print Name: Donal OSHEA Title: Certification Manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database 2AT4V

ALPS Ele Clara Ro Cork Ireland Date: 20 2 Federal C Authoriza 7435 Oa Columbi a FCC ID: FRN: 00 2 US ALPS Ele to accept ALPS Ele for no les importatio related ad FCC US the desi g Ireland Lt The serv Designa t Company FRN: 003 Address: Contact P Phone: 7 Email: Su Sincerely Company Company Signature ectric Ireland oad, Millstree 23/9/20 Communicat ation and Ev kland Mills R a, MD 21046 2AT4V-LYK 28674620 S Agen ectric Ireland t service of p ectric Ireland ss than one y on of the app dministrative Agent, LLC, gnated agent td for FCC ID ice term is c ted Agent In y Name: FCC 33402884 3722 Illinoi s Person: Tim 708-571-3148 upport@FCC y, y: ALPS Ele y Represent e: d Ltd et Town, Cou tions Comm valuation Div Road 6 KANER-N5 t – Atte d Ltd certifies process on o d Ltd, accept year after eit plicable equi e or judicial p accepts as t for the purp D: 2AT4V-LY overing prod nformation: C US Agent, s Avenue, Sa Payne 8 CUSAgent.co ctric Ireland ative: Donal unty CorkP5 mission vision station s, that as of 2 our behalf for ts to maintain ther the gran ipment within proceeding in of the date o pose of acce YKANER-N5 duct lifetime f : , LLC aint Charles, om Ltd OSHE A 51 XC56, Ire Statem 2023/9/20, w r FCC ID: 2A n an agent o ntee has perm n the U.S., o nvolving the of the filing o pting service 5.. for one FCC , IL, 60174, U Designat Designat Signature eland ment / Pa we have desi AT4V-LYKAN of service of p manently ter or the conclu equipment, of this applica e of process C ID. USA ted Agent: F ted Agent Re e: art 2.91 ignated FCC NER-N5. process in th rminated all m sion of any C whichever is ation, the ob on behalf o f CC US Agen epresentativ 1(d)(7) C US Agent, he United Sta marketing an Commission s later. ligation of b e f ALPS Elect nt, LLC e: Tim Payn LLC ates nd - eing tric e

ALPS Electric Ireland Ltd Clara Road, Millstreet Town, County Cork P51 XC56, Ireland3 Statement and explanations Lykaner N5 (FCC ID: 2AT4V-LYKANER-N5) is an Asset Tracker product with a certification module (module BC66-NA; FCC ID: XMR201907BC66N) ,Date of Grant:12/16/2019) . The NB-IoT Module is installed in the host, which has no impact on the RF performance. Considering that the antenna is designed for the host, when the module is integrated into the host, we conducted an EMC test on the host, and retested RSE and check power in RF. Please refer to the corresponding laboratory test results. Standard Test Plan Module Reference Report Part 15B Full test NA Part 22/24/27 Only retest Field Strength of Spurious Radiation and Effective (Isotropic) Radiated Power R1910A0633- R1V1/R2V1/R3V1 Part 2.1901 Recalculate NA The supporting specifications of the whole machine are as follows： NB-IoT: Band2/Band4/Band5/Band12/Band13/Band17 Band25/Band66/Band71/Band85 Should you have any question or comment regarding this matter , Please have my best attention. Sincerely yours Name: Donal OSHEA Title: Certification Manager

Rev 11/20/07 ALPS Electric Ireland Ltd Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AT4V-LYKANER- N5 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name (1. Block Diagram.pdf; 2.SCH.pdf; 3. Operation Description.pdf; 4.BOM.pdf; 5. Tune up.pdf;) (Block Diagram, SCH, Operation Description, BOM, Tune Up) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. We are requesting the commission to grant short-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705. Exhibit Type File Name (External Photos, Internal Photos, Test Setup Photos, Manual) (External Photos.pdf; Internal Photos.pdf; Appendix A.2 - WLAN Setup Photos; User Manual;) Sincerely, Name: Donal OSHEA Title: Certification Manager

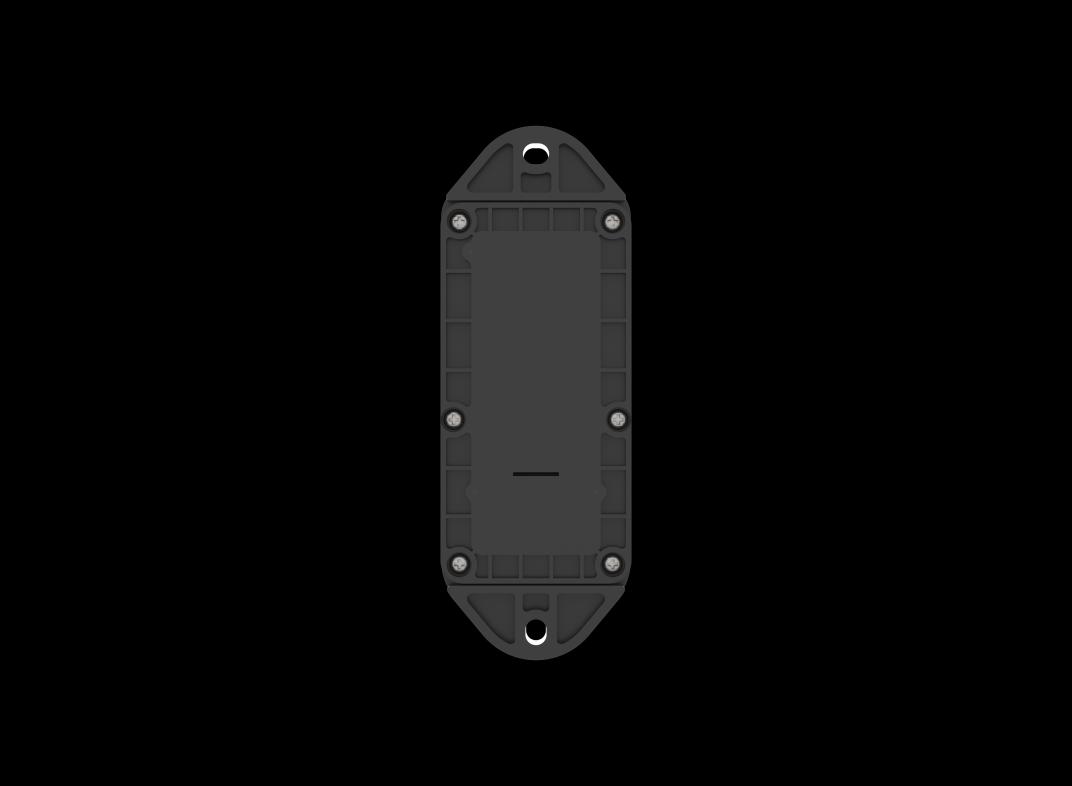

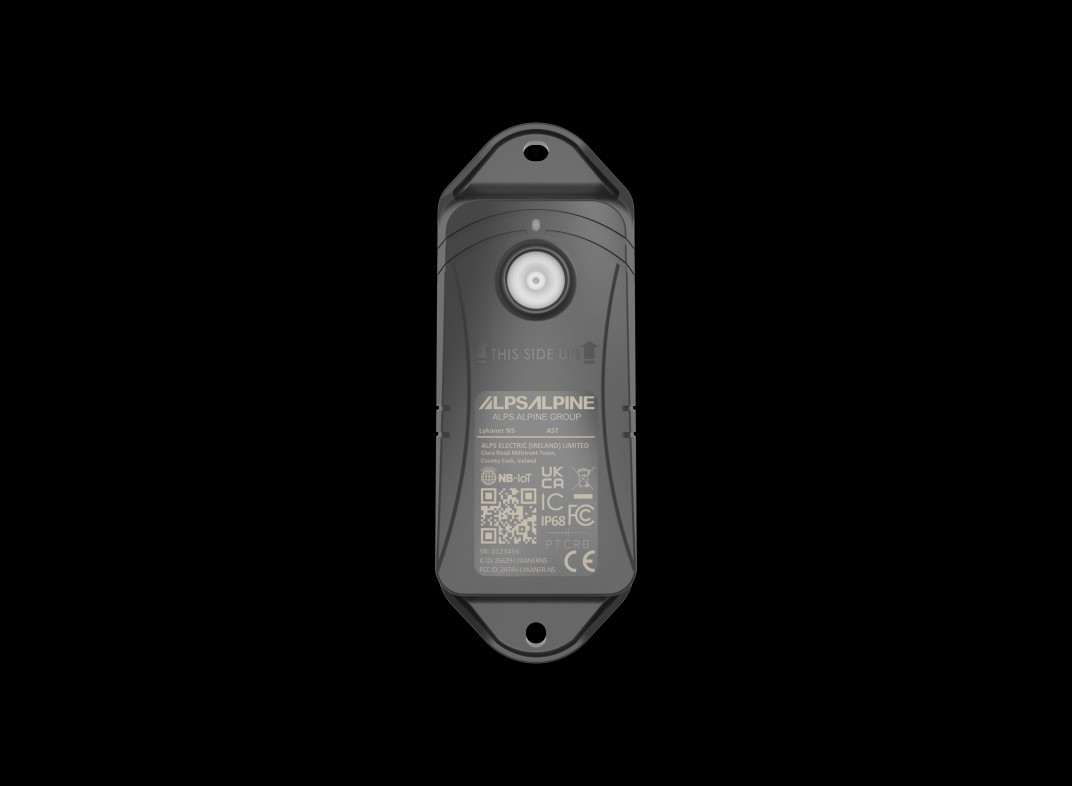

Page 1 of 3 1 Photographs - EUT Constructional Details Model No.: Lykaner N5 Page 2 of 3 Page 3 of 3

1 Photographs - EUT Constructional Details Model No.: Lykaner N5 WWAN ANT NB-IOT:B2/B4/B5/B12/ B13/B17/B25/B66/B71/B85

` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2307000288RG02 Rev.: 01 Page: 1 of 7 Authorized Signature: Well Wei Wireless Laboratory Manager TEST REPORT Application No.: SEWM2307000288RG Applicant: ALPS Electric Ireland Ltd Address of Applicant: Clara Road, Millstreet Town, County Cork P51 XC56, Ireland Manufacturer: ALPS Electric Ireland Ltd Address of Manufacturer: Clara Road, Millstreet Town, County Cork P51 XC56, Ireland EUT Description: Asset Tracker Model No.: Lykaner N5 Trade Mark: Lykaner N5 FCC ID: 2AT4V-LYKANER-N5 Standards: 47 CFR Part 2.1091 FCC KDB 447498 D01 v06 Date of Receipt: 2023/07/23 Date of Issue: 2023/09/08 Test Result: PASS* * In the configuration tested, the EUT complied with the standards specified above. ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2307000288RG02 Rev.: 01 Page: 2 of 7 1 Version Revision Record Version Chapter Date Modifier Remark 01 2023/09/08 Original Prepared By (Nick Hu) / Test Engineer Checked By (Stone Gu) / Reviewer ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2307000288RG02 Rev.: 01 Page: 3 of 7 Contents 1 Version ......................................................................................................................... 2 2 General Information ...................................................................................................... 4 2.1 Client Information .................................................................................................. 4 2.2 Test Facility ........................................................................................................... 4 2.3 General Description of EUT ................................................................................... 5 3 RF Exposure Evaluation ............................................................................................... 6 3.1 RF Exposure Compliance Requirement ................................................................ 6 3.1.1 Limits ................................................................................................................. 6 3.1.2 Test Procedure .................................................................................................. 7 3.1.3 EUT RF Exposure Evaluation ............................................................................ 7 ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2307000288RG02 Rev.: 01 Page: 4 of 7 2 General Information 2.1 Client Information Applicant: ALPS Electric Ireland Ltd Address of Applicant: Clara Road, Millstreet Town, County Cork P51 XC56, Ireland Manufacturer: ALPS Electric Ireland Ltd Address of Manufacturer: Clara Road, Millstreet Town, County Cork P51 XC56, Ireland 2.2 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • A2LA (Certificate No. 6336.01) SGS-CSTC STANDARDS TECHNICAL SERVICES (SUZHOU) CO., LTD. is accredited by the American Association for Laboratory Accreditation(A2LA). Certificate No. 6336.01. • Innovation, Science and Economic Development Canada SGS-CSTC STANDARDS TECHNICAL SERVICES (SUZHOU) CO., LTD. has been recognized by ISED as an accredited testing laboratory. CAB identifier: CN0120. IC#: 27594. • FCC –Designation Number: CN1312 SGS-CSTC STANDARDS TECHNICAL SERVICES (SUZHOU) CO., LTD. has been recognized as an accredited testing laboratory. Designation Number: CN1312. Test Firm Registration Number: 717327 ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2307000288RG02 Rev.: 01 Page: 5 of 7 2.3 General Description of EUT EUT Description: Asset Tracker Model No.: Lykaner N5 Trade Mark: Lykaner N5 Hardware Version: 1AD-MA00068A Software Version: v22.3.0 Power Supply: 3.6V Antenna Type: External, Integrated Antenna Gain: LTE NB1 Band 2: 3.1dBi LTE NB1 Band 4: 3.1dBi LTE NB1 Band 5: 2.5dBi LTE NB1 Band 12: 2.5dBi LTE NB1 Band 13: 2.5dBi LTE NB1 Band 17: 2.5dBi LTE NB1 Band 25: 3.1dBi LTE NB1 Band 66: 3.1dBi LTE NB1 Band 71: 2.5dBi LTE NB1 Band 85: 2.5dBi Note: The antenna gain are derived from the gain information report provided by the manufacturer. Remark: As above information is provided and confirmed by the applicant. SGS is not liable to the accuracy, suitability, reliability or/and integrity of the information. ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2307000288RG02 Rev.: 01 Page: 6 of 7 3 RF Exposure Evaluation 3.1 RF Exposure Compliance Requirement 3.1.1 Limits Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm2) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 614 1.63 *(100) 6 3.0-30 1842/f 4.89/f *(900/f2) 6 30-300 61.4 0.163 1.0 6 300-1500 / / f/300 6 1500-100,000 / / 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f2) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 F=frequency in MHz *=Plane-wave equivalent power density RF exposure compliance will need to be determined with respect to 1.1307(c) and (d) of the FCC rules. The emissions should be within the limits at 300kHz in Table 1 of 1.1310(use the 300kHz limits for 150kHz:614V/m,1.63A/m). Friis Formula Friis transmission formula: Pd = (Pout*G)/(4* Pi * R 2 ) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2307000288RG02 Rev.: 01 Page: 7 of 7 Operating Band Frequency (MHz) Antenna Gain (dBi) Max Conducted Power (dBm) EIRP(ERP) (dBm) EIRP(ER…

Text truncated - open the document above for the full version.

` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2307000288RG01 Rev.: 01 Page: 1 of 6 Appendix B.1 LTE-NB1 Band 2 ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2307000288RG01 Rev.: 01 Page: 2 of 6 Effective (Isotropic) Radiated Power Output Data Test Result Test Band Test Mode Sub-carrier Spacing (kHz) Test channel Number of T Conducted Power (dBm) EIRP (dBm) limit (dBm) Verdict NB1 Band 2 BPSK 3.75 18601 1T0 23.5 26.6 33 PASS NB1 Band 2 BPSK 3.75 18601 1T47 23.47 26.57 33 PASS NB1 Band 2 BPSK 3.75 18900 1T0 23.4 26.5 33 PASS NB1 Band 2 BPSK 3.75 18900 1T47 23.41 26.51 33 PASS NB1 Band 2 BPSK 3.75 19199 1T0 23.32 26.42 33 PASS NB1 Band 2 BPSK 3.75 19199 1T47 23.35 26.45 33 PASS NB1 Band 2 QPSK 3.75 18601 1T0 23.31 26.41 33 PASS NB1 Band 2 QPSK 3.75 18601 1T47 23.2 26.3 33 PASS NB1 Band 2 QPSK 3.75 18900 1T0 23.03 26.13 33 PASS NB1 Band 2 QPSK 3.75 18900 1T47 23.37 26.47 33 PASS NB1 Band 2 QPSK 3.75 19199 1T0 23.21 26.31 33 PASS NB1 Band 2 QPSK 3.75 19199 1T47 23.35 26.45 33 PASS ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2307000288RG01 Rev.: 01 Page: 3 of 6 Test Band Test Mode Sub-carrier Spacing (kHz) Test channel Number of T Conducted Power (dBm) EIRP (dBm) limit (dBm) Verdict NB1 Band 2 BPSK 15 18601 1T0 23.38 26.48 33 PASS NB1 Band 2 BPSK 15 18601 1T11 23.31 26.41 33 PASS NB1 Band 2 BPSK 15 18900 1T0 23.41 26.51 33 PASS NB1 Band 2 BPSK 15 18900 1T11 23.45 26.55 33 PASS NB1 Band 2 BPSK 15 19199 1T0 23.47 26.57 33 PASS NB1 Band 2 BPSK 15 19199 1T11 23.31 26.41 33 PASS NB1 Band 2 QPSK 15 18601 1T0 23.33 26.43 33 PASS NB1 Band 2 QPSK 15 18601 1T11 23.41 26.51 33 PASS NB1 Band 2 QPSK 15 18601 12T0 21.52 24.62 33 PASS NB1 Band 2 QPSK 15 18900 1T0 23.38 26.48 33 PASS NB1 Band 2 QPSK 15 18900 1T11 23.44 26.54 33 PASS NB1 Band 2 QPSK 15 18900 12T0 21.51 24.61 33 PASS NB1 Band 2 QPSK 15 19199 1T0 23.39 26.49 33 PASS NB1 Band 2 QPSK 15 19199 1T11 23.47 26.57 33 PASS NB1 Band 2 QPSK 15 19199 12T0 21.41 24.51 33 PASS ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2307000288RG01 Rev.: 01 Page: 4 of 6 Field Strength of Spurious Radiation Test Band = NB-IOT Band 2_ TM1 Test Channel = Low Channel Final Data List NO. Frequency [MHz] Reading [dBμV] Factor [dB] AF[dB/m] Level [dBm] Limit [dBm] Margin [dB] Height [cm] Angle [°] Polarity 1 3705 67.05 -45.69 30.30 -43.60 -13.00 30.60 142 86 Horizontal 2 5557.5 47.50 -43.87 33.30 -58.34 -13.00 45.34 265 38 Horizontal 3 6933 42.05 -42.48 35.97 -59.72 -13.00 46.72 284 199 Horizontal 4 9533.25 39.22 -38.13 37.76 -56.41 -13.00 43.41 142 0 Horizontal 5 11244 35.85 -35.14 38.40 -56.15 -13.00 43.15 263 55 Horizontal 6 13557 36.10 -34.29 39.99 -53.46 -13.00 40.46 285 101 Horizontal Final Data List NO. Frequency [MHz] Reading [dBμV] Factor [dB] AF[dB/m] Level [dBm] Limit [dBm] Margin [dB] Height [cm] Angle [°] Polarity 1 3705 65.46 -45.69 30.30 -45.19 -13.00 32.19 142 291 Vertical 2 5557.5 47.42 -43.87 33.30 -58.42 -13.00 45.42 265 258 Vertical 3 7410 42.42 -41.94 36.49 -58.29 -13.00 45.29 284 96 Vertical 4 7848 41.18 -40.64 36.95 -57.77 -13.00 44.77 142 227 Vertical 5 9537 39.53 -38.13 37.76 -56.10 -13.00 43.10 263 145 Vertical 6 13565.25 36.67 -34.38 40.00 -52.98 -13.00 39.98 254 3 Vertical ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2307000288RG01 Rev.: 01 Page: 5 of 6 Test Band = NB-IOT Band 2_ TM1 Test Channel = Mid Channel Final Data List NO. Frequency [MHz] Reading [dBμV] Factor [dB] AF[dB/m] Level [dBm] Limit [dBm] Margin [dB] Height [cm] Angle [°] Polarity 1 3759.75 71.36 -45.54 30.48 -38.96 -13.00 25.96 102 266 Horizontal 2 5640 46.85 -43.81 33.58 -58.65 -13.00 45.65 265 84 Horizontal 3 7519.5 42.43 -41.53 36.62 -57.74 -13.00 44.74 284 328 Horizontal 4 9429 39.41 -38.16 37.73 -56.28 -13.00 43.28 142 9 Horizontal 5 13055.25 36.17 -34.67 39.64 -54.12 -13.00 41.12 263 116 Horizontal 6 15210.75 34.09 -32.63 39.70 -54.10 -13.00 41.10 228 3 Horizontal Final Data List NO. Frequency [MHz] Reading [dBμV] Factor [dB] AF[dB/m] Level [dBm] Limit [dBm] Margin [dB] Height [cm] Angle [°] Polarity 1 3759.75 70.33 -45.54 30.48 -39.99 -13.00 26.99 201 144 Vertical 2 5640 50.66 -43.81 33.58 -54.84 -13.00 41.84 142 322 Vertical 3 7519.5 47.50 -41.53 36.62 -52.67 -13.00 39.67 265 337 Vertical 4 9441.75 39.26 -38.16 37.73 -56.42 -13.00 43.42 284 31 Vertical 5 13566.75 36.57 -34.40 40.00 -53.09 -13.00 40.09 142 360 Vertical 6 15178.5 34.50 -32.88 39.76 -53.88 -13.00 40.88 263 63 Vertical ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2307000288RG01 Rev.: 01 Page: 6 of 6 Test Band = NB-IOT Band 2_ TM1 Test Channel = High Channel Final Data List NO. Frequency [MHz] Reading [dBμV] Factor [dB] AF[dB/m] Level [dBm] Limit [dBm] Margin [dB] Height [cm] Angle [°] Polarity 1 3810 65.84 -45.44 30.65 -44.20 -13.00 31.20 254 52 Horizontal 2 6006 41.62 -43.33 34.81 -62.15 -13.00 49.15 142 0 Horizontal 3 7619.25 43.79 -41.27 36.72 -56.02 -13.00 43.02 263 327 Horizontal 4 9582 39.14 -38.11 37.77 -56.45 -13.00 43.45 225 117 Horizontal 5 14353.5 35.47 -34.64 40.23 -54.20 -13.00 41.20 185 279 Horizontal 6 17855.25 32.94 -30.95 40.95 -52.32 -13.00 39.32 224 344 Horizontal Final Data List NO. Frequency [MHz] Reading [dBμV] Factor [dB] AF[dB/m] Level [dBm] Limit [dBm] Margin [dB] Height [cm] Angle [°] Polarity 1 3810 64.87 -45.44 30.65 -45.17 -13.00 32.17 201 112 Vertical 2 5715 49.83 -43.70 33.83 -55.30 -13.00 42.30 142 304 Vertical 3 7620 47.82 -41.27 36.72 -51.99 -13.00 38.99 265 335 Vertical 4 9576 39.48 -38.11 37.77 -56.12 -13.00 43.12 284 143 Vertical 5 11832.75 35.71 -35.22 38.40 -56.37 -13.00 43.37 254 209 Vertical 6 13944.75 35.61 -34.66 40.26 -54.05 -13.00 41.05 112 209 Vertical Remark: 1) The field strength is calculated by adding the Antenna Factor, Cable Factor & AMP. The basic equation with a sample calculation is as follows: AF = Antenna Factor(dB/m) Factor = Cable Factor(dB) - Preamplifier (dB) Level = Reading Le…

Text truncated - open the document above for the full version.

` SGS-CSTC Standards Technica…
