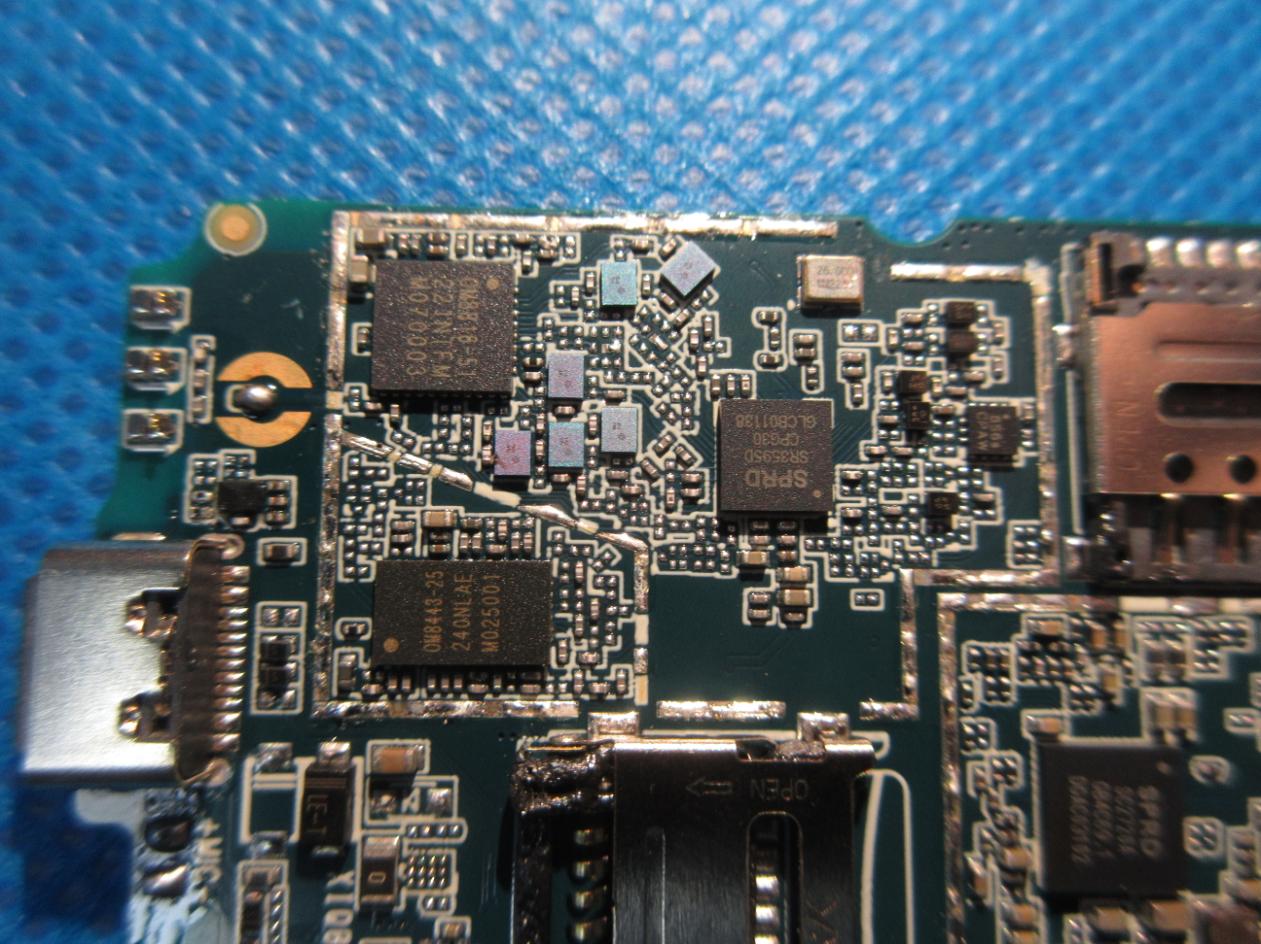

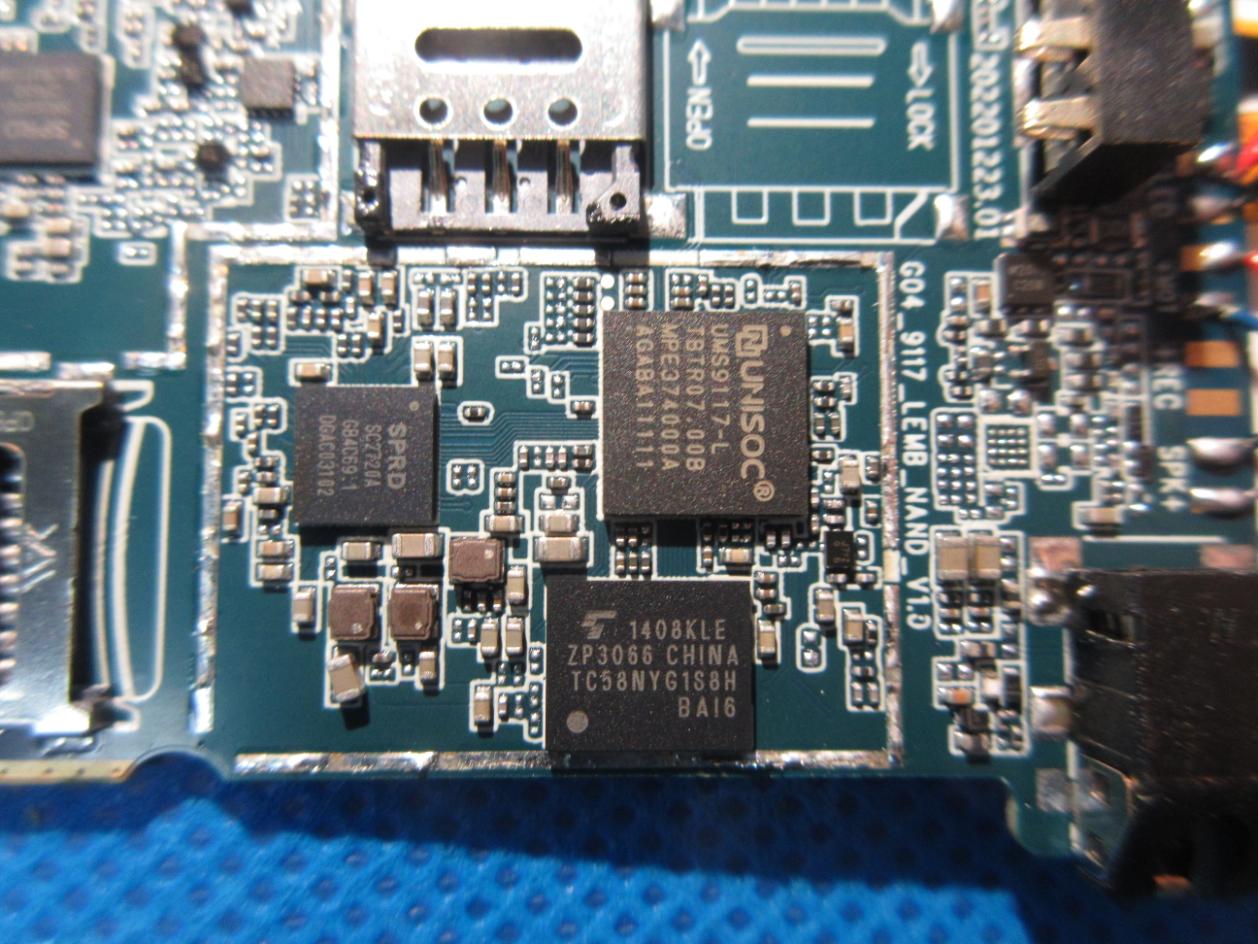

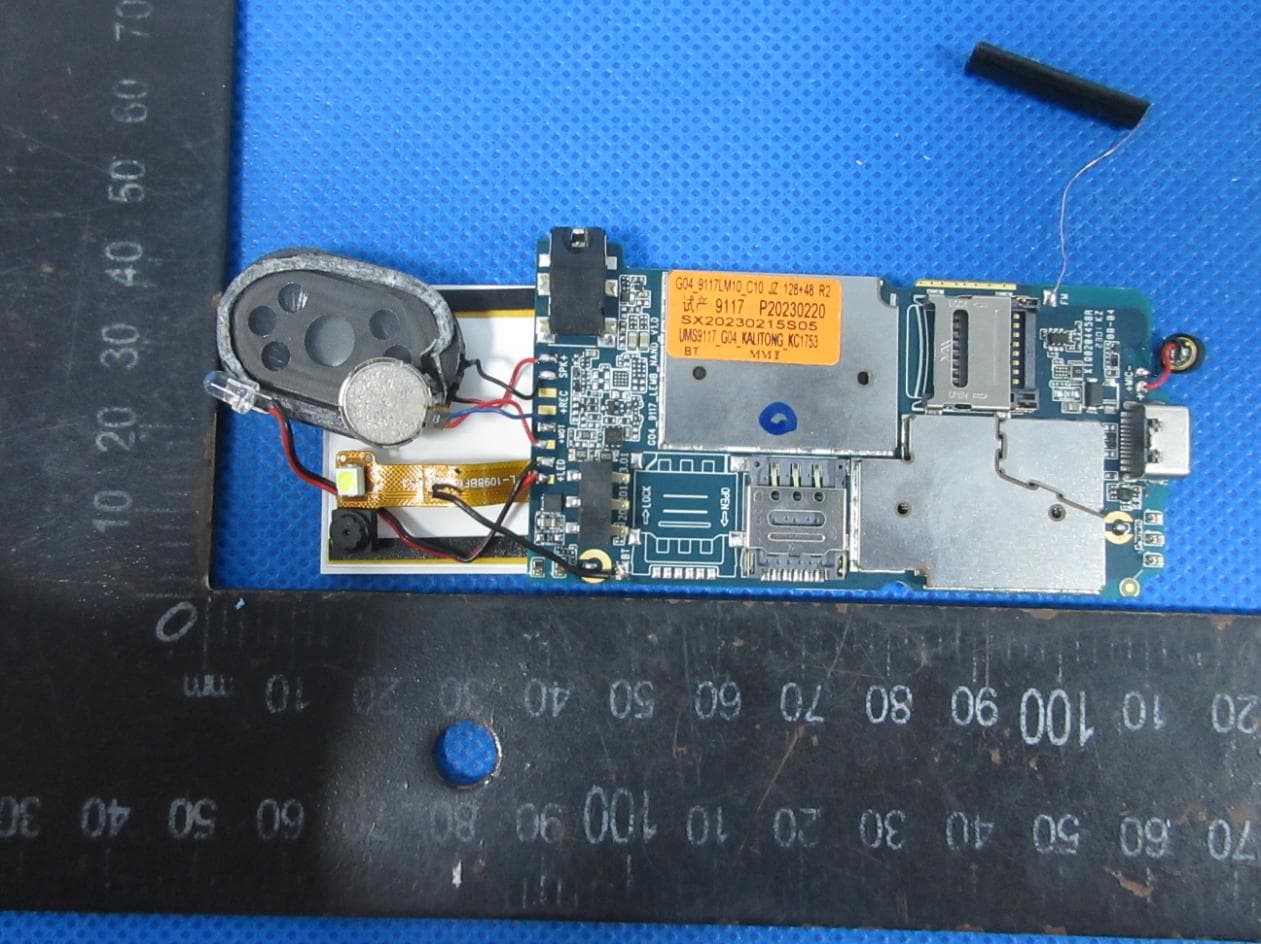

Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 Photo 17 Photo 18 Photo 19 Photo 20 2/3/4G ANT BT ANT

Page 1 of 158 Report No.: S23050900904001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： 4G feature phone Brand Name： i-MOBIL Model Name： iM421 Family Model： N/A Report No.： S23050900904001 FCC ID： 2AT55-IM421 Prepared for I-MOBIL SOCIEDAD ANONIMA DE CAPITAL VARIABLE CALLE LAGO SAN MARTIN No. Ext. 41，COLONIA ARGENTINA ANTIGUA , ALCALDIA MIGUEL HIDALGO, CIUDAD DE MEXICO, PAIS MEXICO, CODIGO POSTAL 11270 Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao'an District, Shenzhen 518126 P.R.China. Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 158 Report No.: S23050900904001 TEST RESULT CERTIFICATION Applicant’s name ................. : i-MOBIL S.A. de C.V. Address .................................. : CALLE LAGO SAN MARTIN No. Ext. 41，COLONIA ARGENTINA ANTIGUA , ALCALDIA MIGUEL HIDALGO, CIUDAD DE MEXICO, PAIS MEXICO, CODIGO POSTAL 11270 Manufacturer's Name .......... : i-MOBIL S.A. de C.V. Address .................................. : CALLE LAGO SAN MARTIN No. Ext. 41，COLONIA ARGENTINA ANTIGUA , ALCALDIA MIGUEL HIDALGO, CIUDAD DE MEXICO, PAIS MEXICO, CODIGO POSTAL 11270 Product description Product name ........................ : 4G feature phone Brand Name ......................... : i-MOBIL Model and/or type reference .............................. : iM421 Family Model ......................... : N/A Standards ............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992 IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Test Sample Number ............................. S230509009004 Date of Test Date (s) of performance of tests .............. : May 11, 2023 ~ May 23, 2023 Date of Issue ........................................... : May. 30, 2023 Test Result ............................................... : Pass Prepared By (Test Engineer) : (Jack Li) Approved By (Lab Manager) : (Alex Li) Page 3 of 158 Report No.: S23050900904001 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release May 30, 2023 Jack Li Page 4 of 158 Report No.: S23050900904001 TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 8 1.5. Ambient Condition ................................................................................... 8 2. SAR Measurement System ................................................................................... 9 2.1. SATIMO SAR Measurement Set-up Diagram ............................................ 9 2.2. Robot ..................................................................................................... 10 2.3. E-Field Probe .......................................................................................... 11 2.3.1. E-Field Probe Calibration ................................................................. 11 2.4. SAM phantoms ...................................................................................... 12 2.4.1. Technical Data .................................................................................. 13 2.5. Device Holder ........................................................................................ 14 2.6. Test Equipment List ................................................................................ 15 3. SAR Measurement Procedures .......................................................................... 18 3.1. Power Reference ................................................................................... 18 3.2. Area scan & Zoom scan .......................................................................... 18 3.3. Description of interpolation/extrapolation scheme .............................. 20 3.4. Volumetric Scan ..................................................................................... 20 3.5. Power Drift ............................................................................................ 20 4. System Verification Procedure .......................................................................... 21 4.1. Tissue Verification ................................................................................. 21 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 22 4.2. System Verification Procedure .............................................................. 23 4.2.1. System Verification Results .............................................................. 24 5. SAR Measurement variability and uncertainty .................................................. 25 5.1. SAR measurement variability .....…

Text truncated - open the document above for the full version.

Page 101 of 158 Report No.: S23050900904001 Page 102 of 158 Report No.: S23050900904001 Page 103 of 158 Report No.: S23050900904001 Page 104 of 158 Report No.: S23050900904001 Page 105 of 158 Report No.: S23050900904001 Page 106 of 158 Report No.: S23050900904001 Page 107 of 158 Report No.: S23050900904001 Page 108 of 158 Report No.: S23050900904001 Page 109 of 158 Report No.: S23050900904001 Page 110 of 158 Report No.: S23050900904001 Page 111 of 158 Report No.: S23050900904001 Page 112 of 158 Report No.: S23050900904001 Page 113 of 158 Report No.: S23050900904001 Page 114 of 158 Report No.: S23050900904001 Page 115 of 158 Report No.: S23050900904001 Page 116 of 158 Report No.: S23050900904001 Page 117 of 158 Report No.: S23050900904001 Page 118 of 158 Report No.: S23050900904001 Page 119 of 158 Report No.: S23050900904001 Page 120 of 158 Report No.: S23050900904001 Page 121 of 158 Report No.: S23050900904001 Page 122 of 158 Report No.: S23050900904001 Page 123 of 158 Report No.: S23050900904001 Page 124 of 158 Report No.: S23050900904001 Page 125 of 158 Report No.: S23050900904001 Page 126 of 158 Report No.: S23050900904001 Page 127 of 158 Report No.: S23050900904001 Page 128 of 158 Report No.: S23050900904001 Page 129 of 158 Report No.: S23050900904001 Page 130 of 158 Report No.: S23050900904001 Page 131 of 158 Report No.: S23050900904001 Page 132 of 158 Report No.: S23050900904001 Page 133 of 158 Report No.: S23050900904001 Page 134 of 158 Report No.: S23050900904001 Page 135 of 158 Report No.: S23050900904001 Page 136 of 158 Report No.: S23050900904001 Page 137 of 158 Report No.: S23050900904001 Page 138 of 158 Report No.: S23050900904001 Page 139 of 158 Report No.: S23050900904001 Page 140 of 158 Report No.: S23050900904001 Page 141 of 158 Report No.: S23050900904001 Page 142 of 158 Report No.: S23050900904001 Page 143 of 158 Report No.: S23050900904001 Page 144 of 158 Report No.: S23050900904001 Page 145 of 158 Report No.: S23050900904001 Page 146 of 158 Report No.: S23050900904001 Page 147 of 158 Report No.: S23050900904001 Page 148 of 158 Report No.: S23050900904001 Page 149 of 158 Report No.: S23050900904001 Page 150 of 158 Report No.: S23050900904001

Report No.: S23050900902002 1 / 46 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict EGPRS1900 1 Slot 512 1850.2 26.90 PASS EGPRS1900 1 Slot 661 1880 26.58 PASS EGPRS1900 1 Slot 810 1909.8 26.14 PASS EGPRS1900 2 Slot 512 1850.2 25.20 PASS EGPRS1900 2 Slot 661 1880 24.82 PASS EGPRS1900 2 Slot 810 1909.8 24.58 PASS EGPRS1900 3 Slot 512 1850.2 23.96 PASS EGPRS1900 3 Slot 661 1880 23.32 PASS EGPRS1900 3 Slot 810 1909.8 23.01 PASS EGPRS1900 4 Slot 512 1850.2 19.64 PASS EGPRS1900 4 Slot 661 1880 19.40 PASS EGPRS1900 4 Slot 810 1909.8 19.06 PASS EGPRS850 1 Slot 128 824.2 27.03 PASS EGPRS850 1 Slot 189 836.4 27.35 PASS EGPRS850 1 Slot 251 848.8 27.07 PASS EGPRS850 2 Slot 128 824.2 25.96 PASS EGPRS850 2 Slot 189 836.4 26.56 PASS EGPRS850 2 Slot 251 848.8 26.66 PASS EGPRS850 3 Slot 128 824.2 23.45 PASS EGPRS850 3 Slot 189 836.4 23.54 PASS EGPRS850 3 Slot 251 848.8 23.60 PASS EGPRS850 4 Slot 128 824.2 21.76 PASS EGPRS850 4 Slot 189 836.4 21.21 PASS EGPRS850 4 Slot 251 848.8 21.44 PASS Report No.: S23050900902002 2 / 46 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict EGPRS1900 512 1850.2 6.464409938 13.00 PASS EGPRS1900 661 1880 6.525424837 13.00 PASS EGPRS1900 810 1909.8 6.506206897 13.00 PASS EGPRS850 128 824.2 7.860849673 13.00 PASS EGPRS850 189 836.4 7.540214286 13.00 PASS EGPRS850 251 848.8 7.519439252 13.00 PASS EGPRS1900 Channel=512 EGPRS1900 Channel=810 Report No.: S23050900902002 3 / 46 EGPRS1900 Channel=661 EGPRS850 Channel=128 Report No.: S23050900902002 4 / 46 EGPRS850 Channel=251 EGPRS850 Channel=189 Report No.: S23050900902002 5 / 46 Report No.: S23050900902002 6 / 46 Occupied bandwidth Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict EGPRS1900 512 1850.2 243.031 312.293 PASS EGPRS1900 661 1880 247.772 310.884 PASS EGPRS1900 810 1909.8 243.748 314.467 PASS EGPRS850 128 824.2 239.091 305.447 PASS EGPRS850 189 836.4 244.241 322.908 PASS EGPRS850 251 848.8 244.862 302.315 PASS EGPRS1900 Channel=512 EGPRS1900 Channel=810 Report No.: S23050900902002 7 / 46 EGPRS1900 Channel=661 EGPRS850 Channel=189 Report No.: S23050900902002 8 / 46 EGPRS850 Channel=128 EGPRS850 Channel=251 Report No.: S23050900902002 9 / 46 Band edge Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict EGPRS1900 512 1850.2 1849.99 -36.70 -13 PASS EGPRS1900 810 1909.8 1910.02 -36.59 -13 PASS EGPRS850 128 824.2 823.97 -35.67 -13 PASS EGPRS850 251 848.8 849.02 -32.62 -13 PASS EGPRS1900 Channel=512 Report No.: S23050900902002 10 / 46 EGPRS1900 Channel=810 EGPRS850 Channel=128 Report No.: S23050900902002 11 / 46 EGPRS850 Channel=251 Report No.: S23050900902002 12 / 46 Out-of-band emissions Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict EGPRS1900 512 1850.2 26008.32 -17.95 -13 PASS EGPRS1900 661 1880 26054.64 -18.42 -13 PASS EGPRS1900 810 1909.8 25412.08 -18.72 -13 PASS EGPRS850 128 824.2 26104.94 -20.53 -13 PASS EGPRS850 189 836.4 26053.32 -19.74 -13 PASS EGPRS850 251 848.8 25708.55 -20.45 -13 PASS EGPRS1900 Channel=512 EGPRS1900 Channel=810 Report No.: S23050900902002 13 / 46 EGPRS1900 Channel=661 EGPRS850 Channel=128 Report No.: S23050900902002 14 / 46 EGPRS850 Channel=189 EGPRS850 Channel=251 Report No.: S23050900902002 15 / 46 Report No.: S23050900902002 16 / 46 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict GPRS1900 1 Slot 512 1850.2 30.91 PASS GPRS1900 1 Slot 661 1880 30.71 PASS GPRS1900 1 Slot 810 1909.8 30.26 PASS GPRS1900 2 Slot 512 1850.2 28.74 PASS GPRS1900 2 Slot 661 1880 28.48 PASS GPRS1900 2 Slot 810 1909.8 28.01 PASS GPRS1900 3 Slot 512 1850.2 27.18 PASS GPRS1900 3 Slot 661 1880 26.90 PASS GPRS1900 3 Slot 810 1909.8 26.51 PASS GPRS1900 4 Slot 512 1850.2 25.07 PASS GPRS1900 4 Slot 661 1880 24.66 PASS GPRS1900 4 Slot 810 1909.8 24.25 PASS GPRS850 1 Slot 128 824.2 32.87 PASS GPRS850 1 Slot 189 836.4 32.67 PASS GPRS850 1 Slot 251 848.8 32.61 PASS GPRS850 2 Slot 128 824.2 30.86 PASS GPRS850 2 Slot 189 836.4 30.63 PASS GPRS850 2 Slot 251 848.8 30.57 PASS GPRS850 3 Slot 128 824.2 28.95 PASS GPRS850 3 Slot 189 836.4 28.71 PASS GPRS850 3 Slot 251 848.8 28.66 PASS GPRS850 4 Slot 128 824.2 26.73 PASS GPRS850 4 Slot 189 836.4 26.48 PASS GPRS850 4 Slot 251 848.8 26.38 PASS Report No.: S23050900902002 17 / 46 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict GPRS1900 512 1850.2 2.824268817 13.00 PASS GPRS1900 661 1880 2.834397089 13.00 PASS GPRS1900 810 1909.8 2.829892473 13.00 PASS GPRS850 128 824.2 2.749931256 13.00 PASS GPRS850 189 836.4 2.75111437 13.00 PASS GPRS850 251 848.8 2.735417178 13.00 PASS GPRS1900 Channel=512 GPRS1900 Channel=661 Report No.: S23050900902002 18 / 46 GPRS1900 Channel=810 GPRS850 Channel=189 Report No.: S23050900902002 19 / 46 GPRS850 Channel=128 GPRS850 Channel=251 Report No.: S23050900902002 20 / 46 Report No.: S23050900902002 21 / 46 Occupied bandwidth Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict GPRS1900 512 1850.2 238.804 307.694 PASS GPRS1900 661 1880 244.398 301.571 PASS GPRS1900 810 1909.8 248.474 324.026 PASS GPRS850 128 824.2 246.505 314.425 PASS GPRS850 189 836.4 246.137 311.348 PASS GPRS850 251 848.8 249.636 315.832 PASS GPRS1900 Channel=512 GPRS1900 Channel=810 Report No.: S23050900902002 22 / 46 GPRS1900 Channel=661 GPRS850 Channel=128 Report No.: S23050900902002 23 / 46 GPRS850 Channel=251 GPRS850 Channel=189 Report No.: S23050900902002 24 / 46 Report No.: S23050900902002 25 / 46 Band edge Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict GPRS1900 512 1850.2 1849.99 -31.08 -13 PASS GPRS1900 810 1909.8 1910.02 -31.17 -13 PASS GPRS850 128 824.2 823.98 -27.21 -13 PASS GPRS850 251 848.8 849.02 -28.11 -13 PASS GPRS1900 Channel=810 GPRS1900 Channel=512 Report No.: S23050900902002 26 / 46 GPRS850 Channel=128 GPRS850 Channel=251 Report No.: S23050900902002 27 / 46 Report No.: S23050900902002 28 / 46 Out-of-band emissions Band Channel Freq…

Text truncated - open the document above for the full version.

Report No.: S23050900902002 1 / 17 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict WCDMA Band2 9262 1852.4 24.22 PASS WCDMA Band2 9400 1880 24.09 PASS WCDMA Band2 9538 1907.6 24.10 PASS WCDMA Band5 4132 826.4 23.52 PASS WCDMA Band5 4182 836.4 23.71 PASS WCDMA Band5 4233 846.6 23.67 PASS Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict WCDMA Band2 9262 1852.4 2.97 13 PASS WCDMA Band2 9400 1880 2.97 13 PASS WCDMA Band2 9538 1907.6 2.98 13 PASS WCDMA Band5 4132 826.4 3.04 13 PASS WCDMA Band5 4182 836.4 3.03 13 PASS WCDMA Band5 4233 846.6 3.06 13 PASS WCDMA Band2 Channel=9400 WCDMA Band2 Channel=9262 Report No.: S23050900902002 2 / 17 WCDMA Band2 Channel=9538 WCDMA Band5 Channel=4182 Report No.: S23050900902002 3 / 17 WCDMA Band5 Channel=4132 WCDMA Band5 Channel=4233 Report No.: S23050900902002 4 / 17 Report No.: S23050900902002 5 / 17 Occupied bandwidth Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict WCDMA Band2 9262 1852.4 4164.178 4671.687 PASS WCDMA Band2 9400 1880 4155.292 4669.986 PASS WCDMA Band2 9538 1907.6 4163.845 4683.114 PASS WCDMA Band5 4132 826.4 4153.818 4685.399 PASS WCDMA Band5 4182 836.4 4141.723 4687.801 PASS WCDMA Band5 4233 846.6 4130.065 4659.266 PASS WCDMA Band2 Channel=9262 WCDMA Band2 Channel=9400 Report No.: S23050900902002 6 / 17 WCDMA Band2 Channel=9538 WCDMA Band5 Channel=4132 Report No.: S23050900902002 7 / 17 WCDMA Band5 Channel=4233 WCDMA Band5 Channel=4182 Report No.: S23050900902002 8 / 17 Report No.: S23050900902002 9 / 17 Band edge Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict WCDMA Band2 9262 1852.4 1850.00 -26.26 -13 PASS WCDMA Band2 9538 1907.6 1910.00 -26.02 -13 PASS WCDMA Band5 4132 826.4 824.00 -26.38 -13 PASS WCDMA Band5 4233 846.6 849.00 -25.77 -13 PASS WCDMA Band2 Channel=9262 WCDMA Band2 Channel=9538 Report No.: S23050900902002 10 / 17 WCDMA Band5 Channel=4132 WCDMA Band5 Channel=4233 Report No.: S23050900902002 11 / 17 Report No.: S23050900902002 12 / 17 Out-of-band emissions Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict WCDMA Band2 9262 1852.4 19935.10 -23.07 -13 PASS WCDMA Band2 9400 1880 19955.07 -23.33 -13 PASS WCDMA Band2 9538 1907.6 19946.08 -23.63 -13 PASS WCDMA Band5 4132 826.4 6092.26 -30.08 -13 PASS WCDMA Band5 4182 836.4 3132.91 -28.34 -13 PASS WCDMA Band5 4233 846.6 7486.56 -29.50 -13 PASS WCDMA Band2 Channel=9262 WCDMA Band2 Channel=9400 Report No.: S23050900902002 13 / 17 WCDMA Band2 Channel=9538 WCDMA Band5 Channel=4132 Report No.: S23050900902002 14 / 17 WCDMA Band5 Channel=4233 WCDMA Band5 Channel=4182 Report No.: S23050900902002 15 / 17 Report No.: S23050900902002 16 / 17 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict HSDPA Band2 Subtest1 9262 1852.4 23.70 PASS HSDPA Band2 Subtest2 9262 1852.4 23.37 PASS HSDPA Band2 Subtest3 9262 1852.4 23.01 PASS HSDPA Band2 Subtest4 9262 1852.4 22.74 PASS HSDPA Band2 Subtest1 9400 1880 23.41 PASS HSDPA Band2 Subtest2 9400 1880 23.13 PASS HSDPA Band2 Subtest3 9400 1880 22.88 PASS HSDPA Band2 Subtest4 9400 1880 22.74 PASS HSDPA Band2 Subtest1 9538 1907.6 23.26 PASS HSDPA Band2 Subtest2 9538 1907.6 22.92 PASS HSDPA Band2 Subtest3 9538 1907.6 22.73 PASS HSDPA Band2 Subtest4 9538 1907.6 22.29 PASS HSDPA Band5 Subtest1 4132 826.4 22.77 PASS HSDPA Band5 Subtest2 4132 826.4 22.55 PASS HSDPA Band5 Subtest3 4132 826.4 22.22 PASS HSDPA Band5 Subtest4 4132 826.4 22.06 PASS HSDPA Band5 Subtest1 4182 836.4 23.14 PASS HSDPA Band5 Subtest2 4182 836.4 22.94 PASS HSDPA Band5 Subtest3 4182 836.4 22.60 PASS HSDPA Band5 Subtest4 4182 836.4 22.46 PASS HSDPA Band5 Subtest1 4233 846.6 22.25 PASS HSDPA Band5 Subtest2 4233 846.6 22.10 PASS HSDPA Band5 Subtest3 4233 846.6 21.68 PASS HSDPA Band5 Subtest4 4233 846.6 21.67 PASS Report No.: S23050900902002 17 / 17 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict HSUPA Band2 Subtest1 9262 1852.4 23.43 PASS HSUPA Band2 Subtest2 9262 1852.4 23.53 PASS HSUPA Band2 Subtest3 9262 1852.4 23.15 PASS HSUPA Band2 Subtest4 9262 1852.4 23.58 PASS HSUPA Band2 Subtest5 9262 1852.4 23.37 PASS HSUPA Band2 Subtest1 9400 1880 23.22 PASS HSUPA Band2 Subtest2 9400 1880 23.34 PASS HSUPA Band2 Subtest3 9400 1880 22.69 PASS HSUPA Band2 Subtest4 9400 1880 23.31 PASS HSUPA Band2 Subtest5 9400 1880 23.12 PASS HSUPA Band2 Subtest1 9538 1907.6 23.31 PASS HSUPA Band2 Subtest2 9538 1907.6 23.25 PASS HSUPA Band2 Subtest3 9538 1907.6 23.16 PASS HSUPA Band2 Subtest4 9538 1907.6 23.30 PASS HSUPA Band2 Subtest5 9538 1907.6 23.08 PASS HSUPA Band5 Subtest1 4132 826.4 22.73 PASS HSUPA Band5 Subtest2 4132 826.4 22.75 PASS HSUPA Band5 Subtest3 4132 826.4 22.23 PASS HSUPA Band5 Subtest4 4132 826.4 22.39 PASS HSUPA Band5 Subtest5 4132 826.4 22.57 PASS HSUPA Band5 Subtest1 4182 836.4 22.95 PASS HSUPA Band5 Subtest2 4182 836.4 23.11 PASS HSUPA Band5 Subtest3 4182 836.4 22.74 PASS HSUPA Band5 Subtest4 4182 836.4 23.11 PASS HSUPA Band5 Subtest5 4182 836.4 22.97 PASS HSUPA Band5 Subtest1 4233 846.6 22.12 PASS HSUPA Band5 Subtest2 4233 846.6 22.23 PASS HSUPA Band5 Subtest3 4233 846.6 21.94 PASS HSUPA Band5 Subtest4 4233 846.6 21.96 PASS HSUPA Band5 Subtest5 4233 846.6 22.17 PASS

Report No.: S23050900902003 1 / 200 Conducted output power Band Bandwidth (MHz) UL Channel RB Size RB Position Modulation Power (dBm) Verdict Band13 5 23205 1 #0 QPSK 23.77 PASS Band13 5 23205 1 #Mid QPSK 23.68 PASS Band13 5 23205 1 #Max QPSK 23.66 PASS Band13 5 23205 12 #0 QPSK 22.82 PASS Band13 5 23205 12 #Mid QPSK 22.64 PASS Band13 5 23205 12 #Max QPSK 22.61 PASS Band13 5 23205 25 #0 QPSK 22.72 PASS Band13 5 23205 1 #0 16QAM 22.85 PASS Band13 5 23205 1 #Mid 16QAM 22.82 PASS Band13 5 23205 1 #Max 16QAM 22.91 PASS Band13 5 23205 12 #0 16QAM 21.65 PASS Band13 5 23205 12 #Mid 16QAM 21.62 PASS Band13 5 23205 12 #Max 16QAM 21.62 PASS Band13 5 23205 25 #0 16QAM 21.87 PASS Band13 5 23230 1 #0 QPSK 23.82 PASS Band13 5 23230 1 #Mid QPSK 23.77 PASS Band13 5 23230 1 #Max QPSK 23.91 PASS Band13 5 23230 12 #0 QPSK 22.64 PASS Band13 5 23230 12 #Mid QPSK 22.63 PASS Band13 5 23230 12 #Max QPSK 23.00 PASS Band13 5 23230 25 #0 QPSK 22.67 PASS Band13 5 23230 1 #0 16QAM 22.32 PASS Band13 5 23230 1 #Mid 16QAM 22.40 PASS Band13 5 23230 1 #Max 16QAM 22.79 PASS Band13 5 23230 12 #0 16QAM 21.57 PASS Band13 5 23230 12 #Mid 16QAM 21.62 PASS Band13 5 23230 12 #Max 16QAM 22.07 PASS Band13 5 23230 25 #0 16QAM 21.82 PASS Band13 5 23255 1 #0 QPSK 23.61 PASS Band13 5 23255 1 #Mid QPSK 23.69 PASS Band13 5 23255 1 #Max QPSK 23.66 PASS Band13 5 23255 12 #0 QPSK 23.09 PASS Band13 5 23255 12 #Mid QPSK 23.08 PASS Band13 5 23255 12 #Max QPSK 22.67 PASS Band13 5 23255 25 #0 QPSK 23.08 PASS Band13 5 23255 1 #0 16QAM 22.70 PASS Band13 5 23255 1 #Mid 16QAM 22.94 PASS Band13 5 23255 1 #Max 16QAM 22.65 PASS Band13 5 23255 12 #0 16QAM 22.05 PASS Band13 5 23255 12 #Mid 16QAM 22.06 PASS Band13 5 23255 12 #Max 16QAM 21.78 PASS Report No.: S23050900902003 2 / 200 Band13 5 23255 25 #0 16QAM 22.01 PASS Band13 10 23230 1 #0 QPSK 22.65 PASS Band13 10 23230 1 #Mid QPSK 23.77 PASS Band13 10 23230 1 #Max QPSK 23.90 PASS Band13 10 23230 25 #0 QPSK 22.70 PASS Band13 10 23230 25 #Mid QPSK 22.64 PASS Band13 10 23230 25 #Max QPSK 23.13 PASS Band13 10 23230 50 #0 QPSK 22.64 PASS Band13 10 23230 1 #0 16QAM 23.07 PASS Band13 10 23230 1 #Mid 16QAM 23.11 PASS Band13 10 23230 1 #Max 16QAM 23.05 PASS Band13 10 23230 25 #0 16QAM 21.68 PASS Band13 10 23230 25 #Mid 16QAM 21.80 PASS Band13 10 23230 25 #Max 16QAM 22.13 PASS Band4 1.4 19957 1 #0 QPSK 24.54 PASS Band4 1.4 19957 1 #Mid QPSK 24.48 PASS Band4 1.4 19957 1 #Max QPSK 24.54 PASS Band4 1.4 19957 3 #0 QPSK 24.39 PASS Band4 1.4 19957 3 #Mid QPSK 24.45 PASS Band4 1.4 19957 3 #Max QPSK 24.39 PASS Band4 1.4 19957 6 #0 QPSK 23.37 PASS Band4 1.4 19957 1 #0 16QAM 24.45 PASS Band4 1.4 19957 1 #Mid 16QAM 24.38 PASS Band4 1.4 19957 1 #Max 16QAM 24.42 PASS Band4 1.4 19957 3 #0 16QAM 23.61 PASS Band4 1.4 19957 3 #Mid 16QAM 23.58 PASS Band4 1.4 19957 3 #Max 16QAM 23.63 PASS Band4 1.4 19957 6 #0 16QAM 22.61 PASS Band4 1.4 20175 1 #0 QPSK 24.44 PASS Band4 1.4 20175 1 #Mid QPSK 24.49 PASS Band4 1.4 20175 1 #Max QPSK 24.50 PASS Band4 1.4 20175 3 #0 QPSK 24.51 PASS Band4 1.4 20175 3 #Mid QPSK 24.49 PASS Band4 1.4 20175 3 #Max QPSK 24.51 PASS Band4 1.4 20175 6 #0 QPSK 23.61 PASS Band4 1.4 20175 1 #0 16QAM 24.20 PASS Band4 1.4 20175 1 #Mid 16QAM 24.36 PASS Band4 1.4 20175 1 #Max 16QAM 24.37 PASS Band4 1.4 20175 3 #0 16QAM 23.65 PASS Band4 1.4 20175 3 #Mid 16QAM 23.69 PASS Band4 1.4 20175 3 #Max 16QAM 23.64 PASS Band4 1.4 20175 6 #0 16QAM 22.48 PASS Band4 1.4 20393 1 #0 QPSK 24.97 PASS Band4 1.4 20393 1 #Mid QPSK 24.95 PASS Report No.: S23050900902003 3 / 200 Band4 1.4 20393 1 #Max QPSK 24.95 PASS Band4 1.4 20393 3 #0 QPSK 24.83 PASS Band4 1.4 20393 3 #Mid QPSK 24.70 PASS Band4 1.4 20393 3 #Max QPSK 24.79 PASS Band4 1.4 20393 6 #0 QPSK 23.63 PASS Band4 1.4 20393 1 #0 16QAM 24.23 PASS Band4 1.4 20393 1 #Mid 16QAM 24.15 PASS Band4 1.4 20393 1 #Max 16QAM 24.26 PASS Band4 1.4 20393 3 #0 16QAM 24.07 PASS Band4 1.4 20393 3 #Mid 16QAM 24.01 PASS Band4 1.4 20393 3 #Max 16QAM 23.95 PASS Band4 1.4 20393 6 #0 16QAM 22.73 PASS Band4 3 19965 1 #0 QPSK 24.36 PASS Band4 3 19965 1 #Mid QPSK 24.41 PASS Band4 3 19965 1 #Max QPSK 24.34 PASS Band4 3 19965 8 #0 QPSK 23.39 PASS Band4 3 19965 8 #Mid QPSK 23.46 PASS Band4 3 19965 8 #Max QPSK 23.66 PASS Band4 3 19965 15 #0 QPSK 23.43 PASS Band4 3 19965 1 #0 16QAM 24.48 PASS Band4 3 19965 1 #Mid 16QAM 24.45 PASS Band4 3 19965 1 #Max 16QAM 24.80 PASS Band4 3 19965 8 #0 16QAM 22.41 PASS Band4 3 19965 8 #Mid 16QAM 22.48 PASS Band4 3 19965 8 #Max 16QAM 22.73 PASS Band4 …
