2AT6R-AP2DANNE PRO 2D Mechanical keyboard

 Quick Start ABCDEF GHIJKL MNOP QRSTU VWXYZ 012345 6789 ? www.hexcore.xyz AnnePro 2D What’s in the box AnnePro 2D Keyboard USB Cable (1.8m) 2 IN 1 Keycap and Switch Puller The illustrations of products, accessories, etc. in the guid are all schematic and are for reference only. Connect through USB Connect to computer GETTING STARTED Connect keyboard to computer through Type-C data cable, and make sure that the wireless switch ( on the back of keyboard) has been turned OFF. For more information see the online user manual Connect through Bluetooth ② Turn on the Bluetooth of the computer and connect the keyboard. Note: When you press the switch device keys, the button statuts green light slowly blinks. ① Hold down FN2 + 1(2, 3, 4) key for 5 seconds to turn on the bluetooth broadcast, and make sure that the wireless switch ( on the back of keyboard) has been turned ON. Connect through bluetooth Switching devices ① After setting up connections with multi host, switch amony them by pressing FN2 + 1(2, 3, 4) k e y. Note: Blink red light means keyboard is ready for pairing. The keyboard will in pairing mode for 1 minutes. For more information see the online user manual FN21 F1 + FN21 F1 + 5 Seconds AnnePro 2D  Turn on / off backlight Switch backlight effect Increase brightness Decrease brightness FN20 F10 FN2 - F11 FN2= F12 FN29 F9 For more information see the online user manual + + + +
       ­ €­      ‚­ ‚
    ­   €‚  ­ƒ   ‚‚­  „‚    … ‚ƒ   €‚  ƒ  ­  ƒ  ­ƒ  †   ‡ ƒ      ƒ ­‚­ Warranty Provisions The warranty period commences from the date of purchase. The product and other accessories carry a warranty period according to local regulations and policy. The data on proof of purchase or any other valid voucher will be considered as the date of purchase. For more detailed warranty information, please consult your local dealer or visit hexocre website: https://www.hexcore.xyz/en/ Warranty Card Name Purchase Date Store Address Tel. Email Taicang Zhigengniao Information Technology. Co.,Ltd. Address：University Science Park, No. 20, Jianxiong Road, Taicang City, Suzhou, Jiangsu Province, P. R. China Official website: www.hexcore.xyz  快速使用指南 ABCDEF GHIJKL MNOP QRSTU VWXYZ 012345 6789 ？ www.hexcore.xyz AnnePro 2D 配件清单 AnnePro 2D 键盘 USB 线 (1.8m) 2 IN 1 拔键器 / 拔轴器 指南中的产品、配件等插图均为示意图，仅供参考 通过USB连接电脑 连接电脑 ­€€­€ € 通过Type-C 数据线连接电脑并确保 无线开关(键盘背部) 处于关闭（OFF）状态 。 更多信息请查阅在线用户手册 通过蓝牙连接电脑 ② 打开电脑的蓝牙搜索并连接您的键盘。 ① 同时按下并保持 FN2 + 1(2, 3, 4) 5 秒，键盘将进入蓝牙 配对模式, 请确保背部无线开关处于打开（ON）状态。 使用蓝牙连接电脑 备注：绿灯闪烁表示键盘正在切换主机。 设备切换 ① 通过 同时按下FN2 + 1(2, 3, 4) 在多个已经绑定的主机之间 切换。 备注: 红灯闪烁表示键盘进入了配对模式, 持续1分钟。 更多信息请查阅在线用户手册 FN21 F1 + FN2 1 F1 + 5 Seconds AnnePro 2D 设置背光 打开/关闭背光 切换背光动画效果 增加背光亮度 降低背光亮度 更多信息请查阅在线用户手册 FN20 F10 FN2 - F11 FN2= F12 FN29 F9 + + + + 下载并安装APP      在线用户手册 通过 HEXCORE-LINK 增强您的键盘 hexcore-link 可让您根据自己的需求和个人风格自定义键盘 创建快捷键、重新分配按键功能、启用（停用）按键、 显示电池警告、设置宏程序、设置个性规划灯光等等。 扫描二维码下载 HEXCORE-LINK 产品中有毒有害物质或元素的名称及含量 在中华人民共和国境内销售的电子信息产品必须标识此标志， 标志内的数字代表在正常的使用状态下的产品环境使用期限。 某些部件也可能有环保使用期限标识，其使用年限以表示内 的数字为准。因型号不同，产品可能不包含除主机外的以上 所有部件，请以产品实际销售配置为准。 本表格依据 SJ/T 11364-2014 的规定编制。 O：表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。 X：表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。 本产品的“环保使用期限"，其标识如下图所示。是根据2016年7月1日公布的 《电器电子产品有害物质限制使用管理办法》及 《中国家用电器协会关于家用电器环保使用期限指导意见》,根据《管理办法》 的要求，产品生产者、进口者应按照相关配套标准的要求和格式对产品中的 有害物质含有情况进行披露，并标注产品的环保使用期限。 在遵守使用说明书中记载的有关本产品安全和使用上的注意事项、且没有其他 法律、规定的免责事由的情况下，在从生产日开始的上述年限内，产品中的有毒 有害物质或元素不会发生外泄或突变，使用该产品不会对环境造成严重污染或 对使用者人身、财产造成严重损害。“环保使用期限”不是安全使用期限，尤其 不同于基于电气性能安全、电磁安全等因素而被限定的使用期限。产品在适当 地使用后予以废弃时，希望依照有关电子信息产品的回收、再利用的法律、规定 进行处理。 注：该年限为“环保使用期限”，不是产品的质量保证期限。 铅 (Pb) 汞 （Hg） 镉 (Cd） 六价铬 (Cr 6+ ） 多溴联 苯 （PBB） 多溴二苯醚 (PBDE) 主板⚪⚪⚪⚪⚪⚪ 外壳⚪⚪⚪⚪⚪⚪ 附件⚪⚪⚪⚪⚪⚪ 部件名称 有毒有害物质或元素 保修条例服务承诺 保修条例 保修服务仅限于在正常使用情况下的有效保修期内，由于产 品本身质量问题引起的非人为损坏的故障，凭发票和本三包 凭证按照国家三包规定将享受下列三包服务： - 自购买产品之日起7天包退，15天包换，1年保修。 维修时请携带此证及有效的产品购买发票； 此证不得涂改，否则将视为无效凭证。 保修卡 姓名 购买日期 购买渠道 通信地址 联系电话 电子邮件 太仓知更鸟信息技术有限公司 地址：江苏省苏州太仓市健雄路20号大学科技园 网址: www.hexcore.xyz FCC Part 15.21 information for user You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. FCC 15b devices (15.105) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions :(1)This device may not cause harmful interference, and (2) this de…

Text truncated - open the document above for the full version.

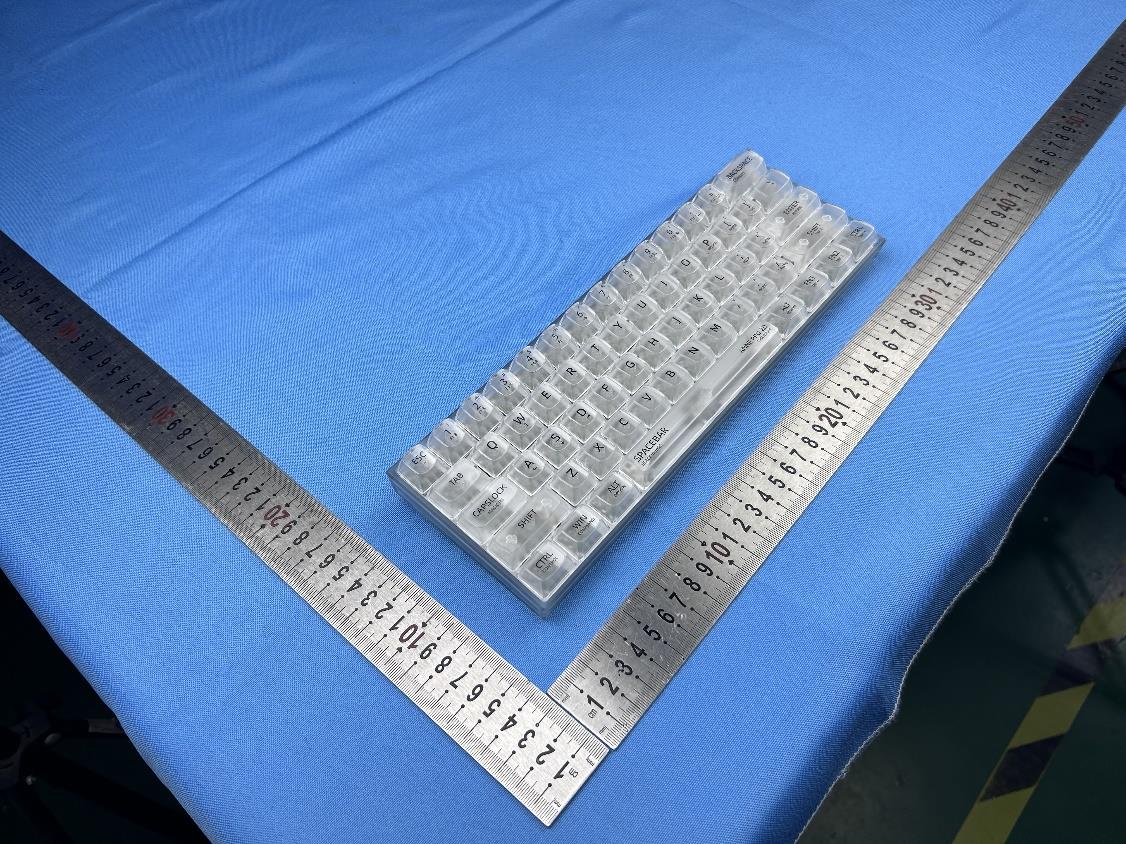

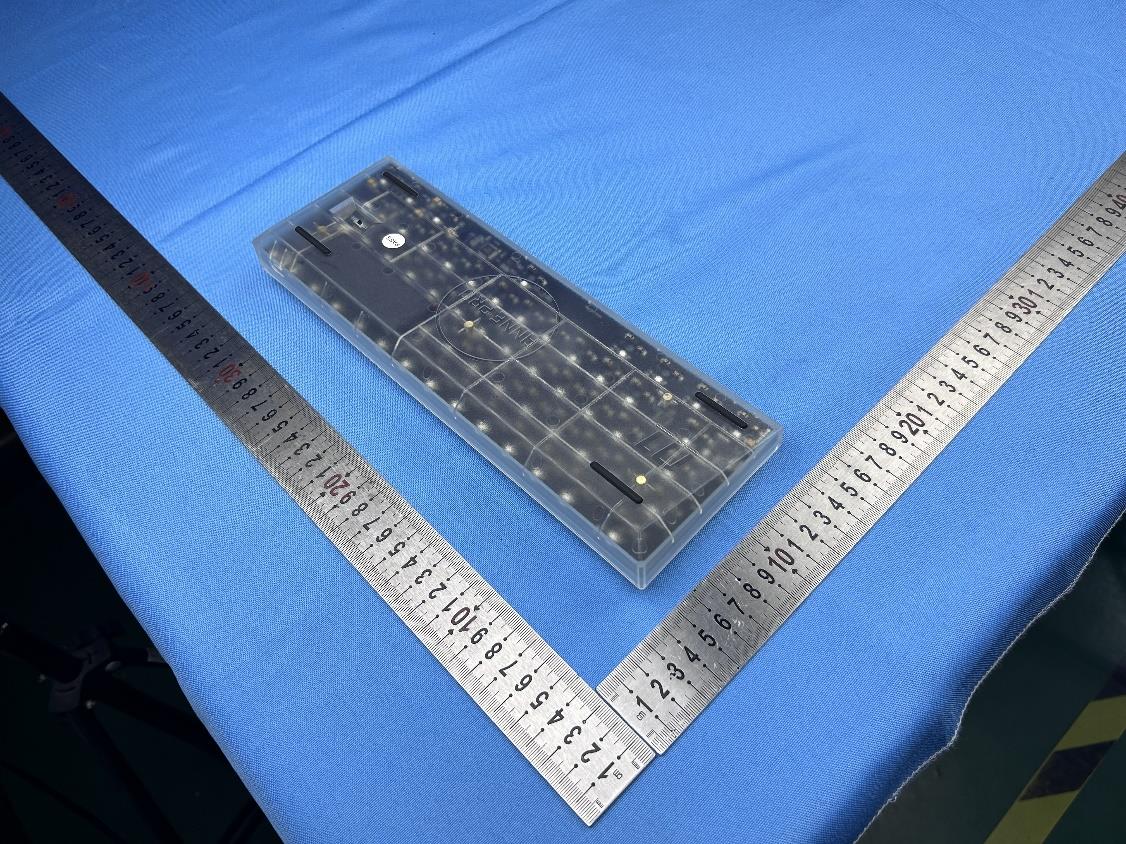

Report No.: S202205270617E01 1 of 2 Attachment 1： External Photo of EUT Photo 1: The whole product view Photo 2: The whole product view Report No.: S202205270617E01 2 of 2 Photo 3: The whole product view Photo 4: The whole product view

label

Report No.: S202205270617E01 1 of 4 Attachment 2： Internal Photo of EUT Photo 1: Internal View Photo 2: Internal View Report No.: S202205270617E01 2 of 4 Photo 3: Internal View Photo 4: Internal View for PCB Report No.: S202205270617E01 3 of 4 Photo 5: Internal View for PCB Photo 6: Internal View for Battery Report No.: S202205270617E01 4 of 4 Photo 6: Internal View for RF Module

FangguangInspection&TestingCo.,Ltd. PageNumber:1of5 RFExposureEvaluationDeclaration ReportNo.:S202211098207E03 IssueDate:01-06-2023 Applicant: TaicangZhigengniaoInformationTechnologyCo.,Ltd. Address: No.20JianxiongRoadTaicangCityChina FCCID:2AT6R-AP2D ApplicationType:Certification Product:ANNEPRO2DMechanicalKeyboard ModelNo.:ANNEPRO2D TradeMark: FCCClassification:DigitalTransmissionSystem(DTS) FCCRulePart(s):Part15SubpartC(15.247) TestProcedure(s):ANSIC63.10-2013,KDB558074D01v05r02 TestDate:Nov23~Dec19,2022 CompiledBy (AmosXia) SeniorTestEngineer ApprovedBy (LineChen) EngineerManager Thetestresultsrelateonlytothesamplestested. Thisequipmenthasbeenshowntobecapableofcompliancewiththeapplicabletechnicalstandardsas indicatedinthemeasurementreportandwastestedinaccordancewiththemeasurementproceduresspecified inKDB558074D01.Testresultsreportedhereinrelateonlytotheitem(s)tested. ThetestreportshallnotbereproducedexceptinfullwithoutthewrittenapprovalofFangguangInspection& TestingCo.,Ltd.WuxiBranch Thetestreportmustnotbeusedbytheclienttoclaimproductcertifications,approval,orendorsementby NVLAP,NISToranyagencyofU.S.Government. ReportNo.:S202211098207E03 PageNumber:2of5 RevisionHistory ReportNo.VersionDescriptionIssueDate S202211098207E03Rev.01/01-06-2023 ReportNo.:S202211098207E03 PageNumber:3of5 1.PRODUCTINFORMATION 1.1.EquipmentDescription 1.2.ProductSpecificationSubjectivetothisReport ProductName:ANNEPRO2DMechanicalKeyboard ModelName:ANNEPRO2D AdditionalModel:/ TradeMark: Ratings:Input:5V500mA BluetoothVersion:4.0 BluetoothFrequency2402~2480MHz BluetoothVersion4.0 TypeofmodulationGFSK DataRate1Mbps AntennaType:PCBAntenna AntennaGain:-2.76dBi ReportNo.:S202211098207E03 PageNumber:4of5 2.RFExposureEvaluation 2.1.Limits AccordingtoKDB447498D01GeneralRFExposureGuidancev06Section4.3.1StandaloneSAR testexclusionconsiderations:“UnlessspecificallyrequiredbythepublishedRFexposureKDB procedures,standalone1-gheadorbodyand10-gextremitySARevaluationforgeneral populationexposureconditions,bymeasurementornumericalsimulation,isnotrequiredwhenthe correspondingSARTestExclusionThresholdcondition,listedbelow,issatisfied.Thesetest exclusionconditionsarebasedonsource-basedtime-averagedmaximumconductedoutputpower oftheRFchannelrequiringevaluation,adjustedfortune-uptolerance,andtheminimumtest separationdistancerequiredfortheexposureconditions.Theminimumtestseparationdistanceis determinedbythesmallestdistancefromtheantennaandradiatingstructuresoroutersurfaceof thedevice,accordingtothehostformfactor,exposureconditionsandplatformrequirements,to anypartofthebodyorextremityofauserorbystander(see5)ofsection4.1).ToqualifyforSAR testexclusion,thetestseparationdistancesappliedmustbefullyexplainedandjustifiedbythe operatingconfigurationsandexposureconditionsofthetransmitterandapplicablehostplatform requirements,typicallyintheSARmeasurementorSARanalysisreport,accordingtotherequired publishedRFexposureKDBprocedures.WhennootherRFexposuretestingorreportingis required,astatementofjustificationandcompliancemustbeincludedintheequipmentapproval, inlieuoftheSARreport,toqualifyfortheSARtestexclusion.Whenrequired,thedevicespecific conditionsdescribedintheotherpublishedRFexposureKDBproceduresmustbesatisfiedbefore applyingtheseSARtestexclusionprovisions; forexample,handheldPTTtwo-wayradios,handsets,laptops&tabletsetc.“ [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[VF(GHz)]≤3.0for1-gSARand≤7.5for10-gextremitySAR,where: •f(GHz)istheRFchanneltransmitfrequencyinGHz •PoweranddistanceareroundedtothenearestmWandmmbeforecalculation •Theresultisroundedtoonedecimalplaceforcomparison •3.0and7.5arereferredtoasthenumericthresholdsinthestep2below Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50mm andfortransmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtest separationdistanceis<5mm,adistanceof5mmaccordingtof)insection4.1isappliedto determineSARtestexclusion. ReportNo.:S202211098207E03 PageNumber:5of5 2.2.CalculationMethod [(max.powerof`channel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f(GHz)]≤3.0 ConductedPower+tuneuptolerance=-4.06dBm=0.39mW Distance=5mm f=2.48 [0.39/5]*SQRT(2.48)=0.12 0.12≤3.0 Therefore,excludedfromSARtesting. CONCULISON: ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1093fortheuncontrolledRF ExposureandSARExclusionThresholdperKDB447498v06. TheEnd

Page 1 of 18 Test Report Verified code: Report No.: E202212057025-1 Customer: Taicang Zhigengniao Information Technology Co.,Ltd. Address: No.20 JianxiongRoad TaicangCity China Sample Name: ANNE PRO 2D Sample Model: AP2D Receive Sample Date: Dec.09,2022 Test Date: Dec.12,2022 ~ Dec.12,2022 Reference Document: ANSI IEEE 149-2021 Part 8, Part 10 Test Result: Pass Prepared by: Reviewed by: Approved by: GUANGZHOU GRG METROLOGY & TEST CO., LTD Issued Date: GUANGZHOU GRG METROLOGY & TEST CO., LTD. Address: No.163, Pingyun Road, West of Huangpu Avenue, Guangzhou, Guangdong, China Tel：（+86）400-602-0999 FAX：（+86）020-38698685 Web：http://www.grgtest.com 405080 2022-12-28 Report No.: E202212057025-1-G1 Page 2 of 18 Statement 1. The report is invalid without "special seal for inspection and testing"; some copies are invalid; The report is invalid if it is altered or missing; The report is invalid without the signature of the person who prepared, reviewed and approved it. 2. The sample information is provided by the client and responsible for its authenticity; The content of the report is only valid for the samples sent this time. 3. When there are reports in both Chinese and English, the Chinese version will prevail when the language problems are inconsistent. 4. If there is any objection concerning the report, please inform us within 15 days from the date of receiving the report. 5. Without the agreement of the laboratory, the client is not authorized to use the test results for unapproved propaganda. ------------ The following blanks ------------ Report No.: E202212057025-1-G1 Page 3 of 18 TABLE OF CONTENTS 1. TEST RESULT SUMMARY ...................................................................................................................... 5 2. GENERAL DESCRIPTION OF EUT ......................................................................................................... 6 2.1 APPLICANT INFORMATION .............................................................................................................. 6 2.2 MANUFACTURER ................................................................................................................................ 6 2.3 FACTORY .............................................................................................................................................. 6 2.4 BASIC DESCRIPTION OF EUT ........................................................................................................... 6 2.5 TEST SCENE.......................................................................................................................................... 6 2.6 SAMPLE WORK DESCRIPTION ......................................................................................................... 7 2.7 ASSISTIVE DEVICE INFORMATION ................................................................................................ 7 2.8 SAMPLE CONNECTION DIAGRAM .................................................................................................. 7 3. LABORATORY .......................................................................................................................................... 8 4. MEASUREMENT UNCERTAINTY .......................................................................................................... 9 5. EQUIPMENT AND TOOLS USED DURING TEST .............................................................................. 10 6. ANTENNA RADIATION PERFORMANCE TEST ................................................................................ 11 6.1 LIMITS ................................................................................................................................................. 11 6.2 TEST PROCEDURE ............................................................................................................................ 11 6.3 CONFIGURATION OF SYSTEM UNDER TEST .............................................................................. 12 6.4 TEST PHOTOS ..................................................................................................................................... 12 6.5 TEST RESULTS ................................................................................................................................... 13 7. SAMPLE PHOTO ..................................................................................................................................... 17 ------------ The following blanks ------------ Report No.: E202212057025-1-G1 Page 4 of 18 REPORT ISSUED HISTORY Report Version Report No. Description Compile Date 1.0 E202212057025-1 Original Issue 2022-12-12 2.0 E202212057025-1-G1 Updated 2022-12-28 Note: This report E202212057025-1-G1 is the modification of report E202212057025-1. On the basis of the original report, the content of Chinese remarks in the CONFIGURATION OF SYSTEM UNDER TEST in page 12 and section 6.3 of the report is modified to english, and the original report E202212057025-1 is invalid. ------------ The following blanks ------------ Report No.: E202212057025-1-G1 Page 5 of 18 1. TEST RESULT SUMMARY Test Item Test Frequency Test Method Test Scene Test Result Gain 2400 MHz ~2500 MHz ANSI IEEE 149-2021 Part 8 scene 1 / 1) Efficiency 2400 MHz ~2500 MHz ANSI IEEE 149-2021 Part 10 scene 1 / 1) Note: 1) Customer-defined test, test results do not make judgment. ------------ The following blanks ------------ . Report No.: E202212057025-1-G1 Page 6 of 18 2. GENERAL DESCRIPTION OF EUT 2.1 APPLICANT INFORMATION Name: Taicang Zhigengniao Information Technology Co.,Ltd. Address: No.20 JianxiongRoad TaicangCity China 2.2 MANUFACTURER Name: Taicang Zhigengniao Information Technology Co.,Ltd. Address: No.20 JianxiongRoad TaicangCity China 2.3 FACTORY Name: Taicang Zhigengniao Information Technology Co.,Ltd. Address: No.20 JianxiongRoad TaicangCity China 2.4 BASIC DESCRIPTION OF EUT Product Name: ANNE PRO 2D Product Model: AP2D Trade Name: / Product Size Powe…
