2AT72-FAQ211Silicone LED Mask

FAQ™ 211 SILICONE LED NECK & DÉCOLLETÉ MASK Online Manual ----------------------------------------- FULL USER MANUAL GETTING STARTED Congratulations on taking the first step into a new era of anti-aging by acquiring FAQ™ 211. Before you begin to enjoy all the benefits of professional skincare technology in the comfort of your home, please take a few moments to carefully read the instructions in this manual. Please READ ALL INSTRUCTIONS BEFORE USE and utilize this product only for its intended use as described in this manual. WARNING: NO MODIFICATION OF THIS EQUIPMENT IS ALLOWED. ----------------------------------------- FAQ™ 211 OVERVIEW Introducing an entirely new generation of LED mask. Ultra-lightweight, wireless, and made with flexi-fit silicone to mold to your body contours for even light coverage. FAQ™ 211 features 8 different wavelengths, including NIR, to tackle signs of aging and other skin concerns - while you do literally anything else. Move around freely, and enjoy spa-level LED treatments, at the push of a button. ----------------------------------------- GETTING TO KNOW FAQ™ 211 [insert diagram of device] INDICATOR LIGHT Indicates when device is in Bluetooth pairing mode, and Smart Control mode. UNIVERSAL POWER BUTTON Press once to turn on. Press again to switch LED colors. Press for 3 sec to turn off. From off, press for 3 sec to put mask in Bluetooth pairing mode to connect to the app. FLEXI-FIT SILICONE Ultra-hygienic and easy to clean. Molds to your neck and décolleté like a transparent second skin for ease of movement. GOLD NECK CHAIN Adjustable to keep mask securely on your neck so you can move around freely. Also allows mask to be worn on the back of the neck. 761 POINTS OF LIGHT Pulsing 3000x per second, and optimized to ensure the LED wavelengths penetrate evenly across all areas of skin. CHARGING PORT Up to 2.5 hours of use per 2 hour USB charge. USB charging cable provided. ----------------------------------------- WARNINGS FOR OPTIMUM SAFETY: • FAQ™ LED Masks should be comfortable – if you experience any discomfort or prolonged skin redness, discontinue use immediately and consult a physician. • Do not use on wound ulceration, trauma, and post-operative wounds. • Do not use if you have light-sensitivity or sunburnt or inflamed skin. • Do not stare directly at the LED lights. • This product should not be used by children. Close supervision is necessary when this product is used by, on, or near children and those with reduced physical and mental abilities. • For reasons of hygiene, we do not recommend sharing your FAQ™ 211 with anyone else. • Avoid leaving your FAQ™ 211 in direct sunlight and never expose it to extreme heat or boiling water. • Do not pull the gold neck chain too tight, in order to avoid damage to the silicone mask. • Discontinue use if this product appears damaged in any way. • This product contains no serviceable parts. • Do not tamper or attempt to disassemble the product as this may cause damage to the unit. • Do not use while driving or operating heavy machinery. • Do not insert any object into any opening of the device. • Do not use the device if it is overheating or you suspect that it is malfunctioning. • This device should only be used with a SELV power adapter. • It is recommended that IEC60950 standard power suppliers are used to charge the device. • Before charging, make sure that the plug and socket are completely dry. Failure to do so may result in electric shock, short circuit, or fire. • Do not use the device while charging. Discontinue use if this device or charger is not working properly or appears damaged in any way. Only use the power cord supplied with your device. • The battery must be removed from the appliance before it is disposed of. The appliance must be disconnected from the supply mains when removing the battery, and the battery is to be disposed of safely. • Given the efficiency of the FAQ™ LED Masks, we recommend that you do not use FAQ™ 211 for more than 15 minutes at a time. • Use this LED Mask only for its intended use as described in this manual. If you do not find the answer to your specific question, or if you have any other questions regarding the device’s operation, please visit faqswiss.com/support ----------------------------------------- HOW TO USE FAQ™ 211 UNLOCK YOUR DEVICE In order to use your mask, you must first unlock it. You can do this automatically by registering your mask via the FAQ™ Swiss app for the first time. Simply follow the steps below: [insert QR code] 1. Download the FAQ™ Swiss app on your mobile phone by scanning the QR code. 2. Log in to your existing account, or sign up for a new one. 3. Add device (on the top of your screen). 4. Choose the device series. 5. Press and hold the universal button to connect your device to the app. 6. Fill in the purchase information. And your device is ready to use! HOW TO USE [Insert how to use images for each step. Below each image, add the corresponding text - like we have in the ppts ] 1. Start with clean and dry skin, and apply your FAQ™ primer to the neck and décolleté, if desired. Then place your FAQ™ 211 LED Mask on the front of your neck and décolleté area, or on the back of your neck and upper back area. Secure in place with the gold neck chain. 2. Press the universal power button to turn on your mask. You can change the LED colors by quick-pressing the button again. Or you can access pre- programmed treatments and more settings via the FAQ™ Swiss app. 3. Enjoy your LED treatment for up to 15 mins, while you continue with your day - for multitasking at its best. Once finished, press the universal power button for 3 seconds to turn off your mask. IMPORTANT THINGS TO NOTE: • We recommend using this mask for 5-15 minutes, 3-5 times per week. • Do not pull the gold neck chain too tight, or you may damage the mask. • We recommend using FAQ™ primer with your FAQ™ 211 LED Mask due to its potent anti-aging properties. You can use your own skincare inst…

Text truncated - open the document above for the full version.

FAQ™ 221 SILICONE LED HAND MASK Online Manual ----------------------------------------- FULL USER MANUAL GETTING STARTED Congratulations on taking the first step into a new era of anti-aging by acquiring FAQ™ 221. Before you begin to enjoy all the benefits of professional skincare technology in the comfort of your home, please take a few moments to carefully read the instructions in this manual. Please READ ALL INSTRUCTIONS BEFORE USE and utilize this product only for its intended use as described in this manual. WARNING: NO MODIFICATION OF THIS EQUIPMENT IS ALLOWED. ----------------------------------------- FAQ™ 221 OVERVIEW Introducing an entirely new generation of LED mask. Ultra-lightweight, wireless, and made with flexi-fit silicone to mold to your hand for even light coverage. FAQ™ 221 features 8 different wavelengths, including NIR, to tackle signs of aging and other skin concerns - while you do literally anything else. Move around freely, and enjoy spa-level LED treatments, at the push of a button. ----------------------------------------- GETTING TO KNOW FAQ™ 221 [insert diagram of device] INDICATOR LIGHT Indicates when device is in Bluetooth pairing mode, and Smart Control mode. UNIVERSAL POWER BUTTON Press once to turn on. Press again to switch LED colors. Press for 3 sec to turn off. From off, press for 3 sec to put mask in Bluetooth pairing mode to connect to the app. FLEXI-FIT SILICONE Ultra-hygienic and easy to clean. Molds to your hand like a transparent second skin for ease of movement. GOLD WRIST CHAIN Adjustable to keep mask securely on your hand so you can move around freely. OPEN PALM DESIGN Allows for ease of movement. so you can continue with your day while wearing the mask. 623 POINTS OF LIGHT Pulsing 3000x per second, and optimized to ensure the LED wavelengths penetrate evenly across all areas of skin. CHARGING PORT Up to 2.5 hours of use per 2 hour USB charge. USB charging cable provided. ----------------------------------------- WARNINGS FOR OPTIMUM SAFETY: • FAQ™ LED Masks should be comfortable – if you experience any discomfort or prolonged skin redness, discontinue use immediately and consult a physician. • Do not use on wound ulceration, trauma, and post-operative wounds. • Do not use if you have light-sensitivity or sunburnt or inflamed skin. • Do not stare directly at the LED lights. • This product should not be used by children. Close supervision is necessary when this product is used by, on, or near children and those with reduced physical and mental abilities. • For reasons of hygiene, we do not recommend sharing your FAQ™ 221 with anyone else. • Avoid leaving your FAQ™ 221 in direct sunlight and never expose it to extreme heat or boiling water. • Do not pull the gold wrist chain too tight, in order to avoid damage to the silicone mask. • Discontinue use if this product appears damaged in any way. • This product contains no serviceable parts. • Do not tamper or attempt to disassemble the product as this may cause damage to the unit. • Do not use while driving or operating heavy machinery. • Do not insert any object into any opening of the device. • Do not use the device if it is overheating or you suspect that it is malfunctioning. • This device should only be used with a SELV power adapter. • It is recommended that IEC60950 standard power suppliers are used to charge the device. • Before charging, make sure that the plug and socket are completely dry. Failure to do so may result in electric shock, short circuit, or fire. • Do not use the device while charging. Discontinue use if this device or charger is not working properly or appears damaged in any way. Only use the power cord supplied with your device. • The battery must be removed from the appliance before it is disposed of. The appliance must be disconnected from the supply mains when removing the battery, and the battery is to be disposed of safely. • Given the efficiency of the FAQ™ LED Masks, we recommend that you do not use FAQ™ 221 for more than 15 minutes at a time, per hand. • Use this LED Mask only for its intended use as described in this manual. If you do not find the answer to your specific question, or if you have any other questions regarding the device’s operation, please visit faqswiss.com/support ----------------------------------------- HOW TO USE FAQ™ 221 UNLOCK YOUR DEVICE In order to use your mask, you must first unlock it. You can do this automatically by registering your mask via the FAQ™ Swiss app for the first time. Simply follow the steps below: [insert QR code] 1. Download the FAQ™ Swiss app on your mobile phone by scanning the QR code. 2. Log in to your existing account, or sign up for a new one. 3. Add device (on the top of your screen). 4. Choose the device series. 5. Press and hold the universal button to connect your device to the app. 6. Fill in the purchase information. And your device is ready to use! HOW TO USE [Insert how to use images for each step. Below each image, add the corresponding text - like we have in the ppts ] 1. Start with clean and dry skin. Then place your FAQ™ 221 LED Mask on the back of your hand. Secure in place with the gold wrist chain. 2. Press the universal power button to turn on your mask. You can change the LED colors by quick-pressing the button again. Or you can access pre- programmed treatments and more settings via the FAQ™ Swiss app. 3. Enjoy your LED treatment for up to 15 mins. Once finished, repeat on the opposite hand. Press the universal power button for 3 seconds to turn off your mask. IMPORTANT THINGS TO NOTE: • We recommend using this mask for 5-15 minutes per hand, 3-5 times per week. • Do not pull the gold wrist chain too tight, or you may damage the mask. • Do NOT apply any hand care products that contain silicones or acids, or photosensitive ingredients such as Vitamin A, Retinol / Retinoids, AHAs, Benzoyl Peroxide and Vitamin C during your LED treatment. FAQ™ SWISS APP [image] The FAQ™ Swiss app offers instructions o…

Text truncated - open the document above for the full version.

VIS (Shanghai) Technology Limited Current Date: 2024-05-20 To: SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. No. 588 West Jindu Road, Songjiang District, Shanghai, China. 201612 Dear Sir/Madam, Subject: Declaration Letter about Identity of Products *WE (VIS (Shanghai) Technology Limited) HEREBY DECLARED THAT Product Description Silicone LED Mask Model No. FAQ TM 221 Manufacturer’s Name FAQ GmbH Manufacturer’s Address Schmiedengasse 31, 4500 Solothurn, Switzerland *Except that the model number and appearance (the shape of the external silicone gel) deviation, are identical with the original product as follows: Note: The definition of identical should be “electrically identical”. A device will be considered to be electrically identical if no changes are made to the devices’ schematics, board layouts, component layouts, chip sets, resistors and all other electrical aspects of the device are identical. with the model(s) below which samples we chose to be tested by SGS Model No. (型号): FAQ TM 211 Manufacturer’s Name (生产商名称): FAQ GmbH Manufacturer’s Address（生产商商地址): Schmiedengasse 31, 4500 Solothurn, Switzerland Sincerely, Signature (签字): Printed Name (姓名): Jeffrey Qi Position/Title (职位): Manager Contact Number (联系电话): 008613641786232

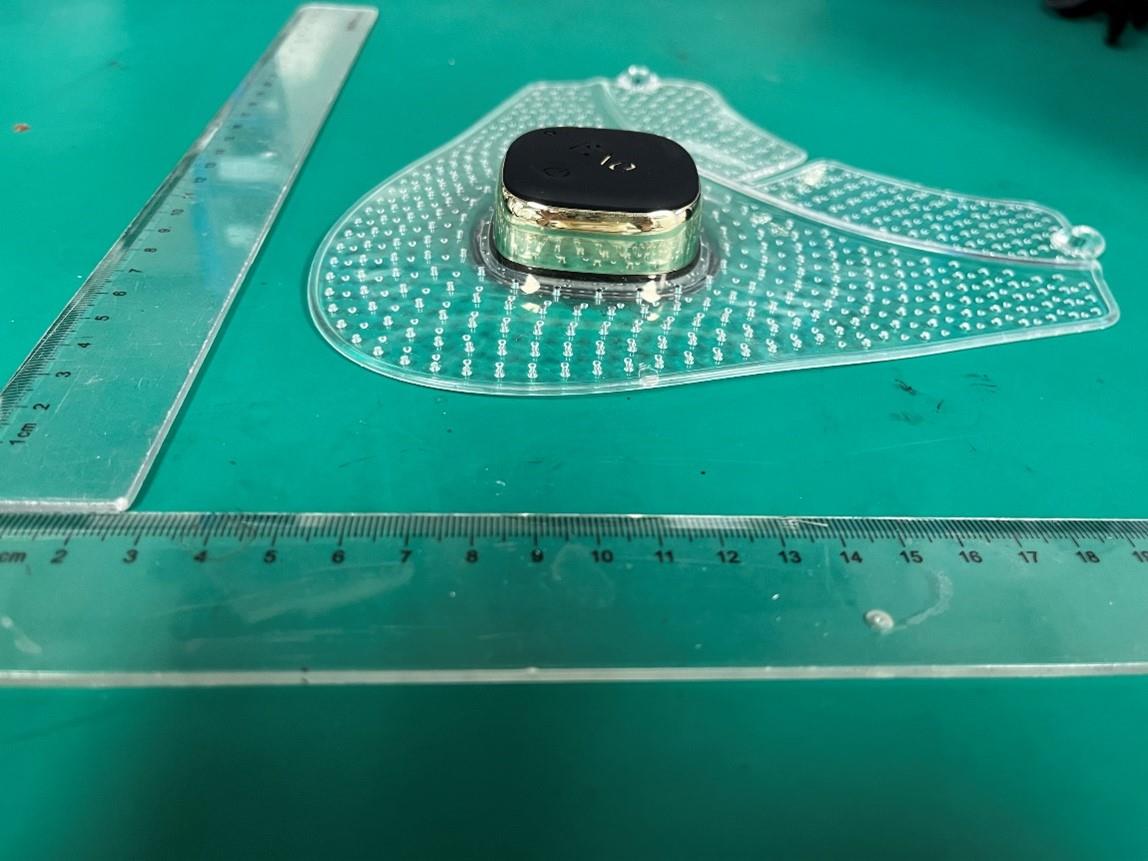

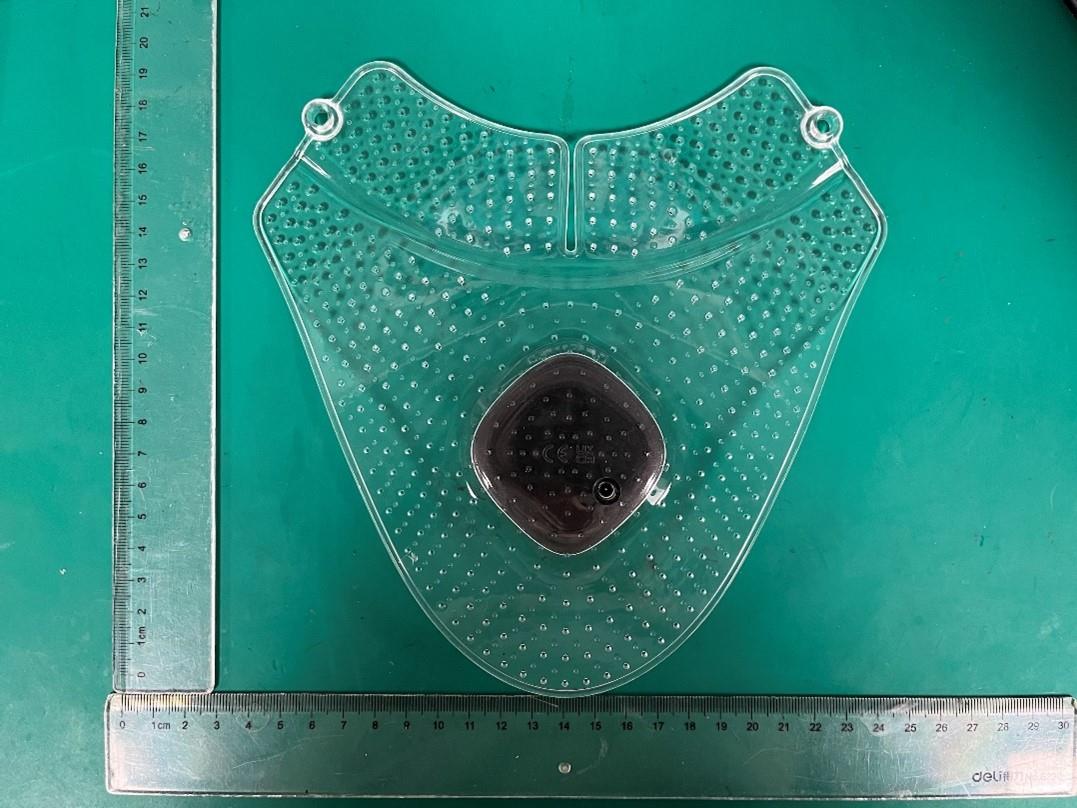

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 7 External Photos for SHCR2405000771HS Model No.: FAQ TM 221, FAQ TM 211 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 7 EUT Constructional Details (EUT Photos) Model: FAQ TM 211 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 7 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 7 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 5 of 7 Model: FAQ TM 221 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 6 of 7 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 7 of 7

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 9 Internal Photos for SHCR2405000771HS Model No.: FAQ TM 221, FAQ TM 211 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 9 EUT Constructional Details (EUT Photos) Model: FAQ TM 211 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 9 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 9 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 5 of 9 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 6 of 9 Model: FAQ TM 221 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 7 of 9 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 8 of 9 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 9 of 9

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SHEM-TRF-001 Rev. 02 Sep01, 2023 Report No.: SHCR240500077102 Page: 1 of 10 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. Member of the SGS Group (SGS SA) 1 Cover Page RF Exposure Evaluation Report Application No.: SHCR2405000771HS FCC ID: 2AT72-FAQ211 IC: 25565-FAQ211 Applicant: VIS (Shanghai) Technology Limited Address of Applicant: No.58 Linsheng Road,Tinglin Town,Jinshan District, Shanghai, China Manufacturer: FAQ GmbH Address of Manufacturer: Schmiedengasse 31, 4500 Solothurn, Switzerland Factory: VIS (Shanghai) Technology Limited Address of Factory: No.58 Linsheng Road,Tinglin Town,Jinshan District, Shanghai, China Equipment Under Test (EUT): EUT Name: Silicone LED Mask Model No.: FAQ TM 211 Add Model No.: FAQ TM 221 Trade Mark: FAQ Standard(s) : FCC Rules 47 CFR §2.1093 KDB 447498 D04 interim General RF Exposure Guidance v01 RSS-102 Issue 6 (December 15, 2023) Date of Receipt: 2024-05-06 Date of Test: 2024-05-07 to 2024-06-03 Date of Issue: 2024-06-04 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SHEM-TRF-001 Rev. 02 Sep01, 2023 Report No.: SHCR240500077102 Page: 2 of 10 Revision Record Version Description Date Remark 00 Original 2024-06-04 / Authorized for issue by: Tested By Bill Wu/Project Engineer Approved By Parlam Zhan / Reviewer SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SHEM-TRF-001 Rev. 02 Sep01, 2023 Report No.: SHCR240500077102 Page: 3 of 10 2 Contents Page 1 COVER PAGE .......................................................................................................................................... 1 2 CONTENTS ............................................................................................................................................... 3 3 GENERAL INFORMATION ..................................................................................................................... 4 3.1 GENERAL DESCRIPTION OF E.U.T. ..................................................................................................... 4 3.2 DETAILS OF E.U.T. ............................................................................................................................. 4 3.3 SEPARATION DISTANCE............................................................................................................................ 4 3.4 TEST LOCATION.................................................................................................................................. 5 3.5 TEST FACILITY .................................................................................................................................... 5 4 TEST STANDARDS AND LIMITS .......................................................................................................... 6 5 FCC RADIOFREQUENCY RADIATION EXPOSURE LIMITS ............................................................. 6 5.1 RF EXPOSURE TEST EXEMPTIONS FOR SINGLE RF SOURCES ....................................................................... 6 5.1.1 Blanket 1 mW Blanket Exemption .............................................................. 6 5.1.2 MPE-based Exemption ................................................................................. 6 5.1.3 SAR-based Exemption ................................................................................. 7 5.2 RF EXPOSURE TEST EXEMPTIONS FOR SIMULTANEOUS TRANSMISSION ...................................................... 8 6 IC RADIOFREQUENCY RADIATION EXPOSURE LIMITS ................................................................. 9 7 MEASUREMENT AND CALCULATION .............................................................................................. 10 7.1 MAXIMUM TRANSMIT POWER ............................................................................................................. 10 7.2 RF EXPOSURE CALCULATION ................................................................................................................. 10 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SHEM-TRF-001 Rev. 02 Sep01, 2023 Report No.: SHCR240500077102 Page: 4 of 10 3 General Information 3.1 General Description of E.U.T. Power supply: DC 3.7V Rechargeable battery Product Type: Portable device Mobile device Fixed device 3.2 Details of E.U.T. Operation Frequency: 2402MHz to 2480MHz Modulation Type: GFSK Number of Channels: 40 Date Rate: 1Mbps, 2Mbps Channel Spacing: 2MHz Antenna Type: PCB Antenna Antenna Gain: 0 dBi (Provided by manufacturer) S/N: B4CJ6BQtCv3pH2 Firmware Version: Rev A 3.3 Separation Distance Separation distance between the antenna to person (R): ＜5m…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SHEM-TRF-001 Rev. 02 Sep01, 2023 Report No.: SHCR240500077101 Page: 1 of 72 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. Member of the SGS Group (SGS SA) TEST REPORT Application No.: SHCR2405000771HS FCC ID: 2AT72-FAQ211 IC: 25565-FAQ211 Applicant: VIS (Shanghai) Technology Limited Address of Applicant: No.58, Linsheng Road,Tinglin Town, Jinshan District, Shanghai, China Manufacturer: FAQ GmbH Address of Manufacturer: Schmiedengasse 31, 4500 Solothurn, Switzerland Factory: VIS (Shanghai) Technology Limited Address of Factory: No.58, Linsheng Road,Tinglin Town, Jinshan District, Shanghai, China Equipment Under Test (EUT): EUT Name: Silicone LED Mask Model No.: FAQ TM 221, FAQ TM 211 Remark: Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Trade Mark: FAQ Standard(s) : 47 CFR Part 15, Subpart C 15.247 RSS-247 Issue 3, August 2023 RSS-Gen Issue 5 Amendment 2 (February 2021) Date of Receipt: 2024-05-06 Date of Test: 2024-05-07 to 2024-06-03 Date of Issue: 2024-06-04 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SHEM-TRF-001 Rev. 02 Sep01, 2023 Report No.: SHCR240500077101 Page: 2 of 72 Revision Record Version Description Date Remark 00 Original 2024-06-04 / Authorized for issue by: Tested By Bill Wu/Project Engineer Approved By Parlam Zhan / Reviewer SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SHEM-TRF-001 Rev. 02 Sep01, 2023 Report No.: SHCR240500077101 Page: 3 of 72 2 Test Summary Radio Spectrum Technical Requirement Item FCC Requirement IC Requirement Method Result Antenna Requirement 47 CFR Part 15, Subpart C 15.203 & 15.247(c) RSS-Gen Clause 6.8 N/A Customer Declaration N/A: Not applicable Radio Spectrum Matter Part Item FCC Requirement IC Requirement Method Result Minimum 6dB Bandwidth 47 CFR Part 15, Subpart C 15.247a(2) RSS-247 Clause 5.2(a) ANSI C63.10 (2013) Section 11.8.1 Pass Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247(b)(3) RSS-247 Clause 5.4(d) ANSI C63.10 (2013) Section 11.9.1 Pass Power Spectrum Density 47 CFR Part 15, Subpart C 15.247(e) RSS-247 Clause 5.2(b) ANSI C63.10 (2013) Section 11.10.2 Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247(d) RSS-247 Clause 5.5 ANSI C63.10 (2013) Section 11.13.3.2 Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247(d) RSS-247 Clause 5.5 ANSI C63.10 (2013) Section 11.11 Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.209 & 15.247(d) RSS-247 Section 3.3 & RSS-Gen Section 8.9 ANSI C63.10 (2013) Section 6.10.5 Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.209 & 15.247(d) RSS-247 Section 3.3 & RSS-Gen Section 8.9 ANSI C63.10 (2013) Section 6.4,6.5,6.6 Pass 99% Bandwidth - RSS-Gen Section 6.7 ANSI C63.10 Section 6.9.3 Pass Note: There are series models mentioned in this report, and they are the similar in electrical and electronic characters. Only the model FAQ TM 211 was tested since their differences were the model number and appearance (the shape of the external silicone gel). SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SHEM-TRF-001 Rev. 02 Sep01, 2023 Report No.: SHCR240500077101 Page: 4 of 72 3 Contents Page 1 COVER PAGE ..................................................................................................................................... 1 2 Test Summary ..................................................................................................................................... 3 3 Contents ............................................................................................................................................. 4 4 General Information............................................................................................................................ 6 4.1 Details of E.U.T. ........................................................................................................................... 6 4.2 Description of Support Units ......................................................................................................... 6 4.3 Power level setting using in test.................................................................................................... 6 4.4 Measurement Uncertainty ............................................................................................................ 7 4.5 Test Location ............................................................................................................................... 7 4.6 Test Facility ............................…

Text truncated - open the document above for the full version.

Specification Description Operation Frequency : BLE:2402-2480MHz Output power: 3mW Radio Channels Description: 40 channels Antenna Gain: 0 dBi Antenna Type: PCB An tenna Antenna Brand: N/A Antenna Model No.: N/A Antenna Connect Type: wiring Polarization: Linear, Vertical Antenna Manufacturer: VIS (SHANGHAI) TECHNOLOGY LIMITED Manufa cturer Address: No.58 Linsheng Road,Tinglin Town,Jinshan District,Shanghai,China Power Supply: DC 3.7 V from battery Antenn a Size(Dimension) or Photo: 2.Radiation Pattern Page: 3 of 4 Radiation pattern: Antenna 1. XZ Plane at f = 2.400GHz 0 4513 5 180 22 5 270 31 5 Radiation pattern: Antenna 1. XY Plane at f = 2.450GHz 0 4513 5 180 22 5 270 31 5 1 -1 -2 -3 -3 -2 -1 1 1 -1 -2 -3 -3 -2 -1 1 Page: 4 of 4 Radiation pattern: Antenna 1. XZ Plane at f = 2.500GHz 0 4513 5 180 22 5 270 31 5 Freq. [MHz] Gain[ dBi]Beam PeakBeam Null Value Phi Theta Value Phi Theta 2400 2450 2500 0 -0.2 -0.05 \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ 1 -1 -2 - 3 -3 -2 -1 1

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 3 Appendix Photographs of Test Setup for SHCR2405000771HS Test Model No.: FAQ TM 211 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 3 Test Setup Photo RF Conducted Radiated Spurious Emissions below 1GHz SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 3 Radiated Spurious Emissions above 1GHz The EUT Details of Zoom
