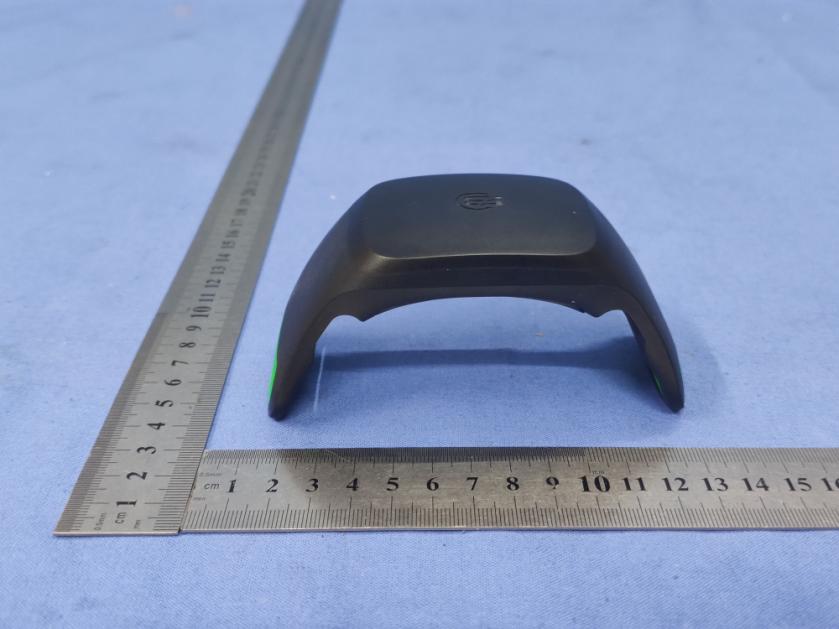

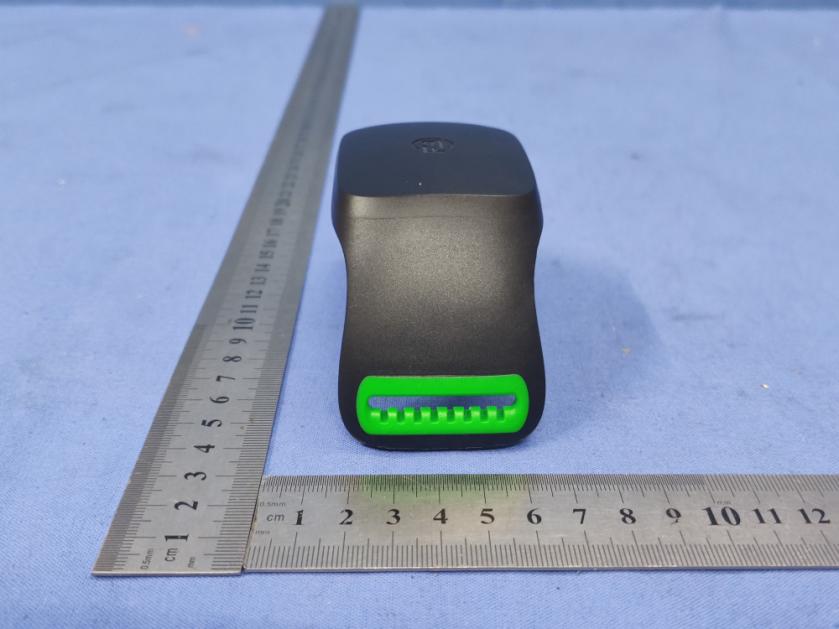

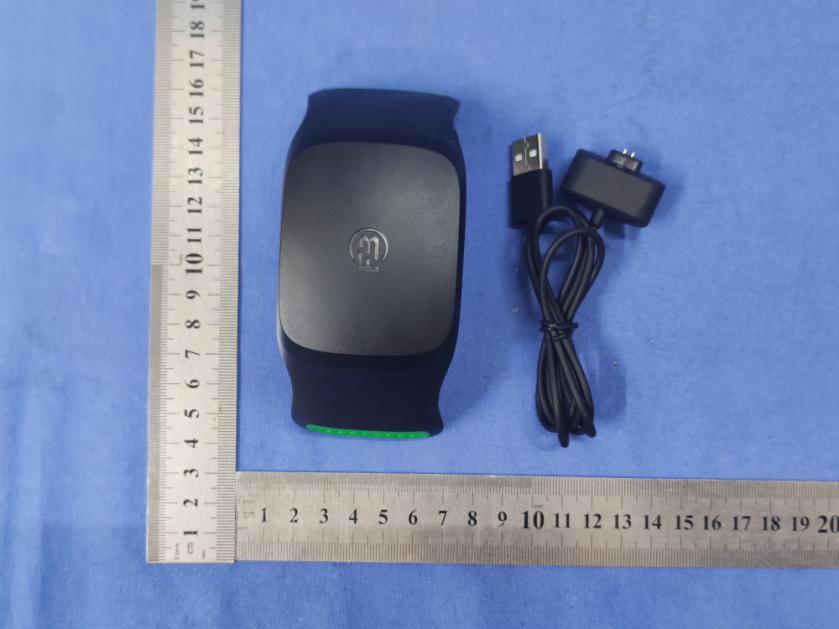

2AT74-FUTBAKAnkle Wrist

User Manual Here we go ! Welcome in the Team ! Thank you for choosing FutBak, the revolution of indoor football. Want to know the «Man of the match» ? Your pass success numbers ? Find out all your statistics with FutBak. This guide will help you to install correctly the FutBak system, and accompanies you throughout the adventure. 6 Sommaire 7 1 - DESCRIPTION AND INSTALLATION OF THE EQUIPMENT . The FutBak Totem ..................................................... . The FutBak station .................................................... . The FutBak ball .......................................................... . The FutBak ankle brace ............................................ 2 - FIRST STEPS . The homescreen ....................................................... . Create a match ......................................................... . Stop a match ............................................................. . Organize a match with the FutBak App ............... 3 - PROCESS IN CASE OF TECHNICAL PROBLEMS . Tactile Digital Totem ................................................ . Station & Ankle brace .............................................. 4 - ME & SPORTBAK . FutBak Store Access ................................................ . Assistance & Contact ............................................... 8 10 10 11 12 13 14 15 16 17 18 19 1 - DESCRIPTION AND INSTALLATION OF THE EQUIPMENT . The FutBak Totem Provided with : 1x Tactile Digital Totem 42’’ 1x Power cable 2x Antennas 1x Allen wrench 2x Keys 1x Foot support Installation Screw the Totem to the foot support and power it throug the cable. Connect the antennas to the ports. Turn on the switch and press the push button near on the left. Connect to the Wi-Fi network : On the right bottom of the screen, click on the menu and follow the connection steps. We advise to use an Ethernet cable. 8 1 - DESCRIPTION AND INSTALLATION OF THE EQUIPMENT Antennas ports Power portUSB ports Start button Switch On/O Ethernet port 9 1 - DESCRIPTION AND INSTALLATION OF THE EQUIPMENT . The FutBak station Screw the tube to the base. Plug the station. Open the windows with magnetic cards. Put the sensors in the notches of the station to charge them. Pay attention to the direction of the battery poles ! 10 . The FutBak ball 5 balls Uhlsport Elysia T4 and/or T5 are delivered with the system. One ball only must be ont the field during a match ! 1 - DESCRIPTION AND INSTALLATION OF THE EQUIPMENT . The FutBak ankle brace 22 sensors are provided Status of the sensor 1 - On the station : Red light ON : Charging Green light ON : Ready to use No color : Badly placed Blinkind red light : Badly placed 2 - On the ankle (after scan it) : No color : normal condition Blinking red light : Plug again Red light ON : Problem --> Keep the battery sensor discharge then reconnect it to the station. Clen the connectors regularly ! 11 2 - FIRST STEPS Watch all the created matches Find out all the results of your teamCreate your teams Watch the last results 12 2 - FIRST STEPS . On the FutBak Totem Click on «COMMENCER UN MATCH». Add players of the two teams. --> Search your profile RECHERCHER UN JOUEUR. --> Play as a guest PASSE EN INVITÉ. You can remove or modify a player at any time during team selection. Scan the sensor on the reader zone. Sensor installation : Each player should place the sensor on the sock (not on the skin) of his strong foot Click on «DÉMARRER LE MATCH». Choose and enter a 4-digits code to start the session. Enjoy ! 13 2 - FIRST STEPS . On the FutBak Totem Click on «SUIVI DES MATCHS». Click on the match that you concern. Enter the 4-digits code chosen before. Click on «ARRÊTER LE MATCH». Enter the code again. Take o and put all the sensors in the station. --> Pay attention to the direction of the battery poles Wait until you see the charge icon near all the profiles on the screen. Enter your number of goals (Not obligatory) Click on «BALANCE LES STATS». Compare yourselves ! 14 2 - FIRST STEPS FutBak FUTBAK 2. On the FutBak Totem Click on «SUIVI DES MATCHS». Find your match in «MATCH À VENIR». The game appear 12 hours before and disappear 30 minutes after the scheduled time. Follow the steps of «CREATE A MATCH». 1. On your smartphone Download the FutBak App (Apple Store or Google Play). Create your player profile. Click on «CRÉER UN MATCH». Enter the date and time of the match. Open the Map and choose your club. Add comment. Check the availabilty of the football pitch. --> Automatic call to the reception of the club. Click on «PUBLIER LA FEUILLE DE MATCH». Confirm. Attention : When confirmed, the modifications can only be made on the Totem. 15 3 - PROCESS IN CASE OF TECHNICAL PROBLEMS . Totem The Totem doesn’t turn on... - Is it plugged to the main supply ? - Is it switch «ON» ? - Do you have press on the push button ? The application doesn’t work... - Is the Totem connected to the internet? - Do you have internet on your devices (phone, tablet...) ? My match doesn’t launch... - Is your profile on another match ? - Are the sensors related to a profile ? My match created via application doesn’t appear... - Do you have confirm the match on the application ? - Are you sure about time/date of the match ? - Remember : a match appear 12 hours before and disappear 30 minutes after the scheduled time. 16 3 - PROCESS IN CASE OF TECHNICAL PROBLEMS . Station and sensors Sensors are in the station with the right places but none of them charge... - Is the station plugged to the main supply ? A sensor doesn’t charge... - Is it correctly plugged in the station ? - Do you have check the direction of battery poles ? - Is it in good condition ? (no water, flaws...) - Is the sensor port clean ? - Is the station port in good condition ? The Totem doesn’t recognize my sensor... - Is the sensor suciently recharged ? - Make sure that you scan the sensor in front of the reader zone. 17 4 - ME & SPORTBAK Connect to www.futstore.sportbak.com and use your username and password pro…

Text truncated - open the document above for the full version.

SportBak DA TE : 03/10/2020 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AT74-FUTBAK Product Name: Ankle Wrist Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality - for example ... ) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name: Gabriel Cohen Title: Co-Founder & CEO Company: SportBak

DATE : 03/10/2030 Equipment Autorisation Division Federal Communications Commission 7 435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AT74-FUTBAK Product Name: Ankle Wrist Request for Short-T erm Confidentiality SportBak Pursuant to Sections 0.457 and 0.459 of the commission rules, and in accordance with the FCC Public notice dated June 15, 2004 (DA 04-1705), we hereby request short-term confidentiality for the following items prior to marketing the device.: • Test Setup Photos • External Photos • Internai Photos • User Manual The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prier to marketing or release of the product to the public. Signature: Name: Gabriel Cohen Title: Co-Founder & CEO Company: SportBak

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10- g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m Sopt = (EXd) 2 /30 x gt Ant gain= 1.5 dBi ; so Ant numeric gain= 1.4 Field strength =85.56dBuV/m @3m So Pt={ [10 (85.56/20) /10 6 x3] 2 /30 }x1000 mW =0.108 mW So (0.108 mW/5mm)x √2.402 GHz = 0.033 < 3 Then SAR evaluation is not required

Global United Technology Services Co., Ltd. Report No.: GTS201911000064F01 Authorized Signature: Robinson Lo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 31 Test Report Applicant: SportBak Address of Applicant: 60 avenue Andre Roussin 13016, Marseille, France Manufacturer: SportBak Address of Manufacturer: 60 avenue Andre Roussin 13016, Marseille, France Equipment Under Test (EUT) Product Name: Ankle Wrist Model No.: FutBak V1 FCC ID: 2AT74-FUTBAK Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249 Date of sample receipt: November 12, 2019 Date of Test: November 13-December 12, 2019 Date of report issued: December 13, 2019 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTS201911000064F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 31 2 Version Version No. Date Description 00 December 13, 2019 Original Prepared By: Date: December 13, 2019 Project Engineer Check By: Date: December 13, 2019 Reviewer Report No.: GTS201911000064F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 31 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 4.1 MEASUREMENT UNCERTAINTY ............................................................................................................ 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 TEST MODE ........................................................................................................................................ 7 5.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.4 DEVIATION FROM STANDARDS ............................................................................................................. 7 5.5 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................... 7 5.6 TEST FACILITY .................................................................................................................................... 7 5.7 TEST LOCATION ................................................................................................................................. 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA .................................................................................... 10 7.1 ANTENNA REQUIREMENT ................................................................................................................... 10 7.2 CONDUCTED EMISSIONS ................................................................................................................... 11 7.3 RADIATED EMISSION METHOD ........................................................................................................... 14 7.3.1 Field Strength of The Fundamental Signal ................................................................................ 16 7.3.2 Spurious emissions .................................................................................................................... 17 7.3.3 Bandedge emissions.................................................................................................................. 25 7.4 20DB OCCUPY BANDWIDTH .............................................................................................................. 29 8 TEST SETUP PHOTO ............................................................................................................................ 31 9 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 31 Report No.: GTS201911000064F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 31 4 Test Summary Test Item Section in CFR 47 Result Antenna requirement 15.203 Pass AC Power Line Conducted Emission 15.207 Pass Field strength of the fundamental signal 15.249 (a) Pass Spurious emissions 15.249 (a) (d)/15.209 Pass Band edge 15.249 (d)/15.205 Pass 20dB Occupied Bandwidth 15.215 (c) Pass Remarks： 1. Pass: The EUT complies with the essential requirements in the standard. 2. Test according to ANSI C63.10:2013. 4.1 Measurement Uncertainty Test Item Freq…

Text truncated - open the document above for the full version.

Radiated Emission Conducted Emission
