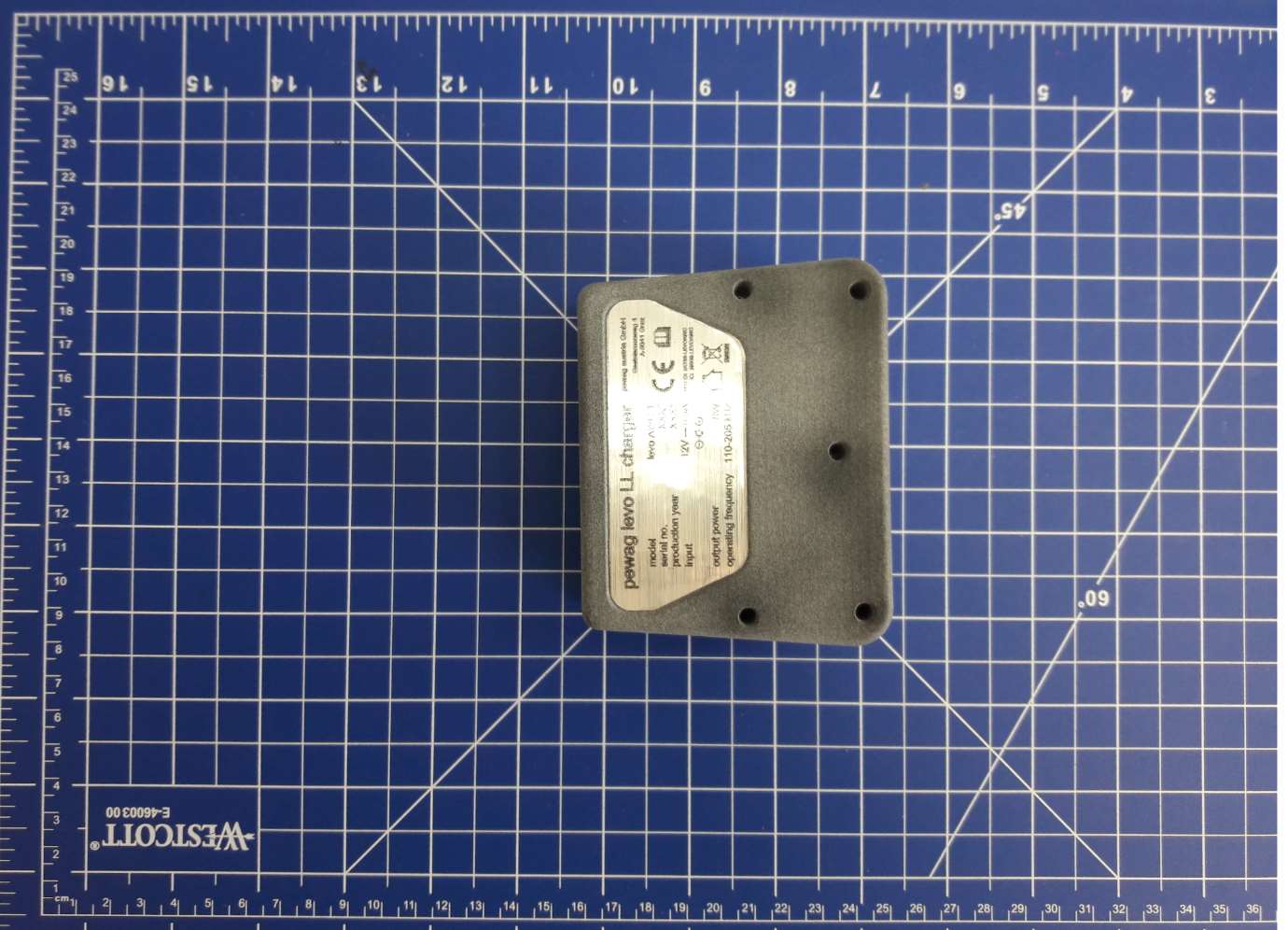

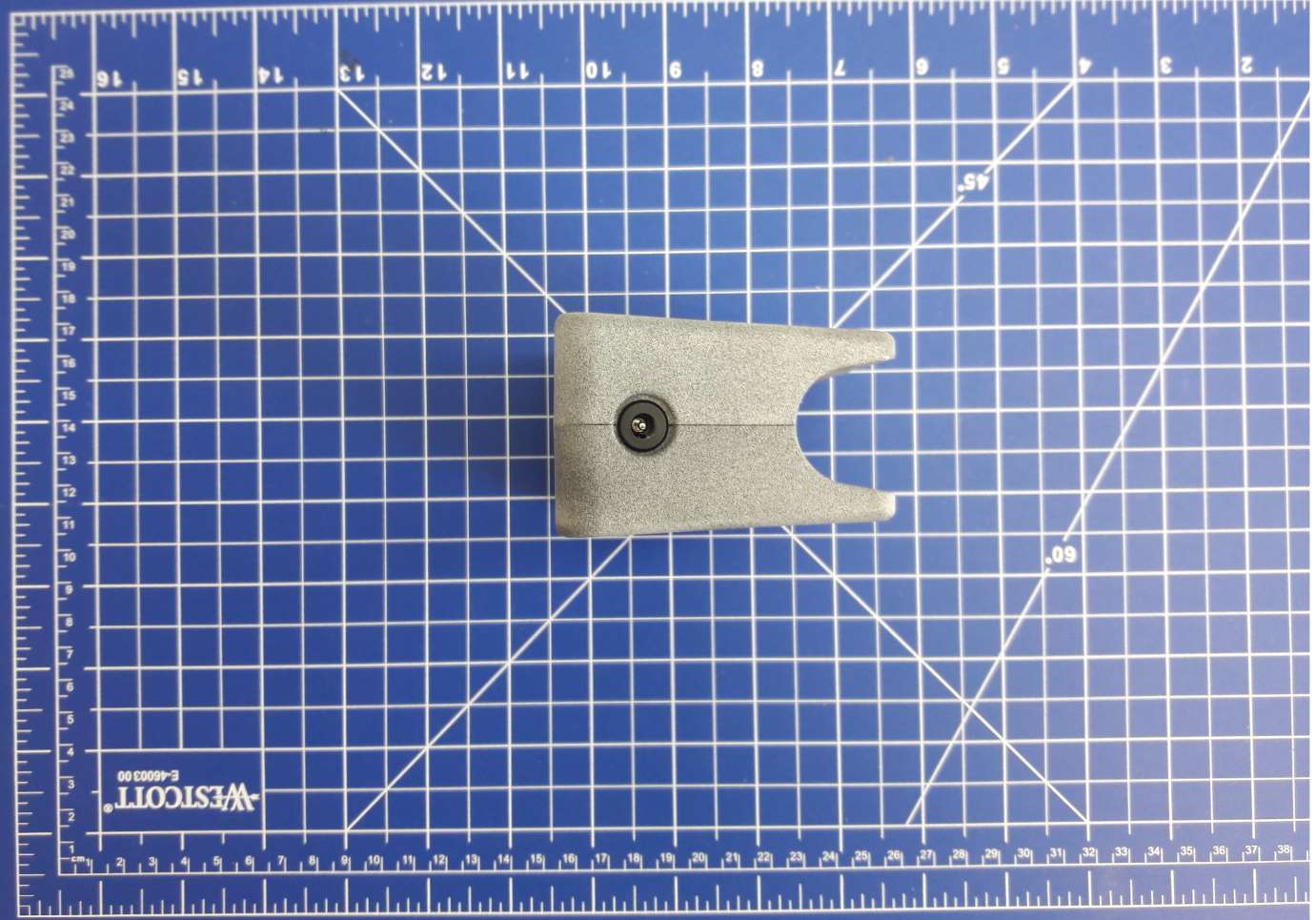

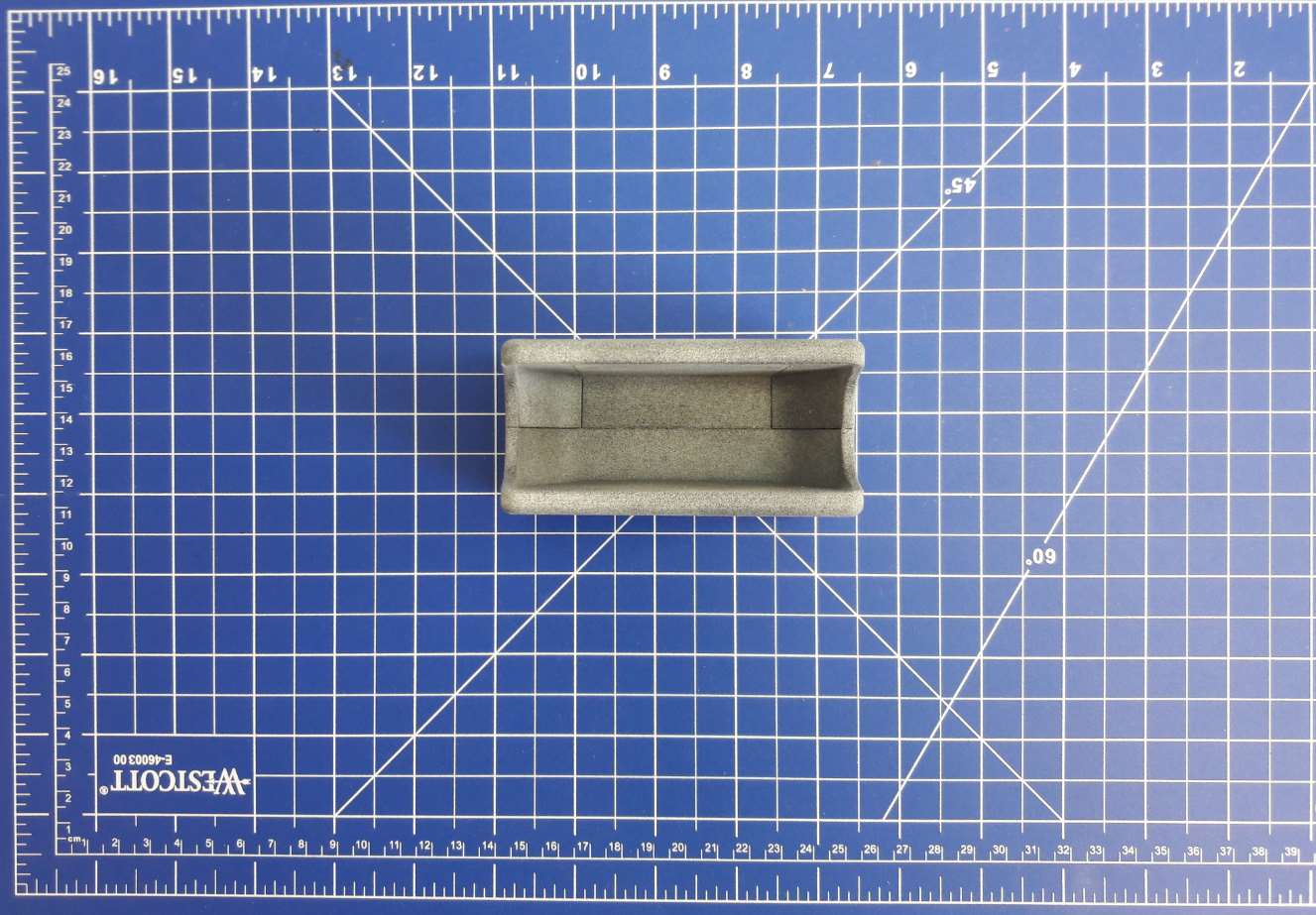

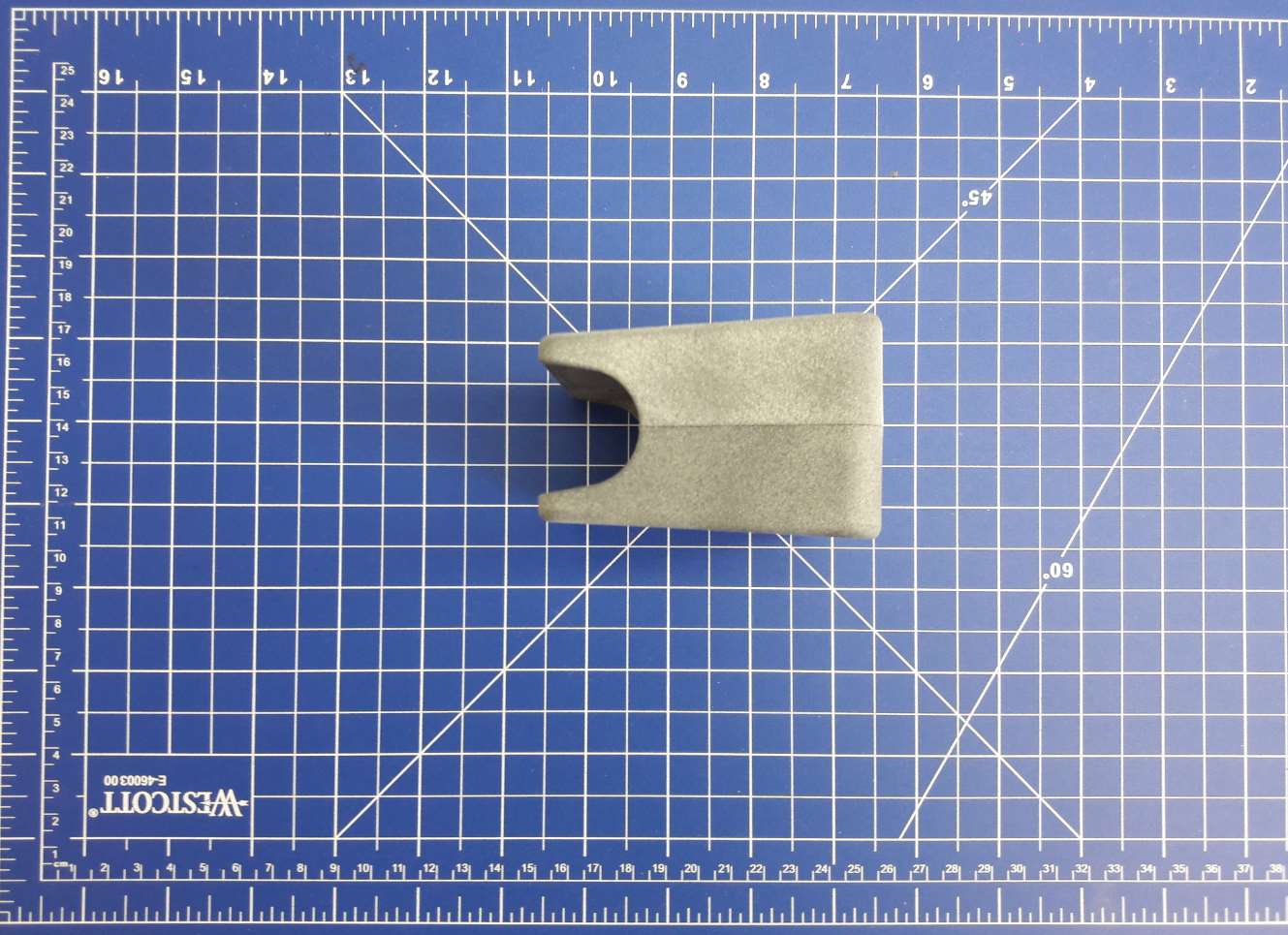

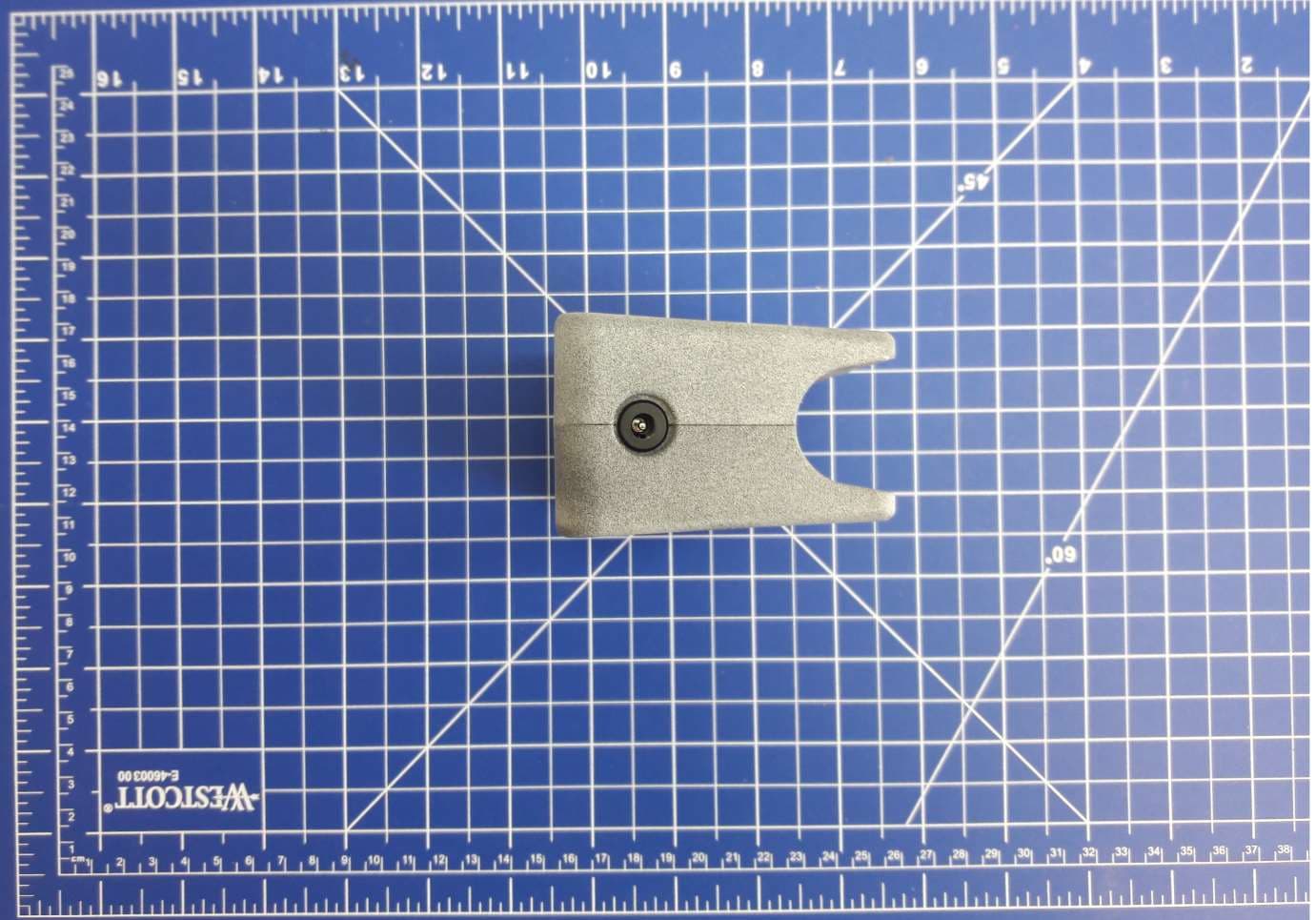

2AT89-LEVOAWCWireless Charger

pewag levo link LL 1 Original operating manual for pewag levo link LL Please read the operating manual carefully prior to using this product. If you have any questions, please contact your supplier. We are always grateful for comments or suggestions as to how we could improve the content of our operating manuals. As a result of our ongoing research and development efforts, the pewag group reserves the right to perform technical changes and/or changes of external characteristics of our lifting devices. This operating manual must be made available to users until the lifting device is removed from service. This operating manual is subject to an ongoing improvement process and is therefore only valid in its most recent version. The most recent version of this operating manual is available at www.pewag.com. Content 1. General information 2. Description of functions 3. Safety instructions 3.1 General information 3.2 Battery 3.3 Charging station and multi-adapter 4. Designated use and technical data 4.1 pewag levo link LL 4.2 Battery 4.3 Charging station and multi-adapter 4.4 Labelling and identification 4.5 Restrictions on use 4.6 Foreseeable misuse 4.7 Warnings and protective measures to be taken by the user 5. First use and operation 5.1 Battery installation 5.2 First use 5.3 Operating the levo remote standard radio control 5.4 Connecting the pewag levo clamp LC with the radio control unit 5.5 pewag levo clamp LC network 5.6 Disconnecting the pewag levo clamp LC from the radio control unit 5.7 Charging station 5.8 peTAG 6. Additional equipment and accessories 6.1 Light module 6.2 Multi-adapter and end piece 6.3 pewag levo manager 6.4 levo manager USB dongle 6.5 pewag levo data logger 7. Attaching and lifting the load 7.1 Attachment to the crane hook 7.2 Lifting and lowering the load 8. Procedure in case of accidents or faults 9. Cleaning, maintenance, regular inspections 9.1 Cleaning 9.2 Maintenance & repair 9.3 Exchanging the battery unit 9.4 Exchanging the battery of the levo remote radio control unit 9.5 Exchanging the fuse of the multi-adapter 9.6 Regular inspections and repairs 10. Warranty 10.1 Terms and conditions 11. Storage 12. Removal from service 13. Declaration of conformity 14. Appendix 2 pewag levo link LL 1. General information Please read this operating manual carefully prior to using the lifting device. If you have any questions, please contact your supplier. Thank you for choosing one of our high-quality products. pewag austria GmbH is an ISO 9001-certified company and stands for the highest level of quality and safety based on many years’ experience. The pewag levo link LL is part of the pewag levo WE product family. It is manufactured using premium components and complies with the following standards and product requirements: 2. Description of functions The pewag levo link LL is a lifting device with weighing unit. The indicated weight on the masterlink can be seen in the pewag levo manager software. The masterlink is attached to a crane hook in a suitable size. The load to be lifted is attached to a chain sling, which is mounted on the pewag levo link LL. The device is powered by a rechargeable, replaceable lithium-ion battery. Code Load capacity [lbs] d [mm] t [mm] w [mm] s [mm] Weight approx. [lbs] LL 7 16.700 0,91 6,30 3,54 0,67 4,41 Code Load capacity [kg] d [mm] t [mm] w [mm] s [mm] Weight approx. [kg] LL 7 7.600 23 160 90 17 2 Mechanical components Electrical/electronic components Charging station ISO 9001 UL/CSA 61010-1 EN 61000-4-8 ETSI EN 303 417 EN 1677 Maschinenrichtlinie 2006/42/EG ETSI EN 301489-1 ETSI EN 301489-3 IEC/EN 61010-1 ETSI EN 301 489-1 ETSI EN 301 489-3 EN 10204 3.1.B EN 55011:2018 EN 61326-1:2013 EN 50364:2010 EN 62479:2011 FCC, 47 CFR Part 15 CFR 47, Part 15 EN 61000-4-2 EN 61000-4-3 EN 300220-2 IC RSS-102 RSS-216 FCC KDB 680106 D01 RSS-102 IEC/EN 61010-1 IEC/CSA 61010-1 EN The highlighted sections in this operating manual contain information on areas with a particularly high risk potential. Disregarding this information may cause serious injuries or death. Please pay particular attention to these sections. pewag levo link LL 3 3. Safety instructions 3.1 General information • This product may only be operated by properly trained persons who must comply with all relevant standards and country-specific regulations. Users of this product must be in a good physical condition. Users of this product must not be under the influence of drugs, alcohol or medication. The pewag levo link LL must not be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction. Children must not play with the pewag levo link LL. • Inspect the product for obvious defects prior to each use (deformations, cracks etc.) and ensure that it is functioning correctly. Ensure that the product has not been modified in any way. The system must not be used in case of missing or damaged components. • Always use appropriate protective equipment (e.g. helmet, goggles, gloves etc.) and pay attention to the warning symbols. • Do not use the system if it has not been tested or if a test date has been missed. • Never usethe system for a load that exceeds the maximum load specified on the identification plate.The lifting device must not be used for lifting and/or transporting persons. • Loads must never be transported over the heads of persons. Always ensure that no persons remain in the lifting area and that safety distances are kept. • Suspended loads must never be left unsupervised or unsecured. • Do not use the lifting device as earthing for electrical works or welding works. • Do not perform welding operations on the load while it is connected to the pewag levo link LL. • The pewag levo link LL must not have contact with a welding electrode under any circumstances. • Prior to the lifting operation, ensure that the used lifting devices, chains, connectors, loops, etc.…
