2AT8M-AN-S1-V3X0BEAM-AN-S1

Setting up Analogue Node (BEAM-AN-S1) This page provides information on setting up a Analogue Node to work with the offline Ackcio Beam gateway. Installation The Nodes can be directly affixed to a flat surface using M4 screws. However, for more sophisticated mounting scenarios, we recommend using the node bracket. The node bracket can be used to easily mount the node on flat surfaces, on pipes using U-bolts or cable-ties, or in other complicated settings. If you are using the bracket, first fix the node device to the bracket using M4 screws and nuts as shown below. Use four screws and nuts to attach the node to the bracket Connect the SMA antenna to the bulkhead. Once the mounting is complete, the node should look as follows. Node Setup 1.Connect the node antenna to the antenna bulkhead. 2. Connect the sensor wires to the node while ensuring that the wires are plugged in correctly. Voltage Output Sensors PWR: +Voltage input to sensor (e.g. +12V) GND: 0 Voltage input to sensor (e.g. 0V) 12VN: 12V Voltage input to sensor 1H: 1st channel positive output of sensor 1L: 1st channel negative output of sensor 2H: 2nd channel positive output of sensor 2L: 2nd channel negative output of sensor +T: Thermistor -T: Thermistor SHLD: Shield wire of sensor Current Loop Sensor PWR: +Voltage inputs to sensor (e.g. +12V) GND: Not used 12VN: Not used 1H: 1st output channel of sensor (e.g. -Voltage wire) 1L: Not used 2H: 2nd output channel of sensor (e.g. -Voltage wire) 2L: Not used +T: Thermistor -T: Thermistor SHLD: Shield wire of sensor Resistance Bridge (Wheatstone Bridge) Sensor / Potentiometer Sensor PBRG: Positive excitation input to sensor (+5V) GND: Ground excitation input to sensor 12VN: Not used 1H: Positive output channel of sensor (e.g. -Voltage wire) 1L: Negative output channel of sensor (applicable to Wheatstone Bridges) 2H: Not used 2L: Not used +T: Thermistor -T: Thermistor SHLD: Shield wire of sensor 3. Switch off the Node and insert the battery while ensuring the polarity is followed correctly. Configuring via the Ackcio Beam App 1.Download Ackcio Beam app at Google Playstore and connect to Gateway WiFi. 2. Plug in the USB end of the cable via an OTG adapter to your Android phone. 3. Important! Please make sure the Node switch is turned off before connecting to your phone. 4. Plugin micro USB end to the Node. 5. Switch on the Node. 6. Open the Ackcio Beam app on the phone. On toggle button, "Cloud" option is for Ackcio Cloud setup. "Gateway" option is for local or (API/FTP) setup. Please choose "Gateway" to proceed with local setup. (Please note that you need to add the Node and create the project first before you commission the node. Please refer to Gateway Setup for details.) "Gateway" option to connect to Local setup (i) You will see the project which you have already created once you open your Ackcio app. Click the button to download the project and go in to the project, you will see the project details. (ii) Press "Reset" button on the Node itself. Then click on “Setup Device” on the lower left menu on Ackcio app, the app will show connected node information. If the connection is unsuccessful, press "Reset" button on Node and connect again. (iii) <Optional Step> If Wireless Mesh (Relay) function is to be deployed, click on "Wireless Mesh" toggle button to enable. Once done, click on “Setup Sensor”, you can now configure the sensor settings. (iv) You will see this page with the available channels. Tap the “Arrow icon” on the respective channel which your sensor is connected to. (v) Sensor Code: Your desired sensor name. Sensor Type: Select respective sensor type. Parameters: Turn on the parameters as connected to the Node. Excitation: Set the warm up time required for the sensor. Excitation Voltage: Select either 5 or 12 or 24, depending on the sensor. (vi) Click Save Settings. The Node will now read the configured sensor. (vii) The next page, you will see the readings of the sensor. (viii) To get another reading, click on arrow icon. If reading is ok, please turn on blue color icon to enable the sensor. (ix) Repeat above steps to configure other channels of the Node. (x) Once all sensors are configured, click on “Enable Sensor”, it will take you to next page “Scanning Network” which will scan the wireless signal strength (RSSI) between the Node and Gateway. (xi) After you get the Network Test information, if you need to, you can refresh by pressing the button located at the lower right corner. (xii) After that, click “Start Monitoring” button then the app will prompt “Device commissioned”. Click OK. (xiii) Important! Next step, please press the Cloud Sync button at lower right area to send all the configuration information back to the gateway. (xiv) If you would like the Node to immediately send a reading to the Gateway, please press the “SYS TEST” button on the device physical circuit board. (xv) For additional node commissioning, repeat the steps above. (xvi) You can now go to the Gateway software dashboard on your computer and click on your project. You will now be able to see your commissioned devices under “Device Summary” Section. FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RF Radiation Exposure Statement: 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with RF radiation exposure limits set forth for an uncontrolled environment. 3.This equipment should be installed and operated with minimum distance 20cm between the radiator& your body.

2020-05-22 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Huatongwei International Inspection Co., Ltd./ 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China / Hans Hu,. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Ackcio Pte. Ltd. / 75 Ayer Rajah Crescent #03-01/02 Singapore 139953. Dated this May 22, 2020 Agency agreement expiration date: May 22, 2021 By: Mobashir Mohammad Signature Printed Title: Director On behalf of : Ackcio Pte. Ltd. Telephone: +6596100452

2020-05-22 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AT8M-AN-S1-V3X0 Product Name: BEAM-AN-S1 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this May 22, 2020 By: Mobashir Mohammad Signature Printed Title: Director On behalf of : Ackcio Pte. Ltd. Telephone: +6596100452

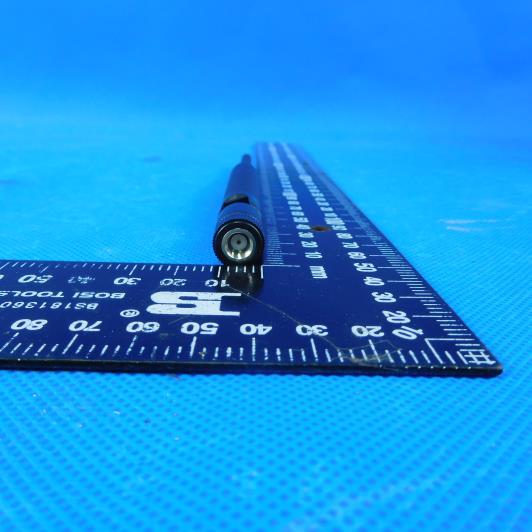

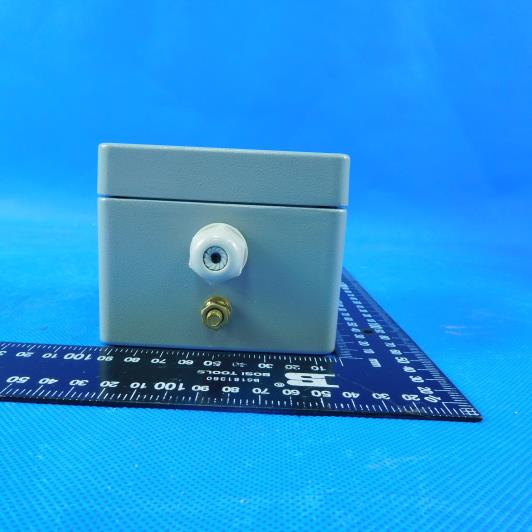

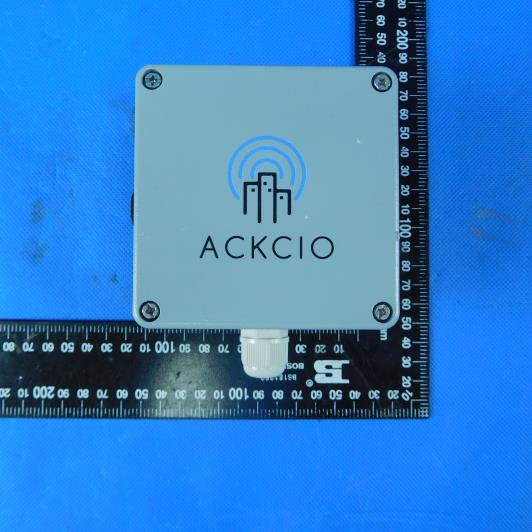

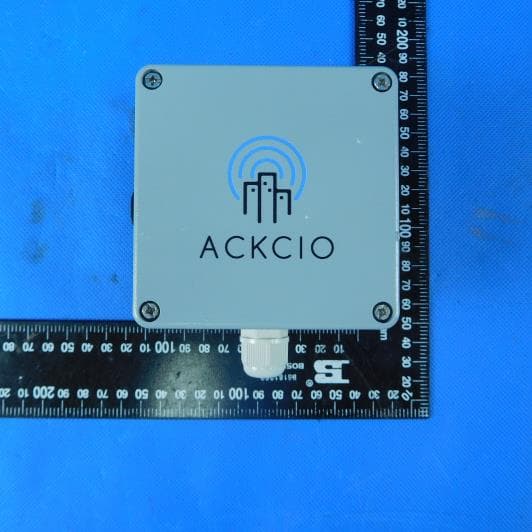

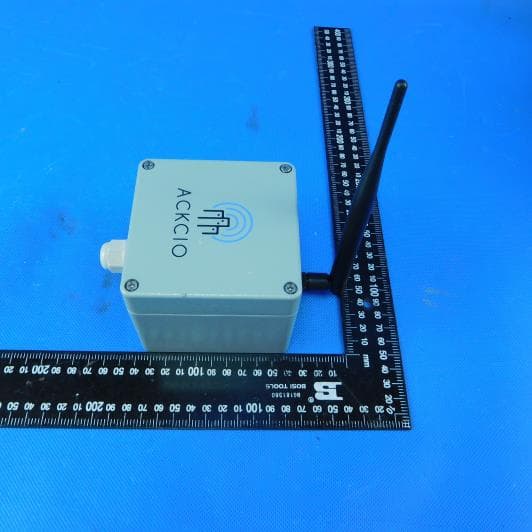

External Photos of the EUT

Internal Photos of the EUT

FCC ID: 2AT8M-AN-S1-V3X0 RF Exposure Evaluation LIMIT The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 - - f/300 6 1500–100,000 - - 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 - - f/1500 30 1500–100,000 - - 1.0 30 Note: f = frequency in MHz EVALUATION METHOD Transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW, G = gain of antenna in linear scale; Pi = 3.1416, R = distance between observation point and center of the radiator in cm TEST RESULT Passed Not Applicable FCC ID: 2AT8M-AN-S1-V3X0 Channel Conducted Average Power (dBm) Maximum Tune-up (dBm) Power Density (mW/cm2) Limit (mW/cm2) Result 00 10.05 11.00 0.005 1.0000 Pass Note: 1) The maximum antenna gain is 3dBi 2) The exposure evaluation safety distance is 20mm.

Page: 1 of 33 TEST REPORT Report No. ...................................... : CHTEW20040046 Report Verification: Project No.................................： SHT1906037409EW FCC ID ............................................. : 2AT8M-AN-S1-V3X0 Applicant’s name ........................... : Ackcio Pte. Ltd. Address .............................................. 75 Ayer Rajah Crescent #03-01/02 Singapore 139953 Manufacturer.....................................: Ackcio Pte. Ltd. Address..............................................: 75 Ayer Rajah Crescent #03-01/02 Singapore 139953 Test item description .................... : BEAM-AN-S1 Trade Mark ....................................... : - Model/Type reference ....................... : BEAM-AN-S1 Listed Model(s) ................................. : - Standard ......................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of receipt of test sample..........: Mar.19, 2020 Date of testing.............................: Mar.19, 2020- Apr.07, 2020 Date of issue...............................: Apr.08, 2020 Result .................. ........................: PASS Compiled by ( Position+Printed name+Signature): File administrator Echo Wei Supervised by (Position+Printed name+Signature): Project Engineer Kiki Kong Approved by (Position+Printed name+Signature): RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW20040046 Page: 2 of 33 Issued: 2020-04-08 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) Contents 1. TEST S T A N D A R D S AND R E P O R T V E R S I O N 3 1.1. Test Standards 3 1.2. Report version 3 2. TEST DESCRIPTION 4 3. SUMMARY 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 6 4. TEST CONFIGURATION 7 4.1. Test frequency list 7 4.2. Test mode 7 4.3. Support unit used in test configuration and system 7 4.4. Testing environmental condition 8 4.5. Measurement uncertainty 8 4.6. Equipment Used during the Test 9 5. TEST CONDITIONS AND RESULTS 11 5.1. Antenna Requirement 11 5.2. AC Conducted Emission 12 5.3. Peak Output Power 13 5.4. Power Spectral Density 14 5.5. 6dB bandwidth 15 5.6. 99% Occupied Bandwidth 16 5.7. Duty Cycle 17 5.8. Conducted Band edge and Spurious Emission 18 5.9. Radiated Band edge Emission 20 5.10. Radiated Spurious Emission 22 6. TEST SETUP PHOTOS 27 7. EXTERANAL AND INTERNAL PHOTOS 29 8. APPENDIX REPORT 33 Report No.: CHTEW20040046 Page: 3 of 33 Issued: 2020-04-08 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 1. TEST STANDARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: ‒ FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ‒ ANSI C63.10:2013: American National Standard for Testing Unlicensed Wireless Devices ‒ KDB 558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid System Devices Operating under Section 15.247 of The FCC Rules 1.2. Report version Revision No. Date of issue Description N/A 2020-04-08 Original Report No.: CHTEW20040046 Page: 4 of 33 Issued: 2020-04-08 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 2. TEST DESCRIPTION Report clause Test Items Standard Requirement Result 5.1 Antenna Requirement 15.203/15.247(c) PASS 5.2 AC Conducted Emission 15.207 N/A 5.3 Peak Output Power 15.247(b)(3) PASS 5.4 Power Spectral Density 15.247(e) PASS 5.5 6dB Bandwidth 15.247(a)(2) PASS 5.6 99% Occupied Bandwidth - PASS 5.7 Duty cycle - PASS 5.8 Conducted Band Edge and Spurious Emission 15.247(d)/15.205 PASS 5.9 Radiated Band Edge Emission 15.205/15.209 PASS 5.10 Radiated Spurious Emission 15.247(d)/15.205/15.209 PASS Note: ‒ The measurement uncertainty is not included in the test result. ‒ *1: No requirement on standard, only report these test data. Report No.: CHTEW20040046 Page: 5 of 33 Issued: 2020-04-08 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 3. SUMMARY 3.1. Client Information Applicant: Ackcio Pte. Ltd. Address: 75 Ayer Rajah Crescent #03-01/02 Singapore 139953 Manufacturer: Ackcio Pte. Ltd. Address: 75 Ayer Rajah Crescent #03-01/02 Singapore 139953 3.2. Product Description Name of EUT: BEAM-AN-S1 Trade Mark: - Model No.: BEAM-AN-S1 Listed Model(s): - Power supply: DC 3.6V Hardware version: 1.0 Software version: 4.4 3.3. Radio Specification Description Modulation: 2-GFSK Operation frequency: 902MHz - 928MHz Channel number: 50 Channel separation: - Antenna type: Omnidirectional Dipole Antenna Antenna gain: 3 dBi Report No.: CHTEW20040046 Page: 6 of 33 Issued: 2020-04-08 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 3.4. Testing Laboratory Information Laboratory Name Shenzhen Huatongwei International Inspection Co., Ltd. Laboratory Location 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Ti…
